2022 Ermaksan Speed Bend Pro 3100 x 175 CNC Pressbrake

2022 Ermaksan Speed-Bend PRO 3100x175 CNC Press Brake

2022 Ermaksan Speed-Bend PRO 3100x175 CNC press brake in very good condition. 175T x 3100mm, 6 axis, Delem DA66TX, CNC crowning, laser guards, tooling included.

Machine Manufacturer: Ermaksan

Model: Speed Bend Pro 3100 x 175T

Machine Type: 6 Axis CNC Pressbrake

Capacity: 3100 x 175T

Year: 2022

Control: Delem DA66TX

Condition: Very Good

Description

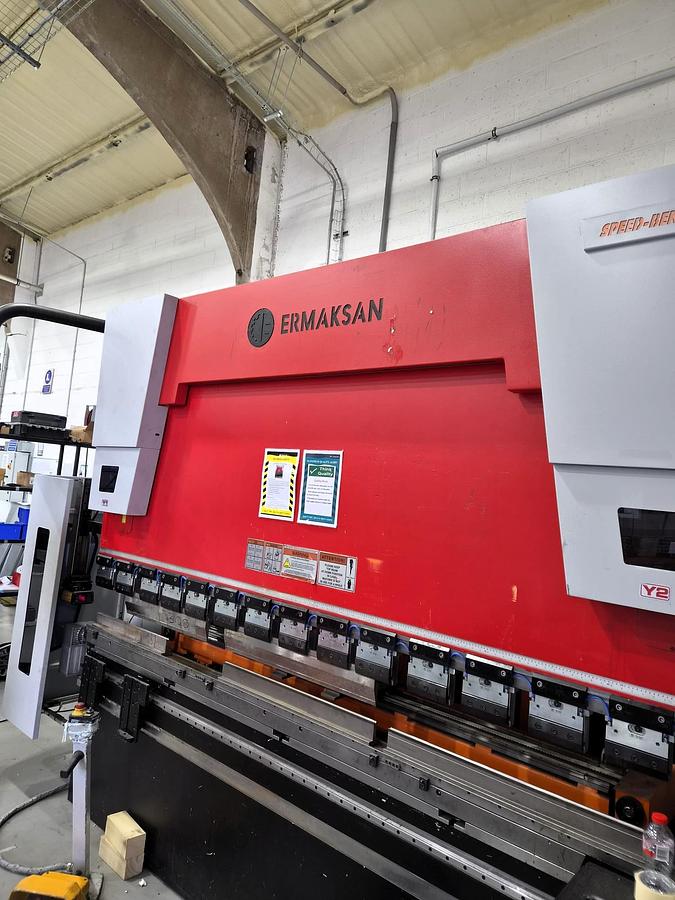

Ermaksan Speed-Bend Pro 6 Axis CNC Hydraulic Press Brake with Delem DA66TX Control.

Available now, this 2022 Ermaksan Speed-Bend PRO 3100x175 CNC Press Brake is a high-quality, modern hydraulic press brake in very good condition.

This is a 6 axis machine with Y1, Y2, X, R, Z1 and Z2 axes, fitted with a Delem DA66TX CNC control, pneumatic top tool clamping, CNC crowning, laser guards, wanderer type foot pedal, and supplied with top and bottom tooling.

Ideal for sheet metal fabrication, precision bending, stainless steel work, mild steel fabrication, aluminium bending, agricultural fabrication, general engineering and production workshops.

Key Features

• 2022 Ermaksan Speed-Bend PRO 3100x175
• 175 tonne bending capacity
• 3100mm bending length
• 6 axis CNC press brake
• Y1, Y2, X, R, Z1 & Z2 axes
• Delem DA66TX CNC control
• Pneumatic top tool clamping
• Top and bottom tooling included
• CNC / motorised crowning
• Laser safety guards
• Wanderer type foot pedal
• Very good condition
• Excellent machine for fabrication and production bending work

Machine Description

The Ermaksan Speed-Bend PRO 3100x175 is a modern CNC hydraulic press brake designed for fast, accurate and repeatable sheet metal bending. The Speed-Bend PRO range is built for productive workshop use, with high-speed axis movement, motorised crowning and a multi-axis backgauge system for efficient setup and repeat bending work.

The machine’s 6 axis configuration gives excellent flexibility for complex components, small batch work and production bending. With CNC crowning, the machine helps compensate for beam deflection during bending, improving consistency across the full length of the component.

Technical Specification

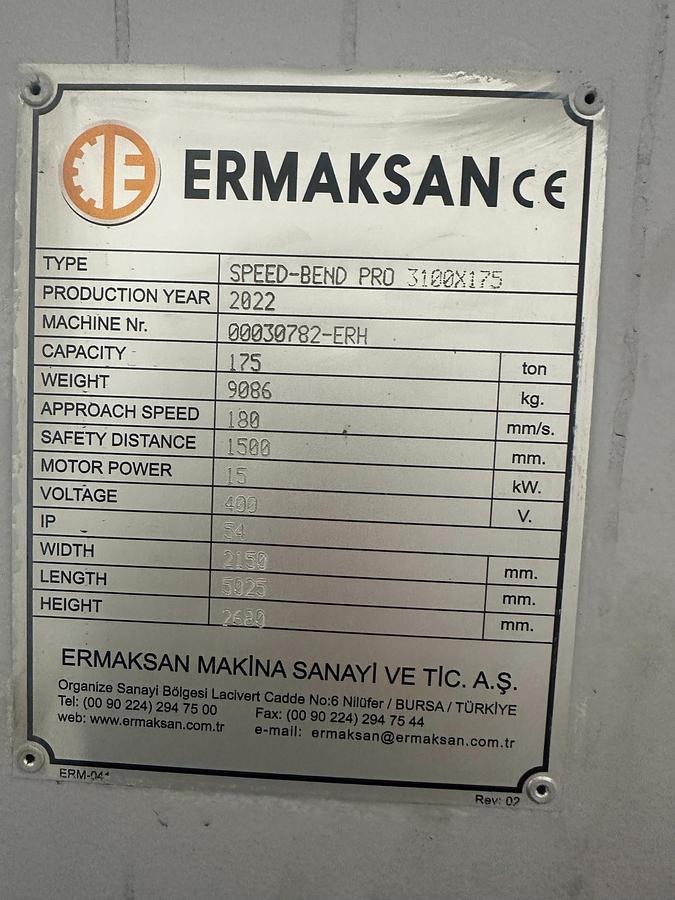

Capacity & Main Machine Data

• Manufacturer: Ermaksan
• Model: Speed-Bend PRO 3100x175
• Year: 2022
• Machine Type: CNC hydraulic press brake
• Bending Length: 3100mm
• Bending Force: 175 tonnes
• Distance Between Columns: 2600mm
• Axes: Y1, Y2, X, R, Z1, Z2
• Crowning: Motorised / CNC crowning

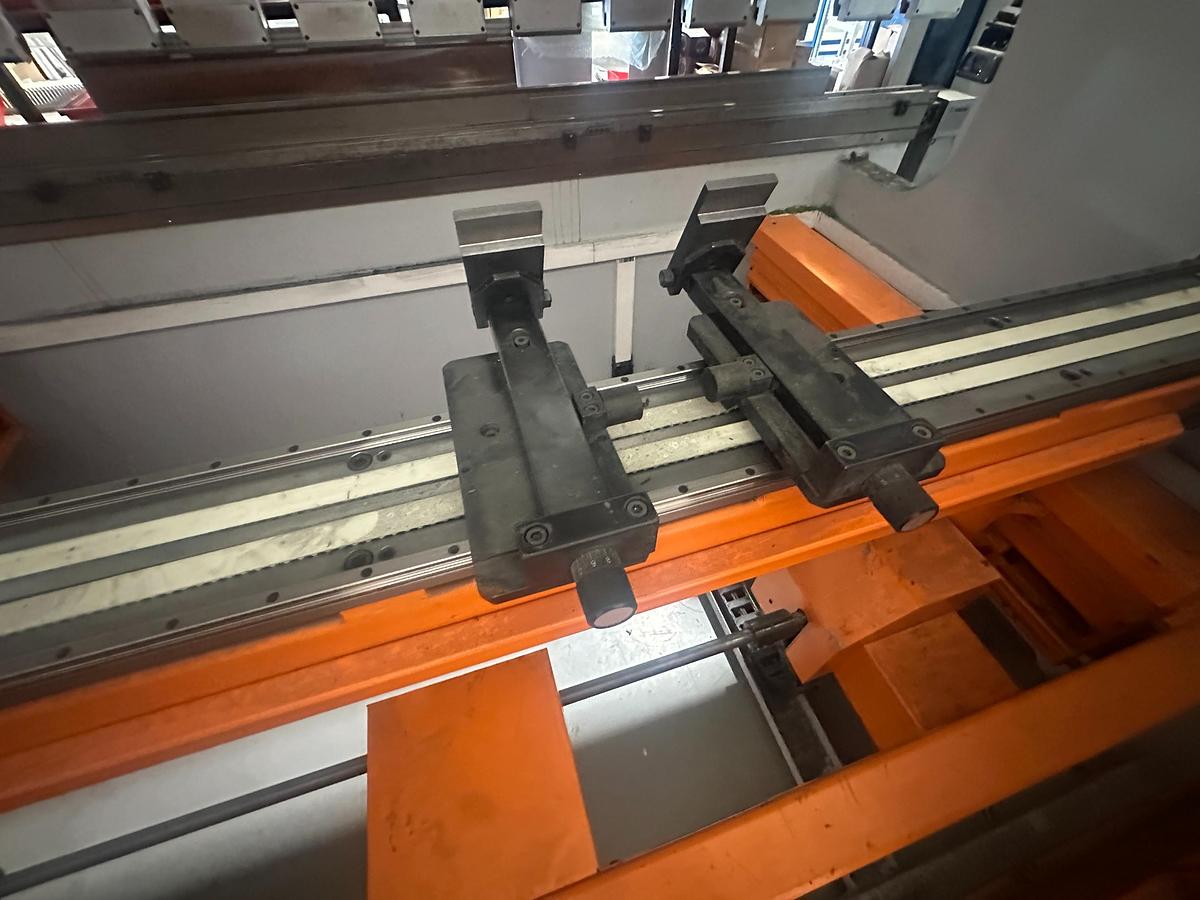

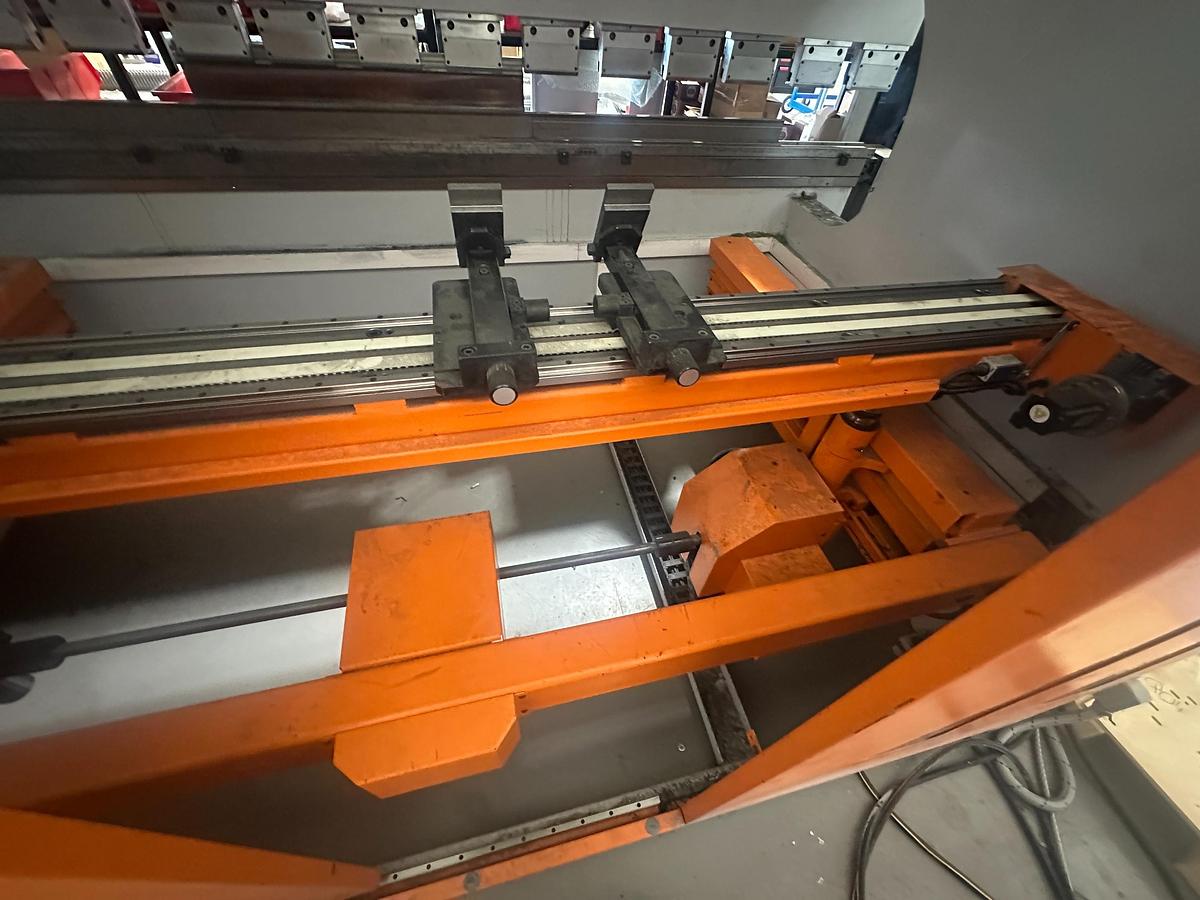

• Backgauge Finger Blocks: 2

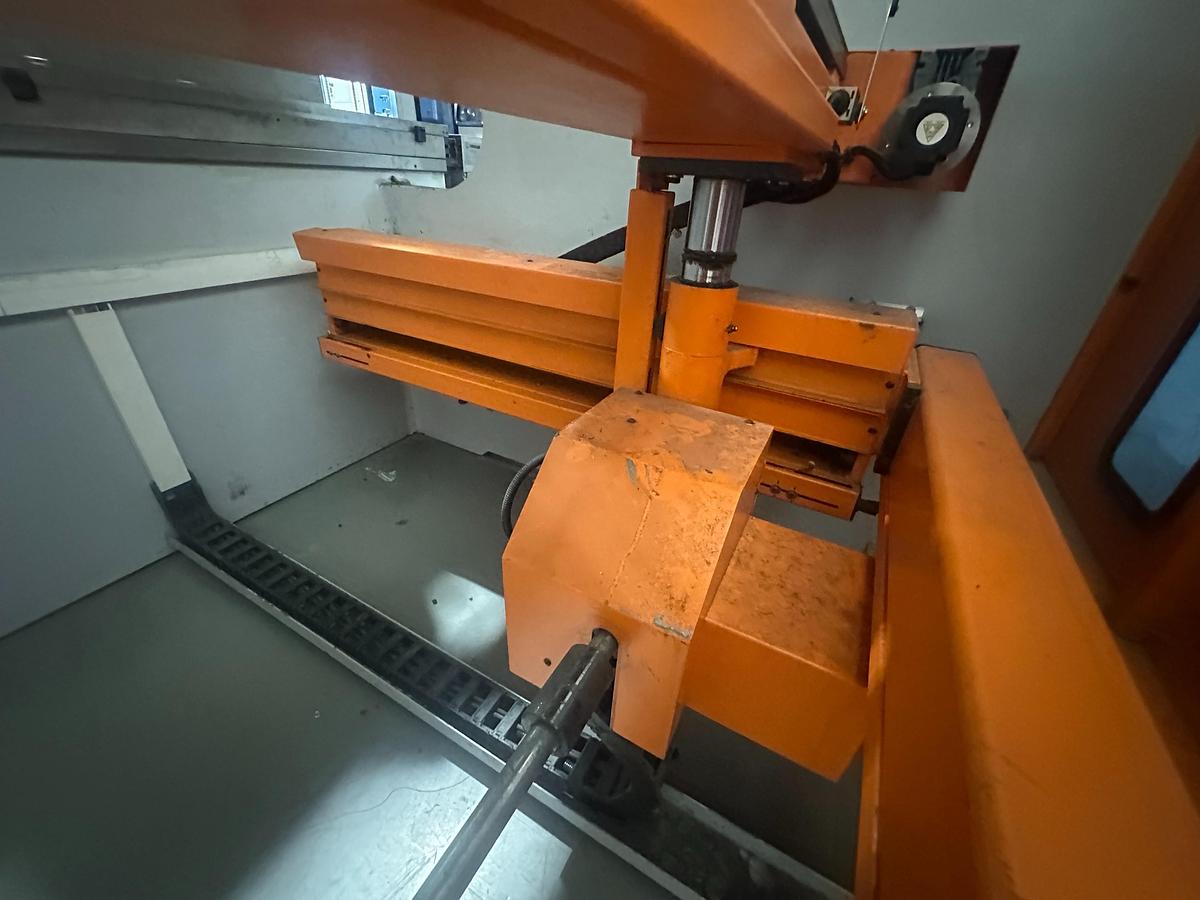

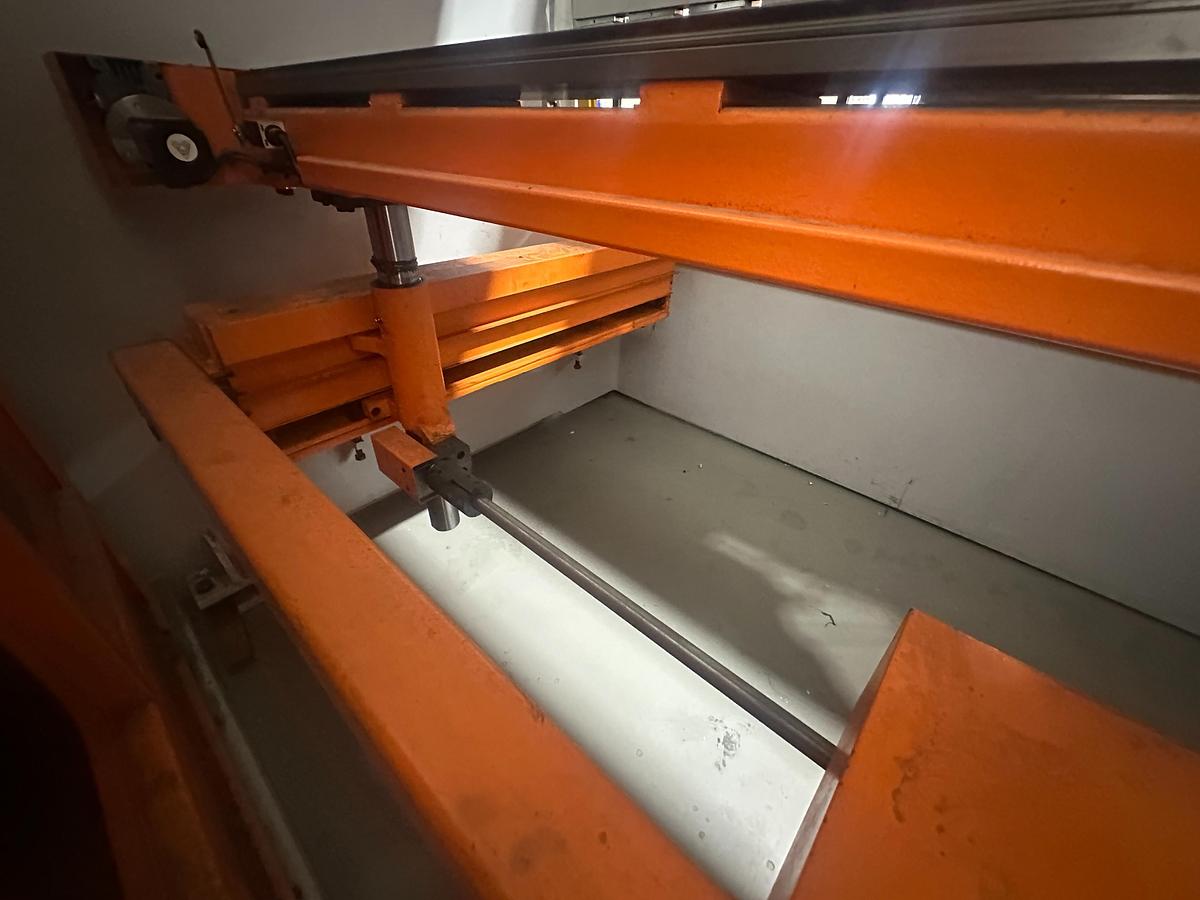

Speeds & Axis Travel

• Y Rapid Speed: 180mm/s
• Y Working Speed: 12mm/s
• Y Return Speed: 190mm/s
• X Axis Travel: 800mm
• X Axis Speed: 500mm/s
• R Axis Travel: 250mm
• R Axis Speed: 350mm/s
• Z1 / Z2 Axis Travel Speed: 1000mm/s

Stroke, Daylight & Frame

• Stroke: 275mm
• Daylight: 550mm
• Throat Depth: 410mm
• Table Height: 900mm
• Table Width: 90mm

Power, Size & Weight

• Oil Capacity: 300 litres
• Motor Power: 15kW
• Approx. Length: 5025mm
• Approx. Height: 2680mm
• Approx. Width: 2150mm
• Approx. Weight: 9086kg

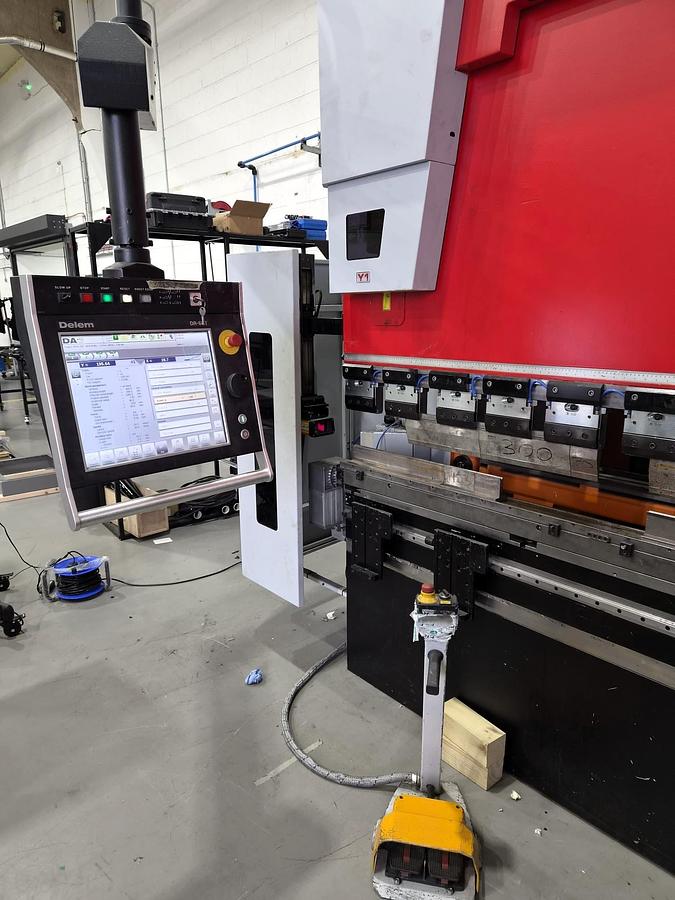

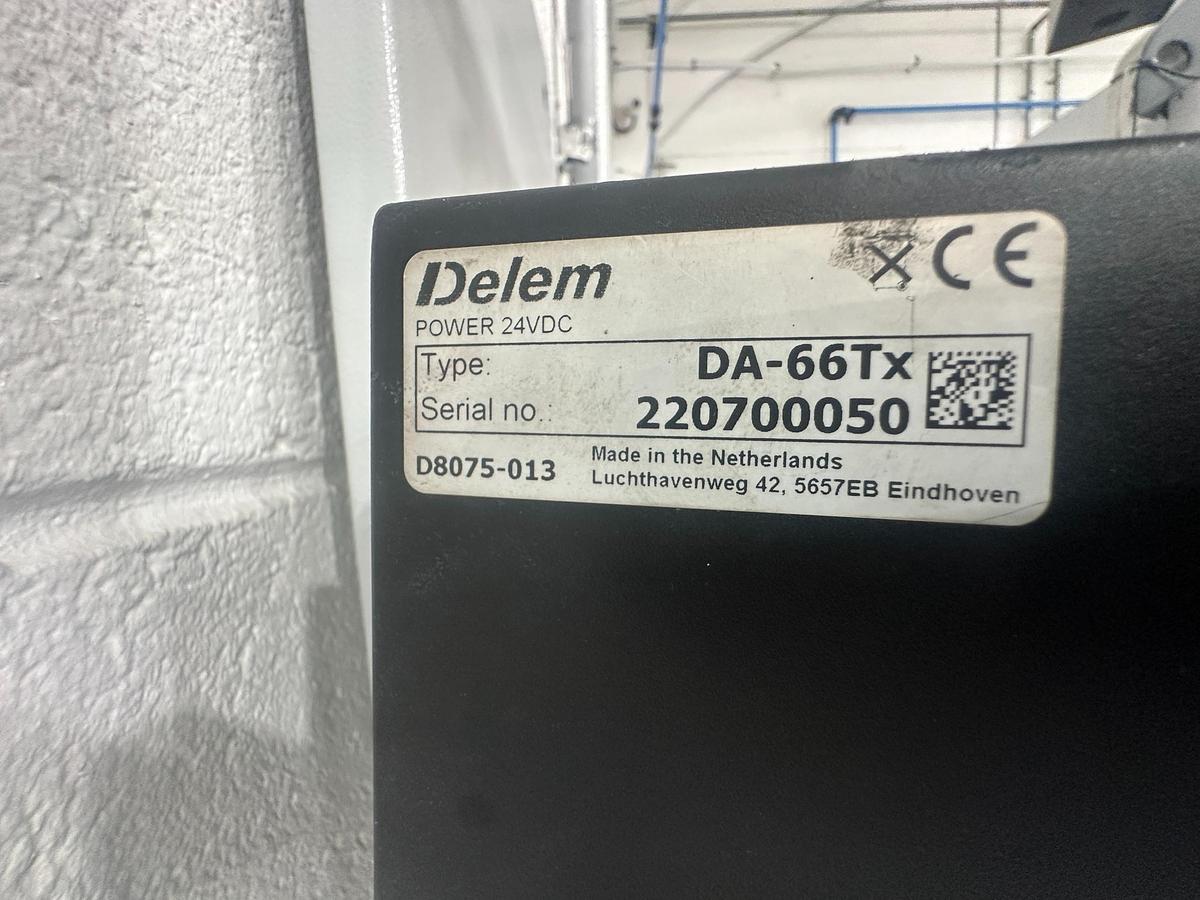

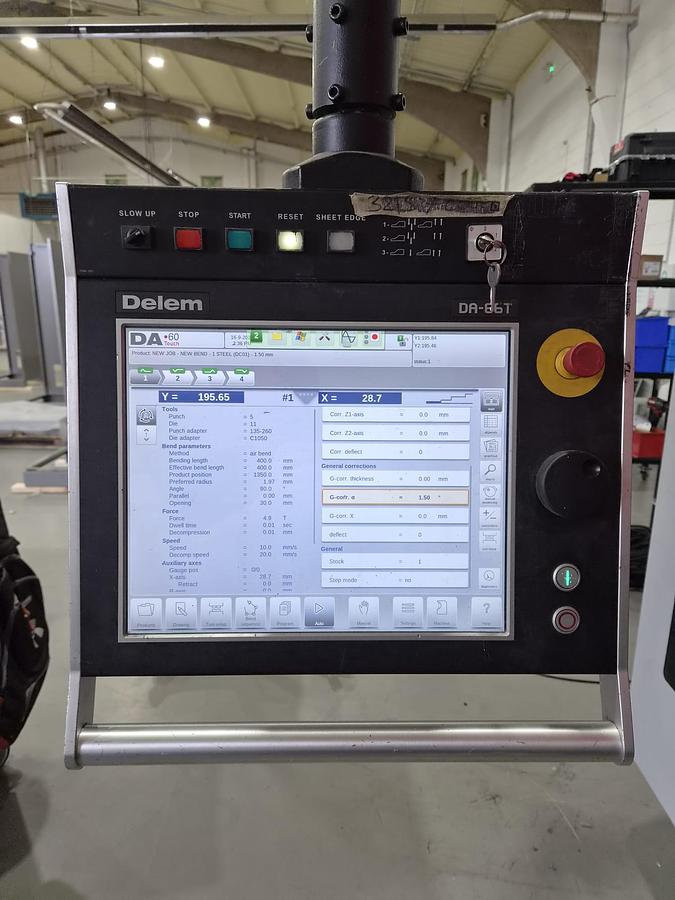

Delem DA66TX CNC Control

This machine is fitted with a Delem DA66TX CNC control, offering a professional touch-screen interface for modern press brake programming and operation.

Control Features Include

• 2D graphical touch-screen programming
• High-resolution colour TFT display
• Automatic bend sequence calculation
• Collision detection
• 3D machine setup with multiple tool stations
• USB / peripheral interfacing
• Product and tool memory
• Profile-TL offline software support
• User-friendly Delem touch navigation

Delem’s DA-66T platform is listed by Delem as a 2D graphical press brake control with automatic bend sequence calculation, collision detection, full 3D machine setup, USB interfacing, 17" high-resolution colour TFT display and Profile-TL offline software support.

Included Equipment

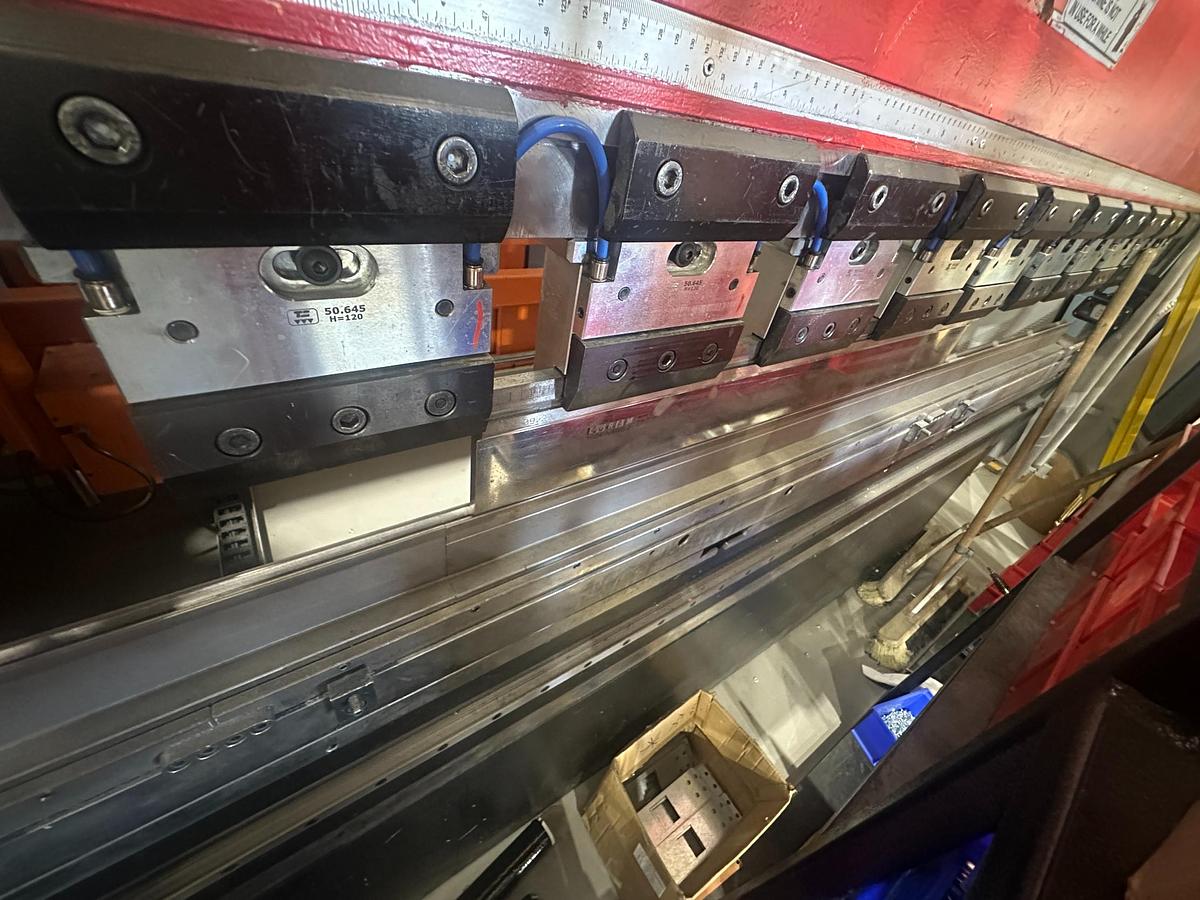

• Pneumatic top tool clamping
• Top tooling
• Bottom tooling
• CNC crowning

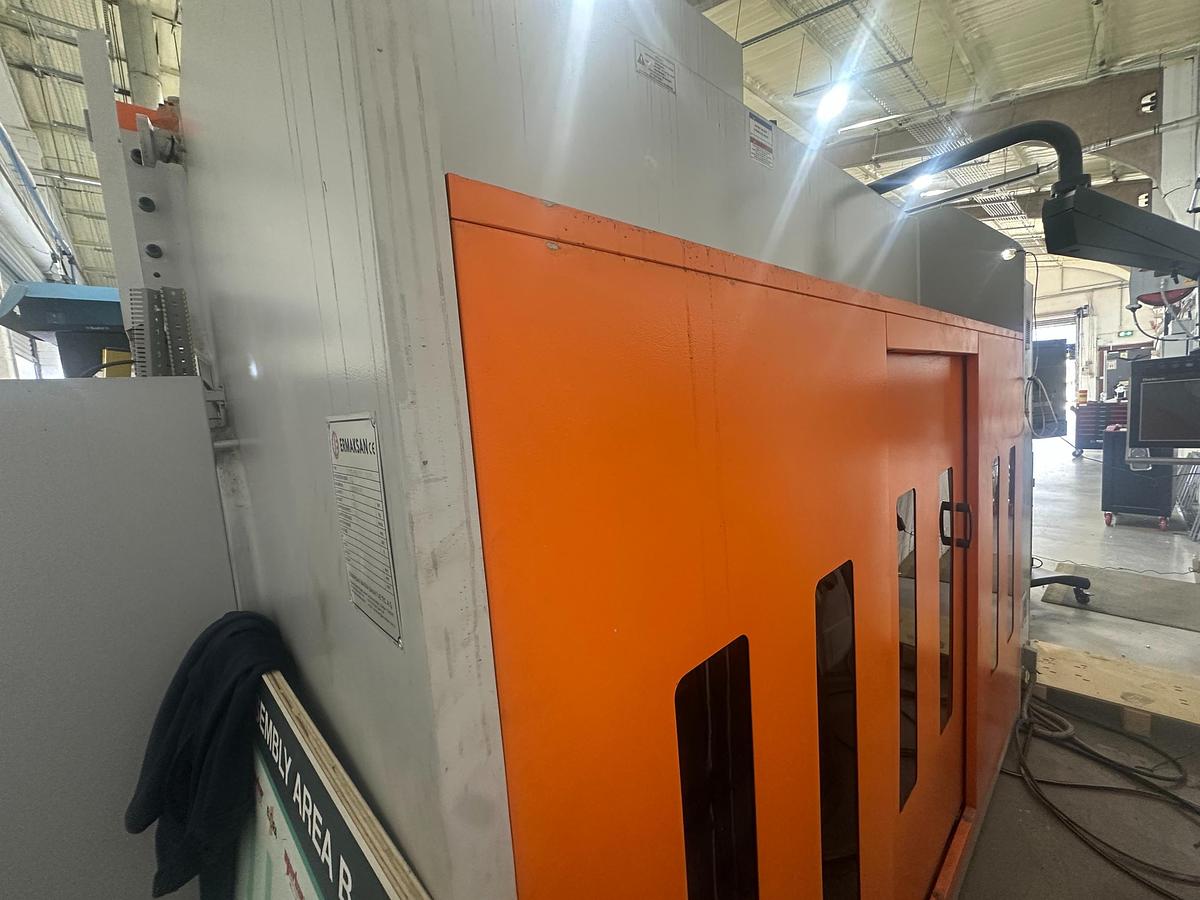

• Laser guards
• Wanderer type foot pedal

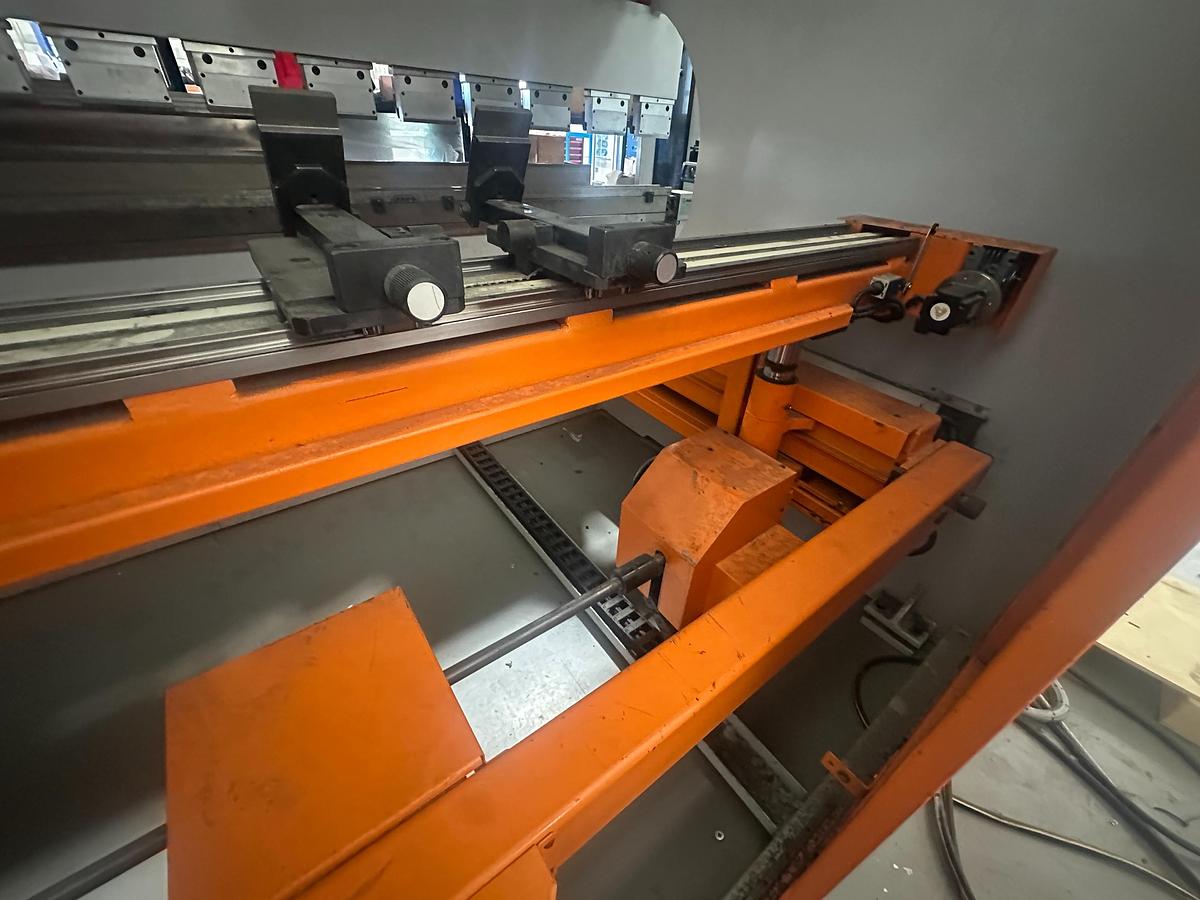

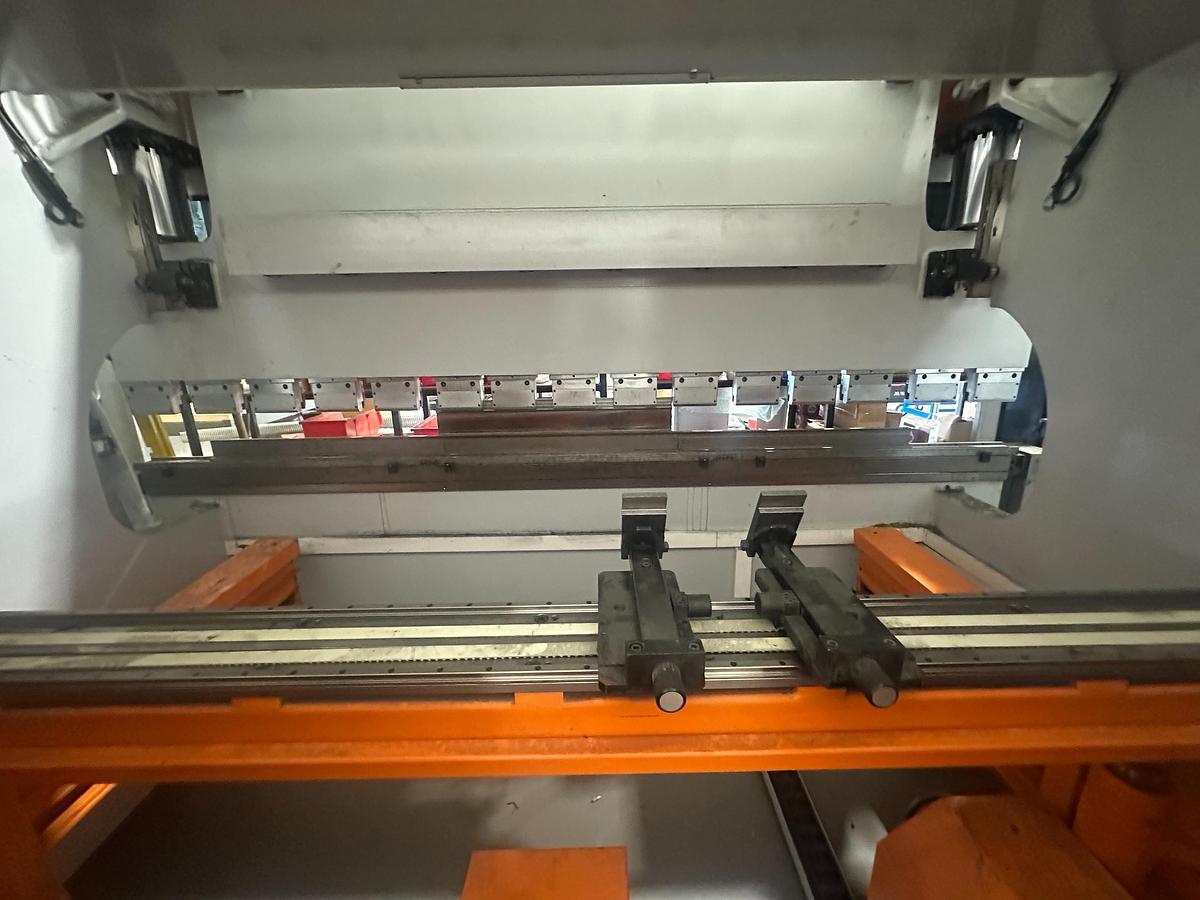

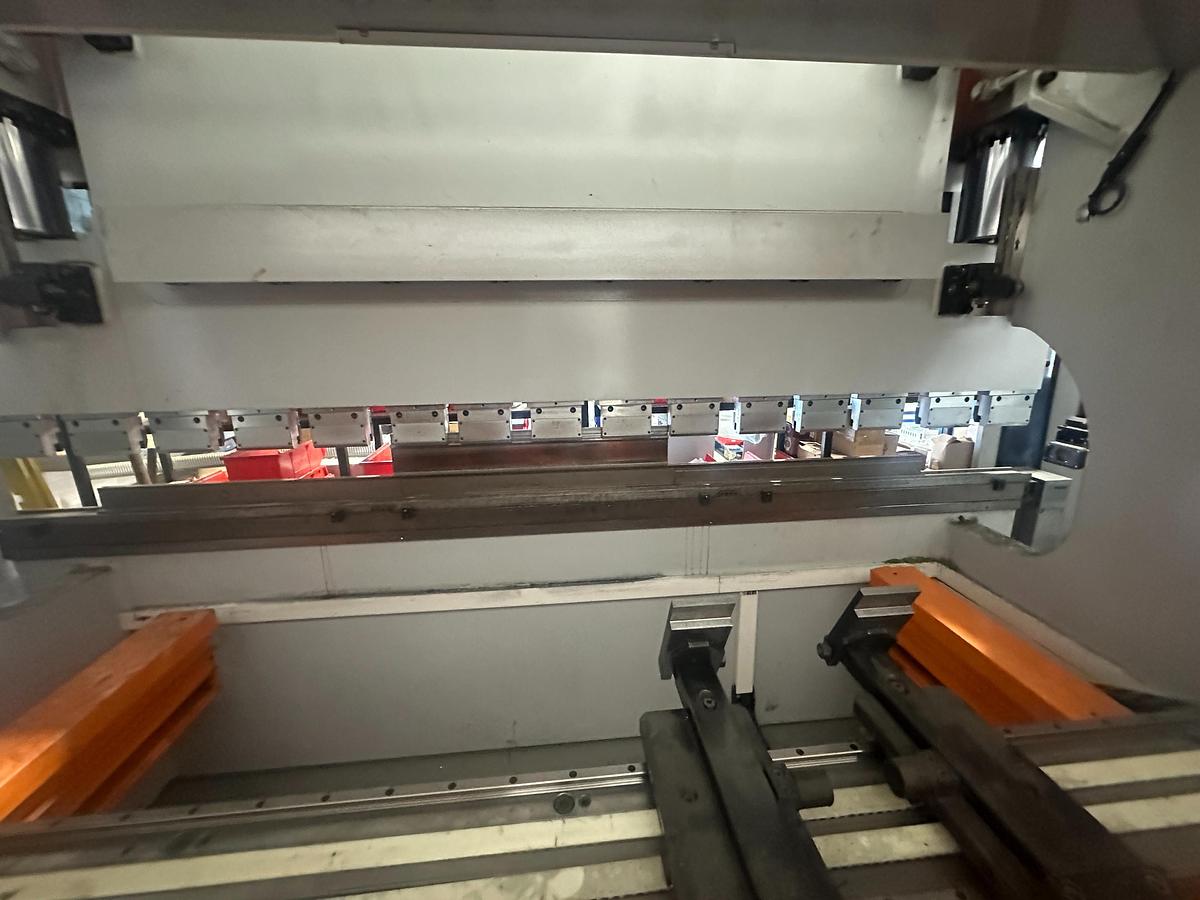

• 6 axis CNC backgauge system
• Delem DA66TX control

Typical Applications

• Sheet metal fabrication
• CNC press brake bending
• Mild steel bending
• Stainless steel bending
• Aluminium bending
• Box and pan type components
• Architectural metalwork
• Agricultural fabrication
• General engineering workshops
• Production bending work

Why Choose This Ermaksan Speed-Bend PRO?

This 2022 Ermaksan Speed-Bend PRO 3100x175 offers an excellent combination of modern CNC control, 6 axis flexibility, heavy bending capacity and tooling package included.

It is ideal for buyers looking for a late model CNC press brake without the cost or lead time of ordering a new machine.

Benefits include:

• Fast setup with Delem CNC control
• Accurate bends with CNC crowning
• Flexible 6 axis configuration
• Safer operation with laser guards
• Faster tool setup with pneumatic top clamping
• Excellent 3100mm x 175T capacity
• Very good condition

Summary

The 2022 Ermaksan Speed-Bend PRO 3100x175 is a 6 axis CNC hydraulic press brake with 175 tonne capacity, 3100mm bending length, Delem DA66TX CNC control, Y1/Y2/X/R/Z1/Z2 axes, CNC crowning, pneumatic top tool clamping, laser guards, wanderer foot pedal, and top and bottom tooling included. It is in very good condition and suitable for sheet metal fabrication, engineering workshops and production bending.

2022 Ermaksan Speed-Bend PRO 3100x175 CNC Press Brake

6 axis hydraulic press brake with Delem DA66TX control, 175T x 3100mm capacity, Y1/Y2/X/R/Z1/Z2 axes, CNC crowning, pneumatic top tool clamping, laser guards, wanderer foot pedal, and top & bottom tooling included. Very good condition.

Note: Specifications and information provided in each listing are supplied in good faith; however, their accuracy cannot be guaranteed. Specifications are approximate and should be verified by inspection, machine plate, manual or manufacturer confirmation before purchase.
