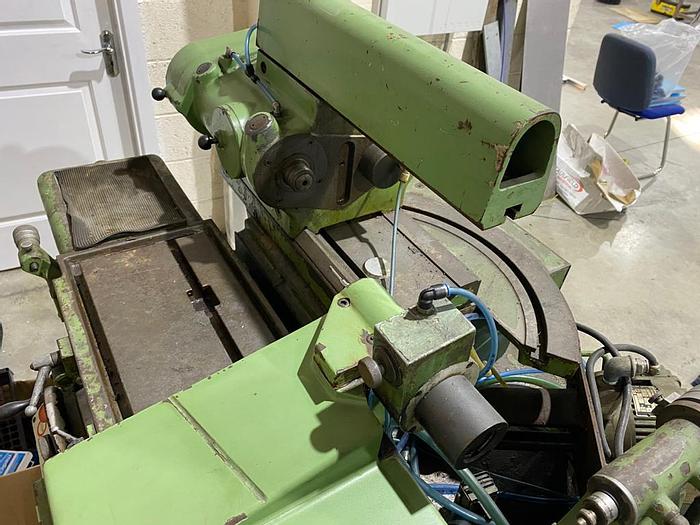

Tripet MAR 200 Cylindrical ID Grinder
Sold
Description
Tripet MAR 200 Cylindrical ID Grinder
Technical Details
Grinding Length: 3 - 200mm
Max Grinding Diameter: 50mm
Min Grinding Diameter: 1mm
Centre Height: 132mm
Workhead Speeds: 150 - 1500rpm
Max Angle: 90 Deg
Spindle Taper: 20W
Grinding Wheel Speeds: 16500 to 33000rpm
Grinding Spindle Head Rotation: 55 Deg
Table Speed: 0 - 10m/min
Workhead Motor: 0.8kW
Spindle Head Motor: 3kW
Machine Dimensions: 1800x1000x1800mm (approx)
Machine Weight: 2000kg (Approx)
Specifications
| Manufacturer | Tripet |
| Model | MAR 200 Cylindrical ID Grinder |
| Condition | Used |
| Serial Number | 4206.162 |
| Grinding Length | 3 - 200mm |
| Max Grinding Diameter | 50mm |
| Min Grinding Diameter | 1mm |
| Centre Height | 132mm |
| Workhead Speeds | 150 - 1500rpm |
| Max Angle | 90 Deg |
| Spindle Taper | 20W |
| Grinding Wheel Speeds | 16500 to 33000rpm |
| Grinding Spindle Head Rotation | 55 Deg |
| Table Speed | 0 - 10m/min |
| Workhead Motor | 0.8kW |
| Spindle Head Motor | 3kW |
| Machine Dimensions | 1800x1000x1800mm (approx) |
| Machine Weight | 2000kg (Approx) |
