€4,500 + VAT

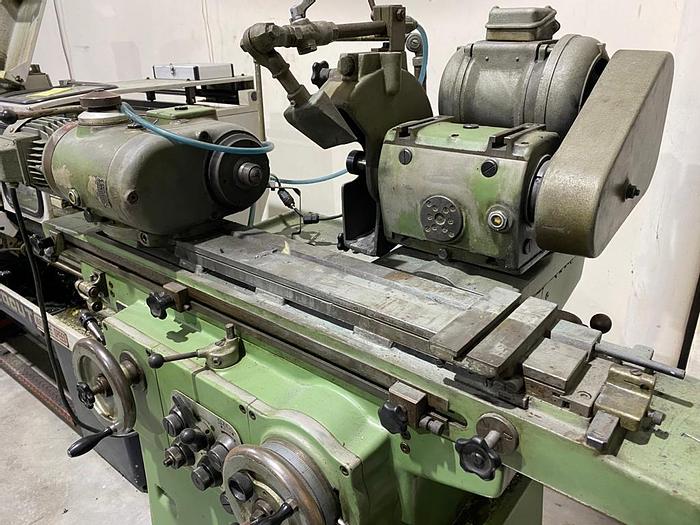

Tschudin HTG 400 Cylindrical Grinder

1

Ireland

orCall +353 838108745

Description

Tschudin HTG 400 Cylindrical Grinder


Technical Details

Centre Height: 100mm

Distance Between Centres: 400mm

Longitudinal Feed: 0 - 5m/min

Cross-Slide Travel (Manual): 45mm

Cross-Slide Travel (Auto); 38mm

Grinding Wheel Speeds: 1500 - 1900rpm

Grinding Wheel Diameter: 350mm

Grinding Wheel Width: 50mm(Max)

Grinding Wheel Bore: 127mm

Grinding Wheel Motor: 3kW

Workhead Spindle Speeds: 65 - 500rpm

Workhead Swivel: 360 Deg

Spindle Bore: 23mm

Spindle Taper: MT4

Tailstock Taper: MT3

Table Angle Range: 9 Deg

Electrical Connection: 400V

Power Requirements: 5kVA (approx)

Machine Dimensions: 1600x1200x1550mm

Machine Weight: 1600kg

Specifications

ManufacturerTschudin
ModelHTG 400 Cylindrical Grinder
ConditionUsed

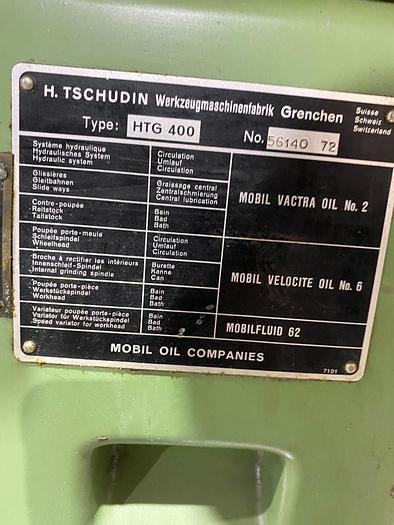

Serial Number56140 72
Centre Height100mm
Distance Between Centres400mm
Longitudinal Feed0 - 5m/min
Cross-Slide Travel (Manual)45mm
Grinding Wheel Speeds1500 - 1900rpm
Grinding Wheel Diameter350mm
Grinding Wheel Width50mm(Max)
Grinding Wheel Bore127mm
Grinding Wheel Motor3kW
Workhead Spindle Speeds65 - 500rpm
Workhead Swivel360 Deg
Spindle Bore23mm
Spindle TaperMT4
Tailstock TaperMT3
Table Angle Range9 Deg
Electrical Connection400V
Power Requirements5kVA (approx)
Machine Dimensions1600x1200x1550mm
Machine Weight1600kg
