€16,000 + VAT

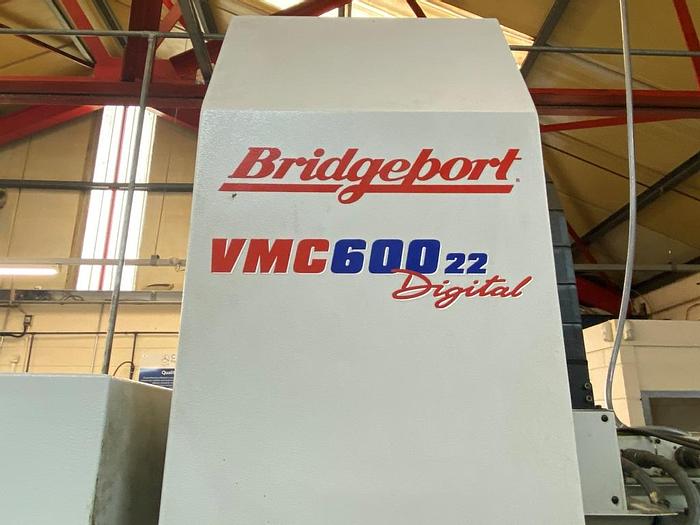

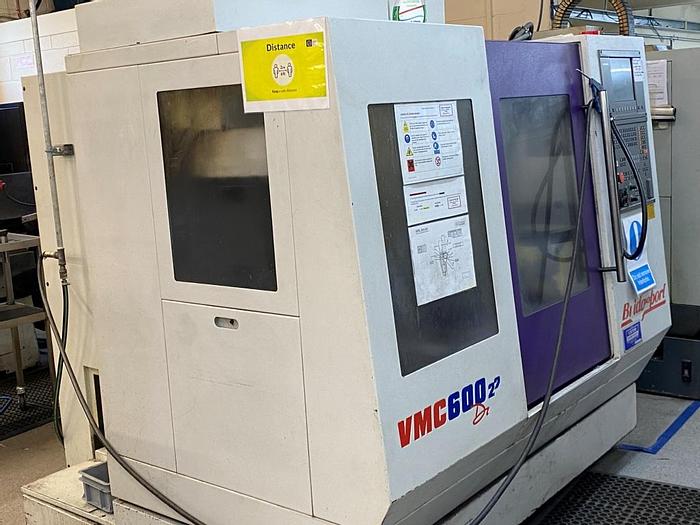

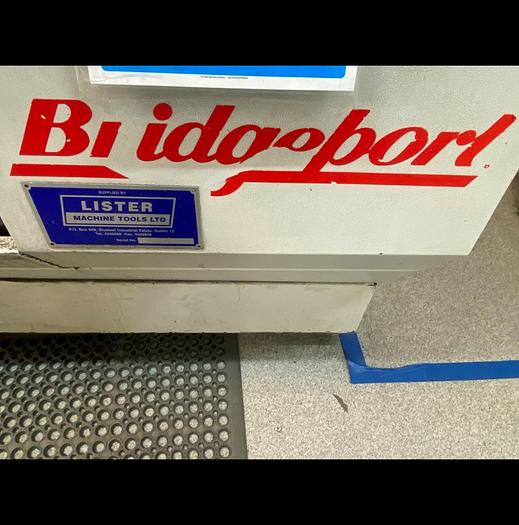

1999 Bridgeport VMC 600/22 Digital Machining Center

1

Ireland

orCall +353 838108745

Description

1999 Bridgeport VMC 600/22 Digital Machining Center


Machine Type: 3 Axis Machining Center with Nikken 4th Axis

Year: 1999

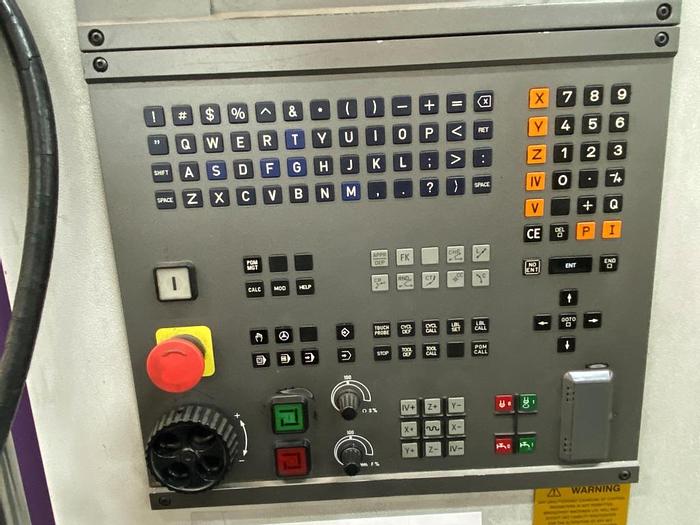

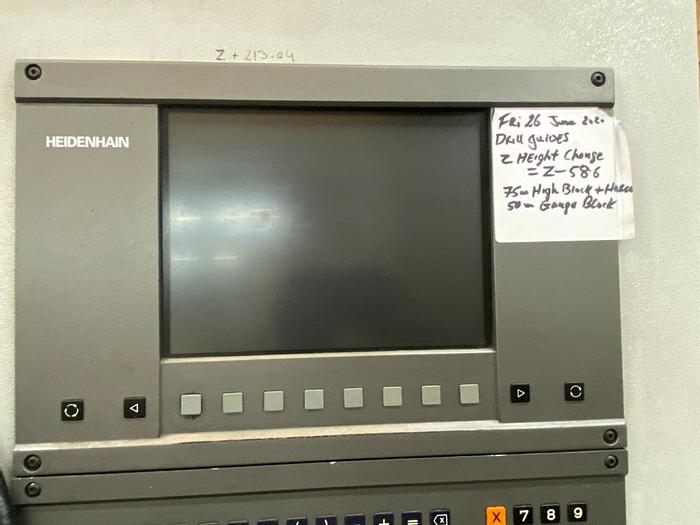

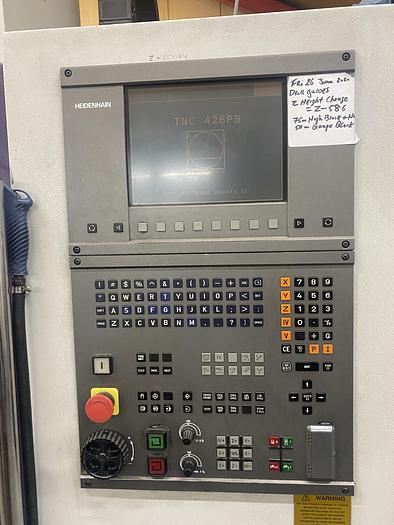

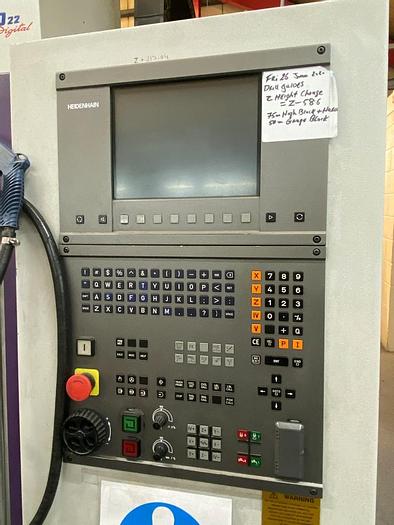

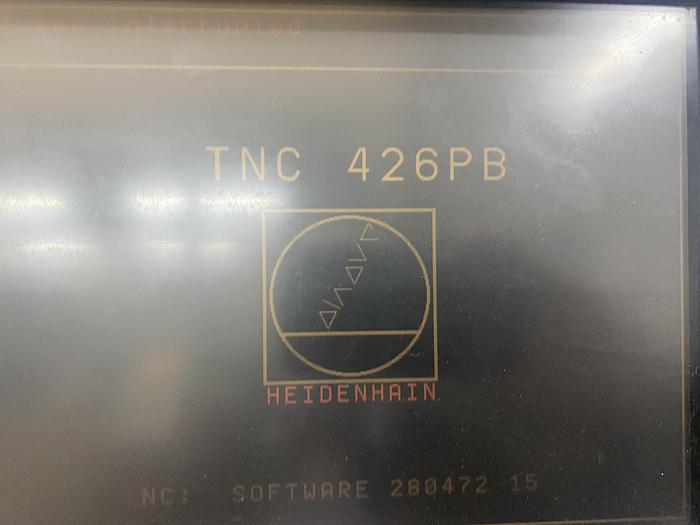

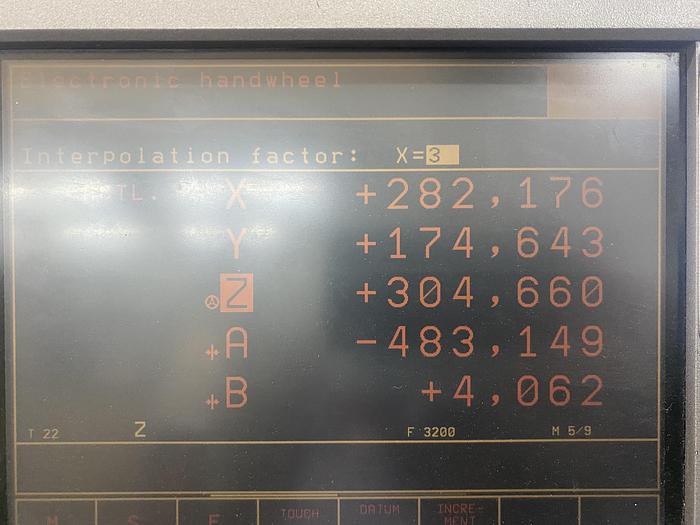

Control: Heidenhain TNC426

Availability: September 2021


Includes:

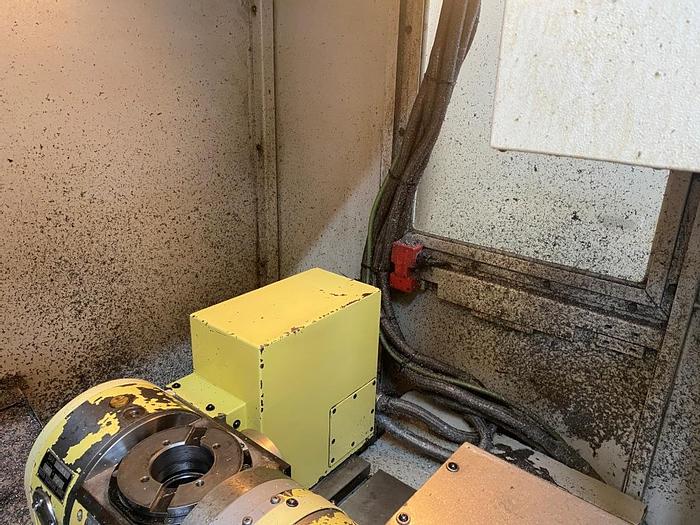

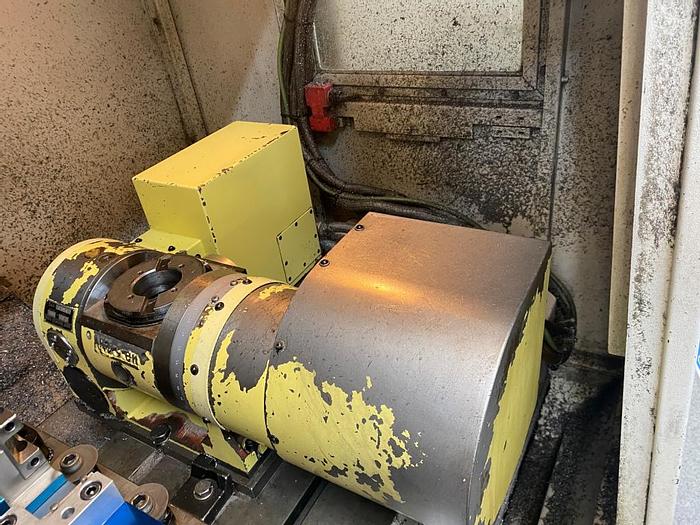

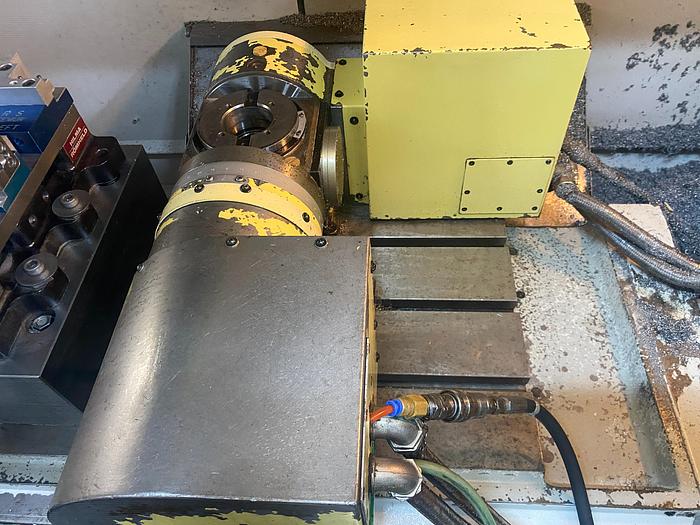

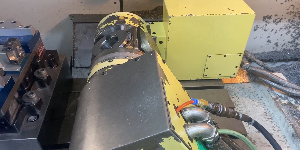

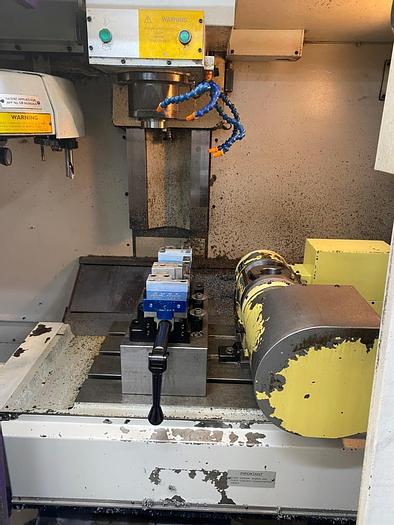

Nikken 4th Axis

Vice in photos not Included


Technical Specification

Table Size: 840 x 420mm

X Axis Travel: 600mm

Y Axis Travel: 410mm

Z Axis Travel: 520mm

Max Load on Table: 500kg

Rapid Traverse X axis: 36m/min

Rapid Traverse Y Axis: 36m/min

Rapid Traverse Z axis: 20m/min

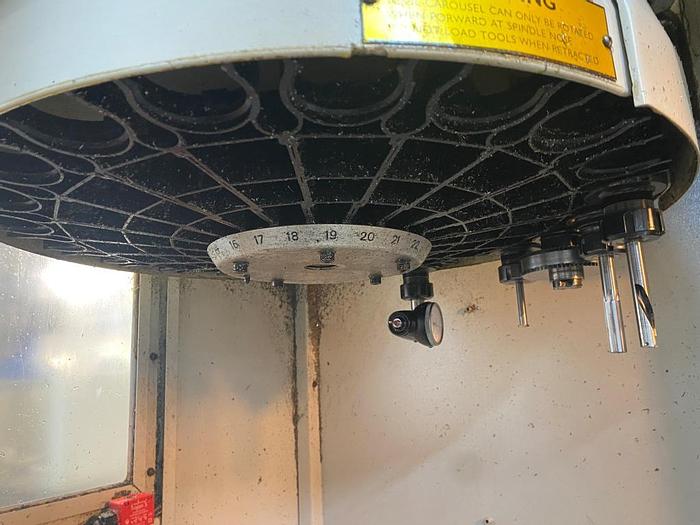

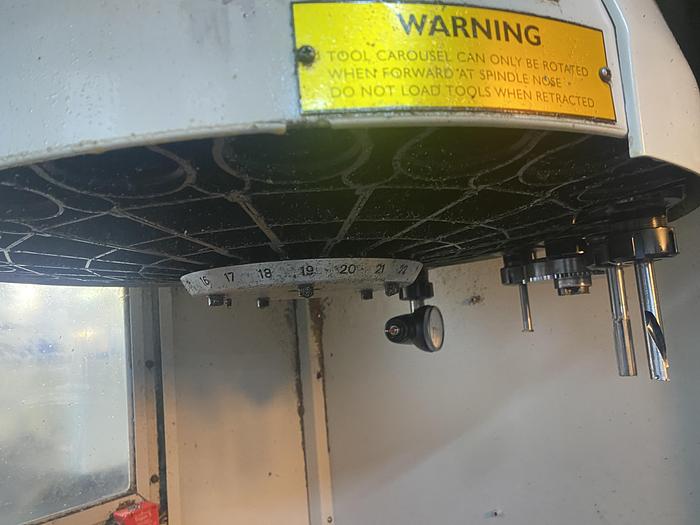

ATC: 22 Station

Spindle Speed: 6000rpm

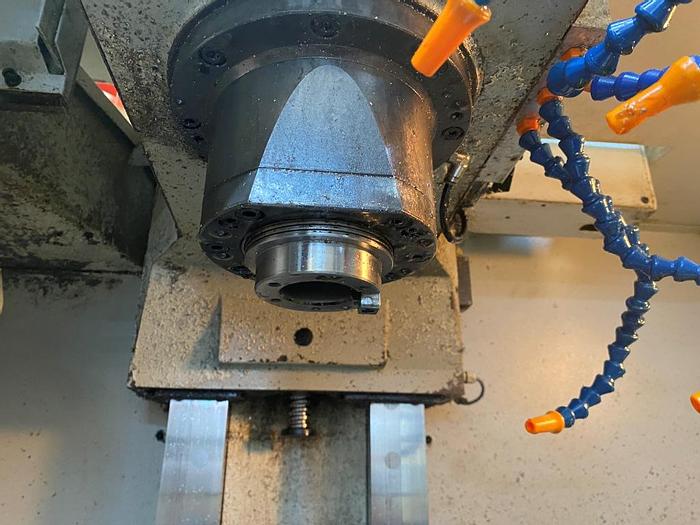

Spindle Taper: BT40

Spindle Motor Rating: 7.5kW

Max Tool Diameter: 75mm

Max Tool Diameter with Empty Adjacent Pocket: 130mm

Max Tool Length: 250mm

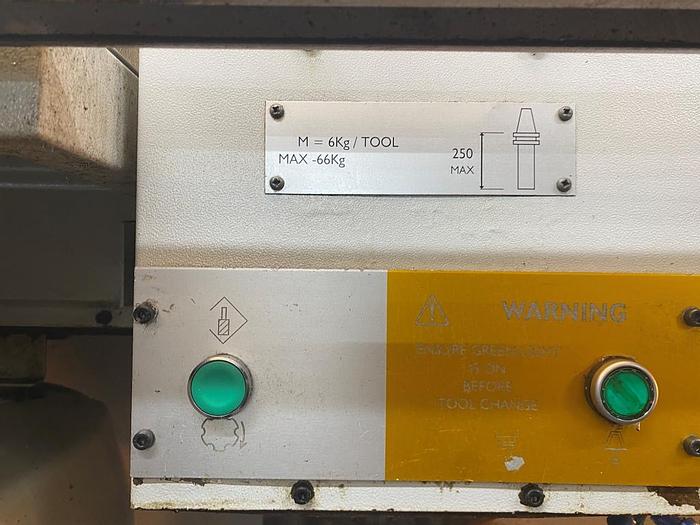

Max Tool Weight: 6kg

Machine Dimensions: 2000 x 2050 x 2535mm

Machine Weight: 2500kg


Specifications

ManufacturerBridgeport
ModelVMC 600/22 Digital Machining Center
Year1999
ConditionUsed

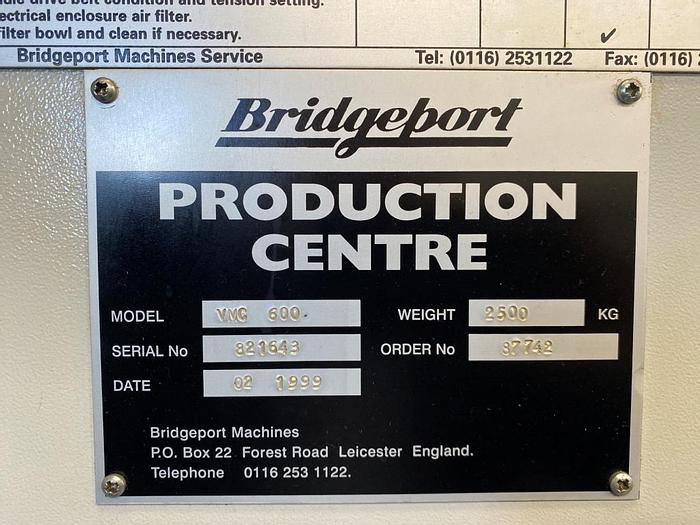

Serial Number821643
Machine Type3 Axis Machining Center
Year1999
ControlHeidenhain TNC426
Table Size840 x 420mm
X Axis Travel600mm
Y Axis Travel410mm
Z Axis Travel520mm
Max Load on Table500kg
Rapid Traverse X axis36m/min
Rapid Traverse Y Axis36m/min
Rapid Traverse Z axis20m/min
ATC22 Station
Spindle Speed6000rpm
Spindle TaperBT40
Max Tool Diameter75mm
Max Tool Length250mm
Max Tool Weight6kg
Spindle Motor Rating7.5kW
Machine Weight2500kg
