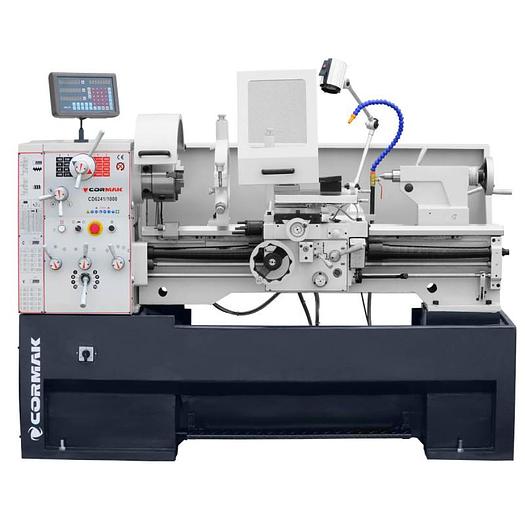

Cormak 410 x 1000 Universal Manual Lathe

Cormak 410 x 1000 Universal Manual Lathe

The industrial metal lathe CORMAK 410x1000 features a rigid cast-iron bed structure and a 16-speed gearbox powered by a dual-range 3.3 kW induction motor, providing maximum torque. Recommended for machining hard steels and precision turning. Suitable for a variety of operations including internal and external turning, taper cutting, polishing, metric and inch threading, drilling and broaching.

Manufacturer: Cormak

Model: 410 x 1000

Machine Type: Manual Lathe

Year: New

Machine Description

The CORMAK 410 x 1000 UNIVERSAL LATHE is a conventional metalworking machine designed for precise and efficient cutting operations in industrial and workshop environments. Built with robust components and advanced engineering, this lathe guarantees reliability, dimensional repeatability and versatility for continuous-duty applications.

Machine Features

• Universal machining capability – enables external and internal turning, taper cutting, threading (metric, inch, module and D.P.), drilling and broaching.

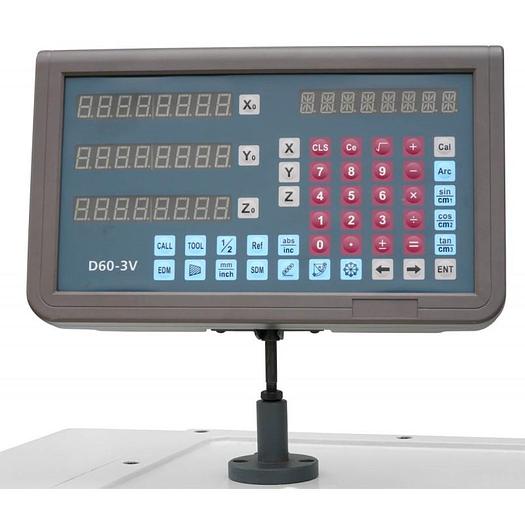

• 3-axis digital readout (DRO) with optical scales – full control and precision in longitudinal, cross and compound slide movement.
• Hardened and ground 250 mm-wide bed – cast-iron design ensuring rigidity, vibration damping and precision.
• Spindle bore 52 mm on a reinforced bearing system – stability and smooth operation even on large workpieces.

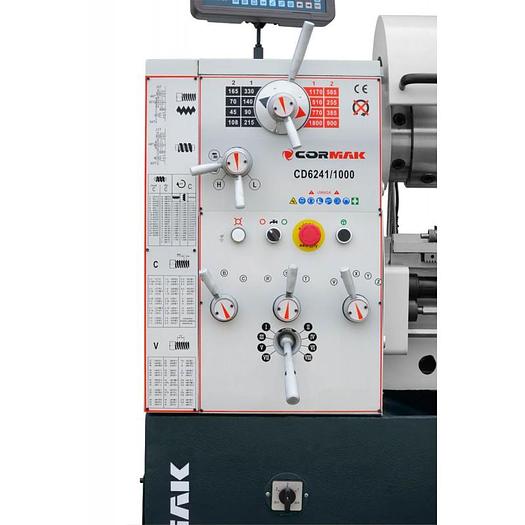

• Direct spindle speed and feed adjustment via ergonomic control panel – faster setup and intuitive operation.
• Wide threading range – 42 metric and inch, 18 module and 21 D.P. threads, without the need to change gears.
• Removable bed gap – allows turning of large-diameter workpieces up to Ø580 mm.

Included Equipment

• 3-axis digital readout (optical scales)
• 3-jaw chuck 200 mm + left/right jaws (set)
• 4-jaw chuck 250 mm
• Faceplate 350 mm

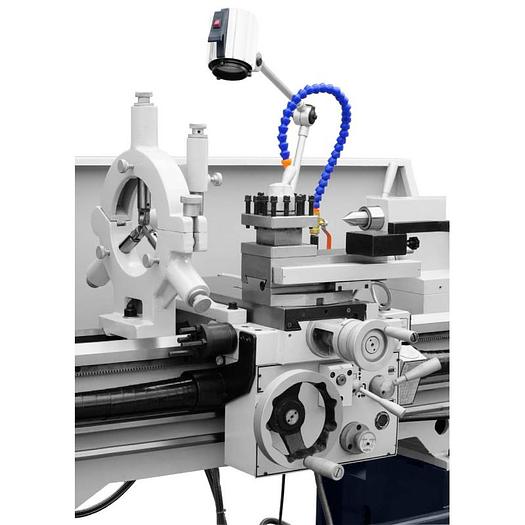

• Fixed steady rest
• Travelling steady rest
• Fixed centre MT4
• Spindle reducing sleeve MK6/MK4

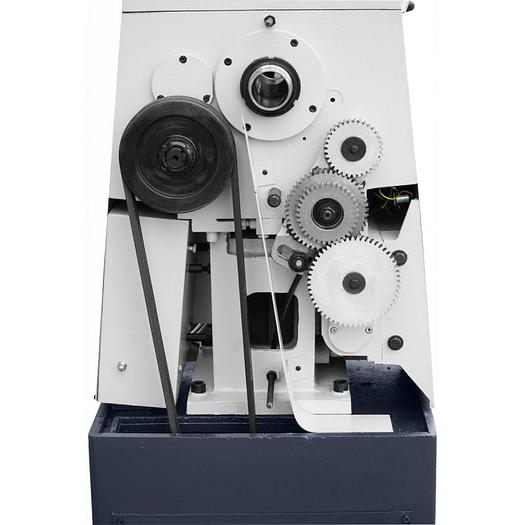

• Change gear set (complete)
• Cooling system
• Work light
• Oiler
• Chuck and tool post wrench
• Maintenance tool kit
• CE-compliant safety guards
• User manual (EN)
• CE declaration of conformity
• 6 vibration isolators

Optional equipment

• Taper-turning attachment
• Turning tool set 20×20 mm – 7 pcs (with inserts)
• Precision live centre MK4
• Drill arbor MK4/B16
• Drill chuck B16 3–16 mm
• Cobalt drill set HSS-CO5 / 1–13 mm
• Cutting fluid ES-12 1 L

Technical Specifications

3-jaw chuck: 200 mm

Max. swing over bed: 410 mm

Swing over cross slide: 255 mm

Swing in gap: 580 mm

Distance between centres: 1000 mm

Centre height: 205 mm

Compound slide travel: 145 (0.02) mm

Cross slide travel: 225 (0.02) mm

Longitudinal travel: 750 (0.2) mm

Bed width: 250 mm

Spindle bore: 52 mm

Spindle mount: D1-6 CAMLOCK

Spindle taper: MT6

Tool post size: 100 × 100 × 32 mm

Max. tool size: 20 × 20 mm

Spindle speeds: 16 ranges (45 – 1800 rpm)

Metric threads: (42) 0.2 – 14 mm/rev

Inch threads: (42) 2 – 72 TPI

Module threads: (18) 0.3 – 3.5 mm

D.P. threads: (21) 8 – 44 DP

Longitudinal feeds: (17) 0.05 – 1.7 mm/rev

Cross feeds: (17) 0.025 – 0.85 mm/rev

Tailstock quill diameter: 50 mm

Tailstock quill travel: 120 (0.02) mm

Tailstock taper: MT4

Main motor power: 2.2 / 3.3 kW

Coolant pump power: 0.1 / 0.12 kW

Dimensions: (L × W × H)2050 × 900 × 1650 mm

Weight (net): 1600 kg

Design and Technology

The CORMAK 460x1000 model has been designed for intensive industrial use. The large-bore spindle is mounted on reinforced bearings and driven by a multi-range gearbox with hardened and ground gears. All parameters are conveniently adjusted from the ergonomic control panel. The machine enables thread cutting across a wide range (metric, inch, module, D.P.) without the need to replace gears in the gearbox, which significantly improves operator efficiency.

Precision and Performance

The lathe is equipped with a leadscrew and feed shaft for automatic feeds and accurate threading. The built-in threading dial indicator makes it easy to reproduce thread pitches and accelerates subsequent passes. The digital readout system provides full control of positioning on three axes, making this machine ideal for high-precision and repeatable work.

Applications

The CORMAK 460x1000 lathe is ideal for any facility where precision and reliability are essential:

• Maintenance and repair departments
• Toolmaking workshops
• Production plants
• Technical schools and training workshops
