2016 MVD B06-3100 hydraulic guillotine in excellent condition. 3100mm x 6mm capacity, NC backgauge, CE rear laser barrier. Reserve now for Nov 2026.

3100mm x 6mm Hydraulic Sheet Metal Shear – Excellent Condition

Available from November 2026 this 2016 MVD B06-3100 Hydraulic Guillotine is in excellent condition and has been used only sporadically since new.

This is a high-quality industrial hydraulic swing beam guillotine shear, ideal for sheet metal fabrication, engineering workshops, steel processing, HVAC production and general metalworking applications.

The machine is not available for immediate collection, but it can be reserved now with a deposit payment.

Key Features

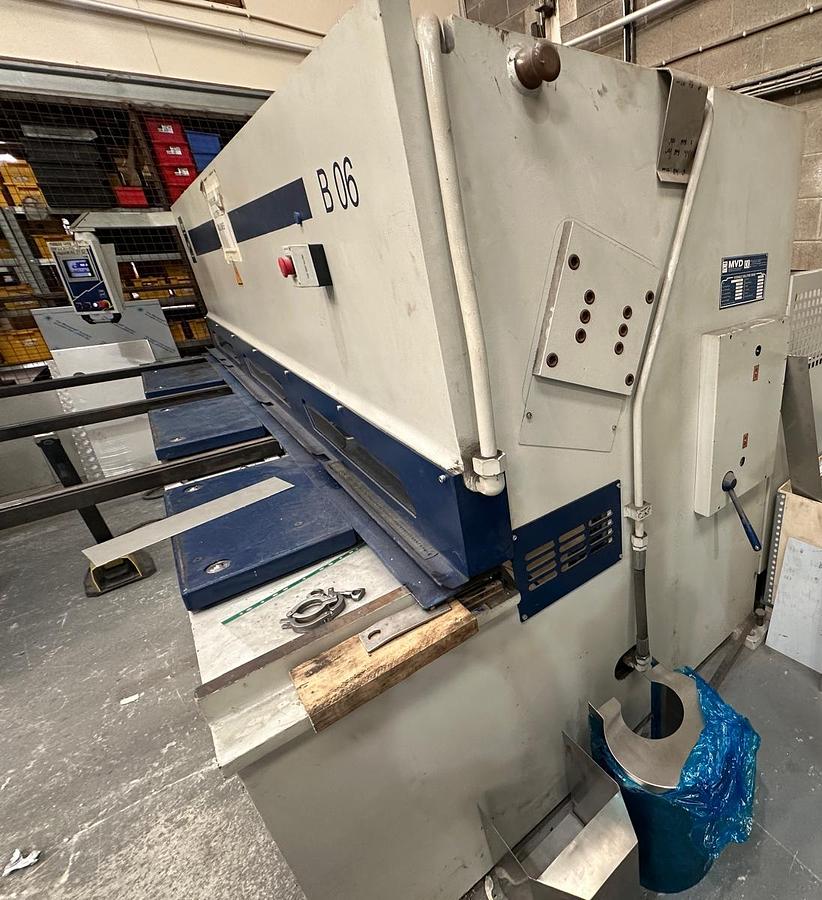

• 2016 MVD B06-3100 hydraulic guillotine
• 3100mm cutting length
• 6mm mild steel cutting capacity
• Excellent condition
• Used only sporadically since new
• NC controlled motorised backgauge
• Manual blade gap adjustment
• Double-speed cutting concept
• Rear laser barrier with CE conformity included
• Available November 2026 – reserve now with deposit

Machine Description

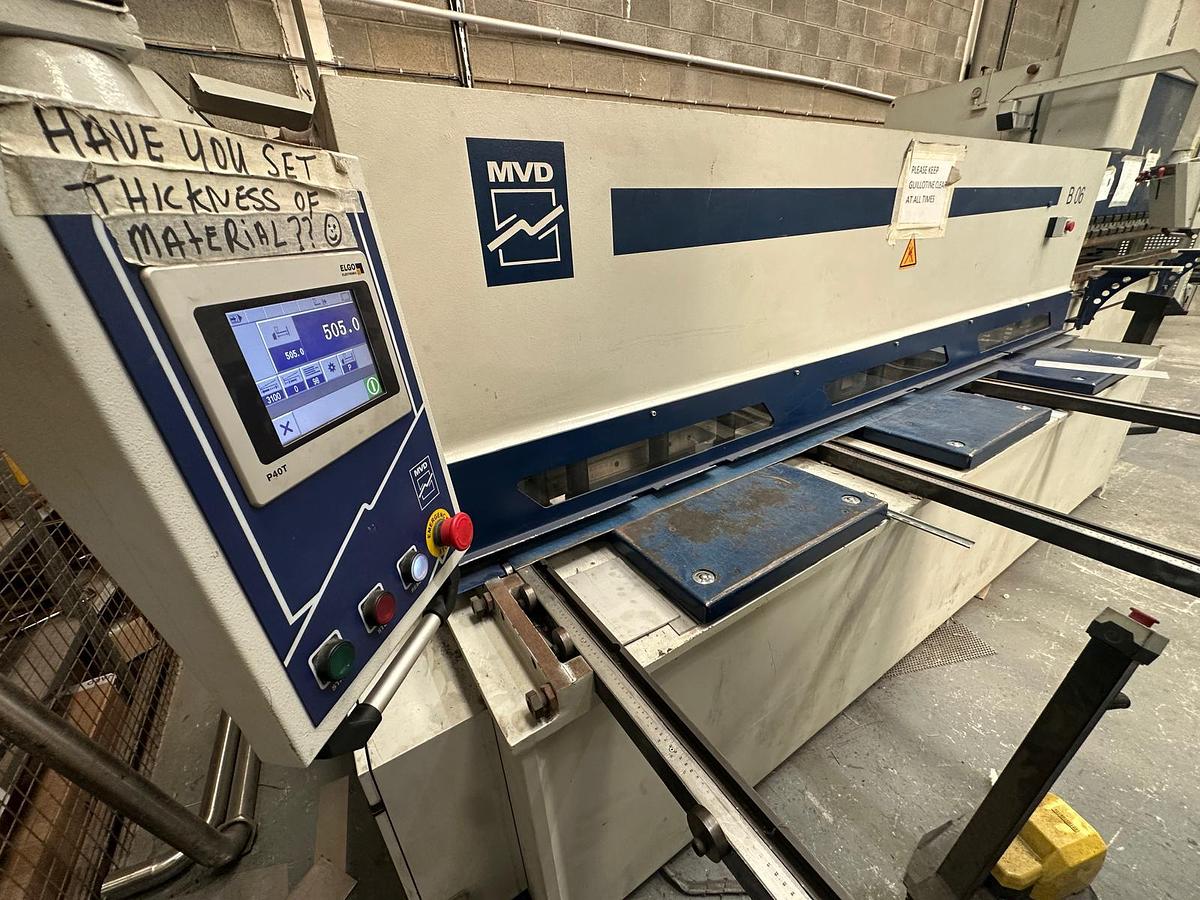

The MVD B06-3100 is part of MVD’s B Series of guillotine, designed for productive, accurate and reliable sheet metal cutting. The B Series uses a double-speed cutting concept, with a low cutting angle design for good cut quality and efficient production work. MVD’s B Series range covers cutting thicknesses from 6mm up to 25mm and cutting lengths from 2m up to 6m, depending on model.

This specific B06-3100 model is a 3100mm x 6mm hydraulic guillotine, suitable for cutting mild steel, stainless steel, aluminium and other sheet materials within the machine’s capacity.

Technical Specification

Capacity

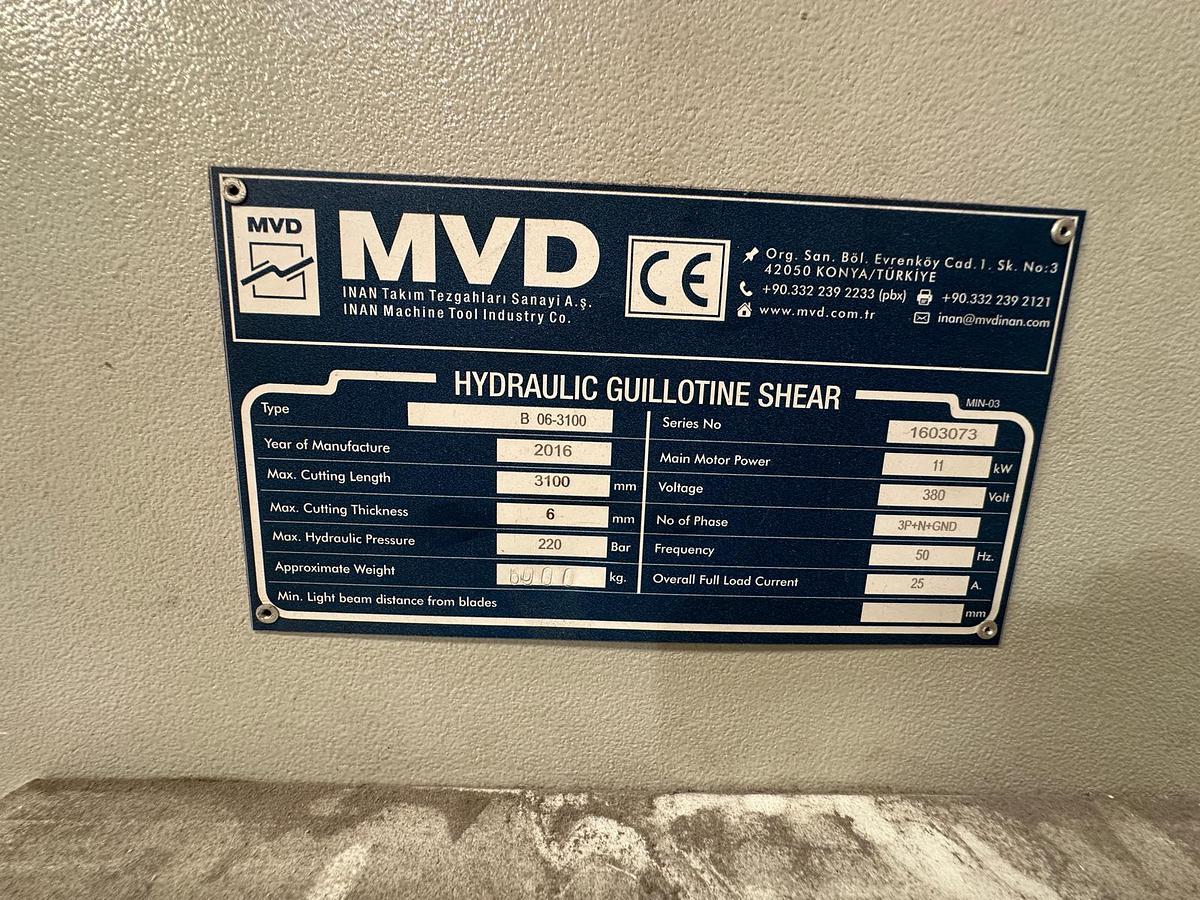

• Model: MVD B06-3100
• Machine Type: Hydraulic guillotine / hydraulic sheet metal shear
• Cutting Capacity, mild steel 450 N/mm²: 6mm
• Cutting Capacity, stainless / higher tensile 700 N/mm²: 4mm
• Cutting Length: 3100mm
• Cutting Angle: 1.5°
• Hold Down Cylinders: 14
• Stroke Speed / Fast Mode: 15 / 18 strokes per minute
•


Backgauge & Working Area

• Backgauge Travel – X Axis: 1000mm
• Distance Between Columns: 3330mm
• Table Height: 865mm
• Table Width: 500mm
• Throat Depth: 250mm
•


Power, Size & Weight

• Motor Power: 10kW
• Oil Tank Capacity: 160 litres
• Approx. Machine Length: 4630mm
• Approx. Machine Width: 2965mm
• Approx. Machine Height: 1990mm
• Approx. Weight: 6 tonnes

Standard Accessories / Standard Features

This MVD B06-3100 includes the standard B Series equipment, including:

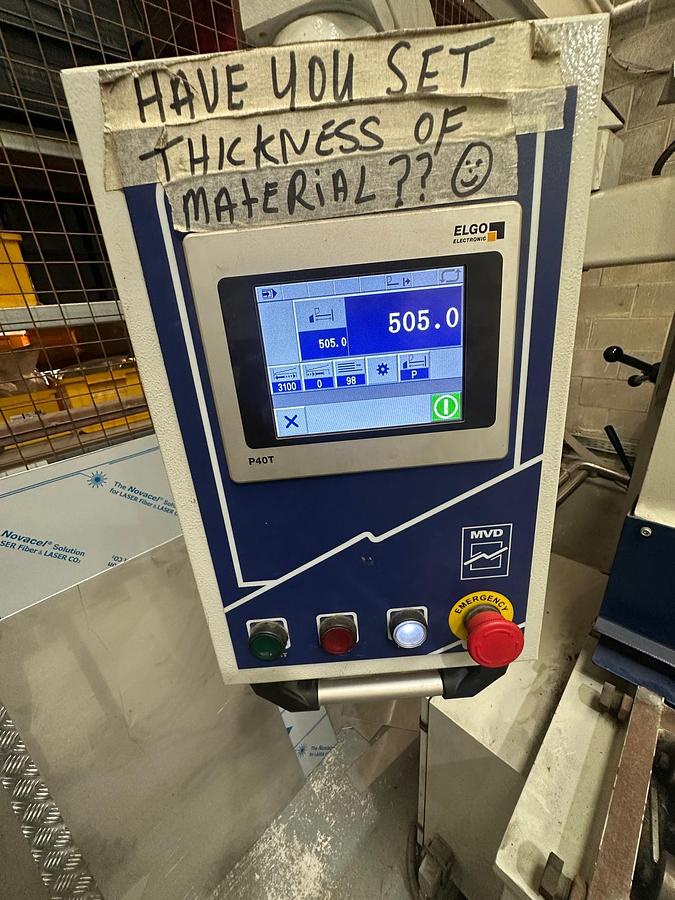

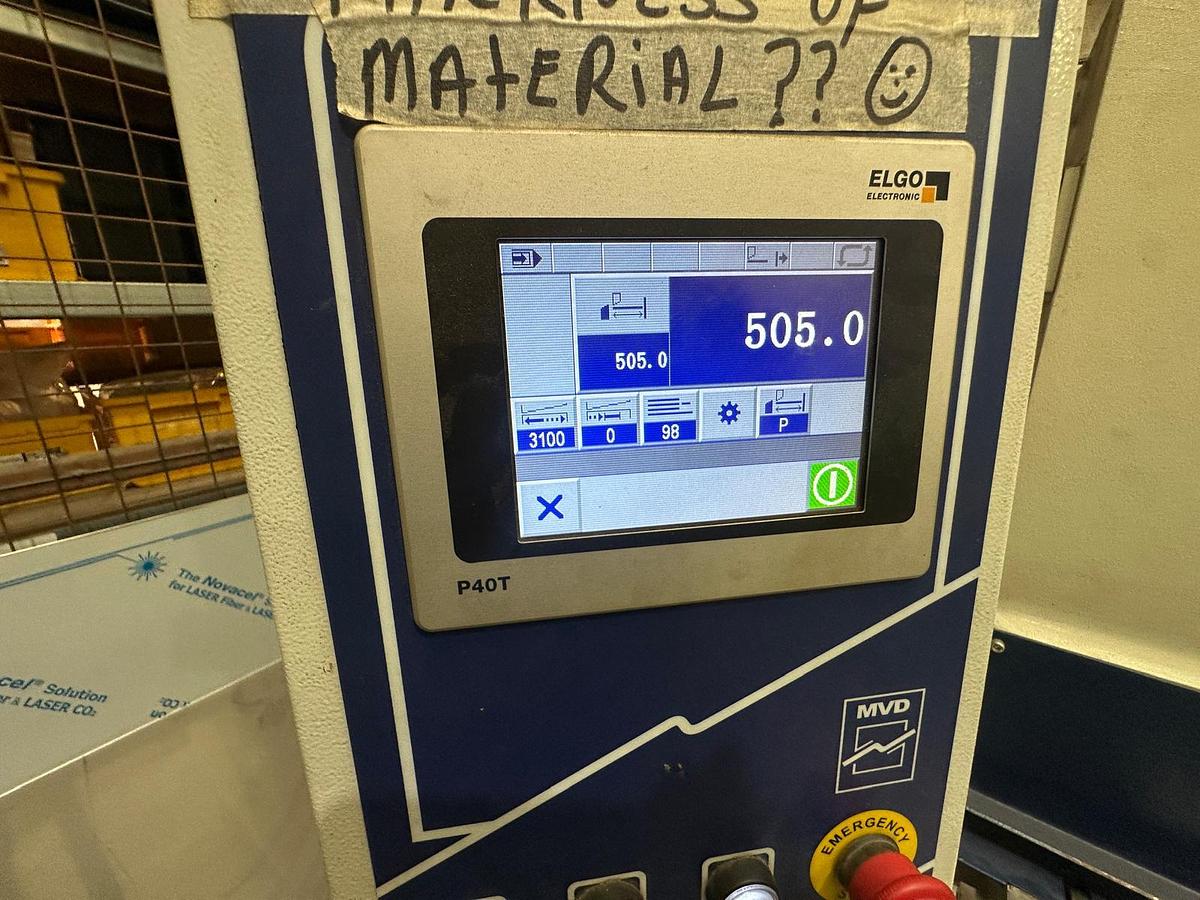

• ELGO P40T touch screen NC control unit

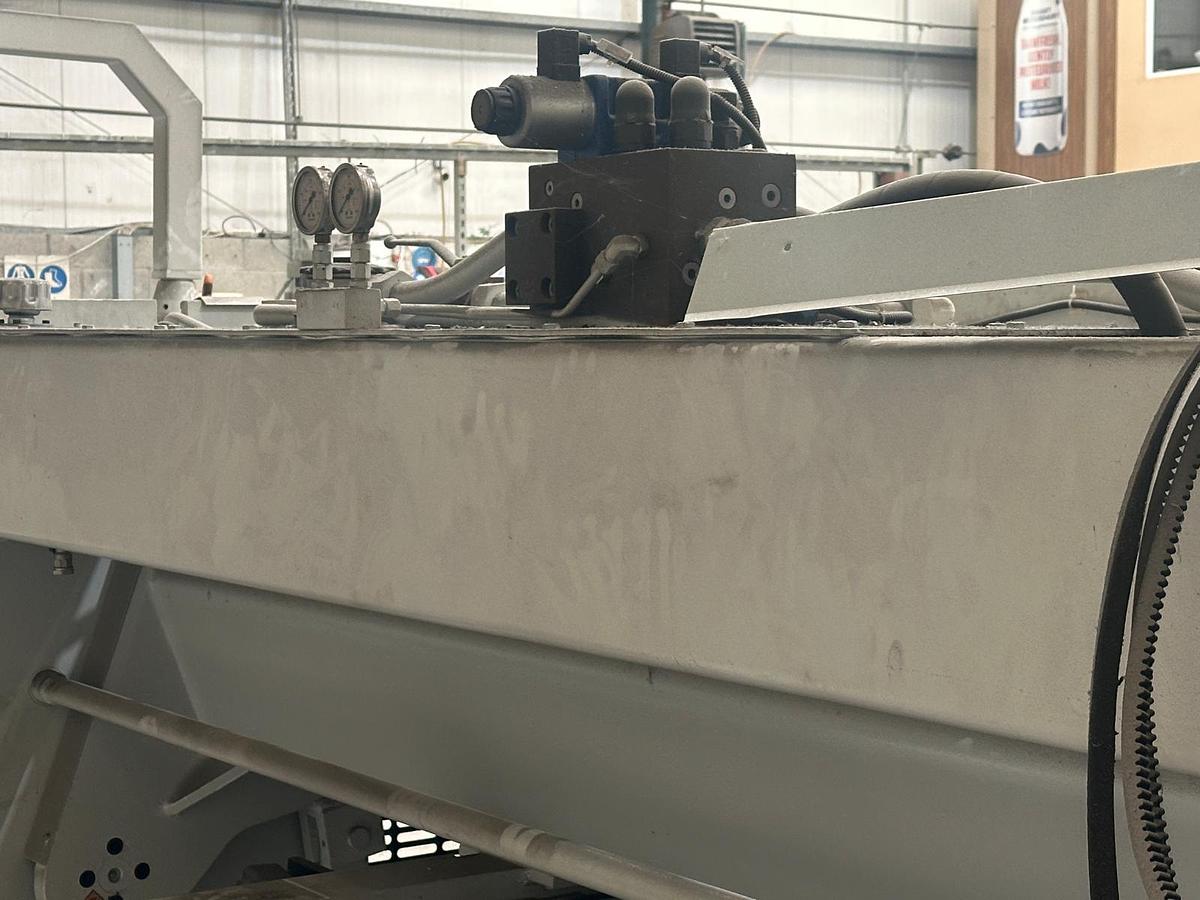

• Rexroth / Hoerbiger hydraulic system

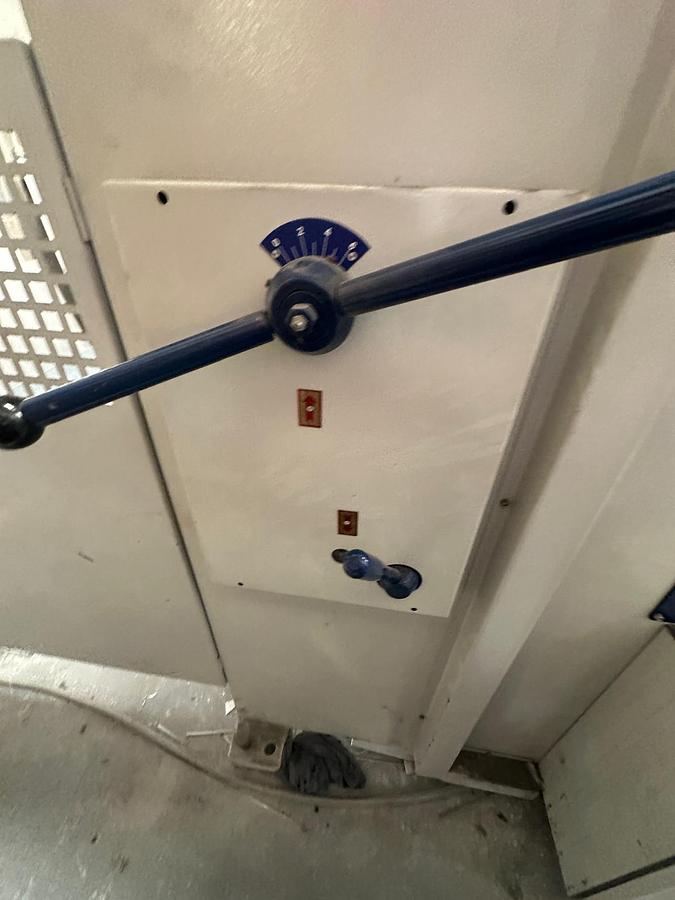

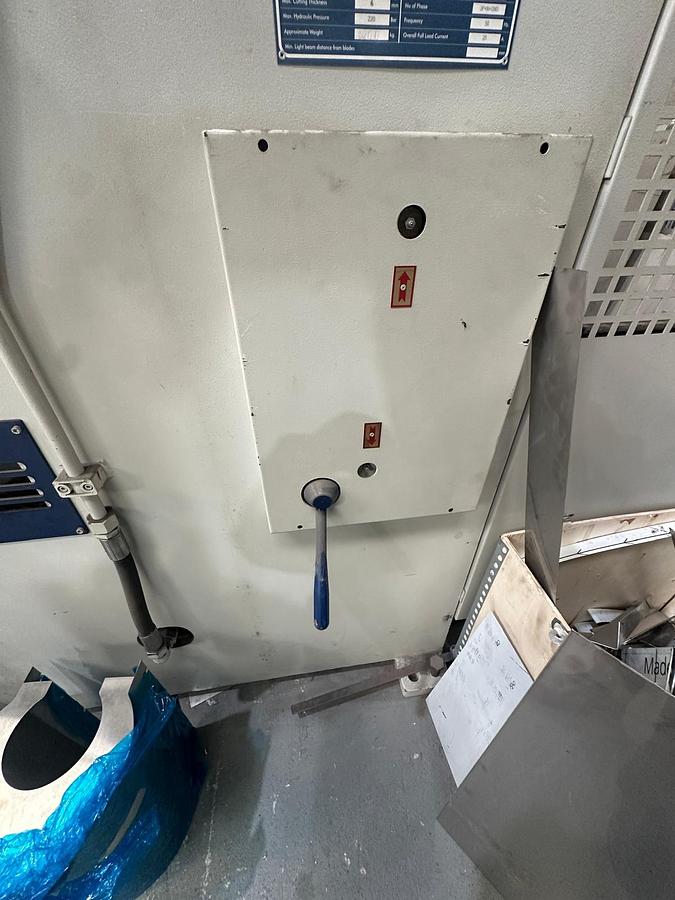

• Manual blade gap adjustment system

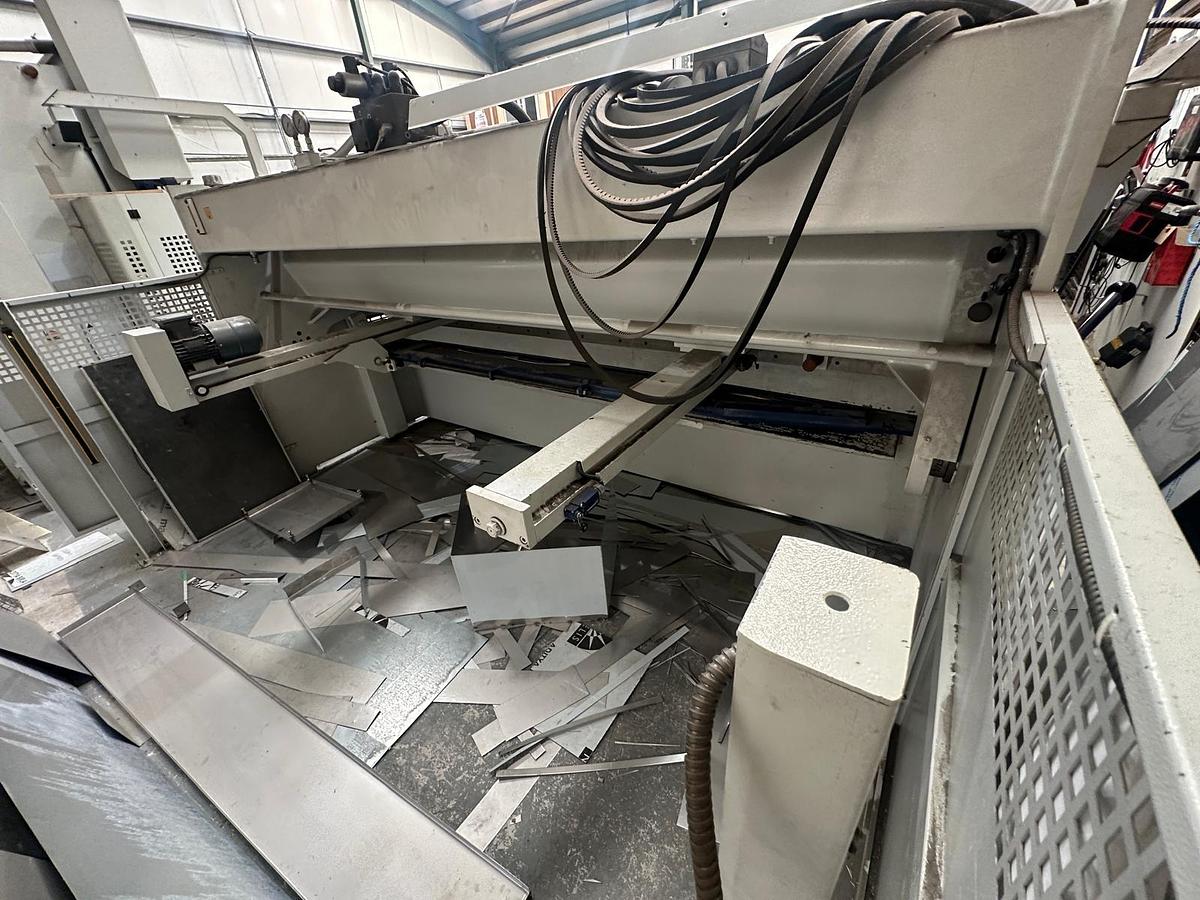

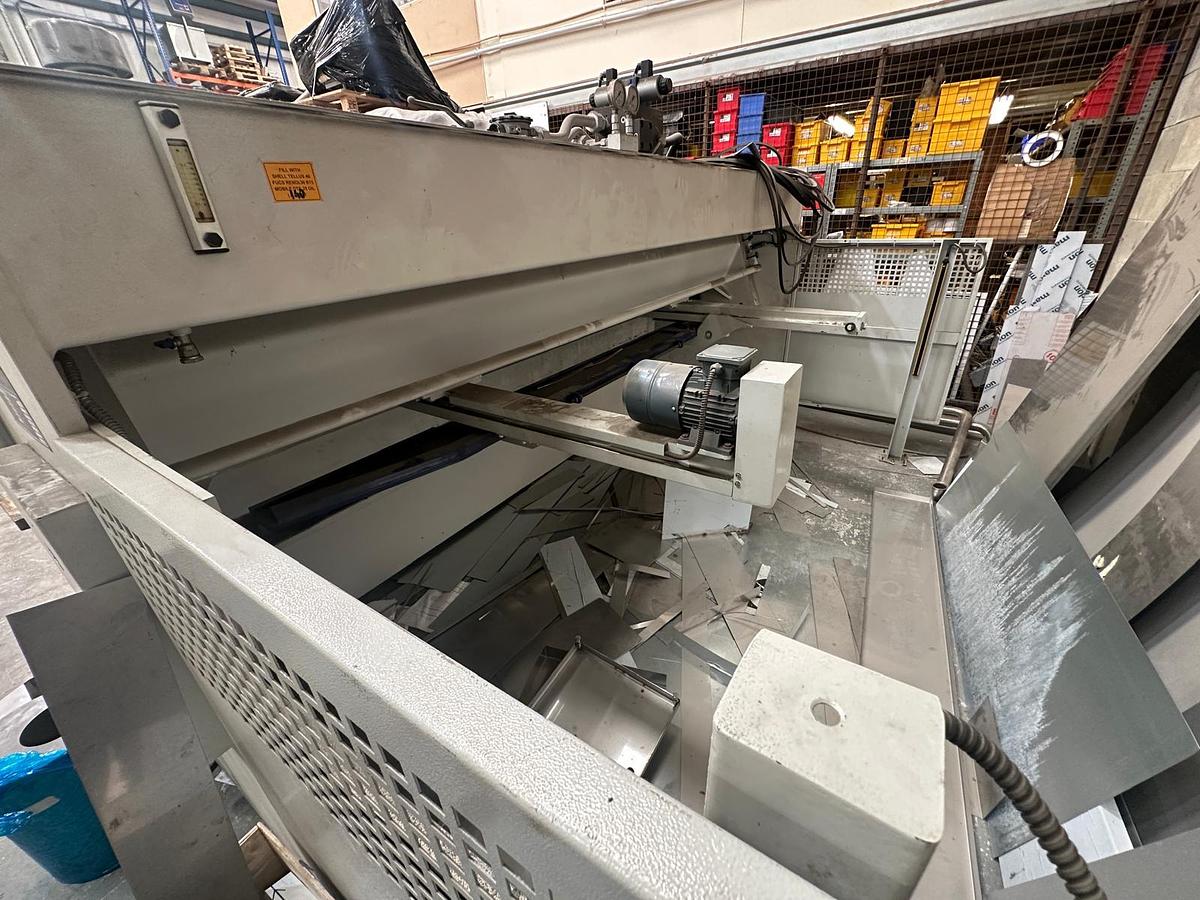

• 1000mm NC controlled programmable motorised backgauge
• Double-speed cutting machine concept
• 250mm throat depth
• Programmable backgauge retract function
• Backgauge swing-up feature for sheets longer than 1000mm
• Stroke adjustment on control panel for improved short-cutting efficiency

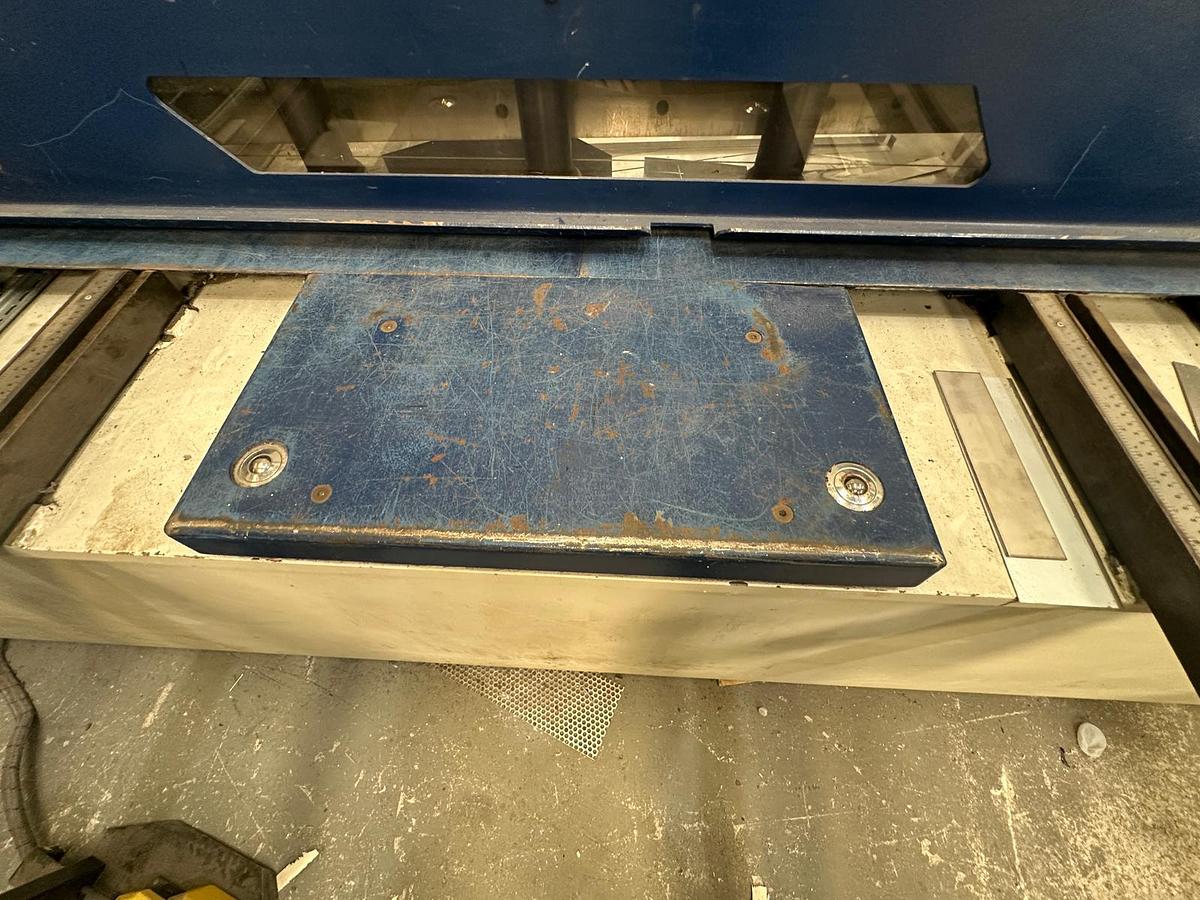

• Transfer table with roller balls
• Upper blade with 2 cutting edges
• Bottom blade with 4 cutting edges

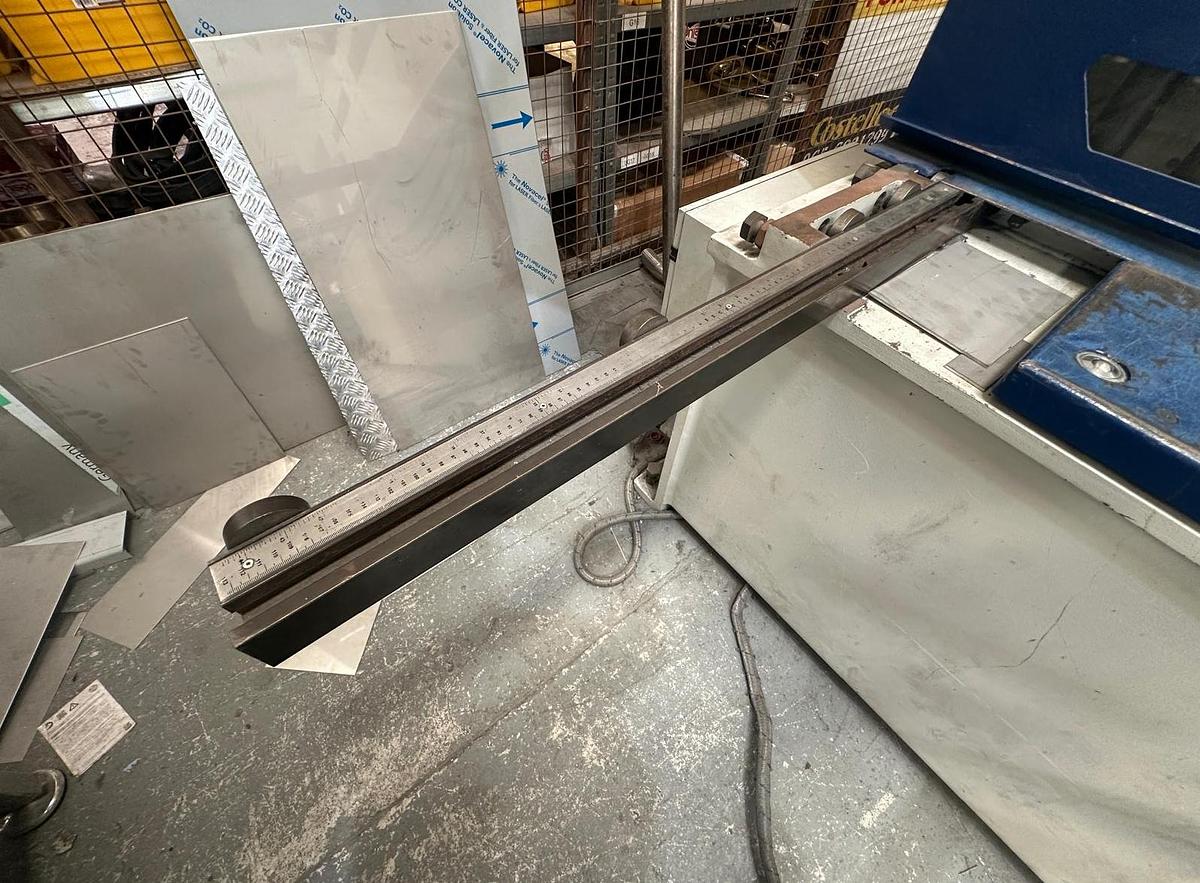

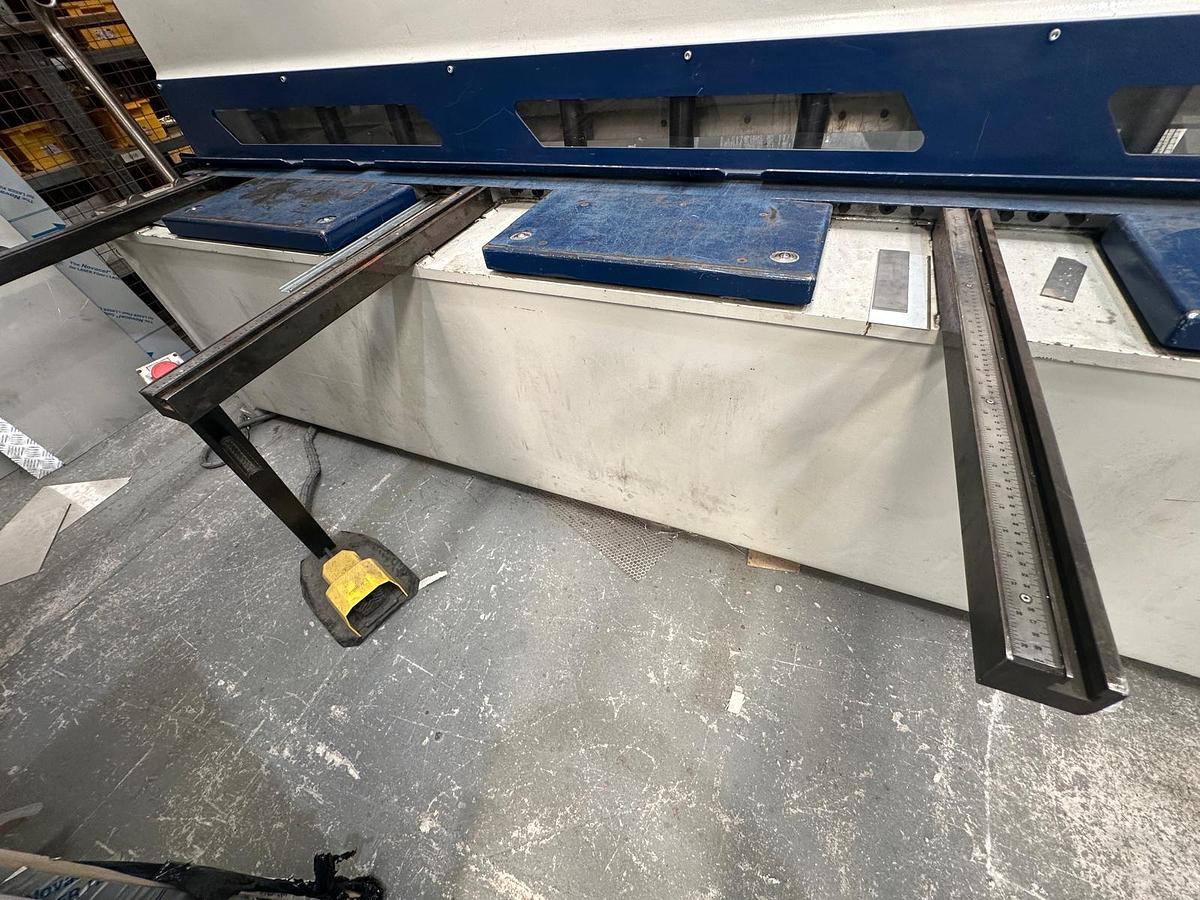

• 1000mm front support arms with ruler scale, T-channel and flip stops
• Front and side protective covers
• Illuminated cutting line

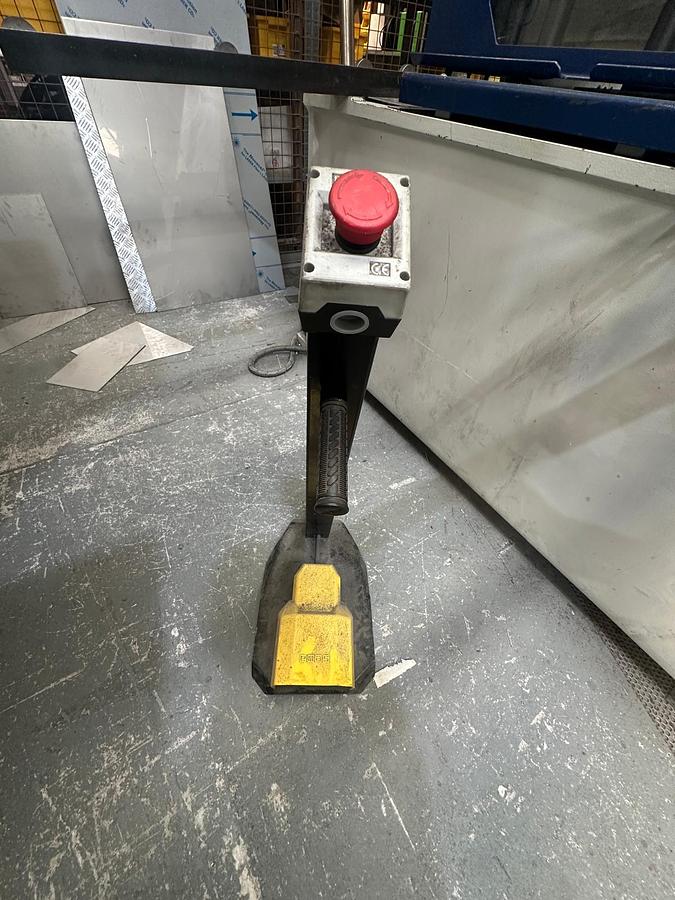

• Emergency stop buttons
• 1000mm swing-up front finger protection guard

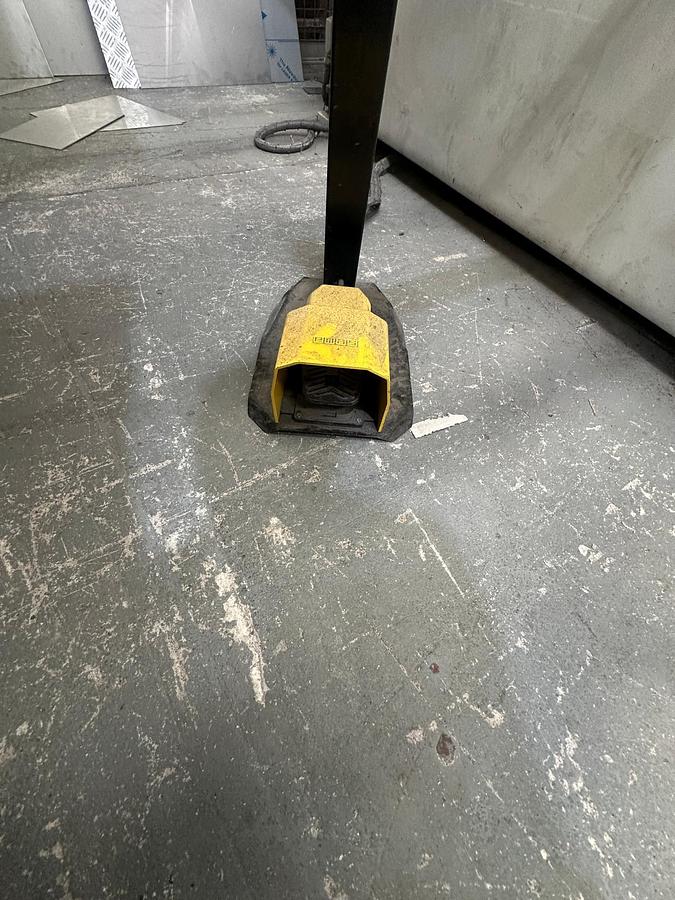

• Foot pedal
• Special designed covers with movable controller arm

Additional Optional Feature Included

This machine also includes:

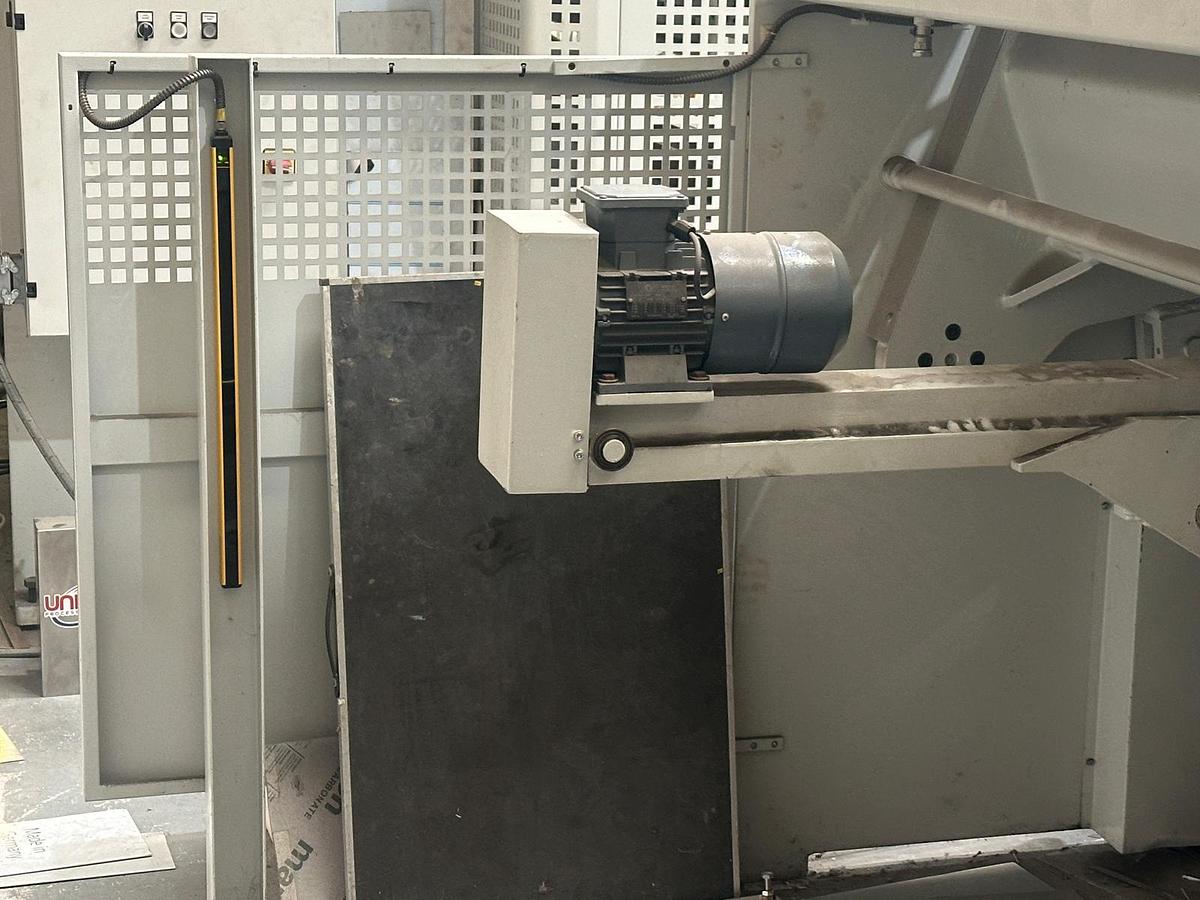

• Rear laser barrier with CE conformity

This is listed by MVD as an optional feature on the B Series hydraulic guillotine range and is included with this machine.

Condition

• Excellent condition
• Used only sporadically since new
• Very low-use machine for its age
• 2016 manufacture
• Available from November 2026
• Can be reserved now with deposit payment

Typical Applications

• Sheet metal fabrication
• Mild steel cutting
• Stainless steel sheet cutting
• Aluminium sheet cutting
• HVAC ductwork production
• General engineering workshops
• Steel service centres
• Agricultural and industrial fabrication
• Metalworking production environments

Why Choose the MVD B06-3100?

The MVD B06-3100 hydraulic guillotine is an excellent option for workshops needing a reliable 3 metre x 6mm sheet metal shear with modern controls, strong build quality and high cutting accuracy.

Compared with older manual or basic hydraulic guillotines, this machine offers:

• Faster setup with NC backgauge
• Improved repeatability
• Cleaner sheet handling
• Programmable backgauge retraction
• Reliable hydraulic components
• CE rear laser safety barrier
• Excellent value compared with buying new

Summary

The 2016 MVD B06-3100 Hydraulic Guillotine is a 3100mm x 6mm hydraulic sheet metal shear with NC controlled motorised backgauge, manual blade gap adjustment, double-speed cutting concept, 1000mm backgauge travel, and rear laser barrier with CE conformity. It is in excellent condition, has been used only sporadically since new, and will be available from November 2026, with reservation possible by deposit.

Note: Specifications and information provided in each listing are supplied in good faith; however, their accuracy cannot be guaranteed. Specifications are approximate and should be verified by inspection, machine plate, manual or manufacturer confirmation before purchase.
