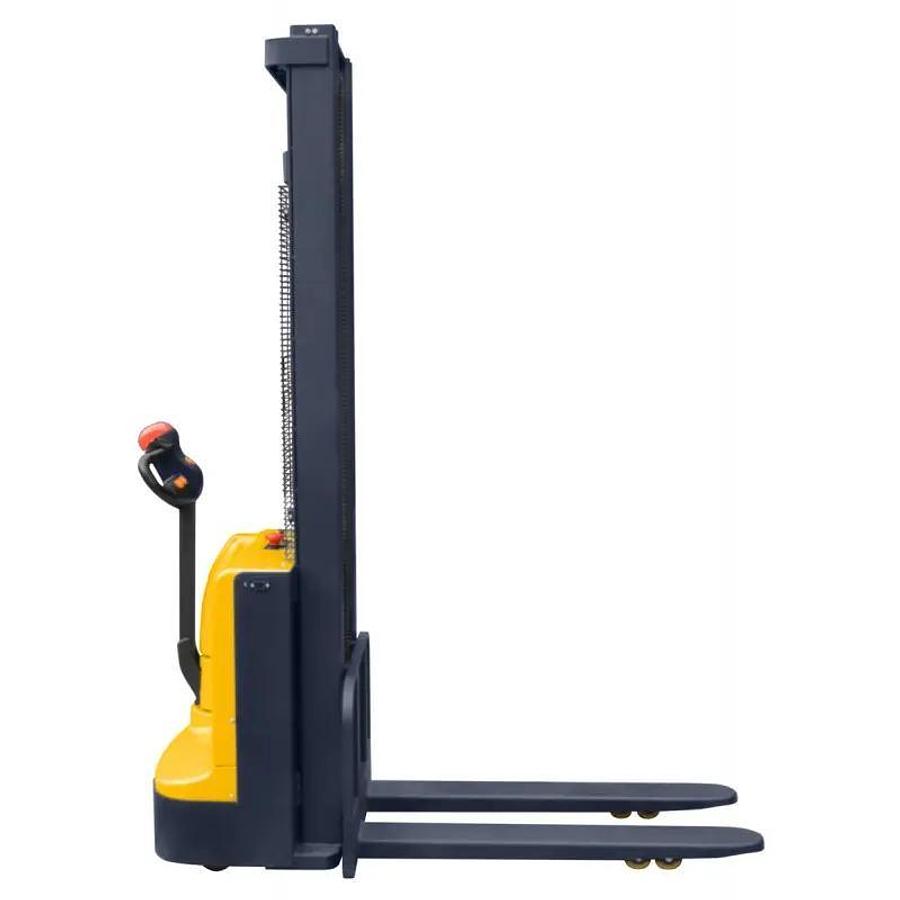

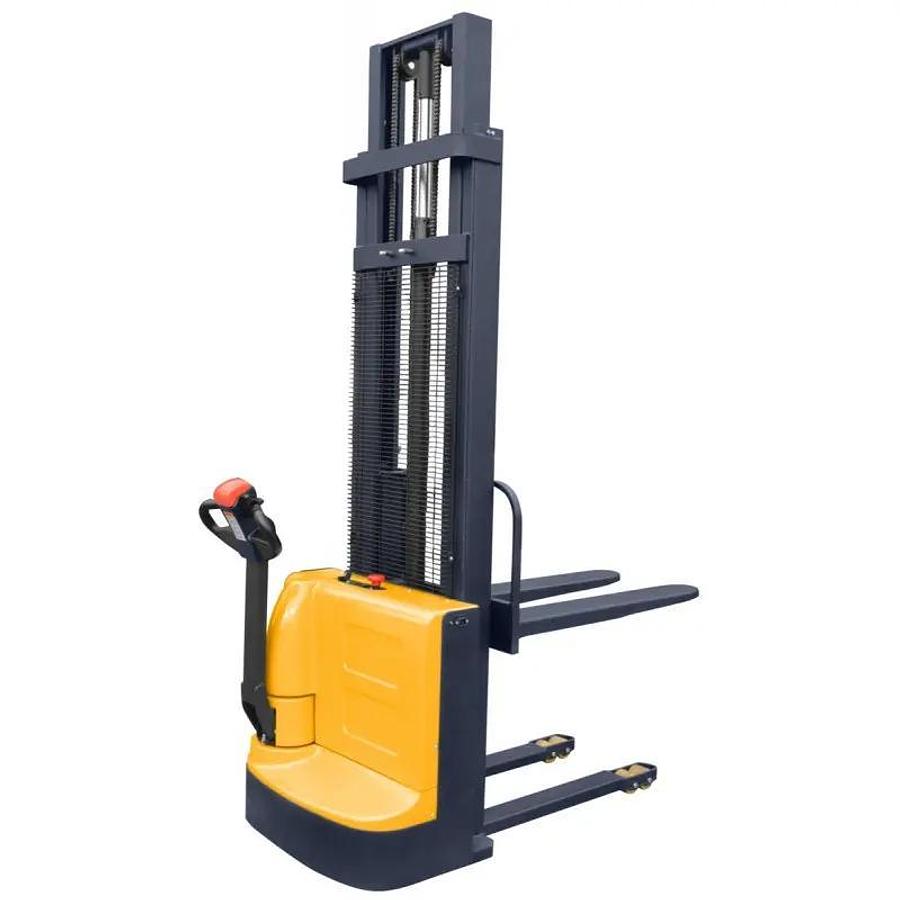

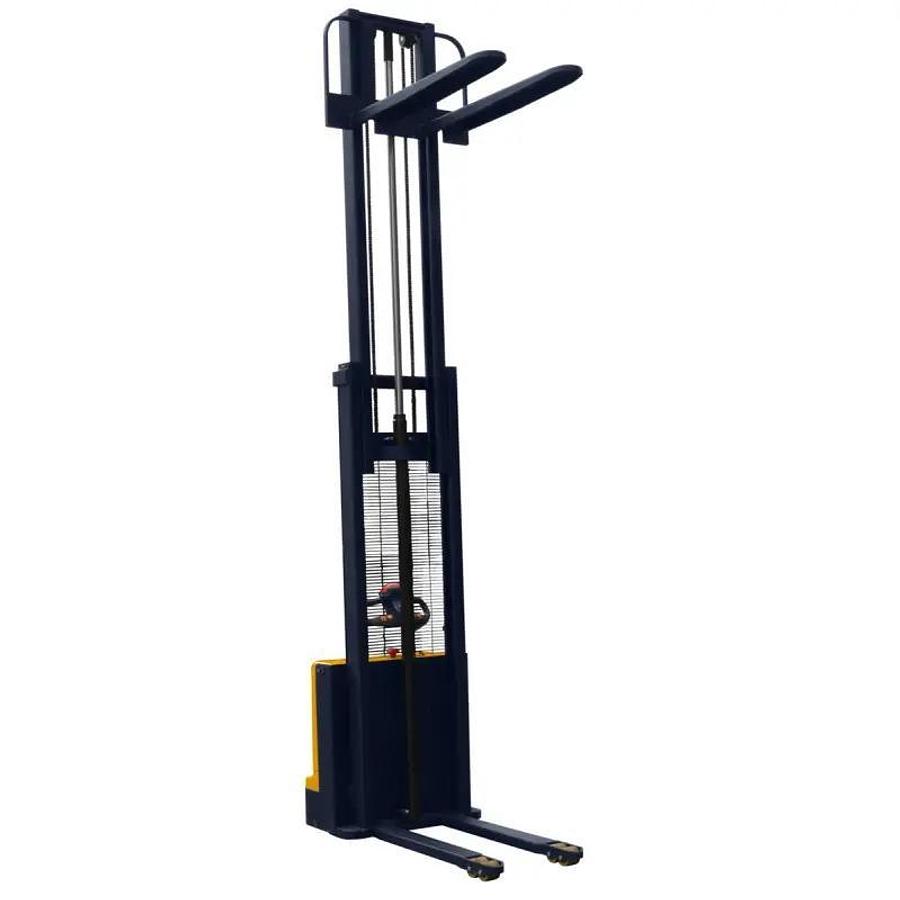

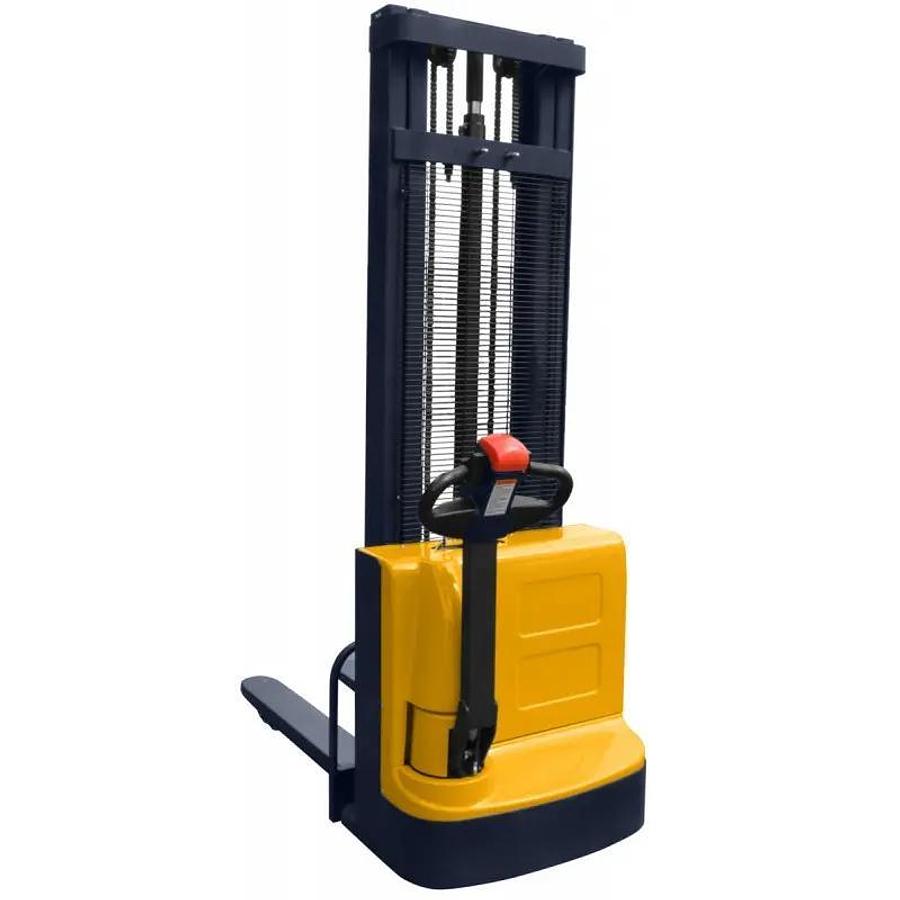

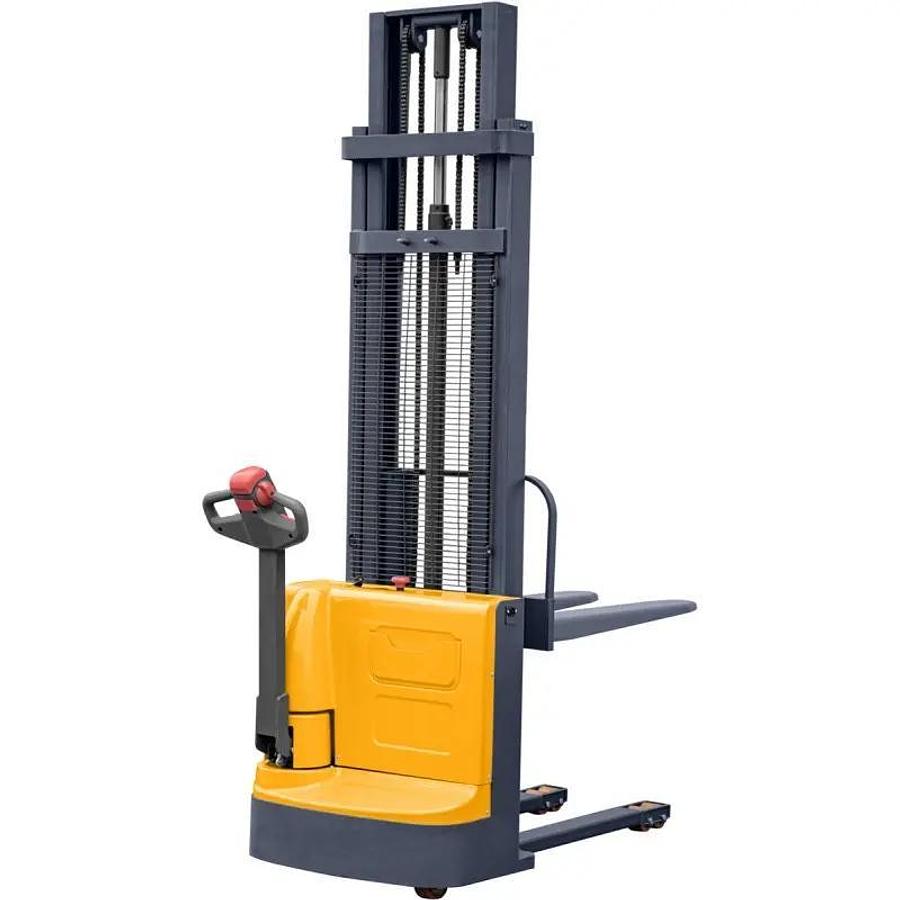

Cormak Q20E35 Electric Mast Pallet Truck

Cormak Q20E35 Electric Mast Pallet Truck

Product Type: Electric Pallet Truck

Description

The electric pallet stacker with a load capacity of 2,000kg and a lifting height of 3,500mm is the ideal warehouse machine for handling heavy loads. Its solid steel construction ensures stability when lifting up to 2 tonnes. Polyurethane rollers allow smooth movement even on uneven surfaces. This mast-type pallet truck enables fast and safe load handling at various levels and under different working conditions.

Electric Pallet Stacker CORMAK Q20E35 – 2000kg Load Capacity, 3500mm Lift Height, Zero-Emission Drive

The CORMAK Q20E35 Electric Pallet Stacker is an advanced tool for professional pallet and material handling in warehouse, production and logistics environments. With a 2,000kg load capacity and a lifting height of 3,500mm, this stacker is an ideal choice for handling medium to heavy loads that require precise positioning at multiple rack levels. The electric drive and maintenance-free AGM battery ensure high efficiency while reducing noise and eliminating exhaust emissions.

Main Benefits of Using the CORMAK Q20E35

• Load capacity 2000kg – safe handling of heavy pallets in daily warehouse operations.

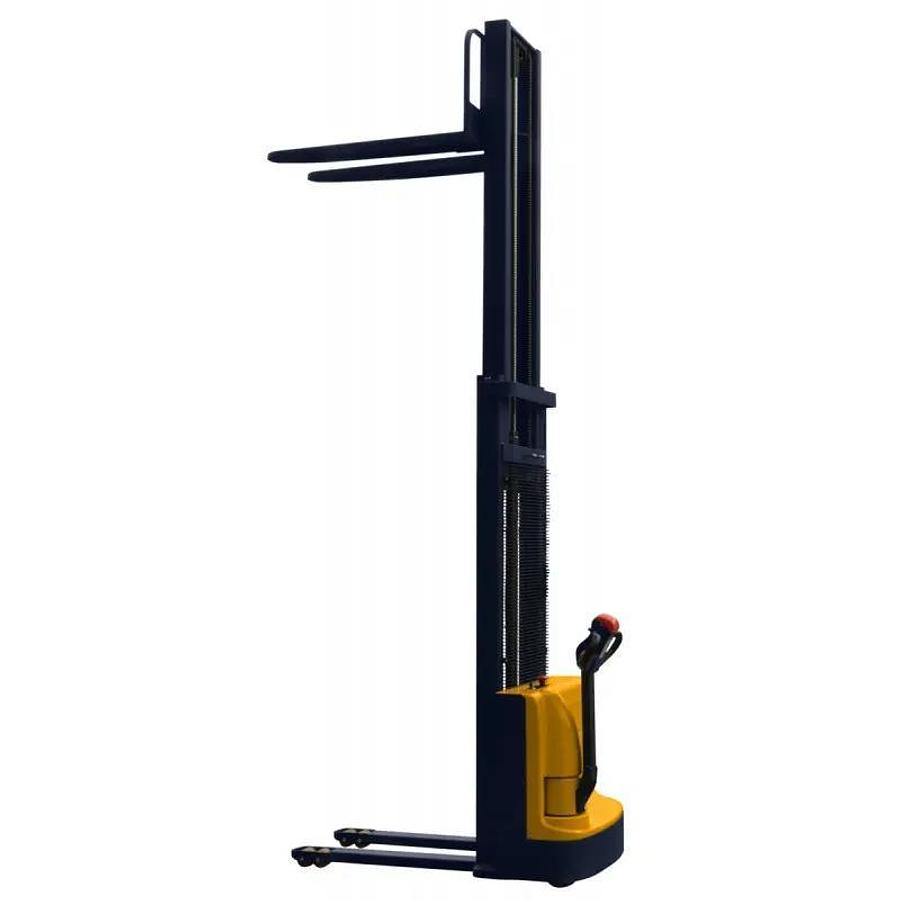

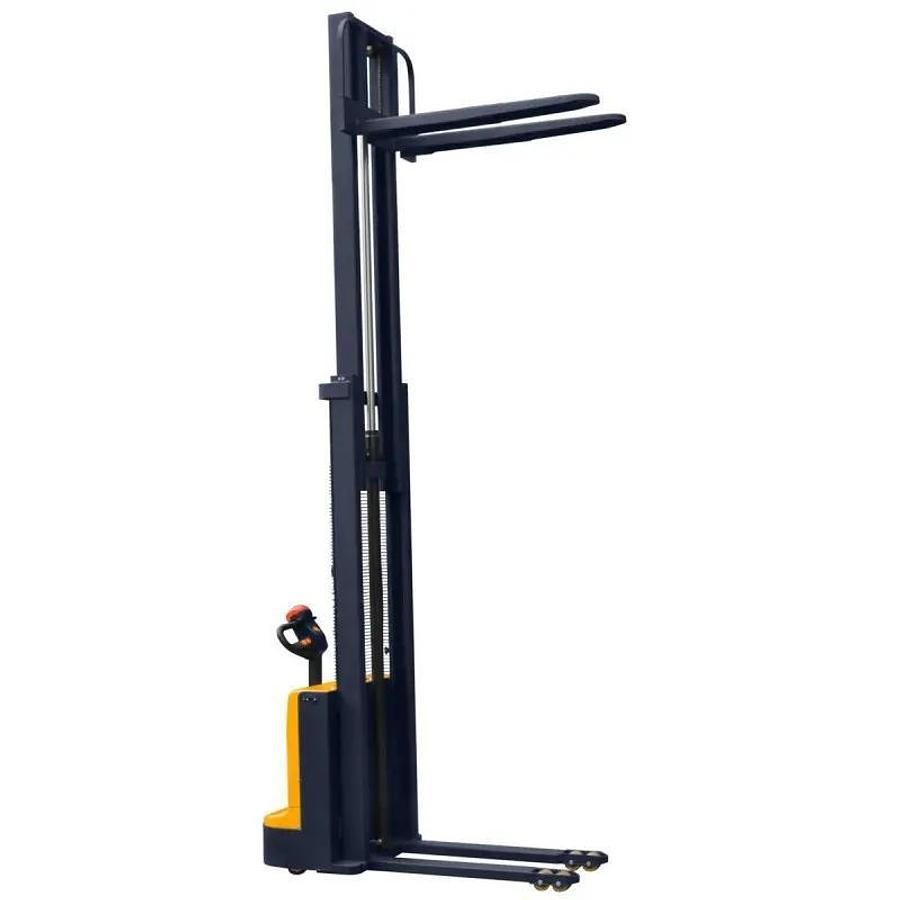

• Lifting height 3500mm – efficient use of high-bay racking systems.
• Zero-emission electric drive – perfect for indoor use without air contamination.
• “Turtle mode” driving function – precise manoeuvring in confined spaces.
• Extended runtime – 8–10 hours on a single charge thanks to two AGM batteries.
• Built-in charger – easy charging without external equipment.
• Battery control system – monitors charge level and prevents over-discharge.

Construction and Technology – Precision and Durability

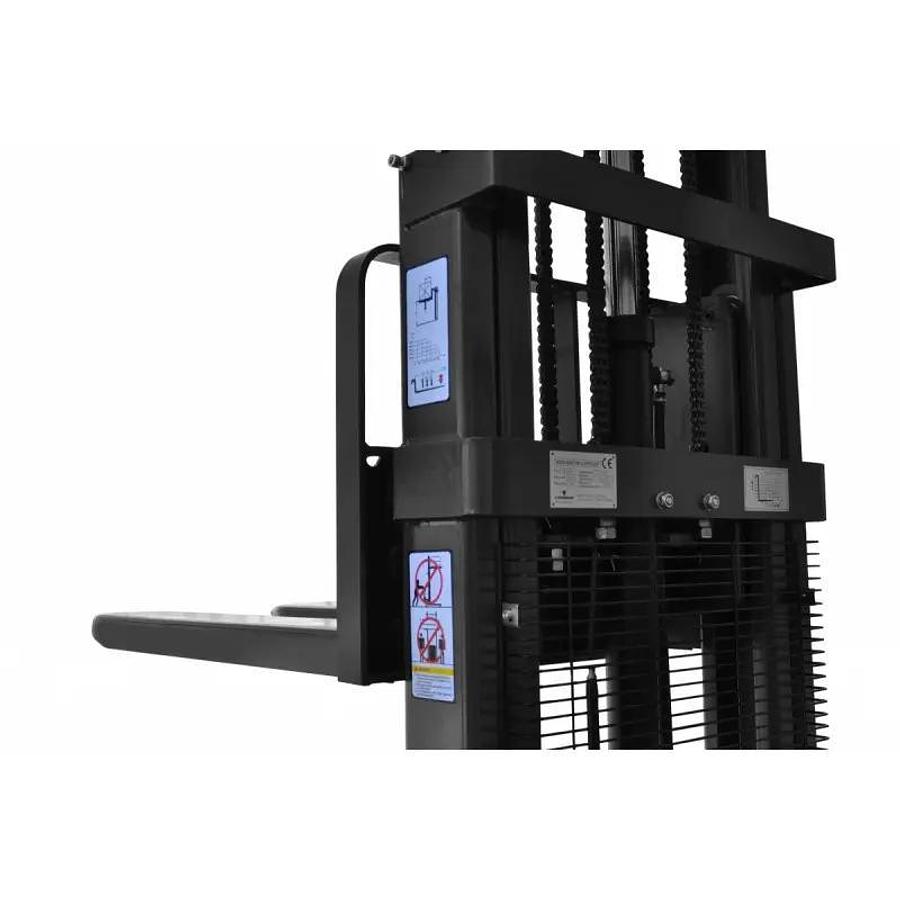

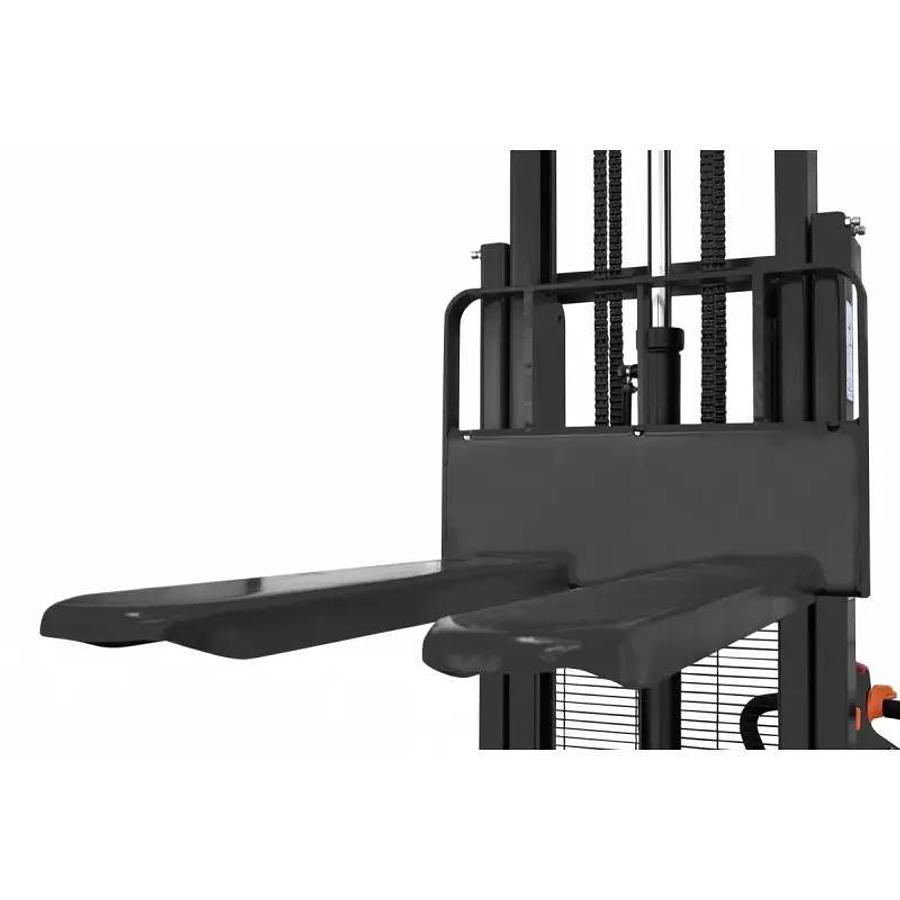

The Q20E35 model is built on a reinforced steel frame and a robust telescopic mast with a total height of 4000mm when fully raised. Forks measuring 1150mm in length and 570mm in outer width provide full compatibility with standard Euro pallets. The highly durable structure and low centre of gravity (600mm) guarantee stability even under maximum load.

The electric drive uses a 0.75kW traction motor and a 2.2kW lifting motor, ensuring smooth and dynamic operation when carrying loads. Durable polyurethane wheels deliver low rolling resistance, quiet operation and high wear resistance – perfect for intensive industrial use.

Work Efficiency and Operator Safety

The stacker reaches a travel speed of up to 4 km/h and provides lifting and lowering speeds of 140/200mm/s and 120/100mm/s (with and without load respectively). The electromagnetic brake system activates automatically, ensuring immediate stop when needed. With a turning radius of 1390mm and compact dimensions, it allows easy operation in narrow warehouse aisles.

The sealed, maintenance-free AGM battery (2×12V 120Ah) eliminates the need for electrolyte refilling and prevents leaks. The built-in controller monitors charging cycles and protects the battery from deep discharge, extending its lifespan. Charging is carried out using the integrated charger, with no need for external devices.

Applications of the CORMAK Q20E35 Electric Pallet Stacker

The Q20E35 is designed for use in:

• professional logistics warehouses,
• production and assembly halls,
• distribution centres,
• food, pharmaceutical and electronics industries,
• wholesale and industrial facilities.

Its high lifting capacity, precise motion control, and quiet, eco-friendly operation make it an indispensable tool for companies aiming to optimise internal logistics and efficiency.

Standard Equipment

• AGM battery 2×12V 120Ah – sealed, maintenance-free design
• Built-in charger and rectifier
• “Turtle mode” precision driving function
• Battery charge indicator on the control box
• Electromagnetic brake – instant stopping capability
• Battery protection controller – safeguards against overcharging and deep discharge

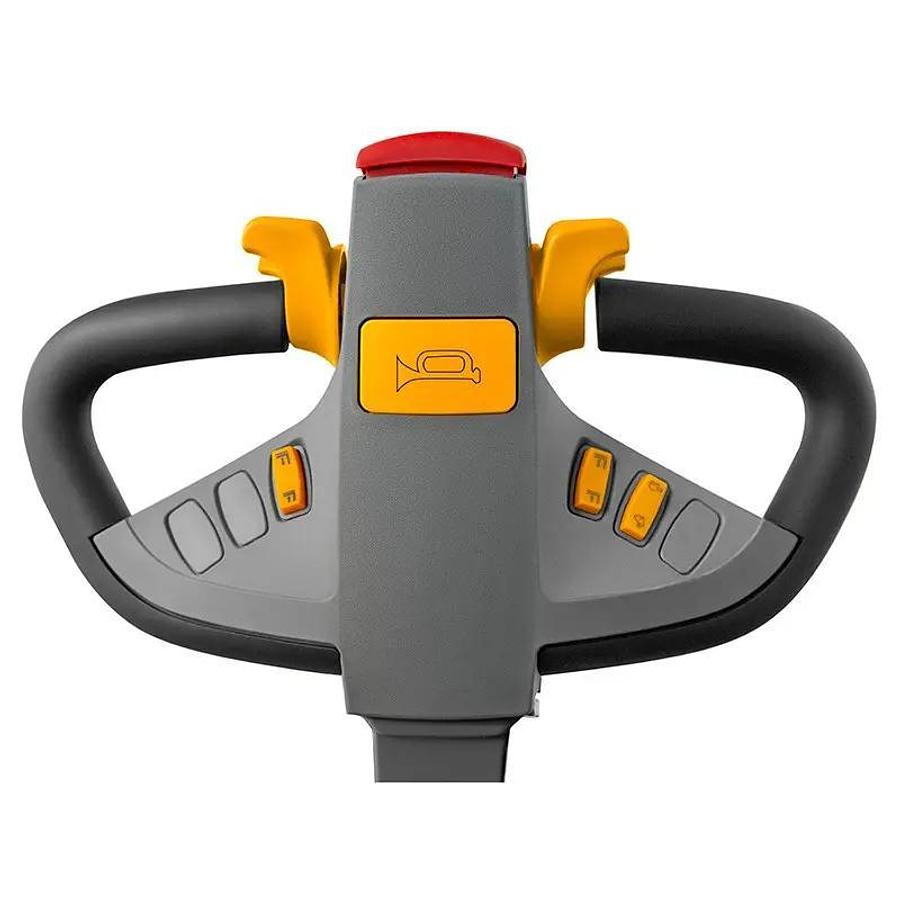

• Control handle with steering transfer function

Technical Specifications

Max Lifting Height: 3500mm

Load Capacity: 2000kg

Load Centre: 600mm

Fork Length: 1150mm

Outer Fork Width: 570mm

Lowered Mast Height: 2330mm

Extended Mast Height: 4000mm

Lowered Fork Height: 85mm

Overall Width: 810mm

Overall Length: 1745mm

Ground Clearance: 30mm

TURNING RADIUS 1390mm

Travel Speed (Loaded/Unloaded): 3.5 / 4 km/h

Lift Speed (Loaded/Unloaded): 140 / 200 mm/s

Lowering Speed (Loaded/Unloaded): 120 / 100 mm/s

Gradeability (Loaded/Unloaded): 5 / 7%

Brake Type: Electromagnetic

Drive Motor Power: 0.75kW

Lift Motor Power: 2.2kW

Battayery Voltage Capacity: 2×12V 120Ah

Wheel Material: Polyurethane

Weight: 700kg
