1997 Haco PPM 3075 NC Press Brake | 3.1 m, 75 Tonne

Used 1997 Haco PPM 3075 NC press brake for sale in Ireland. Approx. 75-tonne capacity, 3.1 m bending length, ATL 550 control, X-axis backgauge and tooling.

Manufacturer: HACO

Model: PPM 3075

Capacity: 3.1m x 75T

Year: 1997

Condition: Decommissioned - Can be powered up for very interested customers

75-Tonne Hydraulic Press Brake with 3.1 m Bending Length and ATL 550 NC Control

This 1997 Haco PPM 3075 NC-controlled press brake is a robust conventional hydraulic bending machine suitable for sheet-metal fabrication, general engineering, maintenance workshops and light-to-medium production work.

The machine offers an approximate 3.1-metre bending length and 75-tonne pressing capacity. It is fitted with a Haco Atlantic ATL 550 NC control, powered X-axis backgauge with two adjustable fingers, top tooling, multi-V bottom tooling and a portable wanderer-type foot pedal.

Its straightforward torsion-bar design and numerical backgauge control make it a practical option for workshops that need repeatable bending without the complexity of a modern multi-axis CNC press brake.

Key Features

• 1997 Haco PPM 3075 hydraulic press brake
• Approximate 75-tonne pressing force
• Approximate 3.1 m bending length
• Haco Atlantic ATL 550 NC control
• Powered X-axis rear backgauge
• Two adjustable backgauge fingers
• Top press-brake tooling included
• Multi-V bottom tool included
• Wanderer-type portable foot pedal
• Hydraulic twin-cylinder operation
• Torsion-bar ram synchronisation
• Motorised bend-depth adjustment
• Suitable for general fabrication and engineering work

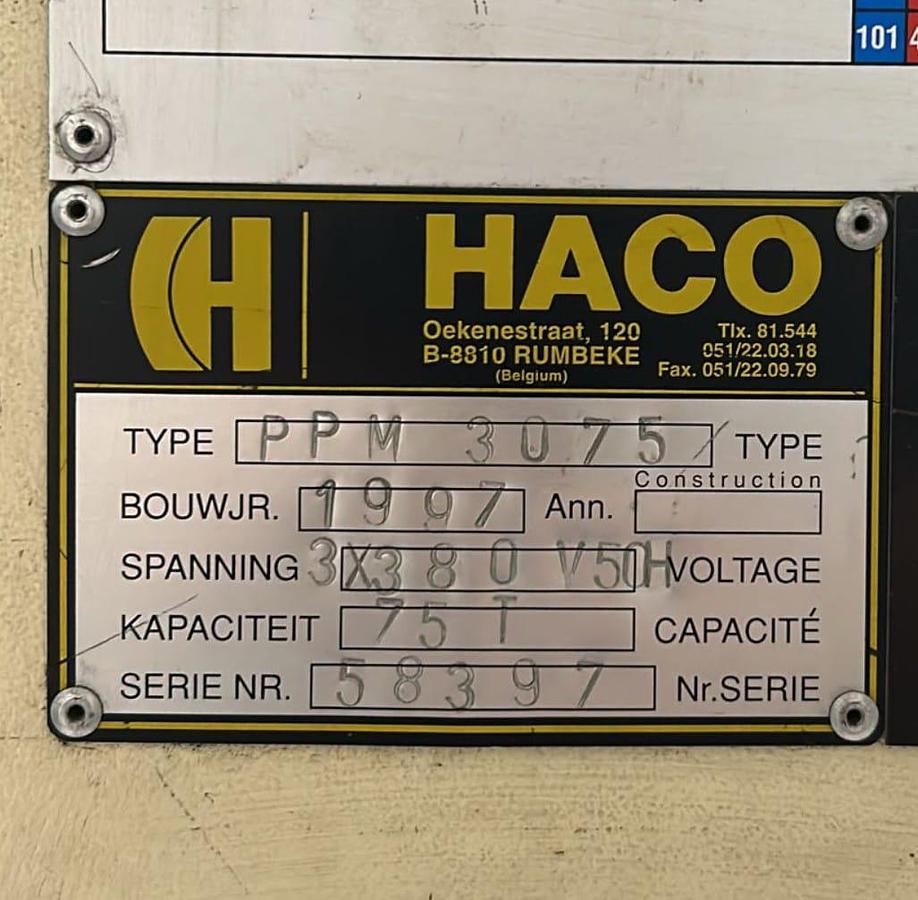

Technical Specification

Manufacturer: Haco

Model: PPM 3075

Year: 1997

Machine type: Hydraulic NC press brake

Pressing capacity: 75 tonnes

Bending length: 3,100 mm

Distance between frames: Approx 2,600 mm

Throat depth: Approx 200 mm

Control: Haco ATL 550

Backgauge: Powered X axis

Backgauge fingers: Two

Ram synchronisation: Mechanical torsion bar

Bend-depth adjustment: Motorised

Working speed: Approx 8.8 mm/sec

Main motor: Approx 7.5 kW

Upper tooling: Included

Lower tooling: Multi-V bottom tool included

Operator control: Wanderer-type foot pedal

Electrical supply: 3 Phase/ 50Hz

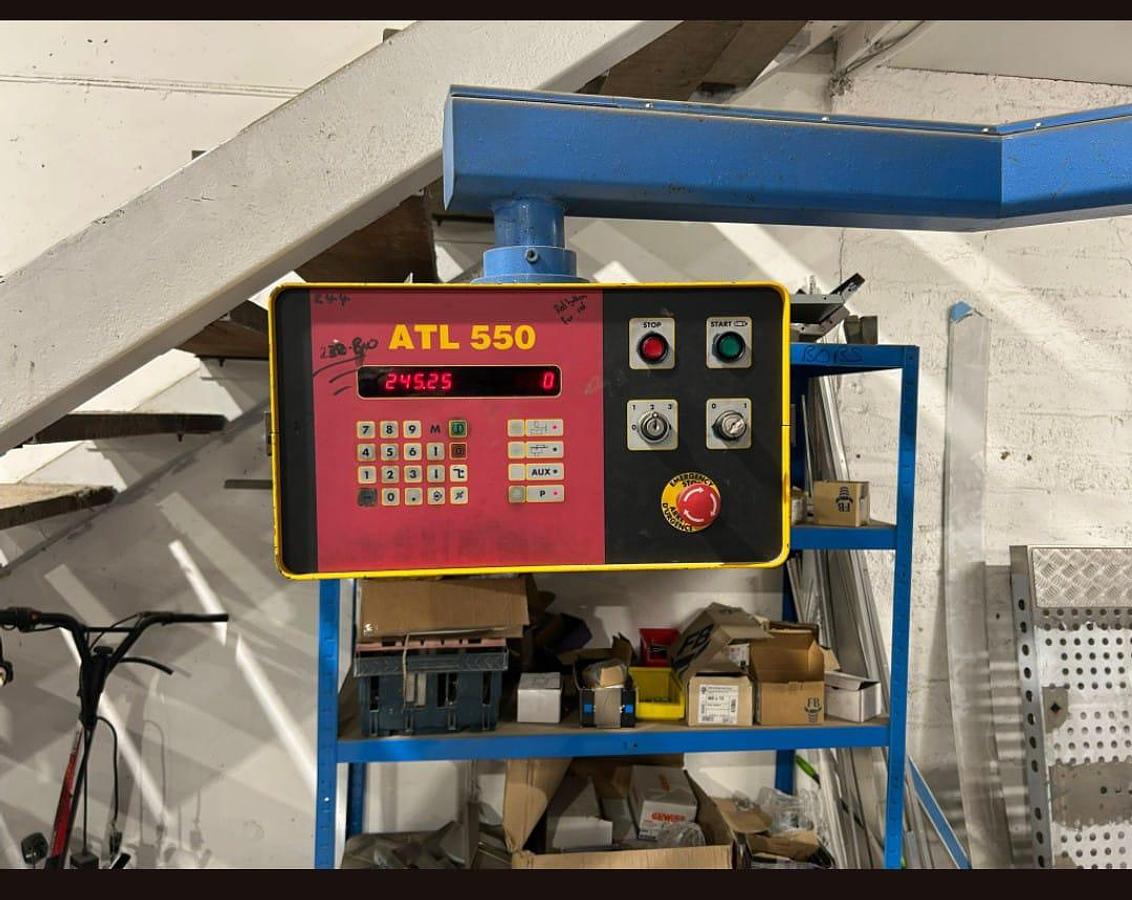

Haco ATL 550 NC Control

The fitted ATL 550 numerical control is designed to simplify repetitive bending work by controlling the powered rear backgauge and bend-depth setting.

Typical functions may include:

• X-axis backgauge positioning
• Programmed bend sequences
• Repeat-position control
• Motorised ram-depth adjustment
• Stored dimensions and bend positions
• Sequential backgauge movement
• Manual and automatic positioning modes

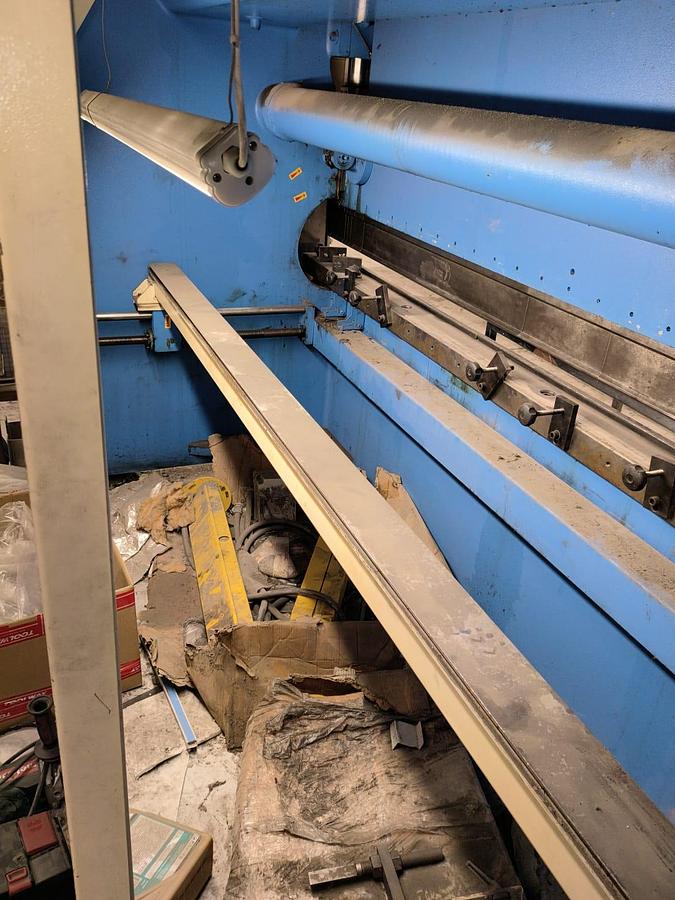

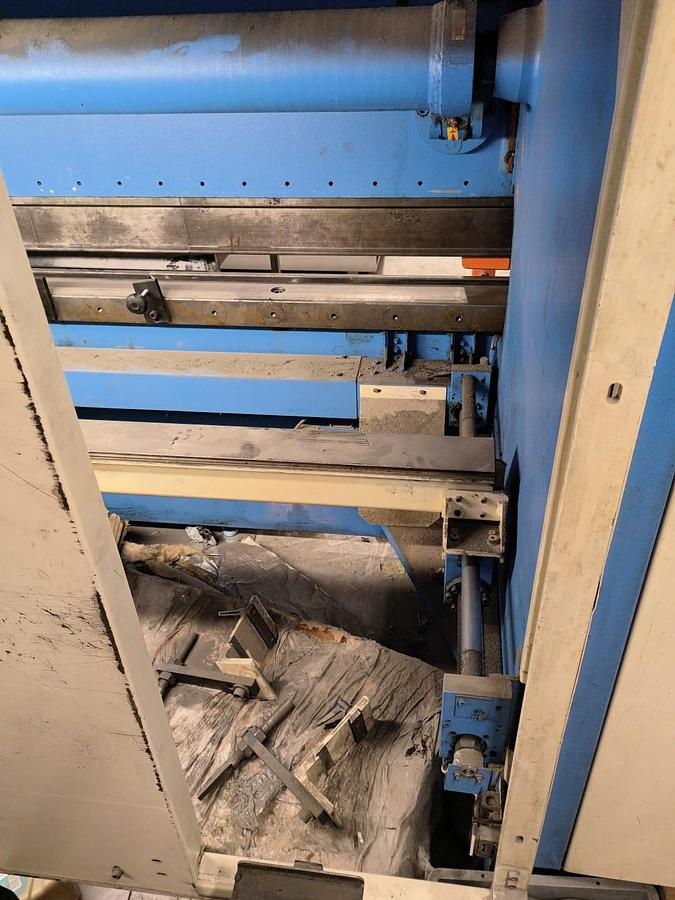

Powered X-Axis Backgauge

The machine is fitted with a powered rear backgauge controlled through the ATL 550.

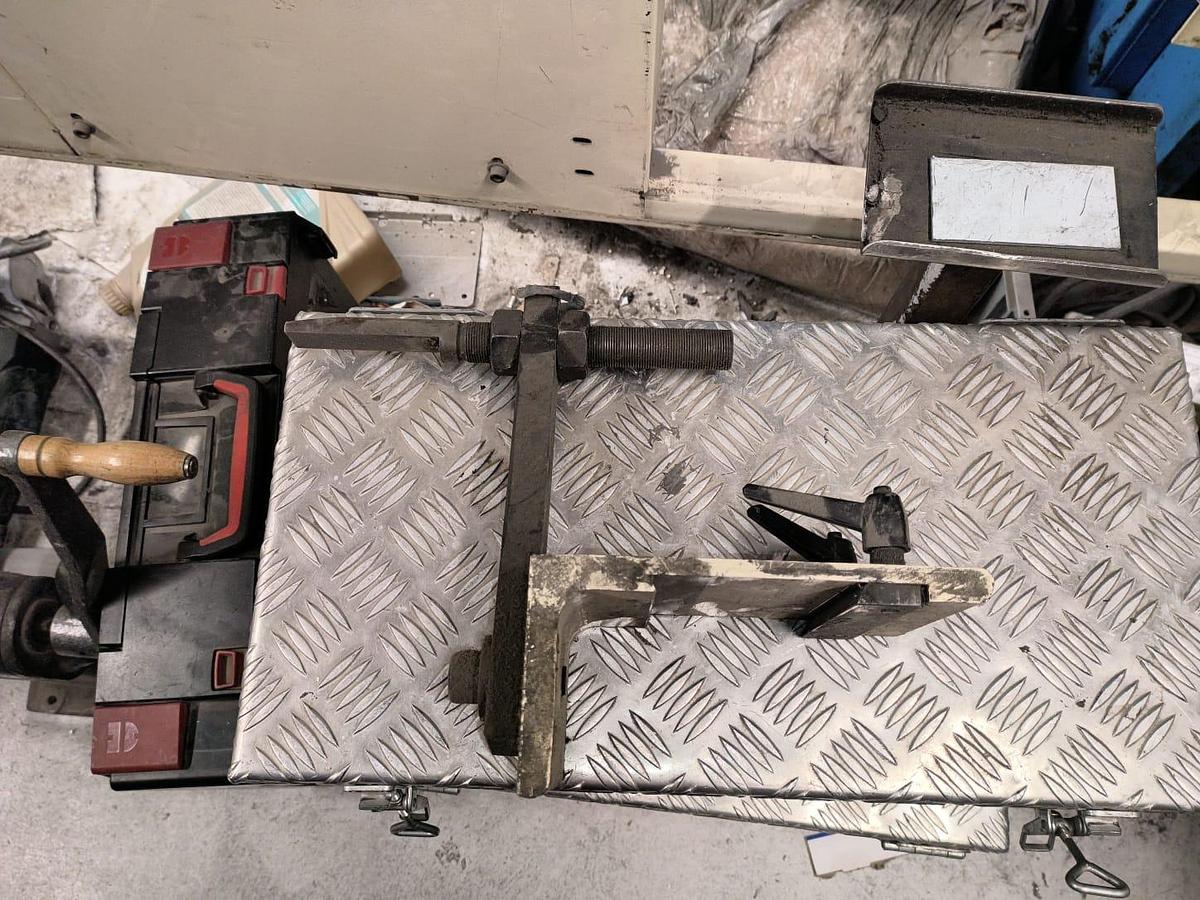

The backgauge includes two adjustable fingers, allowing the operator to position sheet or plate accurately for repeat bends.

Benefits include:

• Improved dimensional consistency
• Reduced manual measuring
• Faster repetitive bending
• Easier production of multiple-flange components
• More repeatable batch work

The backgauge fingers should be adjusted to suit the workpiece width, bend sequence and component geometry.

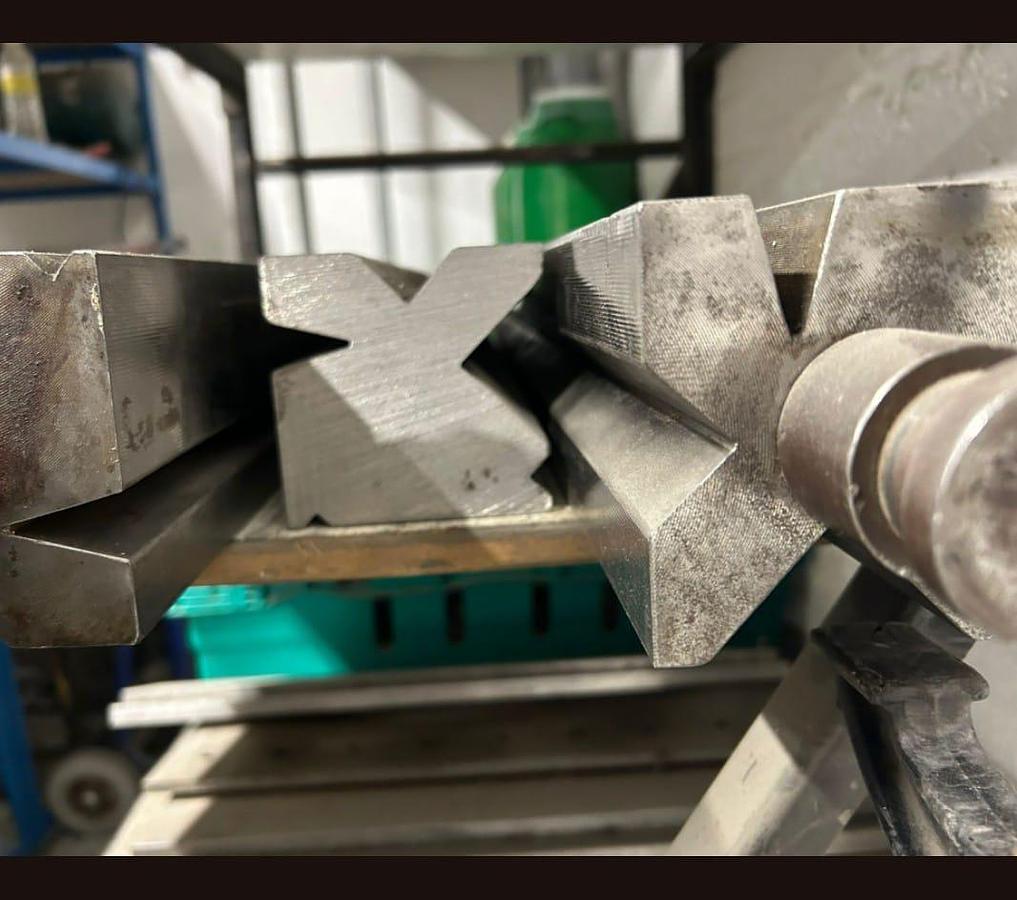

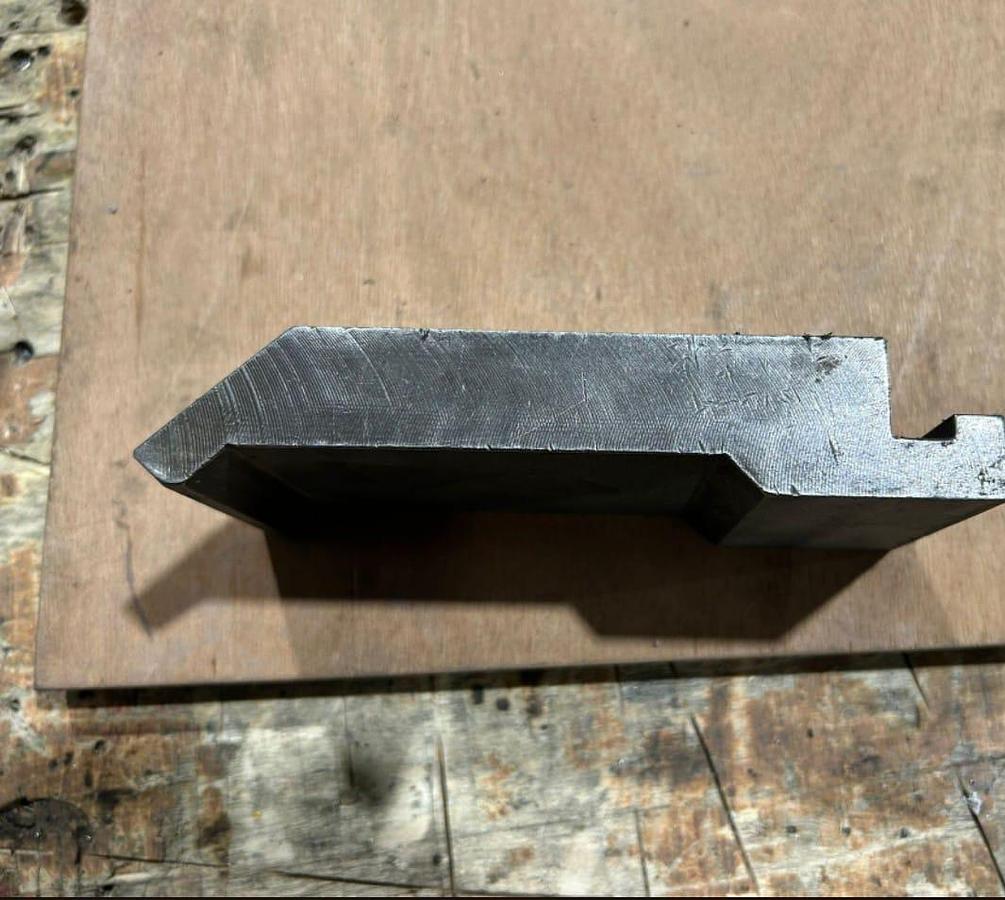

Tooling Included

The machine is offered with:

• Upper press-brake tool
• Multi-V lower die
• Two rear backgauge fingers

The multi-V lower tool provides a selection of die openings for different material thicknesses and bend radii.

Tool condition, tool length, included sections and exact V-opening sizes should be confirmed during inspection.

Wanderer-Type Foot Pedal

A portable wanderer-style foot pedal is included, allowing the operator to position the control pedal at a convenient point along the front of the machine.

This provides flexibility when working with longer components or when the operator needs to support and align the workpiece during bending.

Safe operation remains subject to the machine’s installed guarding, interlocks and workplace risk assessment.

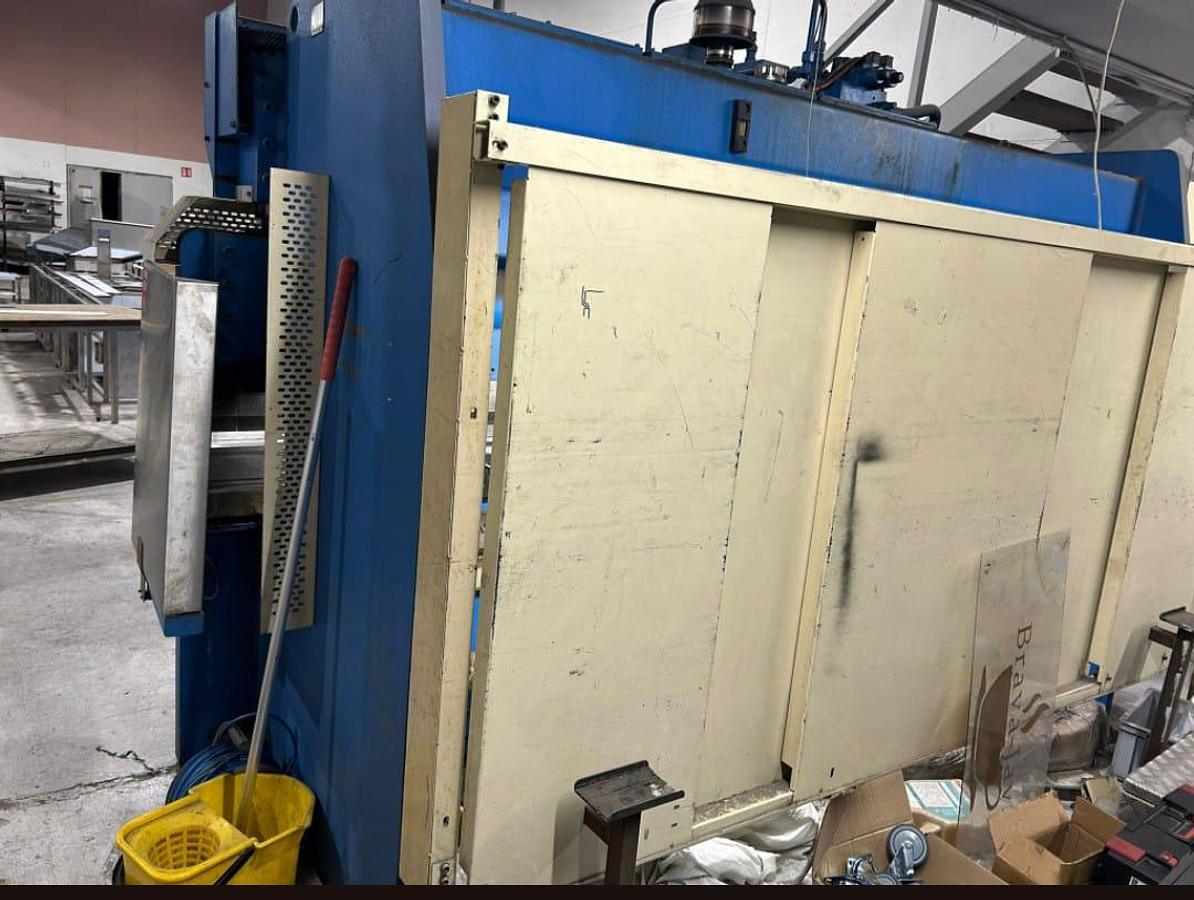

Machine Construction

The Haco PPM range uses a conventional hydraulic press-brake design with:

• Rigid welded steel frame
• Two hydraulic cylinders
• Torsion-bar ram synchronisation
• Mechanical depth-stop system
• Powered rear backgauge
• Adjustable front and rear working positions
• Conventional upper and lower press-brake tooling

This design is widely used for general sheet-metal bending because it is relatively straightforward to operate, maintain and set.

Typical Applications

The Haco PPM 3075 is suitable for:

• General sheet-metal fabrication
• Folding mild-steel sheet
• Bending stainless steel
• Forming aluminium sheet
• Production of brackets and channels
• Manufacturing panels and covers
• Repair and maintenance work
• Agricultural machinery components
• Commercial vehicle fabrication
• Structural and general engineering
• HVAC and ductwork fabrication
• Small-batch production
• Prototype sheet-metal work
• Fabrication workshop use

Why Buy This Haco PPM 3075?

The Haco PPM 3075 combines a useful 3.1-metre bending length with a conventional, proven hydraulic design.

The ATL 550 NC control and powered backgauge provide greater repeatability and productivity than a fully manual press brake, while retaining straightforward mechanical and hydraulic construction.

The included upper tool and multi-V lower die mean the machine is supplied with essential bending tooling, subject to confirmation of condition and suitability for the buyer’s intended work.

This machine may suit a fabrication company looking for a dependable used press brake for general production without the purchase cost or complexity of a newer CNC machine.

Included Equipment

The machine is offered with:

• Haco ATL 550 NC control
• Powered X-axis backgauge
• Two backgauge fingers
• Upper press-brake tool
• Multi-V lower tool
• Wanderer-type foot pedal

Only equipment specifically confirmed in writing should be considered included in the sale.

Machine Condition and Inspection

This is a used 1997 Haco PPM 3075 NC Press Brake, offered subject to prior sale and availability.

Prospective buyers are encouraged to inspect the machine and verify:

• Hydraulic-system condition
• Ram alignment and synchronisation
• ATL 550 control operation
• X-axis backgauge movement
• Backgauge accuracy
• Tooling condition
• Foot-pedal operation
• Safety systems and guarding
• Electrical supply and control voltage
• Oil leaks and cylinder condition
• Machine capacity for the proposed material and tooling

Inspection under power is available by prior arrangement for very interested parties only.

Important Specification Notice

All specifications, capacities, dimensions, speeds, tooling descriptions and equipment details are approximate and are provided for guidance only.

Specifications may vary according to the machine’s serial number, year of manufacture, original customer specification, electrical configuration, tooling and subsequent modifications.

FAQ

What is the bending length of the Haco PPM 3075?

This machine has an approximate bending length of 3,100 mm, or 3.1 metres.

What is the pressing capacity?

The approximate nominal pressing capacity is 75 tonnes.

Is this a CNC press brake?

It is best described as an NC-controlled hydraulic press brake. It uses a Haco Atlantic ATL 550 control for backgauge and bend-depth positioning, but it is not a modern multi-axis CNC press brake.

Does it have a powered backgauge?

Yes. It has a powered X-axis rear backgauge with two adjustable fingers.

Is tooling included?

Yes. An upper tool and multi-V lower tool are included, subject to confirmation of their exact length, condition and V openings.

Does it have a foot pedal?

Yes. A portable wanderer-type foot pedal is included.

Is the machine suitable for stainless steel?

It may be suitable for stainless steel within its rated capacity, but allowable thickness depends on material strength, bend length, tooling and V-die opening.

Is this machine suitable for production work?

Yes. The powered backgauge and ATL 550 control make it suitable for repeat bending and small-to-medium production batches.

Does the machine use torsion-bar synchronisation?

Yes. The PPM range is generally based on conventional torsion-bar ram synchronisation rather than independent electro-hydraulic Y1/Y2 control.
