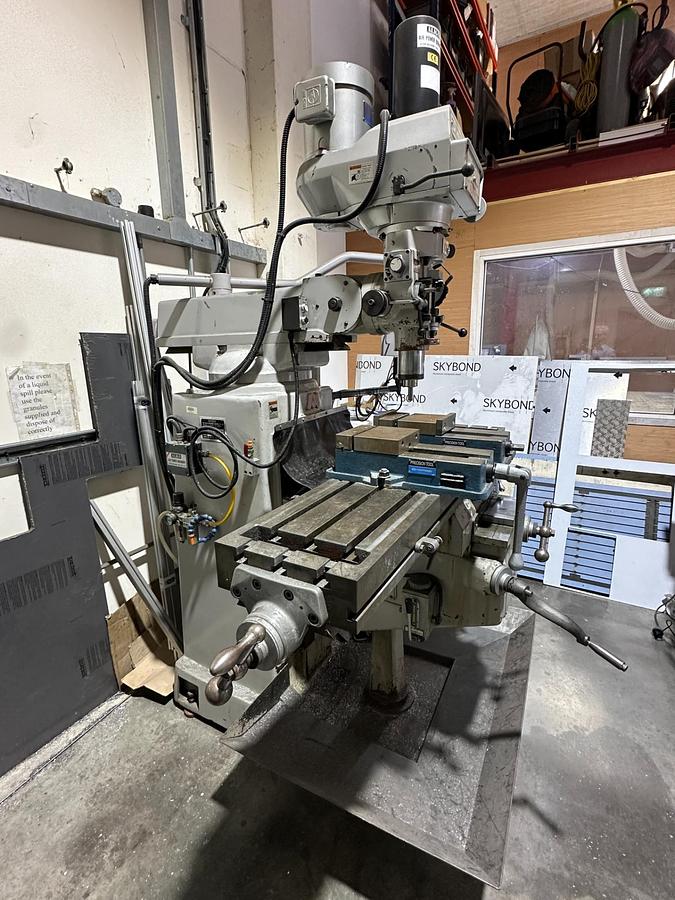

1999 Extron K3V Manual Milling Machine | Newall DRO

1999 Extron K3V manual mill for sale in Ireland with R8 spindle, 1325 x 280 mm table, 3-axis Newall Topaz DRO, Align air drawbar, powered X feed and coolant.

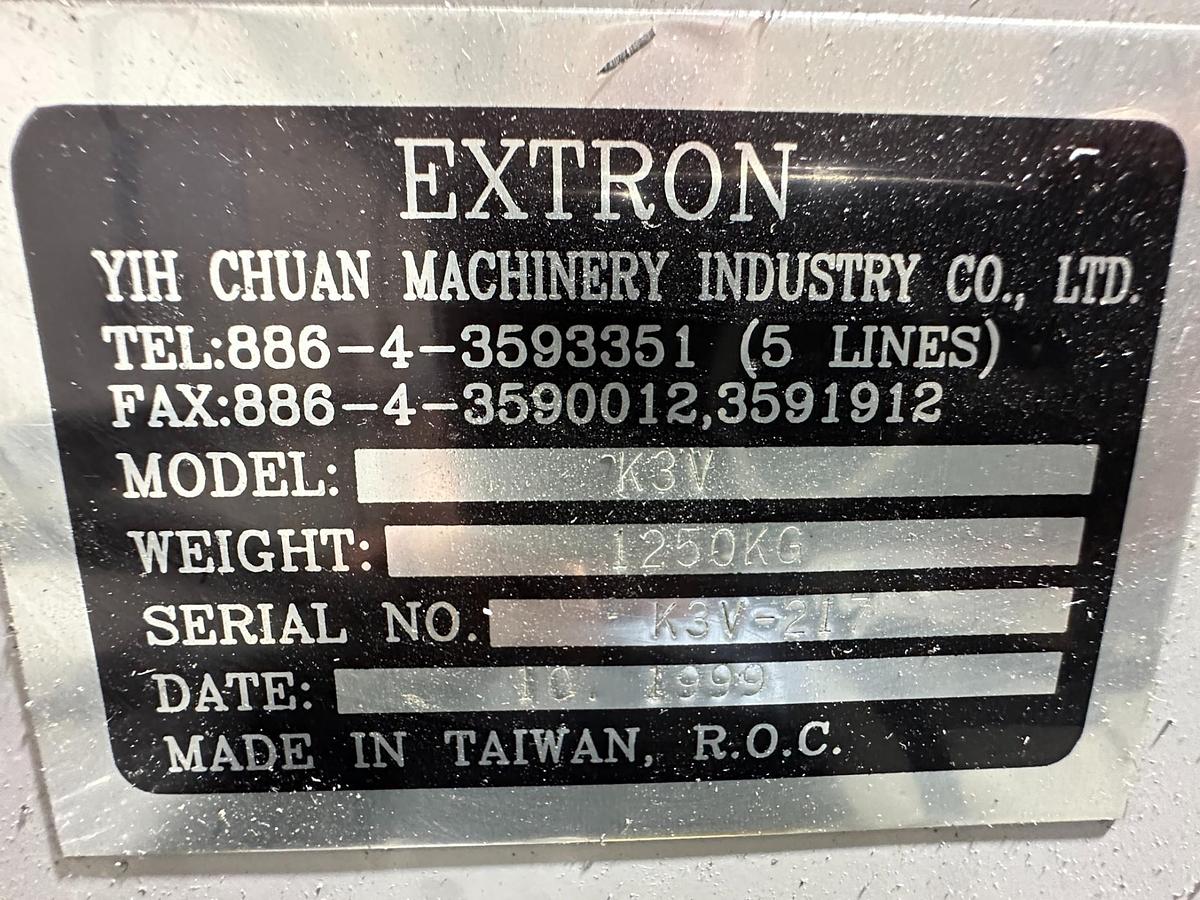

Manufacturer: Extron

Model: K3V

Year: 1999

Machine Type: Manual Milling Machine

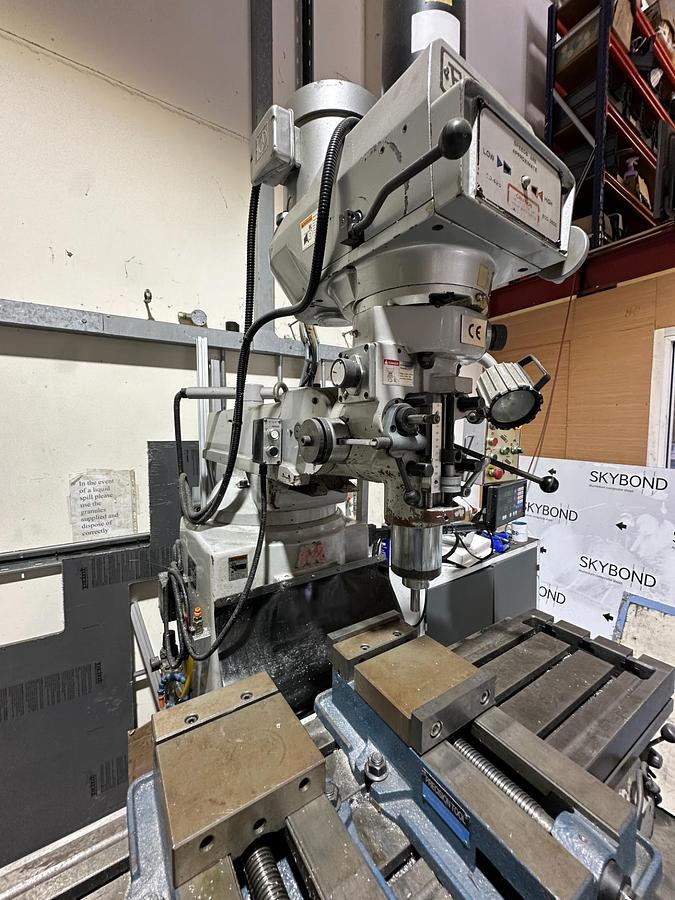

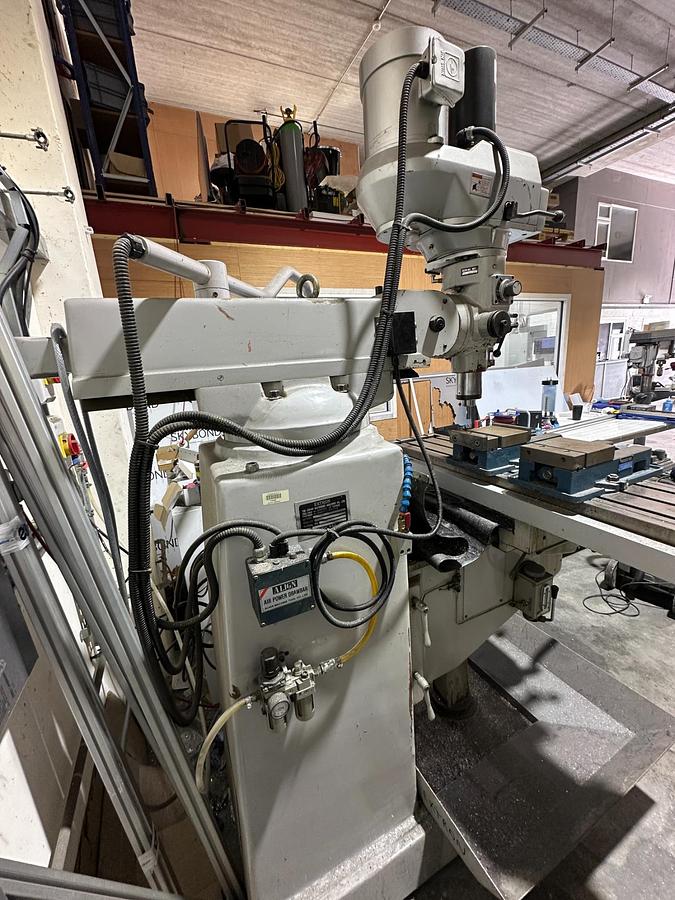

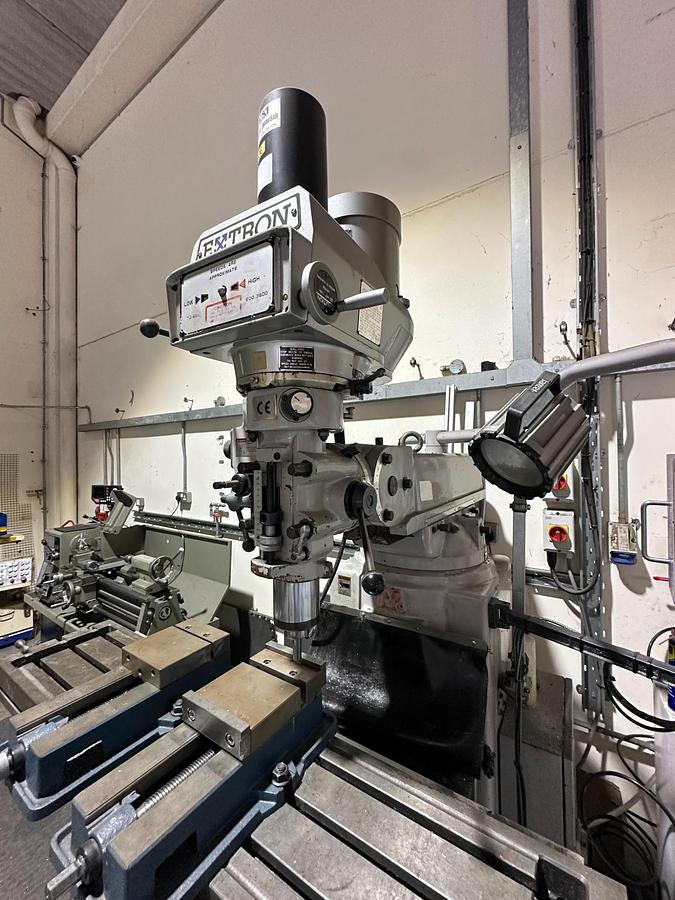

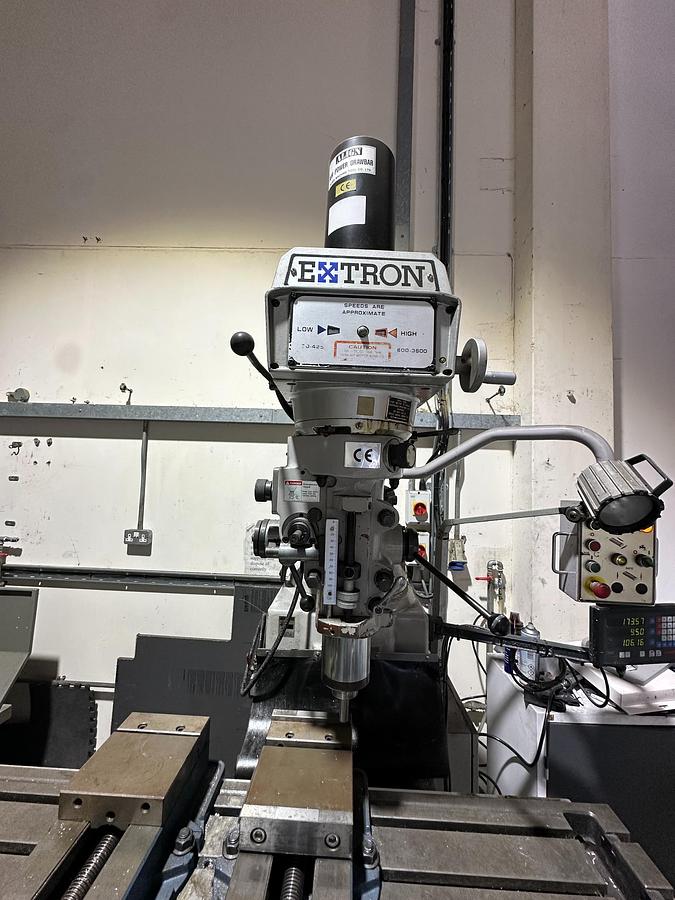

Heavy-Duty R8 Turret Mill with 3-Axis Newall DRO, Air Drawbar and Powered X-Axis Feed

Available from Used Machine Tools Ireland, this 1999 Extron K3V Manual Milling Machine is a robust, well-equipped vertical turret mill suitable for toolrooms, engineering workshops, maintenance departments, fabrication shops and general precision machining applications.

This machine is fitted with a 3-axis Newall Topaz Mill digital readout, Align air-powered drawbar, Align powered X-axis table feed, machine light and coolant equipment.

With its large table, R8 spindle taper and variable-speed milling head, the Extron K3V offers a practical combination of capacity, versatility and ease of use for manual milling, drilling, boring, slotting and light production work.

Key Features

• 1999 Extron K3V manual vertical milling machine
• Heavy-duty turret mill design
• R8 spindle taper

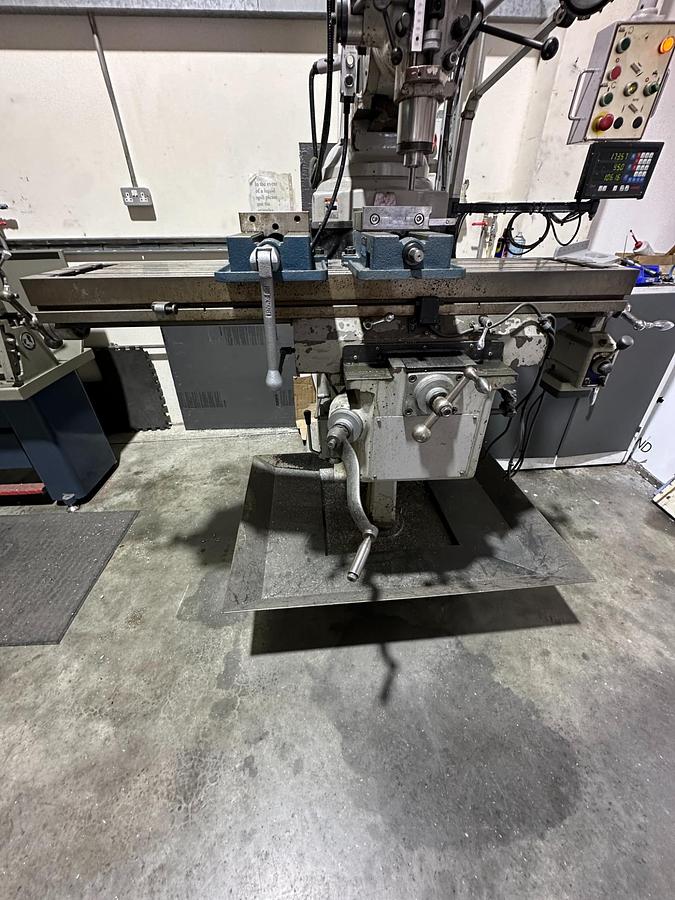

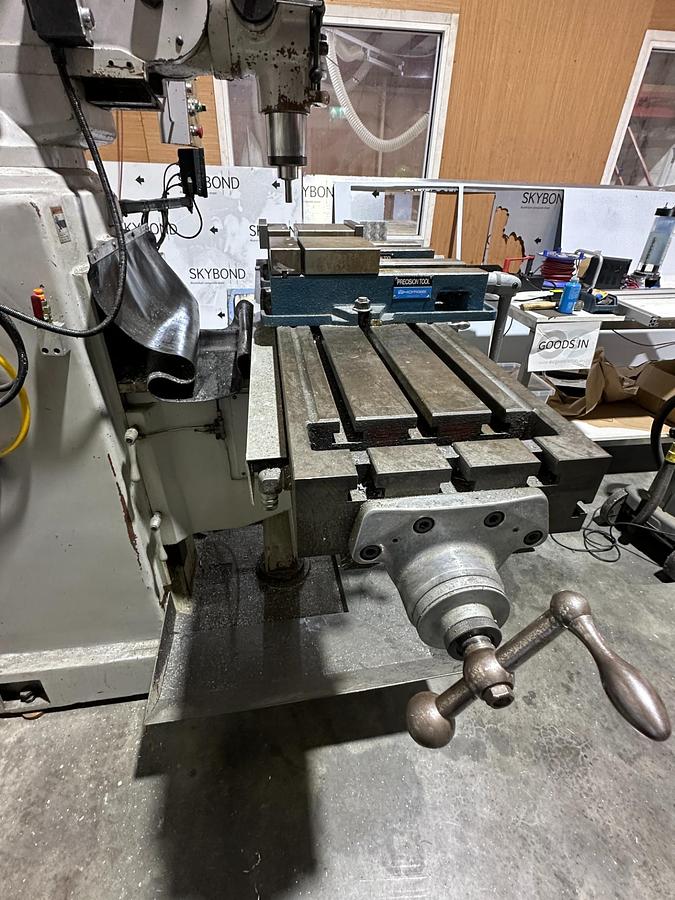

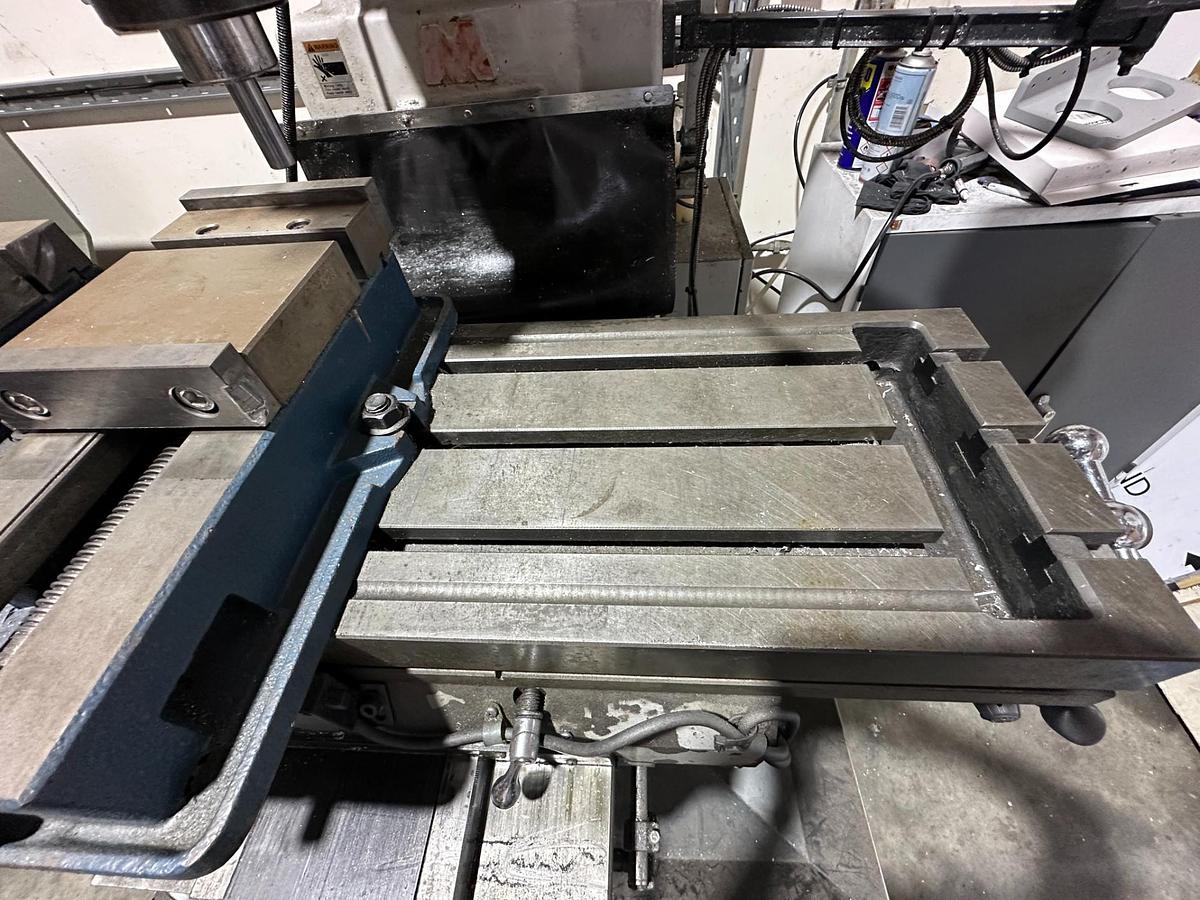

• Large 1,325 x 280 mm table

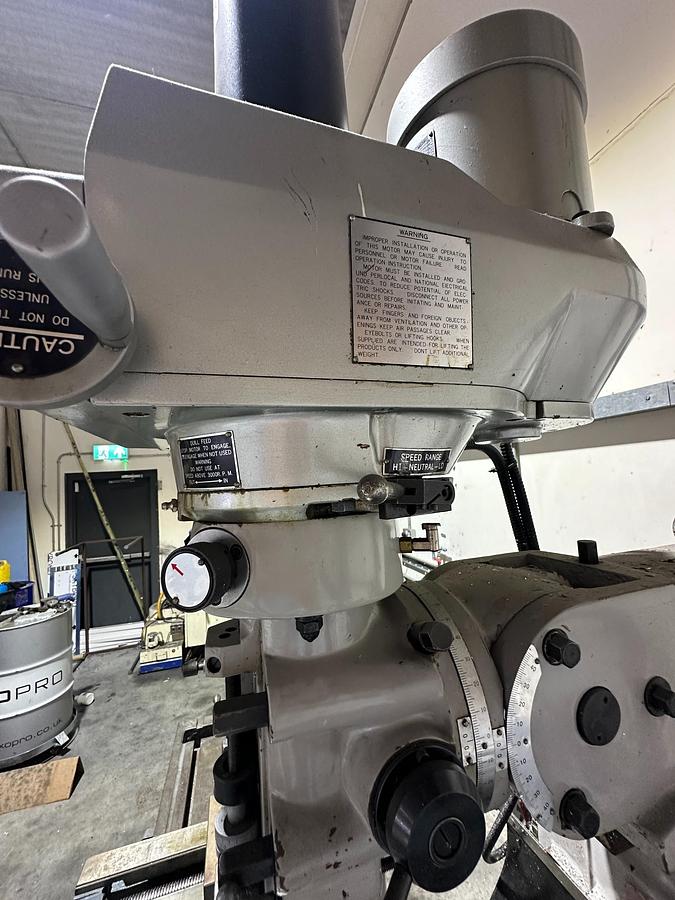

• Variable-speed spindle

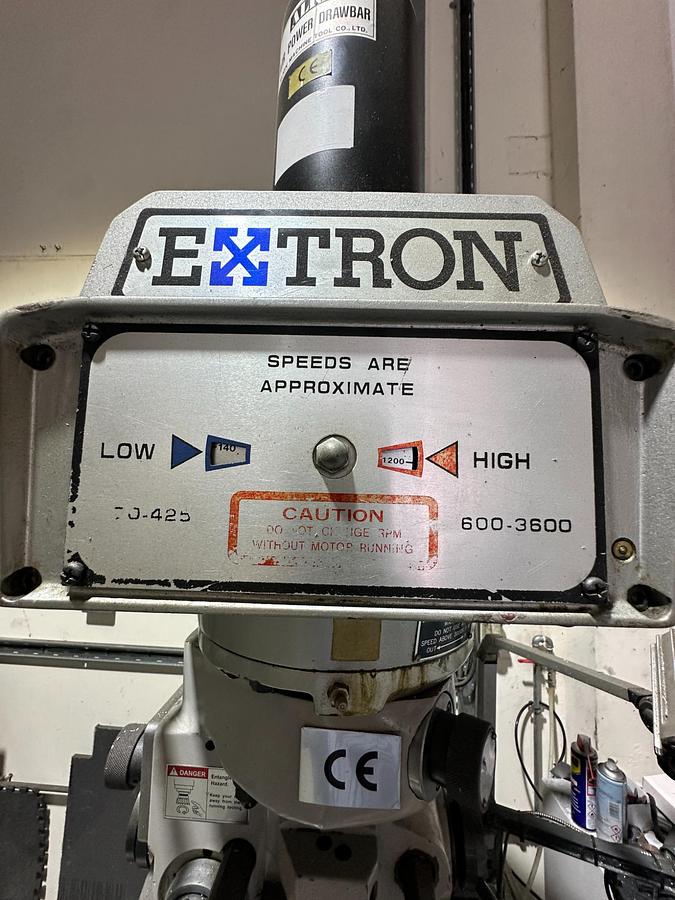

• Spindle-speed range from approximately 70 to 3,600 rpm
• 3-axis Newall Topaz Mill digital readout
• Align pneumatic air-powered drawbar
• Align powered X-axis table feed
• Automatic quill feed
• Machine light
• Coolant equipment
• Manual knee, cross and quill movement
• Suitable for toolroom, maintenance and general engineering work
• No vices included in the sale

Technical Specifications

Manufacturer: Extron

Model: K3V

Year: 1999

Machine type: Manual vertical turret milling machine

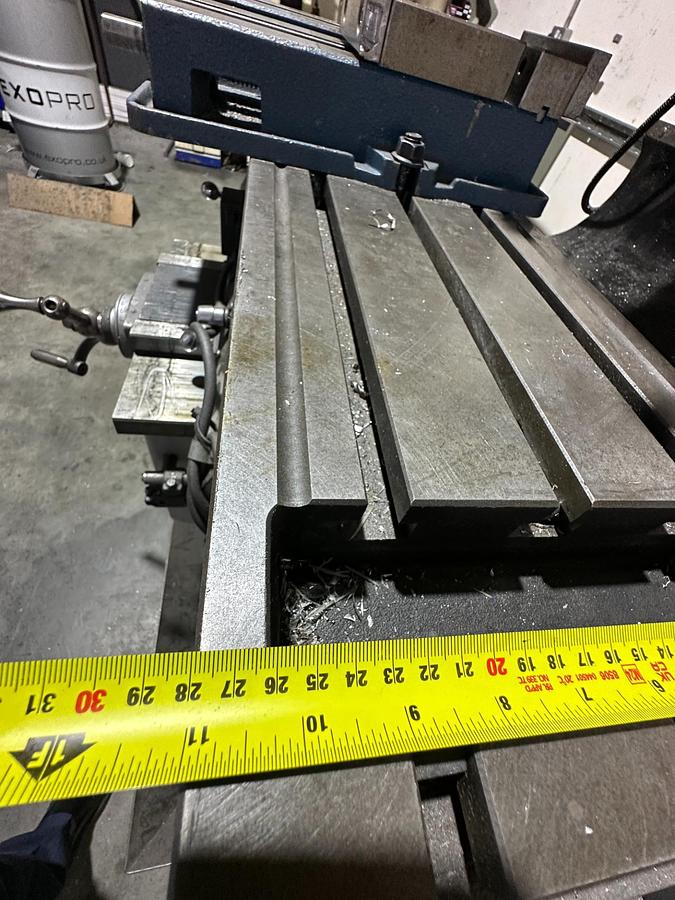

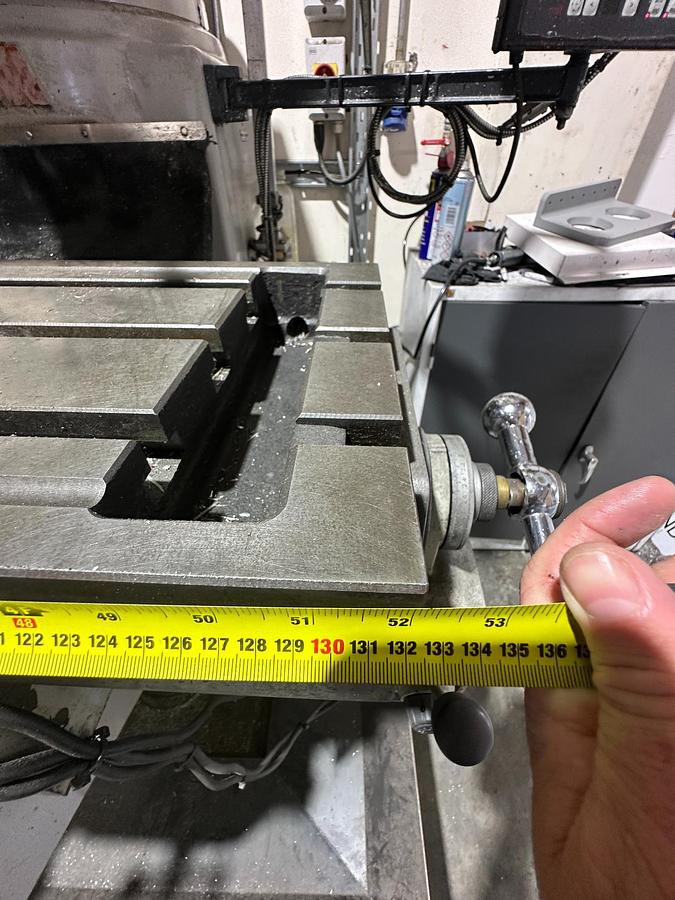

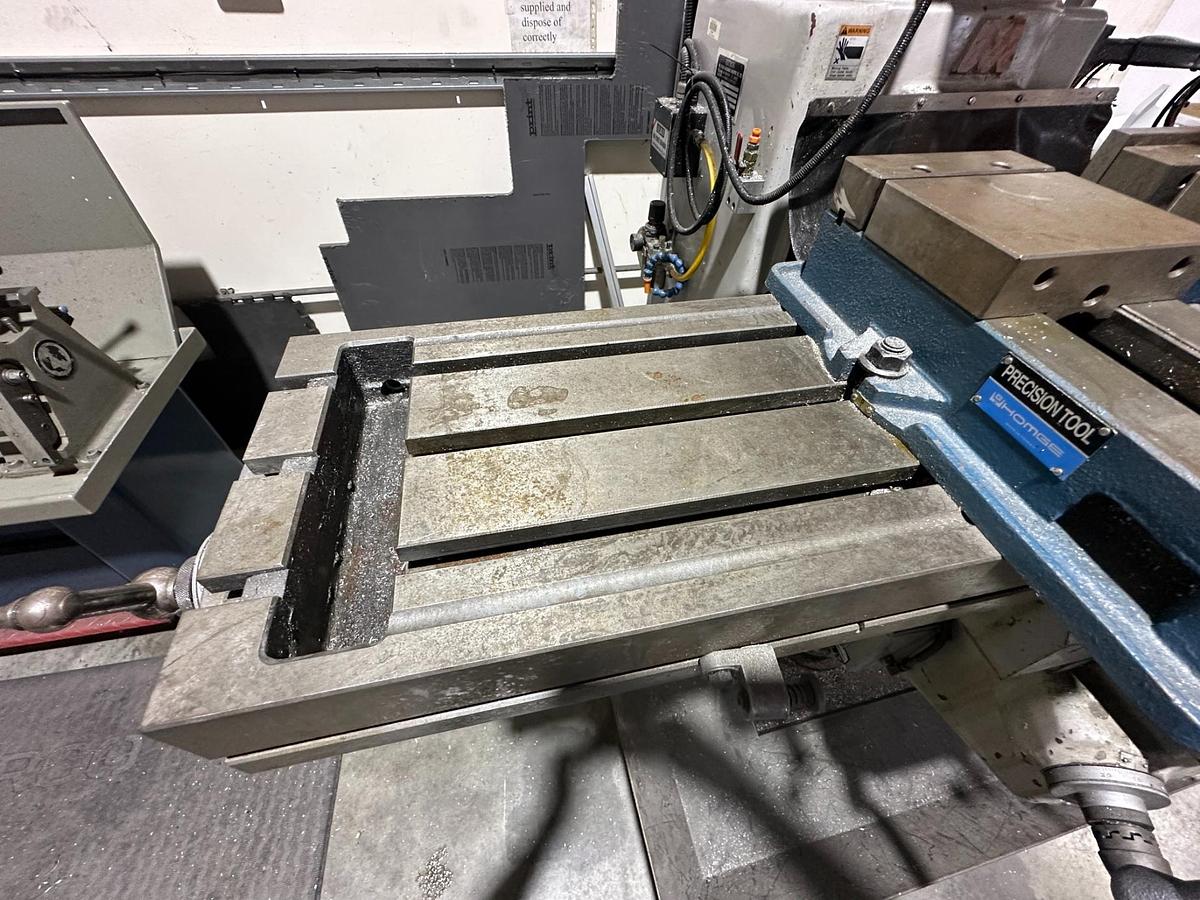

Table size: 1,325 x 280 mm

Spindle taper: R8

Minimum spindle speed: 70 rpm

Maximum spindle speed: 3,600 rpm

Spindle-speed control: Variable speed

Digital readout: 3-axis Newall Topaz Mill DRO

X-axis feed: Align powered table feed

Tool clamping: Align air-powered drawbar

Quill feed: Automatic and manual

Lighting: Machine light

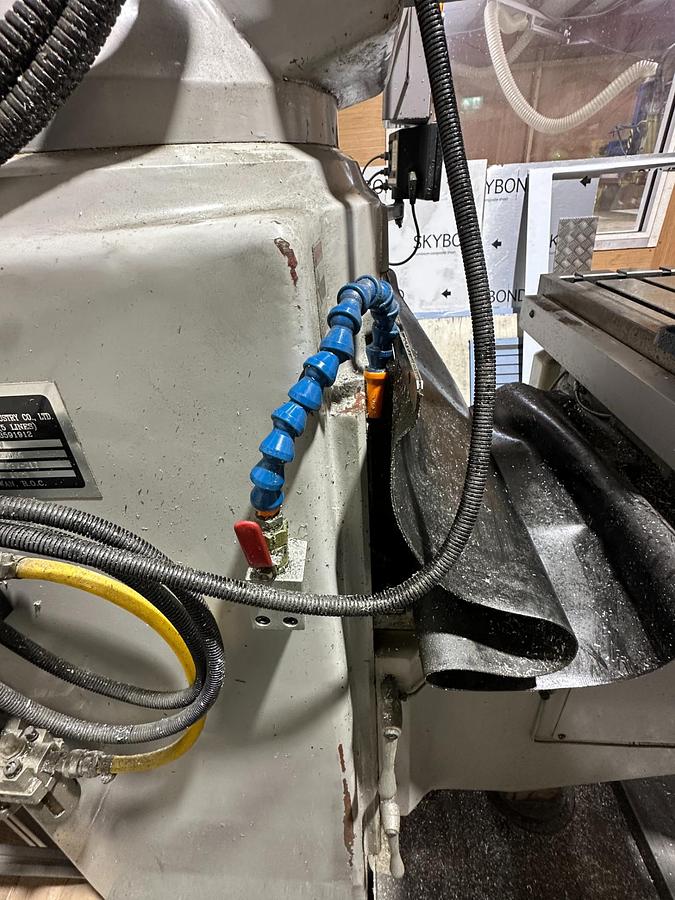

Coolant: Coolant equipment fitted

Vice: Not included

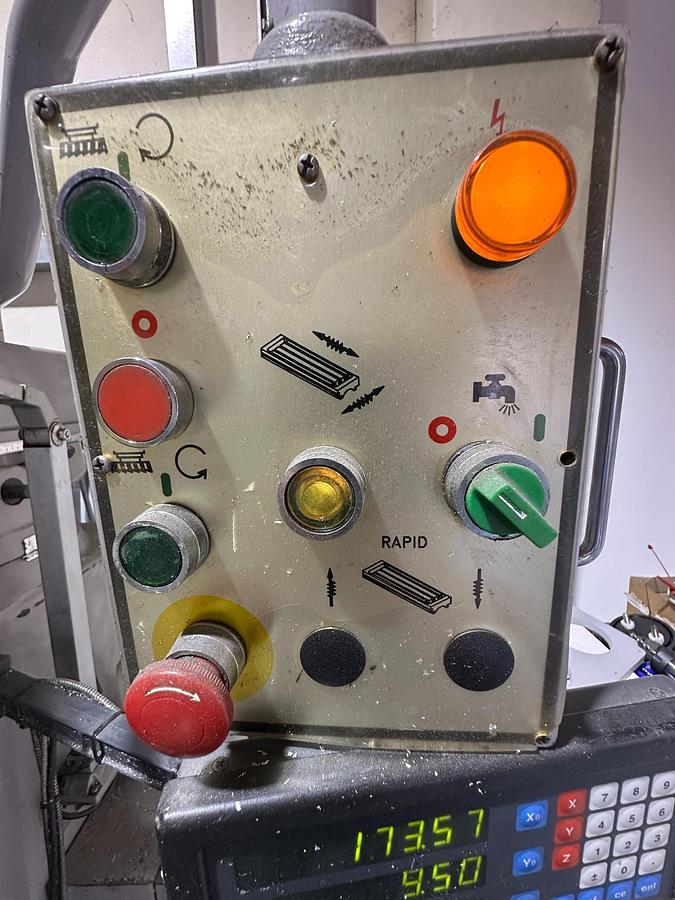

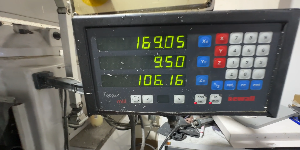

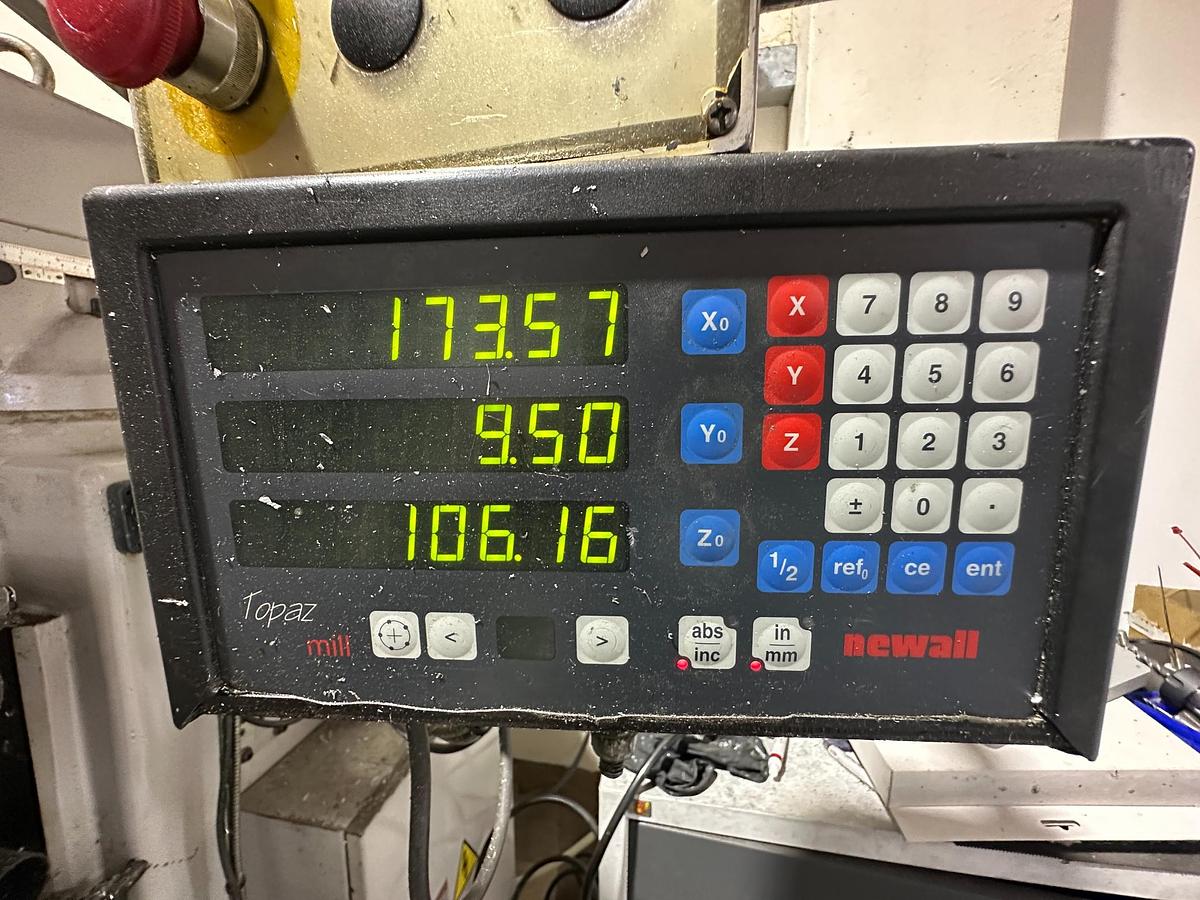

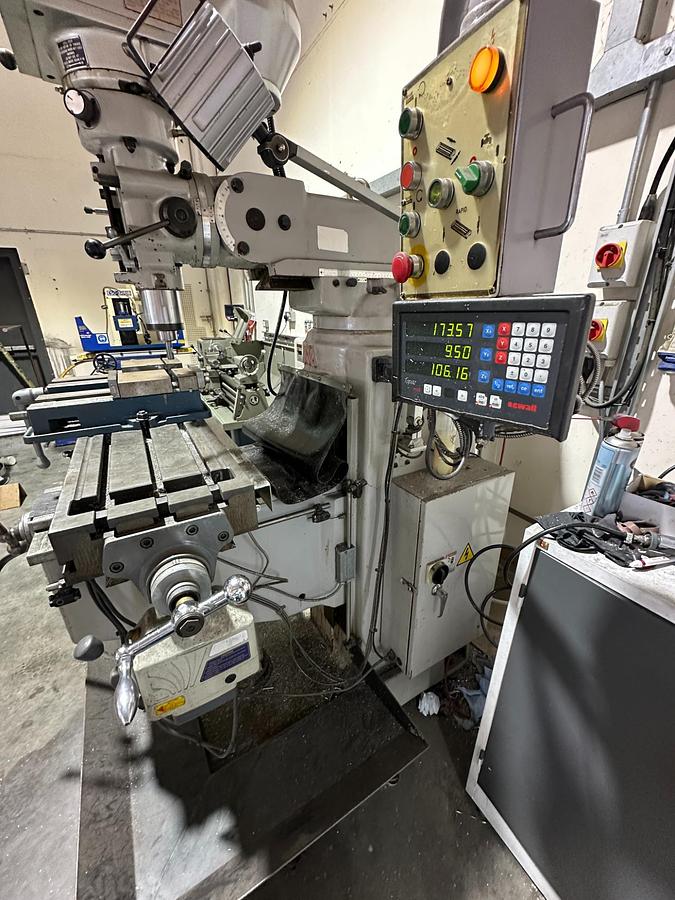

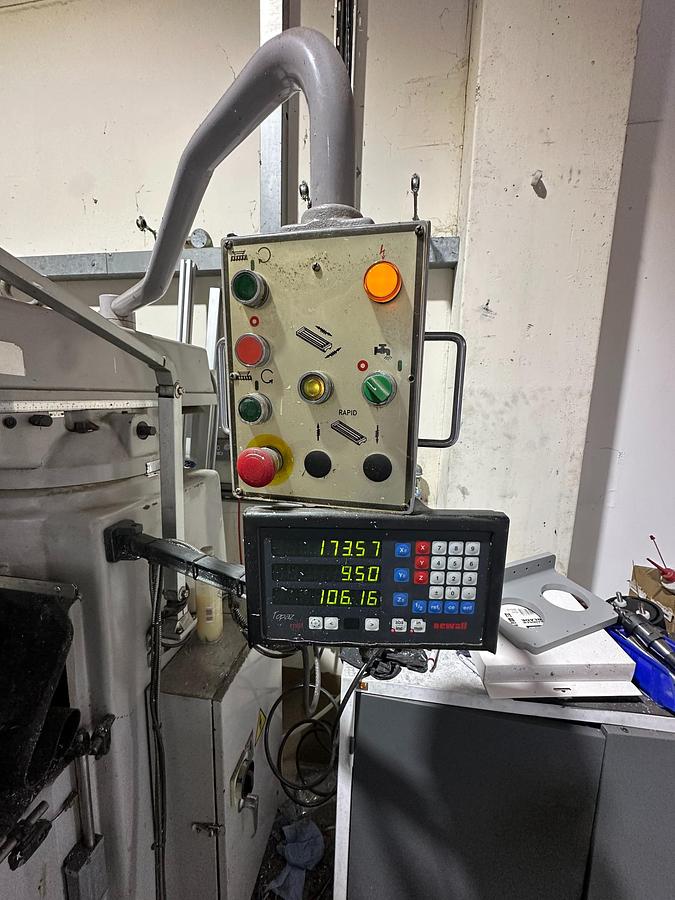

Newall Topaz 3-Axis Digital Readout

The fitted Newall Topaz Mill DRO provides three-axis digital position display for improved accuracy, repeatability and ease of operation.

Typical Newall DRO functions may include:

• X-, Y- and Z-axis position display
• Metric and imperial measurement
• Absolute and incremental positioning
• Zero reset
• Centre-find and half function
• Datum setting
• Coordinate positioning
• Bolt-hole circle functions
• Improved repeatability for manual machining

The exact functions available should be confirmed from the fitted display and scale arrangement.

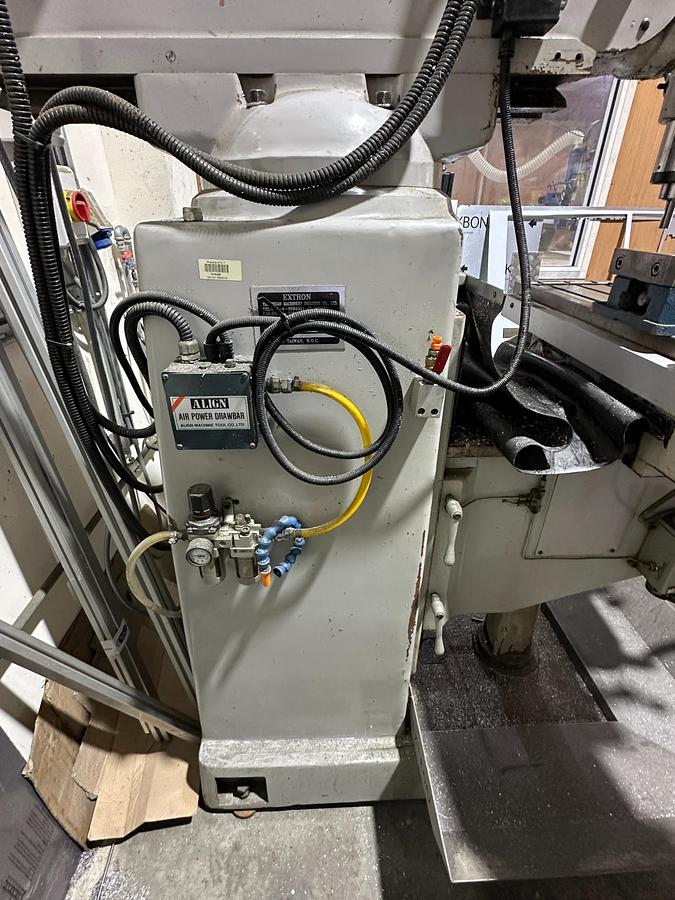

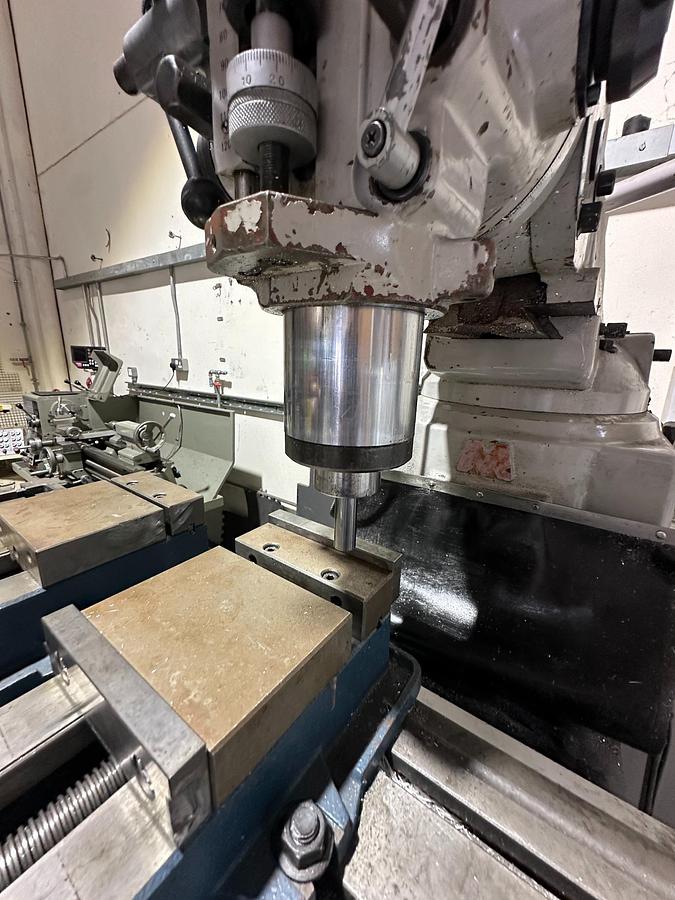

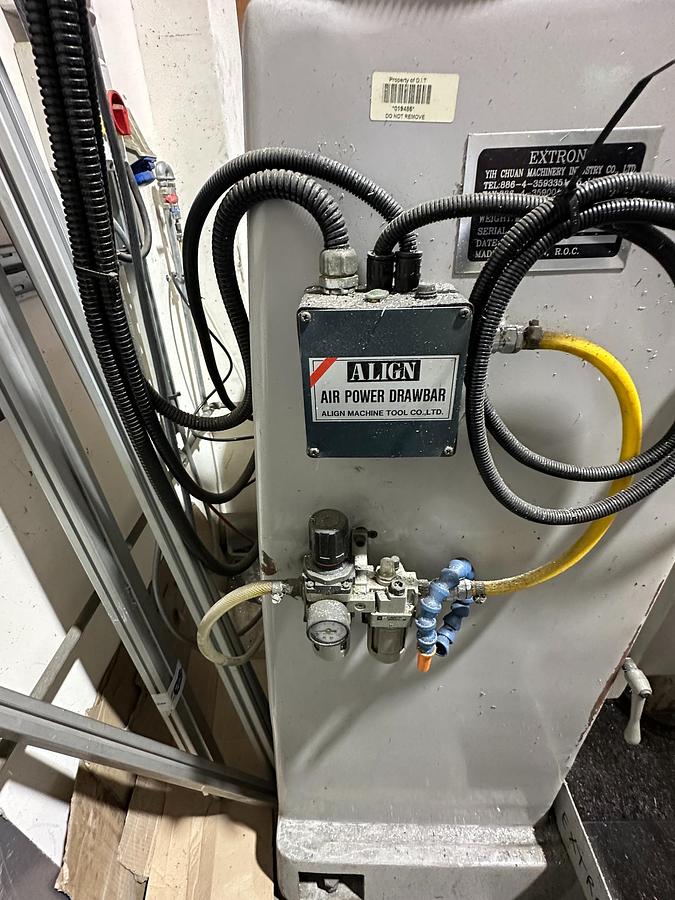

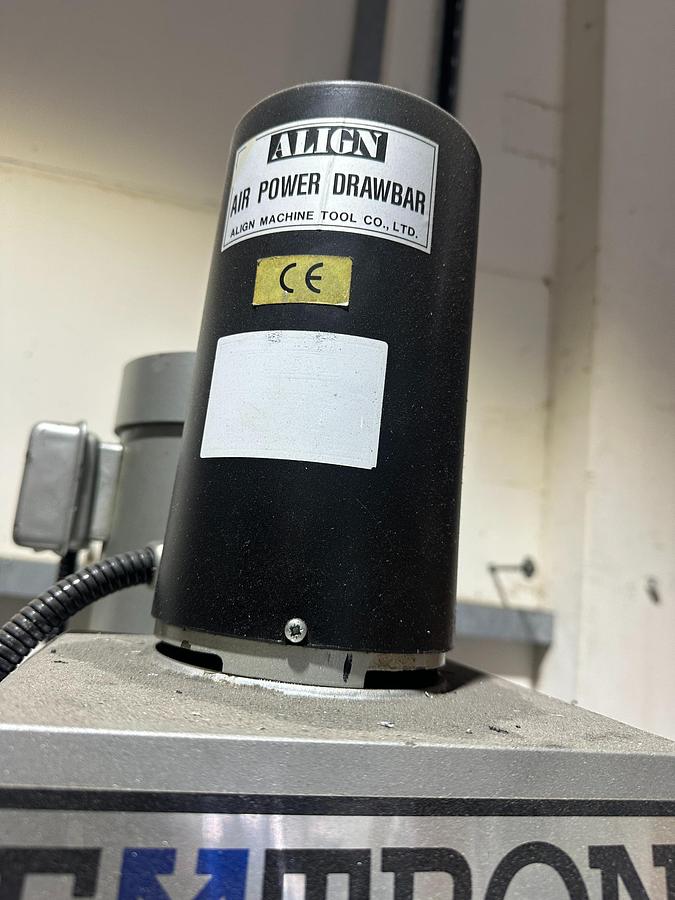

Align Air-Powered Drawbar

The fitted Align pneumatic drawbar allows R8 tooling to be clamped and released using compressed air.

Benefits include:

• Faster tool changes
• Reduced manual effort
• More consistent drawbar tightening
• Easier cutter changes during repetitive work
• Improved operator convenience

A suitable compressed-air supply will be required for operation.

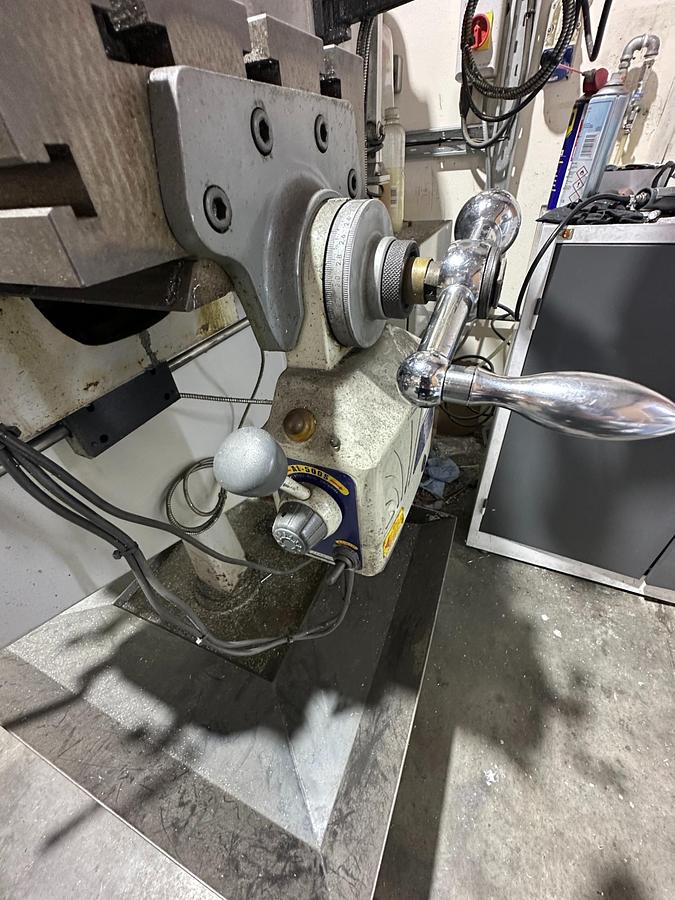

Align X-Axis Table Feed

The fitted Align powered X-axis feed provides controlled longitudinal table movement.

Typical benefits include:

• Variable powered feed
• Forward and reverse movement
• Rapid traverse
• More consistent cutting feed
• Improved finish on long milling cuts
• Reduced operator fatigue
• Better productivity during repetitive work
•


Typical Applications

The Extron K3V is suitable for:

• General manual milling
• Toolroom machining
• Slot and keyway cutting
• Face milling
• End milling
• Drilling and tapping
• Boring
• Jig and fixture manufacture
• Maintenance and repair work
• Prototype machining
• Small-batch production
• Engineering training
• Fabrication workshop machining
• Precision component manufacture
•


Why Buy This Extron K3V Mill?

The Extron K3V offers the familiar versatility of a Bridgeport-style turret mill with a larger working table and useful productivity accessories.

The 3-axis Newall DRO supports accurate positioning, while the Align table feed provides smoother and more consistent longitudinal cutting. The pneumatic drawbar reduces tool-change time and makes the machine more convenient for frequent cutter changes.

This machine would suit an engineering company seeking a capable used manual mill with modern operator aids but without the complexity of a CNC control.

Included Equipment

The machine is offered with:

• 3-axis Newall Topaz Mill DRO
• Align air-powered drawbar
• Align powered X-axis table feed
• Machine light
• Coolant equipment

Excluded Equipment

No machine vices are included in the sale.

Any vices, tooling, cutters, collets, clamps, fixtures or other items visible in photographs should not be assumed to be included unless specifically confirmed in writing.

Machine Condition and Inspection

This is a used 1999 Extron K3V manual milling machine offered subject to prior sale and availability.

Prospective buyers are encouraged to inspect the machine and confirm its operating condition, spindle performance, axis movement, lubrication, electrical supply, DRO operation, power-feed operation, drawbar operation and coolant system before purchase.

Inspection under power may be available by prior arrangement, subject to the machine’s location and installation status.

Important Specification Notice

All specifications, dimensions, capacities, speeds, weights, features and equipment details are approximate and are provided for guidance only.

FAQ

What size table does the Extron K3V have?

This machine has an approximate table size of 1,325 x 280 mm, providing useful support for larger workpieces, fixtures and multiple-part setups.

What spindle taper does the Extron K3V use?

This machine is fitted with an R8 spindle taper, allowing it to use commonly available R8 collets, arbors and tooling.

What is the spindle-speed range?

The approximate spindle-speed range is 70 to 3,600 rpm.

Does the machine have a digital readout?

Yes. It is fitted with a 3-axis Newall Topaz Mill digital readout.

Does the machine have a powered table feed?

Yes. It is equipped with an Align powered X-axis table feed.

Does it have an air drawbar?

Yes. The machine is fitted with an Align air-powered drawbar for faster R8 tool changes.

Is coolant equipment included?

Yes. Coolant equipment is fitted, subject to confirmation of condition and operation during inspection.

Are any vices included?

No. No vices are included in the sale.

Is this machine suitable for a toolroom?

Yes. The Extron K3V is suitable for toolroom, maintenance, prototype, fabrication and general engineering applications.

Is this a CNC milling machine?

No. This is a manual vertical milling machine fitted with a digital readout and powered X-axis feed.
