2013 Doosan Lynx 220LMSA Turning Center

2013 Doosan Lynx 220LMSA Turning Center

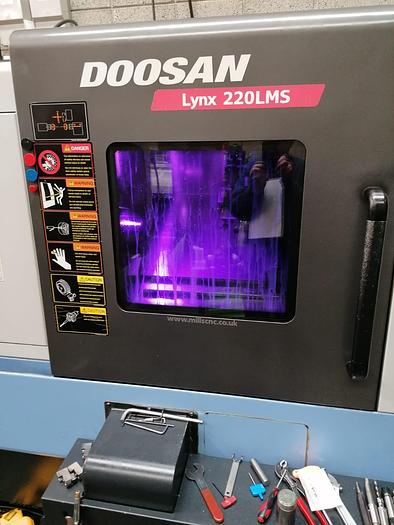

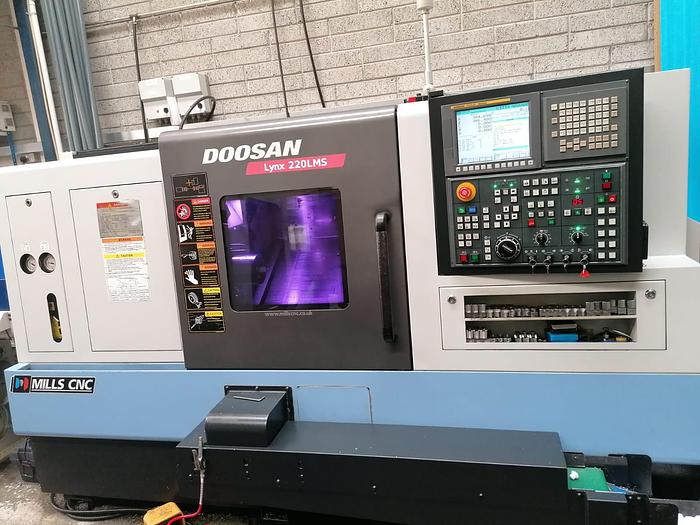

Machine Type: CNC Lathe with Driven Tools & Sub Spindle

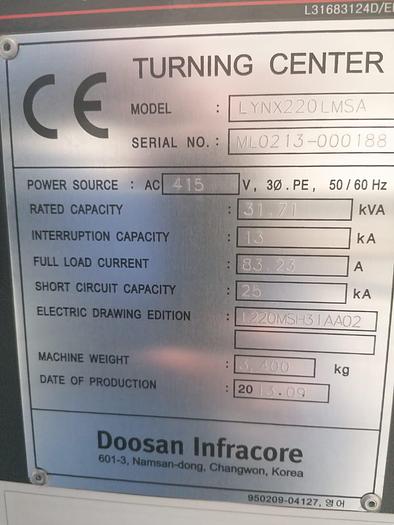

Year: 2013 (Installed in 2014)

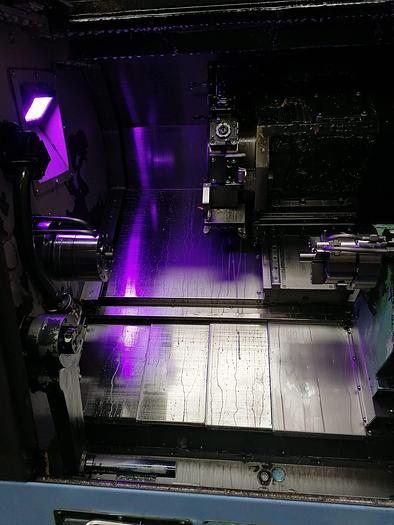

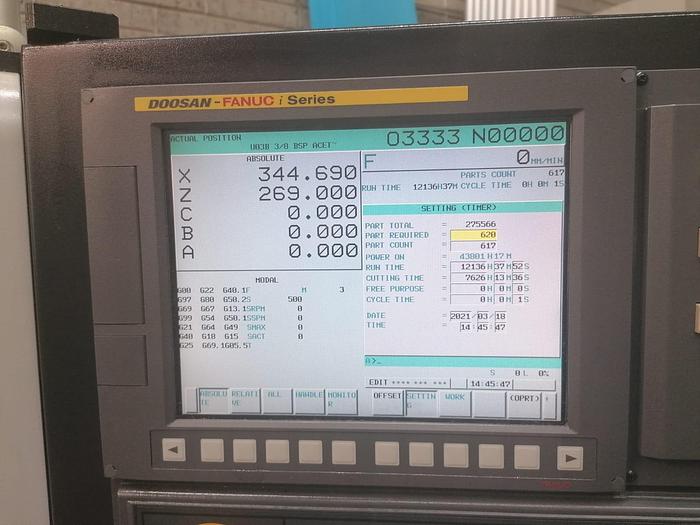

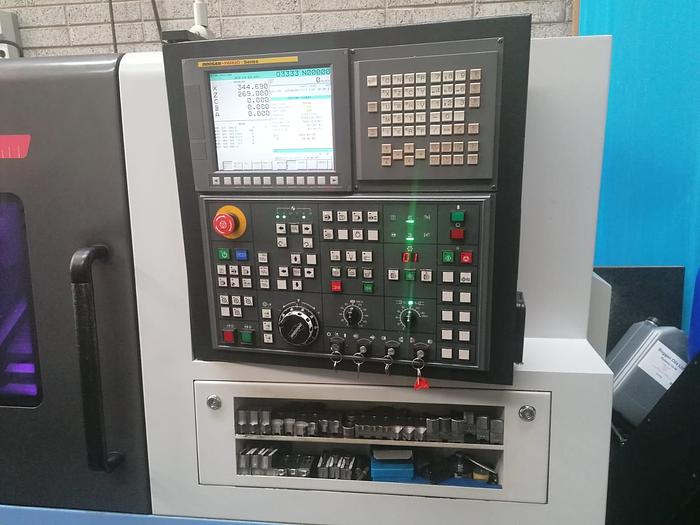

Control: Doosan - Fanuc i Series with Manual Guide '1'

Condition: Excellent

Includes:

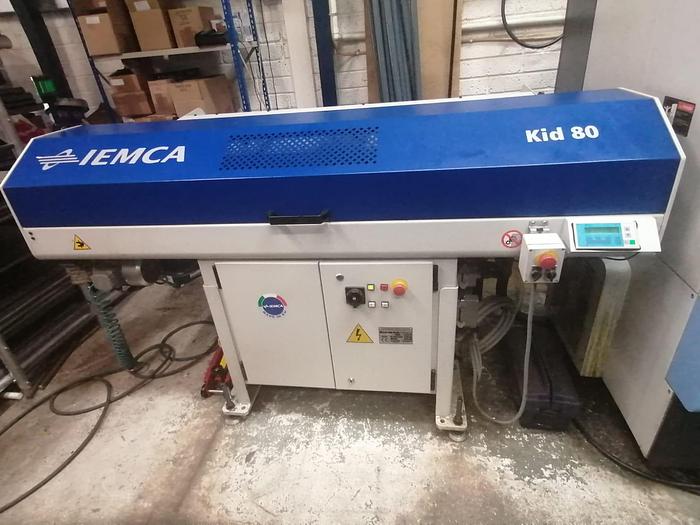

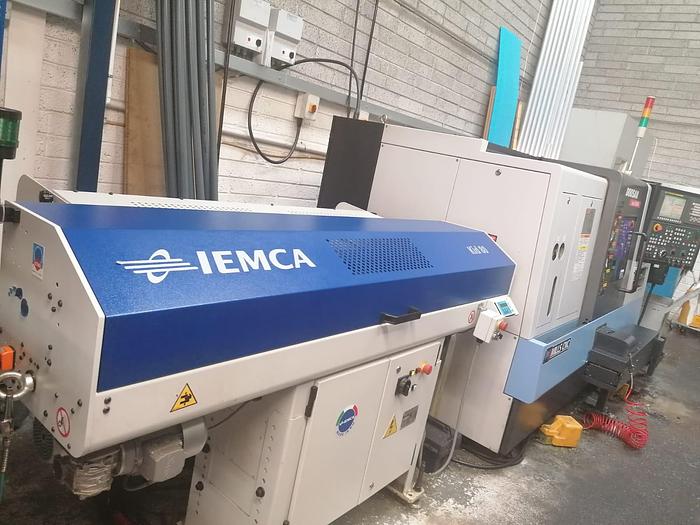

Iemca Kid 80 Barfeeder

170mm 3 Jaw Hainbuch Hydraulic Chuck

135mm 3 Jaw Hydraulic Chuck

Swarf Conveyor

Automatic Part Catcher

Pneumatic Parts Ejector

Output Parts Conveyor

Automatic Tool Touch Setter

5 Bar Flood Coolant through Turret

Barfeed Interface

Absolute Position Encoders

External Air Blast for both spindles

Toolholder Package comprising of approx 25 Tool Holders

Fanuc Manual Guide 'i' Operator Programming System

Machine Manuals

Technical Specification

Capacity

Swing over Bed: 600mm

Swing over Saddle: 380mm

Max Turning Diameter: 290mm

Max Workpiece Length: 510mm

Max Workpiece Weight: 130kg

Max Bar Diameter: 51mm

Main Spindle

Main Spindle Nose: A2-5

Max Main Spindle Power: 11/15kw (cont/30min rated)

Mas Main Spindle Torque: 127Nm

Max Main Spindle Speed: 6000rpm

Sub Spindle

Sub Spindle Nose: 110mm Flat

Sub Spindle Motor Power: 3.7/5.5kW

Max Sub Spindle Torque: 47Nm

Max Sub Spindle Speed: 6000rpm

Travels

X Axis Travel: 160mm

Z Axis Travel: 550mm

C Axis travel: 360 Deg (0.001 Deg)

B Axis Travel: 550mm

Rapids

X Axis Rapid Traverse: 30m/min

Z Axis Rapid Traverse: 36m/min

C Axis Rapid Traverse: 200rpm

B Axis Rapid Traverse: 30m/min

Feedrate

X/Z/B Max Cutting Feedrate: 500mm/rev

C Axis Max Cutting Feedrate: 4800 Deg/min

Turret

Turret Type: BMT45 Base Tool Holder

Number of Stations: 12 (24 Position Index)

OD Tool Size: 20mm Square

Boring Bar Size (single): 32mm

Boring Bar Size (double): 25mm

Rotary Tool Power: 3.7kW

Rotary Tool Speed: 6000rpm

Rotary Tool Collet Size: ER20 (2-13mm Dia)

Machine Connection

Power Requirements: 27Kva

Air Pressure: 6kgf/cm2

Machine Dimensions: 2700 x 1600

Machine Weight: 3500kg
