€4,500 + VAT

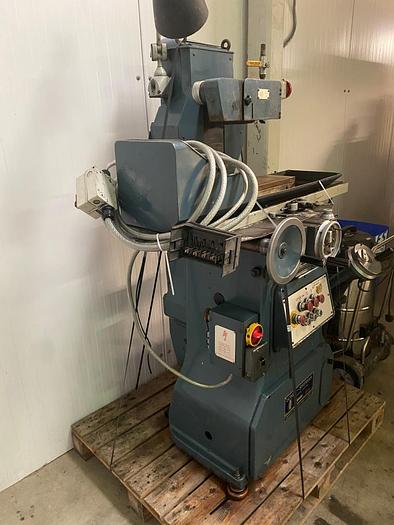

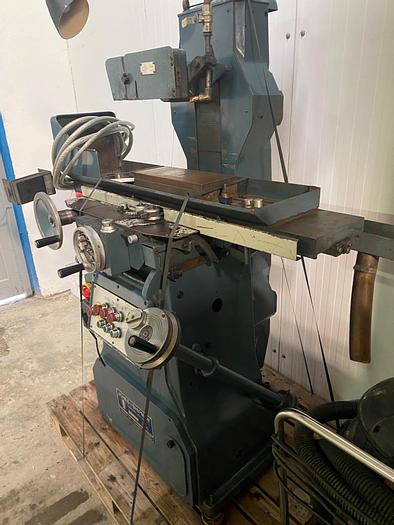

Jones & Shipman 540 Surface Grinder
Description
Jones & Shipman 540 Surface Grinder
Machine Type: Metric Manual Surface Grinder
Machine Condition: Good - No Wheel Flange Included
Includes

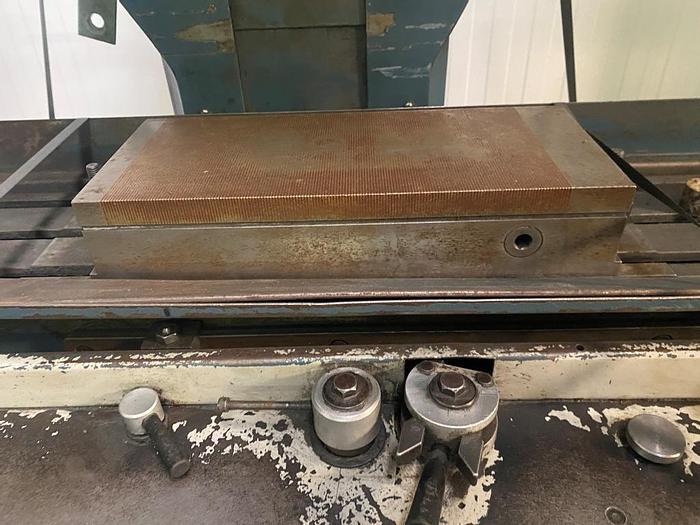

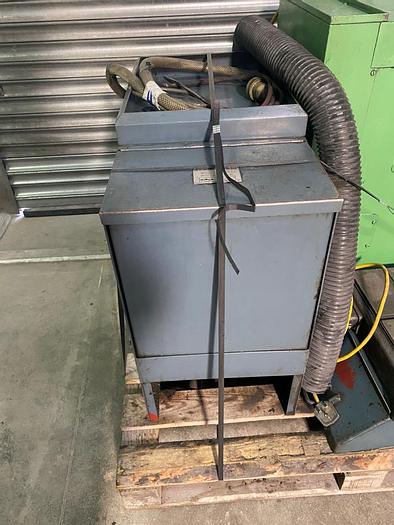

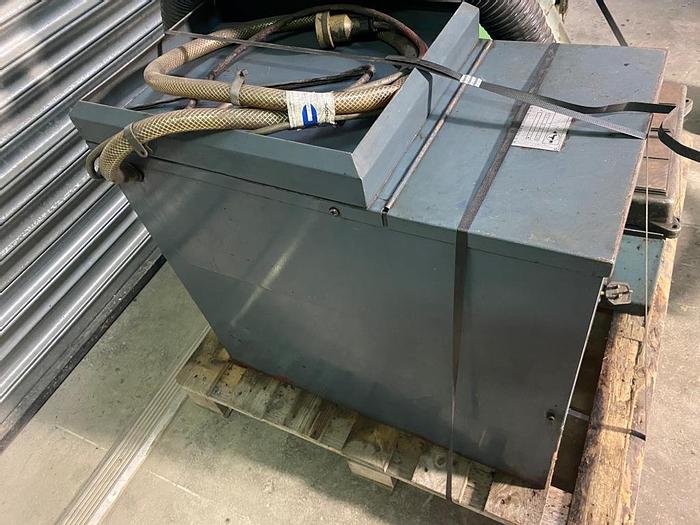

Magnetic Chuck, Coolant Tank

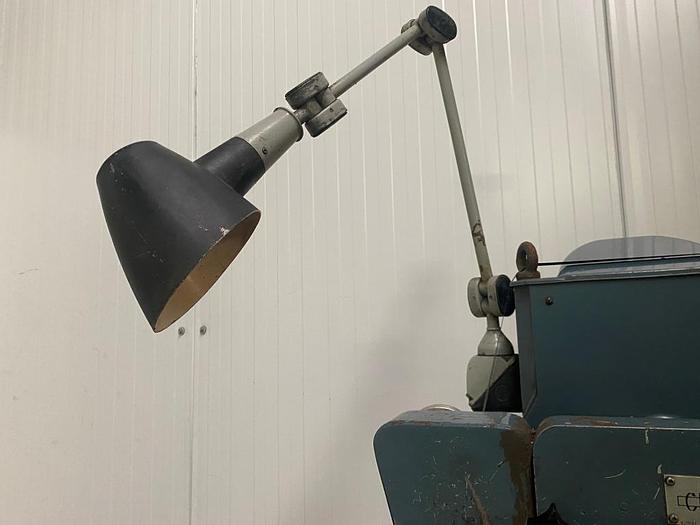

Machine Light
Specifications
Table Size: 457 x 1520mm Longitudinal Manual traverse: 480mm
Longitudinal Hydraulic traverse: 470mm
Cross Traverse: 168mm
Traverse Feed: 1.5 to 18m/min Vertical movement of wheelhead (max.): 280mm

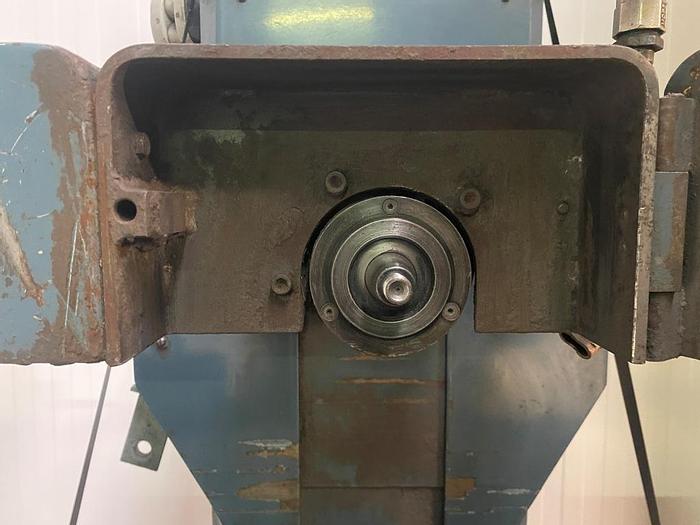

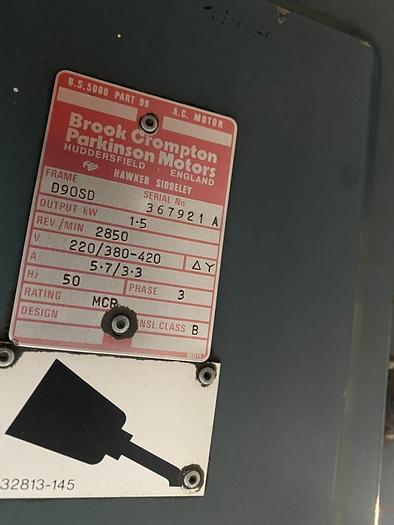

Spindle Speed: 2850rpm Size of grinding wheel (standard): 180 x 13 x 31.75mm bore
Output: 1.5kW

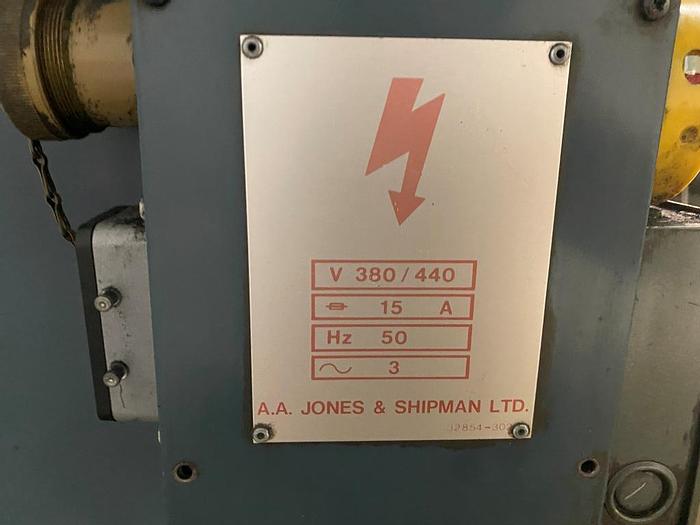

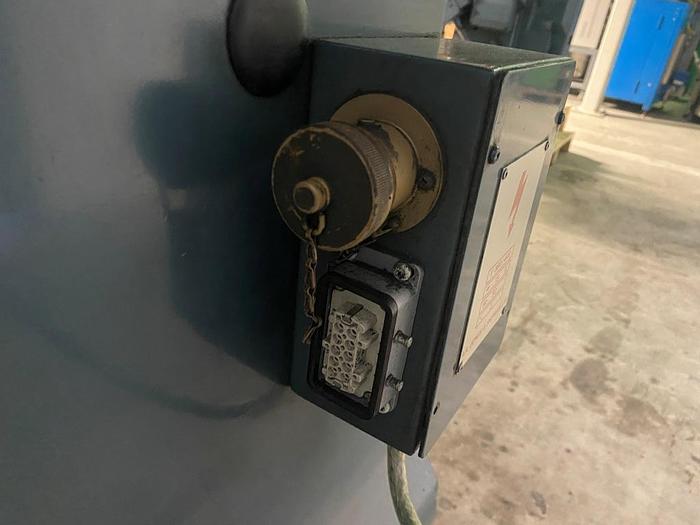

Electrical Connection: 380/50/3phase
Specifications
| Manufacturer | Jones & Shipman |
| Model | 540 Surface Grinder |
| Condition | Used |

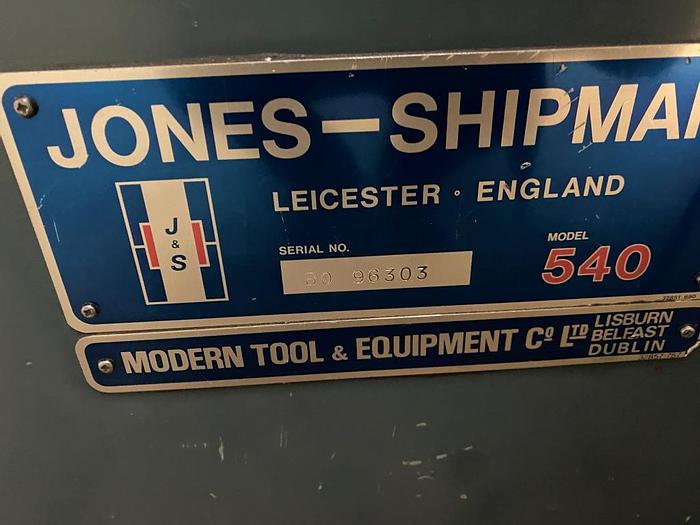

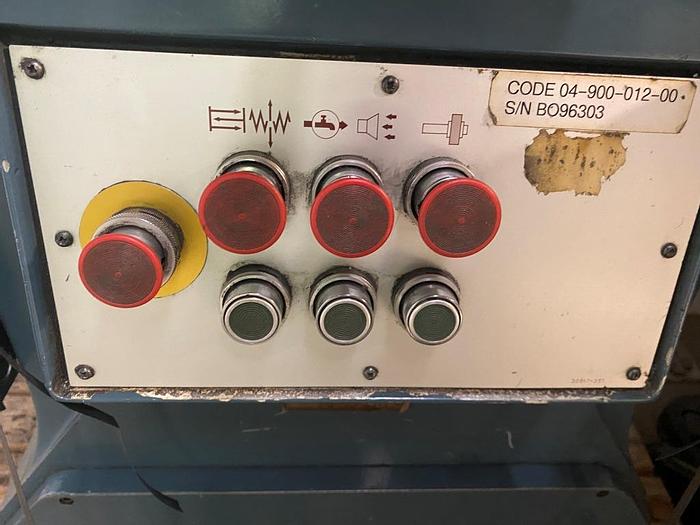

| Serial Number | BO 96303 |
| Machine Type | Metric Manual Surface Grinder |
| Table | 457mm x 1520mm |
| Cross traverse | 168mm |
| Traverse speed range | 1.5 to 18m/min |
| Longitudinal Hydraulic traverse | 470mm |
| Longitudinal Manual traverse | 480mm |
| Vertical Movement of Head | 280mm |

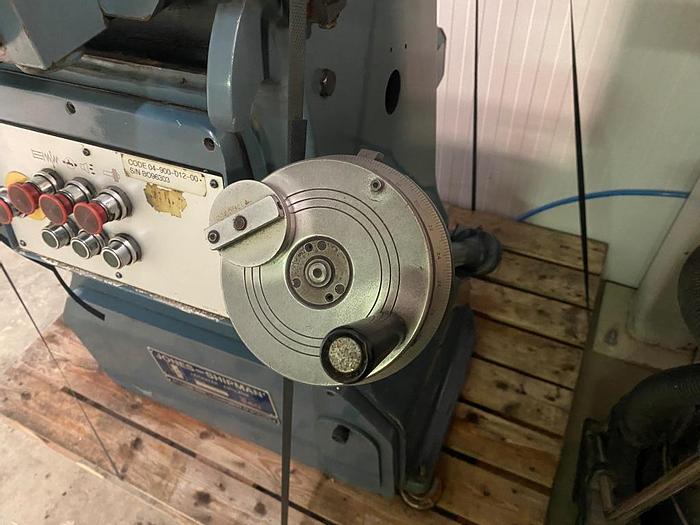

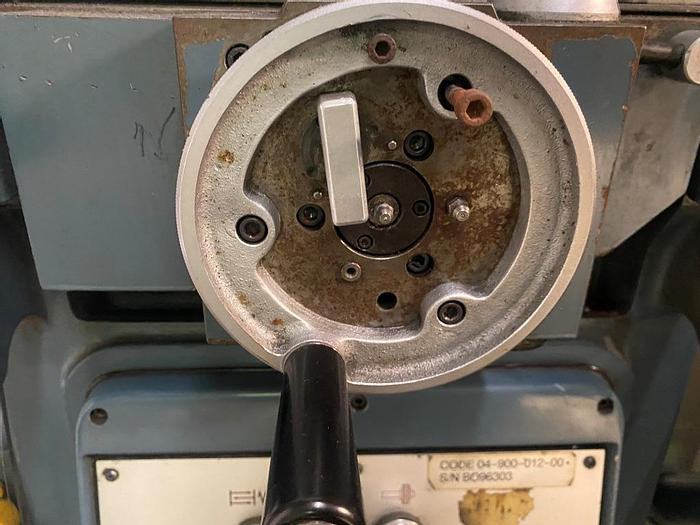

| Table traverse per revolution of handwheel | 60mm |
| Size of Grinding Wheel (standard) | 180 x 13 x 31.75mm bore |
| Output | 1.5kW |
| Electrical Connection | 380/50/3phase |
