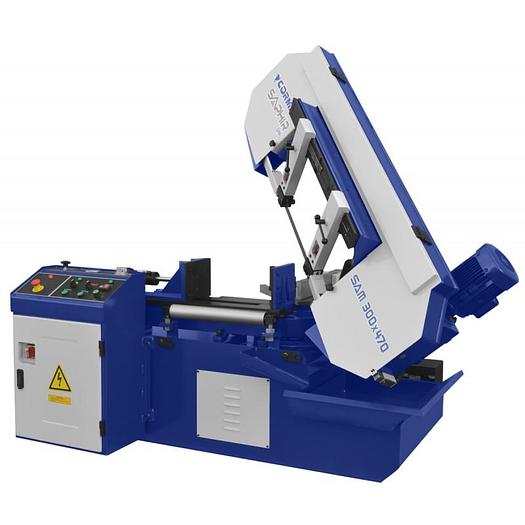

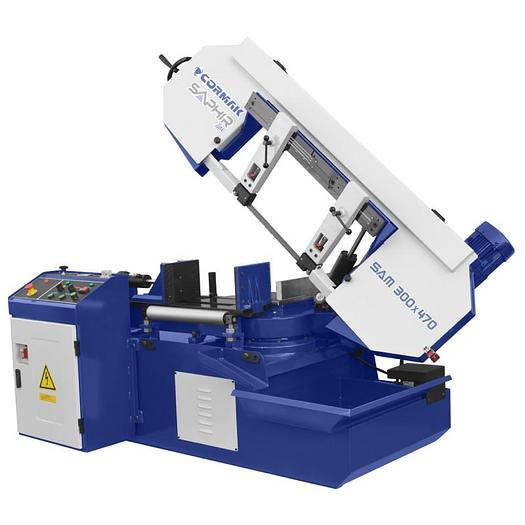

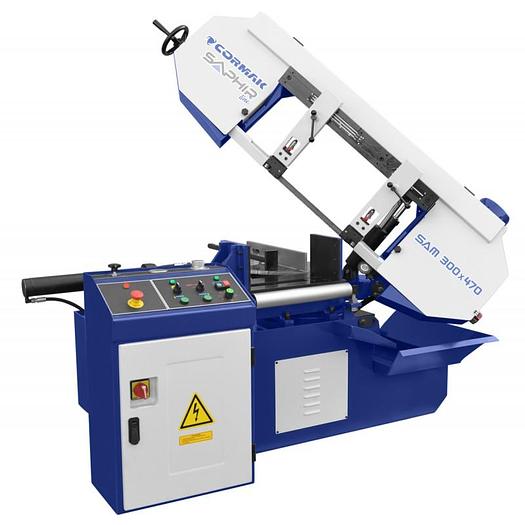

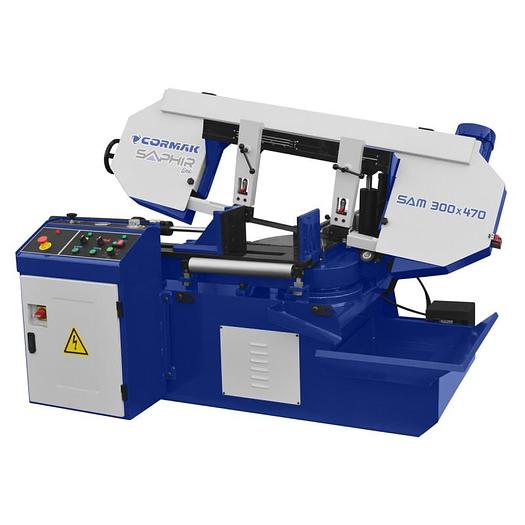

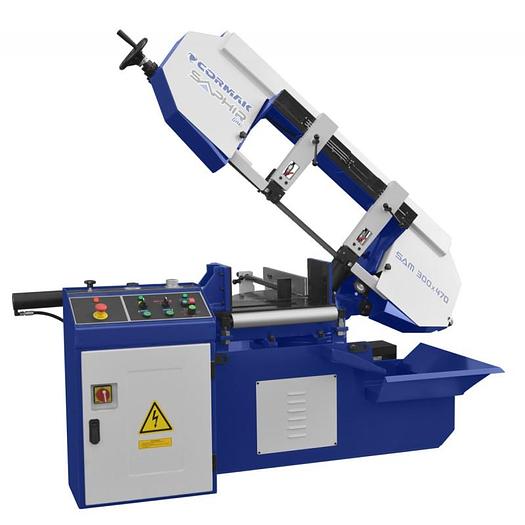

Cormak SAM 300 x 470 Saphir Line Semi-Automatic Bandsaw
Description
Cormak SAM 300 x 470 Saphir Line Semi-Automatic Bandsaw
Machine Type: Semi- Automatic Bandsaw
Machine Description
Powerful, semi-automatic band saw. Perfect for cutting tough profiles. Cormak Saphir Line band saws features impressive properties such as extremely smooth operation, high cutting efficiency and tool durability due to two cylinders.
Cormak Saphir Line machines are professional band saws, entirely manufactured in Europe. Designed with precision and care, these deal with even difficult processes.

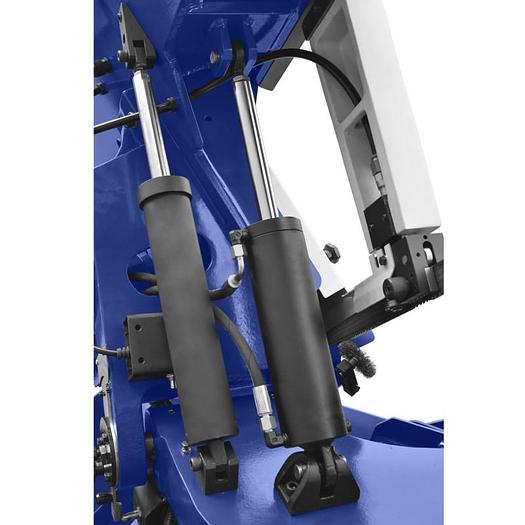

Innovative Anti Vibration System - An additional cylinder is used to eliminate vibrations created during cutting.
Benefits - Higher Durability of Bandsaw Blade, Lower Cutting Expenses, Increased Cutting Quality, Reduced Cutting Noise
Semi-Automatic Cutting Process
After pressing the start button an automatic cutting process starts:
- Cut material is clamped in the hydraulic vice
- Bandsaw Blade is switched on (cutting band speed, 25-90 m/min, adjustable by an inverter)
- Cutting arm is lowered (stepless adjustment)
- Machine stops after cutting process is finished
- Arm raises (adjustable height)
- Hydraulic vice is released
Cutting Capacity
Capacity 0º (Round): 300mm
Capacity 0º (Rectangular): 280 x 470mm
Capacity 0º (Square): 300 x 300mm
Capacity 45º (Round): 280mm
Capacity 45º (Rectangular): 170 x 300mm
Capacity 45º (Square): 260 x 260mm
Capacity 60º (Round): 170mm
Capacity 60º (Rectangular): 170 x 170mm
Capacity 60º (Square): 170 x 170mm
Technical Details
Arm Raising and Lowering: Hydraulic with arm lowering smooth control
Vice Clamp: Hydraulic
Band Speed: 25-90 m/min

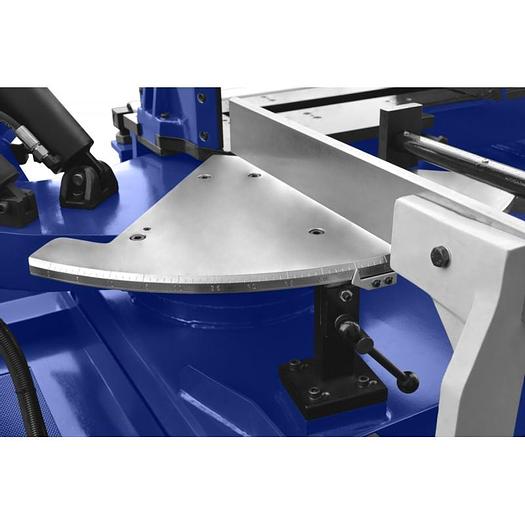

Mitre Cutting: from 0° to 60°
Vice Base Height: 740 mm
Bandsaw Blade Dimensions: 3850 x 27 x 0.9 mm

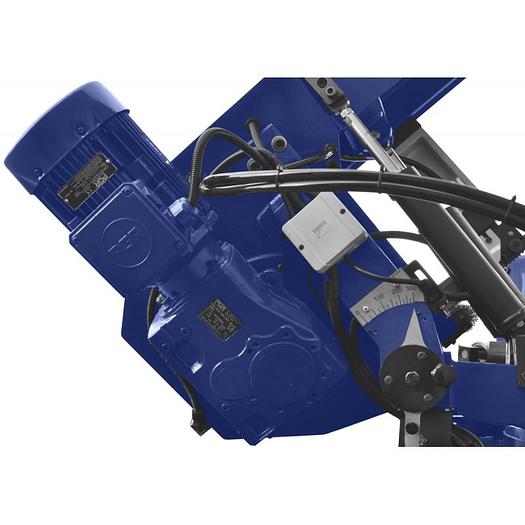

Main Motor Power: 2.2 kW
Hydraulic Motor Power: 0.37 kW
Coolant Motor Power: 120 W
Dimensions (LxWxH): 1300×1950×1300 mm
Weight: 935 kg
Includes

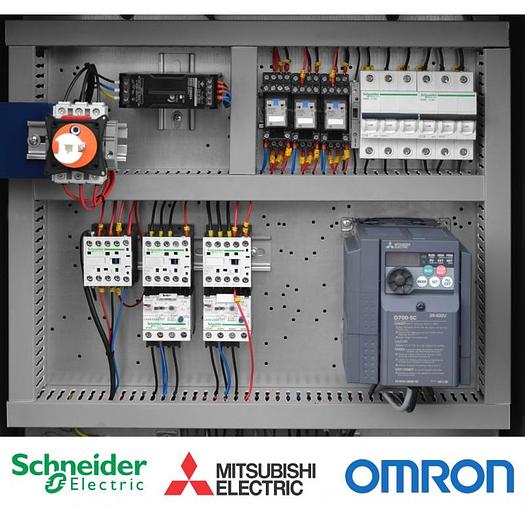

Control Panel

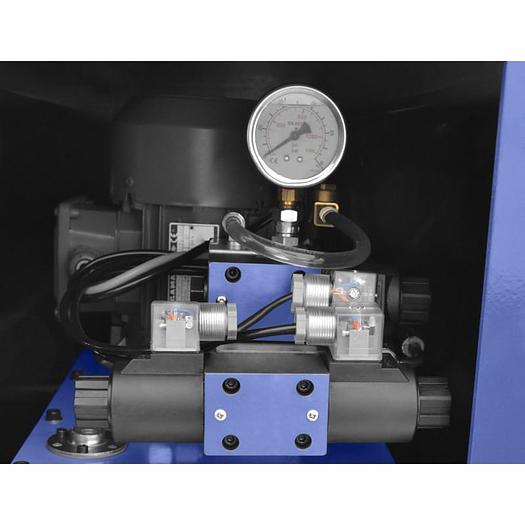

Built-in hydraulic unit
Hydraulic control of arm motion (up – down) with possibility of smooth lowering speed control

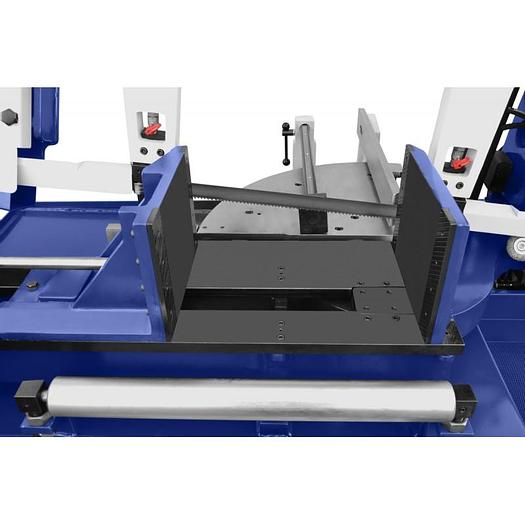

Hydraulic vice
Arm Height limiting switch
Cutting at angles of 0°–60°

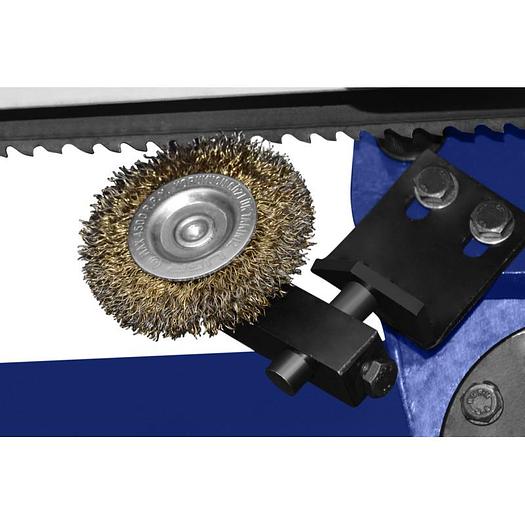

Wire Brush for the blade cleaning
Cooling system
Bi-metal band saw
EC Declaration of Conformity
Specifications
| Manufacturer | Cormak |
| Model | SAM 300 x 470 Saphir Line Semi-Automatic Bandsaw |
| Condition | New |
| Machine Type | Semi- Automatic Bandsaw |
| Capacity 0º (Round) | 300mm |
| Capacity 0º (Rectangular) | 280 x 470mm |
| Capacity 0º (Square) | 300 x 300mm |
| Capacity 45º (Round) | 280mm |
| Capacity 45º (Rectangular) | 170 x 300mm |
| Capacity 45º (Square) | 260 x 260mm |
| Capacity 60º (Round) | 170mm |
| Capacity 60º (Rectangular) | 170 x 170mm |
| Capacity 60º (Square) | 170 x 170mm |
| Vice Clamp | Hydraulic |
| Band Speed | 25-90 m/min |
| Mitre Cutting | from 0° to 60° |
| Vice Base Height | 740 mm |
| Main Motor Power | 2.2 kW |
| Hydraulic Motor Power | 0.37 kW |
| Coolant Motor Power | 120 W |
| Dimensions (LxWxH) | 1300×1950×1300 mm |
| Weight | 935 kg |
