2010 Hurco VM10 CNC Milling Machine with CAT 40 Spindle, WINMAX Control

2010 Hurco VM10 Vertical Machining Centre with WINMAX CNC Control, CAT 40 spindle, 20-tool ATC and premium software package. Good condition. Delivery throughout Ireland, UK & Europe.

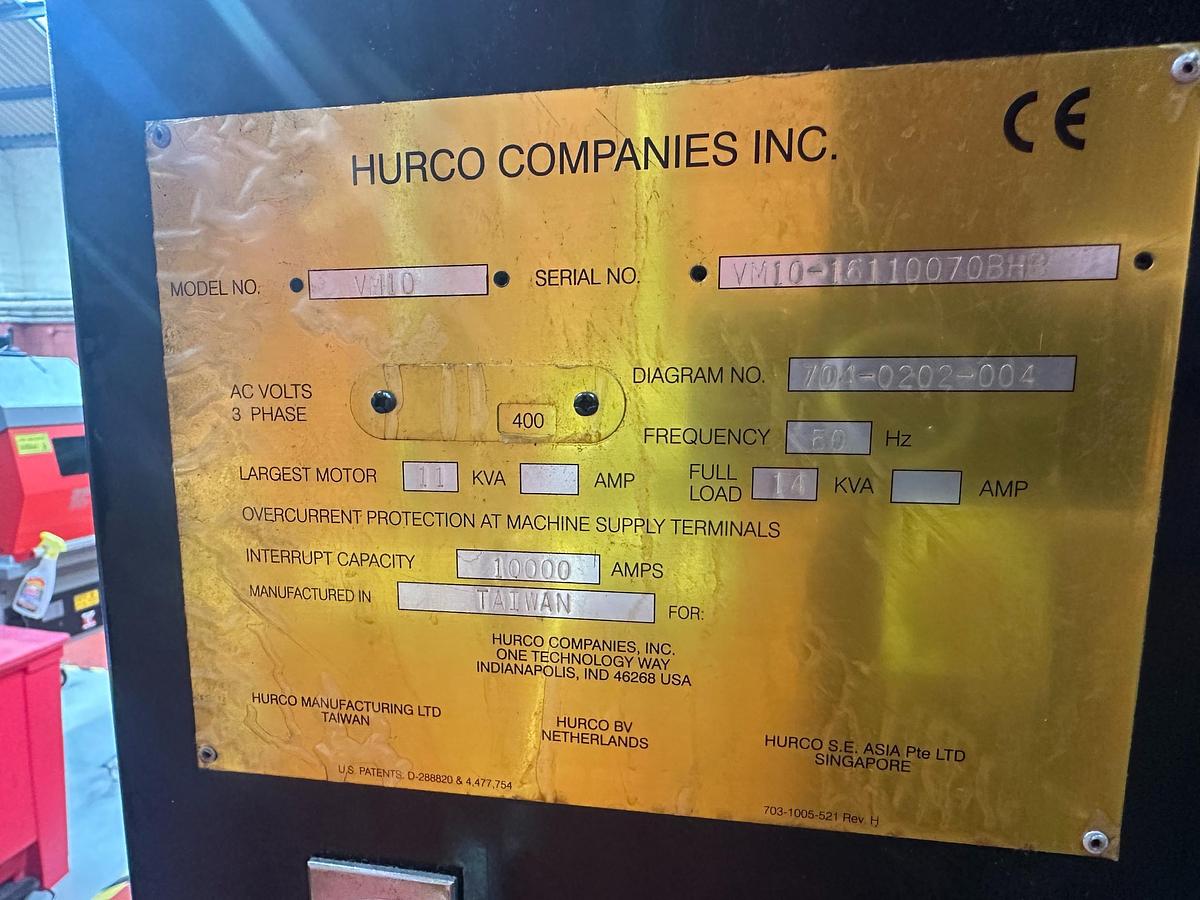

Manufacturer: Hurco

Model: VM10

Machine Type: 3 Axis Vertical Machining Centre

Year: 2010

Hours: 32,300hrs

Control: WINMAX

Condition: Excellent

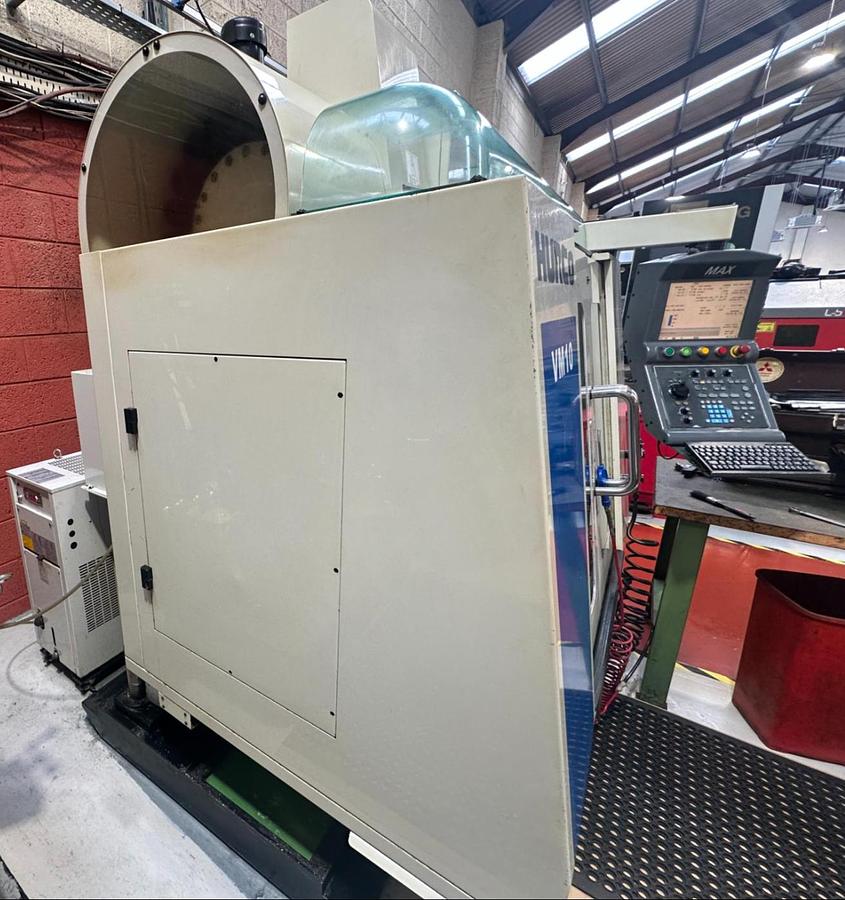

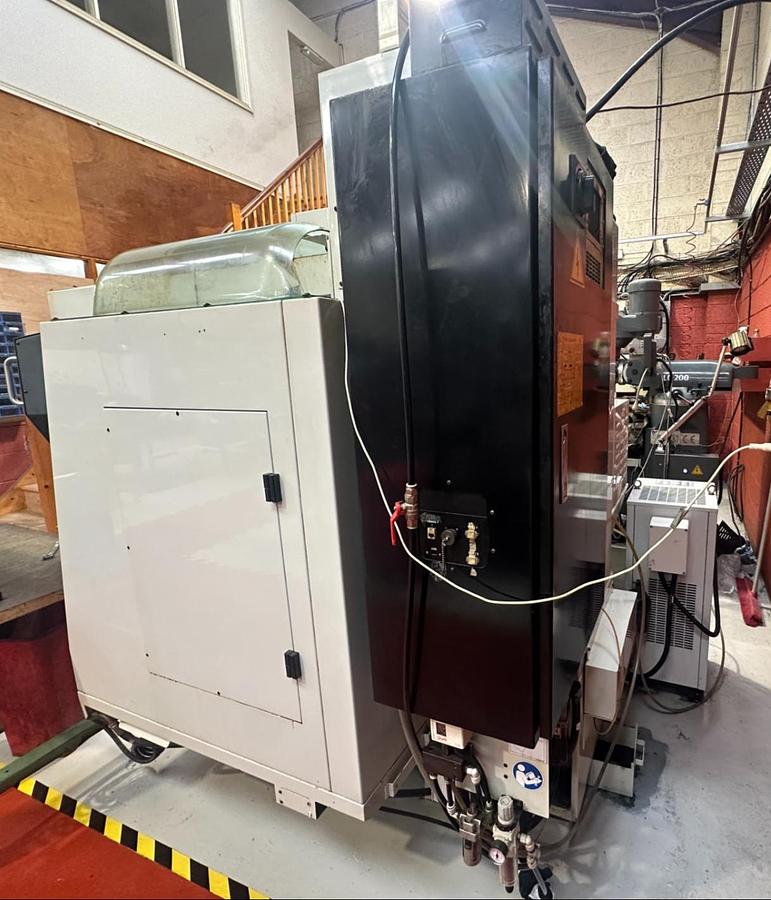

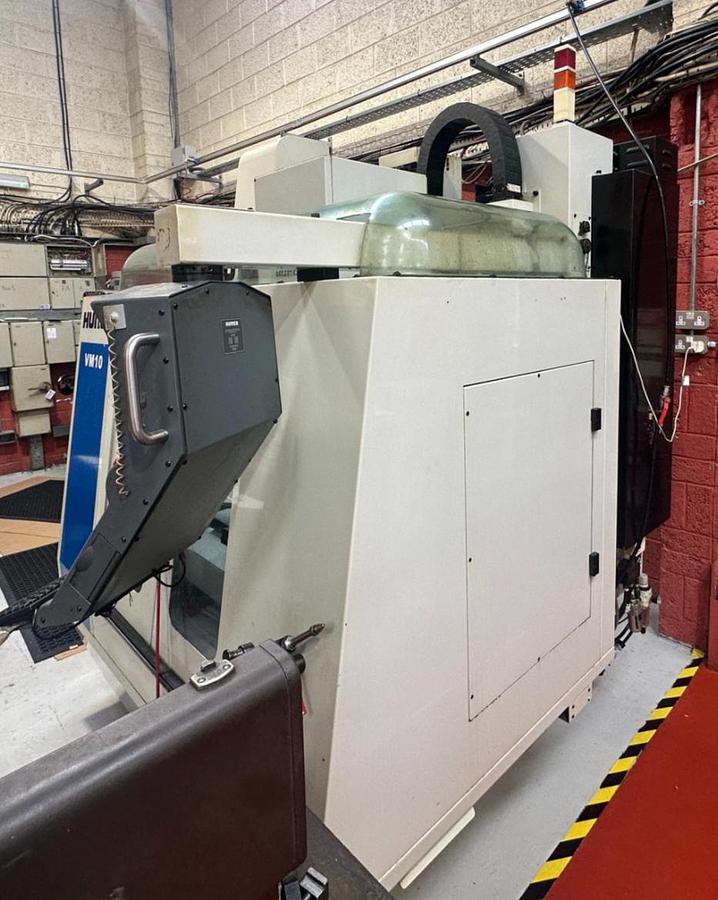

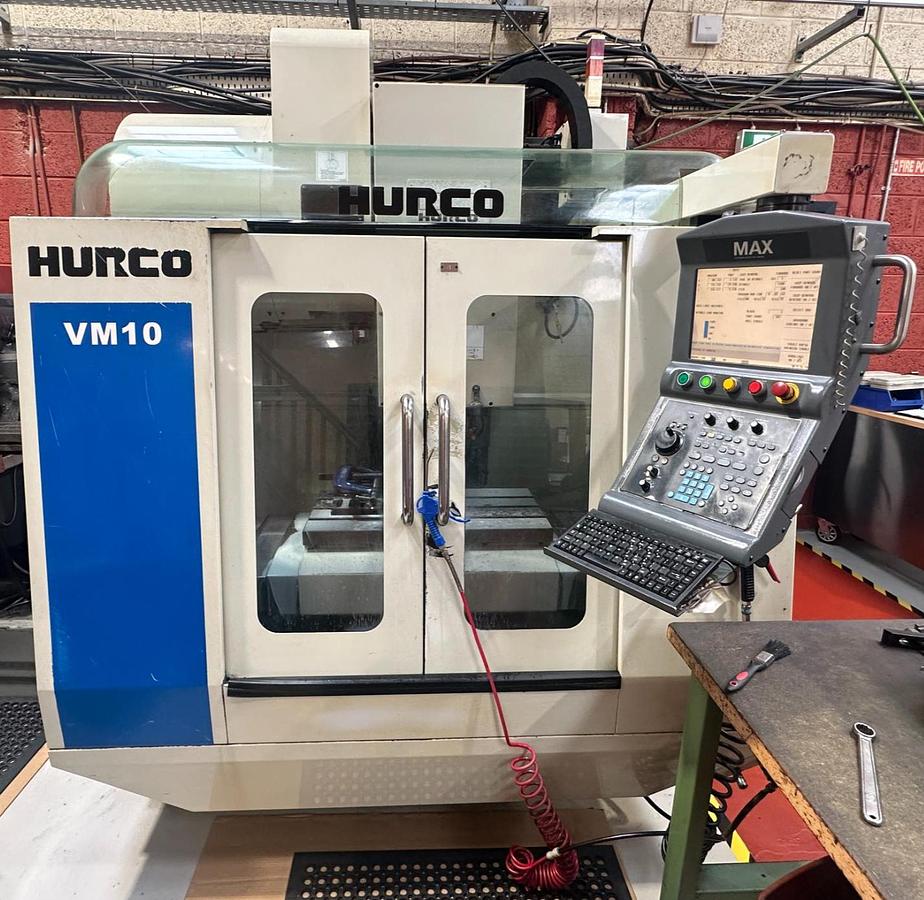

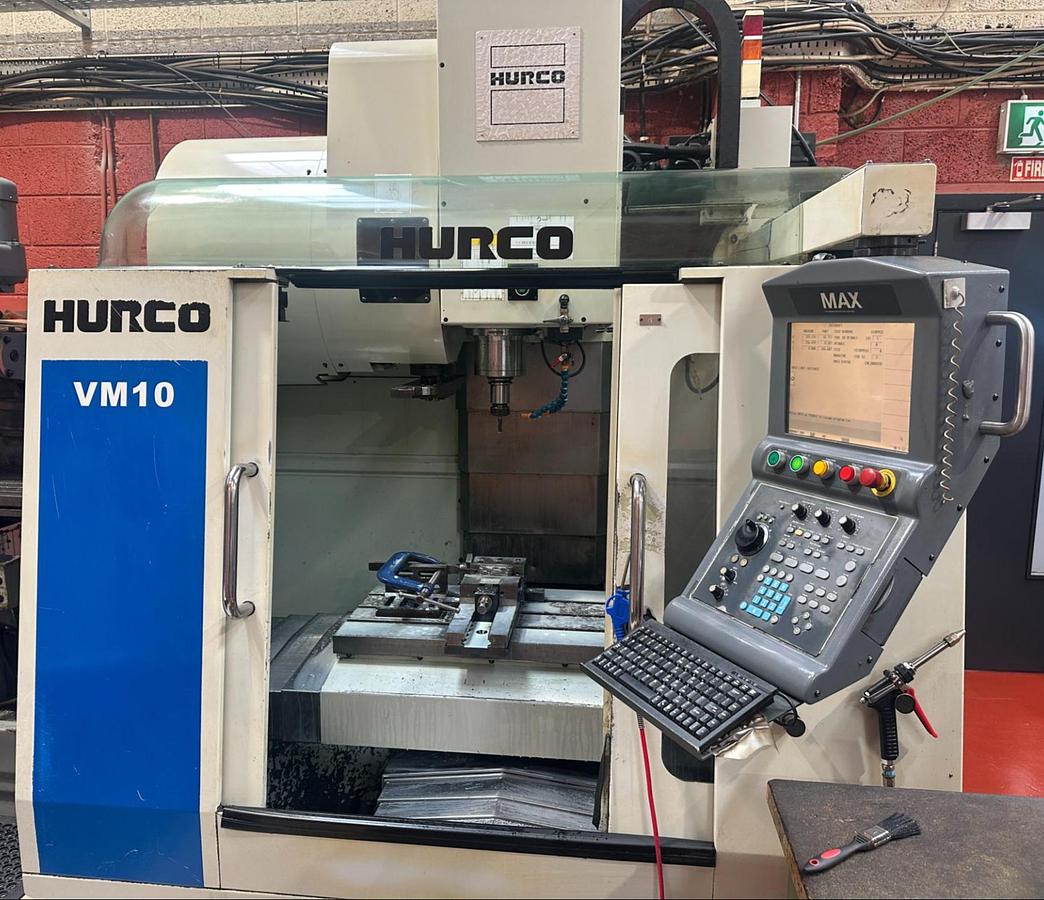

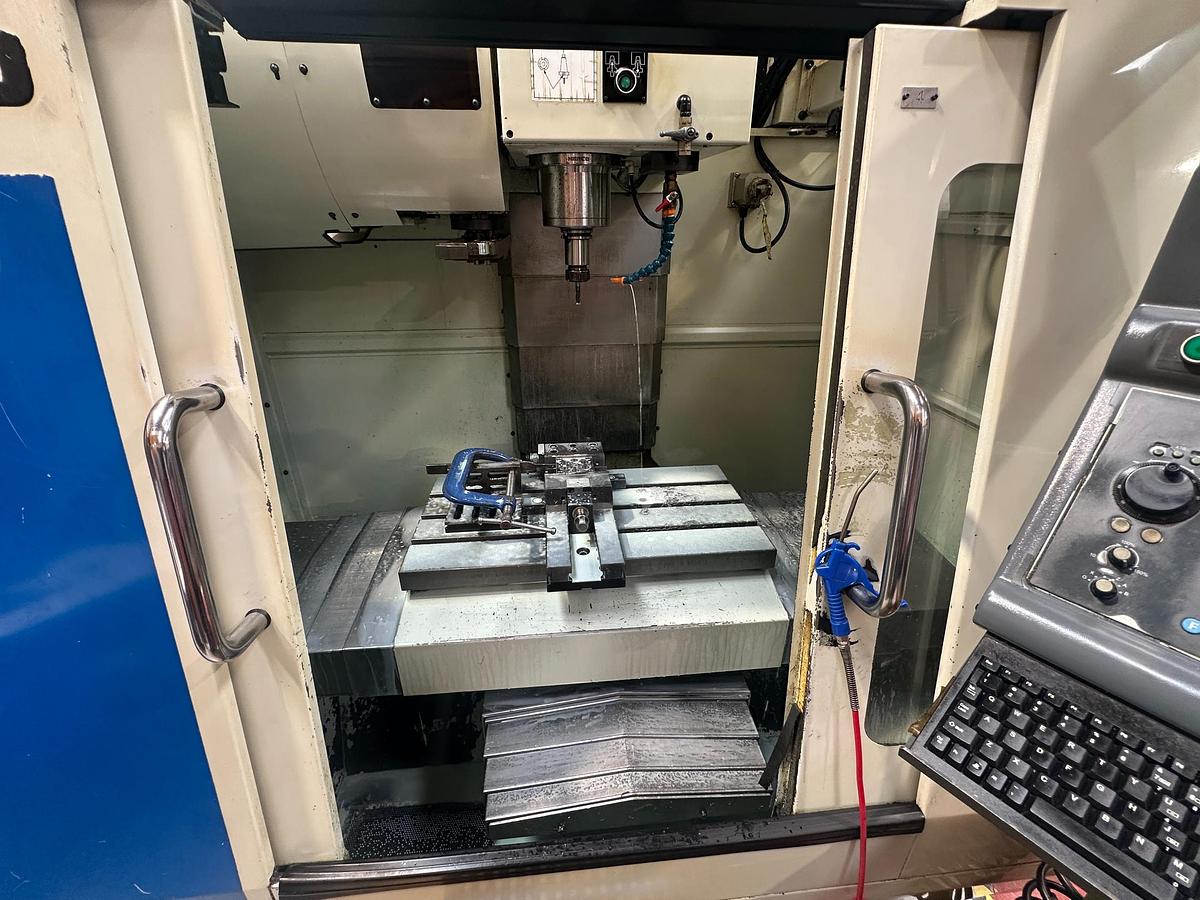

For sale is a 2010 Hurco VM10 Vertical Machining Centre in good working condition, equipped with the renowned Hurco WINMAX CNC Control (Version V08.01.04.33) and a CAT 40 10,000rpm spindle.

The Hurco VM10 is recognised worldwide as one of the most reliable and user-friendly vertical machining centres for precision CNC milling, toolroom machining, prototype manufacture, small batch production, mould making, and general engineering.

With 32,300 machine hours, this machine remains an excellent opportunity for engineering companies looking for an affordable, high-quality used CNC machining centre from one of the industry's most respected manufacturers.

Please note: No tooling is included with the machine.

Technical Specifications

Manufacturer: Hurco

Model: VM10

Year: 2010

Machine Type: Vertical Machining Centre

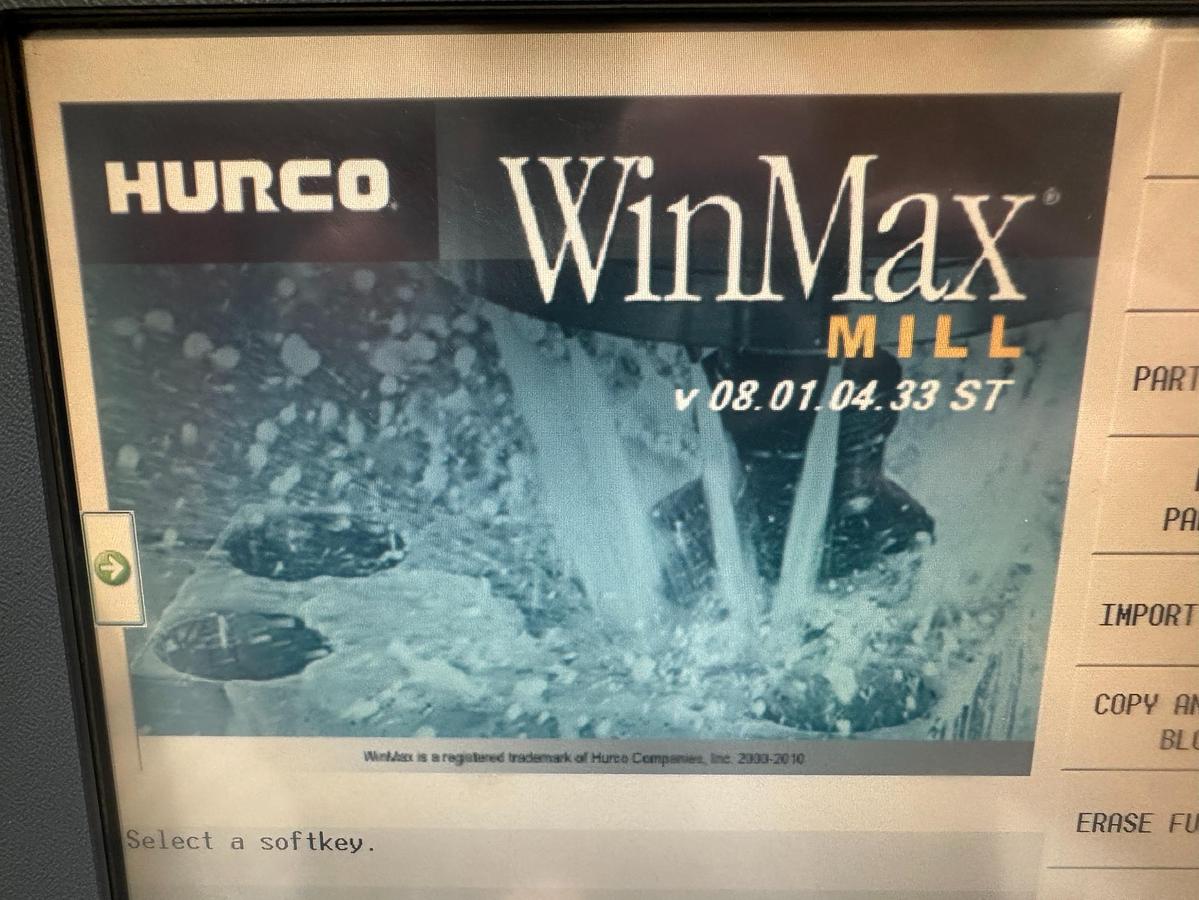

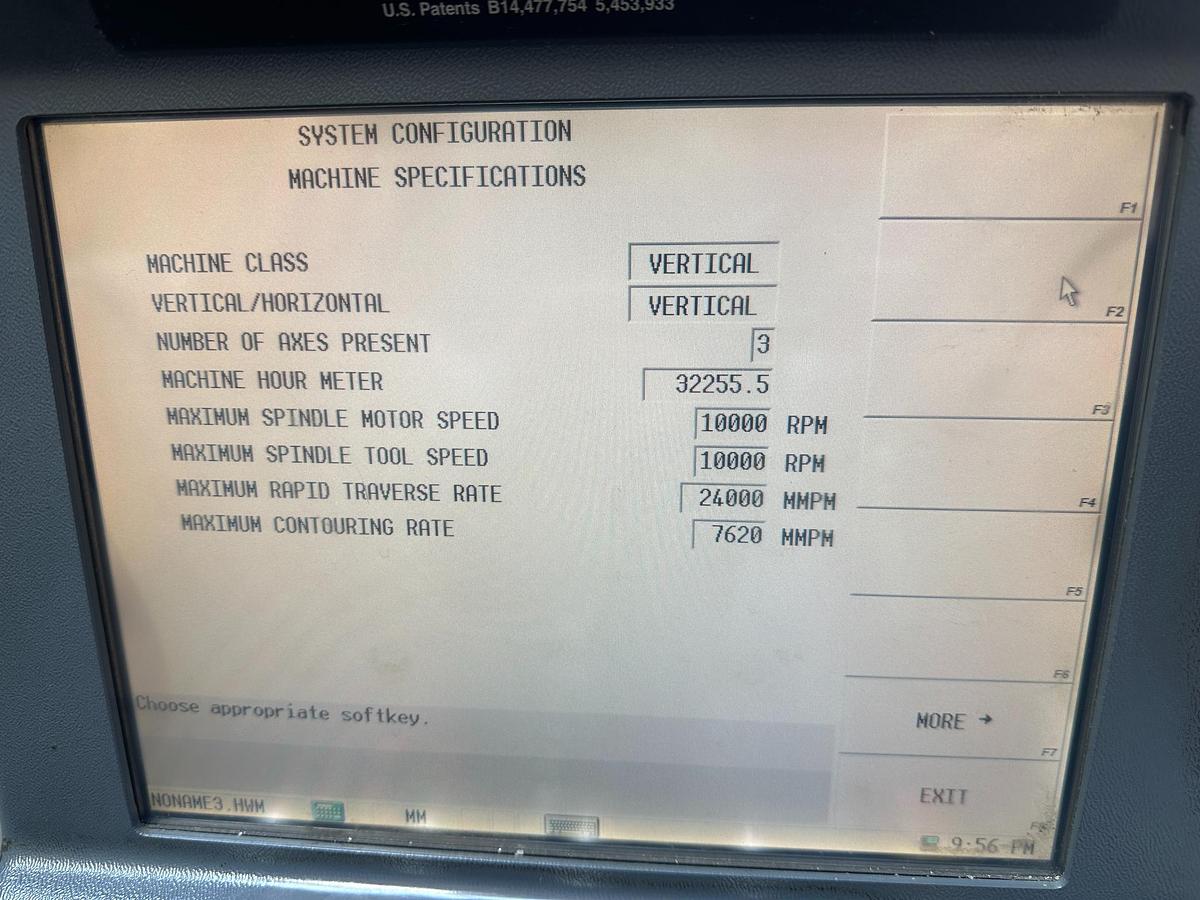

CNC Control: Hurco WINMAX Mill V08.01.04.33

Machine Hours: 32,300 Hours

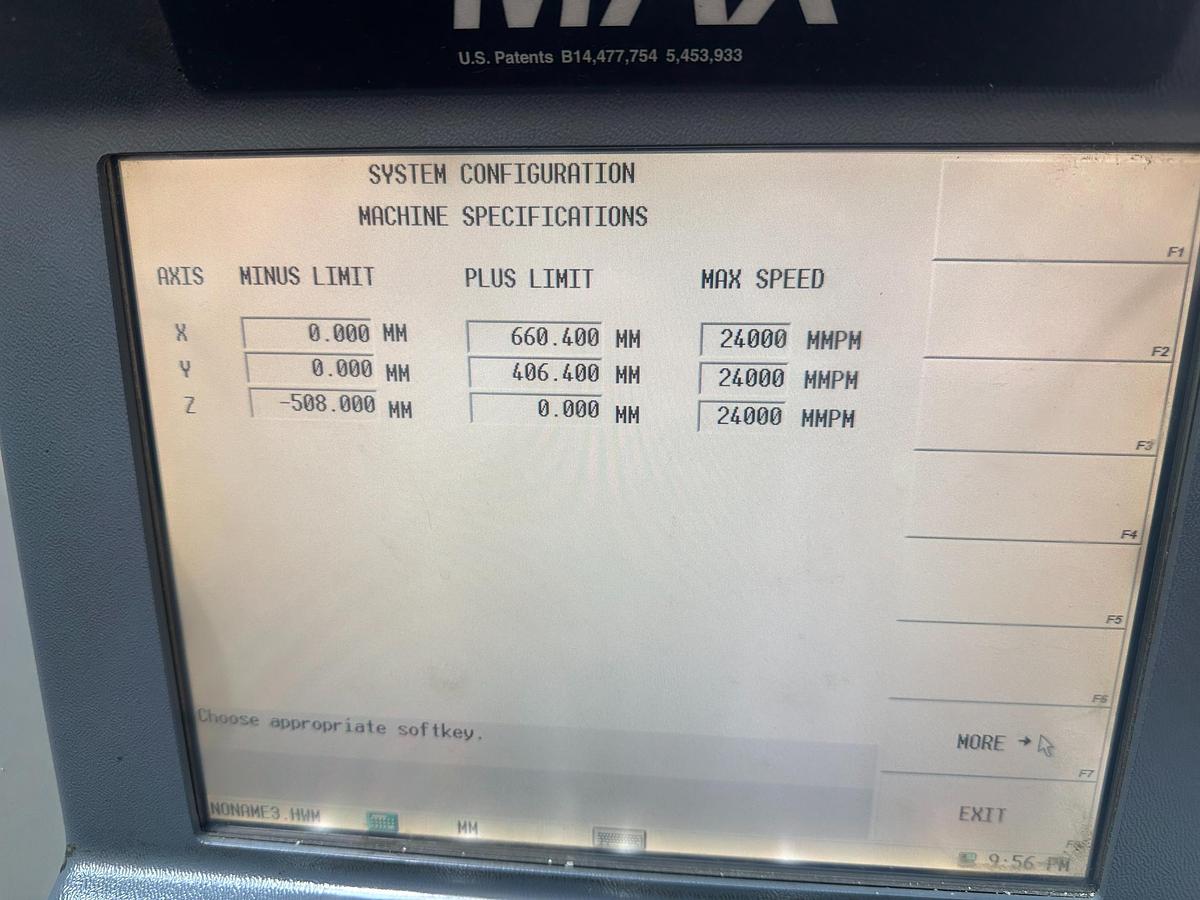

X Axis Travel: 660 mm

Y Axis Travel: 406 mm

Z Axis Travel: 508 mm

Table Size: 762 × 356 mm

Maximum Table Load: 340 kg

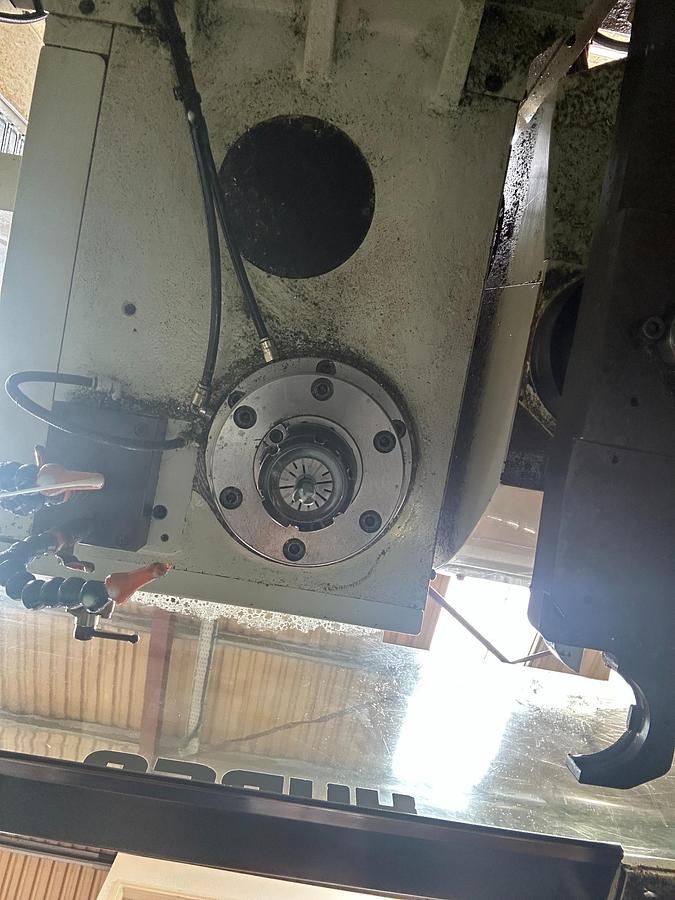

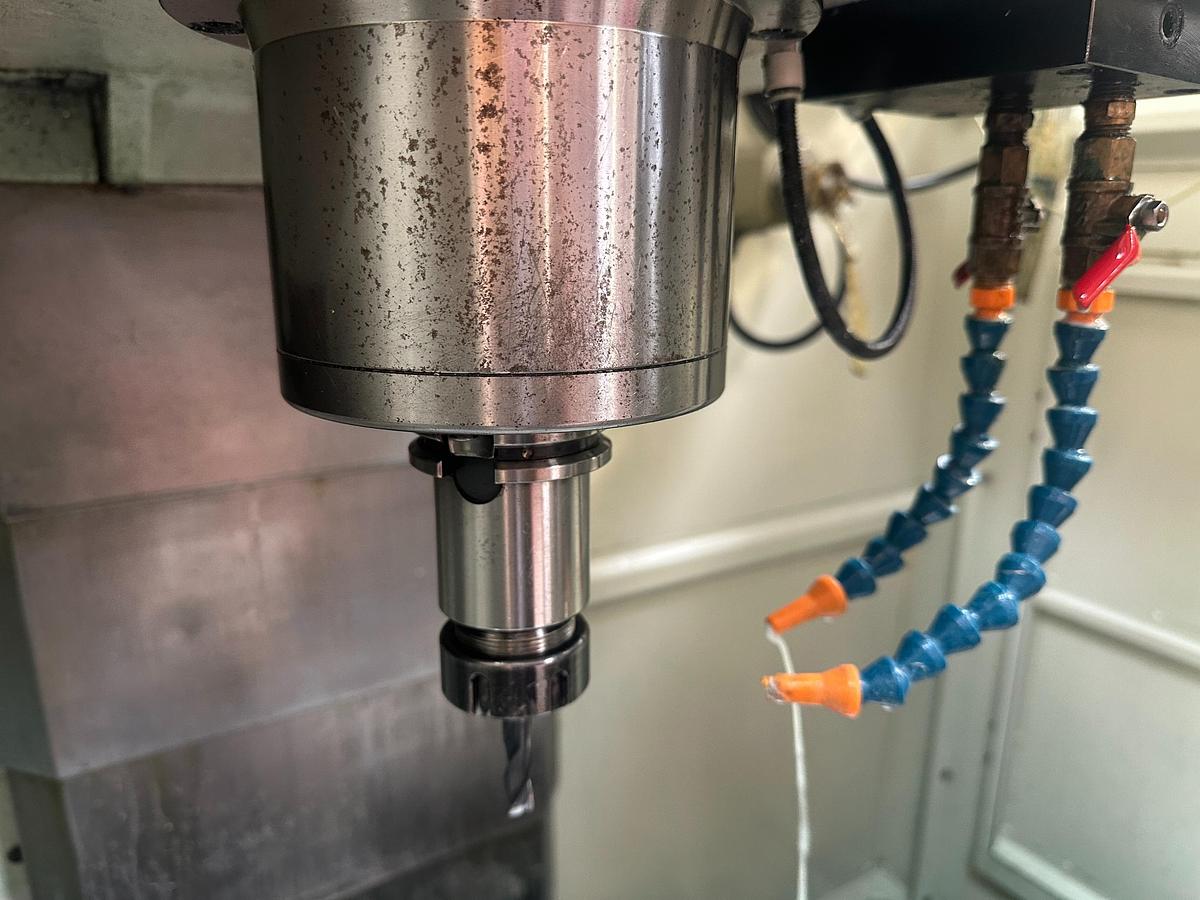

Spindle Taper: CAT 40

Spindle Speed: 10,000 RPM

Spindle Motor: 11 kW (15 HP Peak)

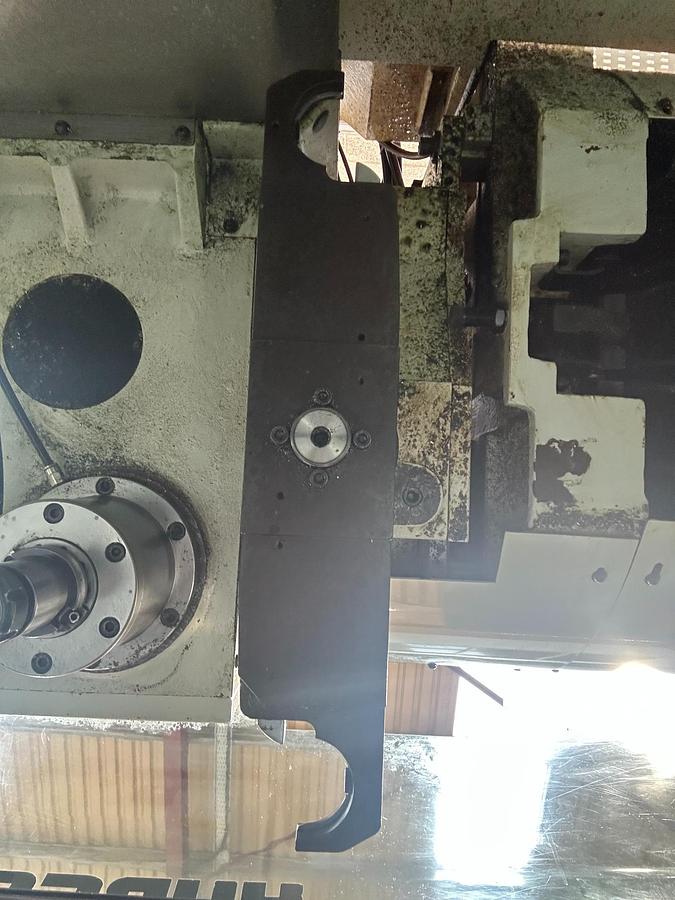

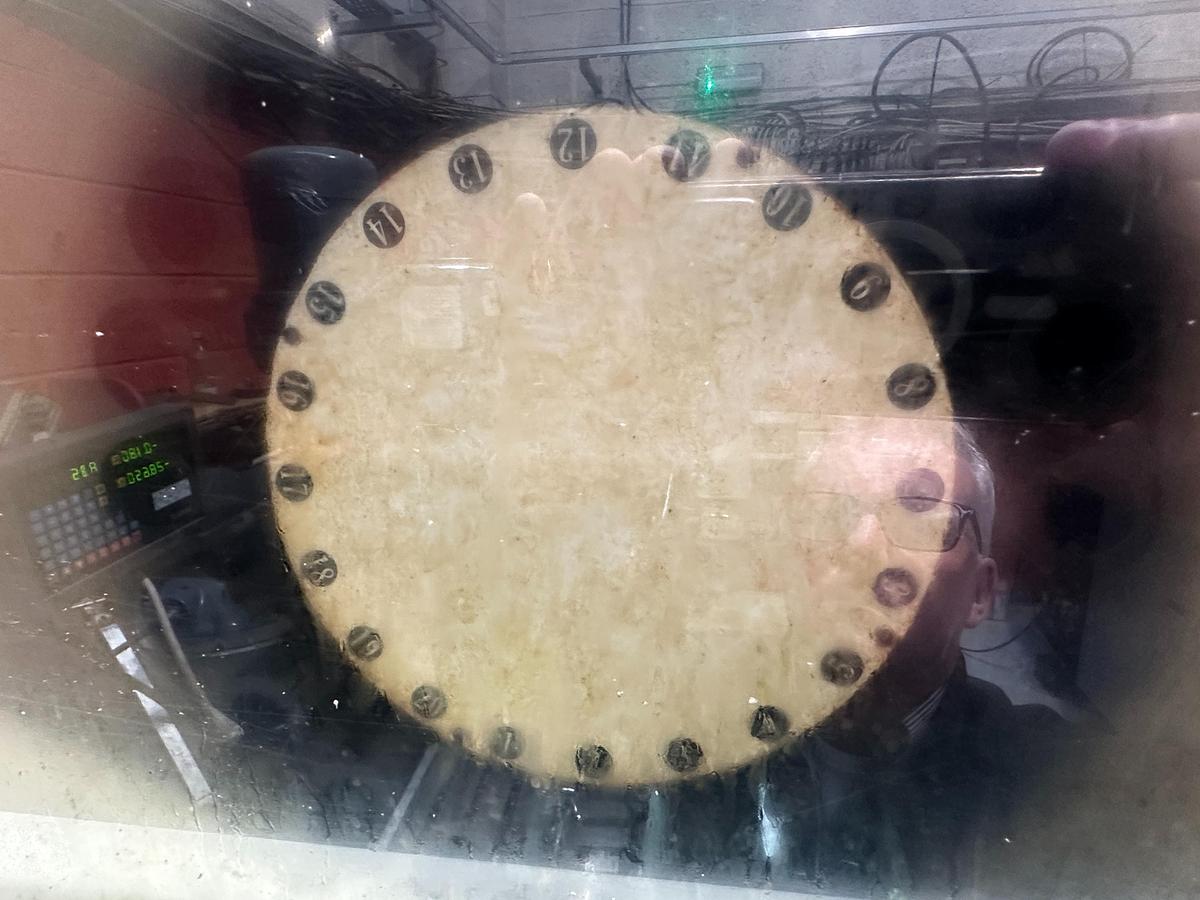

Automatic Tool Changer: 20 Station ATC

Rapid Traverse (X/Y/Z): 24 m/min

Machine Weight Approx.: 2,900 kg

Condition: Excellent Working Condition

Tooling: No Tooling Included

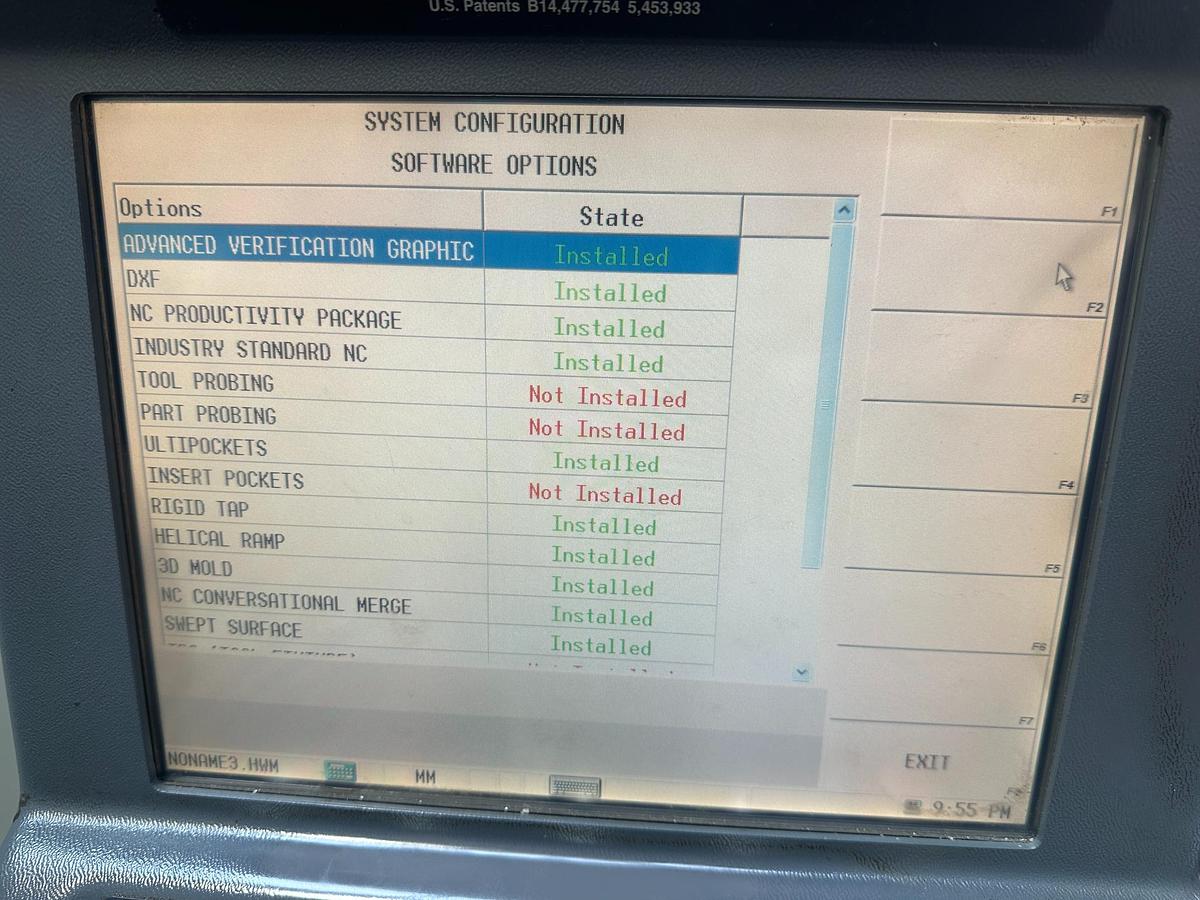

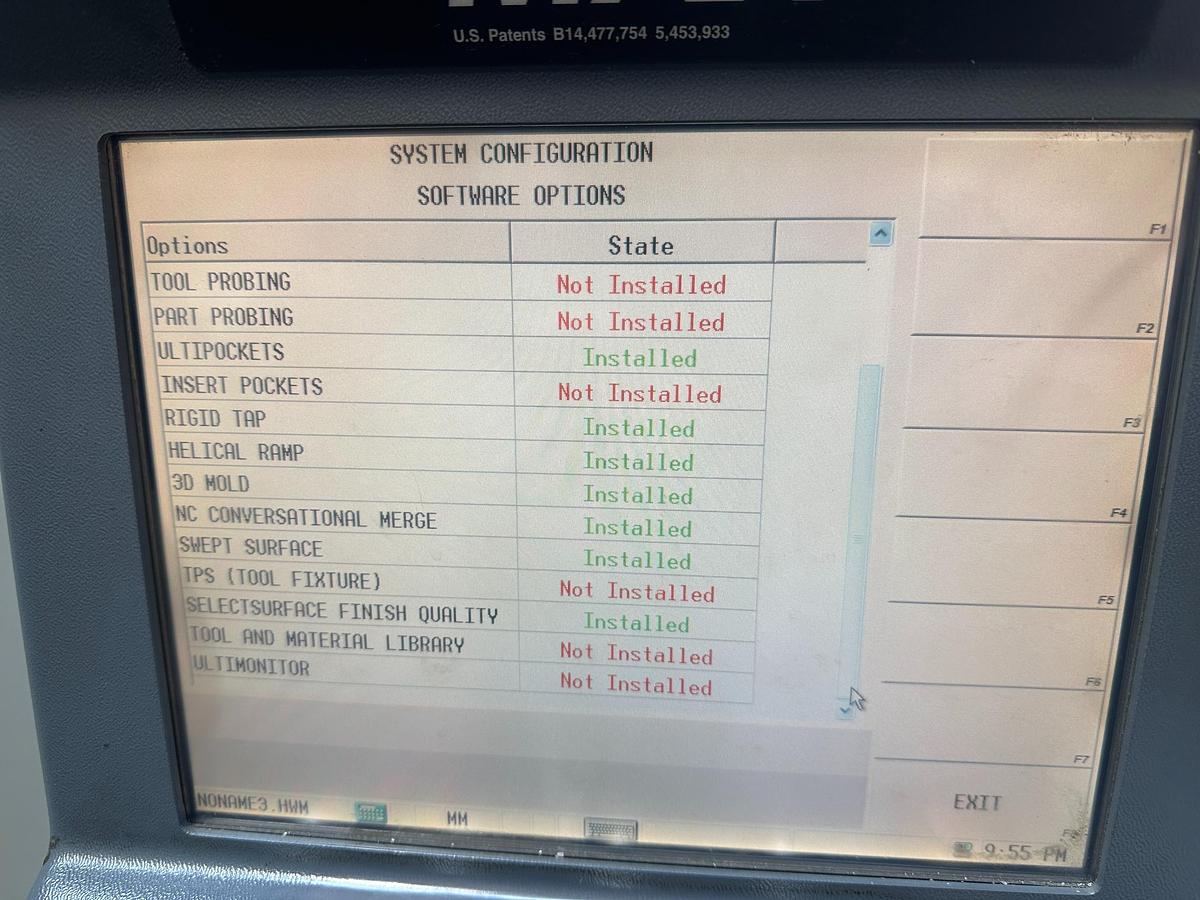

Installed WINMAX Software Options

This machine is equipped with an excellent range of factory software options including:

• Advanced Verification Graphics
• DXF File Import
• NC Productivity Package
• Industry Standard NC Programming
• UltiPockets
• Rigid Tapping
• Helical Ramp Milling
• 3D Mold Package
• NC Conversational Merge
• Swept Surface Machining
• Select Surface Finish Quality

These options significantly enhance programming flexibility, machining accuracy and production efficiency, making the VM10 suitable for both conversational programming and full ISO/G-Code machining.

Notes: *Specifications are given in good faith but not guaranteed*

Key Features

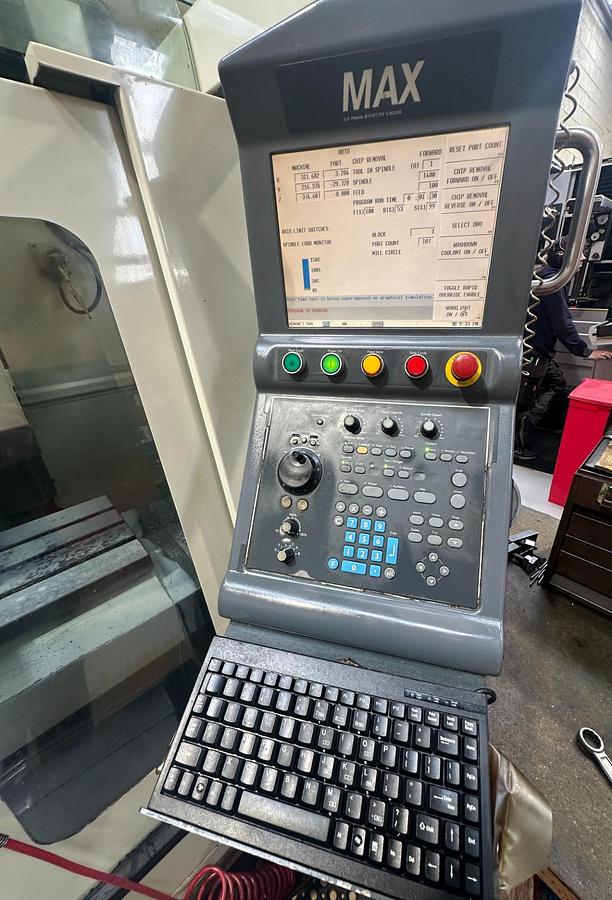

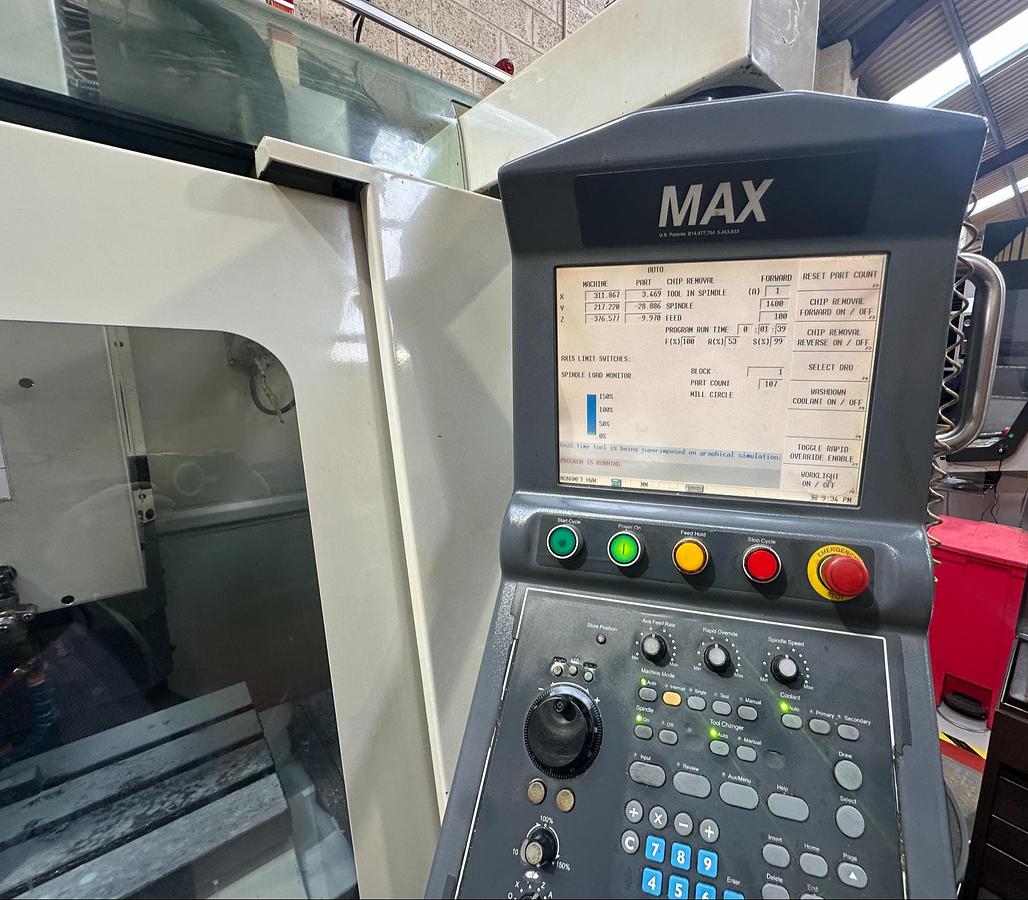

Hurco WINMAX Conversational CNC

One of the easiest CNC controls to learn and operate, allowing operators to quickly produce components without extensive G-Code programming.

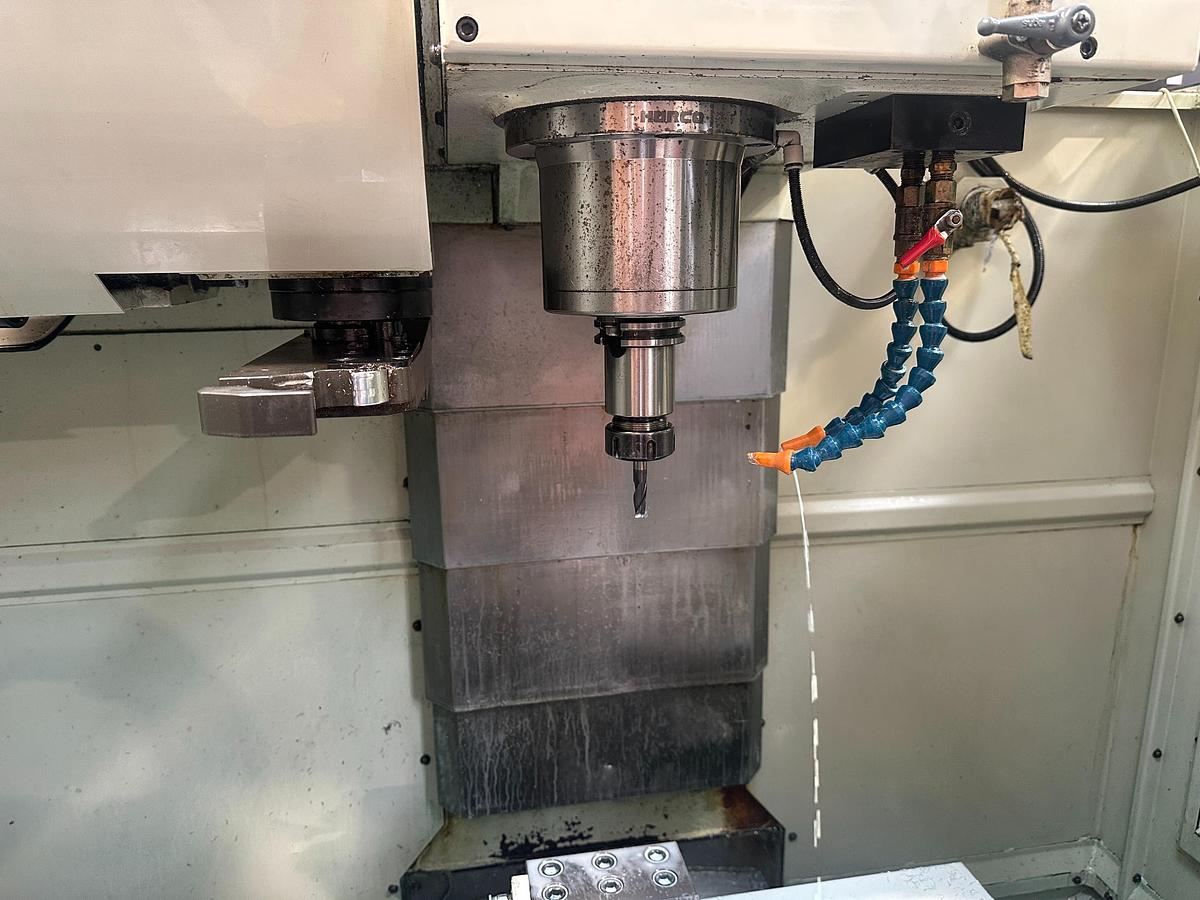

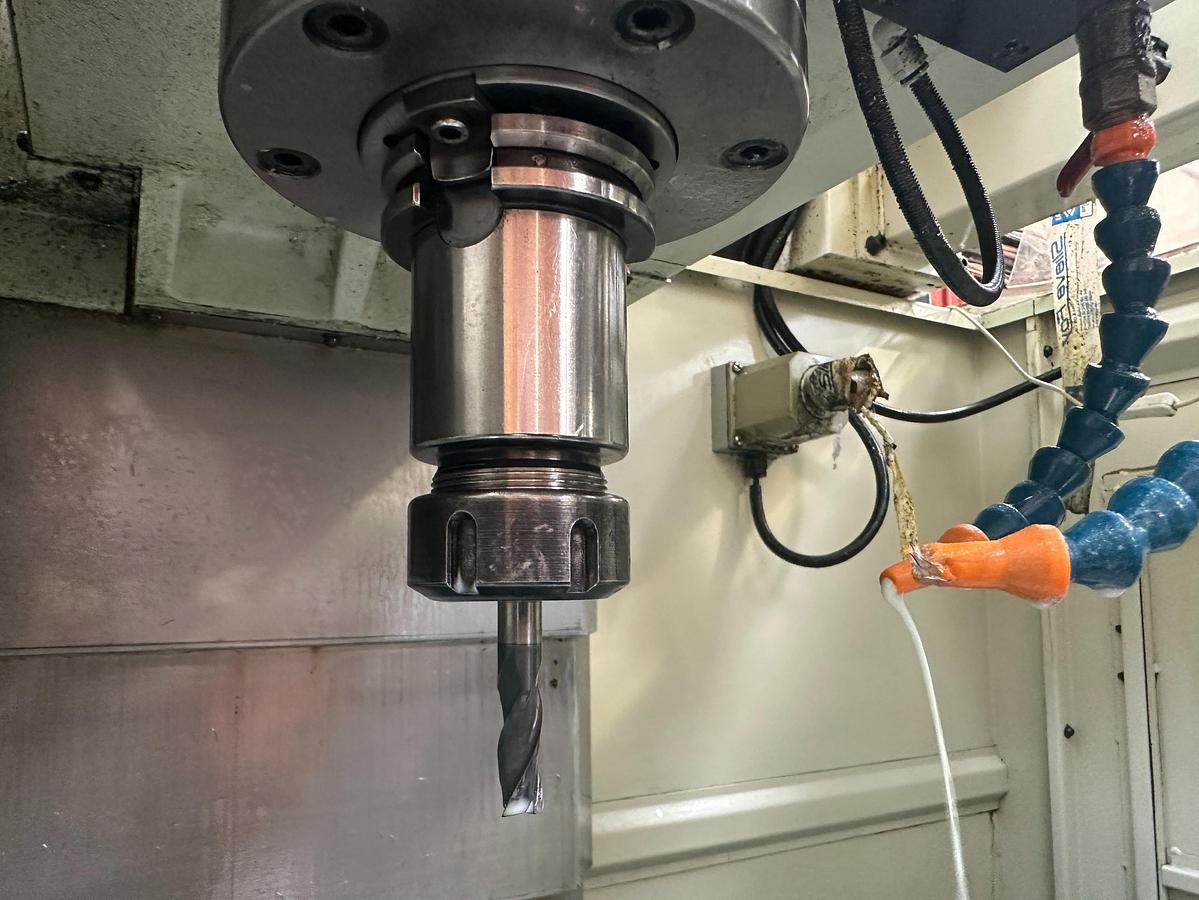

CAT 40 High-Speed Spindle

The industry-standard CAT 40 spindle provides excellent tooling availability and rigidity for machining steel, aluminium, plastics, composites and engineering materials.

20 Station Automatic Tool Changer

Fast automatic tool changes reduce machining time and improve production efficiency.

Compact High-Performance Design

Large machining travels combined with a compact footprint make the VM10 ideal for workshops where floor space is at a premium.

High-Speed Precision Machining

The 10,000 RPM spindle combined with rapid traverse rates enables efficient production while maintaining excellent surface finishes.

Proven Hurco Reliability

Hurco machining centres are recognised worldwide for their durability, ease of maintenance and excellent resale value.

Typical Applications

Ideal for:

• Precision Engineering
• CNC Milling
• General Engineering
• Toolroom Machining
• Prototype Manufacturing
• Small Batch Production
• Component Manufacturing
• Aerospace Components
• Medical Components
• Automotive Engineering
• Mould & Die Manufacture
• Aluminium Machining
• Steel Machining
• Plastic Components
• Subcontract CNC Machining

Machine Condition

• Excellent Condition
• Fully operational
• Ready for immediate production
• No tooling included in sale
• Inspection welcome

Delivery can be arranged throughout Ireland, Northern Ireland, United Kingdom, and Europe.
