2016 Ermaksan Speed-Bend Pro 1270 x 40 CNC Press Brake – 6 Axis – Delem DA-66Te Control

Used 2016 Ermaksan Speed-Bend Pro 1270 x 40 CNC hydraulic press brake for sale in Ireland. 6-axis CNC press brake with Delem DA-66Te graphic control, Y1, Y2, X, R, Z1 and Z2 axes, tooling, laser guards and only 8,451 hours.

Manufacturer: Ermaksan

Model: Speed-Bend(SB) Pro 1270 x 40

Axes: 6

Year: 2016

Capacity: 1270mm x 40T

Control: Delem DA66Te

Description

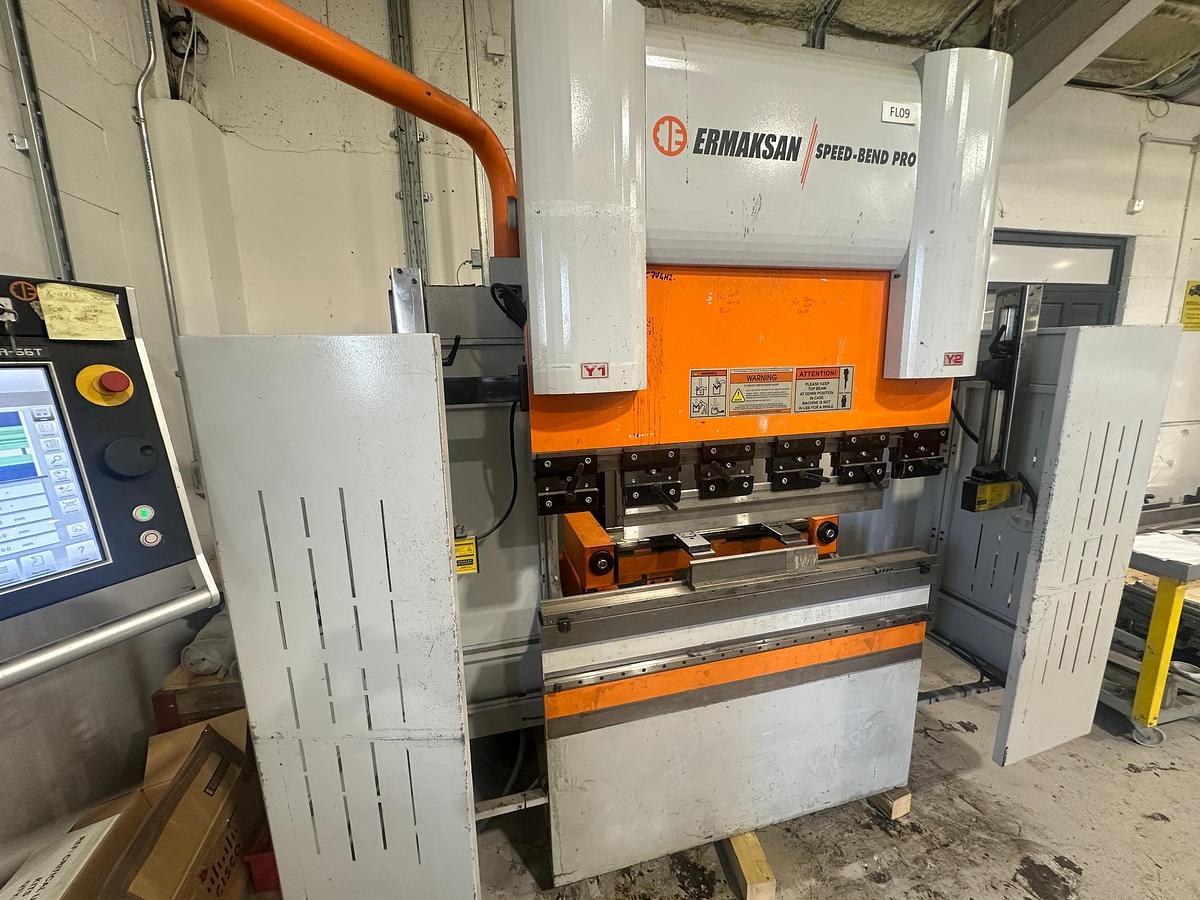

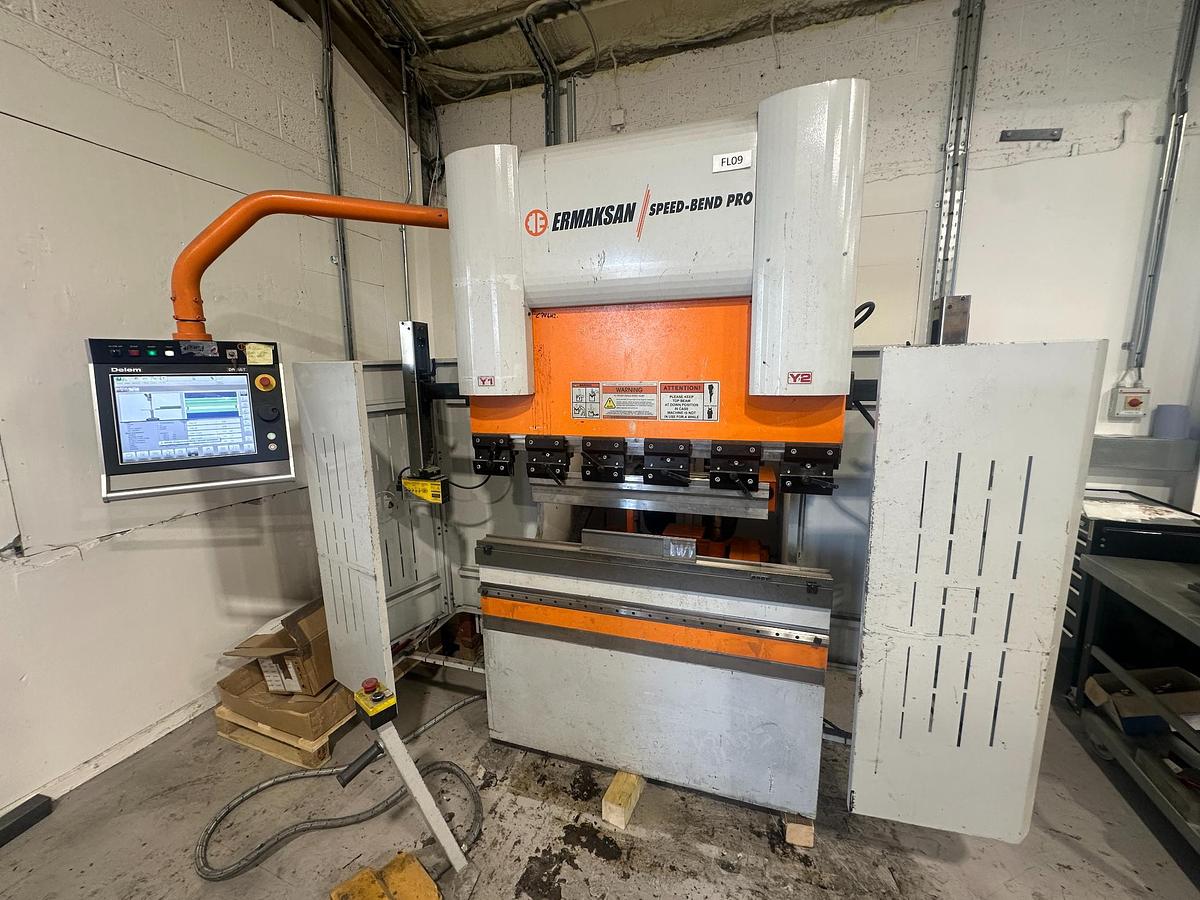

2016 Ermaksan Speed-Bend Pro 1270 x 40 CNC Press Brake, a compact, high-quality 6-axis CNC hydraulic press brake ideal for precision sheet metal bending, fabrication workshops, engineering companies and production environments.

This Ermaksan Speed-Bend Pro 1270 x 40 offers a bending length of 1270 mm and a bending power of 40 tonnes. It is fitted with a Delem DA-66Te graphic CNC control, providing a clear touch-screen interface for accurate programming, bend sequence calculation, tooling setup and repeatable production bending.

The machine is in very good condition and has completed only 8,451 hours. It comes complete with Euro-style top and bottom press brake tooling, laser guards, foot pedal, quick-release top tool clamps and rear safety doors, making it a well-equipped used press brake ready for immediate inspection and production use.

This is a superb opportunity to purchase a late-model, compact Ermaksan CNC press brake with a desirable 6-axis specification, ideal for companies looking for a reliable used hydraulic press brake in Ireland, the UK or Europe.

Key Features

• Manufacturer: Ermaksan
• Model: Speed-Bend Pro 1270 x 40 / SB PRO 1270-40
• Year: 2016
• Type: CNC hydraulic press brake
• Bending length: 1270 mm
• Bending power: 40 tonnes
• Axis configuration: 6 Axis
• CNC controlled axes: Y1, Y2, X, R, Z1 and Z2
• Control: Delem DA-66Te Graphic CNC Control

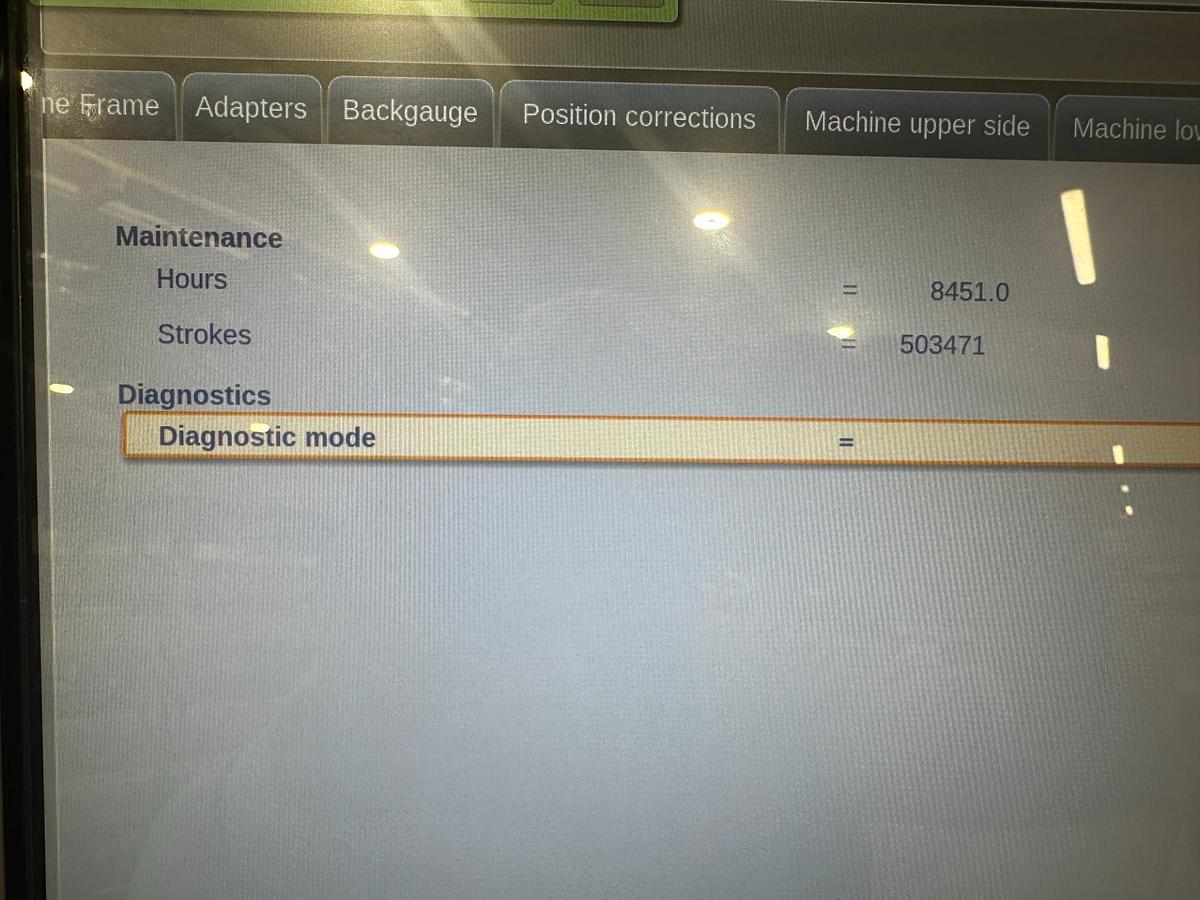

• Hours: Only 8,451 hours
• Condition: Very good condition
• Tooling: Complete with Euro-style top and bottom tools

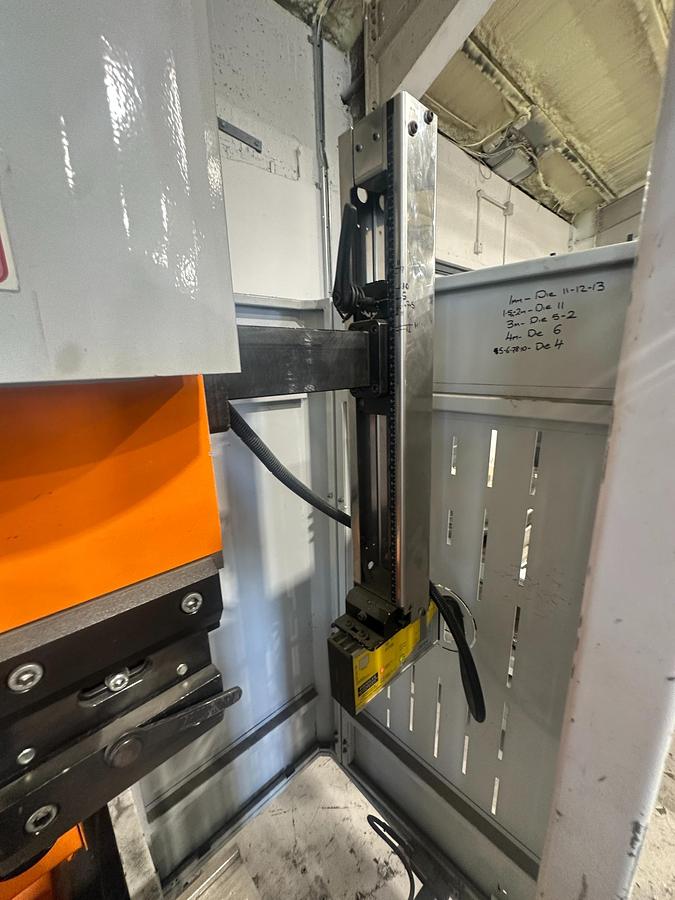

• Safety: Laser guards and rear safety doors

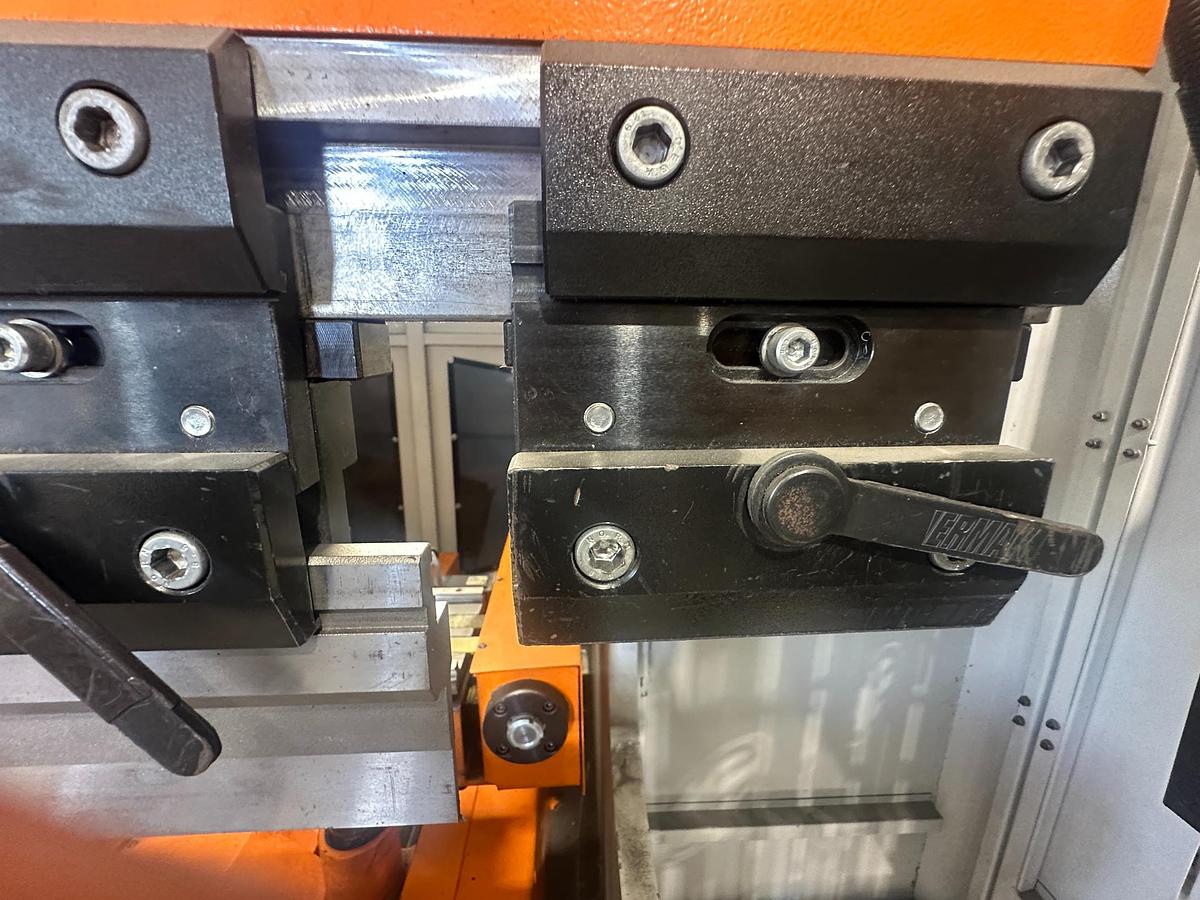

• Clamping: Quick-release top tool clamps

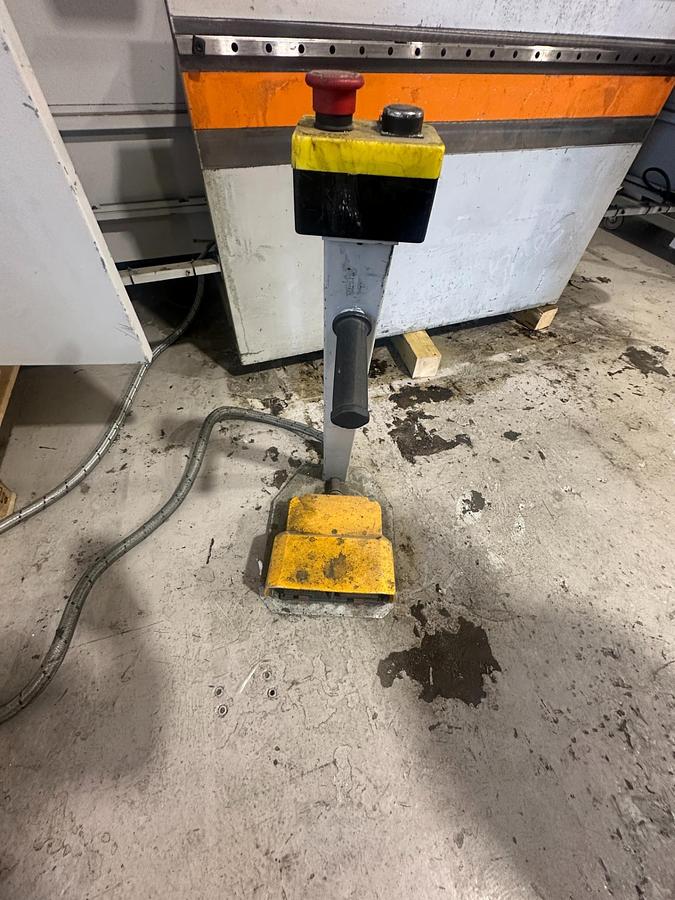

• Includes: Foot pedal
• Suitable for: Sheet metal fabrication, precision bending, general engineering, subcontract fabrication and production bending

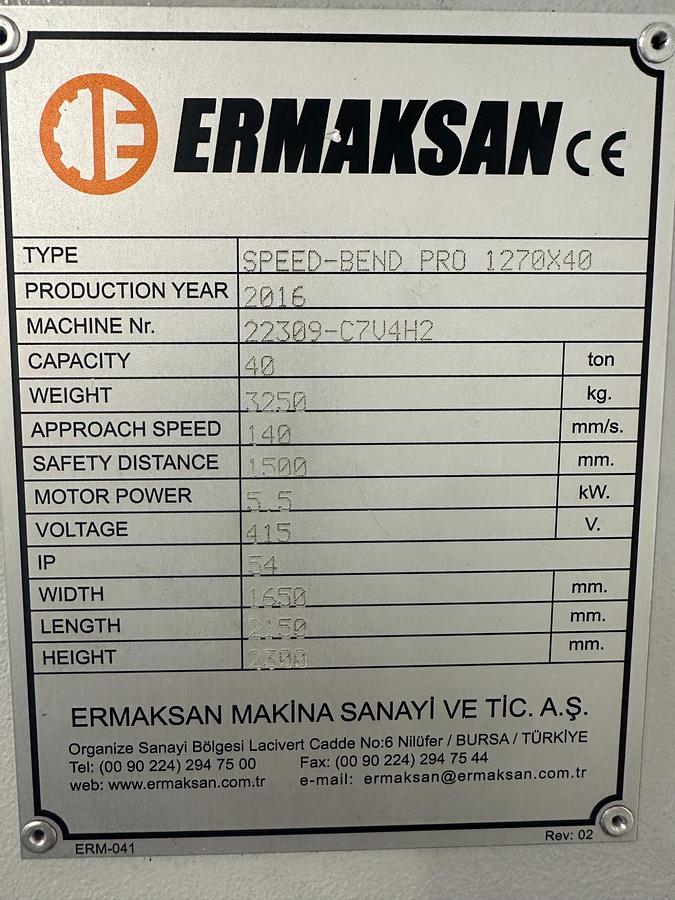

Technical Specifications – SB PRO 1270-40

Model: SB PRO 1270-40

Bending length: 1270 mm

Bending power: 40 tonnes

Distance between columns: 1050 mm

Y-axis rapid speed: 140 mm/s

Y-axis working speed: 10 mm/s

Y-axis return speed: 170 mm/s

X-axis travel: 500 mm

X-axis speed: 500 mm/s

R-axis travel: 250 mm

R-axis speed: 350 mm/s

Z1 / Z2-axis travel speed: 1000 mm/s

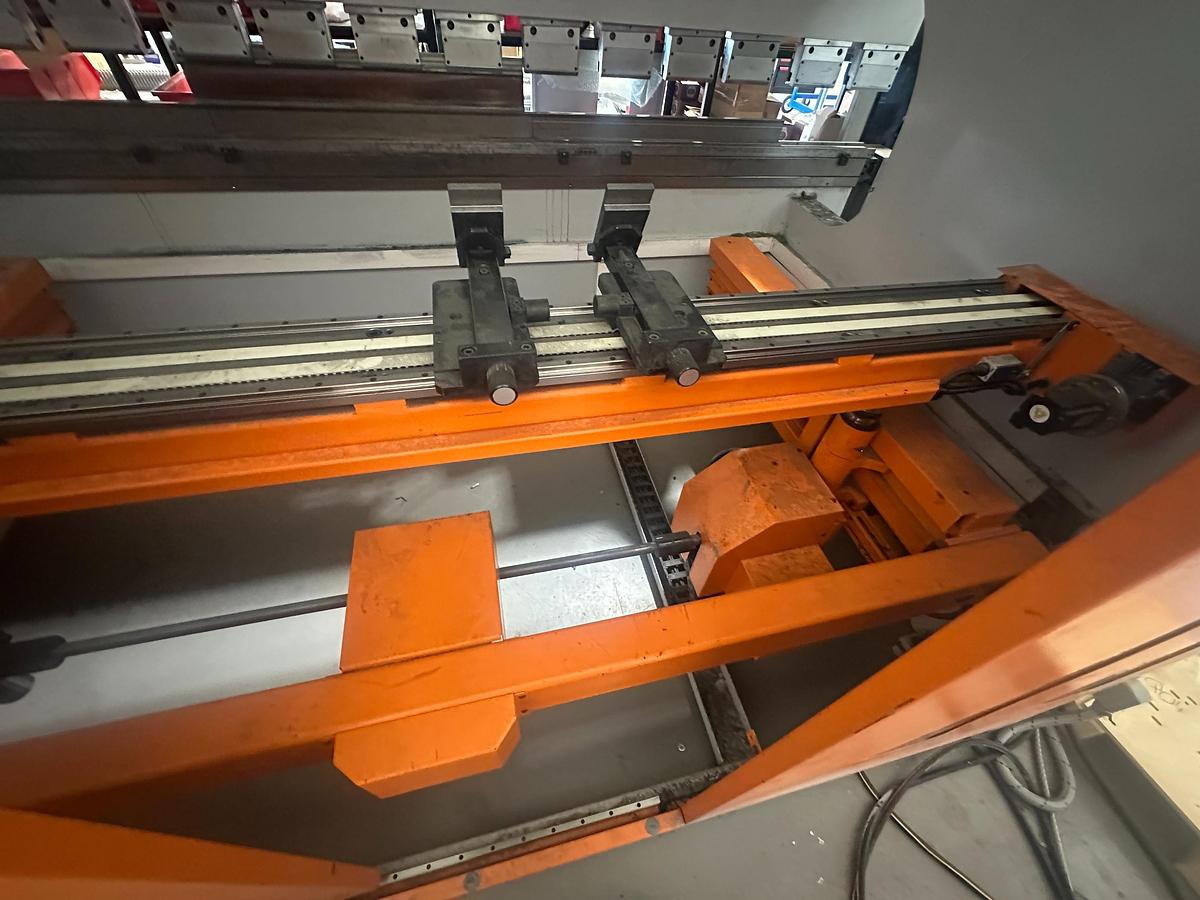

Backgauge finger blocks: 2

Oil capacity: 80 litres

Motor power: 5.5 kW

Stroke: 170 mm

Daylight: 387 mm

Throat depth: 350 mm

Table height: 850 mm

Table width: 90 mm

Machine Dimensions: 2150 x 1650 x 2300mm

Machine weight: 3250 kg

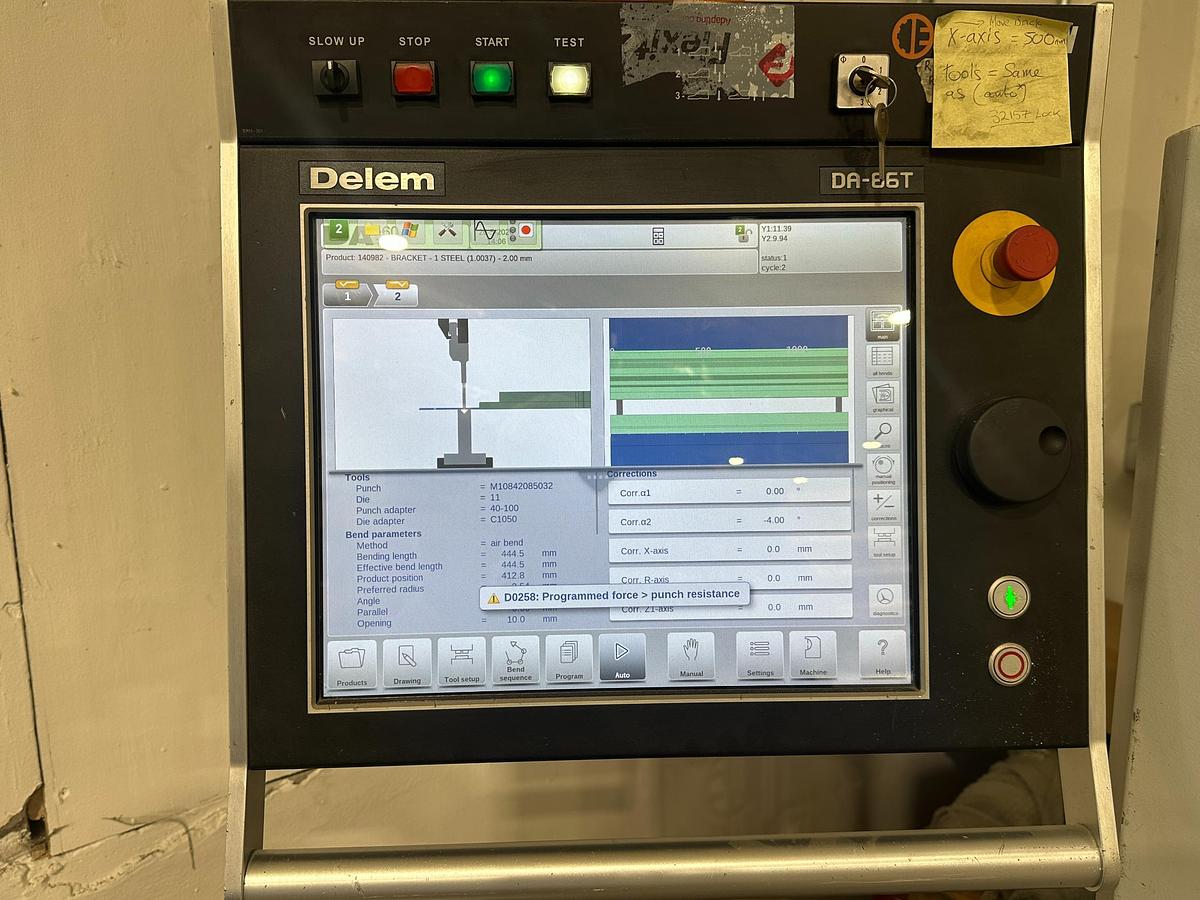

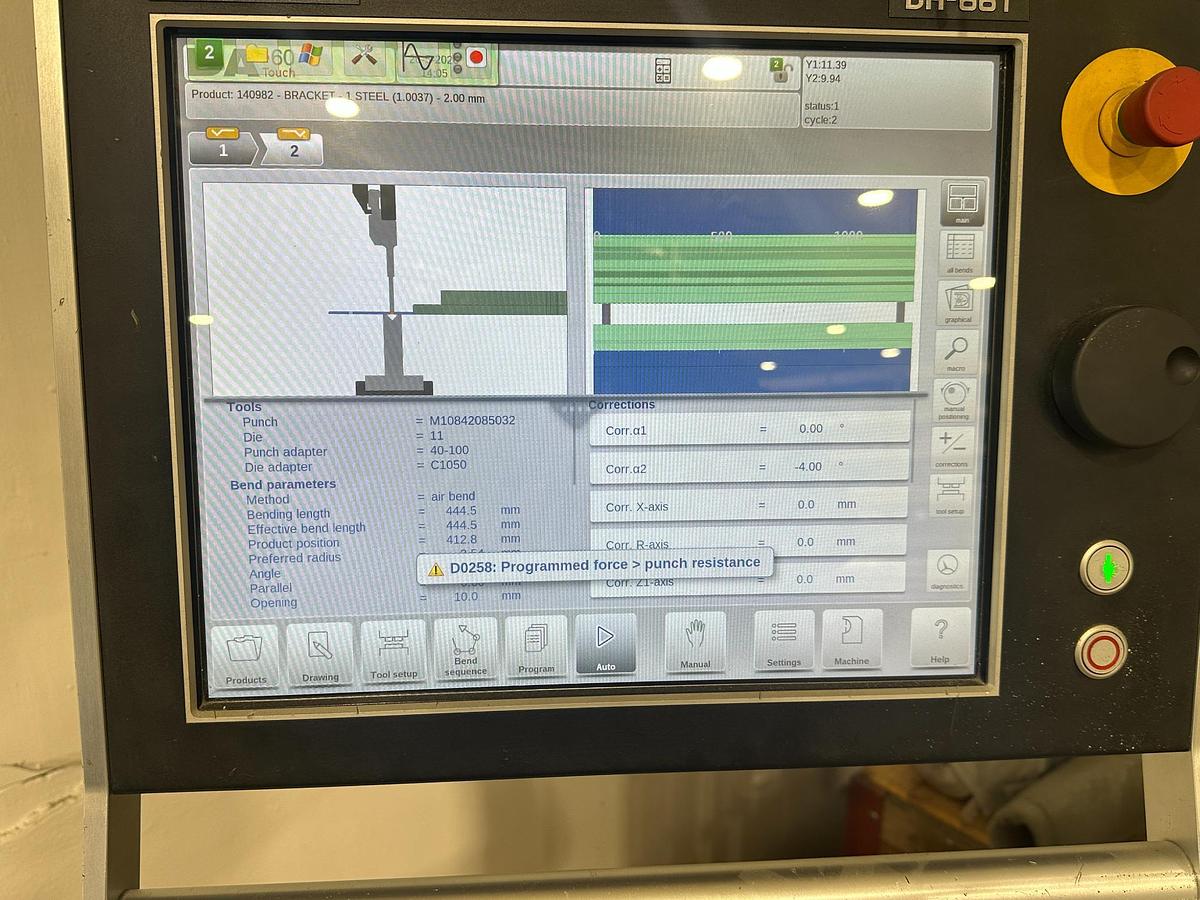

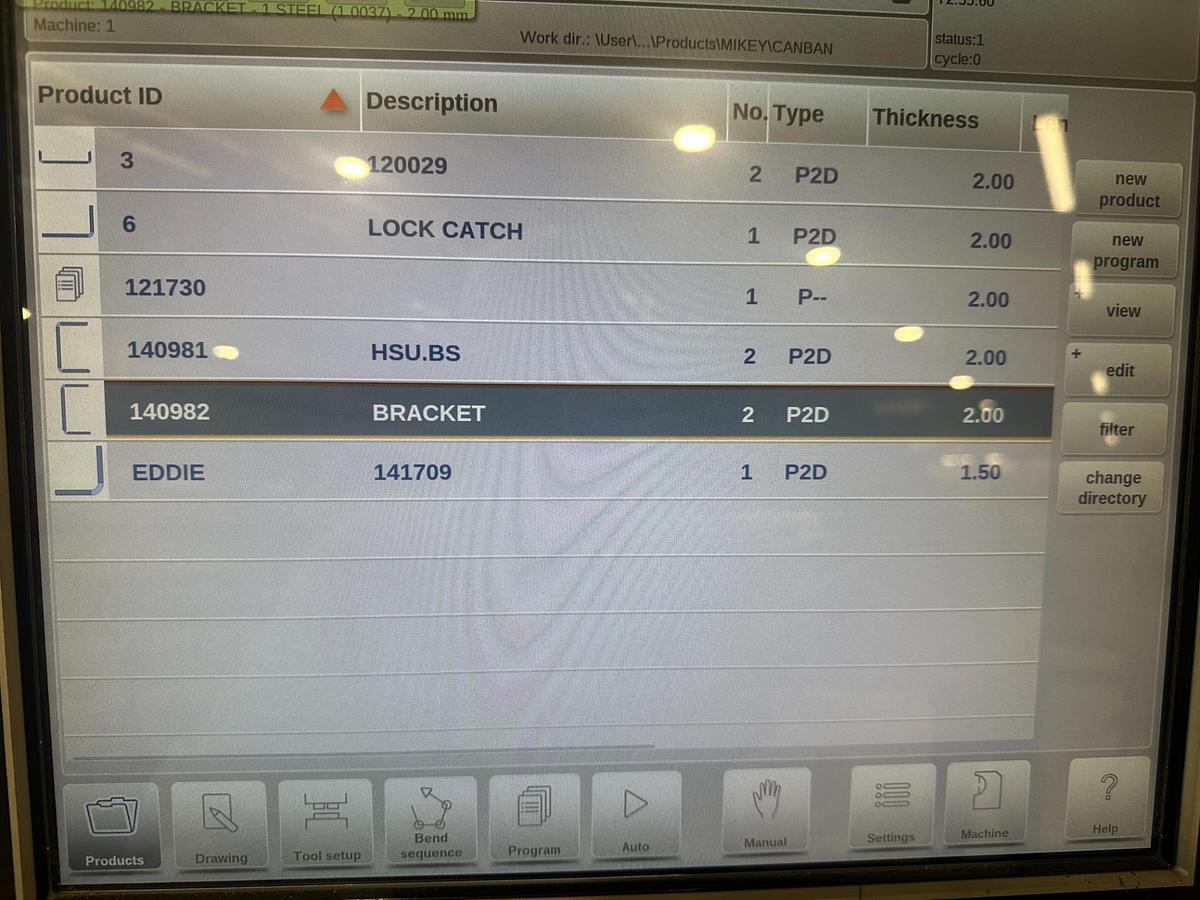

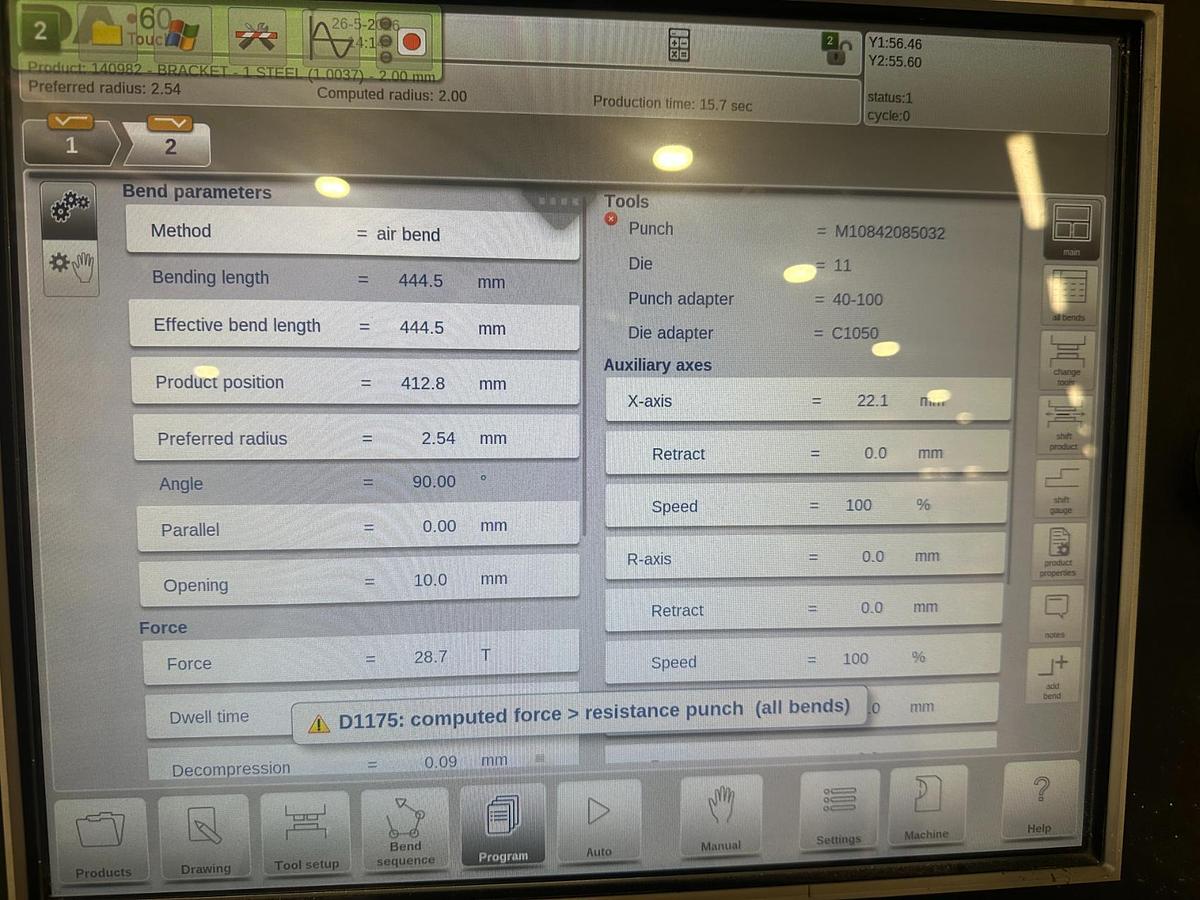

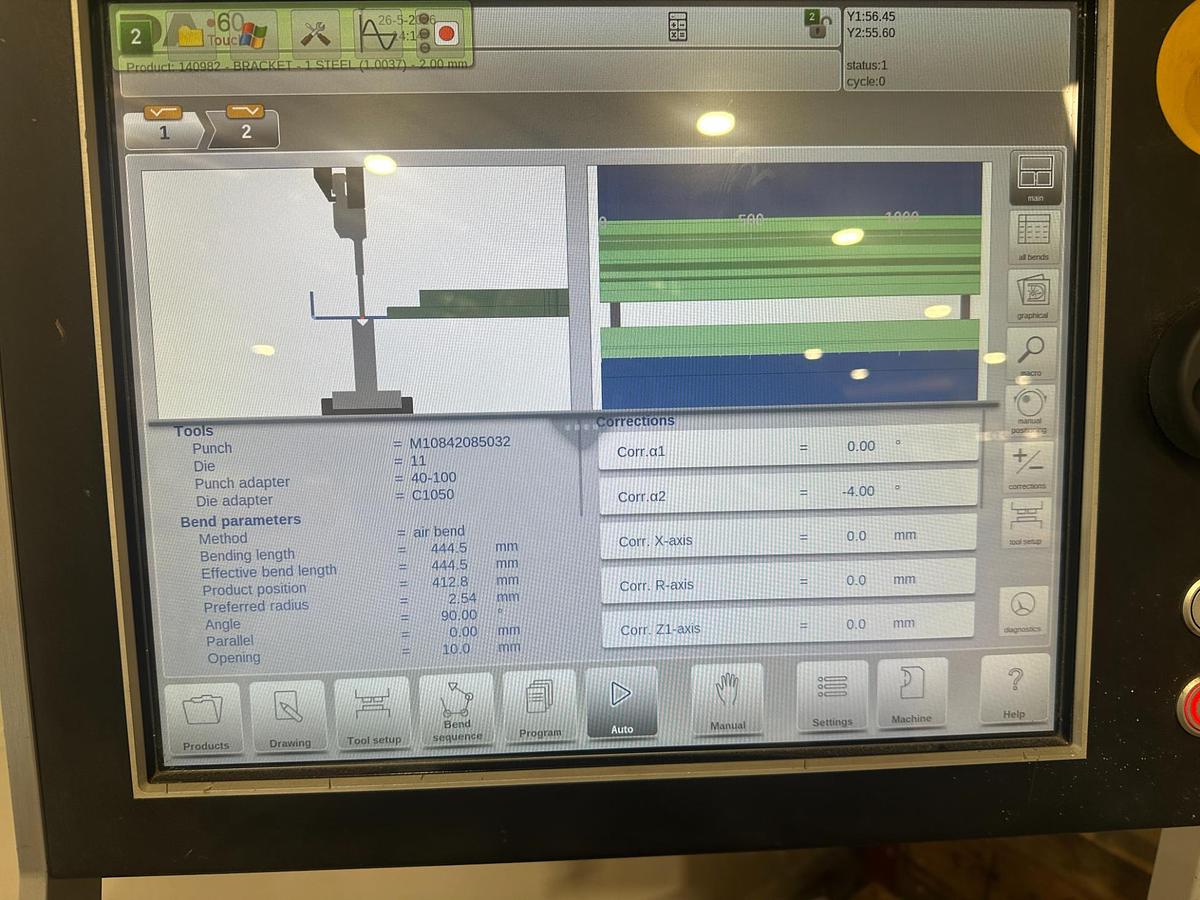

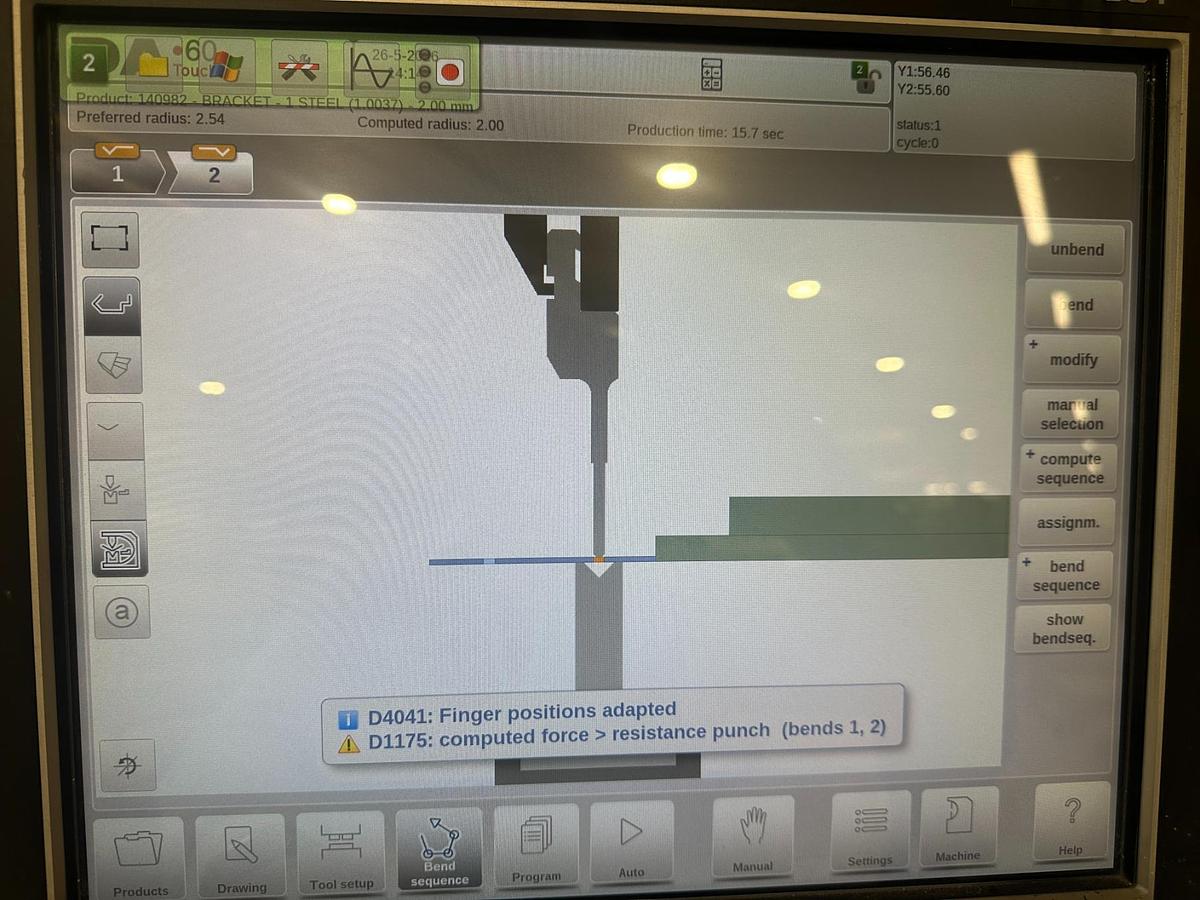

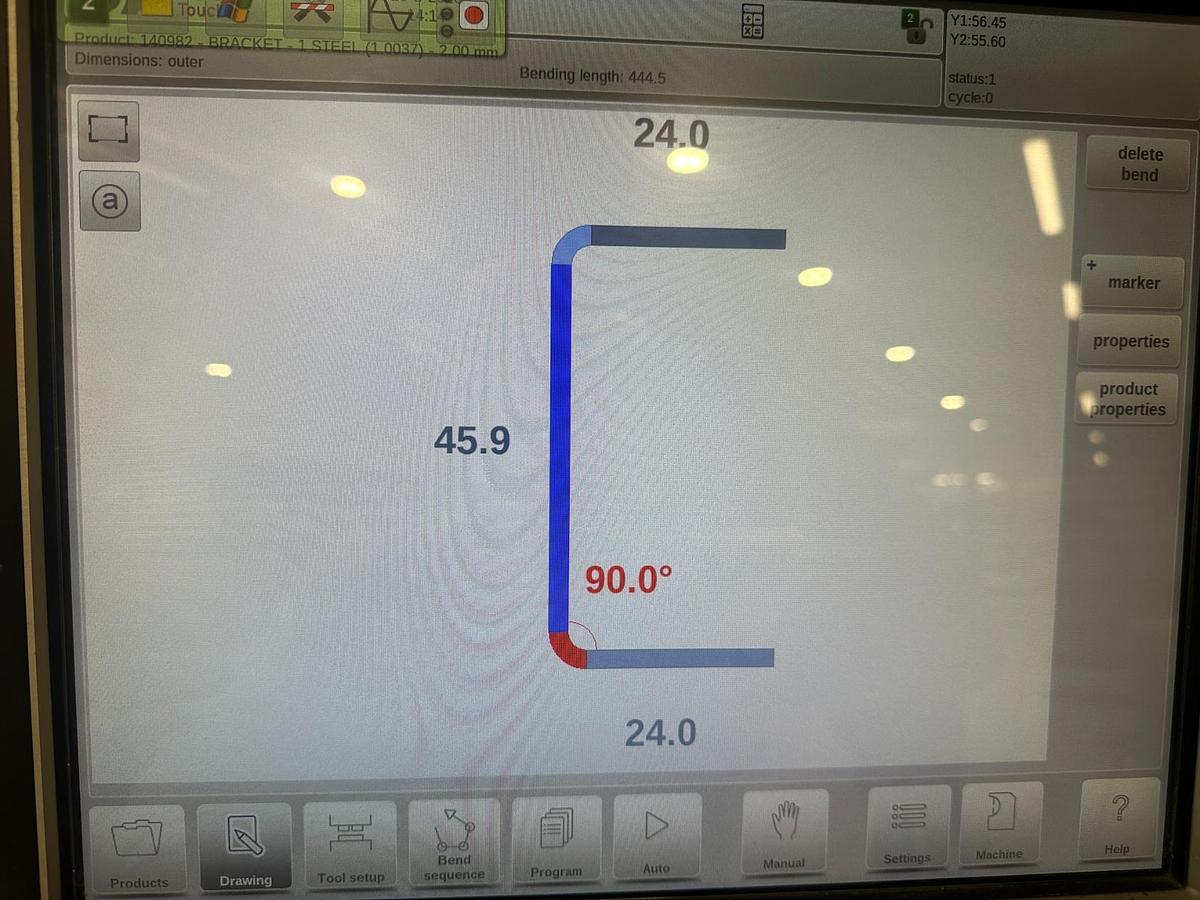

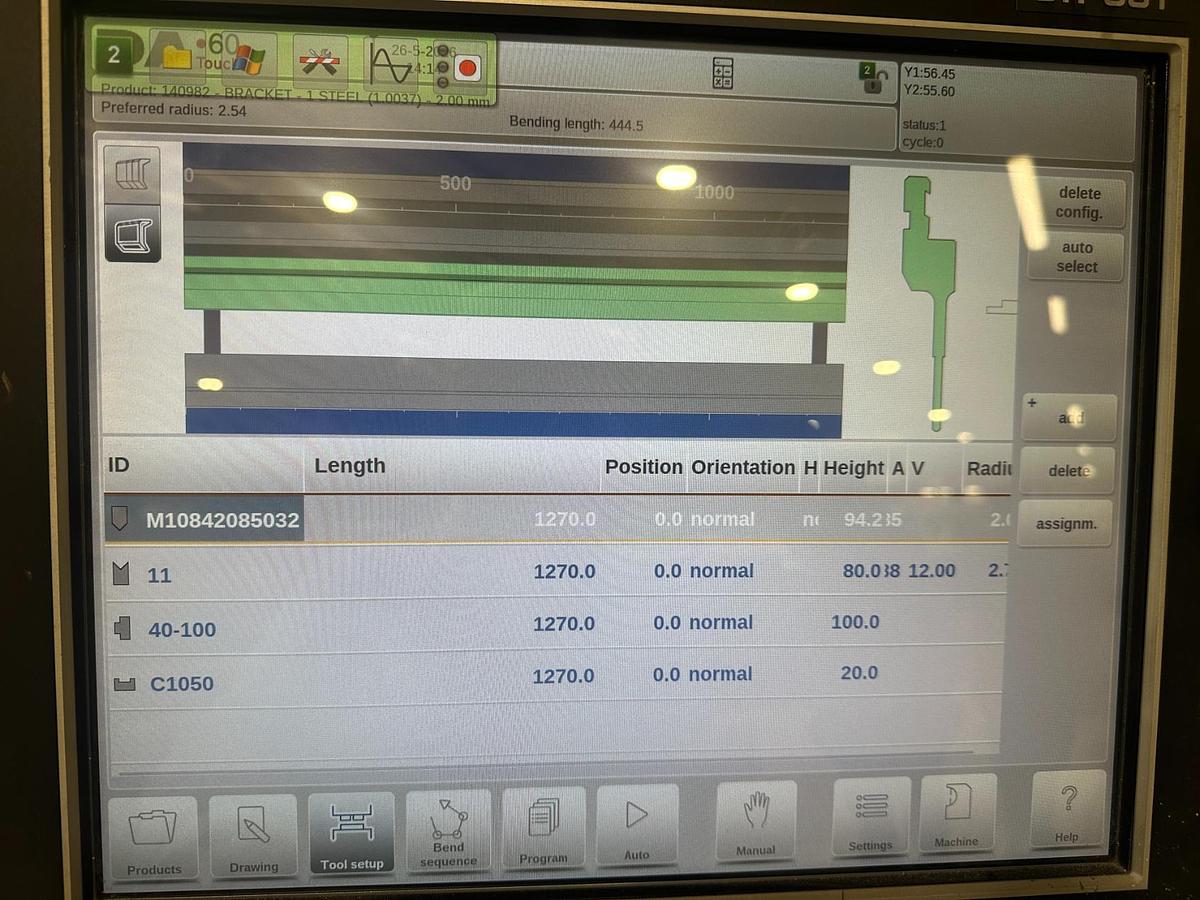

Delem DA-66T / DA-66Te CNC Control Specifications

The machine is fitted with a Delem DA-66Te graphic CNC control. The brochure specification for the Delem DA-66T control includes:

• Graphic touch-screen programming mode
• 17” high-resolution colour TFT display
• Fully equipped Windows or Linux application platform
• Standard Profile-LITE offline software
• 2 GB memory
• Product and tool memory: 256 MB
• Alphanumeric product naming
• Graphical product and tool selection
• Real-scale product programming and display
• Automatic bending sequence calculation
• Programmable material properties
• Product and tool search filters
• Millimetre / kN / tonne selection
• Stock counter
• USB flash memory support
• Emergency stop button

Standard / Included Equipment

This used Ermaksan Speed-Bend Pro press brake is supplied with:

• 6 CNC axes: Y1, Y2, X, R, Z1 and Z2
• Delem DA-66Te graphic CNC control
• Euro-style top press brake tools
• Euro-style bottom press brake tools

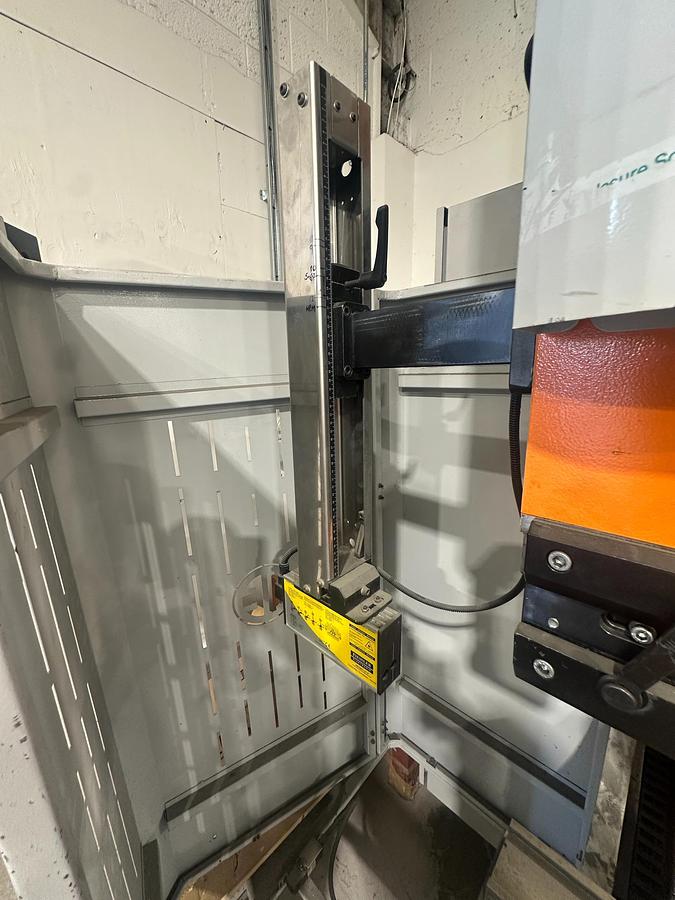

• Laser safety guards
• Foot pedal

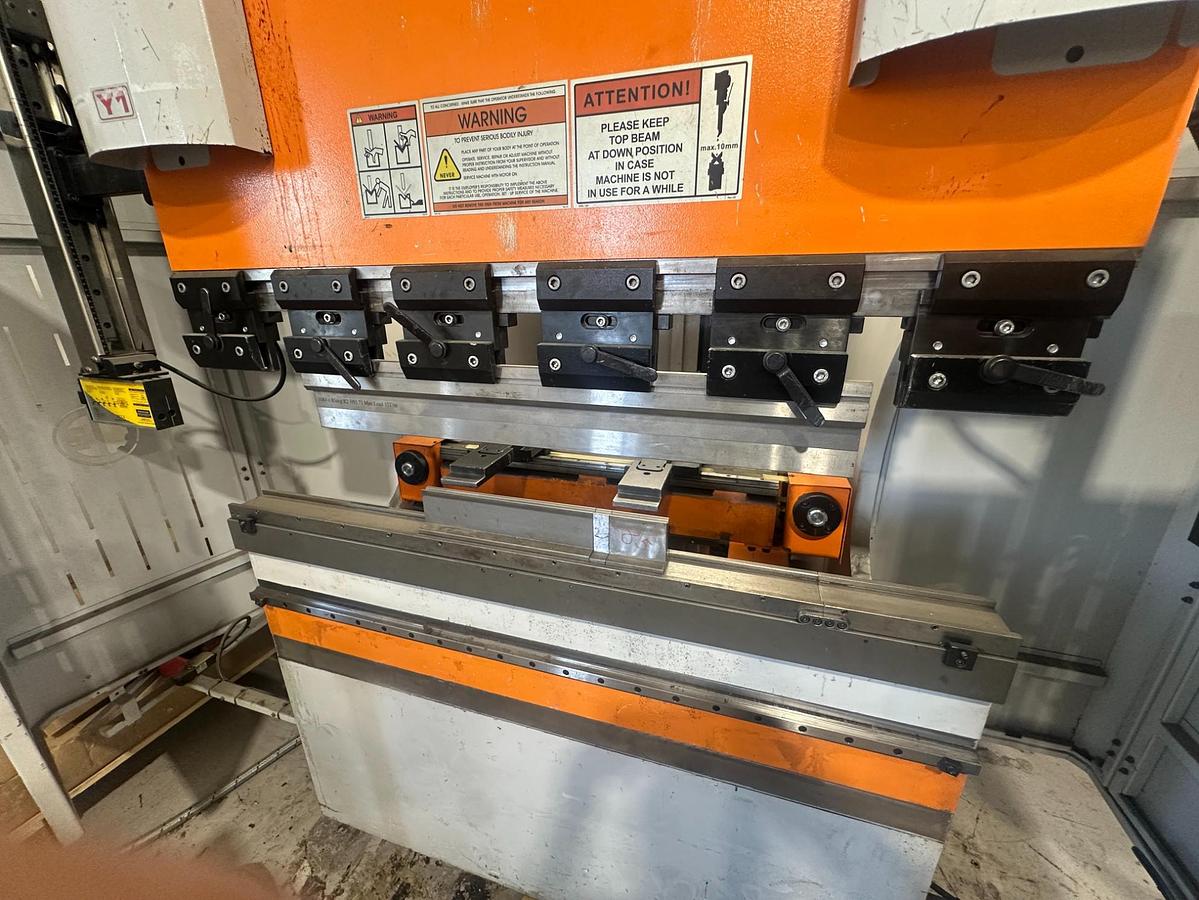

• Quick-release top tool clamps

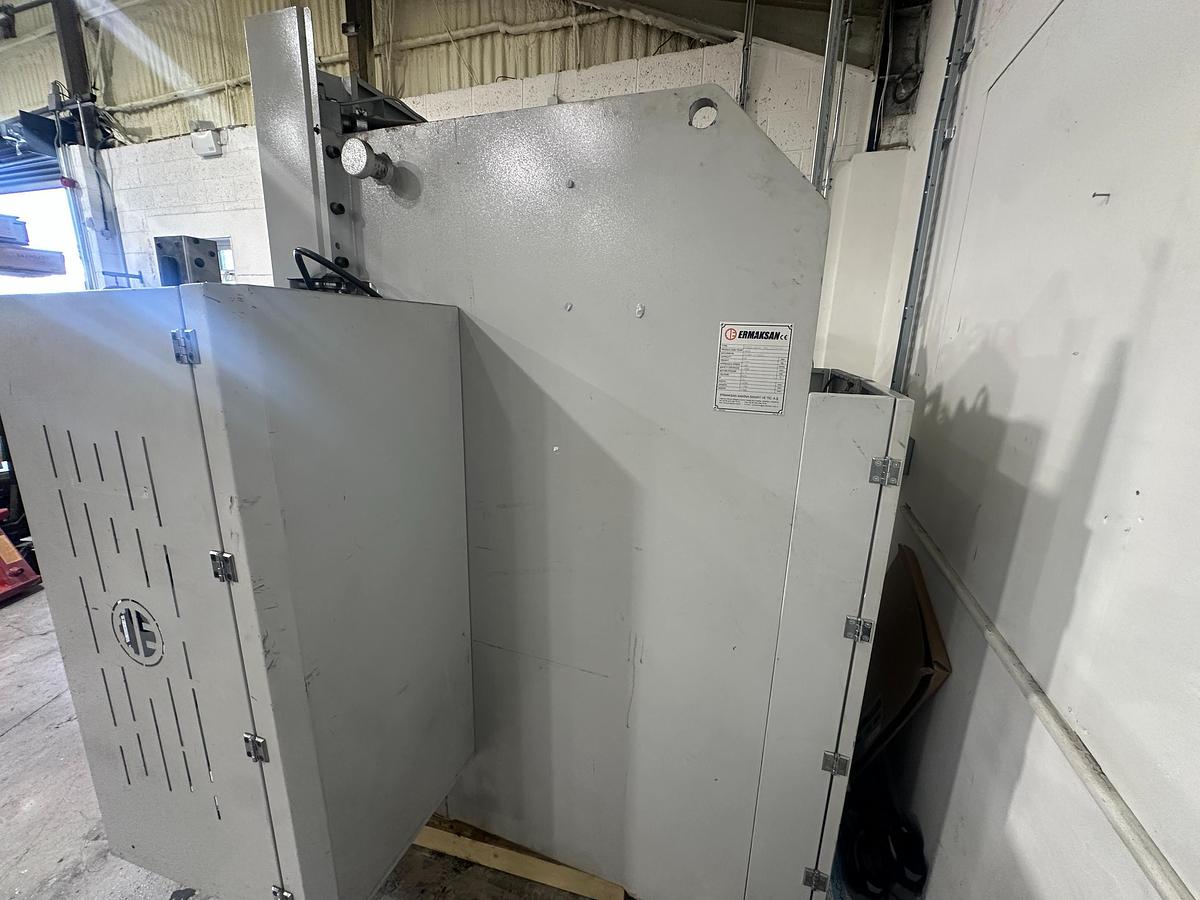

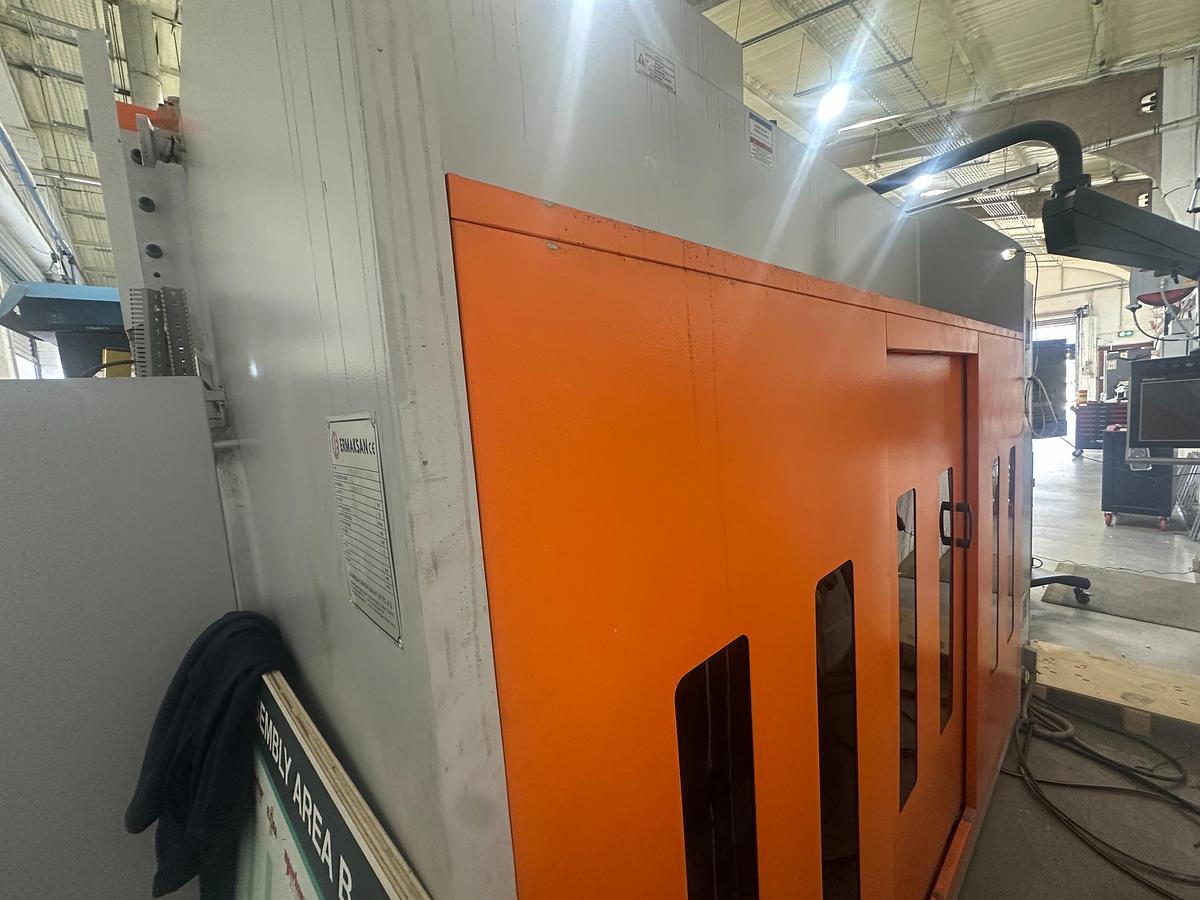

• Rear safety doors

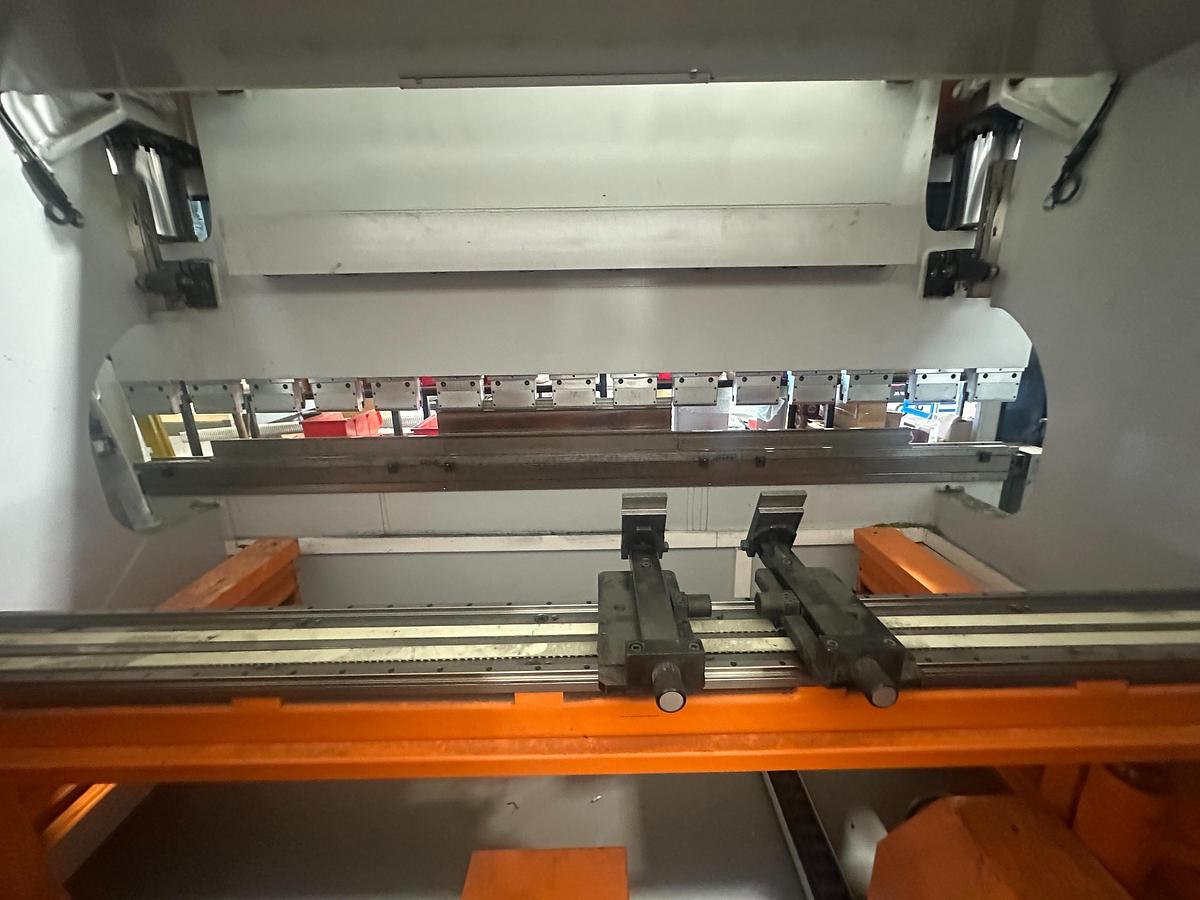

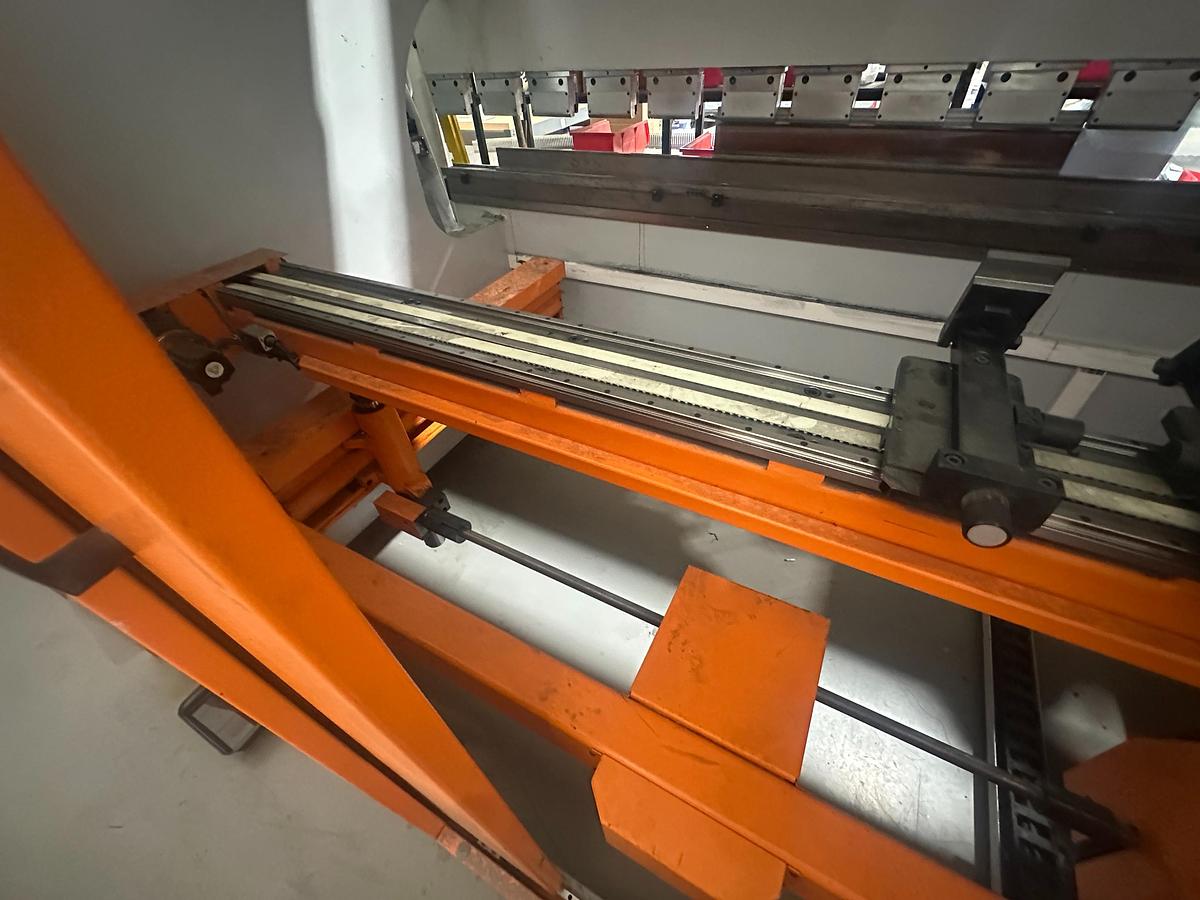

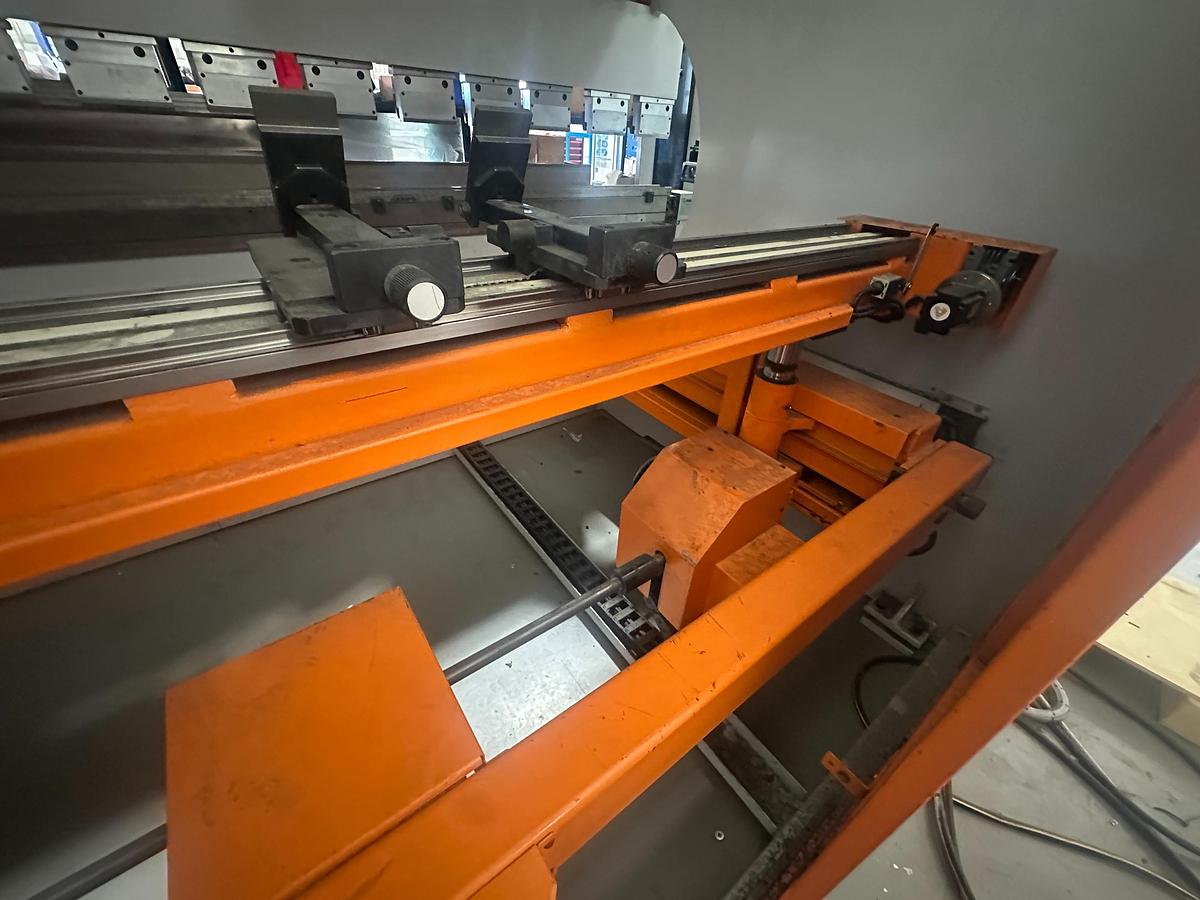

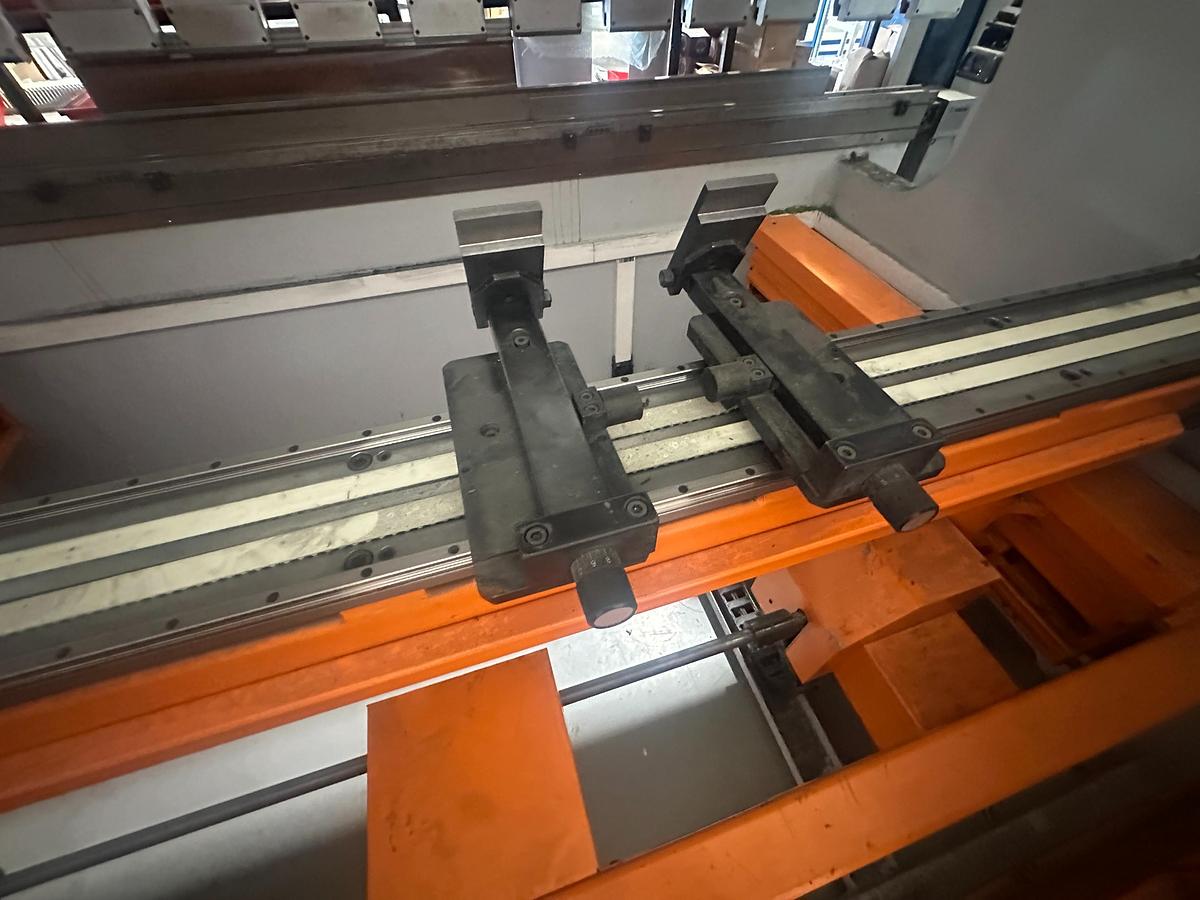

• Backgauge finger blocks

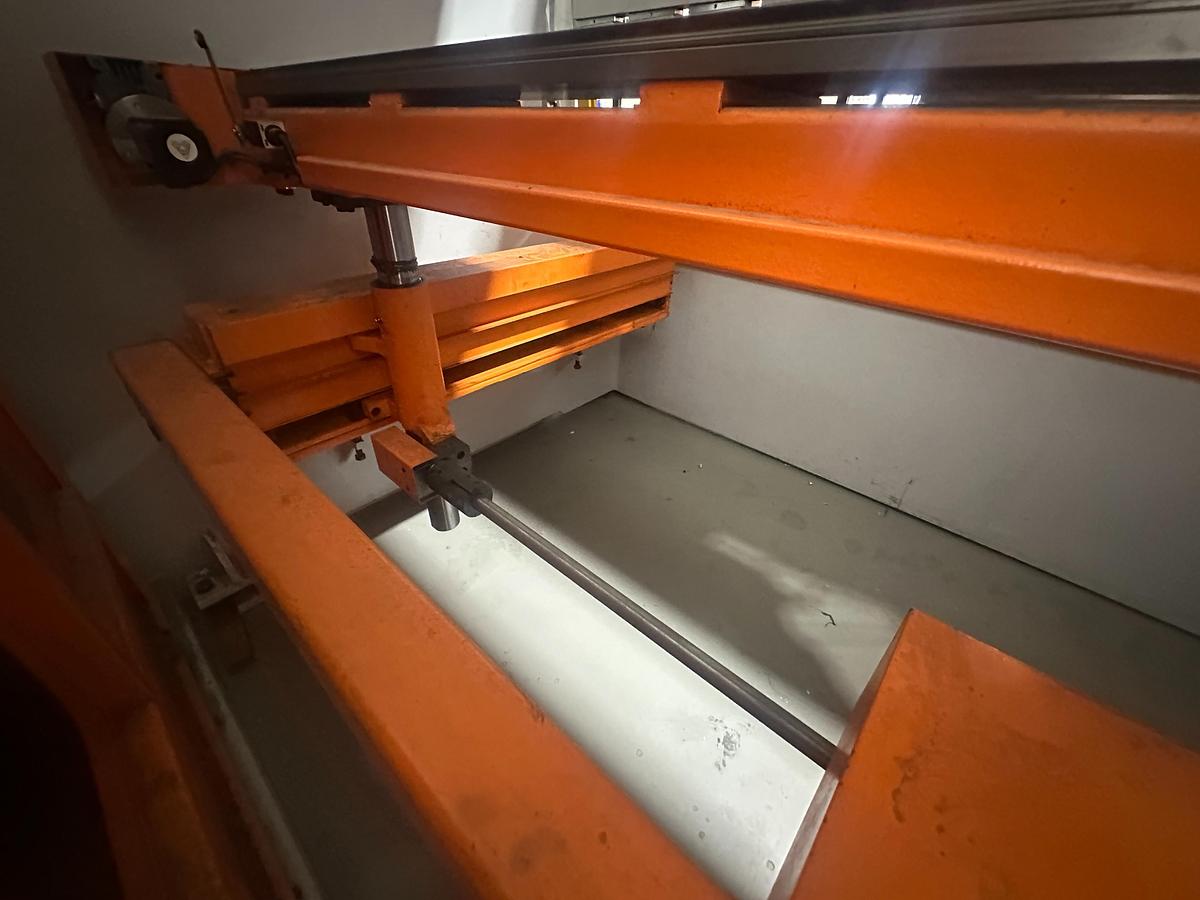

• Sheet support arms

Why Buy This Machine?

The Ermaksan Speed-Bend Pro 1270 x 40 is a compact CNC press brake designed for accurate and efficient sheet metal bending. Its 6-axis CNC configuration gives excellent flexibility for backgauge positioning and repeatable production work, while the Delem DA-66Te graphic control helps simplify programming, tooling setup and bend sequence calculation.

With only 8,451 hours, this 2016 machine represents excellent value for any fabrication company looking for a used CNC press brake, compact hydraulic press brake, 40-tonne press brake or 1270 mm press brake.

Ideal Applications

• Sheet metal folding
• Precision press brake bending
• Fabrication workshops
• Engineering companies
• Stainless steel and mild steel bending
• Aluminium bending
• Subcontract metalwork
• Small batch and production bending
• General metal fabrication

Notes: *Specifications are given in good faith but not guaranteed*

FAQ Section

What is the description of this Ermaksan Speed-Bend Pro press brake?

The machine for sale is a 2016 Ermaksan Speed-Bend Pro 1270 x 40 CNC hydraulic press brake. It has a 1270 mm bending length, 40 tonne bending capacity, 6 CNC controlled axes, Delem DA-66Te graphic control, Euro-style top and bottom tooling, laser guards, rear safety doors, quick-release top tool clamps, foot pedal and only 8,451 working hours. It is in very good condition and is available from Used Machine Tools Ireland.

What is the capacity of this Ermaksan Speed-Bend Pro press brake?

This machine has a bending length of 1270 mm and a bending power of 40 tonnes.

How many CNC axes does this press brake have?

This is a 6-axis CNC press brake with controlled axes Y1, Y2, X, R, Z1 and Z2.

What control is fitted to the machine?

The press brake is fitted with a Delem DA-66Te Graphic CNC Control.

What are the key technical specifications?

The SB PRO 1270-40 has a 1270 mm bending length, 40 tonne bending power, 1050 mm distance between columns, 170 mm stroke, 387 mm daylight, 350 mm throat depth, 5.5 kW motor power and an approximate machine weight of 3220 kg.

What tooling is included?

The machine is supplied complete with Euro-style top and bottom press brake tools.

What safety equipment is fitted?

The machine includes laser guards, rear safety doors and a foot pedal.

How many hours has the machine completed?

This 2016 Ermaksan Speed-Bend Pro has completed only 8,451 hours.

Where is this used press brake available from?

This used CNC press brake is available from Used Machine Tools Ireland.
