2013 Doosan DNM 200/5AX - 5 Axis CNC Machining Machine

2013 Doosan DNM 200/5AX 5 Axis CNC Machining Centre

Used 2013 Doosan DNM 200/5AX (4+1) 5-axis CNC machining centre with Fanuc i Series control, probe, tool holders, spindle chiller, transformer, swarf conveyor and only 11,000 run time hours.

Manufacturer: Doosan

Model: DNM200/5AX

Machine Type: 5 Axis (4+1) Machining Centre

Year: 2013

Control: Fanuc Series i Control

Hours: 11,000 Run Time Hours

Machine Description

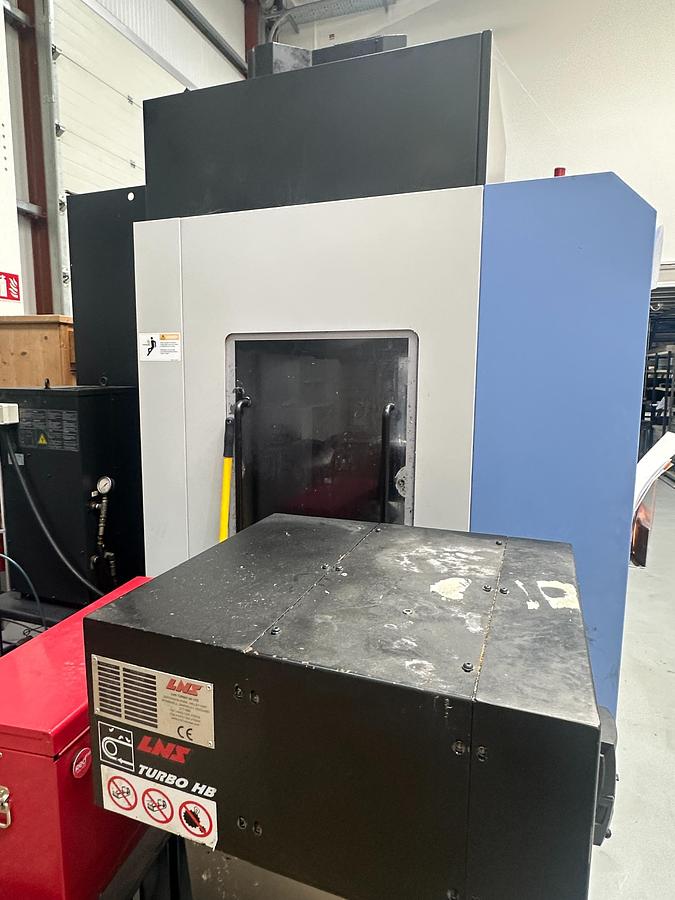

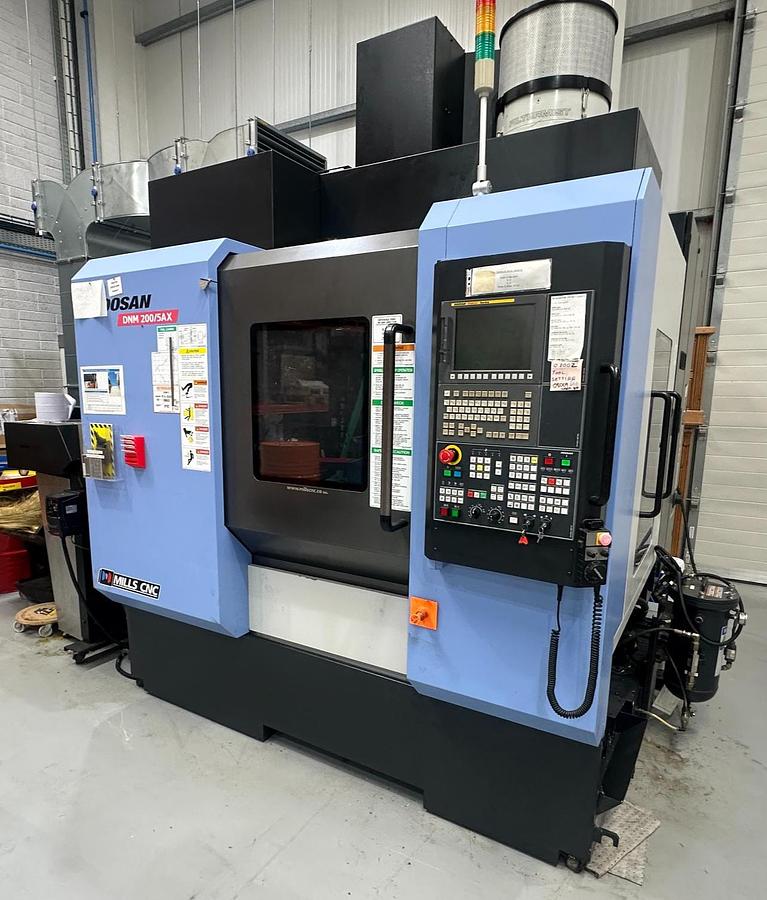

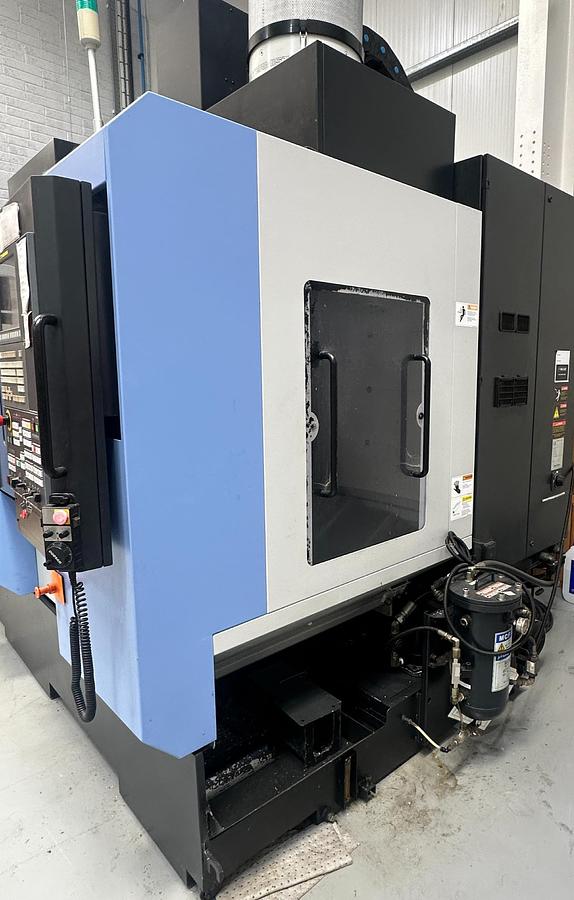

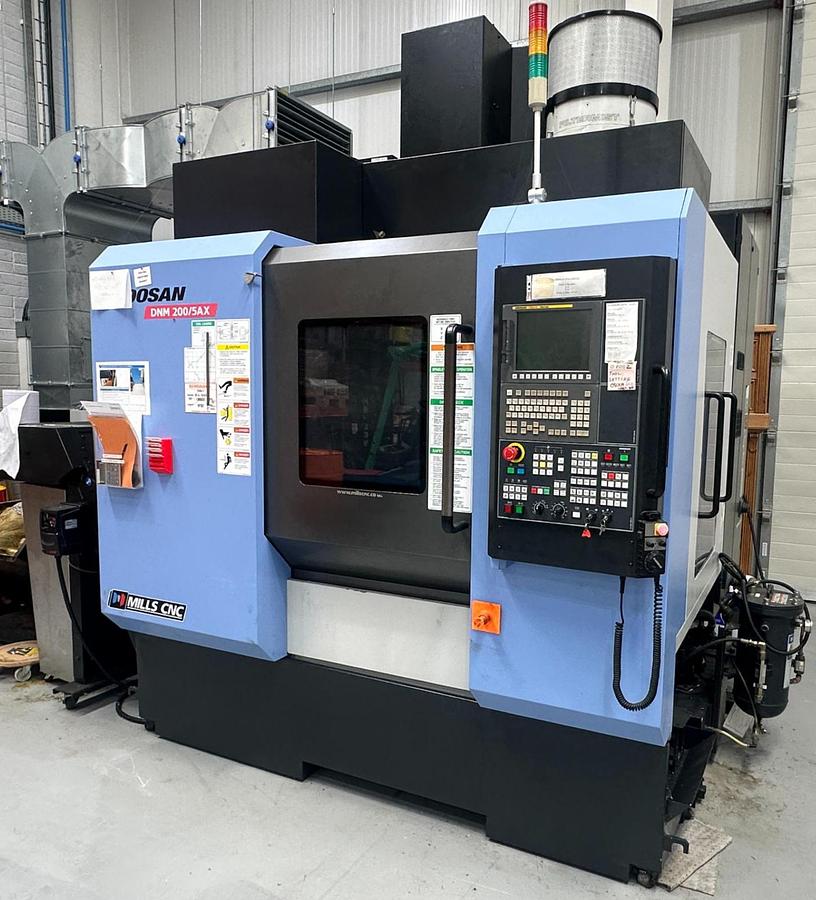

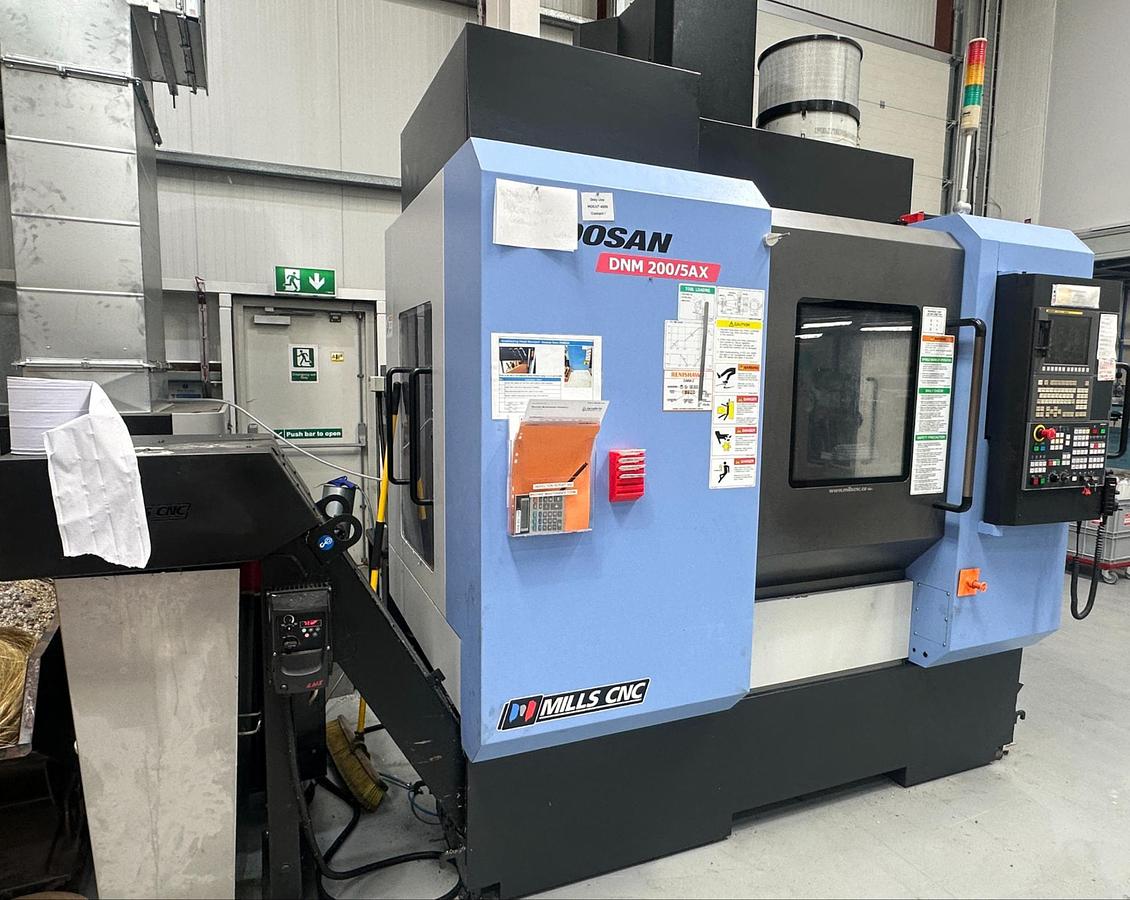

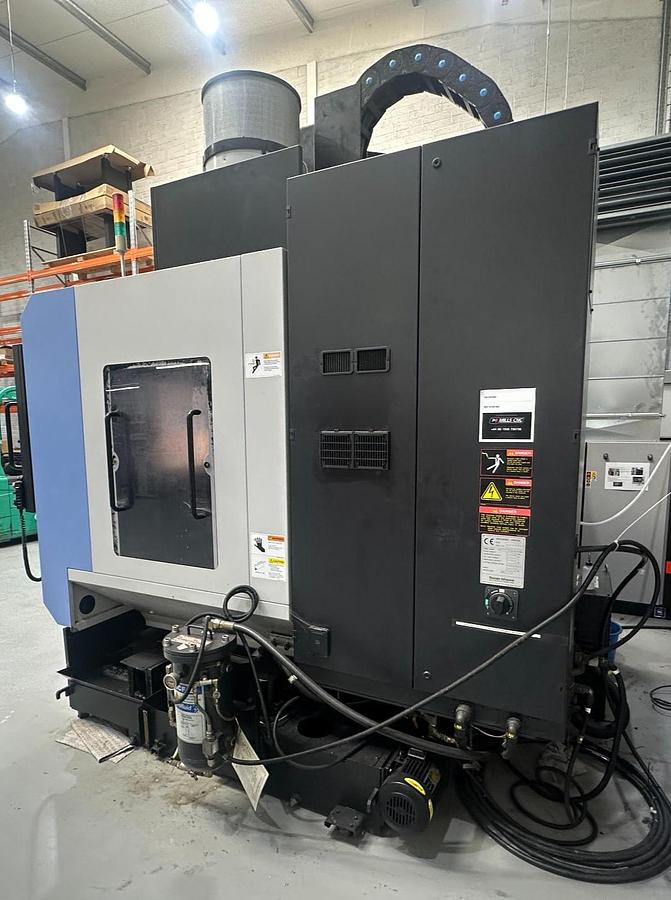

2013 Doosan DNM 200/5AX CNC Machining Centre, a compact, high-performance 4+1 - 5-axis vertical machining centre ideal for precision engineering, toolmaking, aerospace, medical, motorsport, mould and die, and complex component machining.

This machine is fitted with a Fanuc i Series CNC control and has only 11,000 run time hours, making it an excellent opportunity for manufacturers looking for a reliable used 5-axis machining centre with strong capability, premium features and valuable accessories included.

The Doosan DNM 200/5AX is well known for combining compact footprint, rigid construction and 5-axis positioning. It is ideal for reducing setups, machining complex parts and increasing productivity compared with conventional 3-axis machining.

Key Features

• 2013 Doosan DNM 200/5AX
• 4+1 5 Axis CNC Machining Centre
• Fanuc i Series Control
• Only 11,000 Run Time Hours

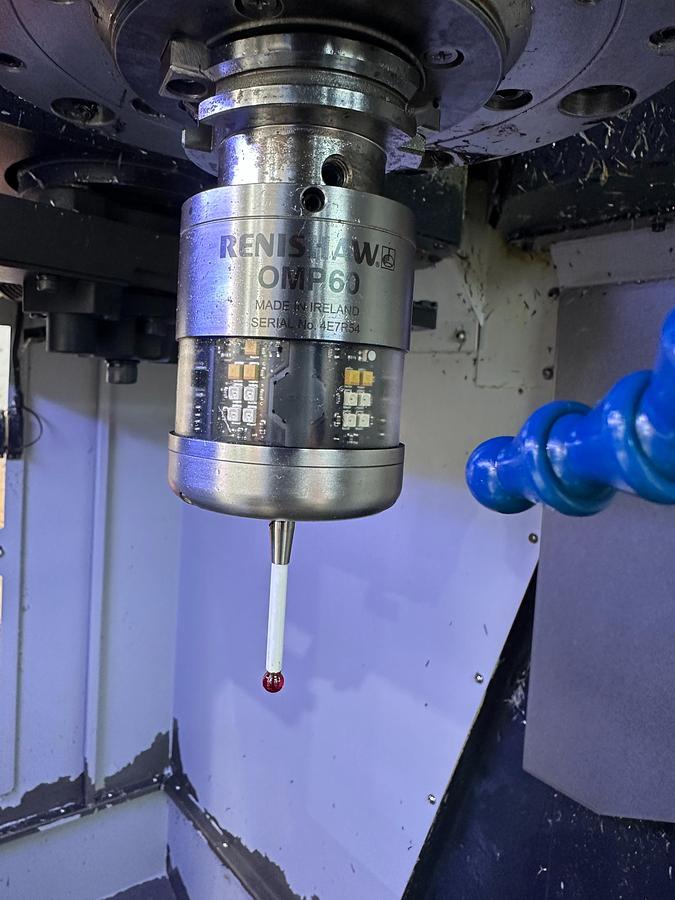

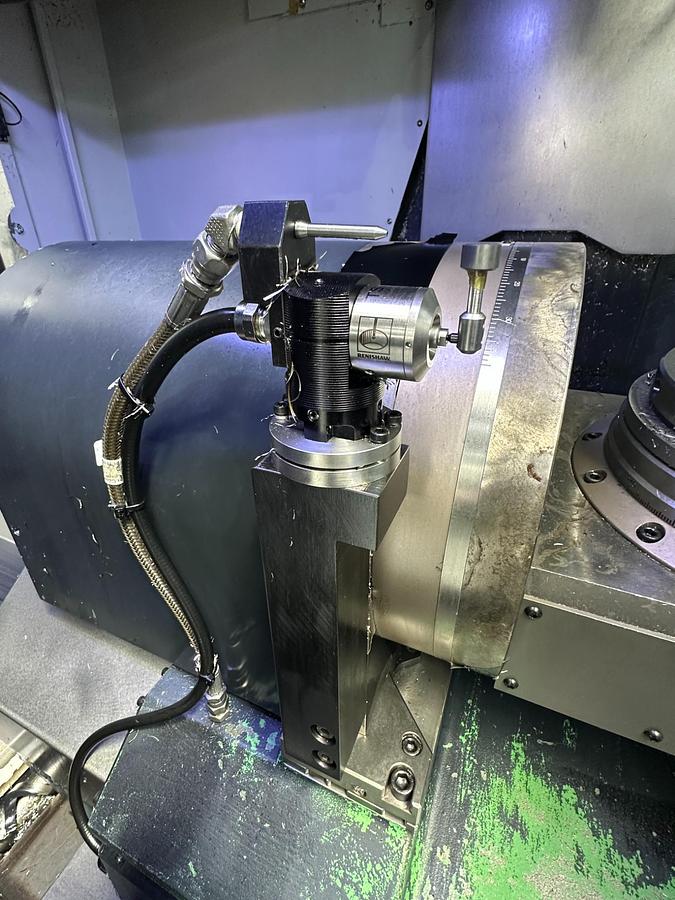

• Includes Renishaw OMP60 probe
• Includes tool holders

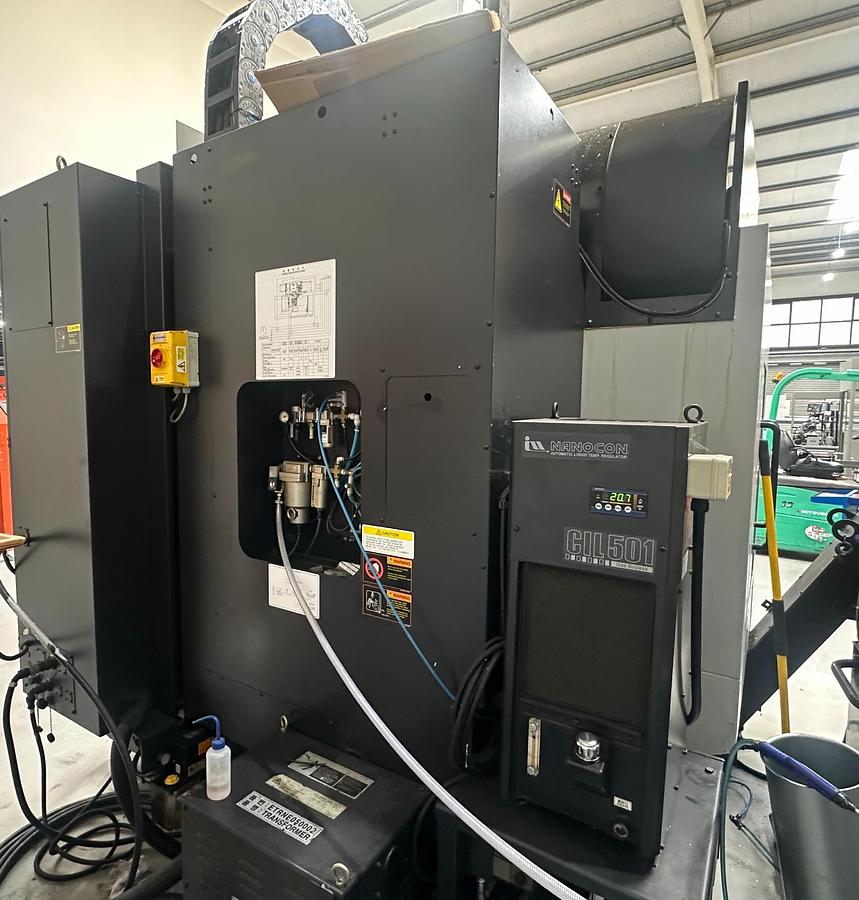

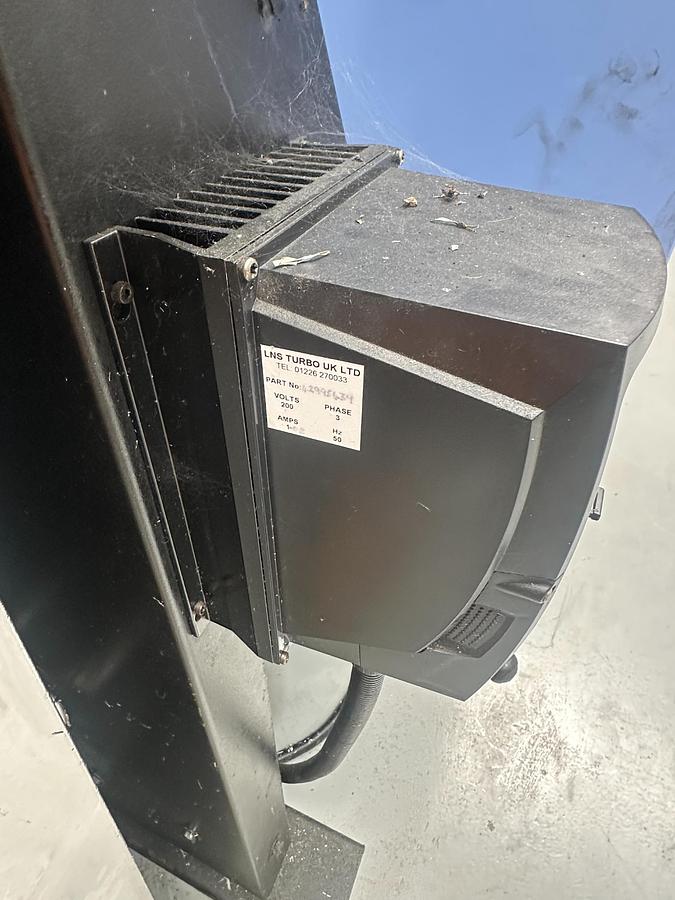

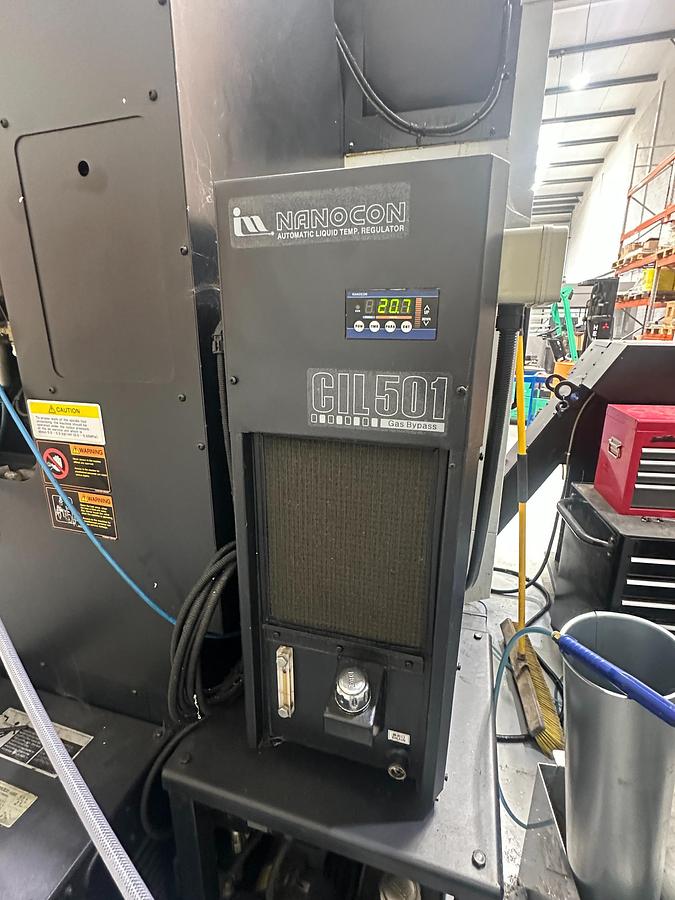

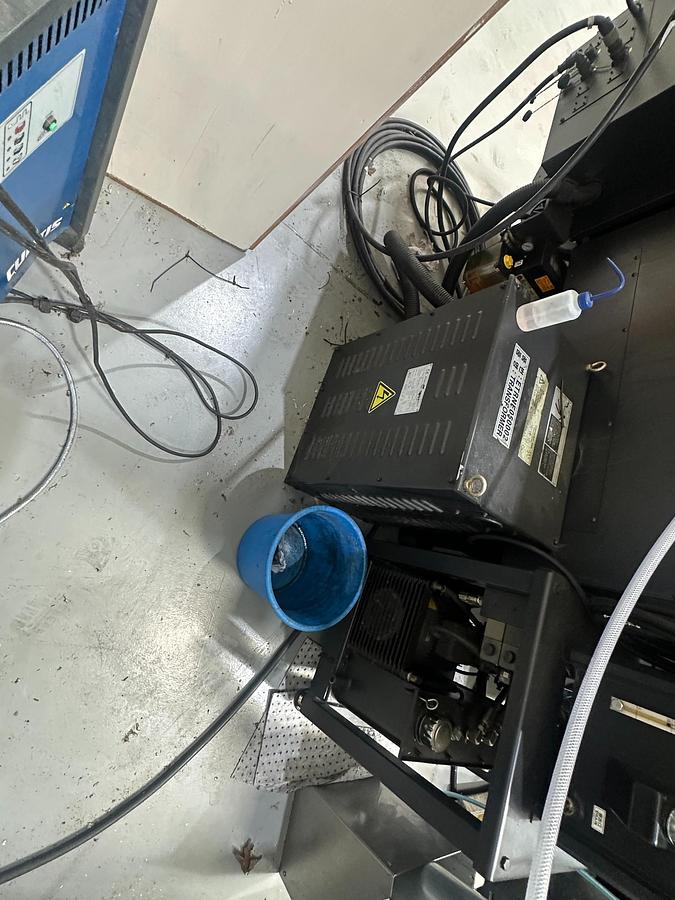

• Includes spindle chiller

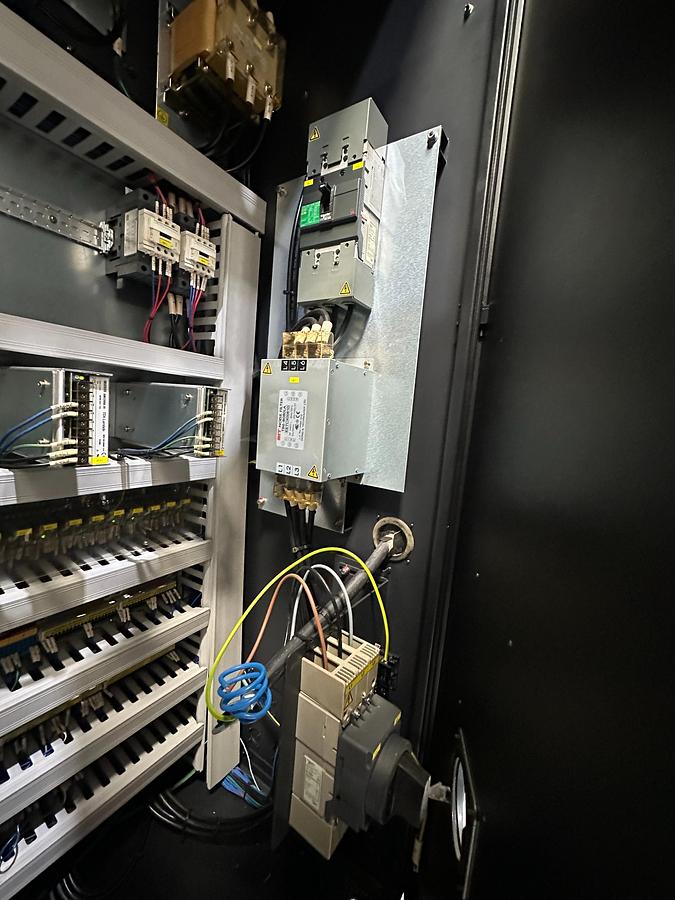

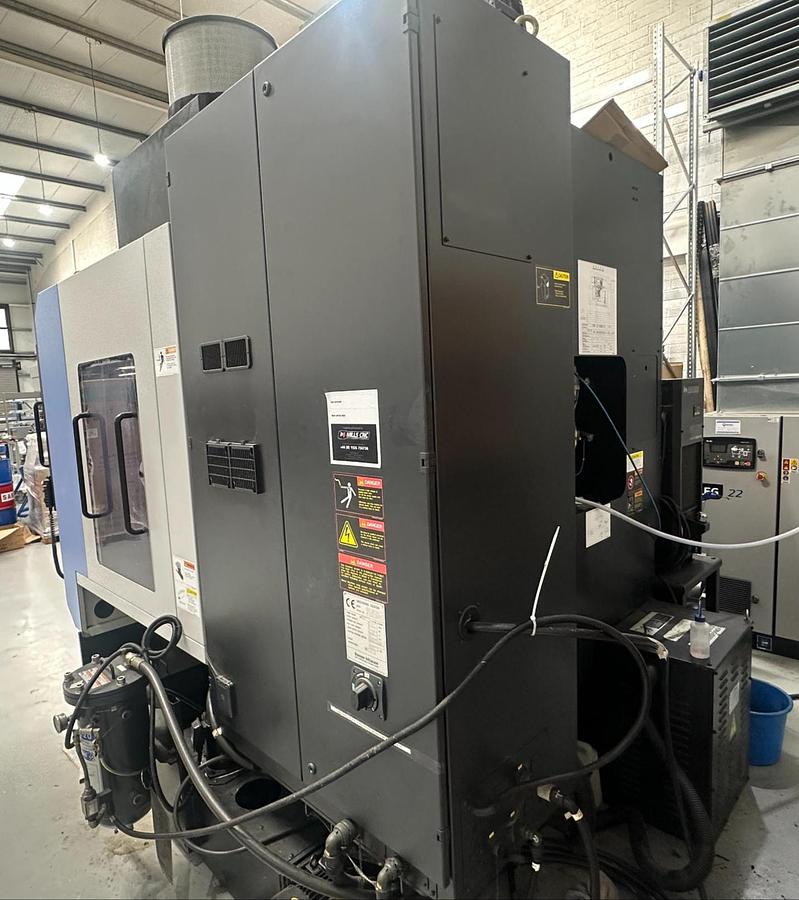

• Includes transformer

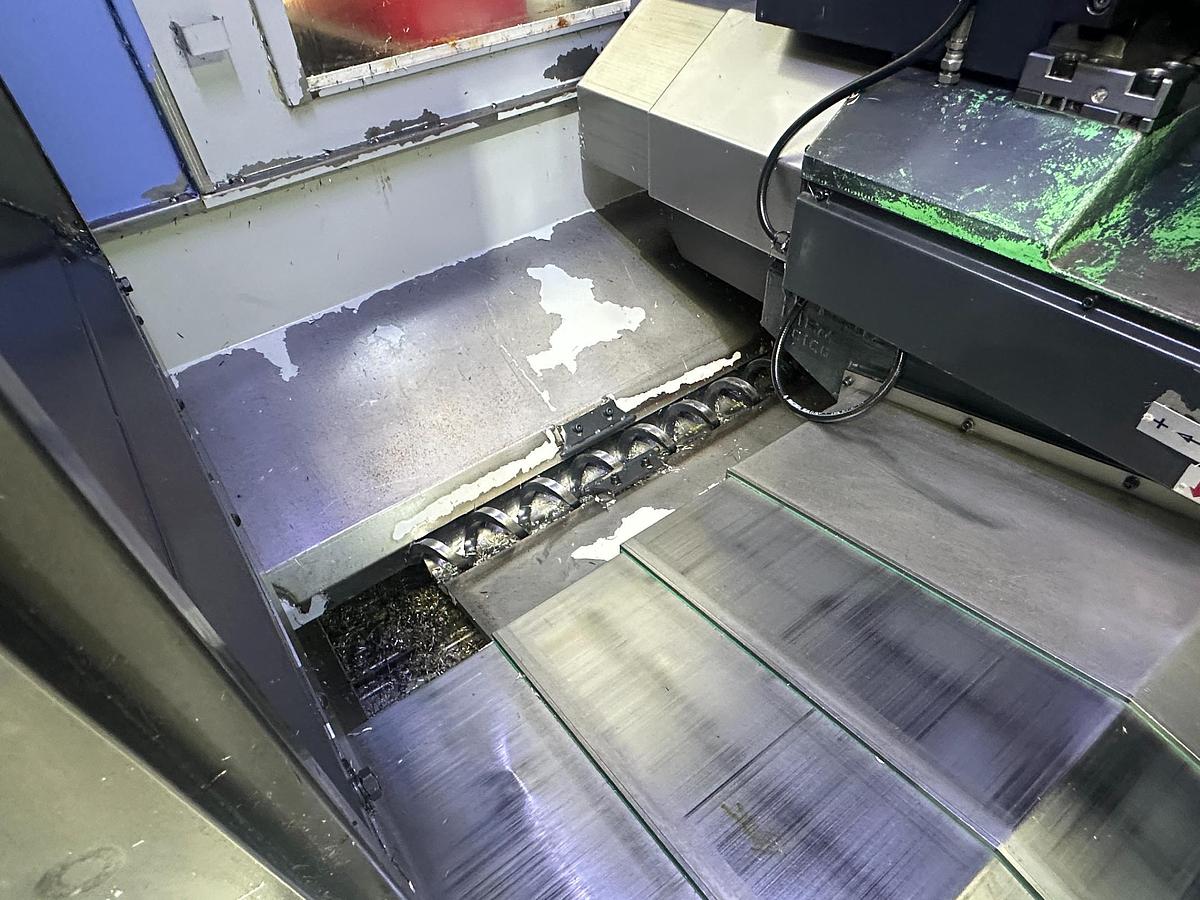

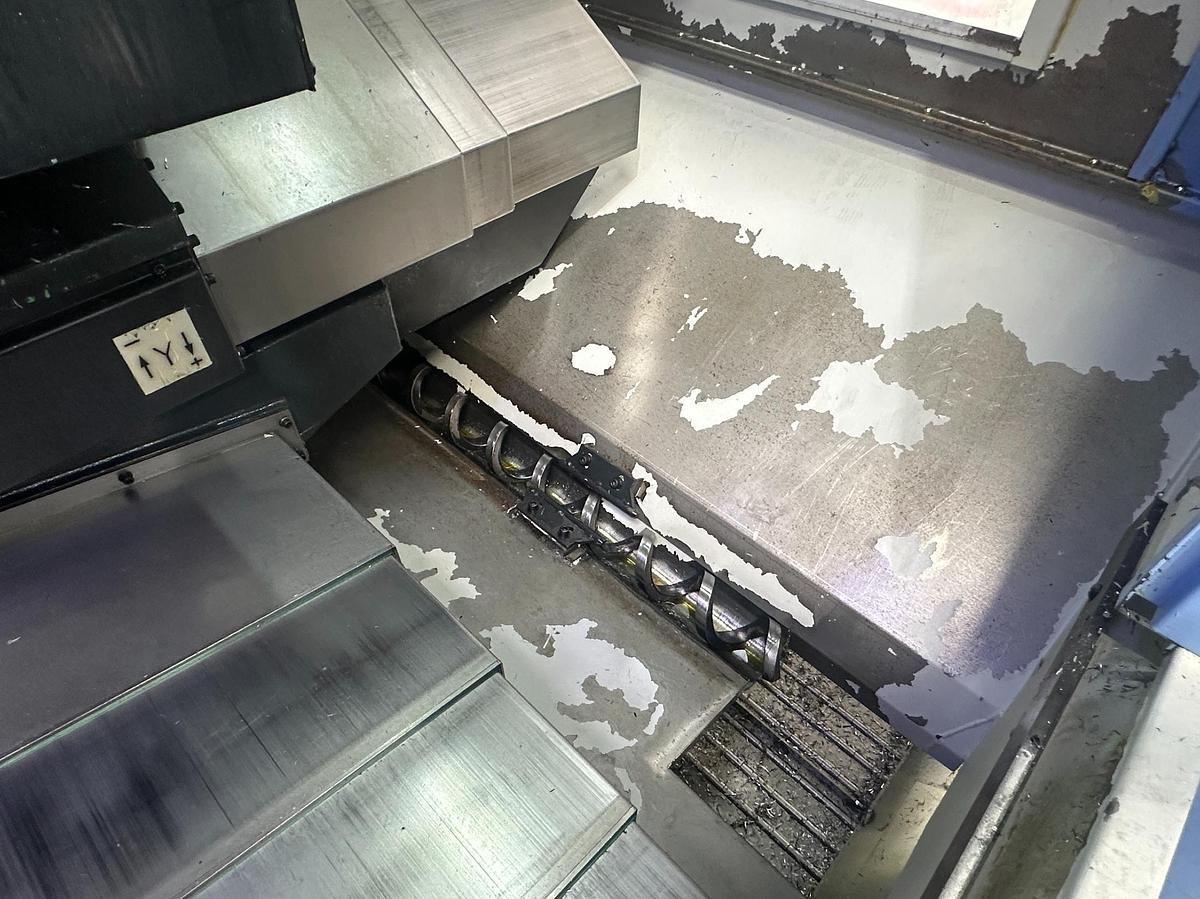

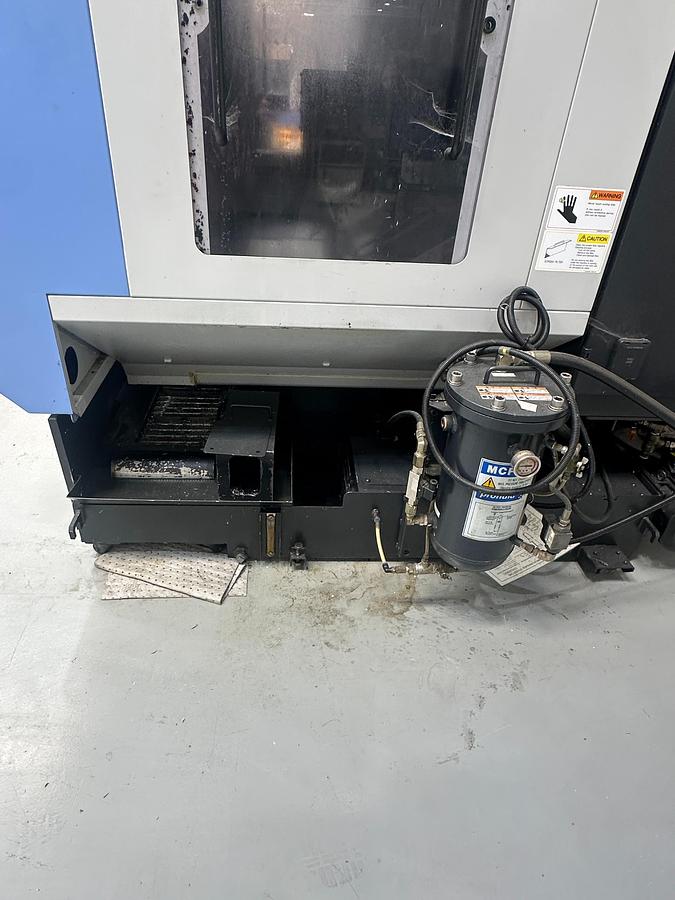

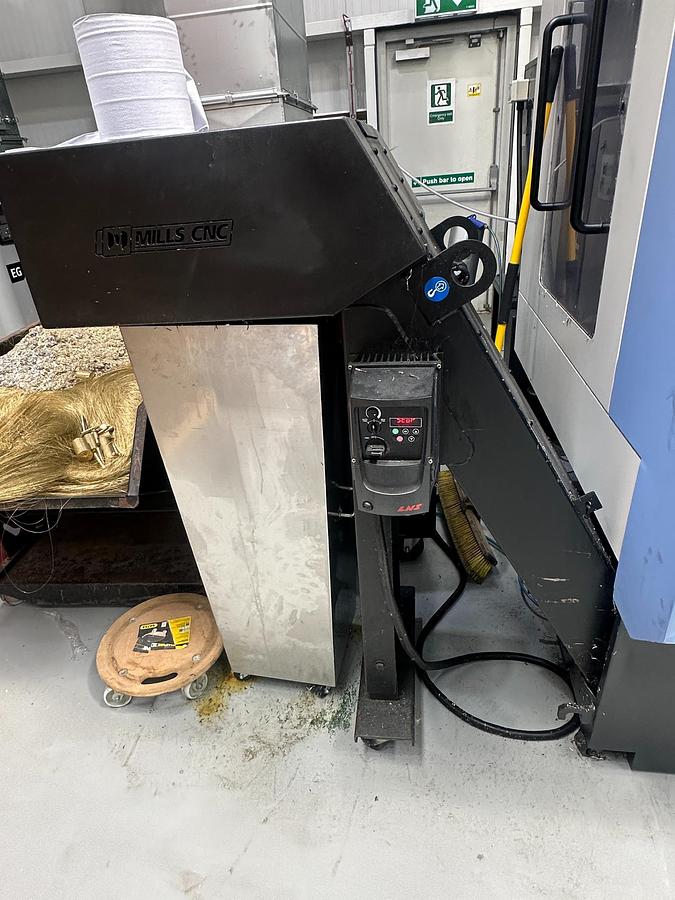

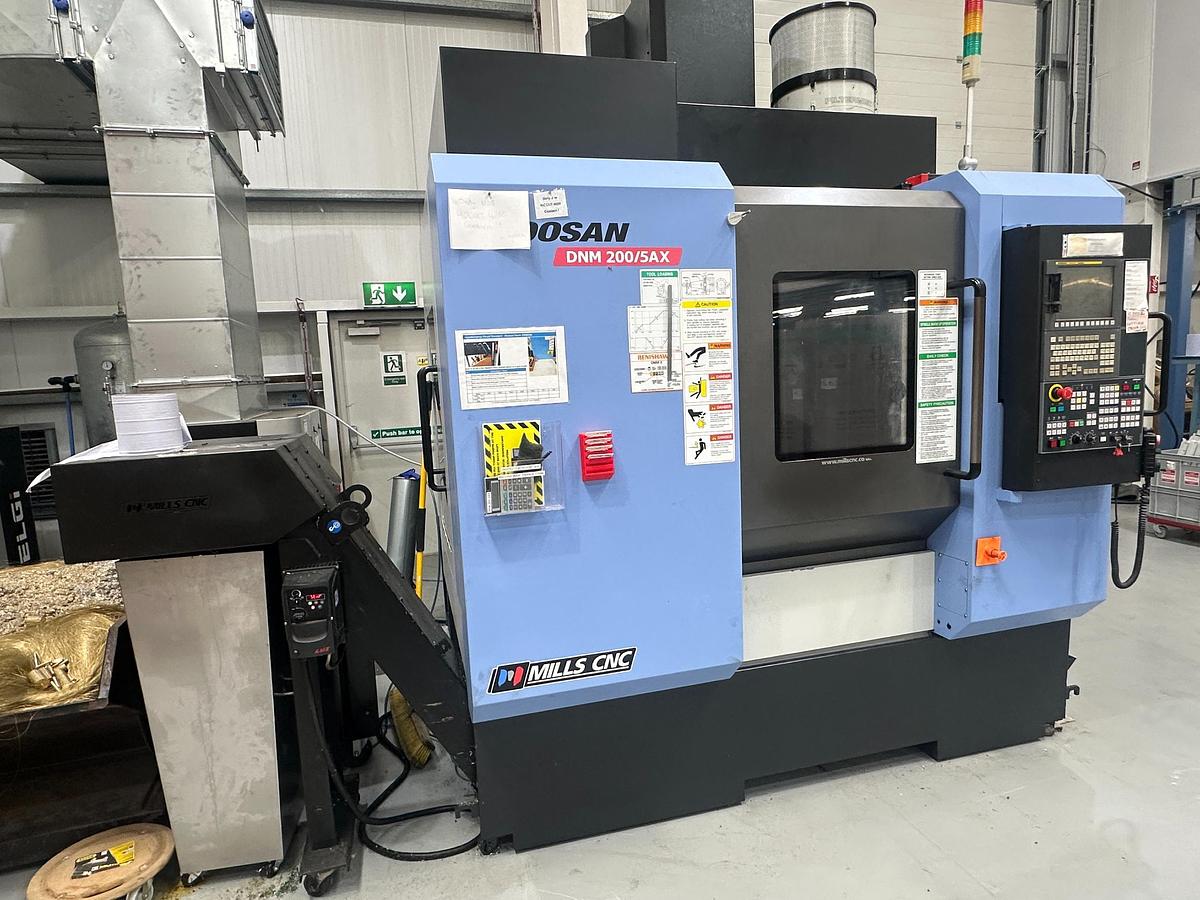

• Includes swarf conveyor
• Compact 5-axis machining solution
• Ideal for complex component machining

Technical Specifications

Manufacturer: Doosan

Model: DNM 200/5AX

Year: 2013

Machine Type: 5 Axis ($+1)CNC Vertical Machining Centre

Axis Configuration: 4+1/ 5 Axis

Control: Fanuc i Series

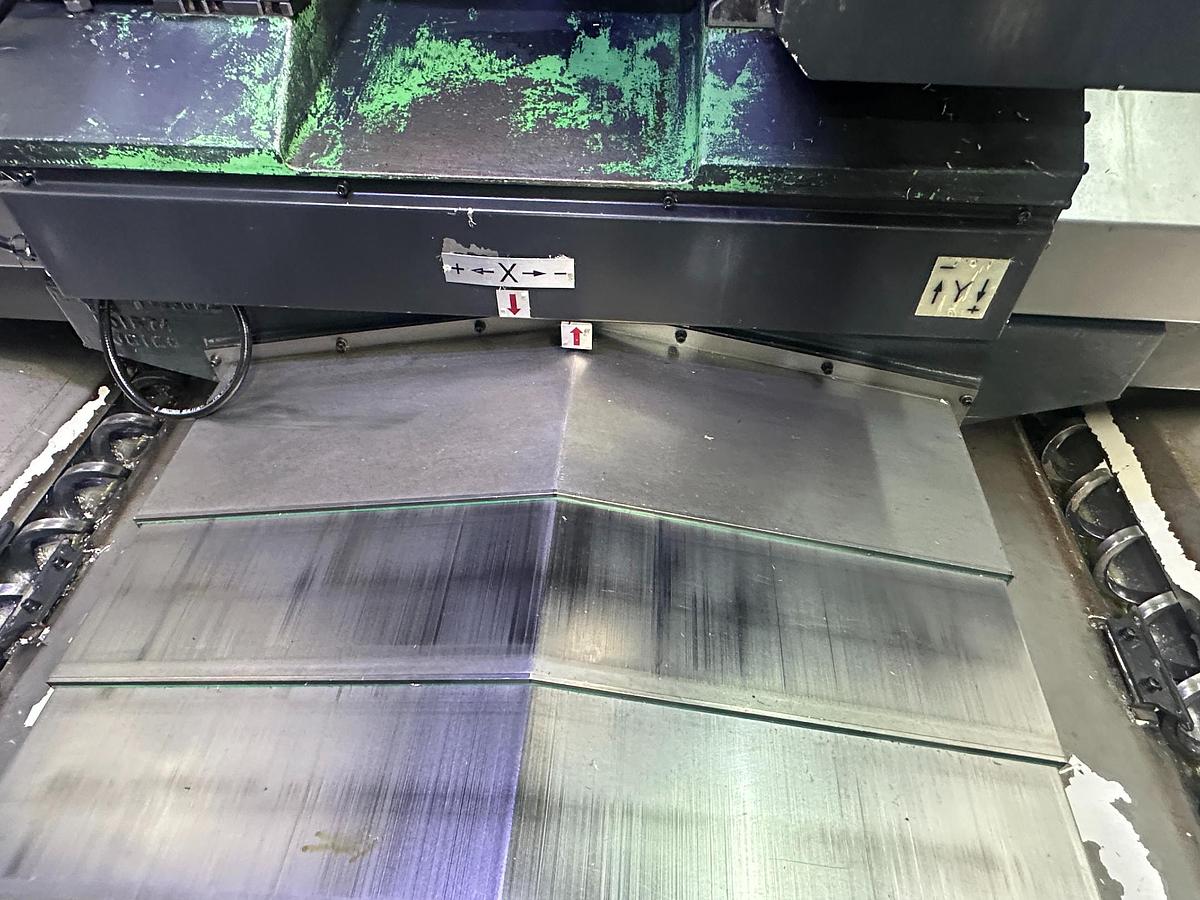

X Axis Travel: 400 mm

Y Axis Travel: 435 mm

Z Axis Travel: 500 mm

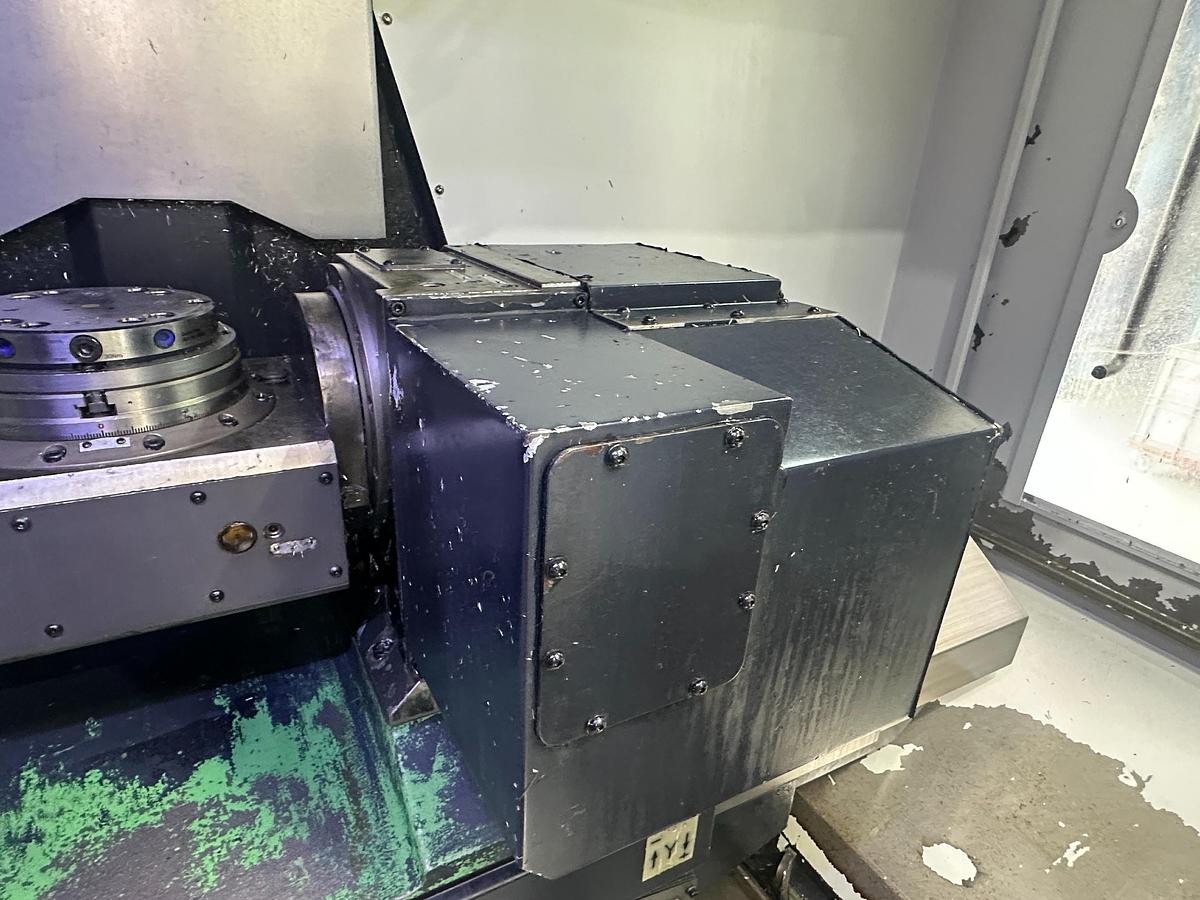

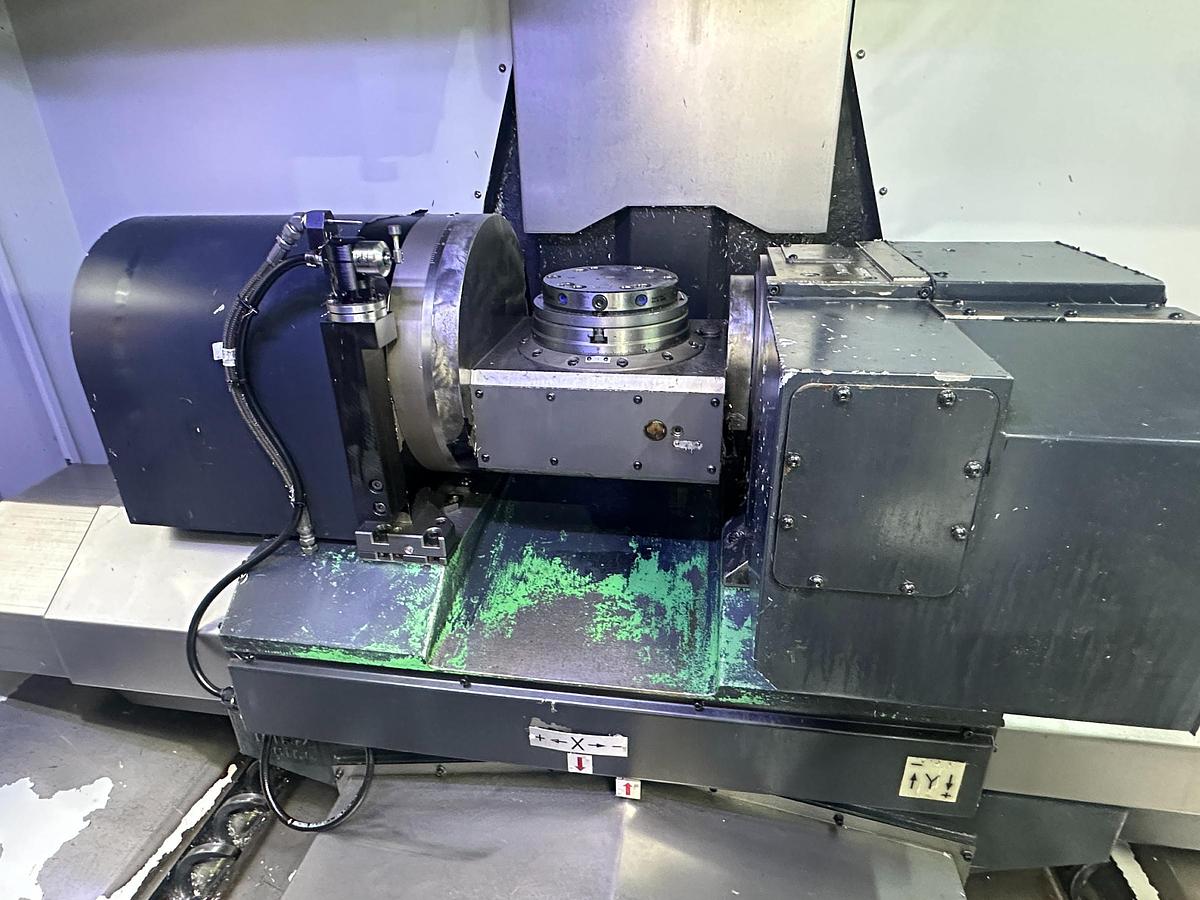

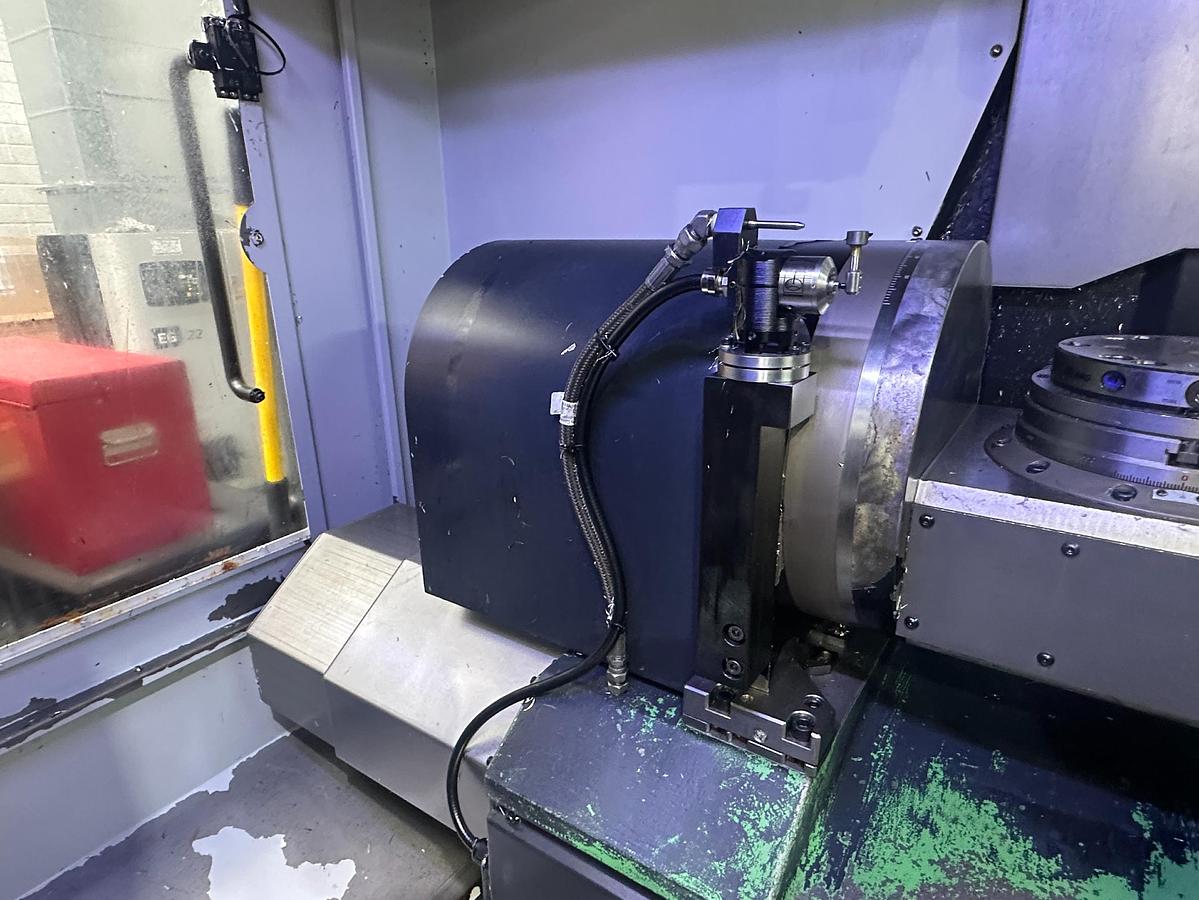

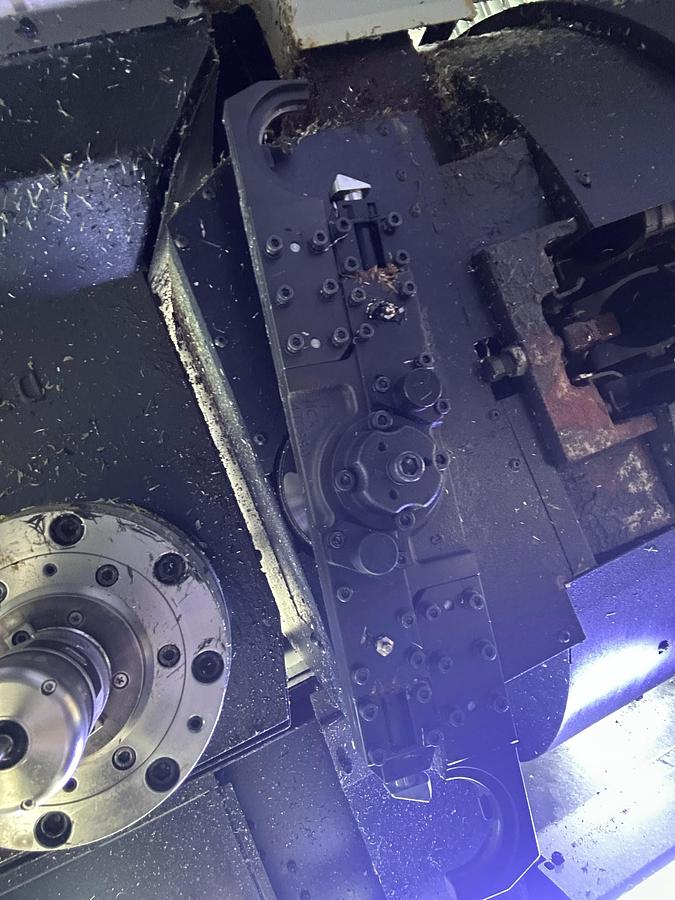

A Axis Travel: 150 Deg (+30 to -120Deg)

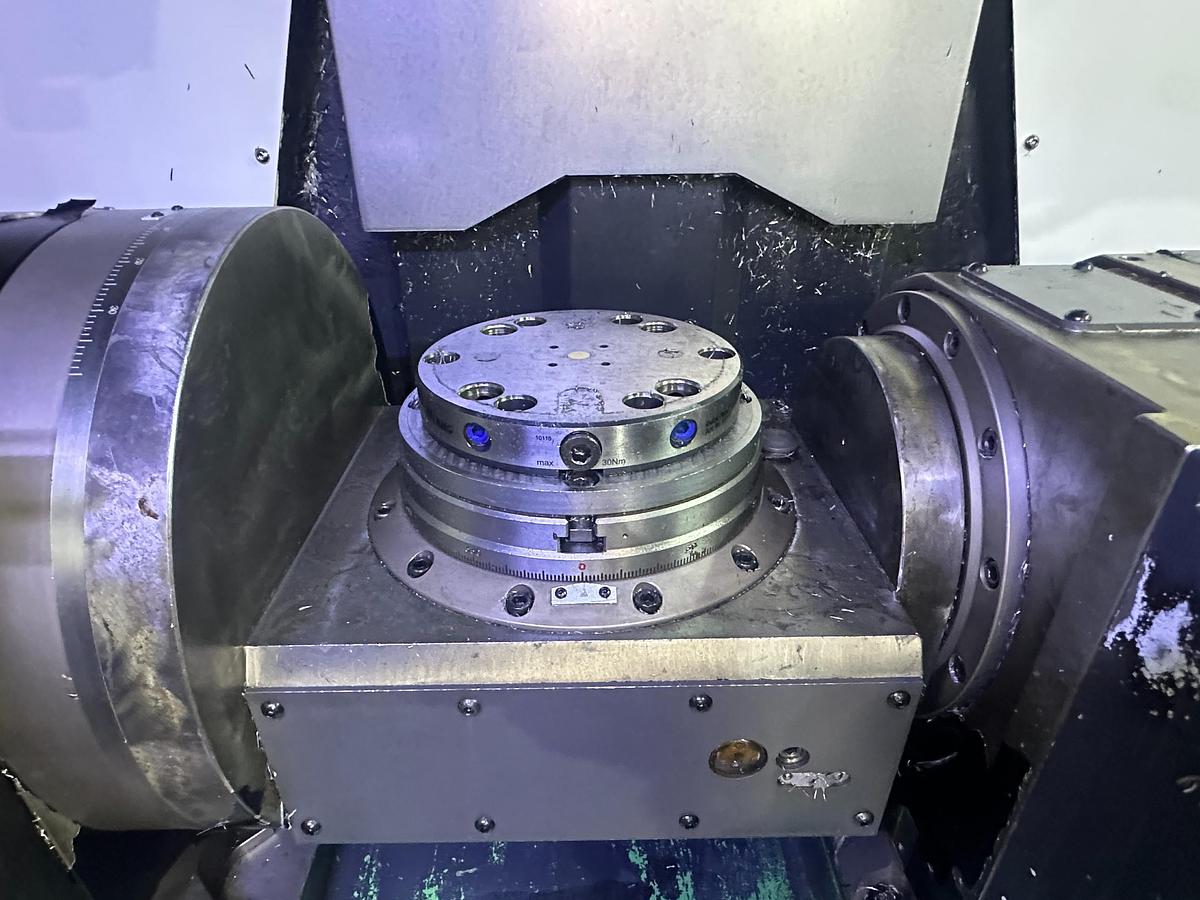

C Axis Travel: 360 Deg

Table Diameter: 200 mm

Max Load on Table: 60 kg

Max Workpiece: 300mm Dia x 200mm High

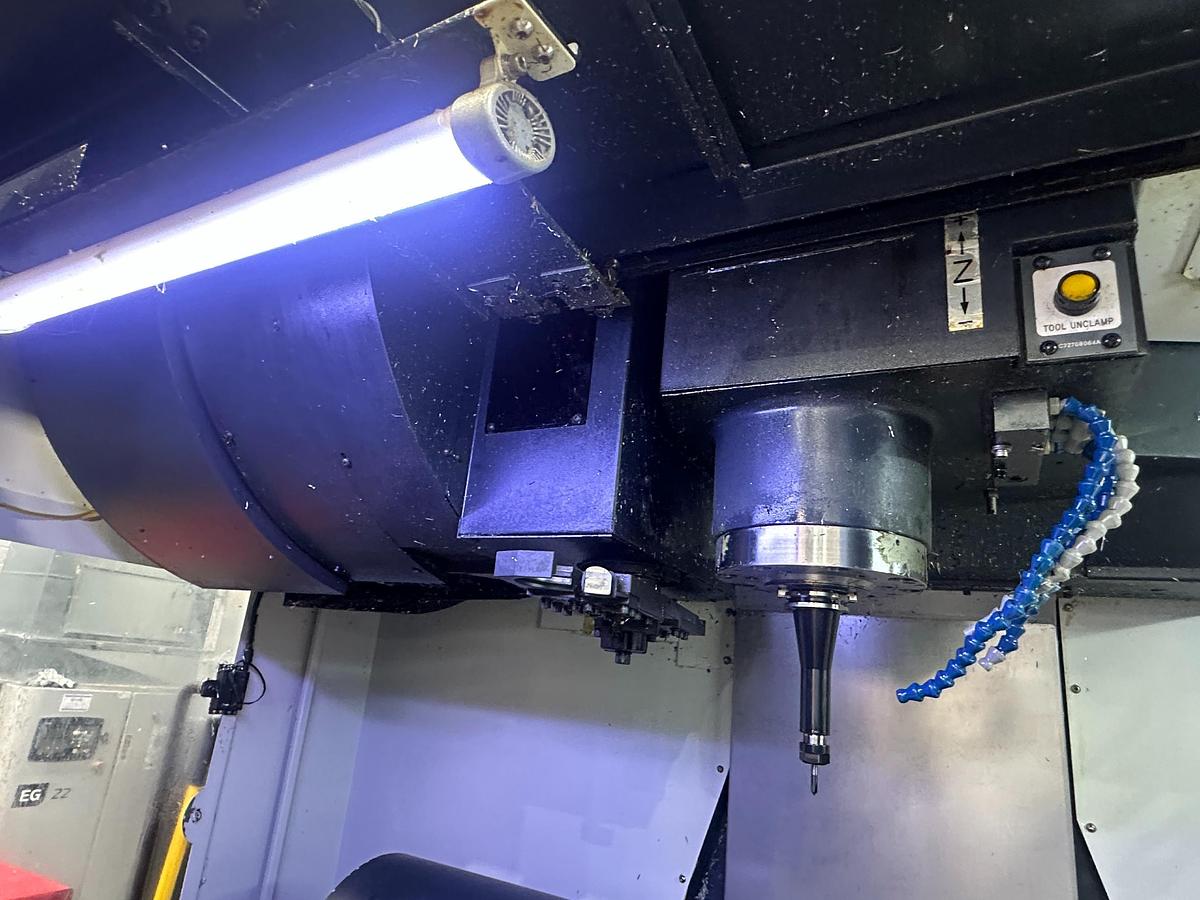

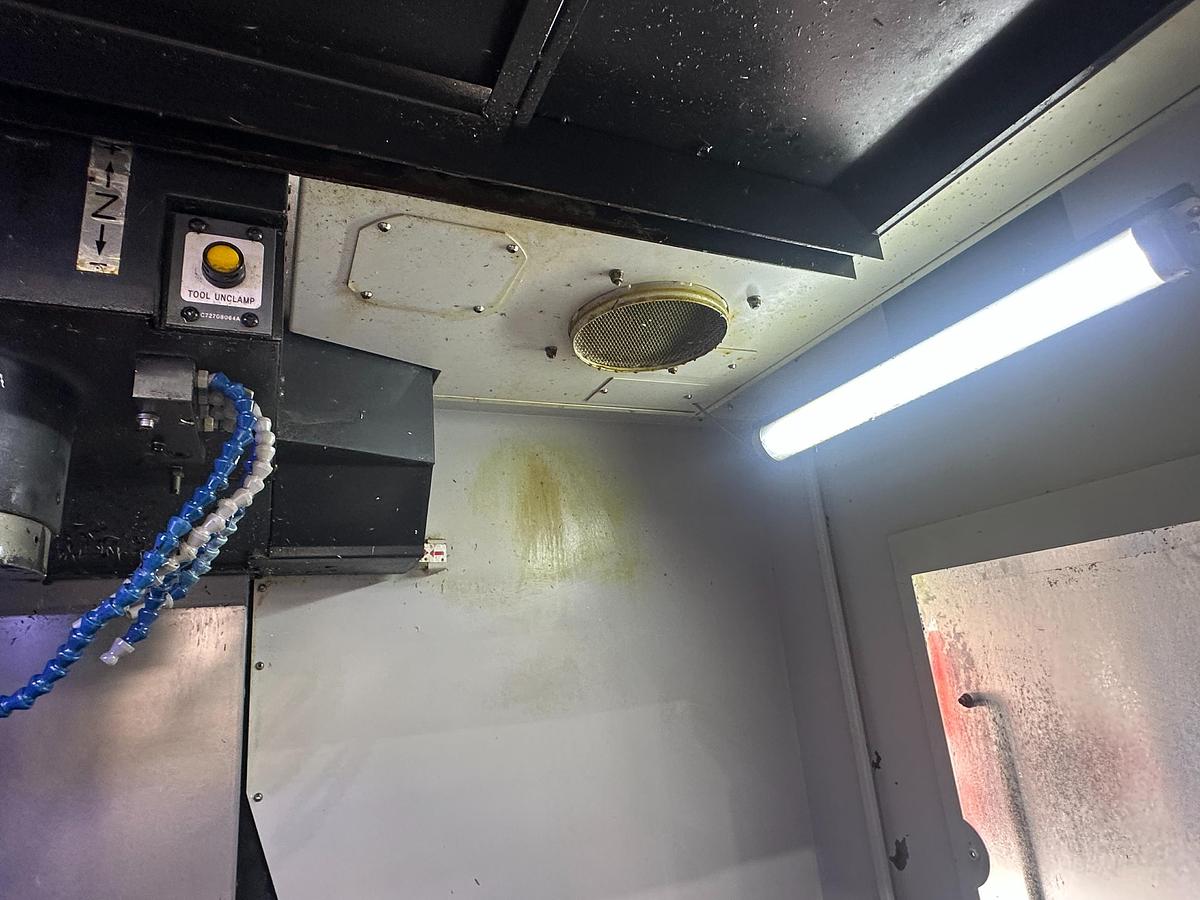

Spindle Speed: 12,000 rpm

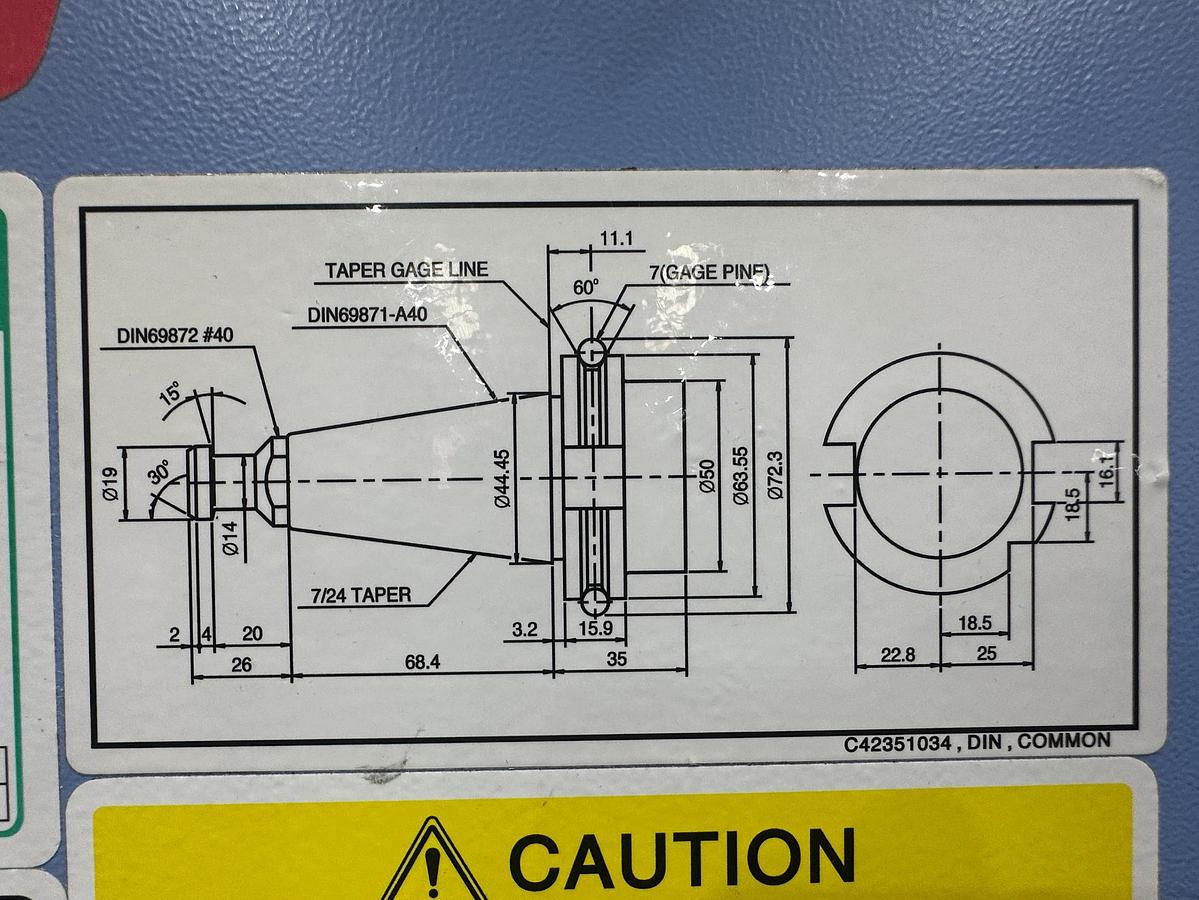

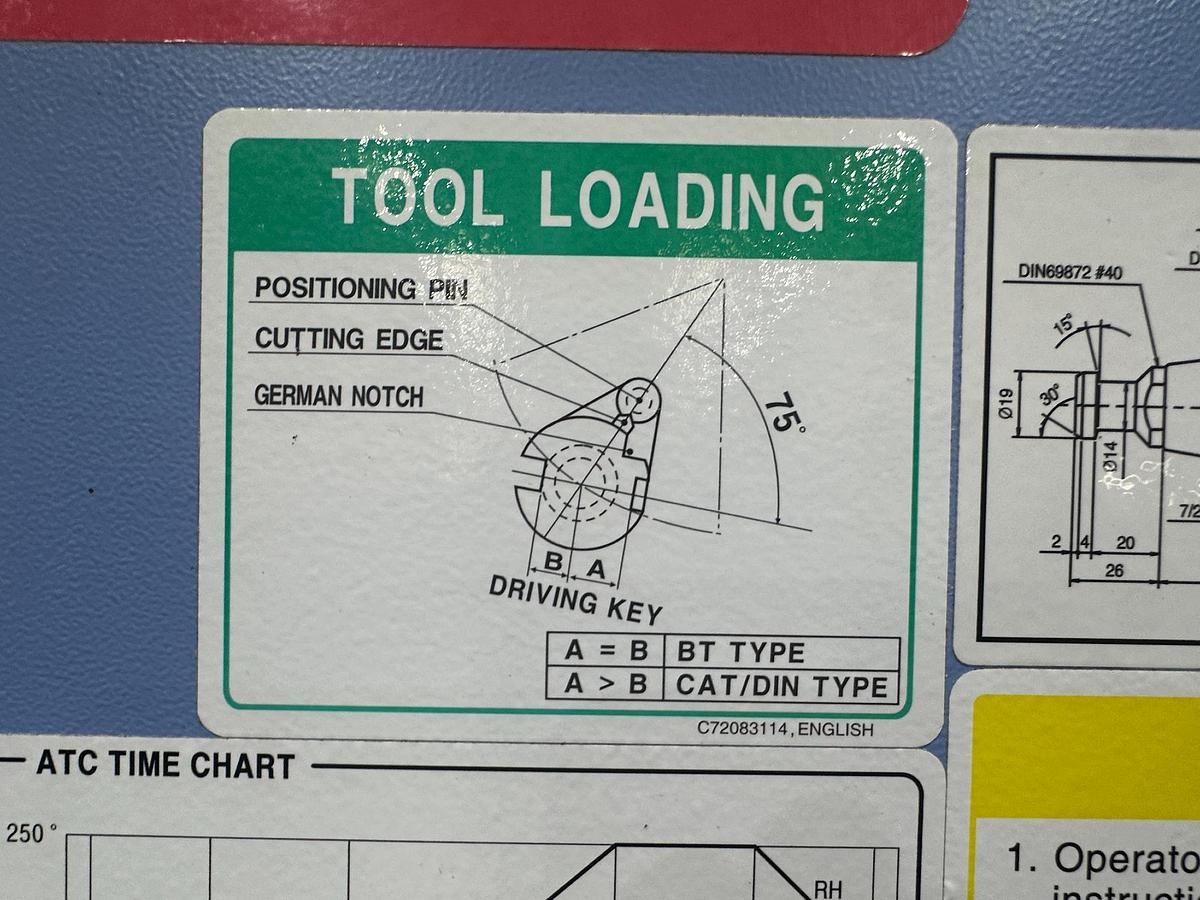

Spindle Taper: DIN40

Pullstud: Nikken PS-806

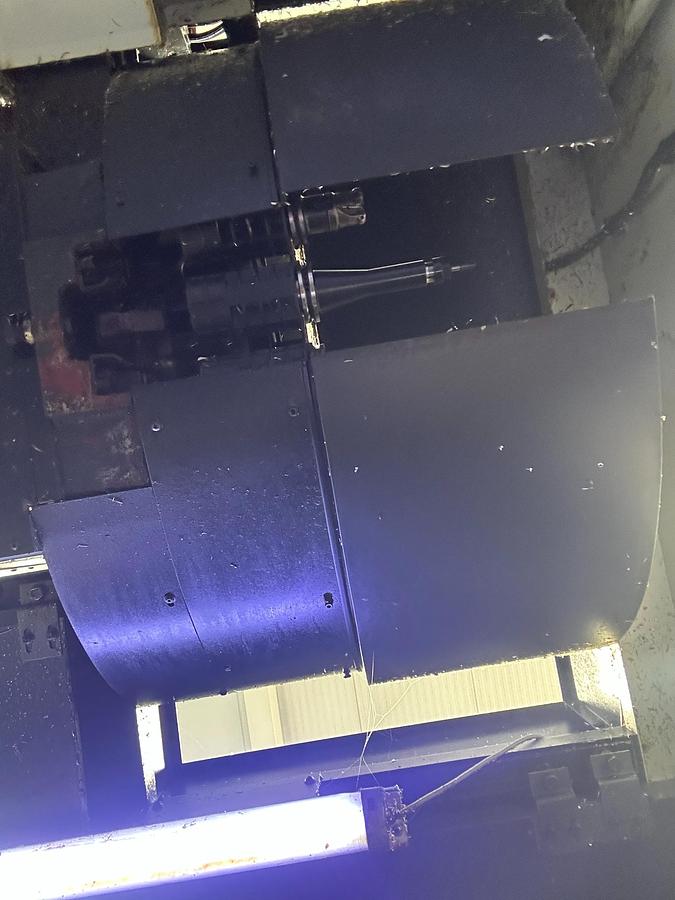

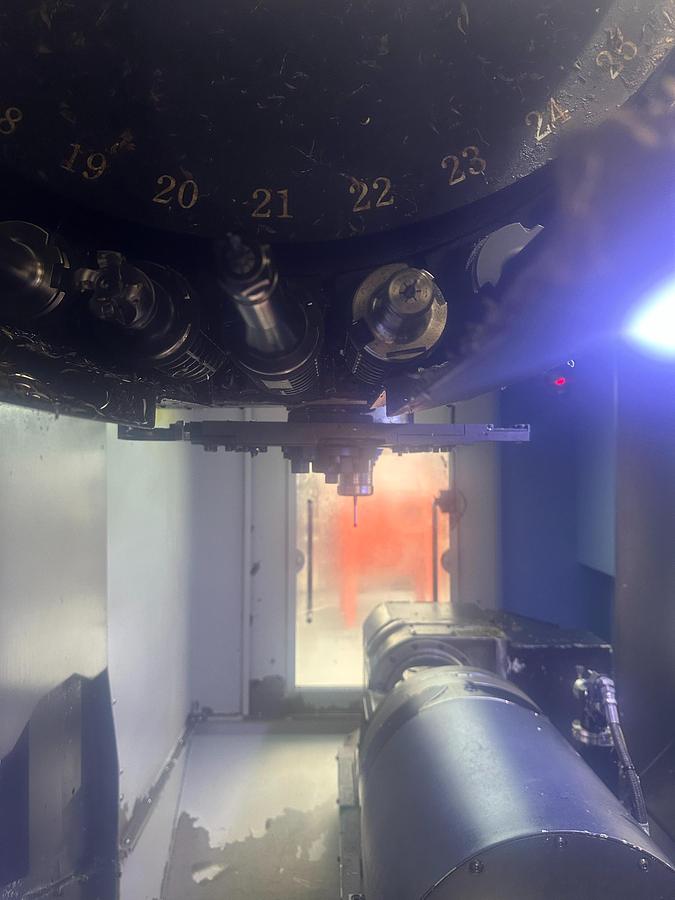

Tool Capacity: 30 Station ATC

Rapid traverse (X, Y): 36000mm/min

Rapid traverse (Z): 30000mm/min

Rapid traverse: (A - tilt axis) 20 rpm

Rapid traverse: (C – rotary axis) 30 rpm

Maximum feedrate: (X, Y, Z) 15000mm/min

Maximum feedrate: (A, C) 7200 deg/min

Feedback system: Absolute encoder

Max Tool Diameter: 125mm

Max Tool Length: 300mm

Max Tool Weight: 8kg

Spindle motor AC: 11/18.5kW

Axis motor (XYZ): AC 4.0kW

Axis motor (A axis): AC 3.0kW

Axis motor (C axis): AC 1.6kW

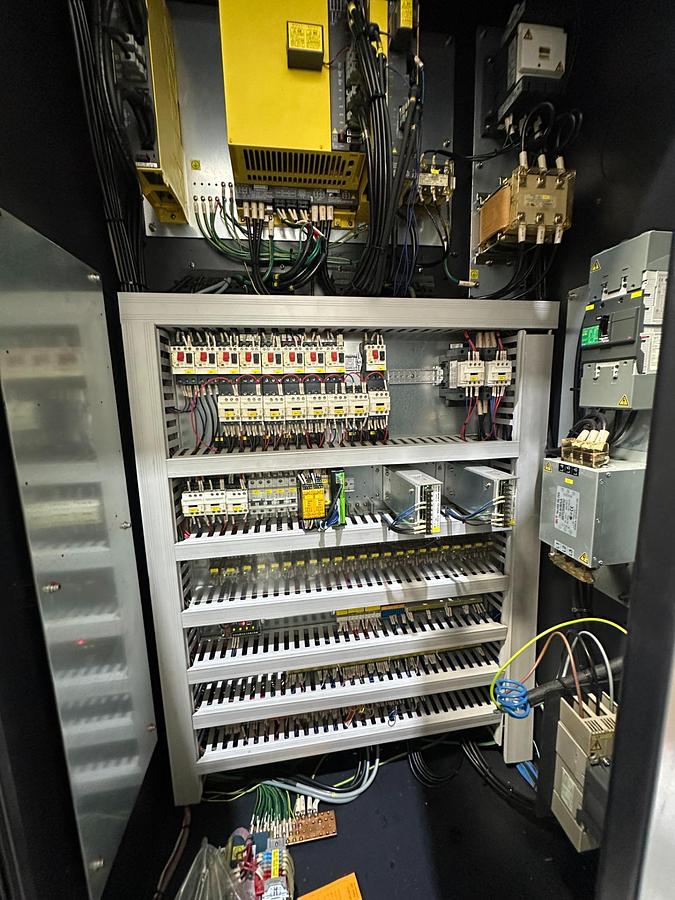

Power Requirements: 54.0 kVA

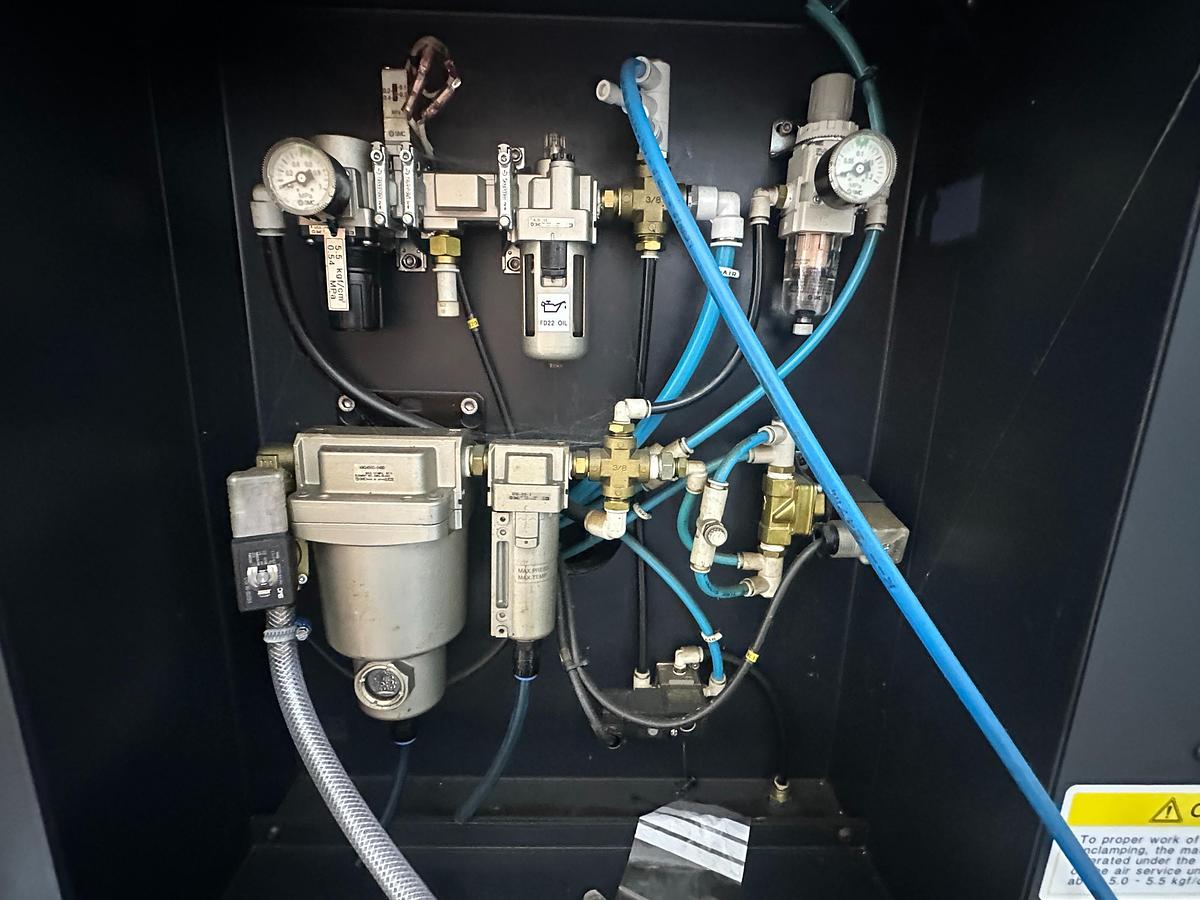

Air Pressure: 6kgf/cm2

Machine Dimensions: 2465 x 2835 x 3091mm

Approx. Machine Weight: 5,500 kg

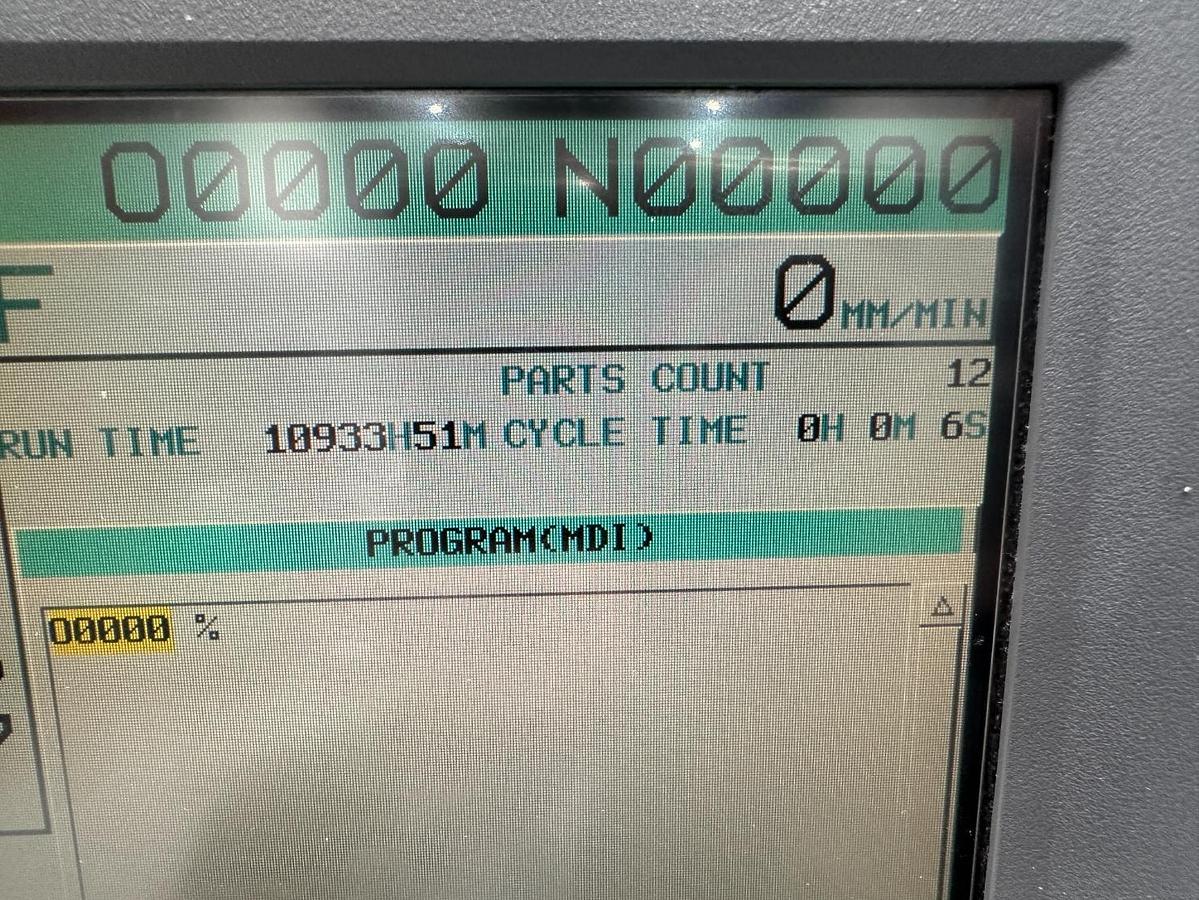

Run Time Hours: Approx. 11,000 hours

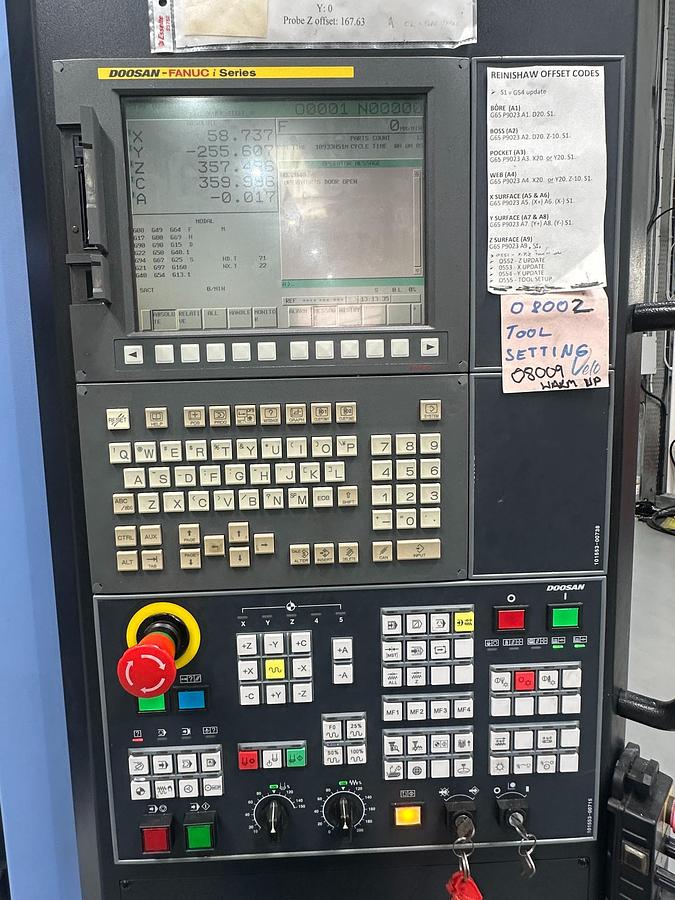

Control Specification

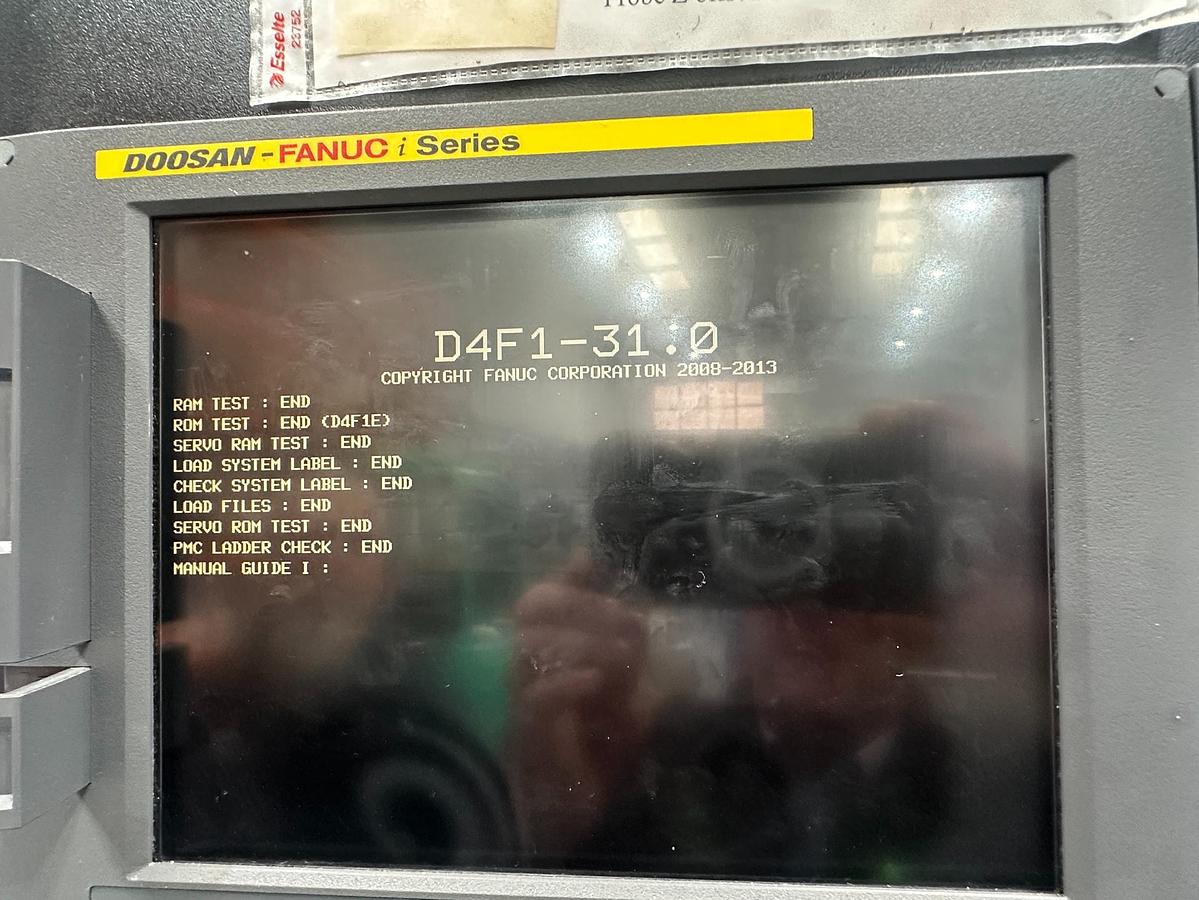

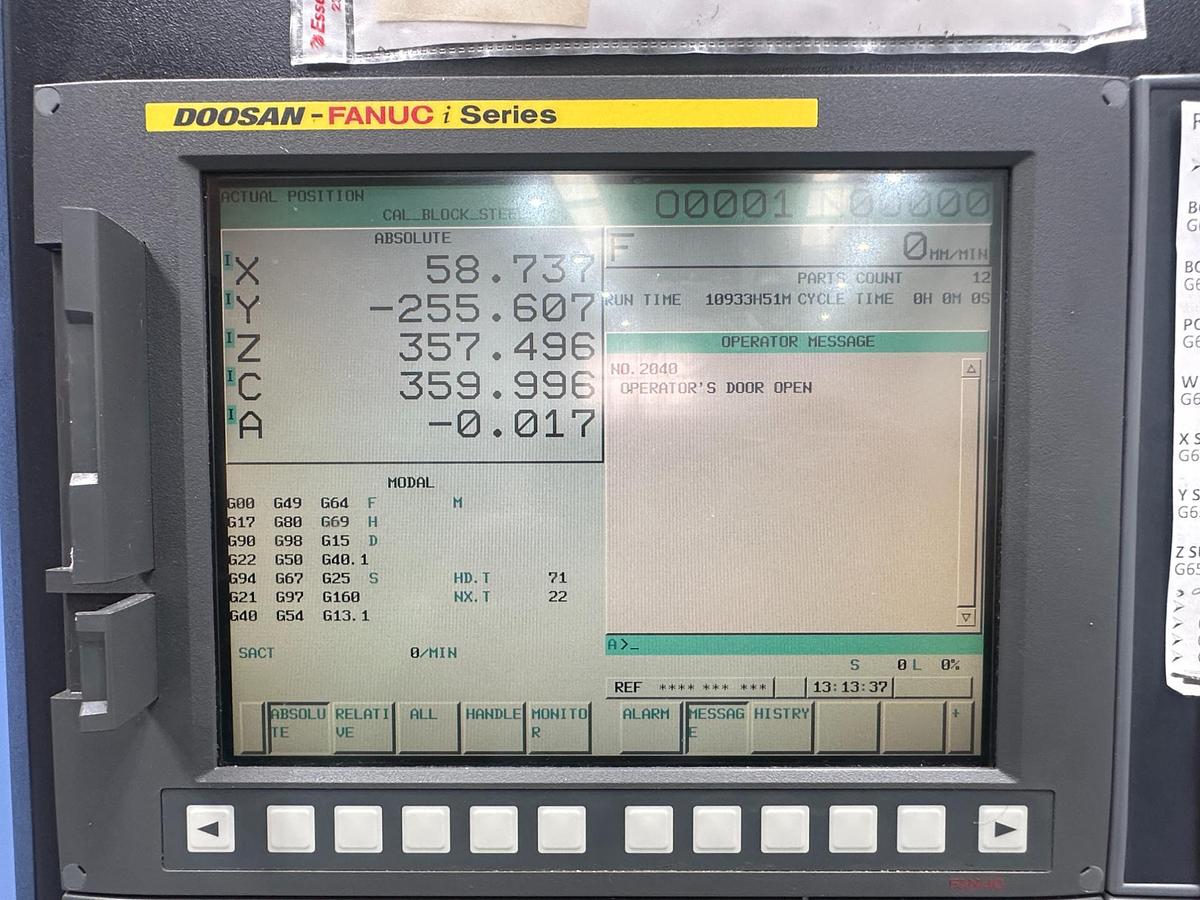

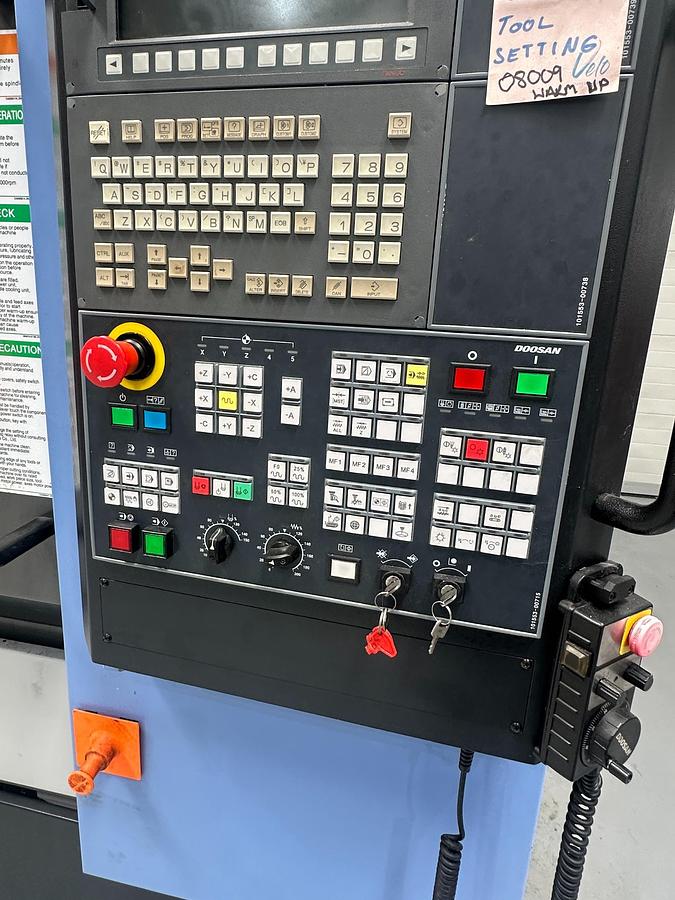

• 10.4” colour screen
• Controlled axes (X, Y, Z, A, C)
• Simultaneous controlled axes 5 (4 + 1)
• Backlash compensation for rapid and feedrate
• Stored stroke check 1
• Stored stroke 2 and 3
• High speed skip
• Stored pitch error compensation
• Chamfering on/off
• Inch/metric conversion
• Least input command 0.001mm
• Mirror image
• Background edit
• Extended programme edit
• 400 programme registrations
• MDI operation
• DNC operation via memory card with buffer (Fanuc supplied memory card recommended)
• Dry run
• Program restart
• RS232 socket
• Embedded Ethernet function (Customer to supply FTP software to suit own PC/network)

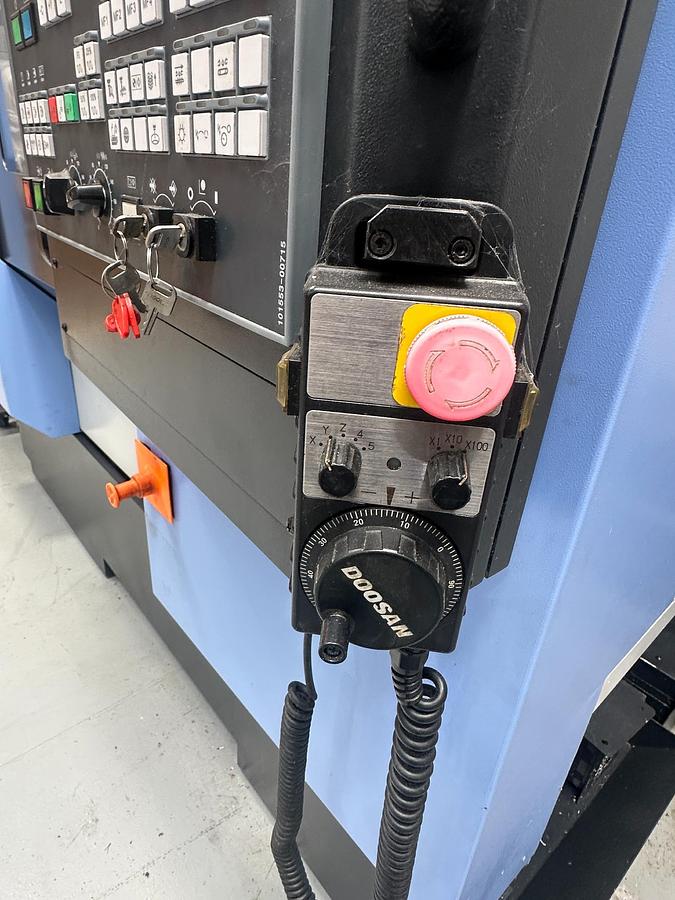

• Manual pulse generator
• Reference position setting without dog
• Program number search
• Custom macro B
• G10 programmable offset input
• 1280m (512kB) memory
• Tool path graphic display
• Load meter display
• Polar coordinate command
• Rigid tap
• Additional work co-ordinate system G54.1 P1 – 48 (48 pairs)
• Tool life management
• 400 tool offsets
• Tool offset memory C
• Status display
• Direct drawing dimension input
• Fanuc 10/11 format
• Run hour / part number display
• Self diagnostic function
• Axis and servo load meter display
• AI Contour Control (AICC II) with tuned axis servos (200 block look-ahead)
• Data server (2G)

Included With This Machine

This used Doosan 5-axis machining centre is supplied with an excellent package of equipment, including:

• Renishaw OMP60 Probe
• Tool holders
• Spindle chiller
• Transformer
• Swarf conveyor - standard slat type
• Filtermist Oil Mist Separator
• Fanuc i Series CNC control

Why Buy This Doosan DNM 200/5AX?

This machine is a strong choice for companies searching for a used 5 axis CNC machining centre, used Doosan machining centre, Doosan DNM 200/5AX for sale, or compact 5-axis vertical machining centre.

The 4+1 machining capability allows users to machine multiple faces of a component in fewer setups, helping to reduce handling time and increase production efficiency. With a compact table, high spindle speed and Fanuc control, this machine is particularly suited to small to medium batch production and complex prismatic parts.

Applications

This Doosan DNM 200/5AX is suitable for:

• Aerospace components
• Medical components
• Motorsport parts
• Toolroom machining
• Mould and die work
• General subcontract machining
• Complex 4+1 machining

Notes: *Specifications are given in good faith but not guaranteed*
