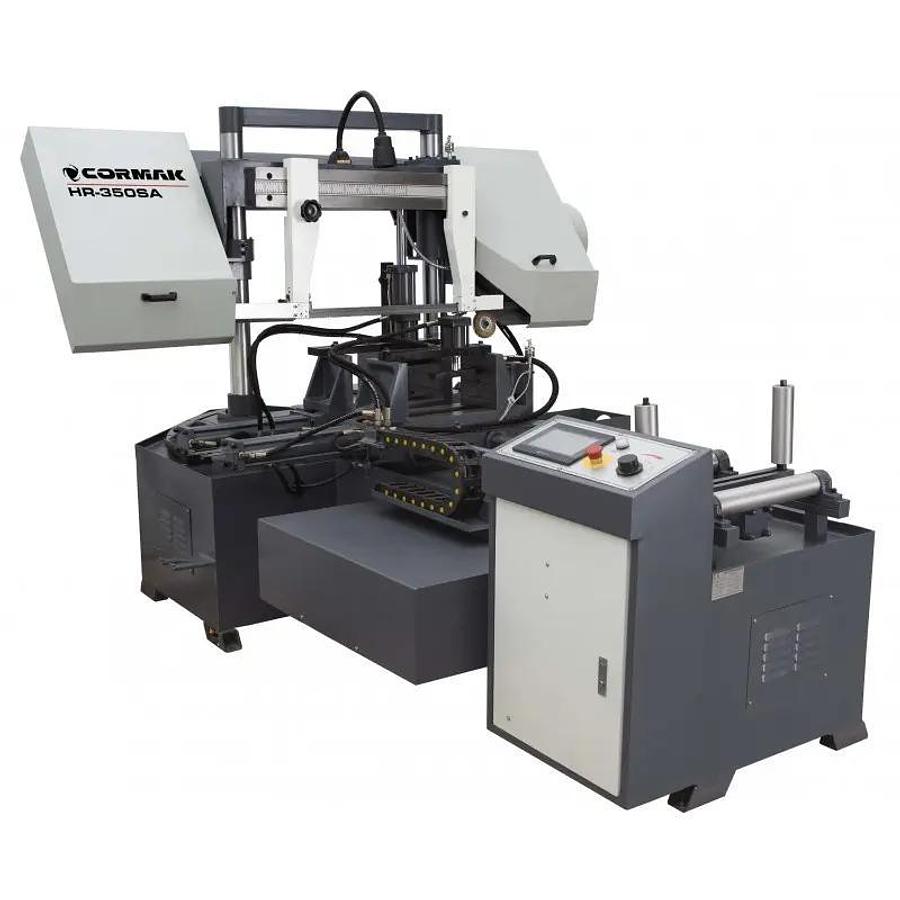

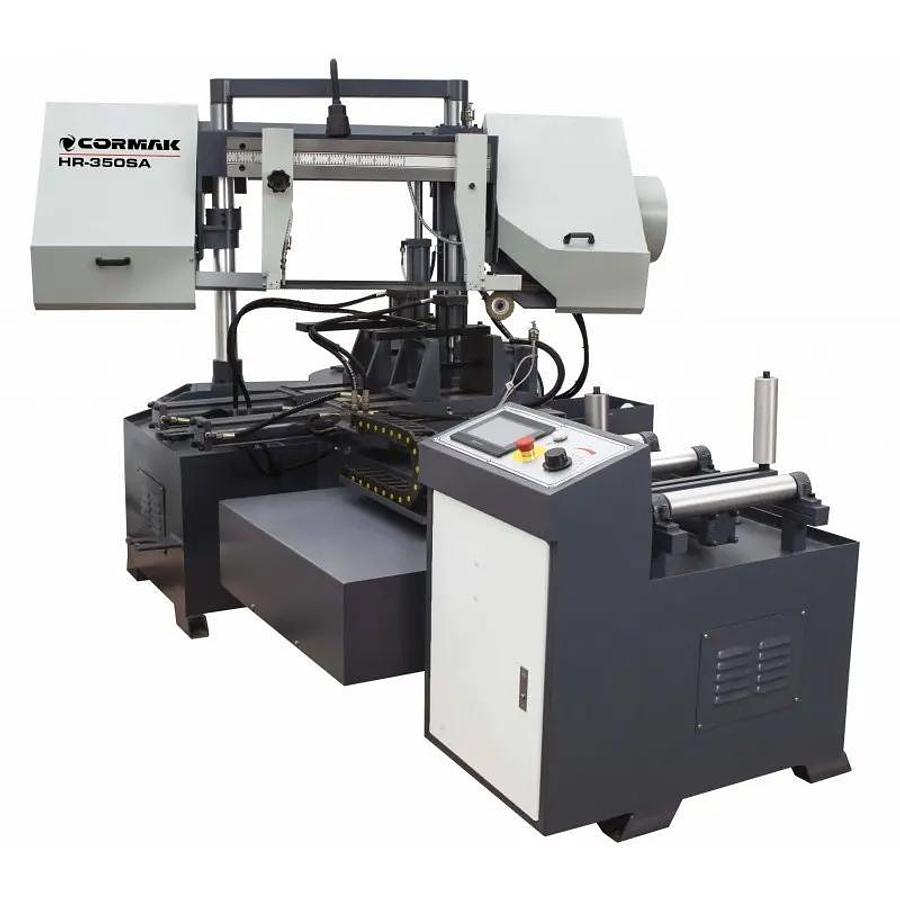

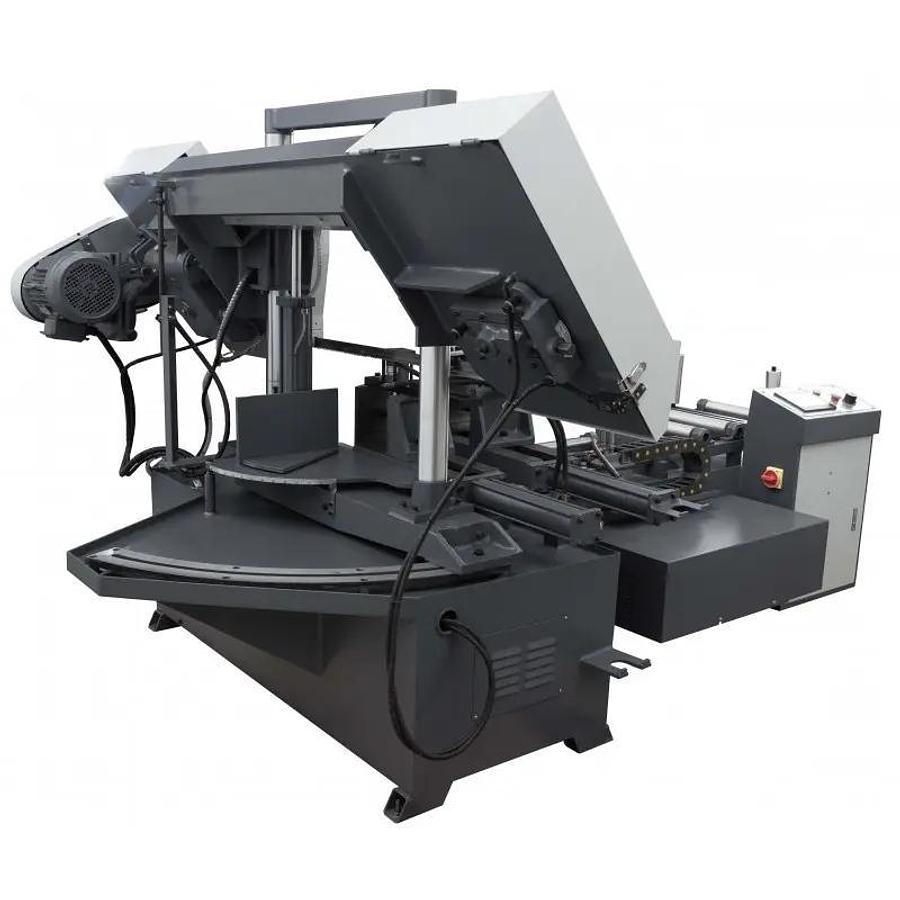

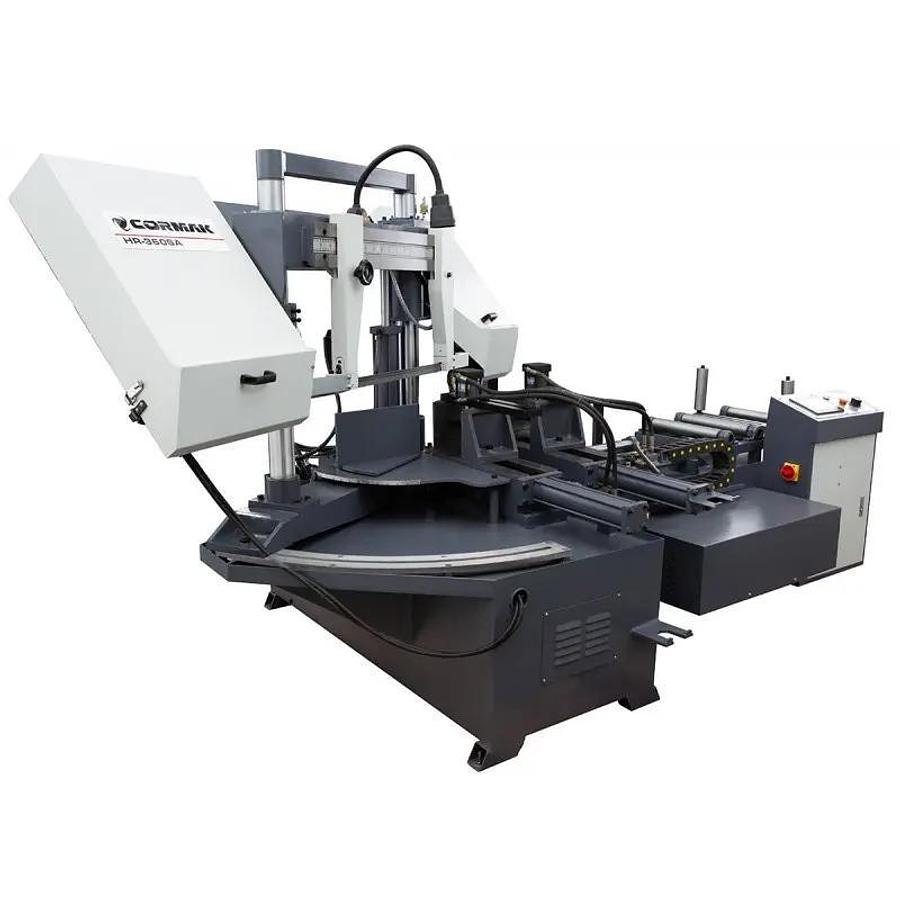

Cormak HR350SA Automatic Bandsaw

Cormak HR350SA Automatic Mitre Cutting Bandsaw

Manufacturer: Cormak

Model: HR350SA

Machine Type: Automatic Mitre Cutting Bandsaw

Condition: New

Description

The Cormak HR350SA Automatic Bandsaw is an advanced technological solution for professional industrial plants requiring high efficiency, repeatability, and precision. With modern components and a double-column structure, this metal bandsaw ensures reliable operation even under intensive production conditions. The saw supports both manual and fully automatic modes, allowing the operator to adapt the operation to individual needs and the type of material being cut.

Main Advantages

• Automatic cutting cycle – full automation of clamping, feeding, cutting, and arm lifting processes.
• Double-column design – ensures exceptional rigidity and precise blade guidance.
• Top vise clamping – allows safe and efficient cutting of tube and profile bundles.
• Hydraulic feeding system – precise positioning of the workpiece with ±0.2 mm accuracy.

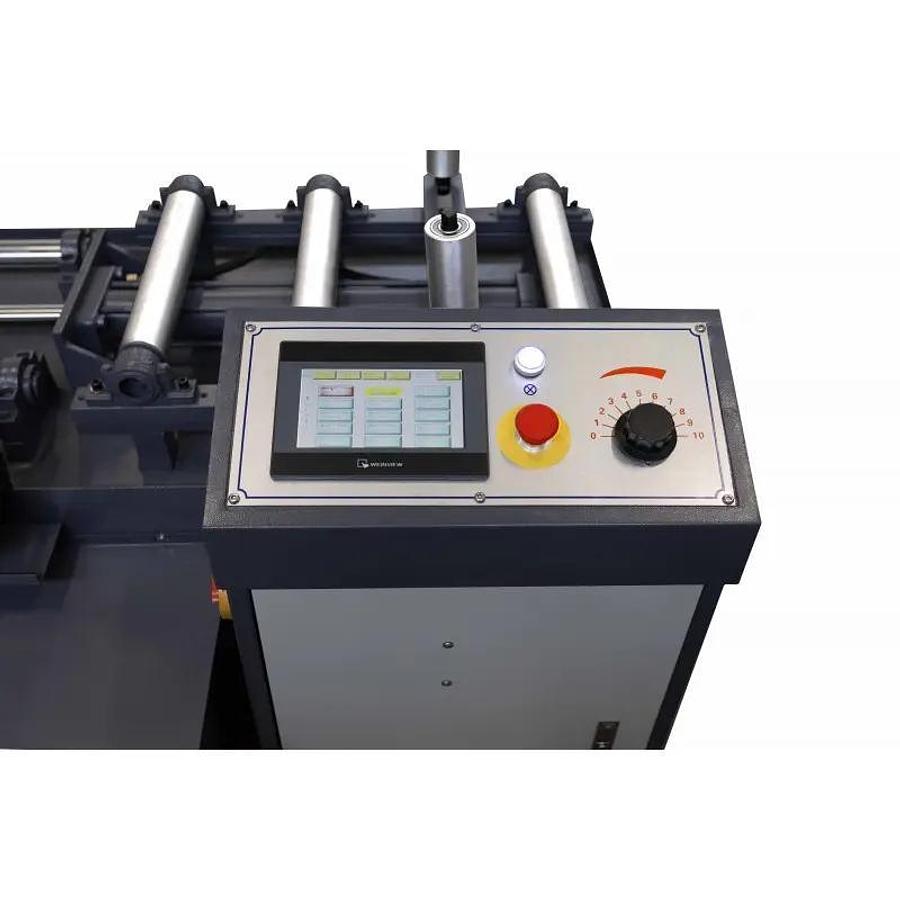

• Intuitive control – LCD touchscreen panel for quick setting of cutting parameters.

Construction and technology

The saw frame is made of cast iron, ensuring excellent vibration damping and stability during operation. The supporting frame is inclined at 3° to the table, improving efficiency when cutting rectangular-section components. The blade guiding system is based on precision bearings and carbide inserts, reducing blade wear and enhancing cutting quality. Hydraulic blade tensioning and a three-speed motor with an inverter guarantee perfect adaptation of parameters to the material type.

Precision and work efficiency

The throttling valve enables smooth regulation of the arm lowering speed, allowing controlled cutting without the risk of damaging the workpiece. The rapid feed system shortens the cutting cycle, while the cleaning brush and coolant system increase saw lifespan. This is a reliable solution for demanding customers expecting efficiency and repeatability.

Application

The HR350SA model is the ideal bandsaw for cutting tubes and profiles, structural and stainless steels, and other metals. It is designed for use in locksmith workshops, manufacturing companies,

and machining centres where high quality, automation, and safety are essential.

Standard equipment

• Automatic and manual operating modes
• Control panel with LCD touchscreen

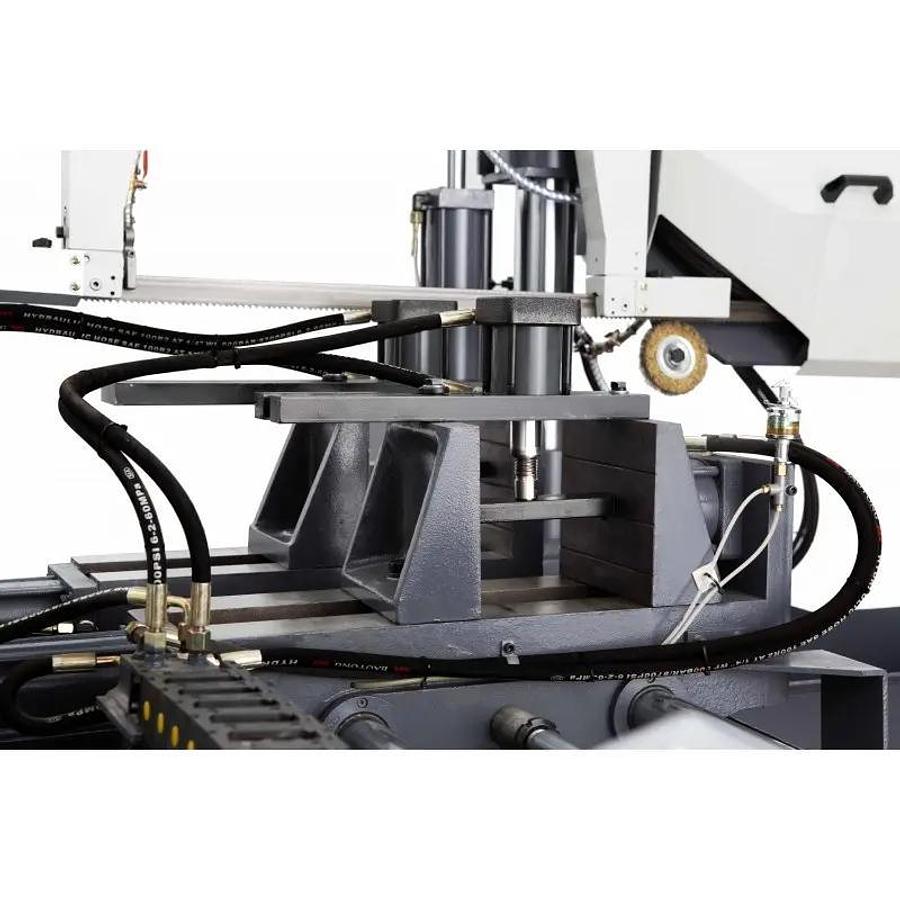

• Hydraulic vice with top pressure
• Powered blade cleaning brush
• Hydraulic blade tensioning
• Coolant system
• Bimetal bandsaw blade
• CE certification

Technical Specifications

Type: automatic

Arm lowering and raising: hydraulic with smooth arm lowering adjustment

Blade speed: 27 / 45 / 69 m/min (belt drive)

Mitre Cutting: 0° to 60°

Vice: hydraulic

Feed Speed Adjustment: Hydraulic Speed Control

Blade Tensioning: Hydraulic

Vice base height: 700 mm

Feeder Stroke: 500mm

Load Capacity: 1500kg

Blade Length: 4515 x 34 x 1.1 mm

Total power: 4.8 kW

Dimensions (LxWxH): 2800×2200×1700 mm

Weight: 1,500 kg

Cutting Capacities

Capacity 0º (Round): 350mm

Capacity 0º (Square): 350 x 350mm

Capacity 45º (Round): 300mm

Capacity 45º (Square): 300 x 300mm

Capacity 60º (Round): 150mm

Capacity 60º (Square): 150 x 150mm
