IMB Multifor 10090ELV Hydraulic Punching Machine

🔧 IMB Multifor 10090ELV Hydraulic Punching Machine

20 ton power, X-Y axis, laser pointer, punches steel, aluminium & panels.

Manufacturer: IMB Multifor

Model: 10090ELV Hydraulic Punching Machine with X,Y Axis Digital Readout

Machine Type: Punching machine for electrical enclosures

The IMB Multifor 10090ELV Hydraulic Punching Machine is a high-performance industrial punching solution, designed for accurate and efficient hole punching in panels, sheet metal, aluminium, and plastic materials.

This model features a manual X-Y axis positioning system with visual measurement and integrated laser pointer, offering precise hole alignment without the need for complex automation.

🚀 Key Features

• ✔️ 20 Ton hydraulic punching force (200 kN)
• ✔️ Manual X-Y axis system for precise positioning
• ✔️ Integrated laser pointer for accurate hole centering
• ✔️ High precision positioning and repeatability
• ✔️ No pre-drilling required
• ✔️ Compact and robust industrial design
• ✔️ Simple, reliable and easy to operate

⚙️ Machine Description

The IMB Multifor 10090ELV is engineered to:

• Punch holes in sheet steel, aluminium, plastic laminates, and panels
• Use a guided X-Y axis rail system for accurate positioning
• Provide visual alignment via laser pointer to locate hole centres
• Deliver fast, clean punching without marking or distortion

The machine is designed for practical workshop use, combining high power with ease of operation, making it ideal for panel builders and fabrication environments.

The hydraulic punching machine 10090EL, is a high power machine with a simple system of brackets regulation for X and Y axis. It has the same characteristics and performance of the hydraulic punching machine 10090L. The axis run is for X axe 1000 mm and for Y axe 900 mm.

These units are studied exclusively for making holes. They are fast and practical to use, thanks to a special system of guides of axis X and Y. This system avoids tracing and the panel board is held up by a mobile support and fixed on X-Y axis.

The version 10090EL has the laser pointing which indicates the center of the hole on the material to punch. The version 10090ELV has the laser pointing and the digial readout.

Laser pinpoint features

All punching machines are supplied with LASER POINTING which indicates ONLY the centre of the hole to realize on the control board door. The diode is protected inside the stem, to avoid breaking.

⚙️ Technical Specifications

🔹 Punching Capacity

• Power: 200 kN (20 Ton)
• Maximum Hole Diameter: Ø 170 mm
• Maximum Square Hole: 138 x 138 mm

🔹 Material Thickness Capacity

• Sheet Steel: 2.0 mm
• Stainless Steel: 1.8 mm
• Aluminium: 5 mm
• Plastic Laminates: 5 mm

🔹 Hydraulic System

• Working Pressure: 700 bar
• Oil Consumption per Stroke: 0.18 litres
• Punch Stroke: 65 mm

🔹 Axis & Working Area

• Maximum Depth: 900 mm
• X Axis Stroke: 1000 mm
• Y Axis Stroke: 900 mm
• Distance Between Punches: 50 mm

🔹 Dimensions & Weight

• Length: 2100 mm
• Width: 2160 mm
• Height (with base): 1760 mm
• Weight: Approx. 1000 kg

⚙️ Included Equipment

• ✔️ Punch holder for round dies up to Ø 40.5 mm (10101L)
• ✔️ Die holder flange for round, square & rectangular dies (10191)
• ✔️ Extractor sets for punch removal (10141,10142)
• ✔️ Punch holder lock nut Ø 28 mm (10171)
• ✔️ Positioning valve (9162)

⚙️ Suitable Electrohydraulic Pumps

• IMB Multifor 9010 Electrohydraulic Pump

⚙️ Advanced Features

• Laser pointing system indicates the exact centre of the hole
• Manual X-Y axis guides for smooth positioning
• Quick die change system without removing the panel
• Adjustable stroke to optimise punching cycle time
• Suitable for round, square, rectangular, and special punches

🏭 Typical Applications

• Electrical panel manufacturing
• Switchgear production
• Enclosure fabrication
• Sheet metal punching
• Industrial workshop production

💡 Why Choose the IMB Multifor 10090ELV?

• ⚡ High power 20 ton punching capability
• 🎯 Accurate positioning with X-Y axis and laser alignment
• 🔩 Wide range of punching applications and tooling options
• 🧰 Simple operation without complex CNC systems
• 🛠️ Ideal for precision panel and enclosure work

This machine is perfect for businesses needing a powerful, accurate, and user-friendly punching solution with visual positioning assistance.

Note: Specifications and information provided in each listing are supplied in good faith; however, their accuracy cannot be guaranteed

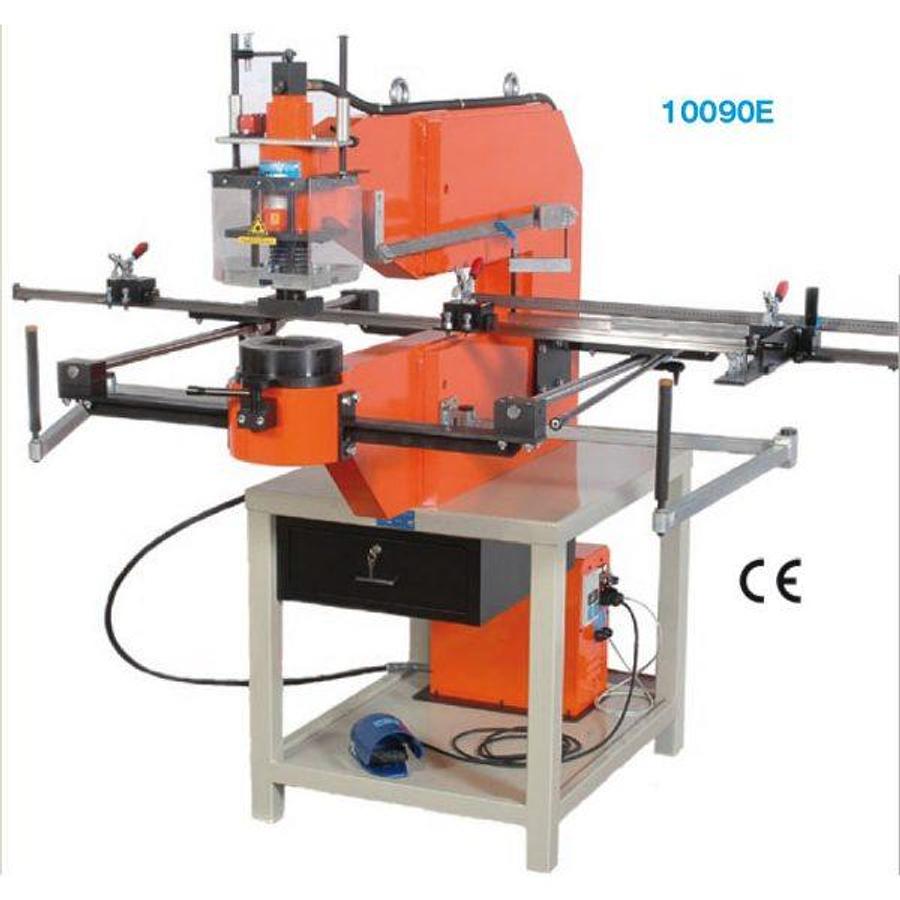

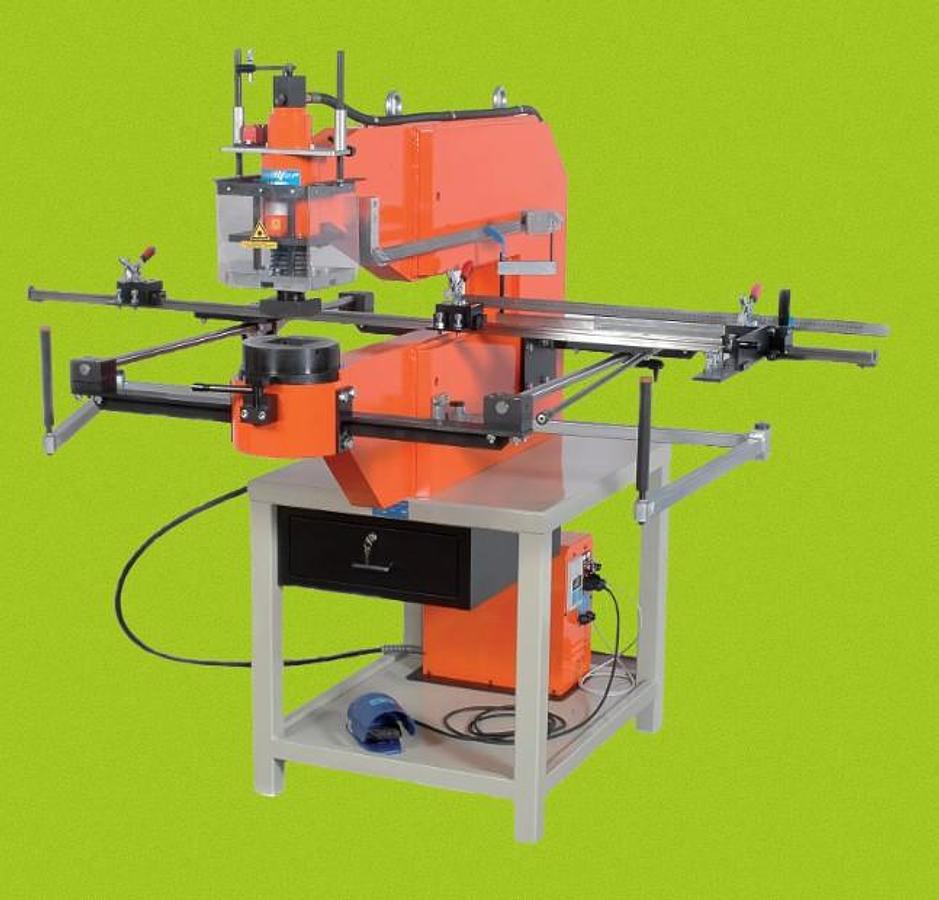

** IMB Multifor 10090EL Version shown in the photo
