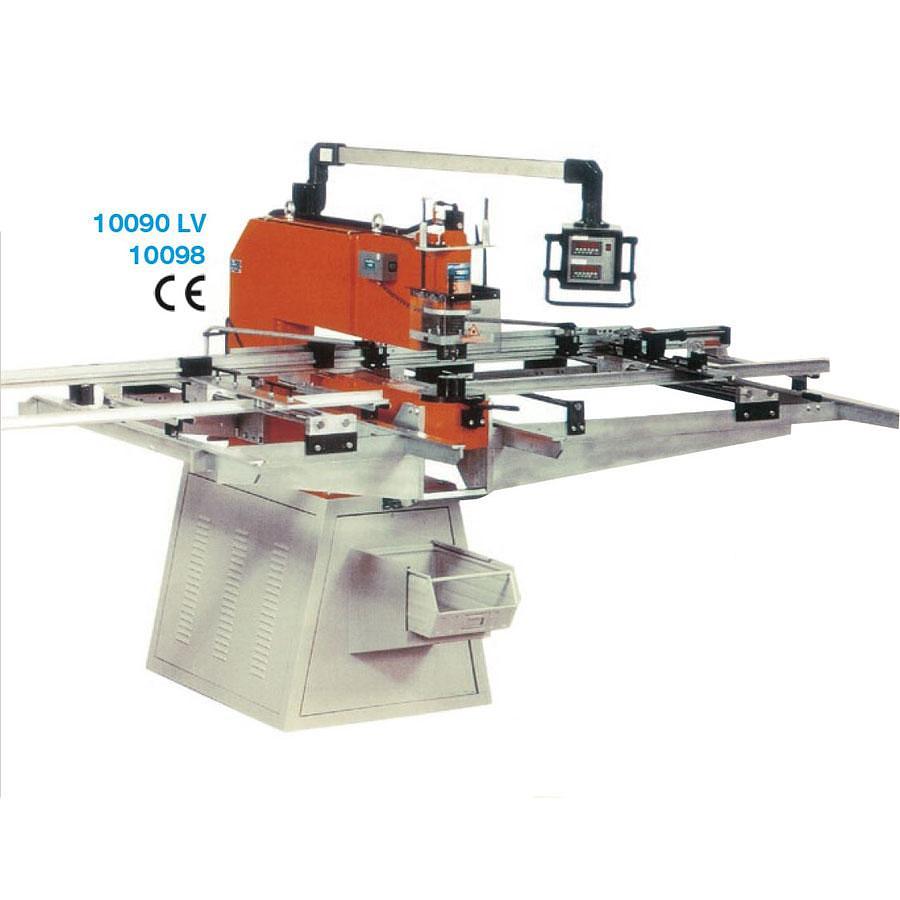

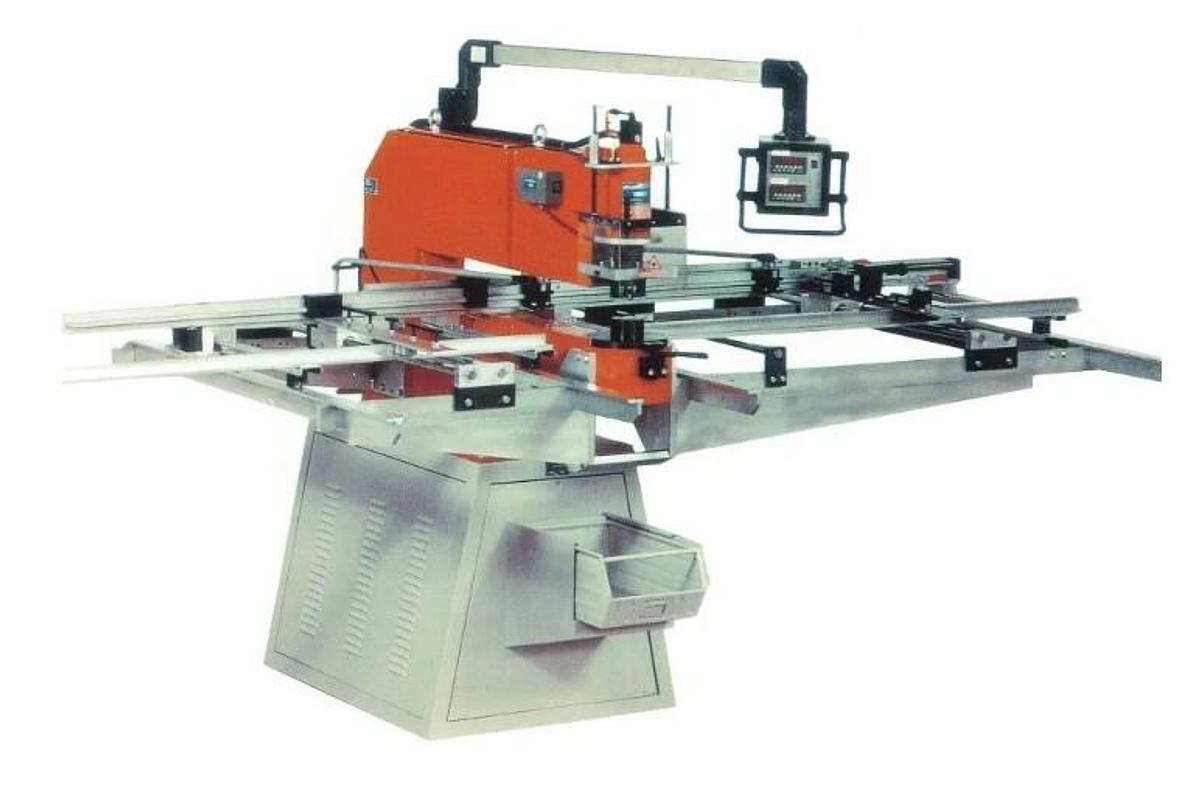

IMB Multifor 10090LV Hydraulic Punching Machine

🔧 IMB Multifor 10090LV Hydraulic Punching Machine

20 ton power, X-Y axis digital readout, punches steel, aluminium & panels. Industrial use.

Manufacturer: IMB Multifor

Model: 10090LV Hydraulic Punching Machine with X,Y Digital Readout

Machine Type: Punching machine for electrical enclosures

The IMB Multifor 10090LV Hydraulic Punching Machine is a powerful and precise industrial punching solution, designed for accurate hole punching in panels, sheet metal, aluminium, and plastic materials.

This model is equipped with an X-Y axis system with digital readout, allowing for precise positioning and repeatable hole placement, making it ideal for panel building, switchgear manufacturing, and fabrication workshops.

The Multifor hydraulic punching machines, which combine high power with compact dimensions, are built to resolve the problems of making holes in panels, lids, sheet steel, aluminium strip or plastic. These units are studied exclusively for making holes. They are quick and practical as they avoids marks working on a special rail sysstem of X-Y axis, on which the panel board is fixed. The pre-hole is not necessary.

With the special punches, you can realize the following holes: round, square, rectangular, shaped, round with more holes, square with round holes, rectangular with round holes, tools for ventilation slots, etc. The Multifor punching machines can be connected with a rapid connector to the Multifor electric units. These units can be also used in small workshop due to their versatility and small size.

All our hydraulic punching machines are equipped with carter protection, safety micro switch and electric micro end-stroke. The dies assembly is very simple and it is not necessary to take away the panel board. In order to reduce the working cycles, a rise stroke regulator allows to reduce the opening between the punch and the die.

🚀 Key Features

• ✔️ 20 Ton hydraulic punching force (200 kN)
• ✔️ X-Y axis positioning system with digital readout
• ✔️ High precision positioning (±0.1 mm accuracy)
• ✔️ Wide range of hole shapes and tooling compatibility
• ✔️ No pre-drilling required
• ✔️ Compact yet powerful industrial design
• ✔️ Safety barrier and photocell protection system

⚙️ Machine Description

The IMB Multifor 10090LV is engineered to:

• Punch holes in sheet steel, aluminium, plastic, and panel boards
• Deliver accurate positioning via X-Y axis rail system
• Provide clear visual measurement via digital readout system
• Work efficiently without pre-hole drilling

The panel is mounted on a precision rail system, allowing smooth movement along the X and Y axes, ensuring accurate and repeatable hole positioning across large panels.

⚙️ Technical Specifications

🔹 Punching Capacity

• Power: 200 kN (20 Ton)
• Maximum Hole Diameter: Ø 170 mm
• Maximum Square Hole: 138 x 138 mm

🔹 Material Thickness Capacity

• Sheet Steel: 2.0 mm
• Stainless Steel: 1.8 mm
• Aluminium: 5 mm
• Plastic Laminates: 5 mm

🔹 Hydraulic System

• Working Pressure: 700 bar
• Oil Consumption per Stroke: 0.18 litres
• Punch Stroke: 65 mm

🔹 Axis & Working Area

• X Axis Stroke: 1500 mm
• Y Axis Stroke: 900 mm
• Maximum Depth: 900 mm
• Distance Between Punches: 50 mm

🔹 Dimensions & Weight

• Length: 1850 mm
• Width: 3020 mm
• Height (with base): 1680 mm
• Weight: Approx. 1527 kg

🔹 Electrical Supply

• Voltage: 220–240V
• Frequency: 50/60 Hz

⚙️ Included Equipment

• ✔️ Punch holder for round dies up to Ø 40.5 mm (10101L)
• ✔️ Die holder flange for round, square & rectangular dies (10191)
• ✔️ Extractor sets for punch removal (10141,10142)
• ✔️ Punch holder lock nut (10171)
• ✔️ Metal base (10100/90)
• ✔️ Positioning valve (9162)
• ✔️ Digital measurement / readout system

⚙️ Suitable Electrohydraulic Pumps

• IMB Multifor 9010 Electrohydraulic Pump

⚙️ Advanced Features

• Digital readout system for accurate positioning
• Manual X-Y axis control with high precision movement
• Wide tooling compatibility for complex hole shapes
• Quick die change system without removing panel
• Adjustable stroke to optimise cycle time

🏭 Typical Applications

• Electrical panel manufacturing
• Switchgear production
• Enclosure fabrication
• Sheet metal punching
• Industrial workshop production

💡 Why Choose the IMB Multifor 10090LV?

• ⚡ High power 20 ton punching capability
• 🎯 Accurate X-Y positioning with digital readout
• 🔩 Wide range of punching applications and tooling
• 🧰 Reliable and easy to operate system
• 🛠️ Ideal for precision panel work and fabrication

This machine is perfect for businesses needing a powerful, accurate, and user-friendly punching solution without complex automation systems.

Note: Specifications and information provided in each listing are supplied in good faith; however, their accuracy cannot be guaranteed.
