Product No.: 9020

Manufacturer: IMB Multifor

Tool Type: Punching Cylinder for Flexible Busbars

Description

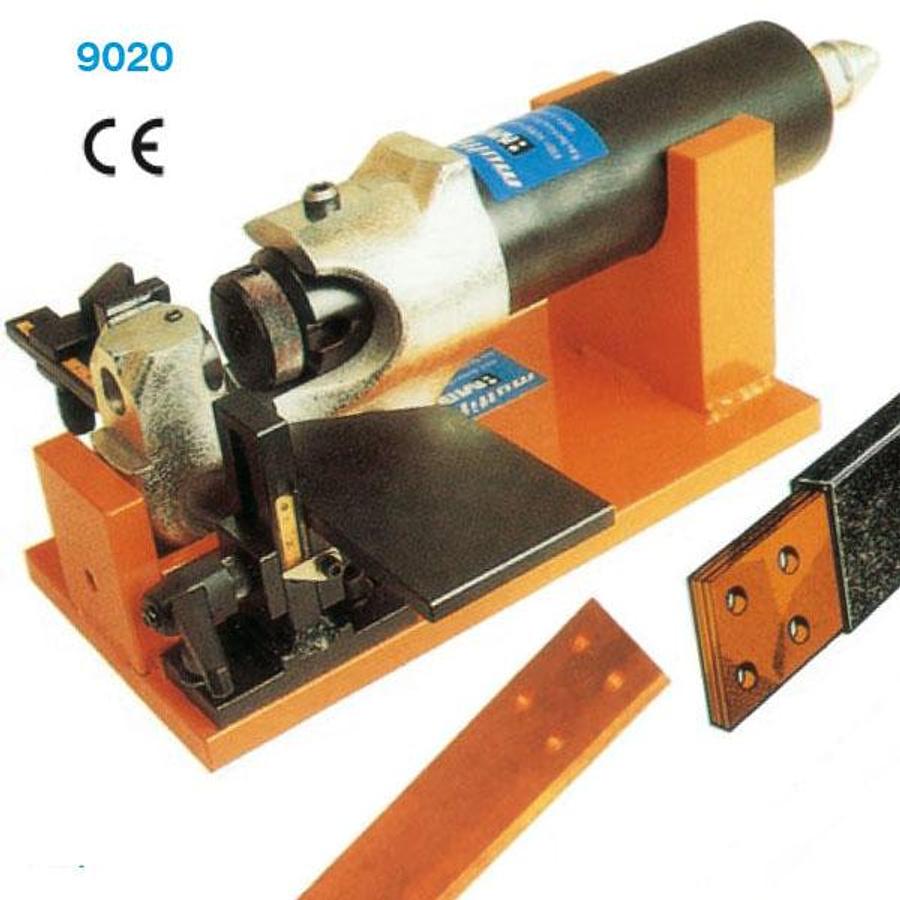

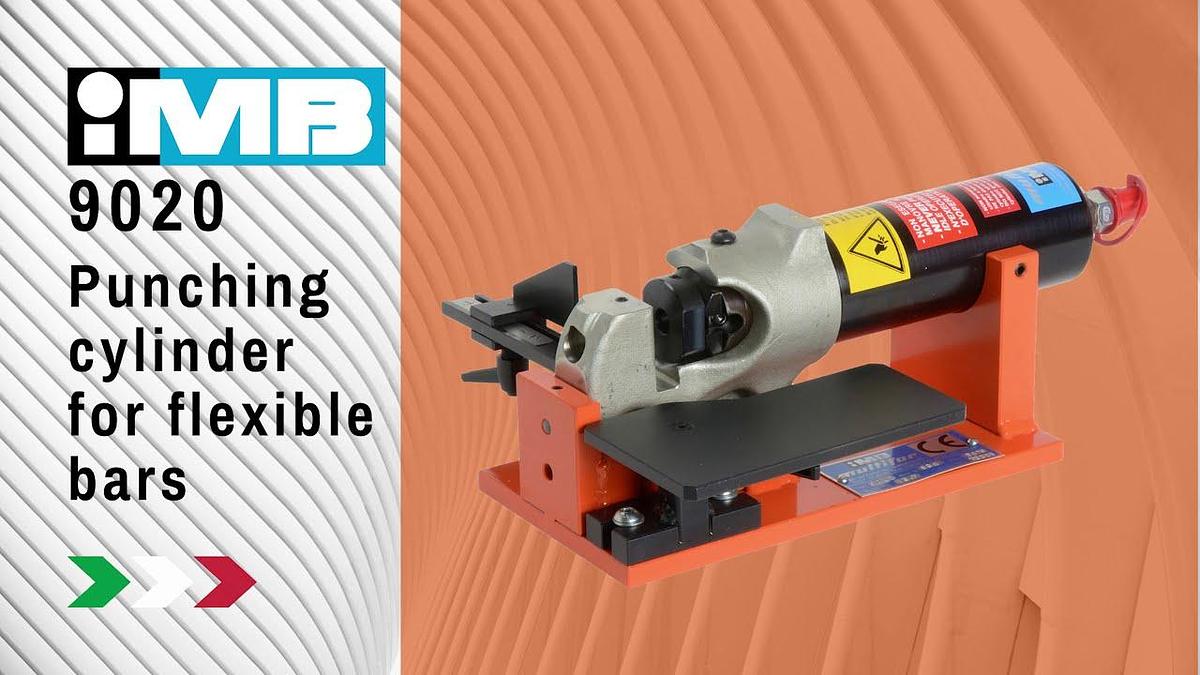

High-Precision Punching Cylinder for Flexible Copper Busbars

This high-performance punching cylinder is fully compatible with hydraulic pumps and all IMB MULTIFOR control units, making it an ideal solution for professionals working with flexible copper busbars and laminated copper bars.

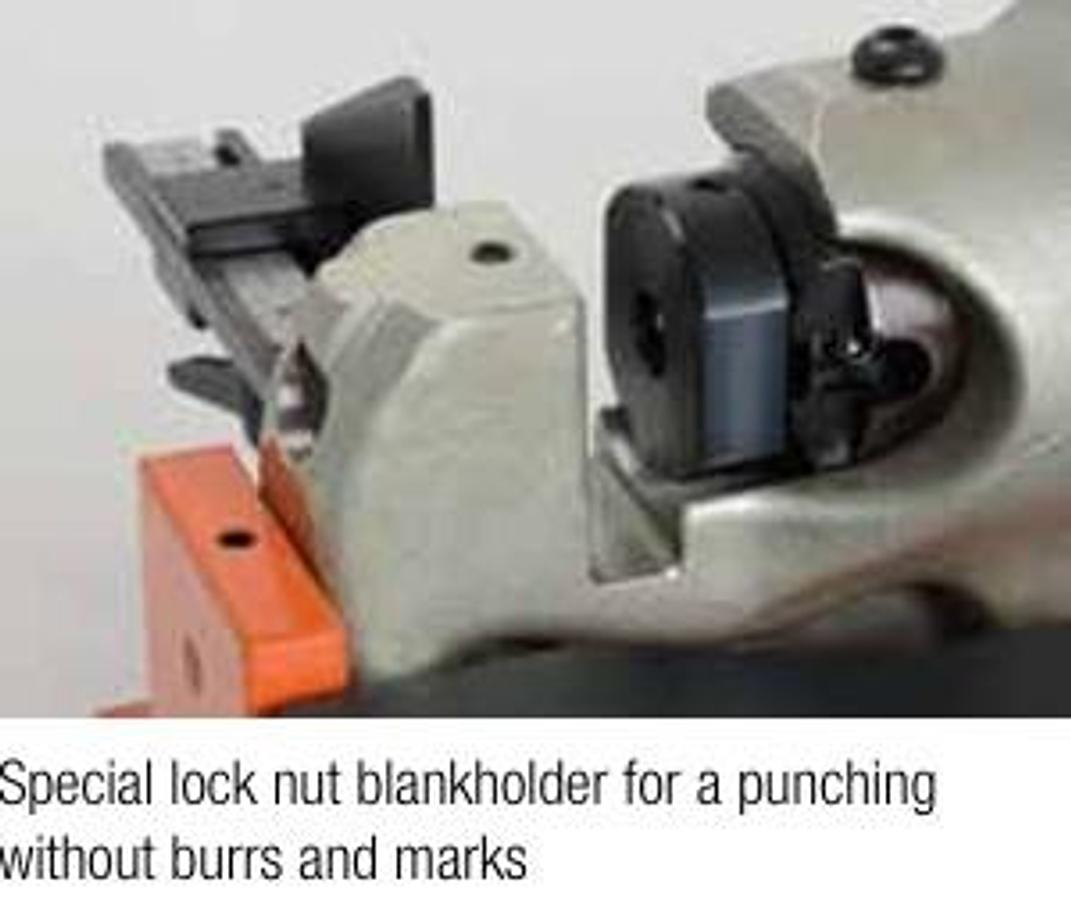

Engineered specifically for precision punching of copper bar packs, this advanced tool features a dual-cylinder system: one cylinder securely clamps the copper bars, while the second delivers a clean, accurate punch. This innovative design ensures fast, burr-free punching with zero deformation, improving both productivity and finished quality.

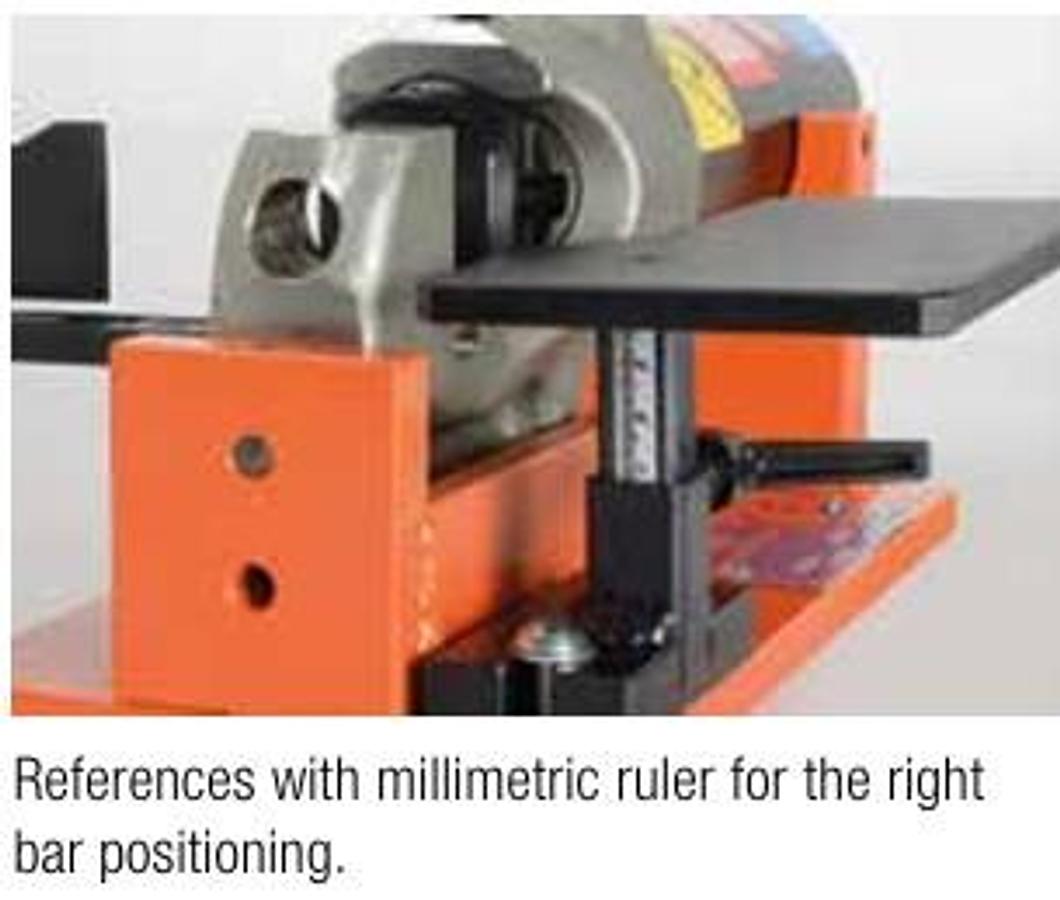

Mounted on a robust support frame, the cylinder guarantees perfectly square punching without surface marks, making it suitable for high-quality electrical and industrial applications. Integrated brackets and millimetre positioning rulers enable precise alignment and repeatable results, allowing for efficient series production with minimal errors.

Ideal for use in electrical panel manufacturing, busbar processing, switchgear production, and industrial fabrication, this punching cylinder delivers consistent, professional results every time.

Key Features & Benefits:

• Designed for flexible copper busbars / laminated copper bars
• Compatible with IMB MULTIFOR control units and hydraulic pumps
• Dual-cylinder system for secure clamping and precision punching
• Burr-free, deformation-free results
• Built-in positioning rulers for accurate, repeatable punching
• Perfect for high-volume production and industrial use
• Custom punch sizes available on request

Included with Model 9020:

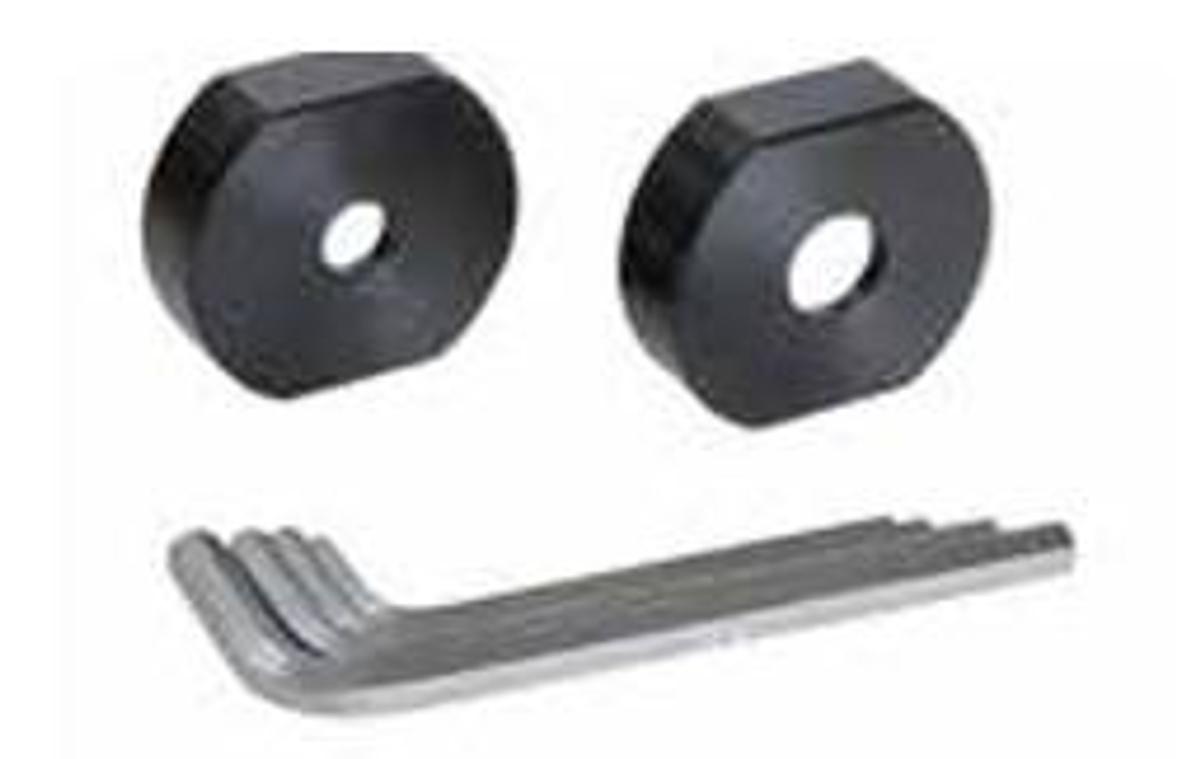

• 2 lock nuts:
• For punches up to Ø 9 mm
• For punches from Ø 10 mm to Ø 13 mm

Technical Specifications

Power: 120 kN

Max Working Pressure: 700 bar

Max Stroke: 15 mm

Internal Depth: 29 mm

External Depth: 17 mm

Max Copper Bar Thickness: 10 mm

Dimensions: 390 x 300 x 160 mm

Weight: 16.7 kg

Tool Sets Options

9020 D - Punching Cylinder Kit

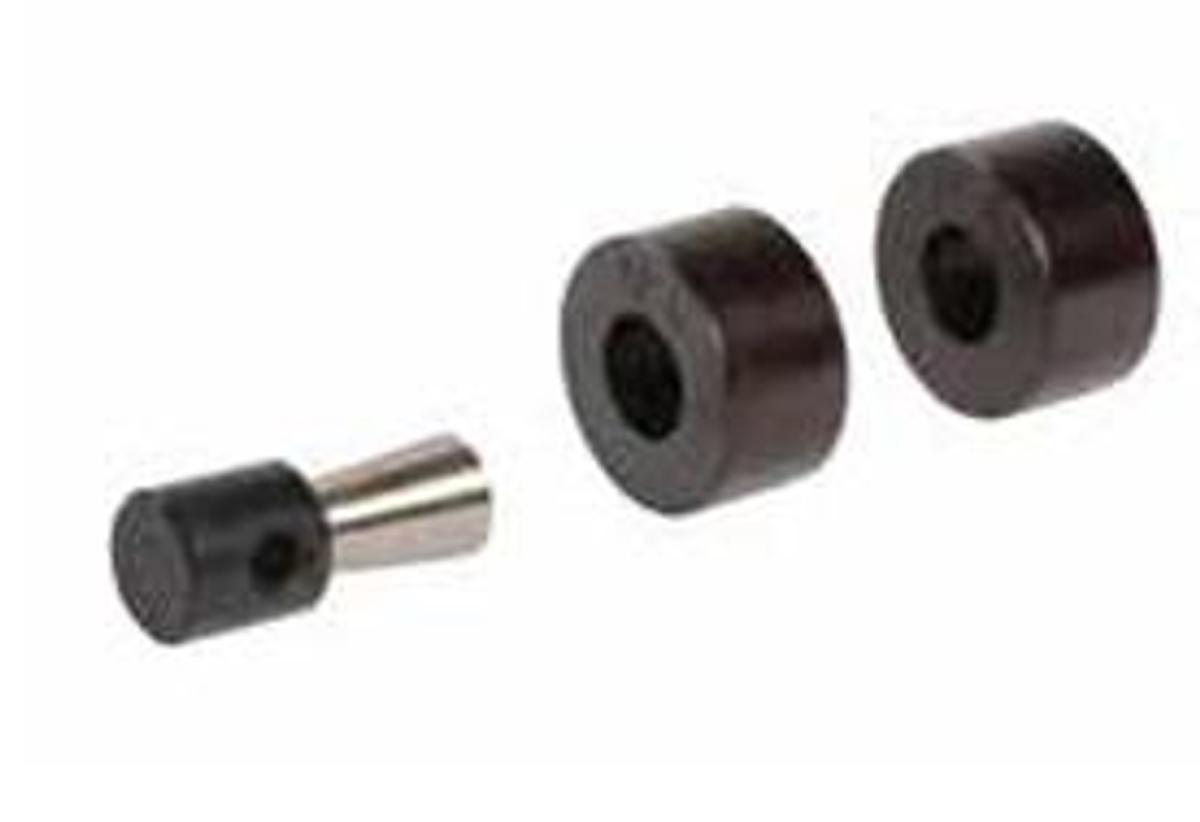

3 x Round Punches & Dies (Odd Sizes)

9531 - 9mm

9533 - 11mm

9535 - 13mm

9020 P - Punching Cylinder Kit

3 x Round Punches & Dies (Even Sizes)

9541 - 8mm

9543 - 10mm

9545 - 12mm

Pump Options can be found Here.
