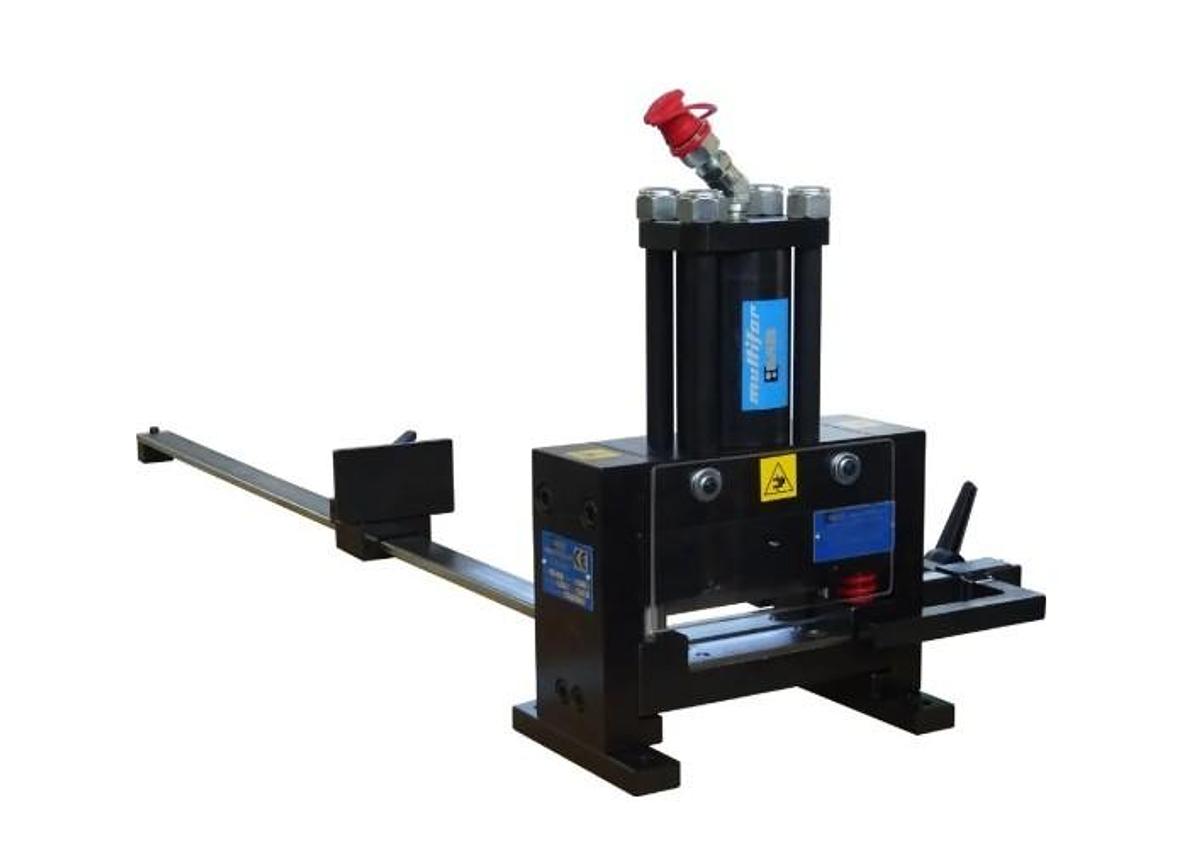

IMB Multifor - 9039 - Flexible Busbar Shears

IMB Multifor - 9039 - Flexible Busbar Shears

Product No.: 9039

Manufacturer: IMb Multifor

Tool Type: Flexible Busbar Shears

Description

Complete and autonomous equipment. It is equipped with ruler and adjustments for the bars measurement.

Includes

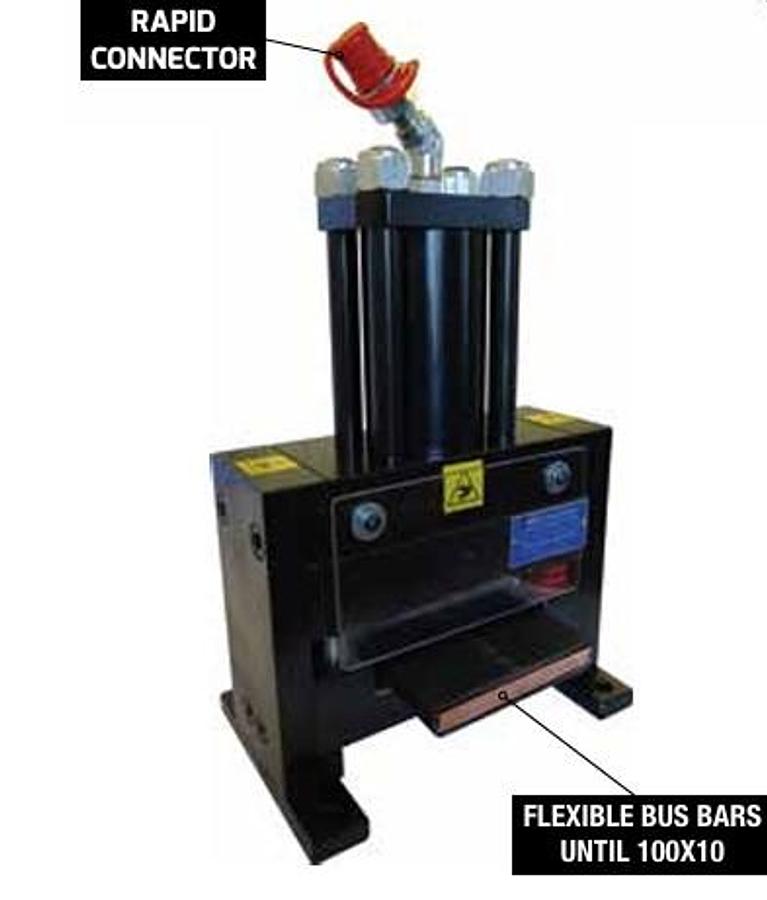

Rapid Connector

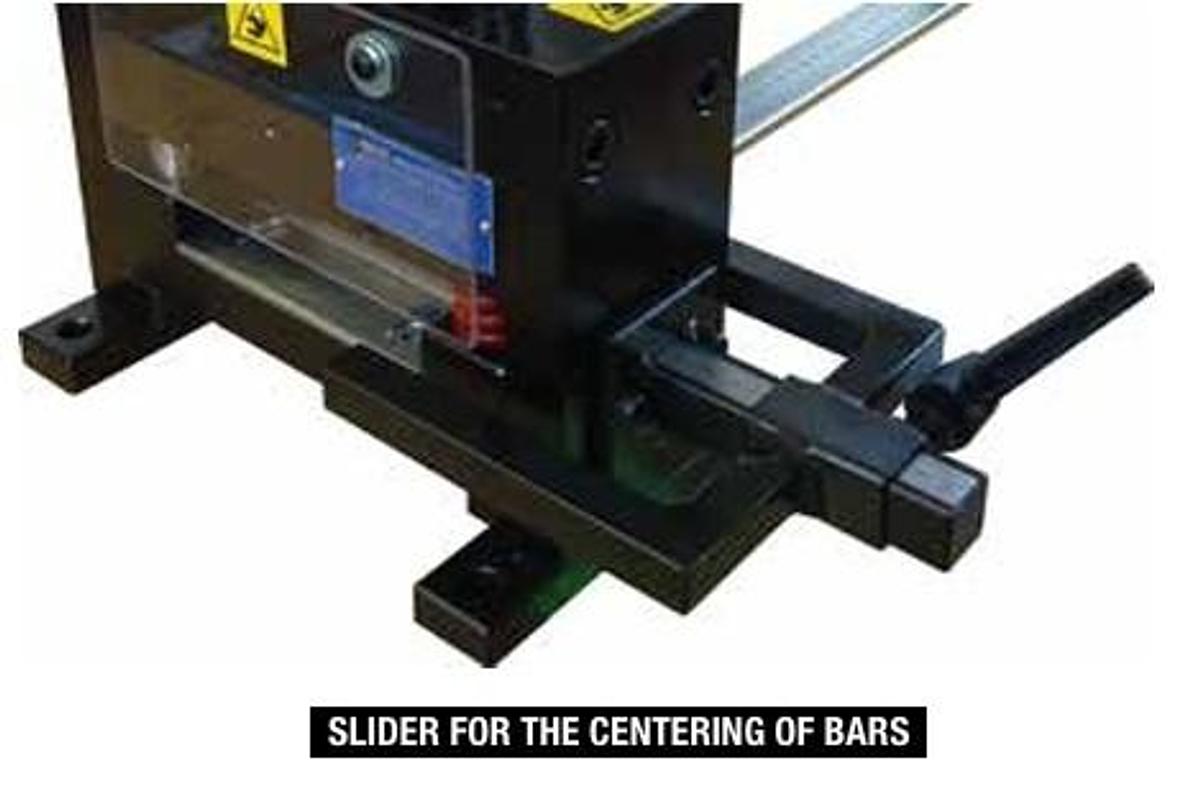

Slider for centering bars

Technical Specifications

Max Bar Thickness: 10 mm

Min Bar Thickness: 2 mm

Max Bar Width: 100 mm

Min Bar Width: 15 mm

Power: 120 kN

Dimensions: 220 x 80 x 345 mm

Weight: approx 20 kg

This cylinder can work with all IMB power units. Variations of IMB power units can be found here.
