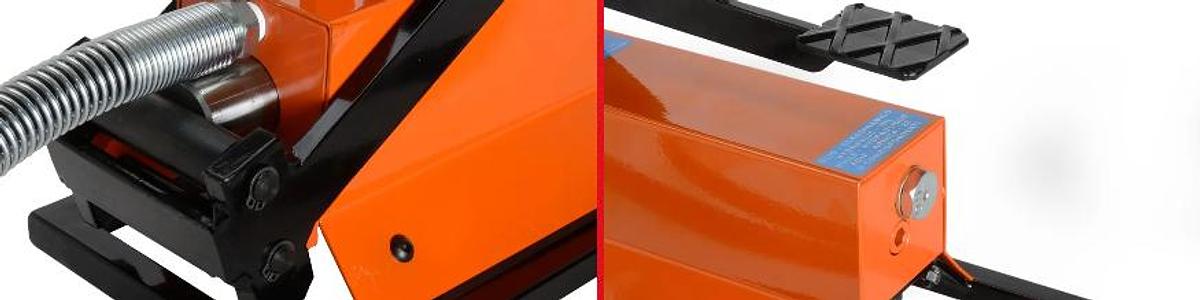

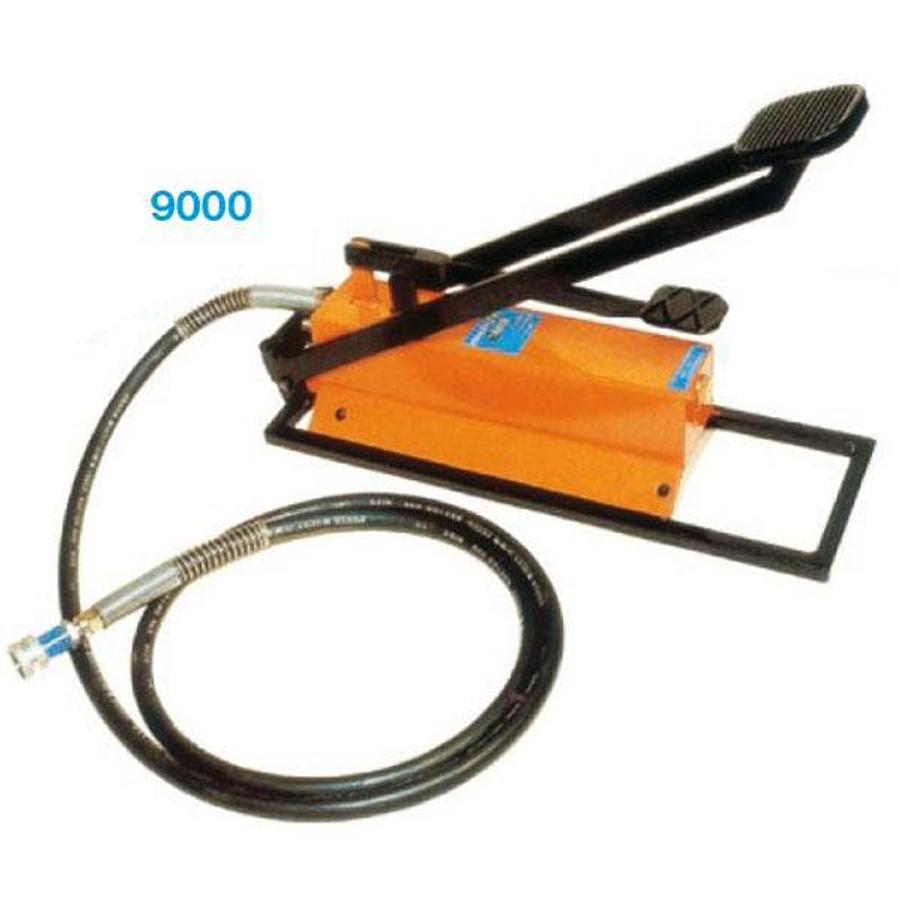

IMB Multifor 9000 Foot Pump

IMB Multifor 9000 Foot Pump

Product No.: 9000

Manufacturer: IMB Multifor

Description

The IMB Multifor 9000 Foot Pump is a hydraulic pump made completely of steel, whose internal components - pumping elements and valves - are all made of special hardened, temperated and rectified steel. It has two speeds: one is the approach speed and the second is the working speed. It has double pistons and double valves etc.

When this pump is used with crimping cylinders 9024 and 9036, its release valve enters in action. Infact when it reaches the pressure of 700 Bars, this valve allows the automatic return at zero. This operation facilitates the appropriate push foot pedal for piston return. Supplied ready to use.

Includes

2.5m Hydraulic Hose with female coupling

Technical Specifications

Max working pressure: 700 bar

Oil capacity: 0.60 lt

Max Capacity Cylinder Feed: 0.38 lt

Oil: AGIP ARNICA 22 hydraulic oil (do not use brake oil or dielectric transformer oil)

Weight: 14.5 kg

Recommended for use with:

IMB Multifor Portable Tools
