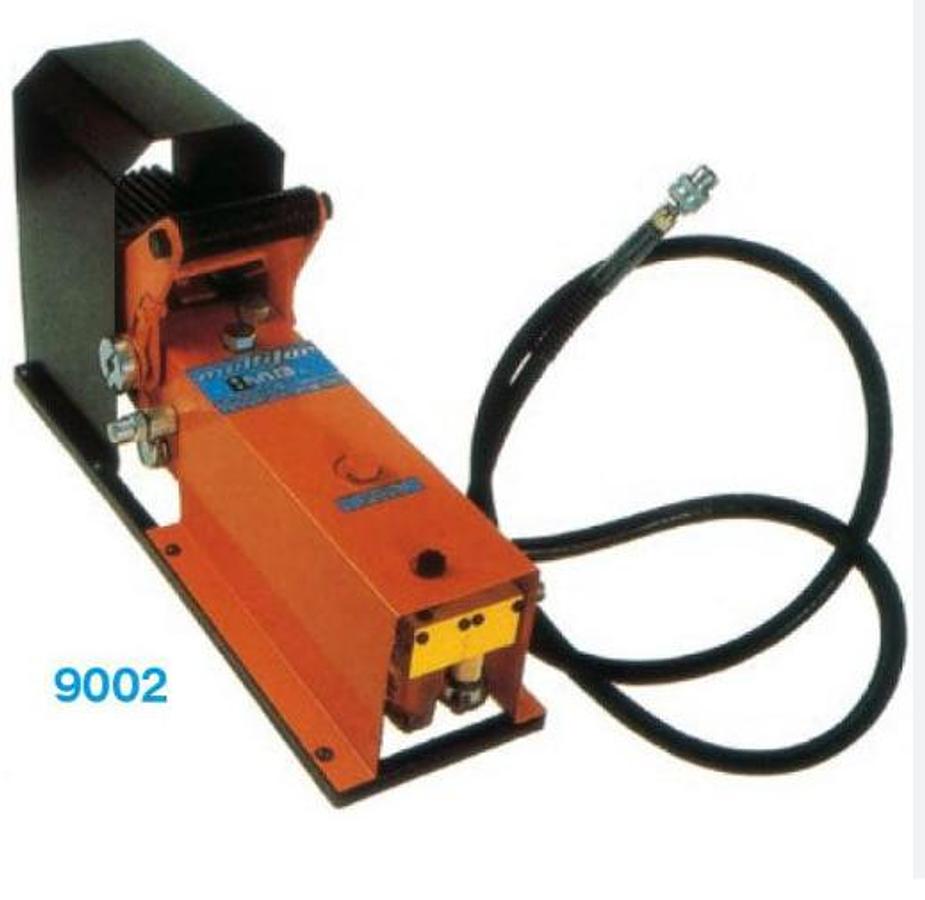

IMB Multifor 9002 Pneumatic-Hydraulic Pump

IMB Multifor 9002 Pneumatic-Hydraulic Pump

Product No.: 9002

Manufacturer: IMB Multifor

Description

The pneumatic-hydraulic pump 9002 is made with the same technology as the foot pump 9000, offering the advantage of more rapid operation as it uses compressed air to work with. It has two speeds, one for the approach and one for the working phase; it has therefore been equipped with double valves and double pistons. It is able to produce 700 bars when supplied with a constant pressure of 7-10 bars by a suitable compressor or in-house centralised installation.

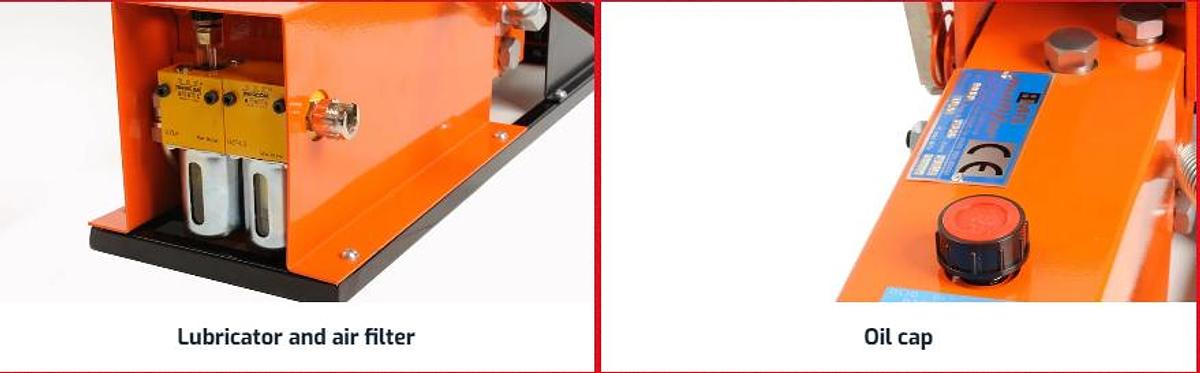

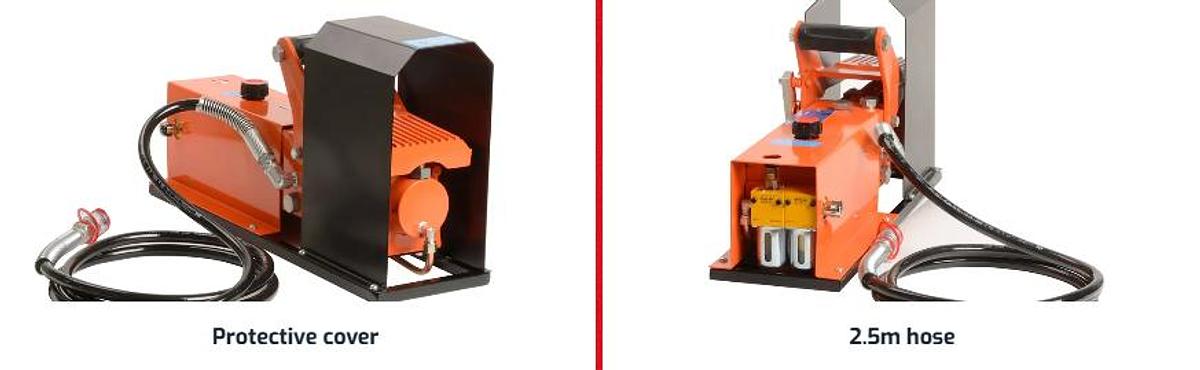

It is equipped with air filter and a lubricator already regulated. For the return, it is sufficient to reverse the movement of the foot pedal control. It is ready to use, after the assembly of the breather plug. It is recommended to have a compressor reservoir tank greater than 200 lt. It is supplied with a 2.5m hose with a female rapid connector and a protection carter.

N.B. Do not use brake or dielectric oil for the transformer.

Includes

Female rapid connector

2.5m Hose

Protection carter

Rubber handle

Technical Specifications

Max working pressure: 700 bar

Oil capacity: 1.25 lt

Air Consumption: 48 l/min

Oil: AGIP ARNICA 22 hydraulic oil (do not use brake oil or dielectric transformer oil)

Weight: 19.5 kg

Recommended for use with:

IMB Multifor Bench Equipment

IMB Multifor Portable Tools

IMB Multifor TRIS Work Units

IMB Multifor Crimping Tools
