IMB Multifor 9003 Pneumatic-Hydraulic Pump

IMB Multifor 9003 Pneumatic-Hydraulic Pump

Product No.: 9003

Manufacturer: IMB Multifor

Description

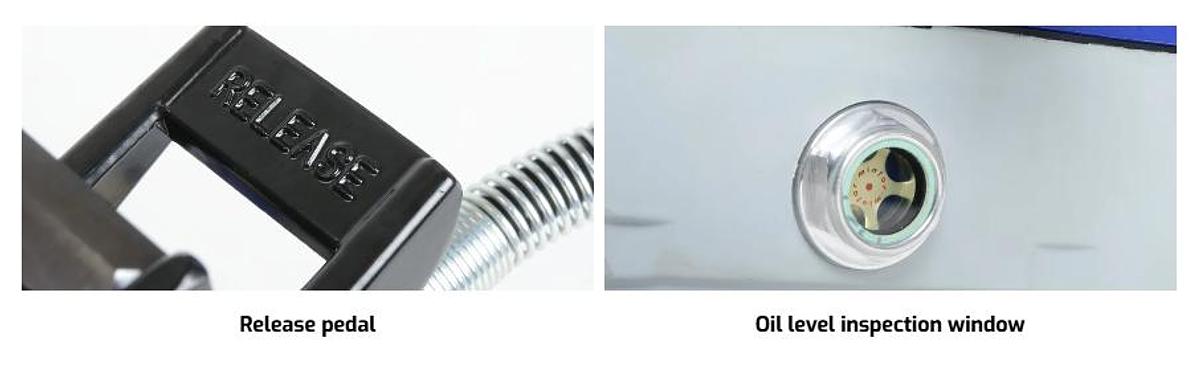

The pneumatic-hydraulic pump 9003 offers the advantage of a rapid operation as it uses compressed air. It has two speeds, one for the approach and one for the working phase. It is able to produce 700 bars when supplied with a constant pressure of 7-10 bars by a suitable compressor or in-house centralised installation. For the return, it is sufficient to reverse the movement of the foot pedal control.

It is ready to use and it is equipped with a universal rapid connector for the air. It is recommended to have a compressor reservoir tank greater than 200 lt. Complete with a female rapid connector suitable for all our tools. It is supplied with a 2.5m hose, a protection carter and a rubber handle for the transport.

N.B. Do not use brake or dielectric oil for the transformer.

Includes

Female rapid connector

2.5m Hose

Protection carter

Rubber handle

Technical Specifications

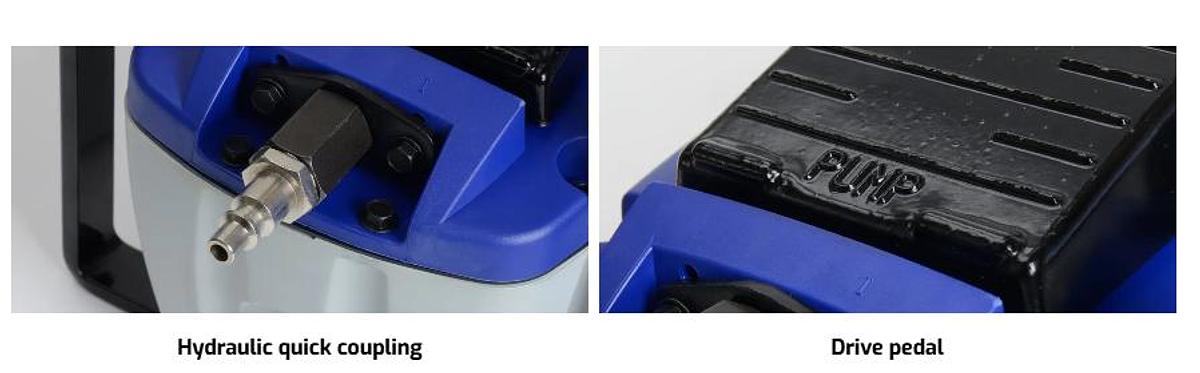

Drive: Via pedal

Max working pressure: 700 bar

Oil capacity: 2.4 lt

Compressed Air Requirement: 5-10 bar

Air Consumption: 400 l/min

Air Connection: 1/4"

Max Noise: 75 dbA

Oil: AGIP ARNICA 22 hydraulic oil (do not use brake oil or dielectric transformer oil)

Length: 410 mm

Width: 295 mm

Height: 170 mm

Weight: 12 kg
