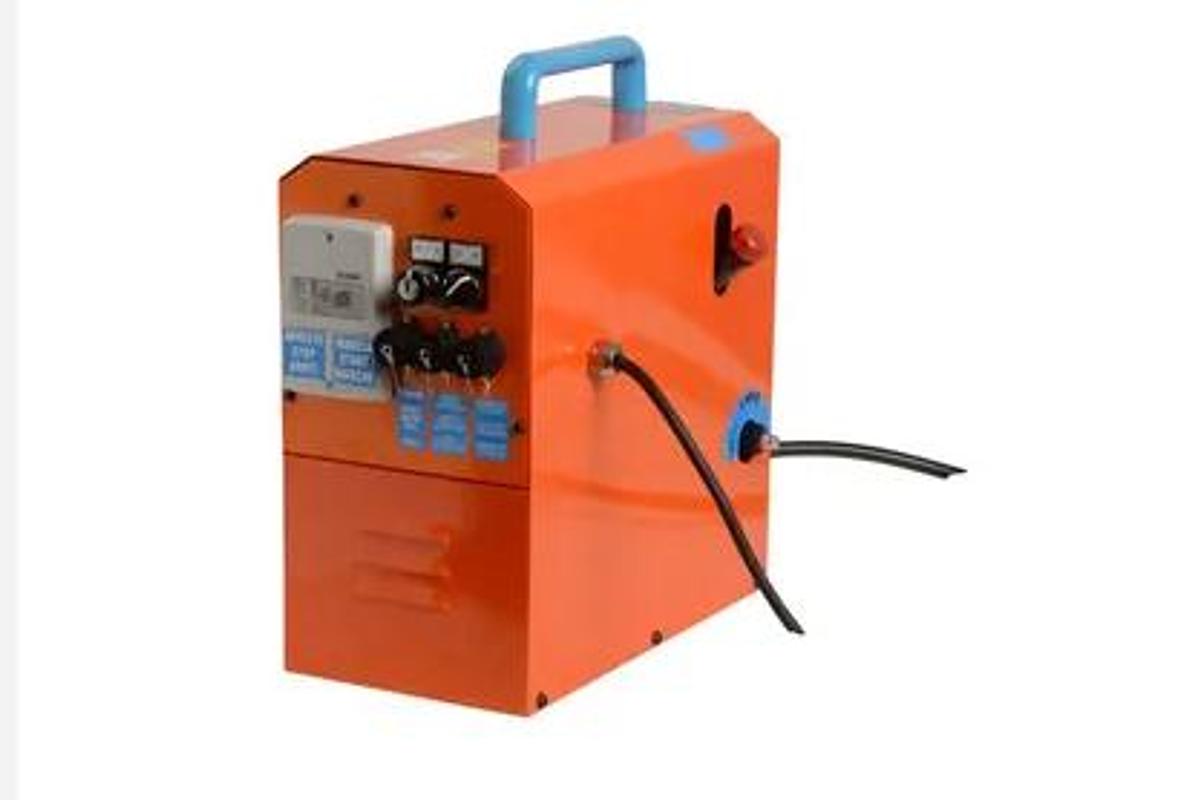

IMB Multifor 9008 ElectroHydraulic Pump

IMB Multifor 9008 ElectroHydraulic Pump

Product No.: 9008

Manufacturer: IMB Multifor

Description

These are high-pressure power units with high-precision radial piston pumps. They have been built with an electric motor in oil bath, widely tested features that ensure maximum reliability. They are available in various designs.

They come equipped with:

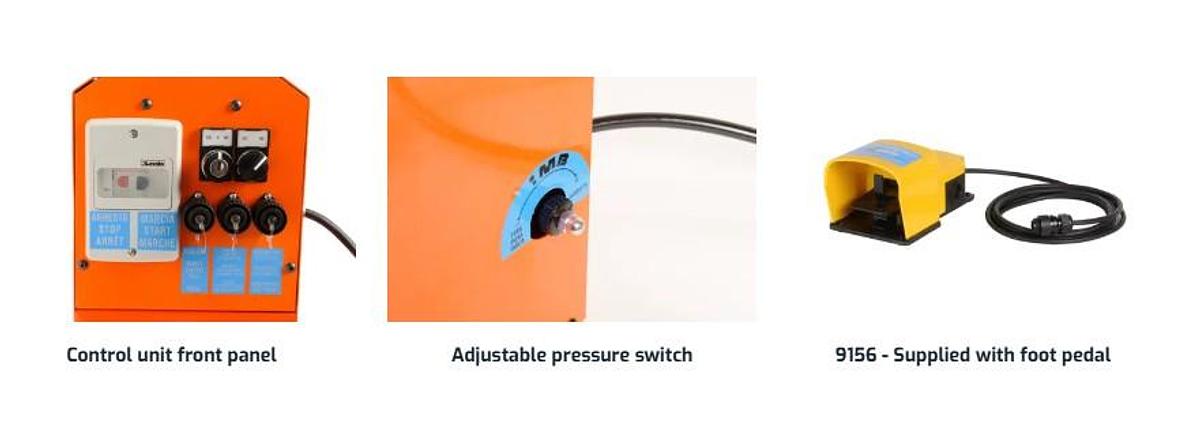

• Electrical system on printed circuit with protection fuse
• Motor protection switch
• Built-in control pedal
• Key selector switch to manage the safety system
• Pressure switch with adjustable electrical contacts which automatically stops when the pressure is reached and cylinder is subsequently returned
• Electronic protractor socket
• Socket for protection carter
• Socket for remote foot pedal control
• Safety casing socket
• Remote control pedal socket
•  24V direct current controls.

All control units come complete and ready for use, equipped with a 2.5m hose, female coupling, with AGIP ARNICA 22 oil and protective guard socket.

Technical Specification

Power supply voltage: 240V / Single Phase

Power: 0.55 KW

Max working pressure: 700 bar

Pressure: adjustable from 400-700 bar

Oil tank capacity: 2.7 lt

Max cylinder feed: 2.2 lt

Type of oil: Agip Arnica 22

Length: 420 mm

Width: 235 mm

Height: 450 mm

Weight: 33 kg

Includes

9156 - Foot Pedal

2.5m Hose

Female Coupling

Filled with Oil

Protective Guard Socket

Recommended for use with:

IMB Multifor Tris Units

IMB Multifor Hydraulic Punching Machines

IMB Multifor Bench Equipment

IMB Multifor Crimping Tools
