IMB Multifor 9023 Punching Cylinder for Flat & Angular Bars

IMB Multifor 9023 Punching Cylinder for Flat & Angular Bars

Product No.: 9023

Manufacturer: IMB Multifor

Tool Type: Punching Cylinder for Flat & Angular Bars

Description

The 9023 Punching Cylinder can be used with all MULTIFOR pumps and control units.

It is particularly practical and handy.

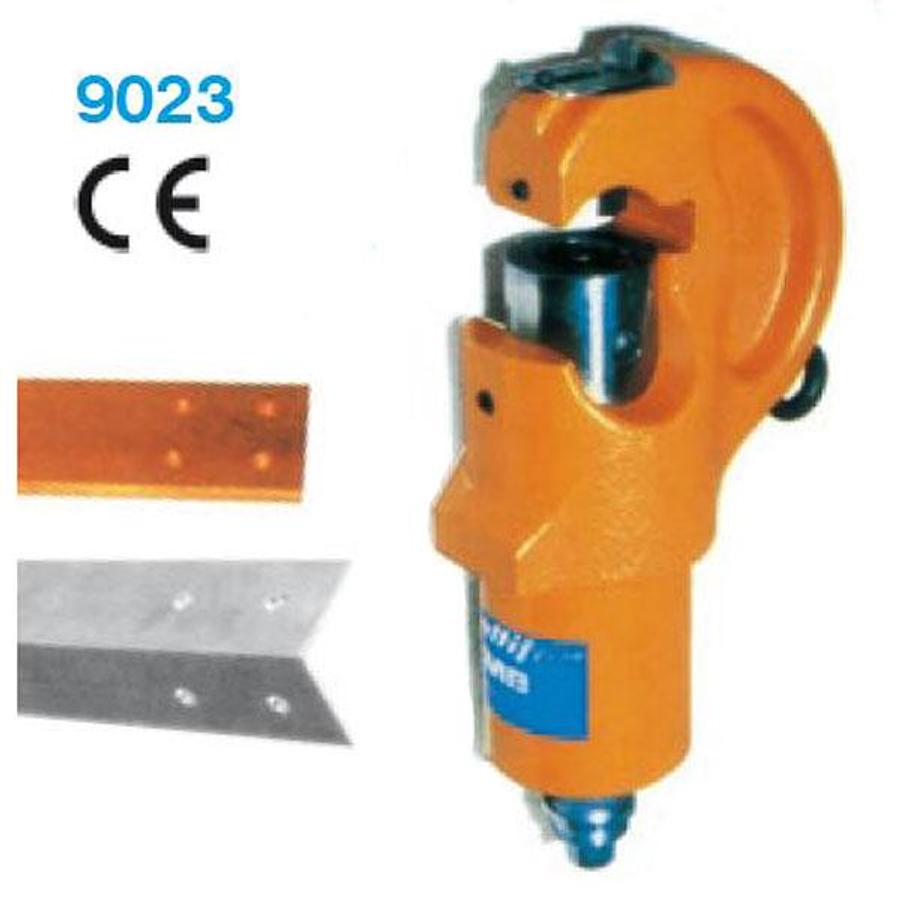

It allows the punching of flat and angular bars in difficult positions and on pylons.

It is used expecially for connections in transformer cabinets and for electrical switchboards.

This tool is very reliable like all our MULTIFOR equipments.

On request, we can realize special sizes.

For a correct use of the punches, the operator should not punch bars thicker than the diameter of the same punch.

On request, it can be supplied with 90° connector.

Includes

Metal Carry Case

Either Tool Set 9023D or 9023P

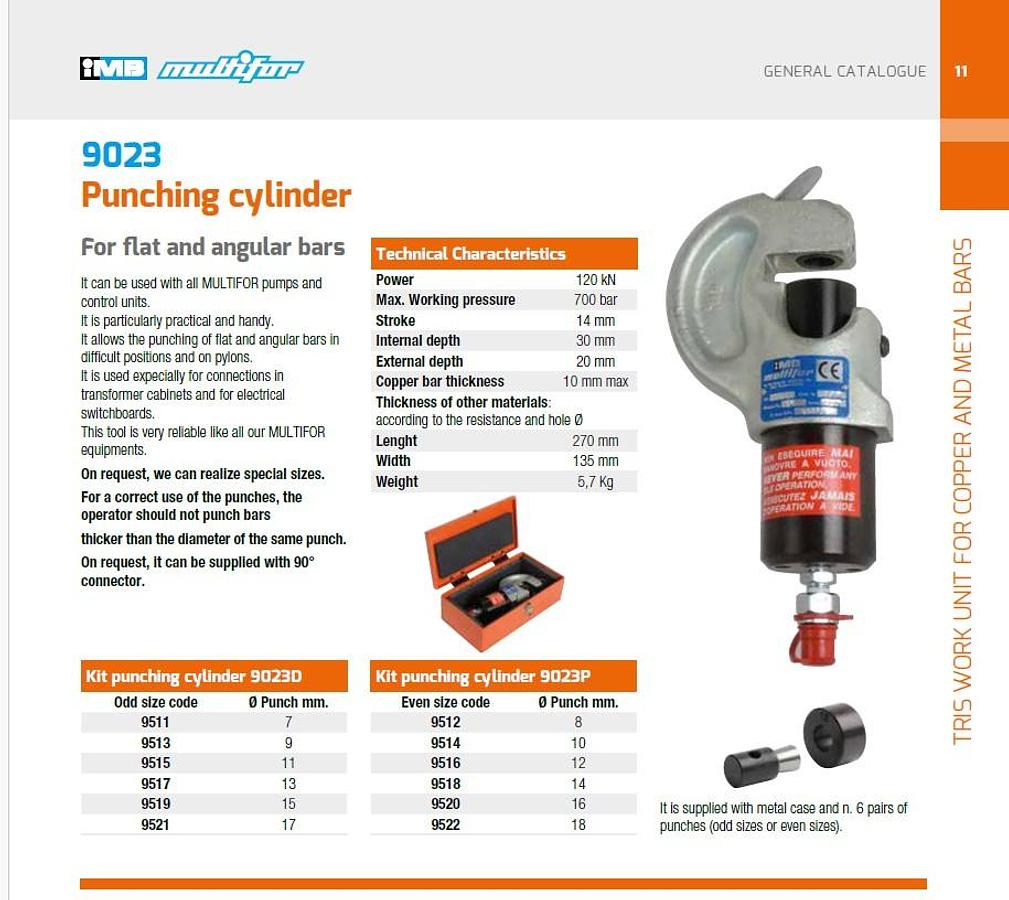

Technical Specification

Power: 120 kN

Max. Working pressure: 700 bar

Stroke: 14 mm

Internal depth: 30 mm

External depth : 20 mm

Min Punch Dia: 7 mm

Max Punch Dia: 18mm

Copper bar thickness: 10 mm max

Thickness of other materials: according to the resistance and hole Ø

Length: 270 mm

Width: 135 mm

Weight: 5.7 Kg

Tool Sets

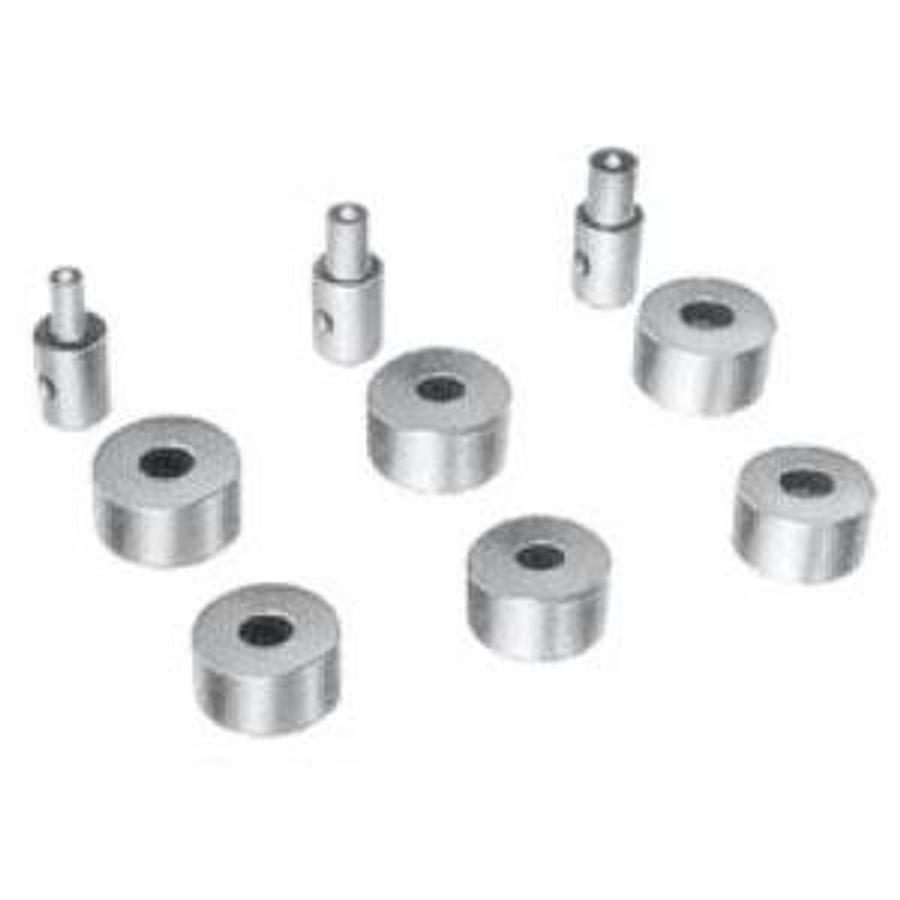

9023D - Punching Cylinder Kit

6 x Round Punches & Dies (Odd Sizes)

9511 - 7mm

9513 - 9mm

9515 - 11mm

9517 - 13mm

9519 - 15mm

9521 - 17mm

9023P - Punching Cylinder Kit

6 x Round Punches & Dies (Even Sizes)

9512 - 8mm

9514 - 10mm

9516 - 12mm

9518 - 14mm

9520 - 16mm

9522 - 18mm

Recommended Pumps can be found here
