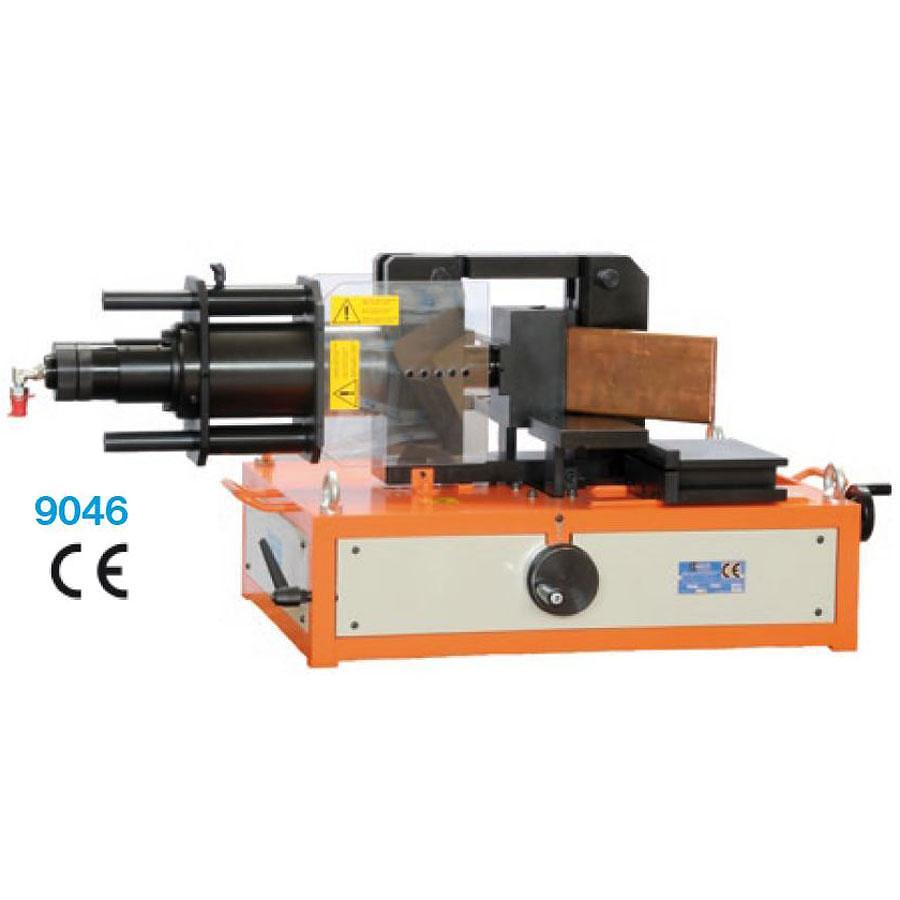

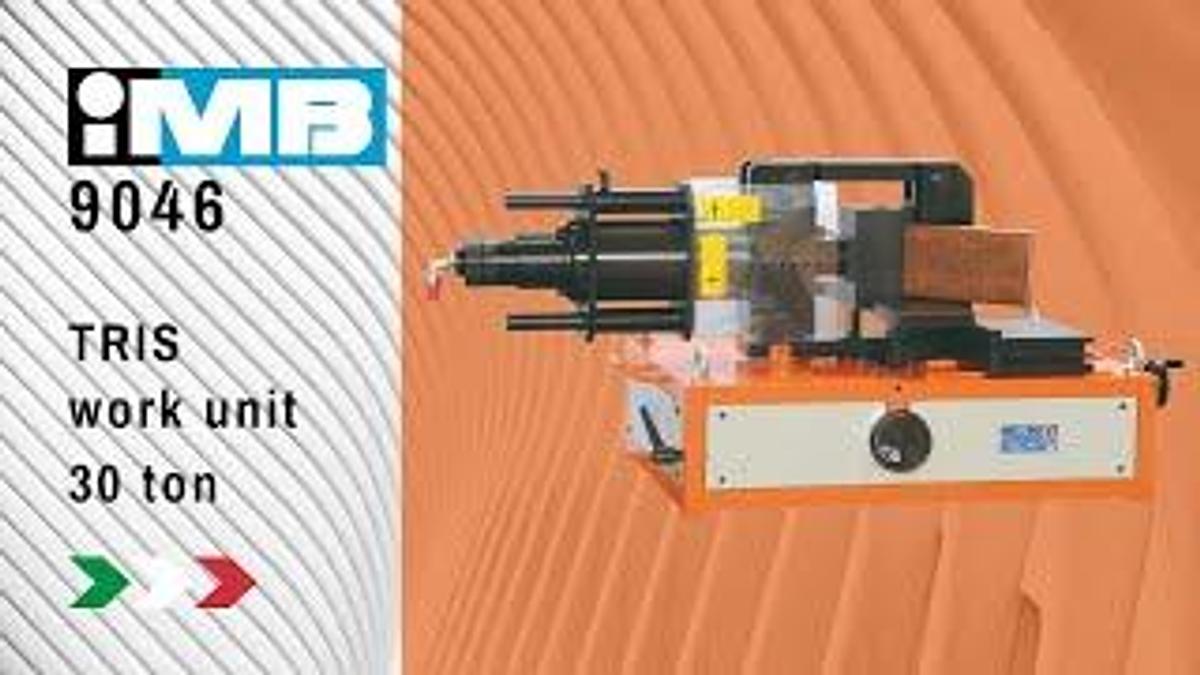

IMB Multifor 9046 TRIS 30Ton Work Unit for Busbar Fabrication

IMB Multifor 9046 TRIS 30Ton Work Unit for Busbar Fabrication

Product No.: 9046

Manufacturer: IMB Multifor

Product Type: TRIS 30Ton Work Unit for Busbar Fabrication

Description

It is larger and more powerful than unit 9042. The unit 9046 is recommended for processing large size bars, larger than the standard ones. This unit has a 30 tons cylinder that allows to work bars up to 200x20 mm.

It is also possible to make special tools for punching four holes in one operation. It is supplied with 1 meter ruler, protection carter and adapters for the use of 9042 standard tools. On request we can realize special punches for specific workings.

Equipment such as punches, tools and accessories for TRIS units are suitable for small and large projects and help make things easier for operators practically and for saving time.

Specifically, the TRIS 9042 can be used with Multifor pumps and control units. This equipment is considerably versatile as it can carry out many different processes. The TRIS is made up of a single-acting hydraulic cylinder which has:

• A practical tool change system
• One side which is hinged and can be opened completely that allows bars to be inserted and taken our simply and quickly
• A stem-mount gauge in millimetres that controls the tool stroke and helps with machining repetition without error
• A protractor for reading the angle during bending operations (on request). This allows you to carry out repetitive work without having to check measurements or angles every time.

To obtain maximum working precision as well as to save on processing times, this tool is specially designed and logically and practically manufactured. It comes with all adjustments and references to quickly position the bars or to carry out necessary machining without having to trace or mark.

Technical Specfications

Power: 300 kN

Maximum working pressure: 700 Bar

Stroke: 65 mm

Adjustable stroke: 50 mm

Amount of oil required for full stroke: 0.300 lt.

Punching Capacity: in bars up to 15mm thickness

Cutting Capacity: 160 x 15mm

Bending Capacity: 200 x 20mm

Length: 1200 mm

Width: 700 mm

Height: 520 mm

Weight: 192 kg

Punching, bending, cutting copper bars, metal shapes and DIN metal shapes, all just with one Tris fabrication unit

Punching

Material Type: Copper, aluminium or steel bars

Max Thickness: 15 mm

Round Holes: From Ø 5 to Ø 25 mm

Slot/Oblong Holes: From 7 x 13 mm to 18 x 25 mm

Equidistant punching can be carried out on bars of max. 120 mm.

The holes are made using special punches that extract automatically from the bar.

Bending

Material Type: Copper, aluminium or steel bars

Max Thickness: 20mm

Min Thickness: 3mm

Max Width: 200mm

Cutting

Material Type: Copper, aluminium or steel bars

Max Thickness: 15mm

Min Thickness: 5mm

Max Width: 160mm

** Requires an Electro-Hydraulic Pump for use. Not included in supply.

Recommended Pumps can be found here

Tooling & Accessories can be found here
