2005 Griggio T220 Spindle Moulder with Comatic AF/34 Feeder

2005 Griggio T220 Spindle Moulder with Comatic AF/34 Feeder

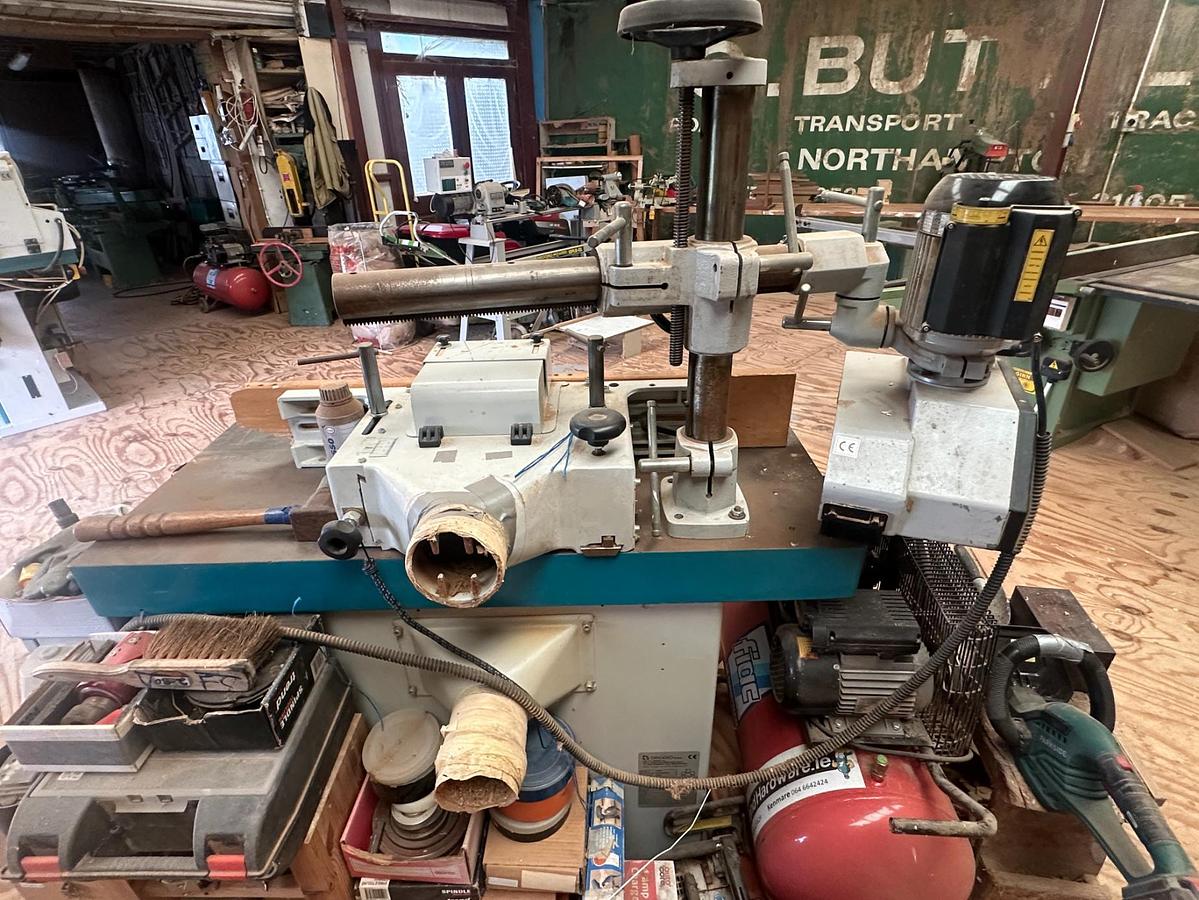

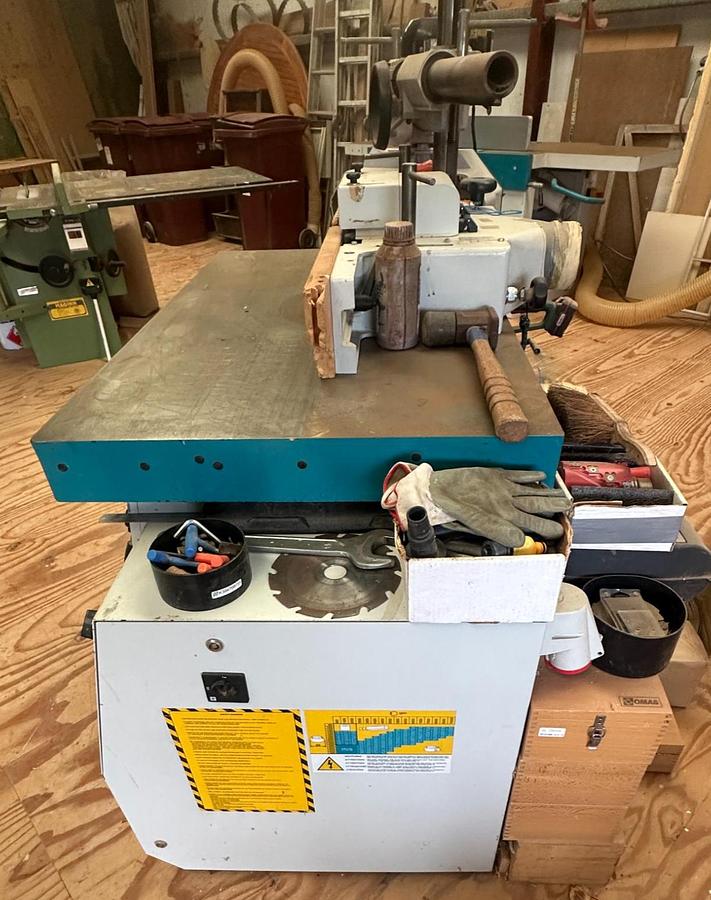

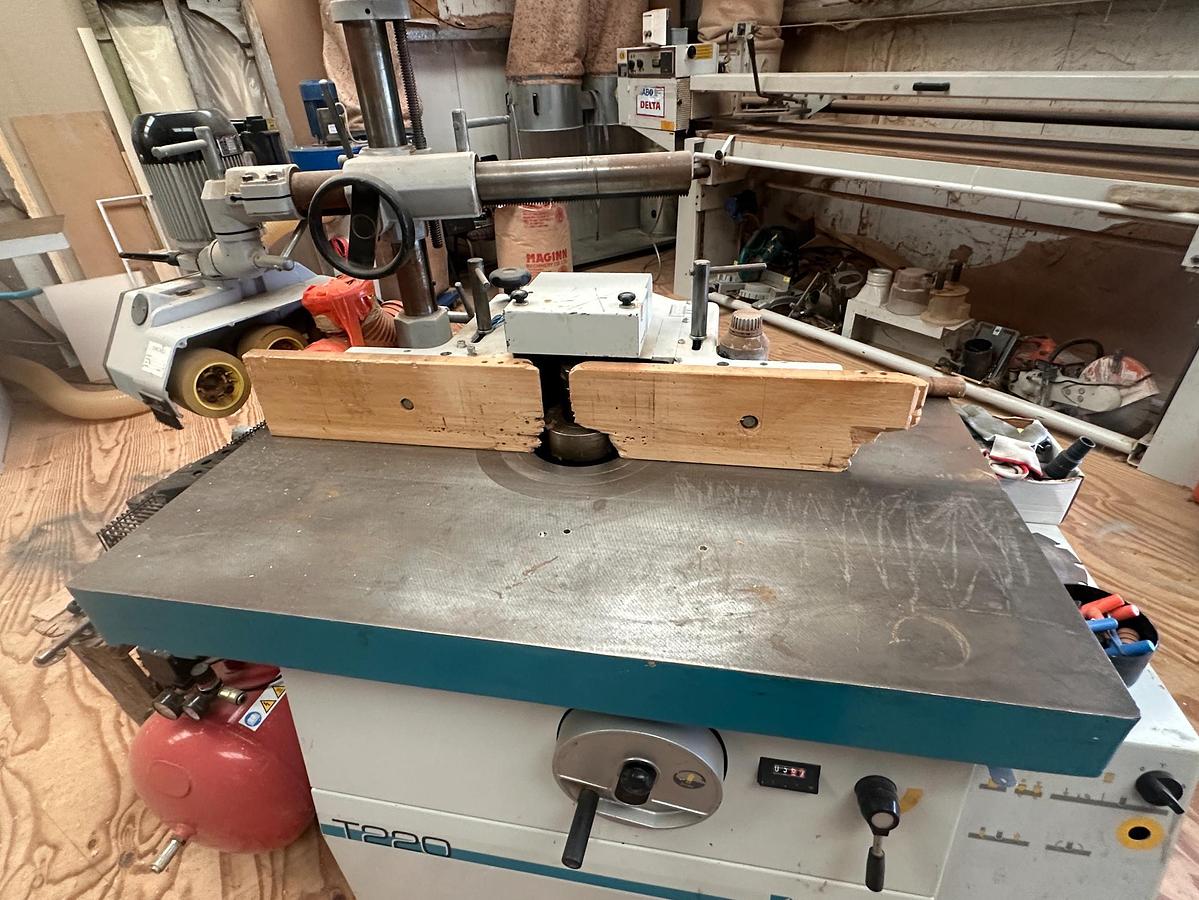

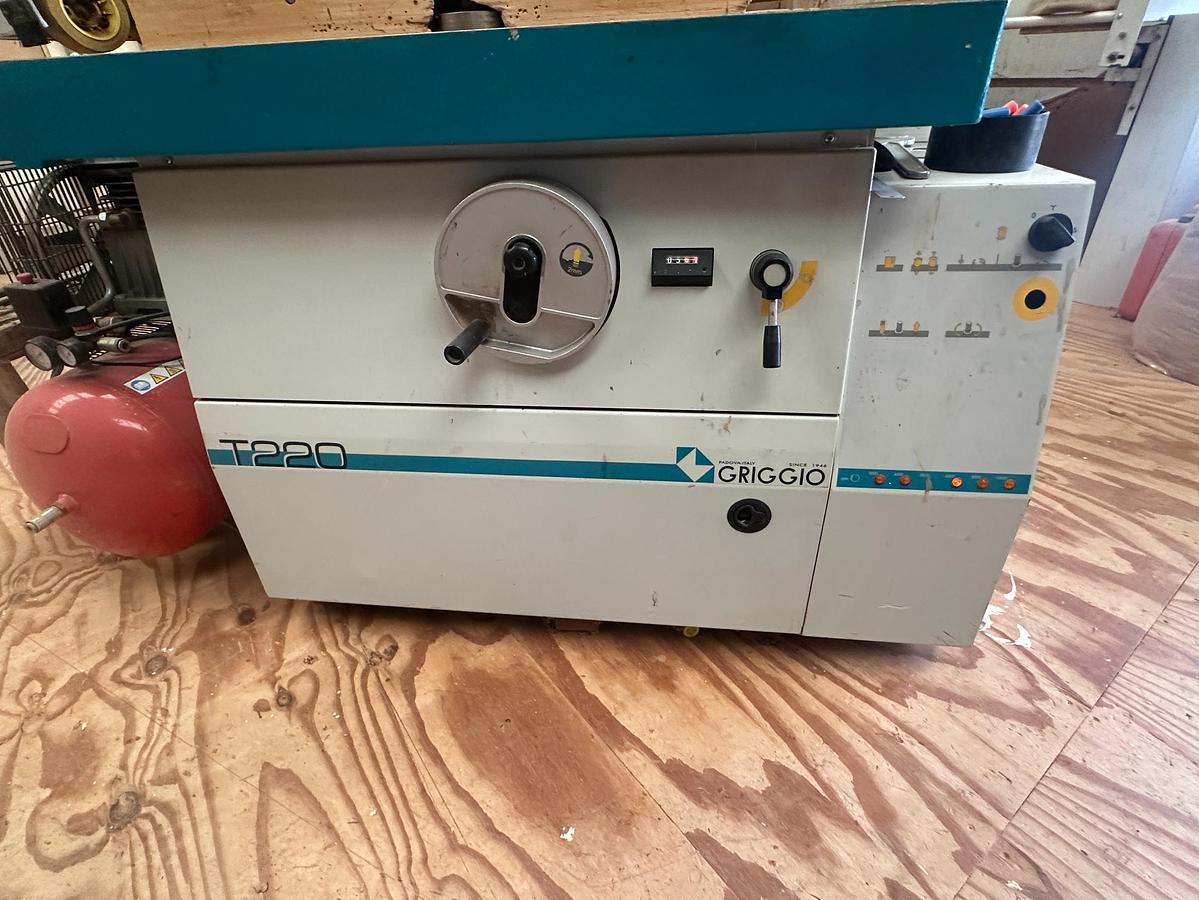

2005 Griggio T220 spindle moulder in good condition with Comatic AF/34 feeder. 7.5kW motor, 3-phase 400V, 5 spindle speeds, 1200x730mm table. Extra tooling package available.

Heavy-Duty Industrial Spindle Moulder / Tischfräse – Made in Italy

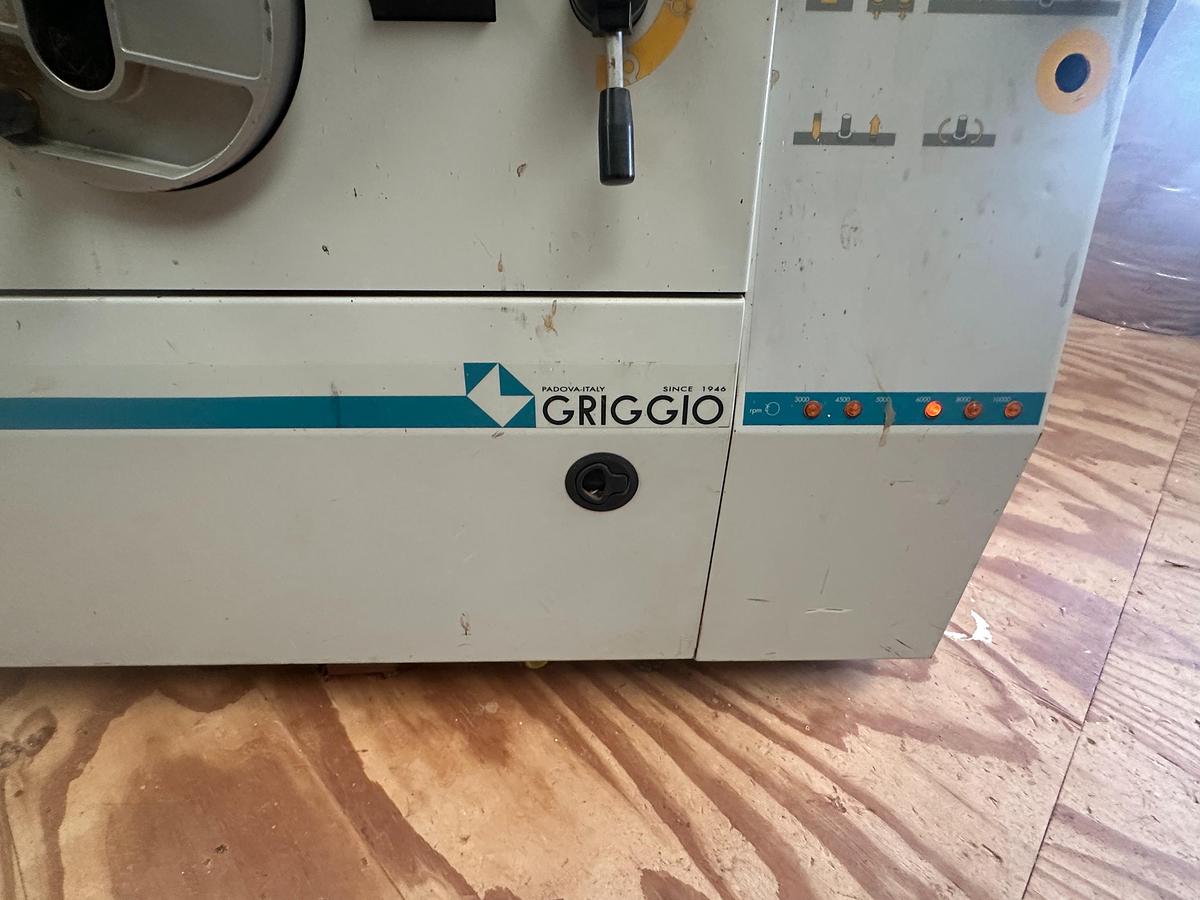

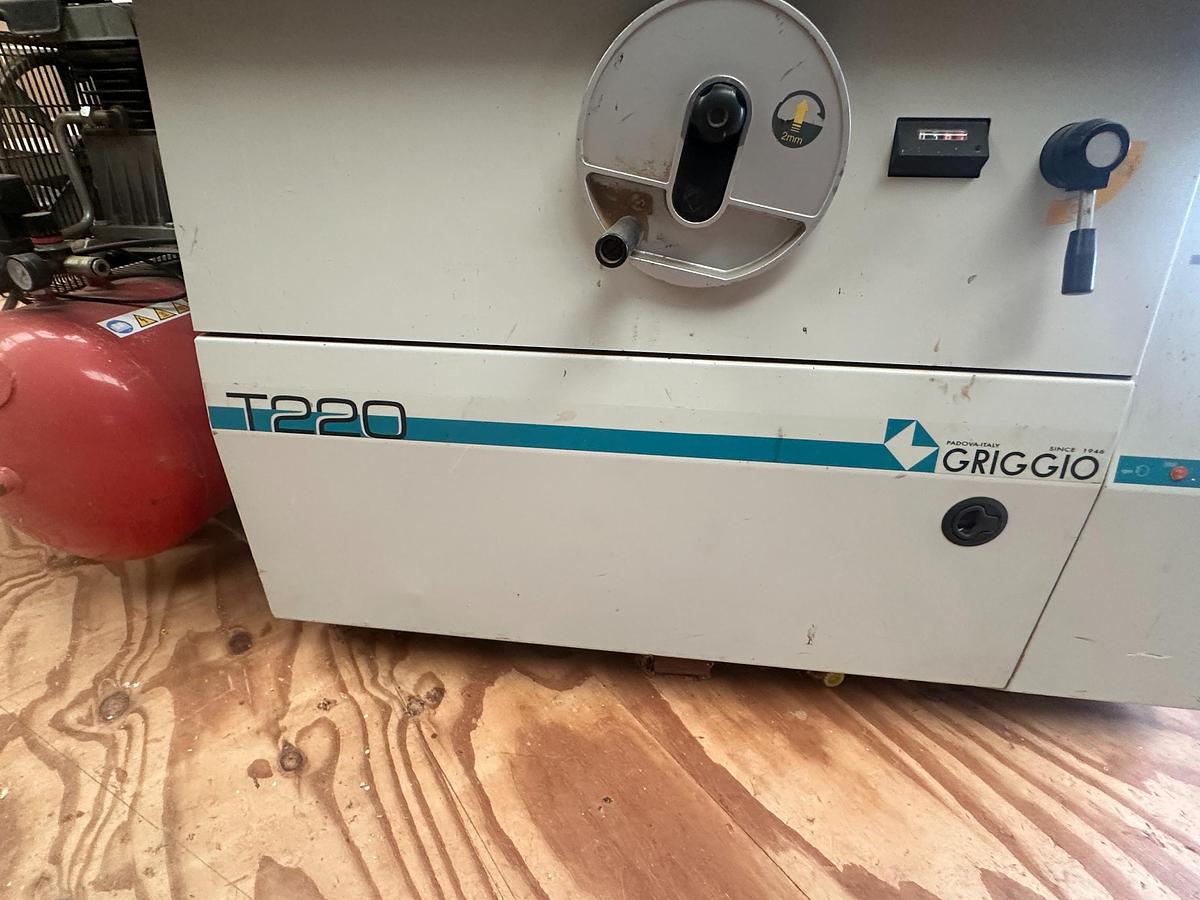

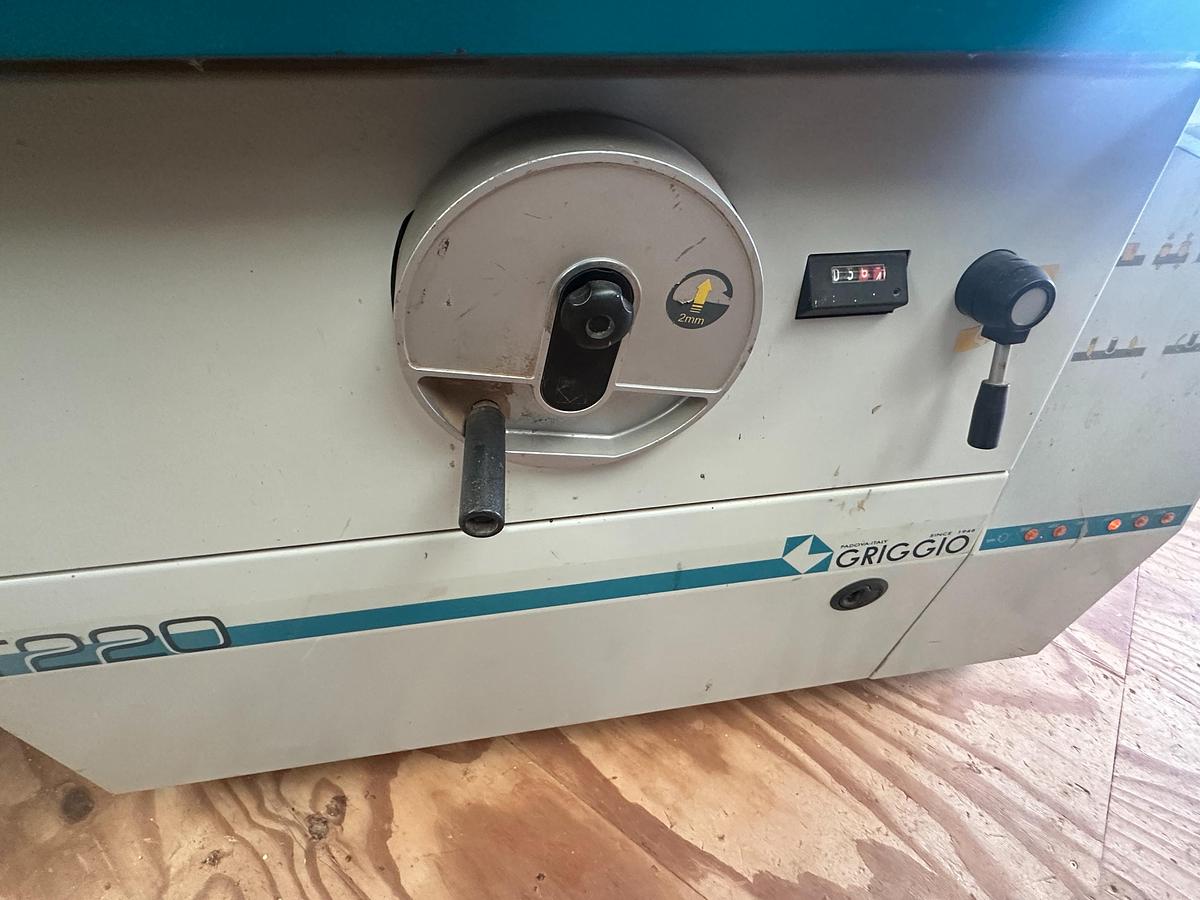

Now available this 2005 Griggio T220 Spindle Moulder is a strong, reliable, professional machine designed for precision moulding, profiling and joinery work.

This machine is supplied with a Comatic AF/34 power feeder, making it ideal for safe, accurate and consistent feeding on production runs.

✅ Key Features

• ✔️ Griggio T220 spindle moulder (2005)
• ✔️ Comatic AF/34 feeder included
• ✔️ 7.5kW (10HP) industrial motor
• ✔️ 3 Phase, 400V power supply
• ✔️ 5 spindle speeds + inverter speed range
• ✔️ Heavy cast construction
• ✔️ Excellent for joinery, mouldings, doors, windows and custom profiles

⚙️ Machine Specifications (Griggio T220)

🔹 General

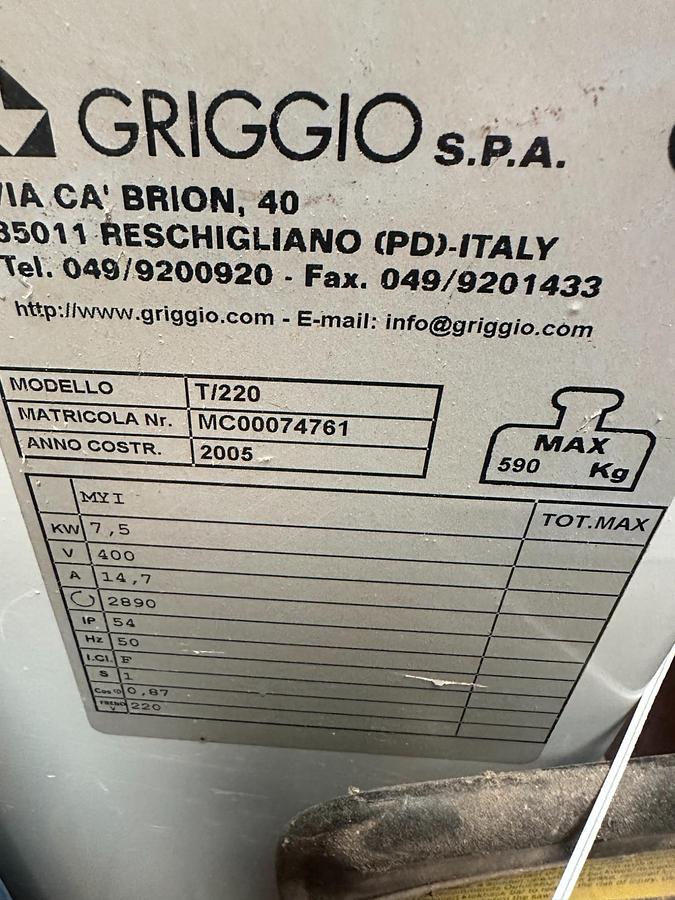

• Manufacturer: Griggio S.p.A. (Italy)
• Model: T/220
• Year: 2005
• Serial No.: MC00074761
• Machine Weight (max): 590 kg

🔹 Electrical / Motor

• Main Motor Power: 7.5 kW
• Voltage: 400V
• Current: 14.7A
• Frequency: 50Hz
• Motor Speed: 2890 rpm
• Protection Class: IP54
• Duty: S1

🔹 Spindle & Tooling Capacity

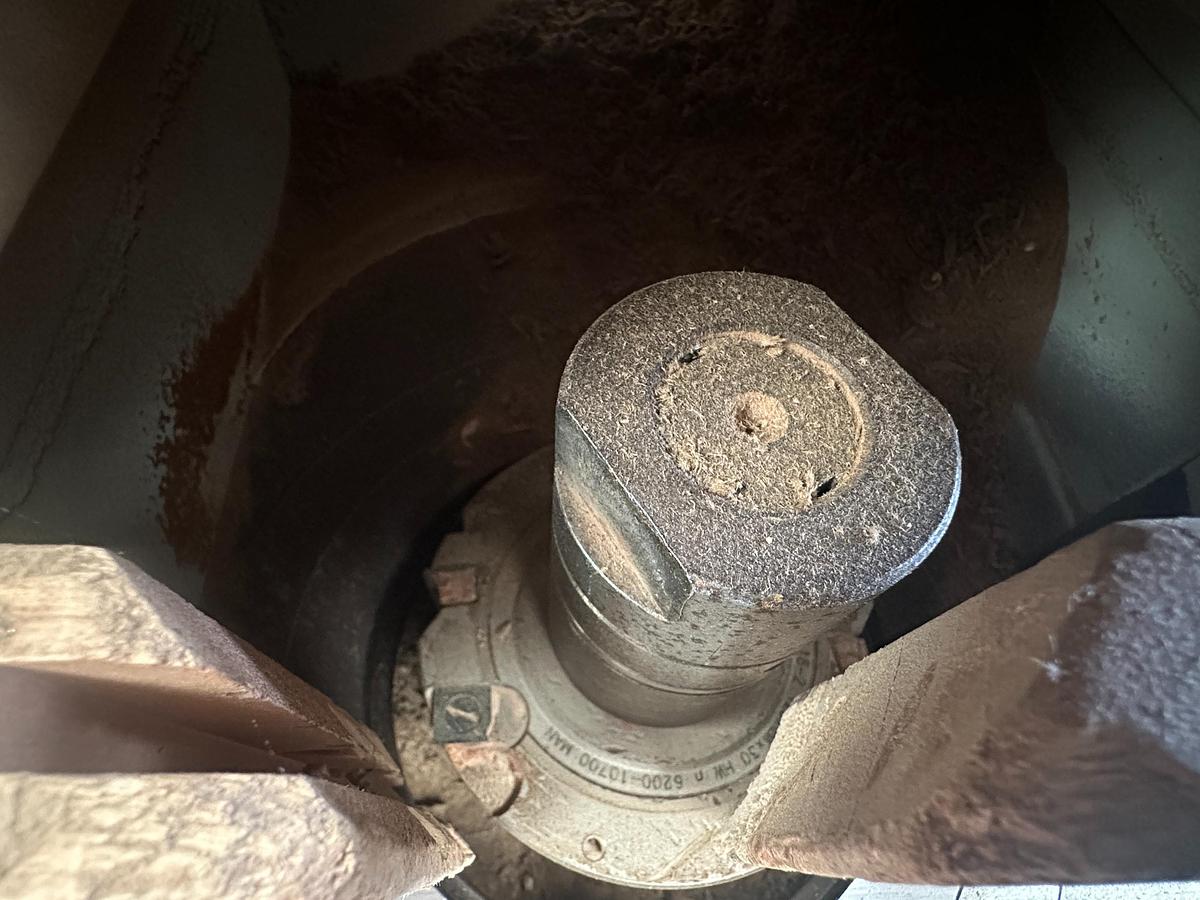

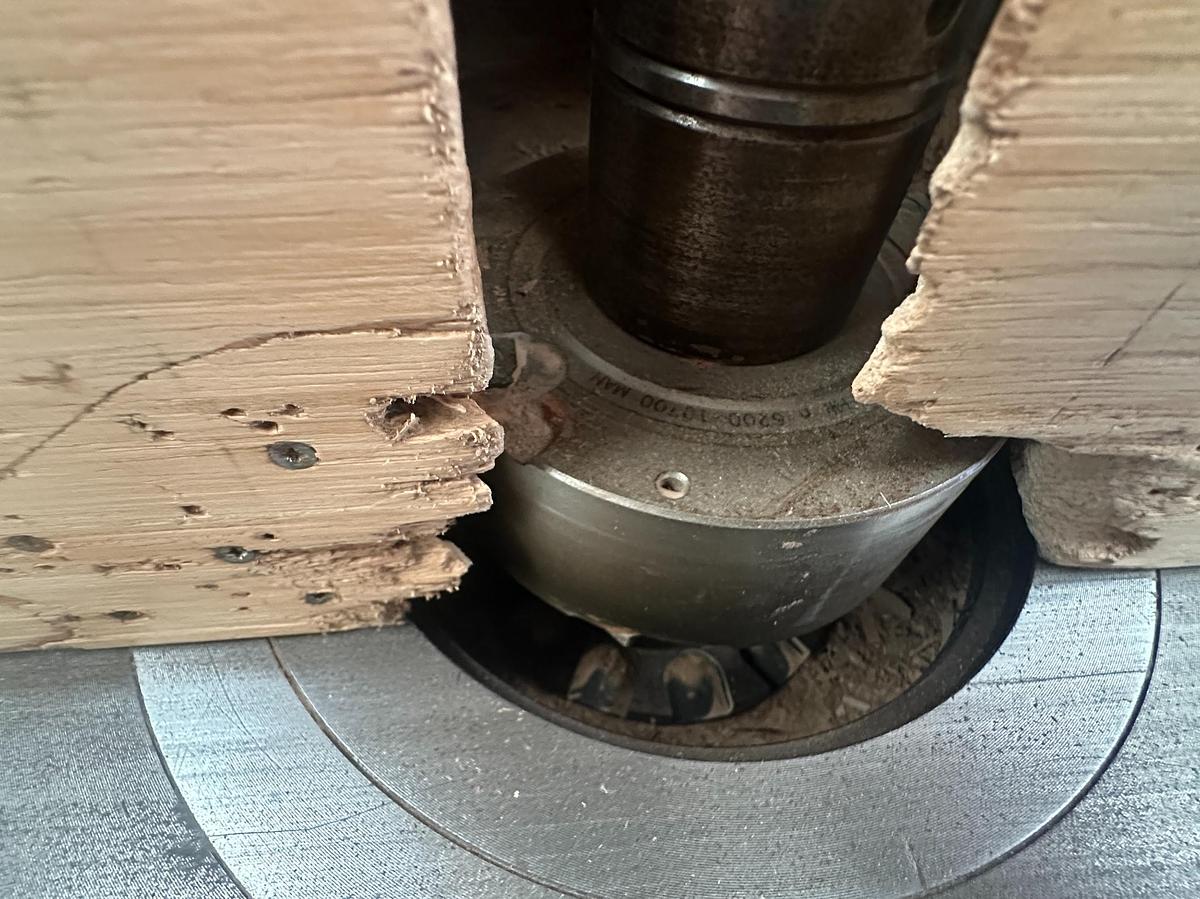

• Spindle useful length:
• 140 mm (Ø30–35 mm spindle)
• 180 mm (Ø40–50 mm spindle)

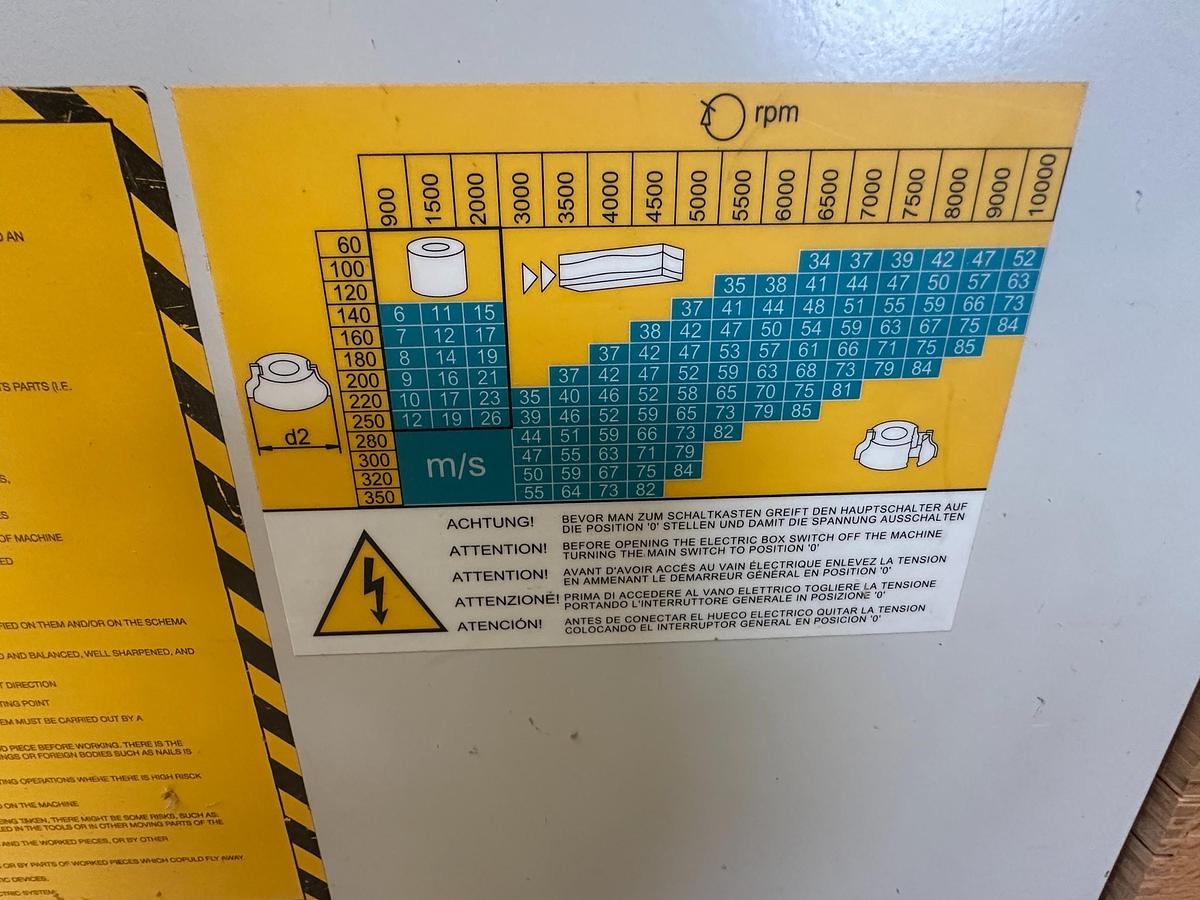

• 5 Standard Spindle Speeds: 3000 / 4500 / 6000 / 8000 / 10000 rpm
• Inverter speed range (optional system): 900–12000 rpm

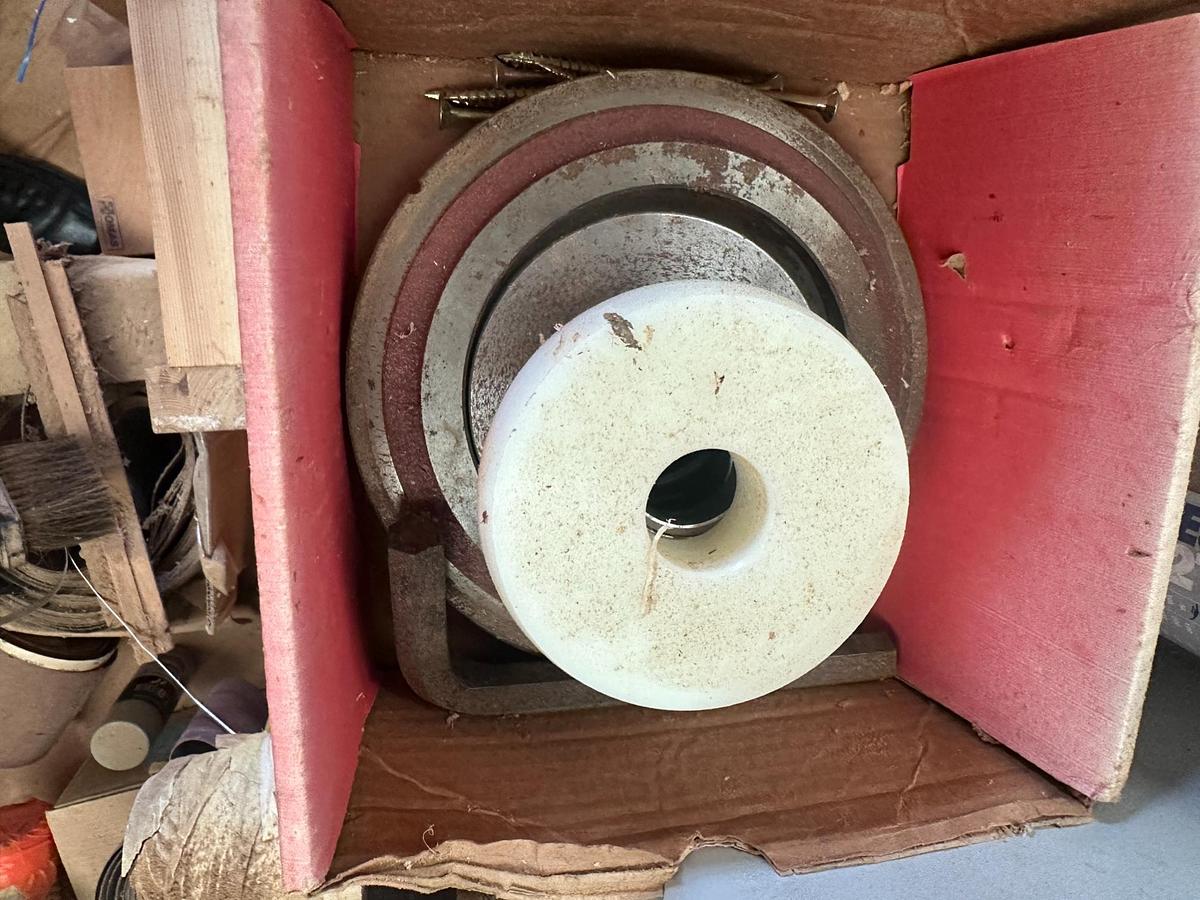

• Table ring diameters: 115 / 170 / 220 / 270 mm
• Maximum profiling tool diameter: 260 mm
• Maximum tenoning tool diameter over table: 350 mm
• Maximum tool size re-entering under table: 320 x 90 mm

🔹 Table & Working Area

• Working table dimensions: 1200 x 730 mm
• Tenoning sliding table size (T version): 900 x 330 mm
• Table tilt (T version): +60° to -60°
• TR tenoning table size: 750 x 300 mm

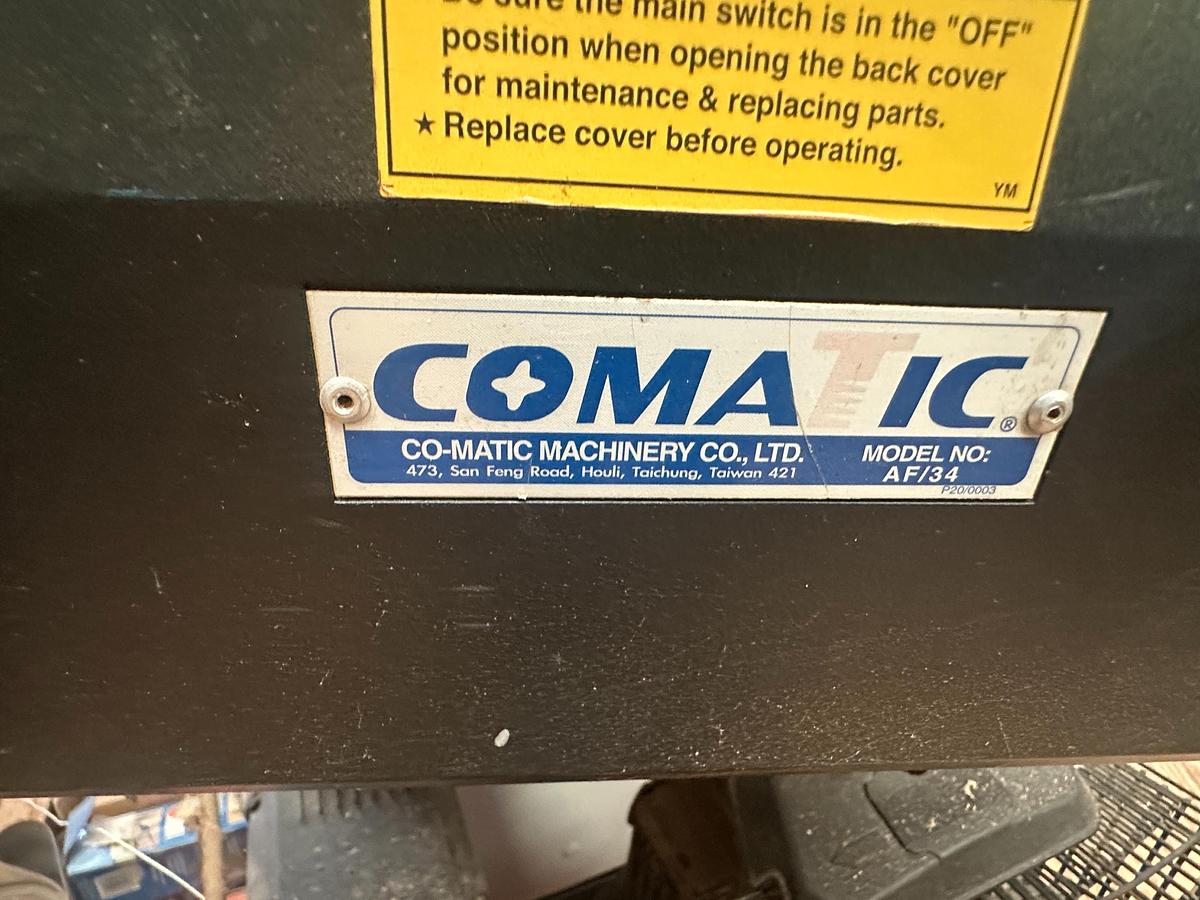

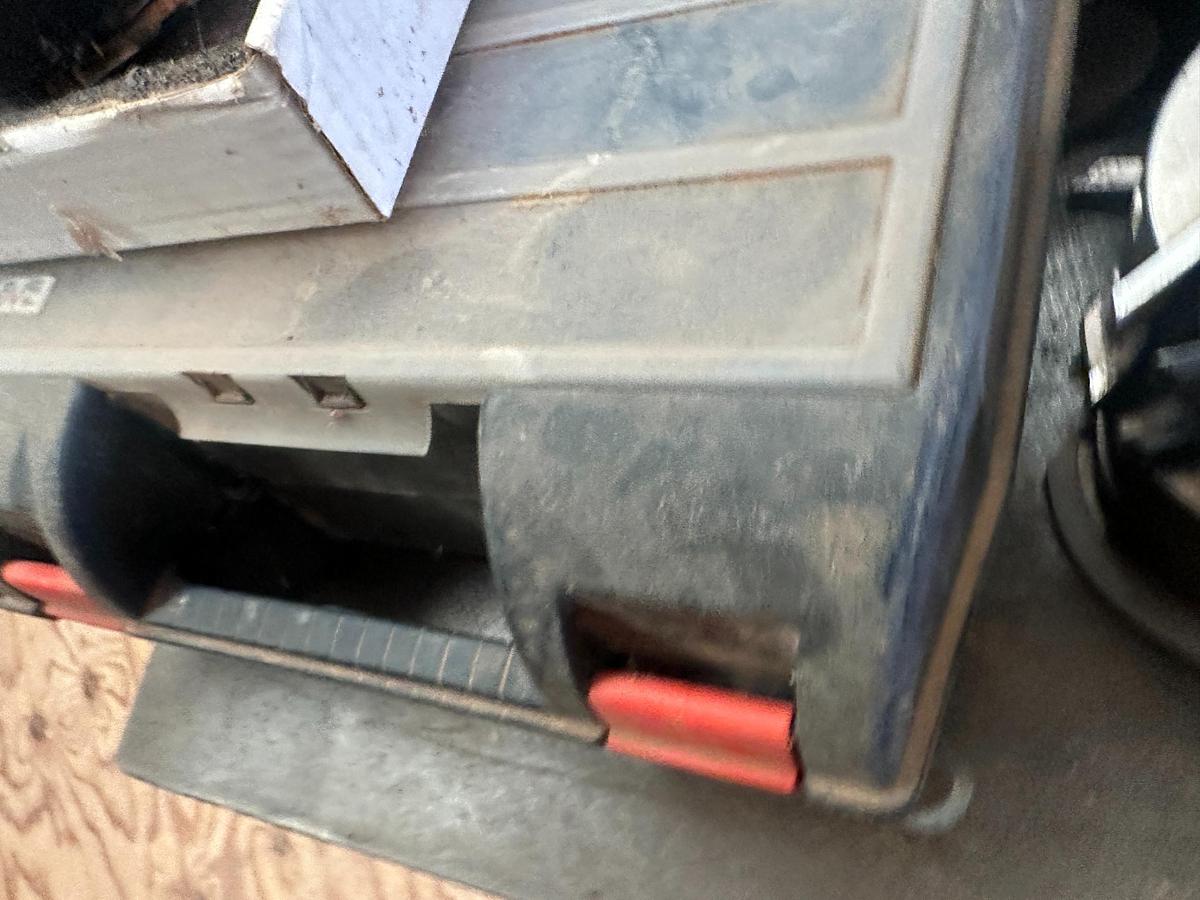

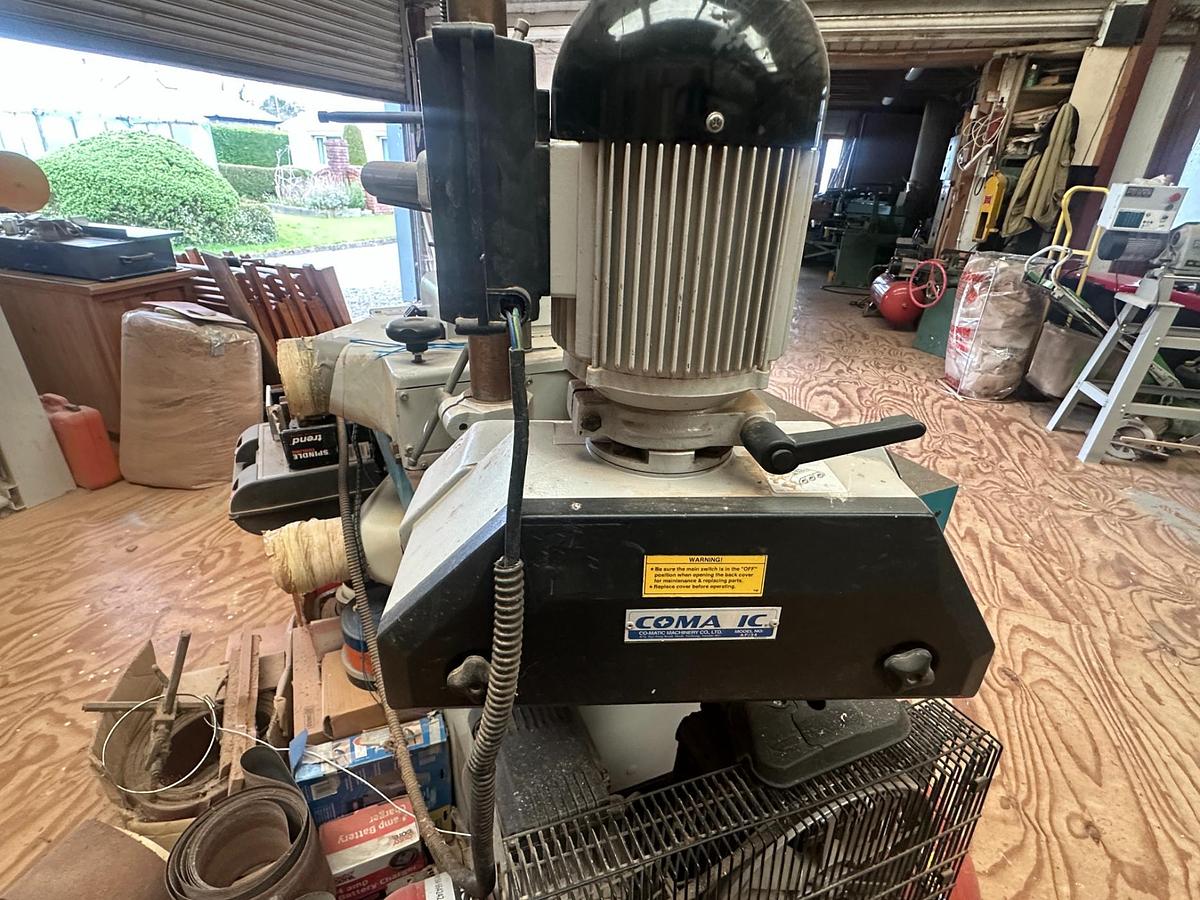

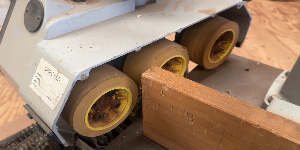

⚙️ Comatic AF/34 Feeder (Included)

The machine is supplied with a Comatic AF/34 power feeder, ideal for:

• Safe and consistent feeding of timber
• Improved finish quality
• Reduced operator fatigue
• Better repeatability on moulding and profiling work

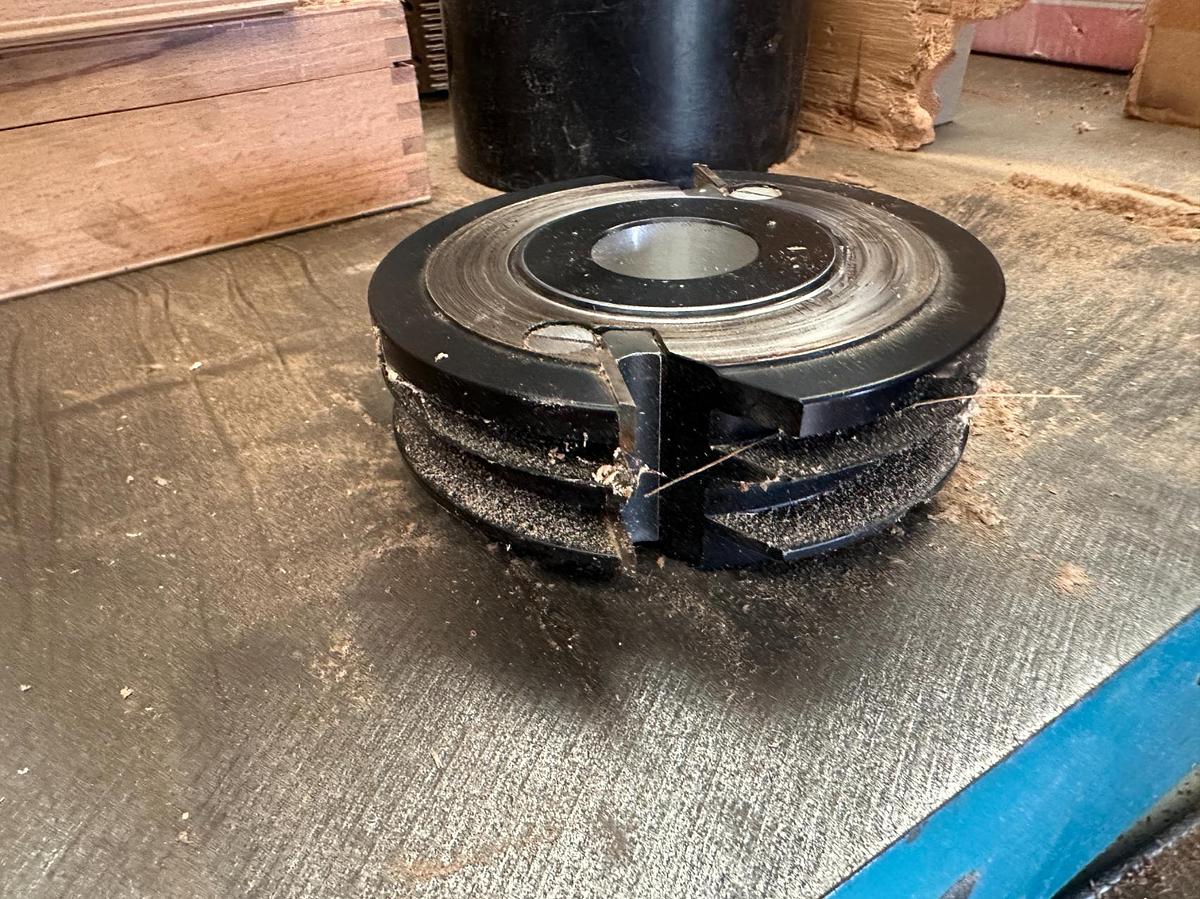

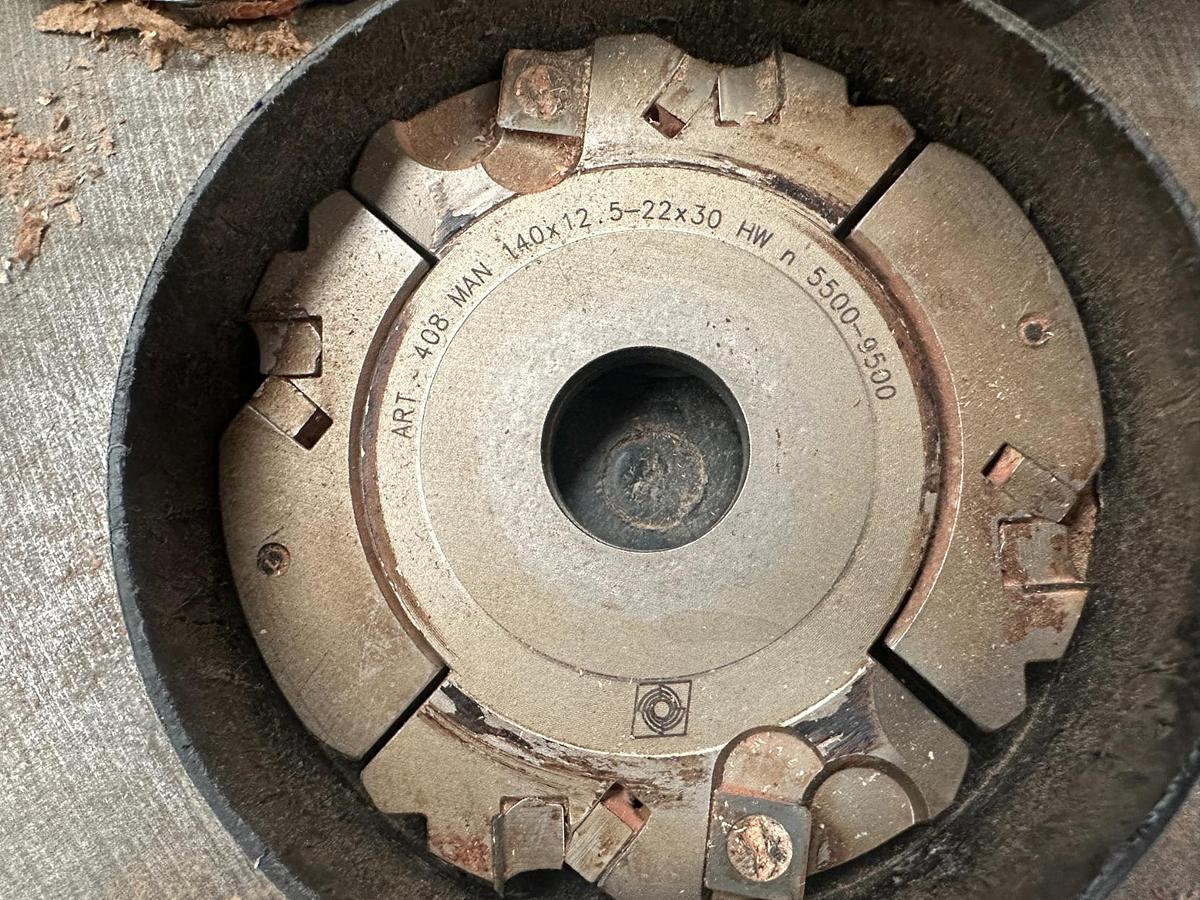

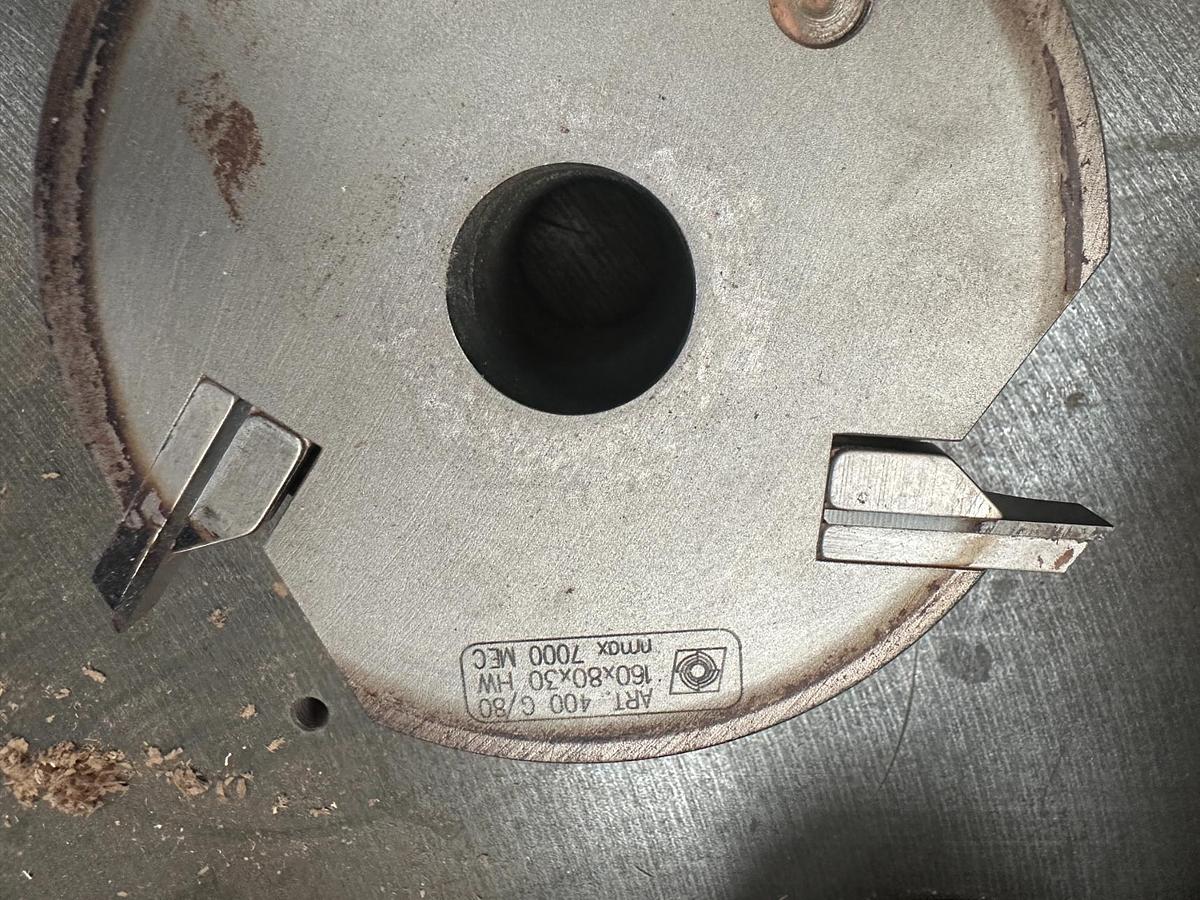

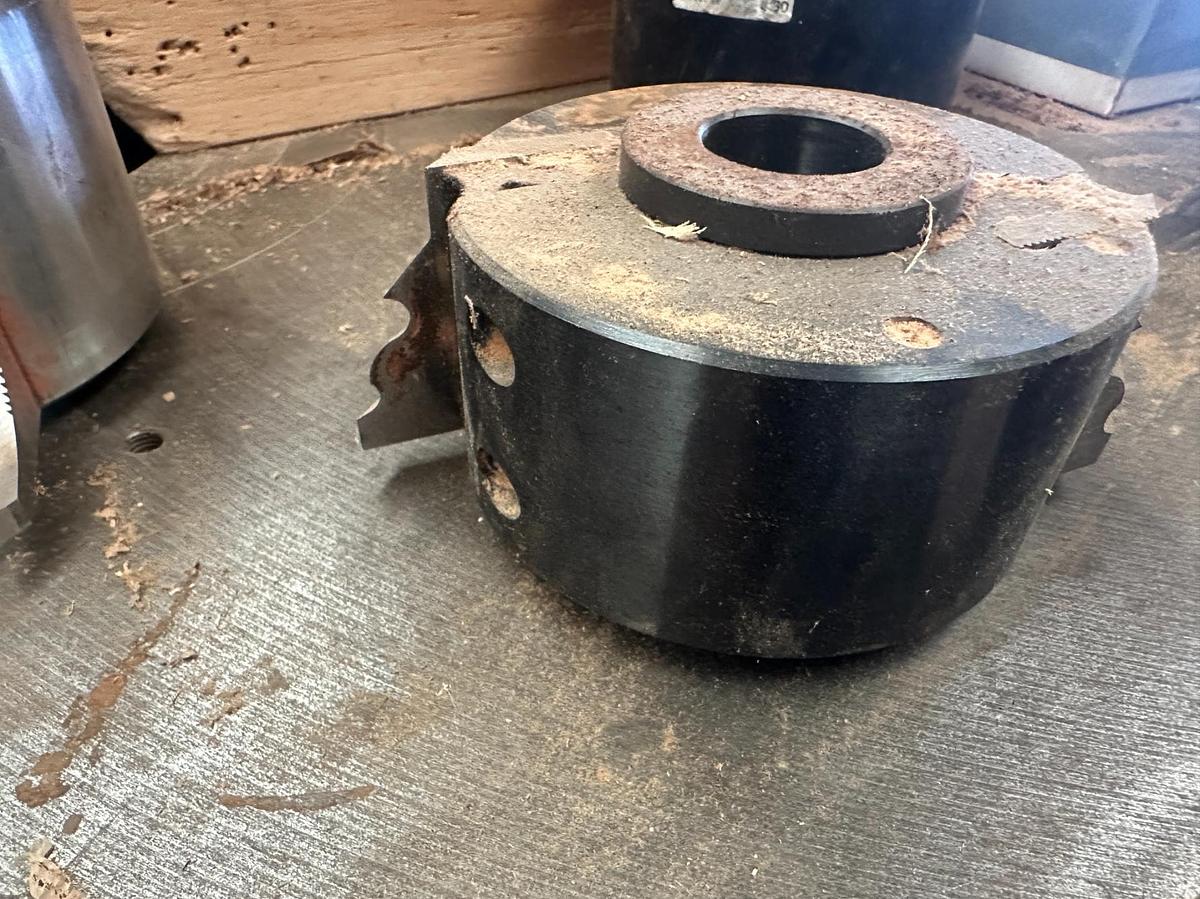

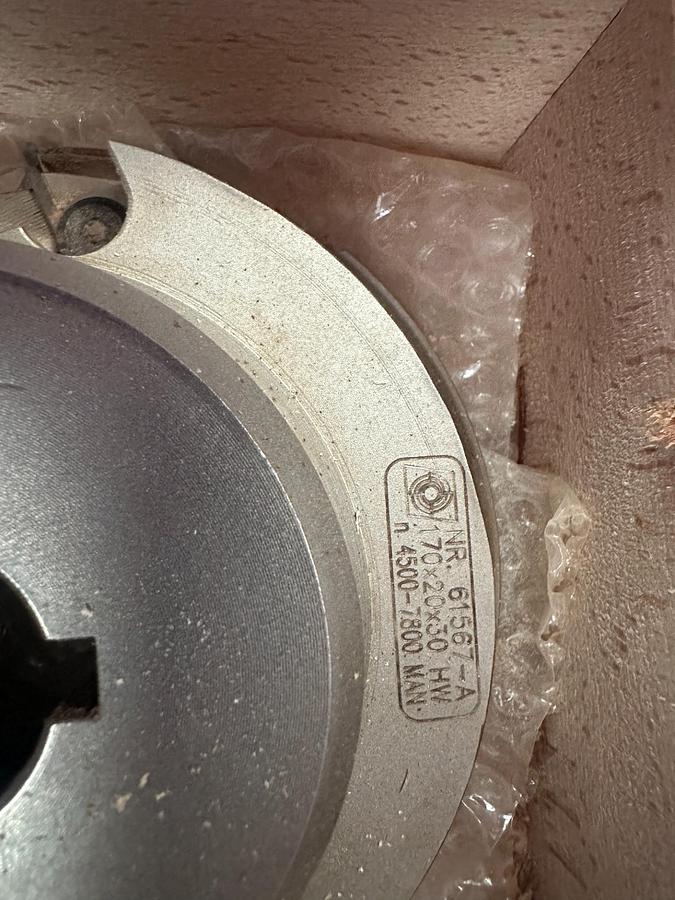

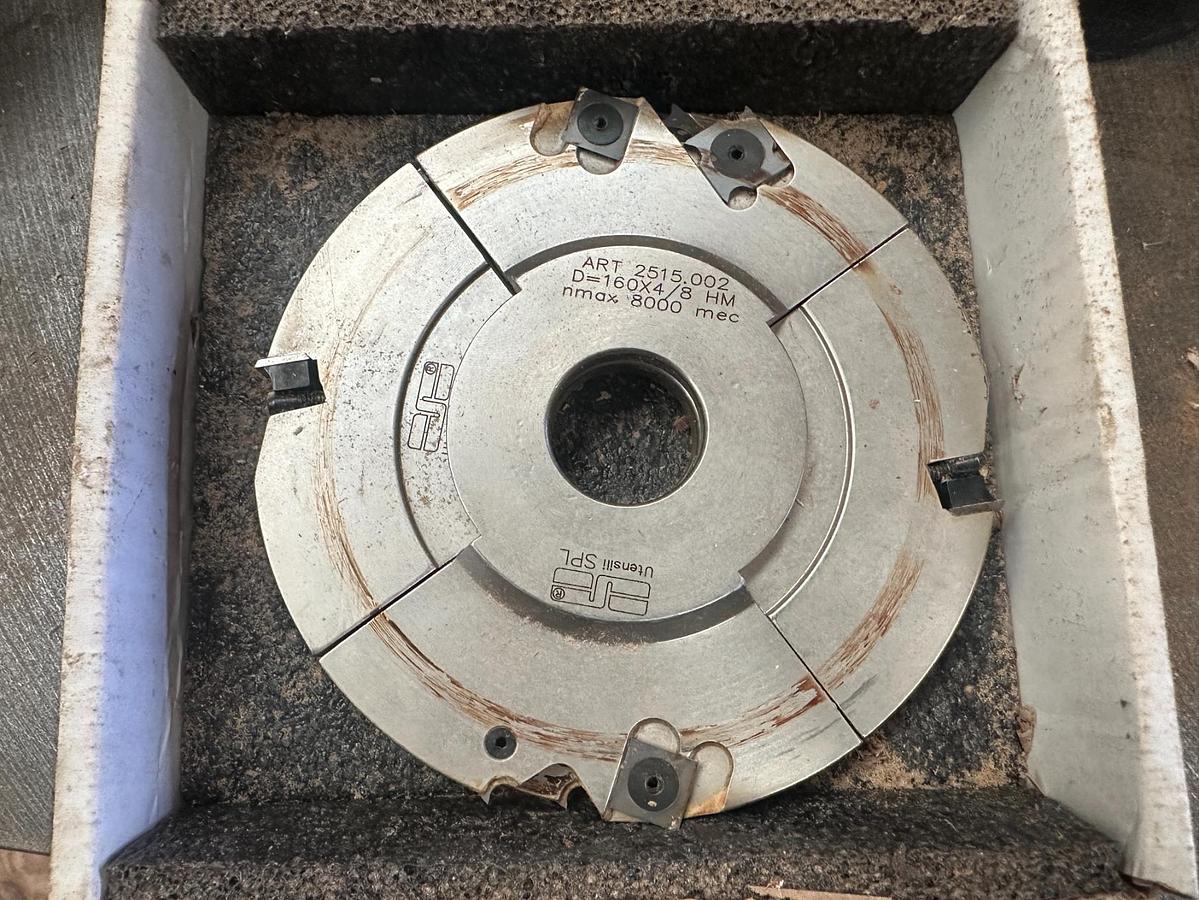

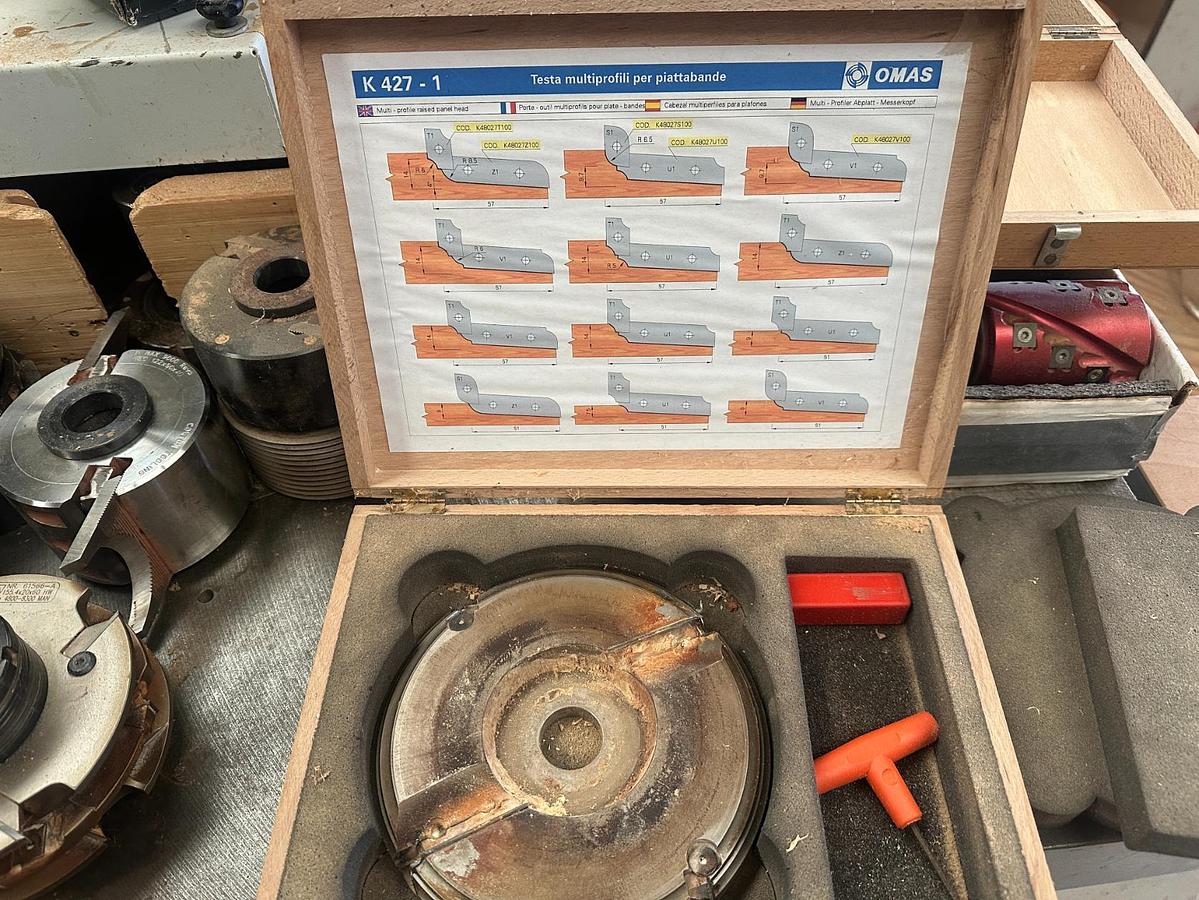

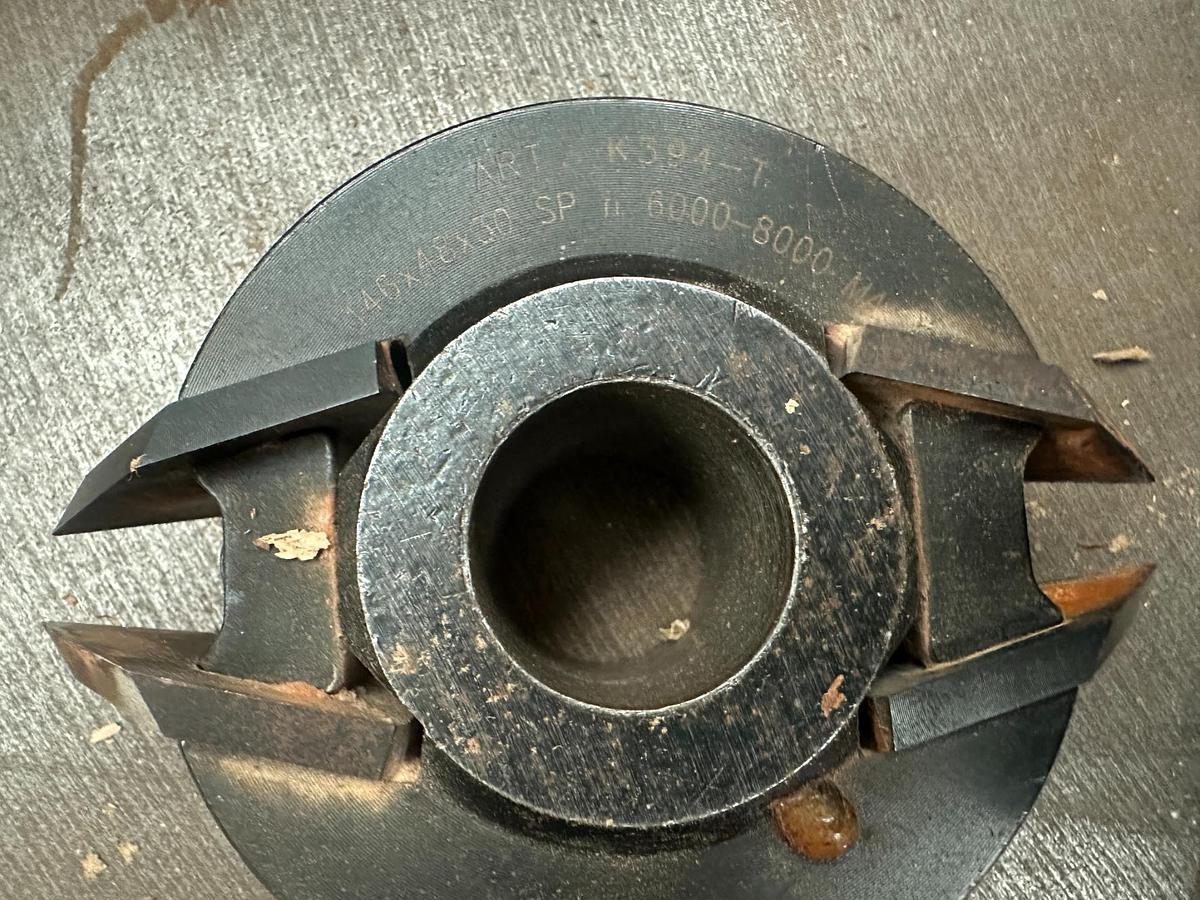

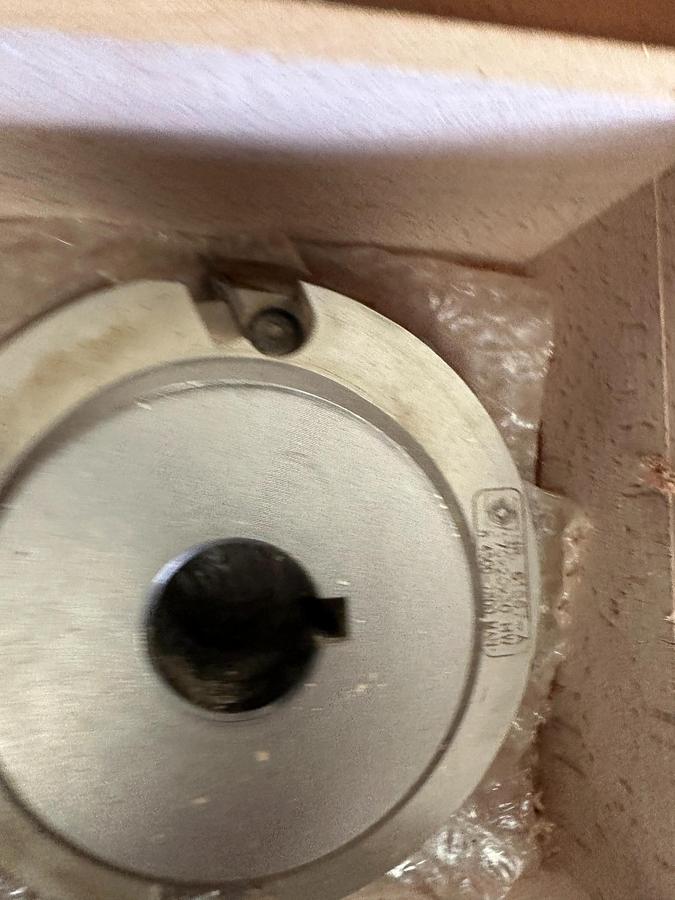

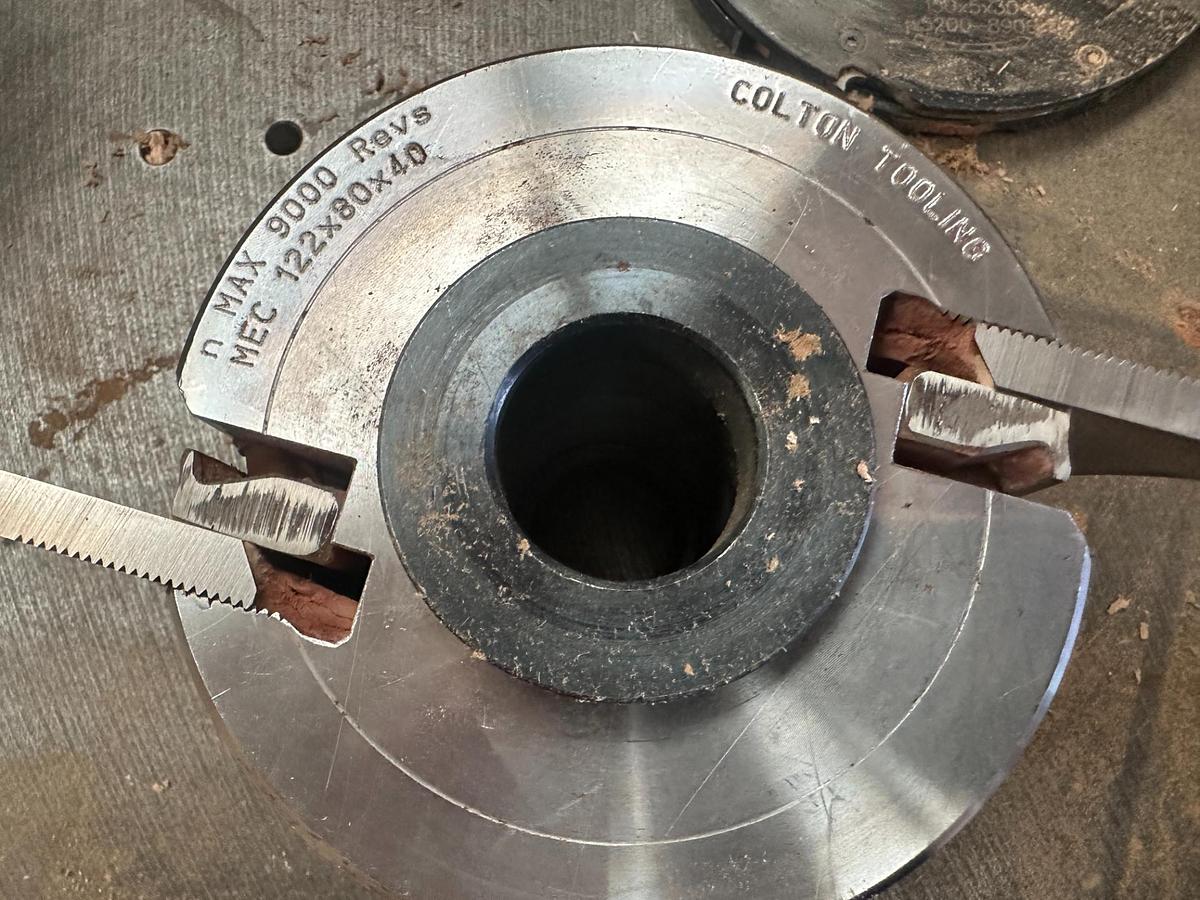

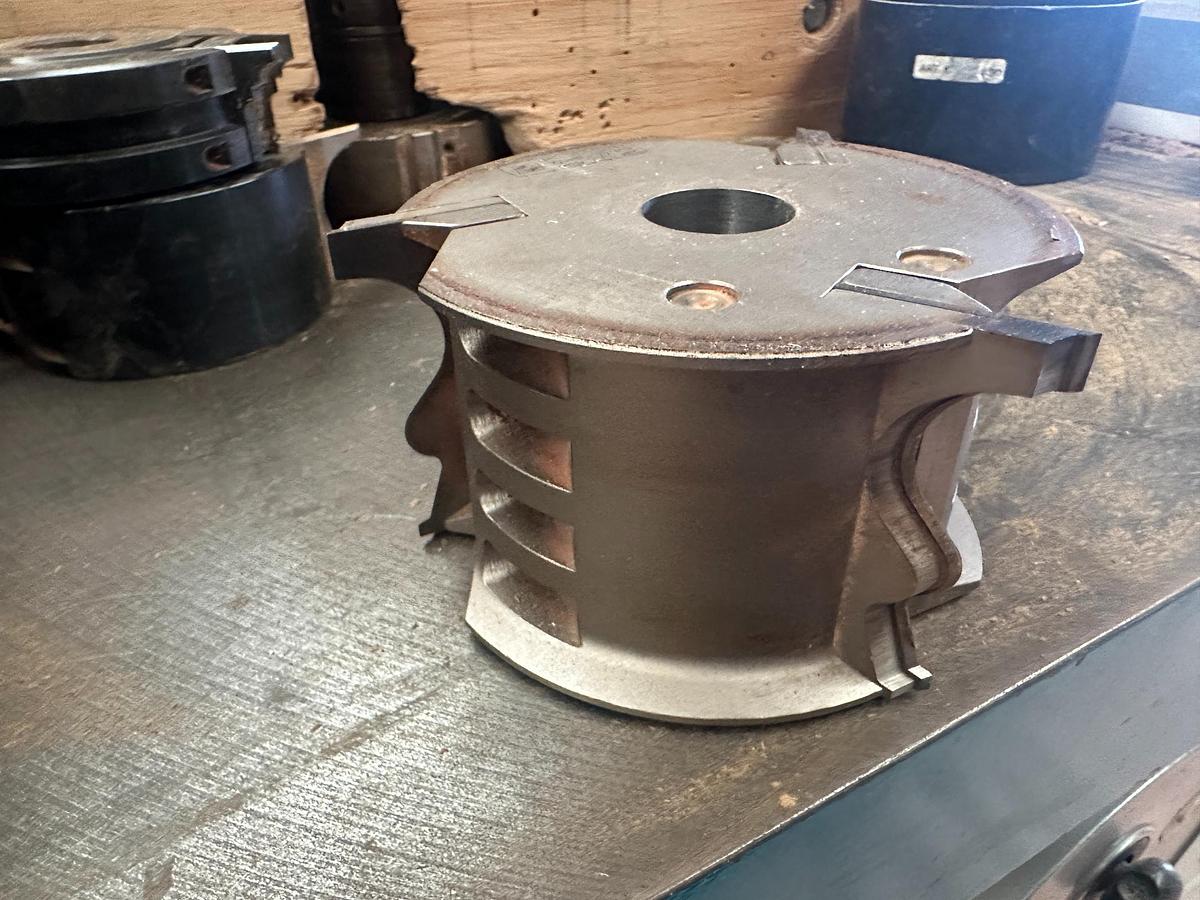

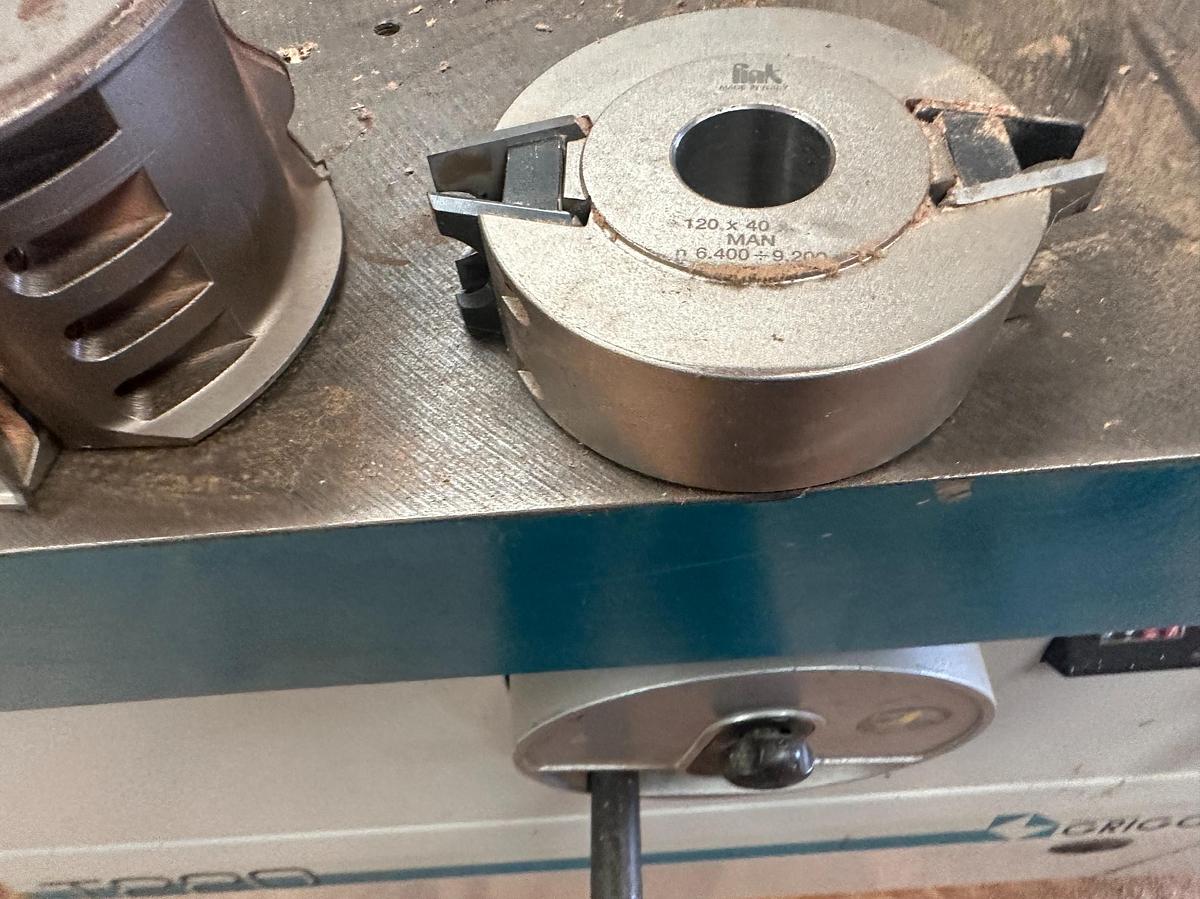

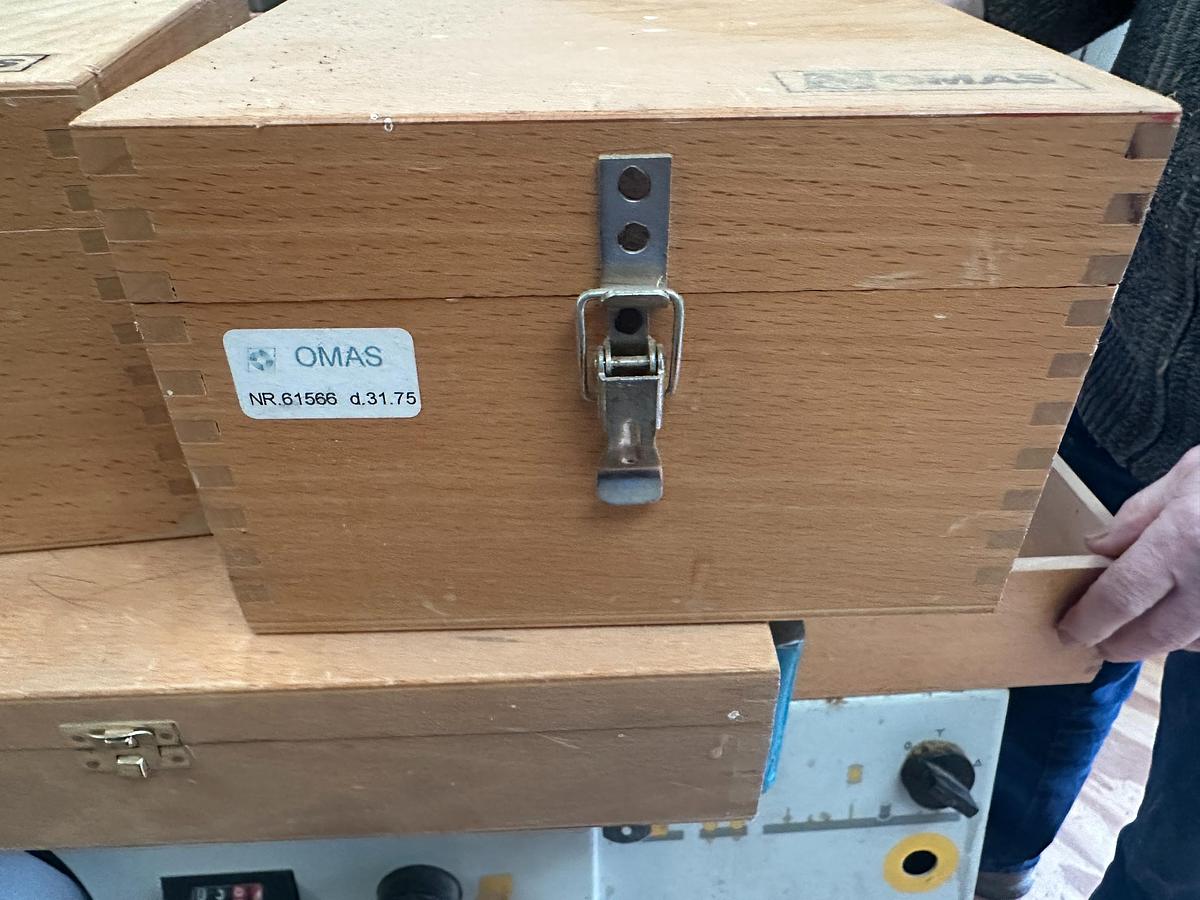

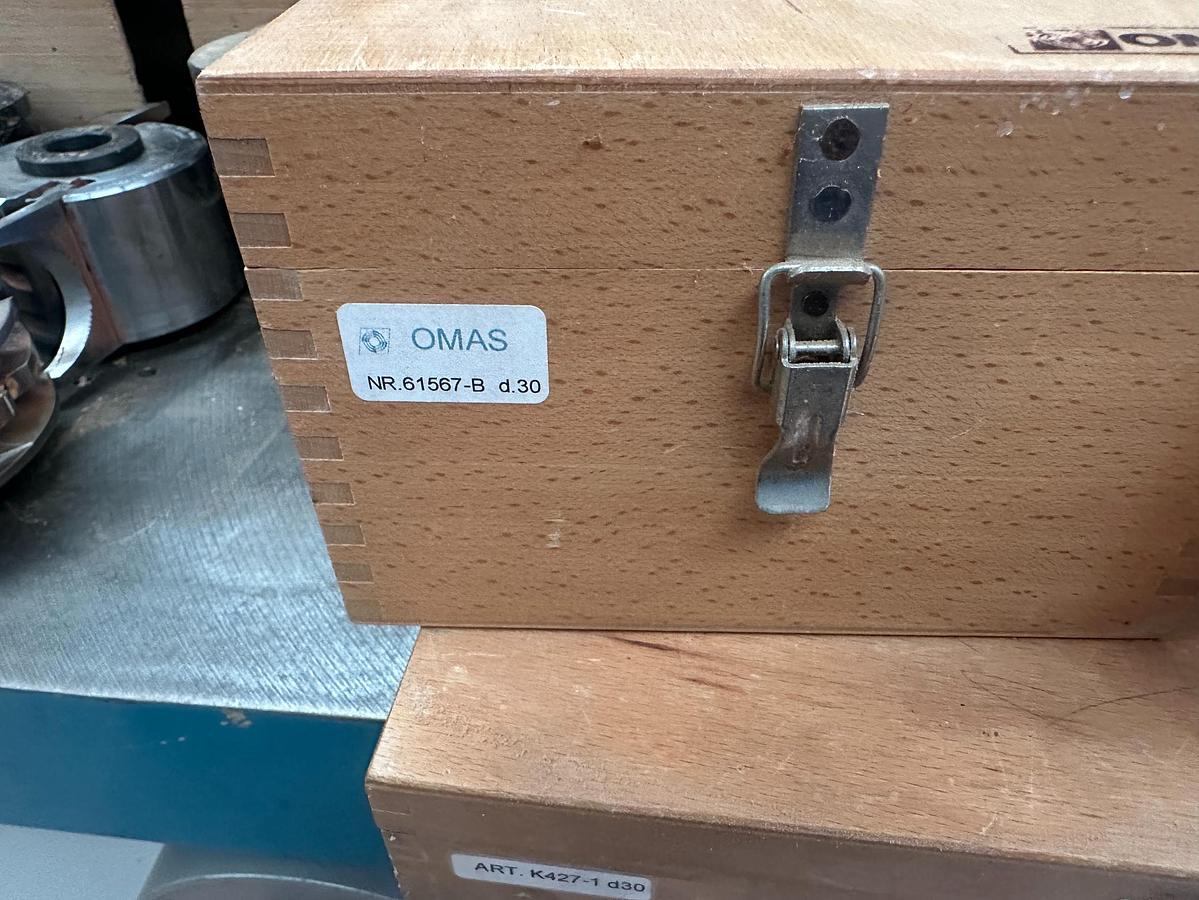

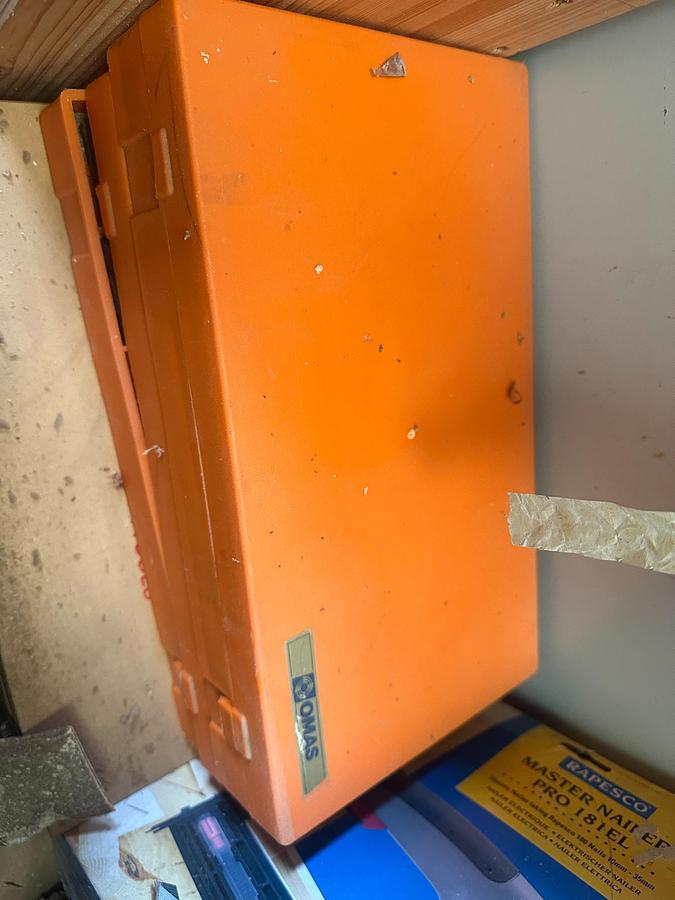

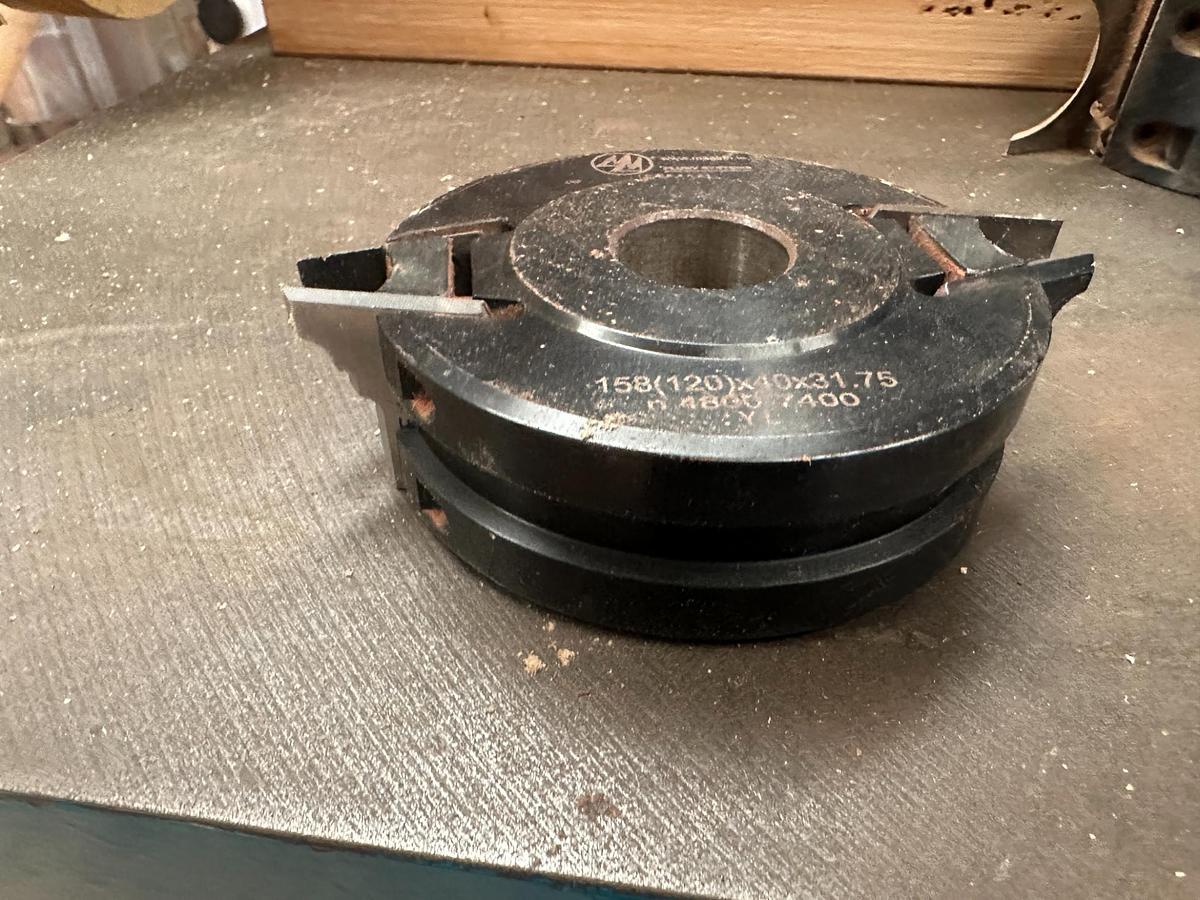

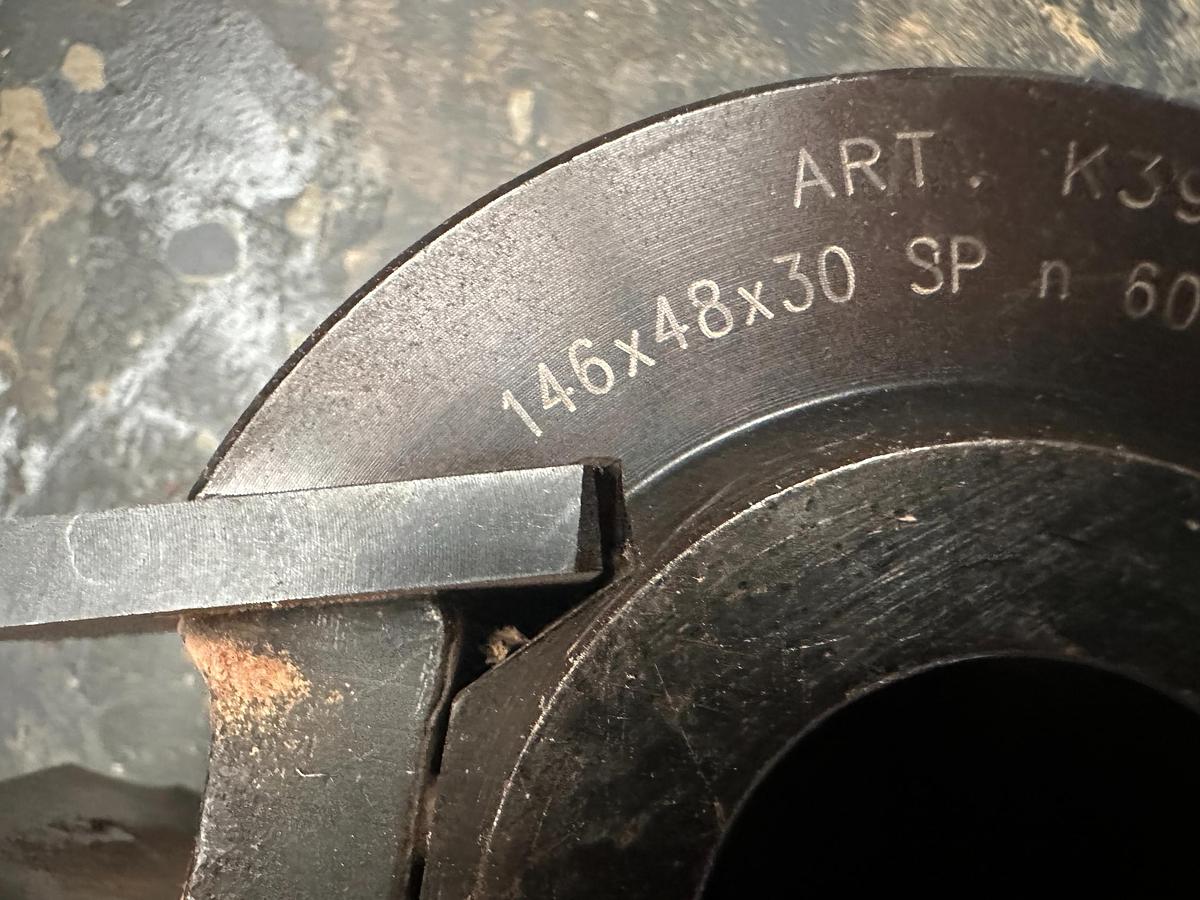

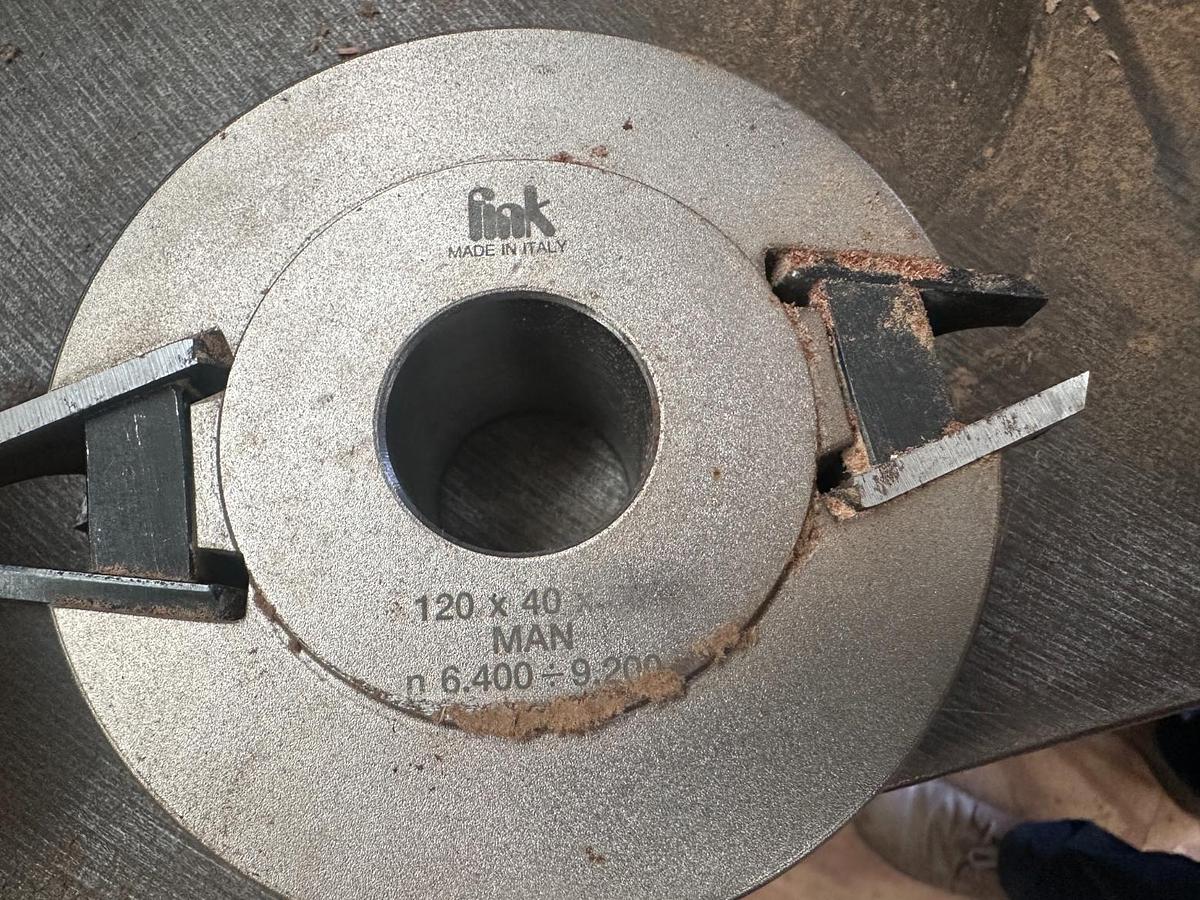

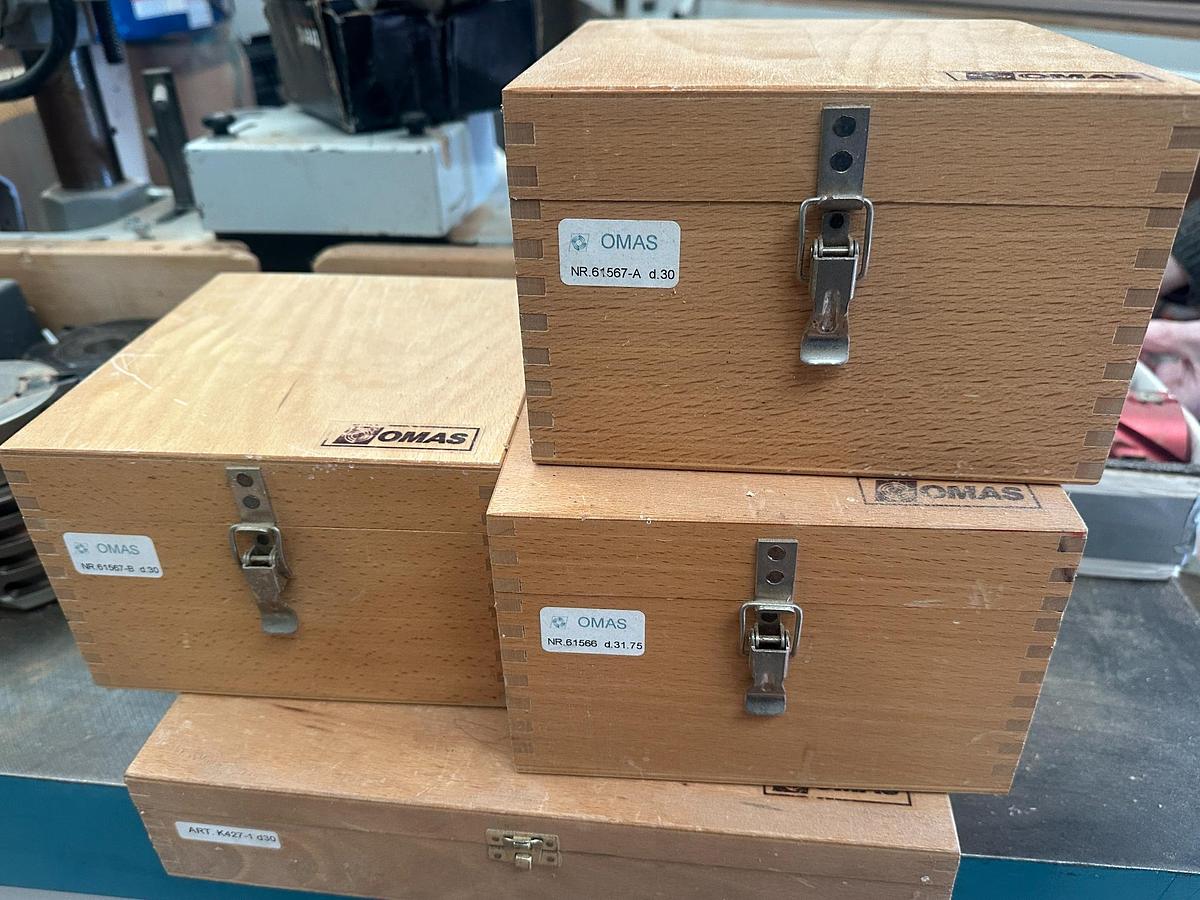

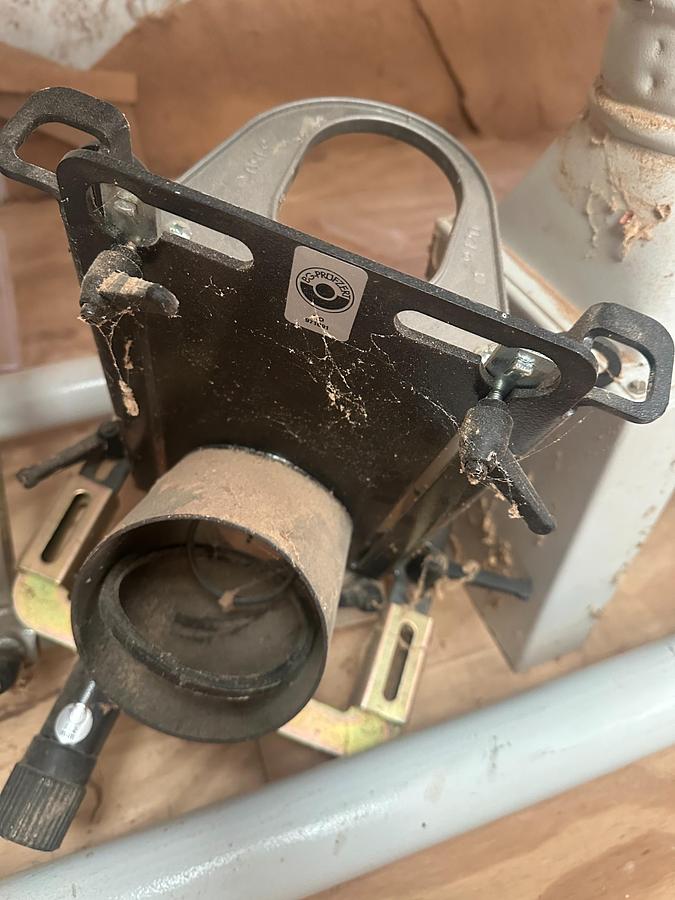

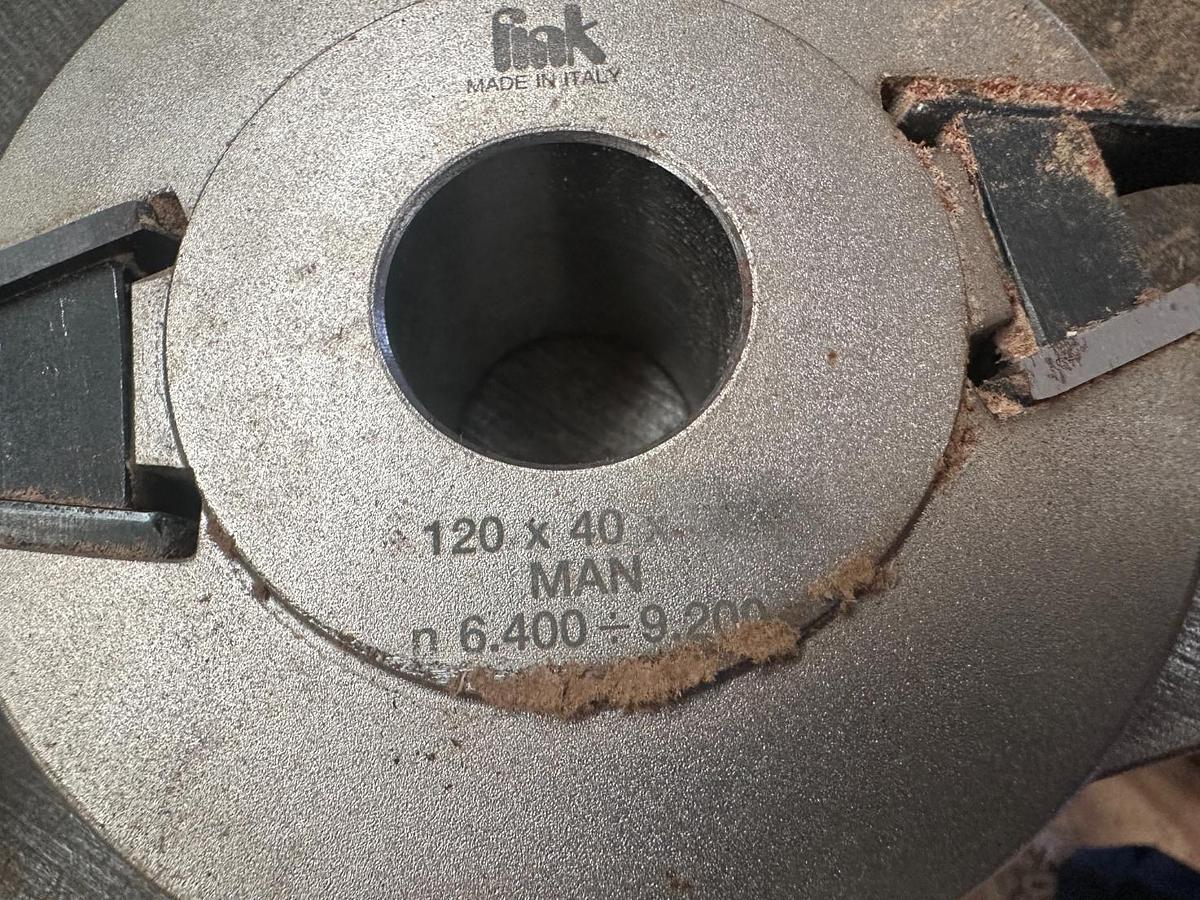

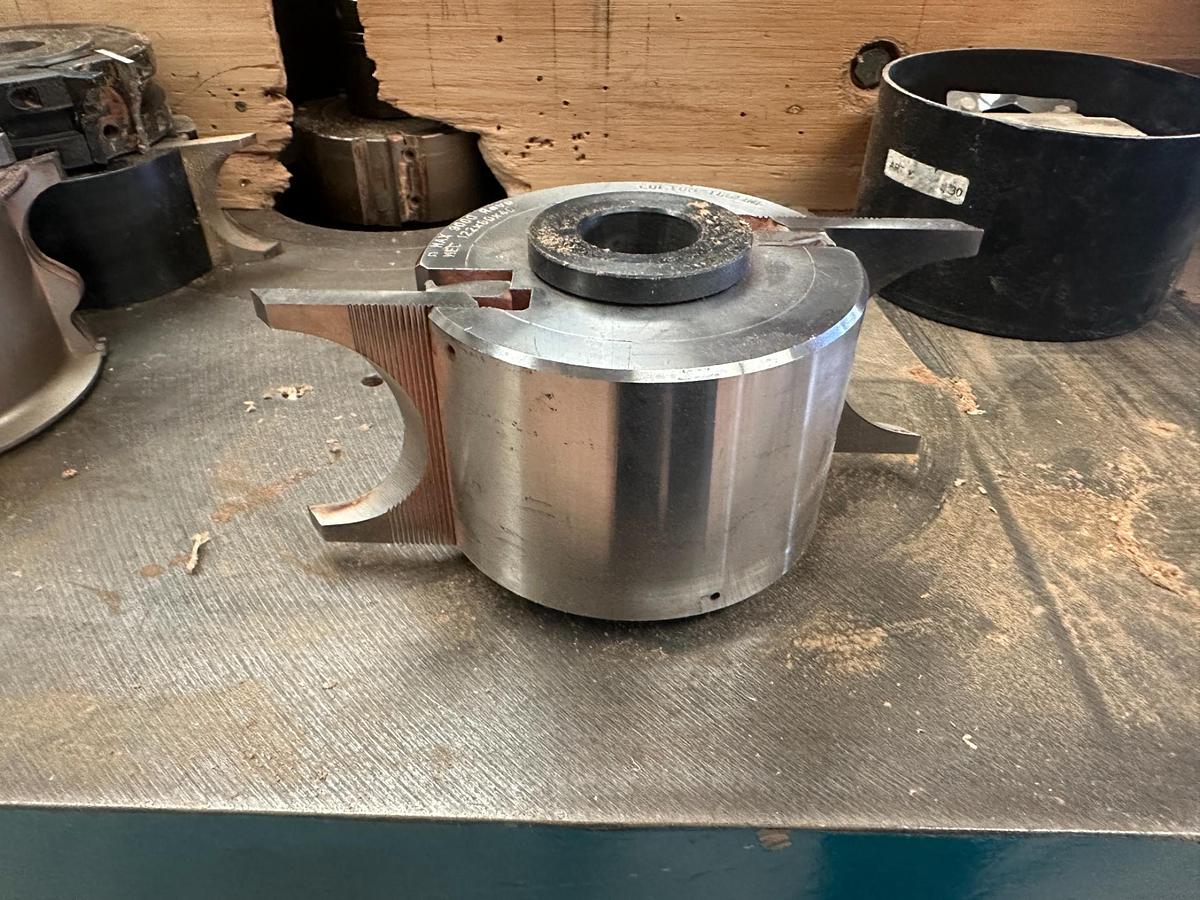

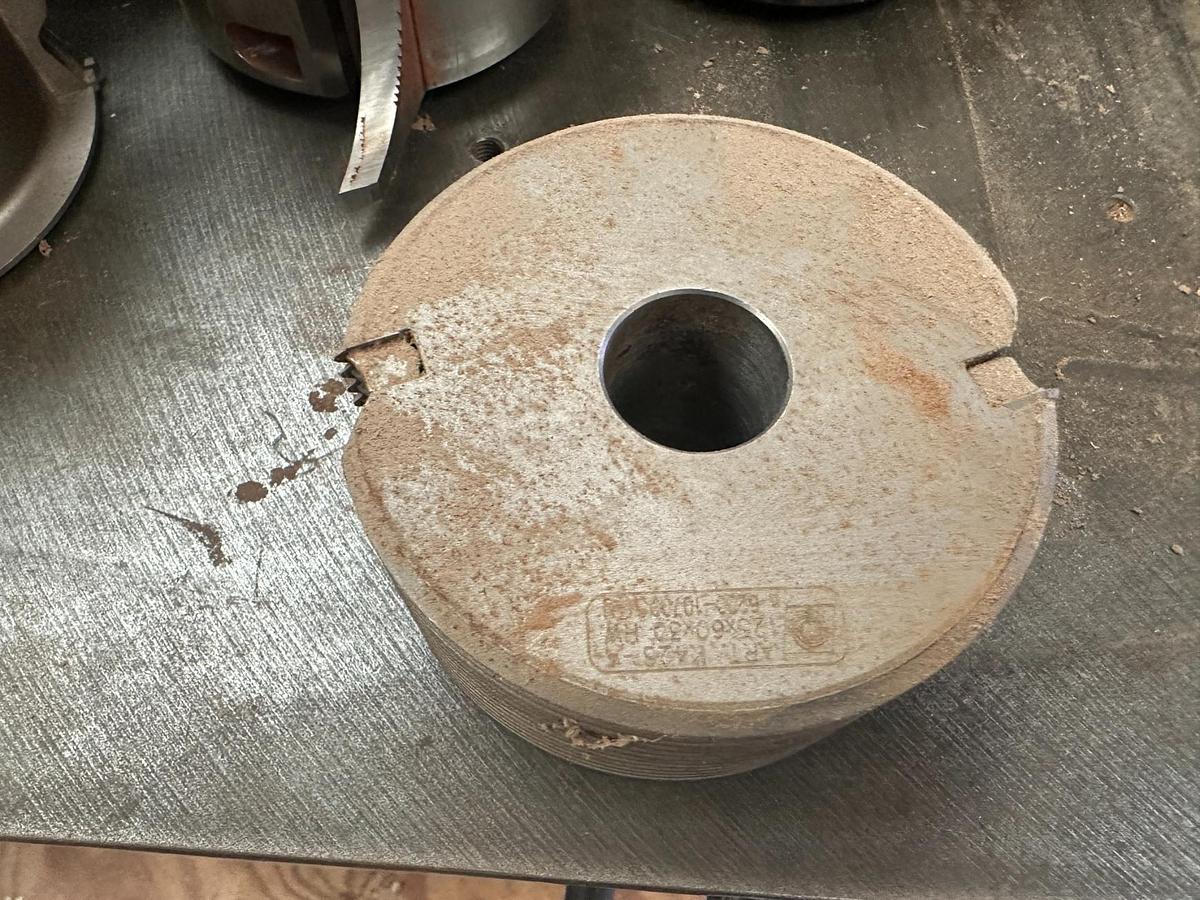

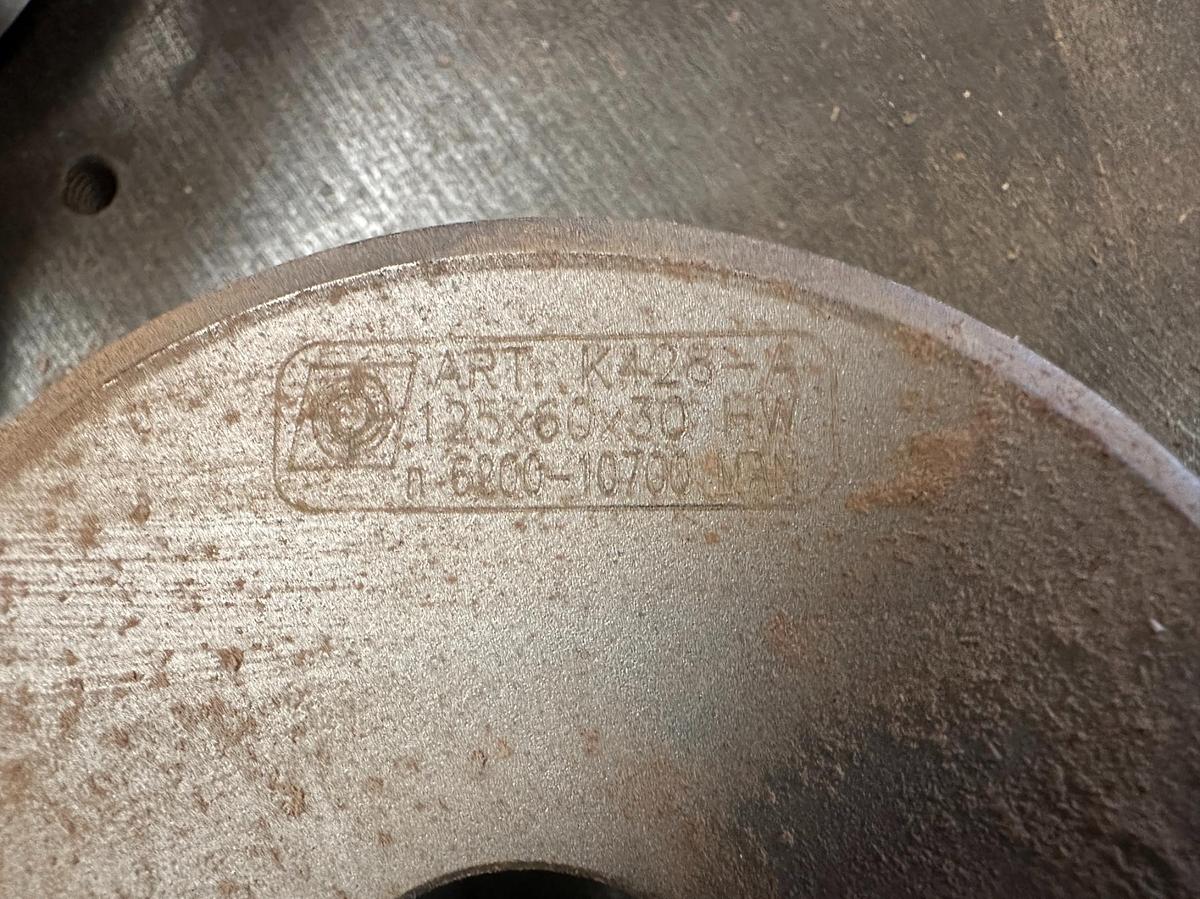

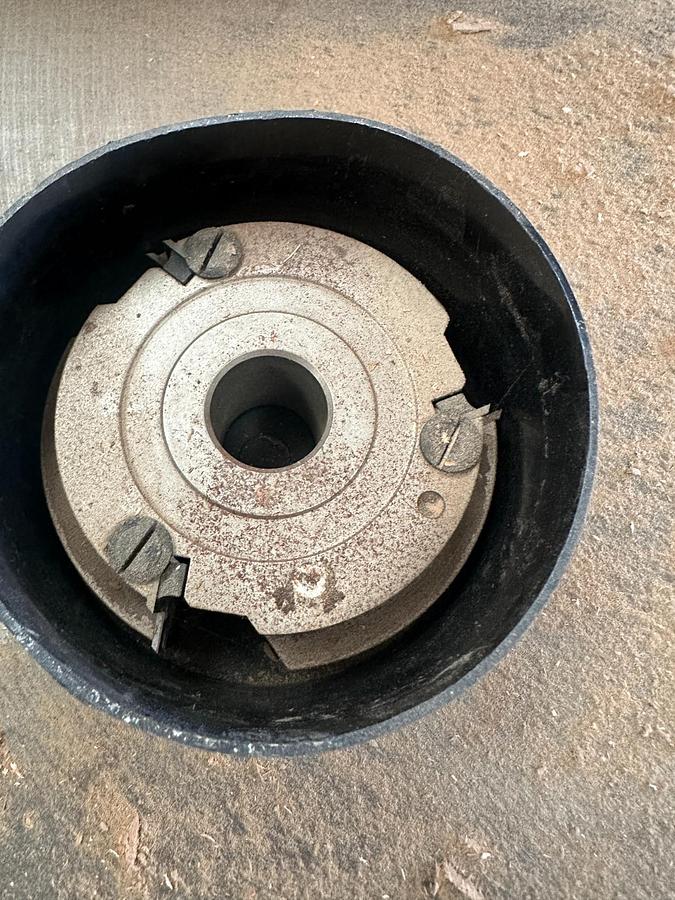

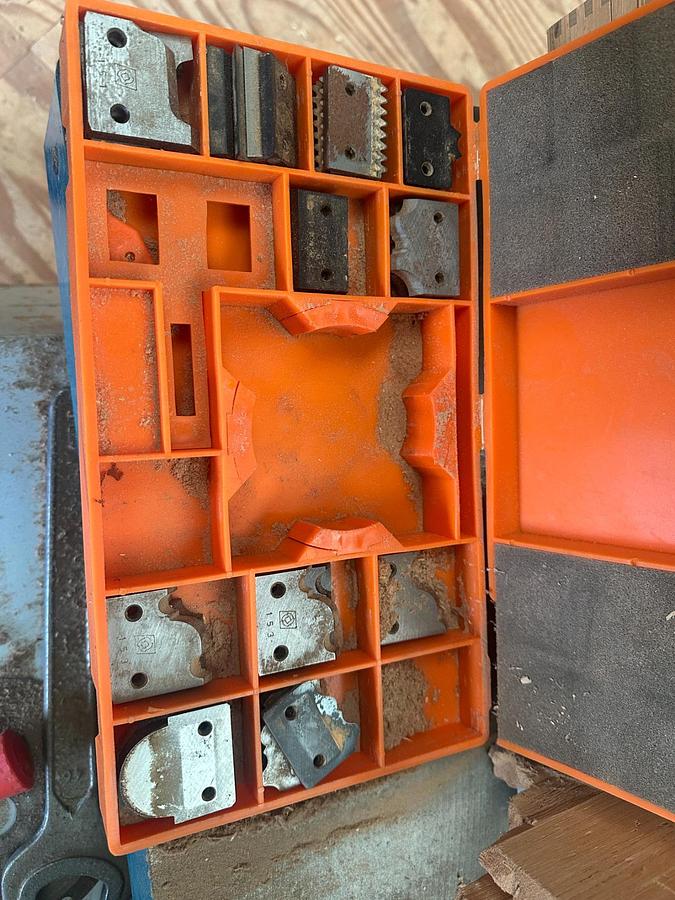

🧰 Extra Tooling Package Available

Approx €10,000 worth of extra tools available at an additional cost of €2,000 + VAT.

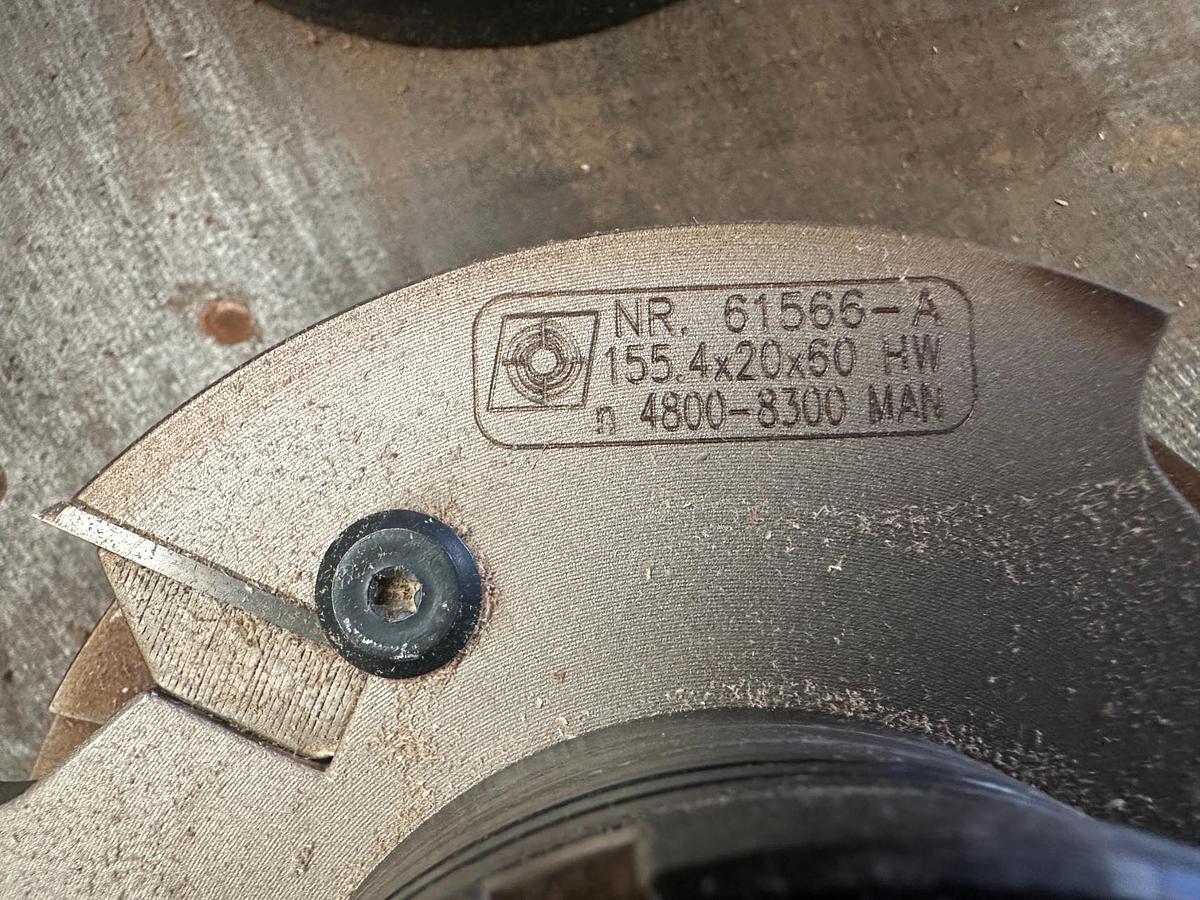

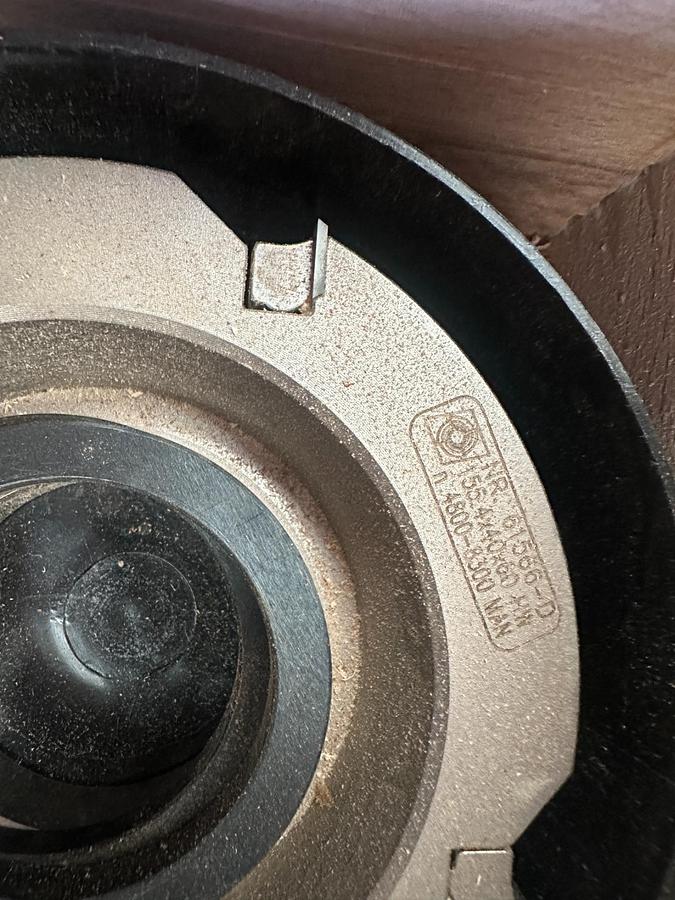

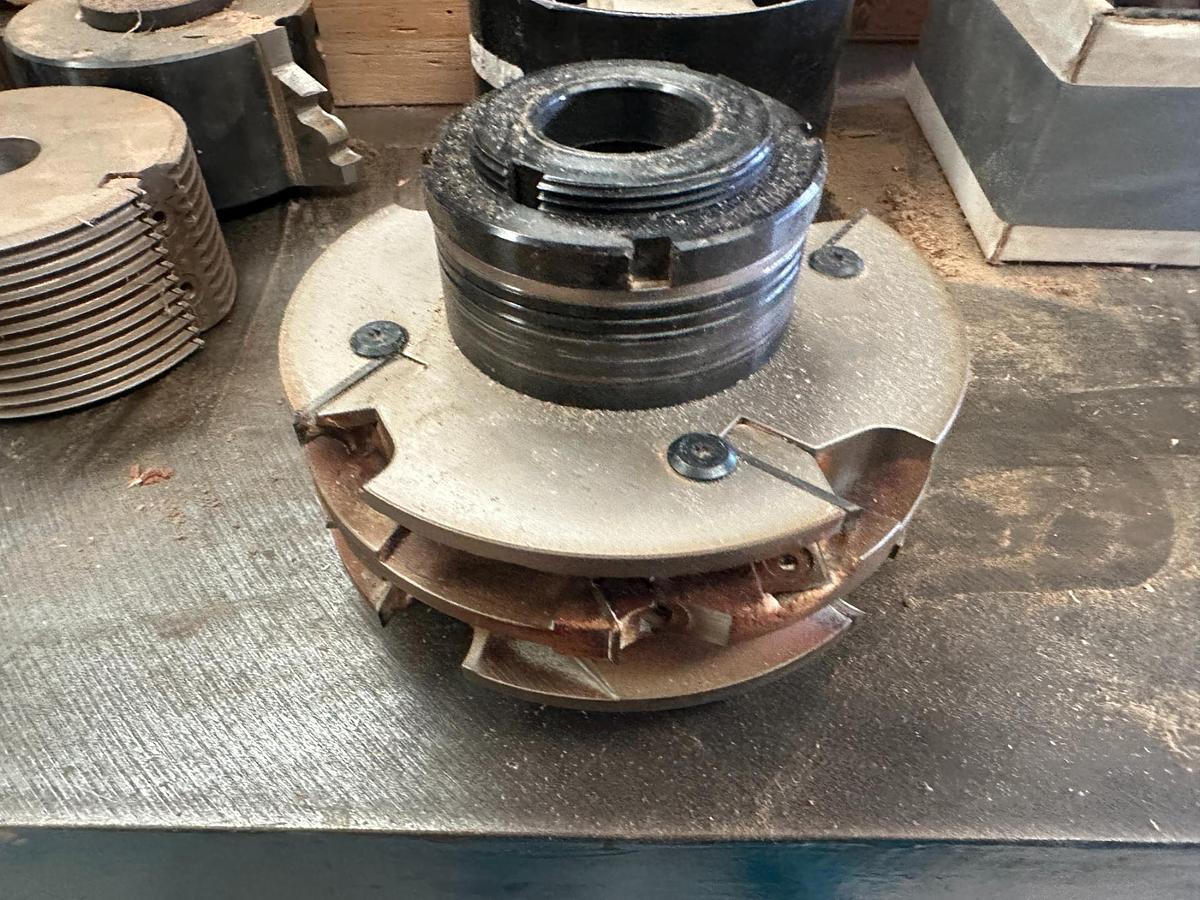

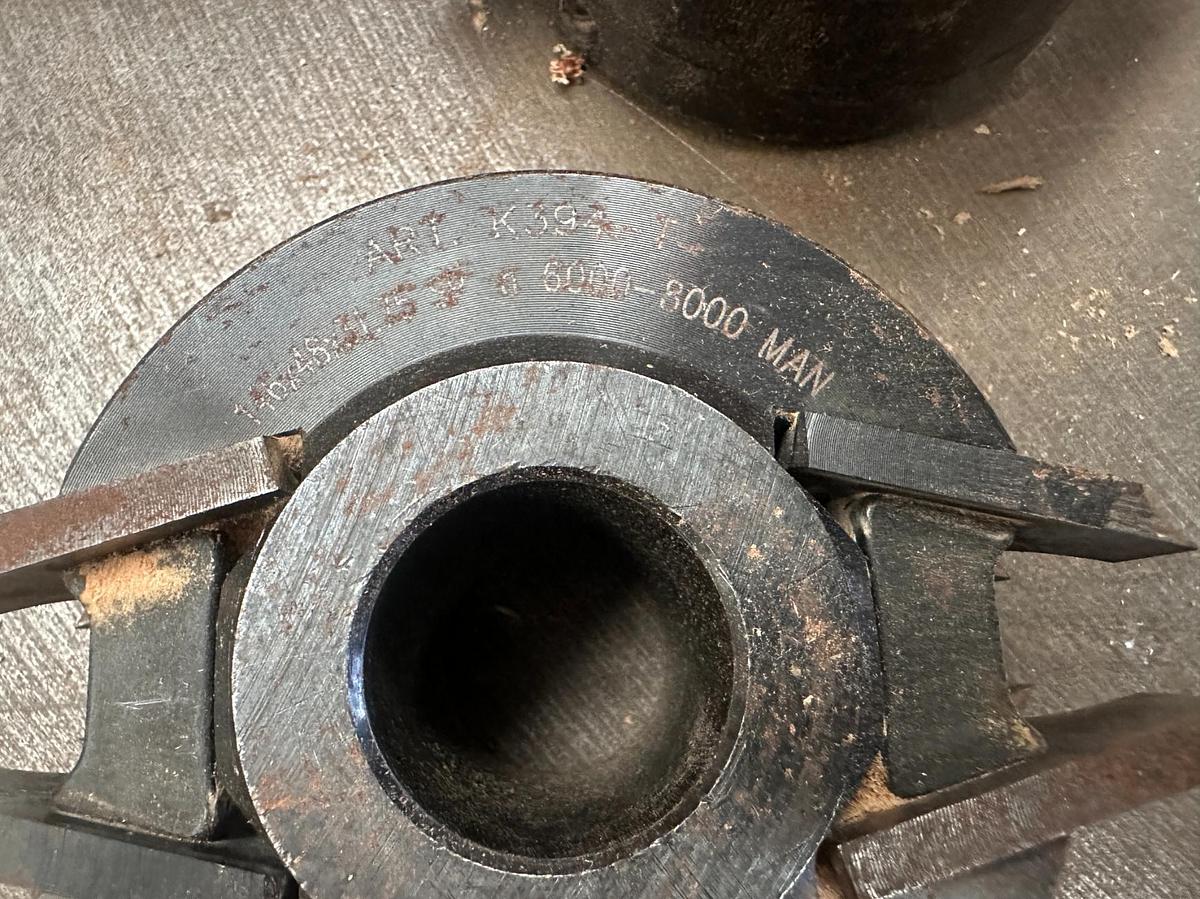

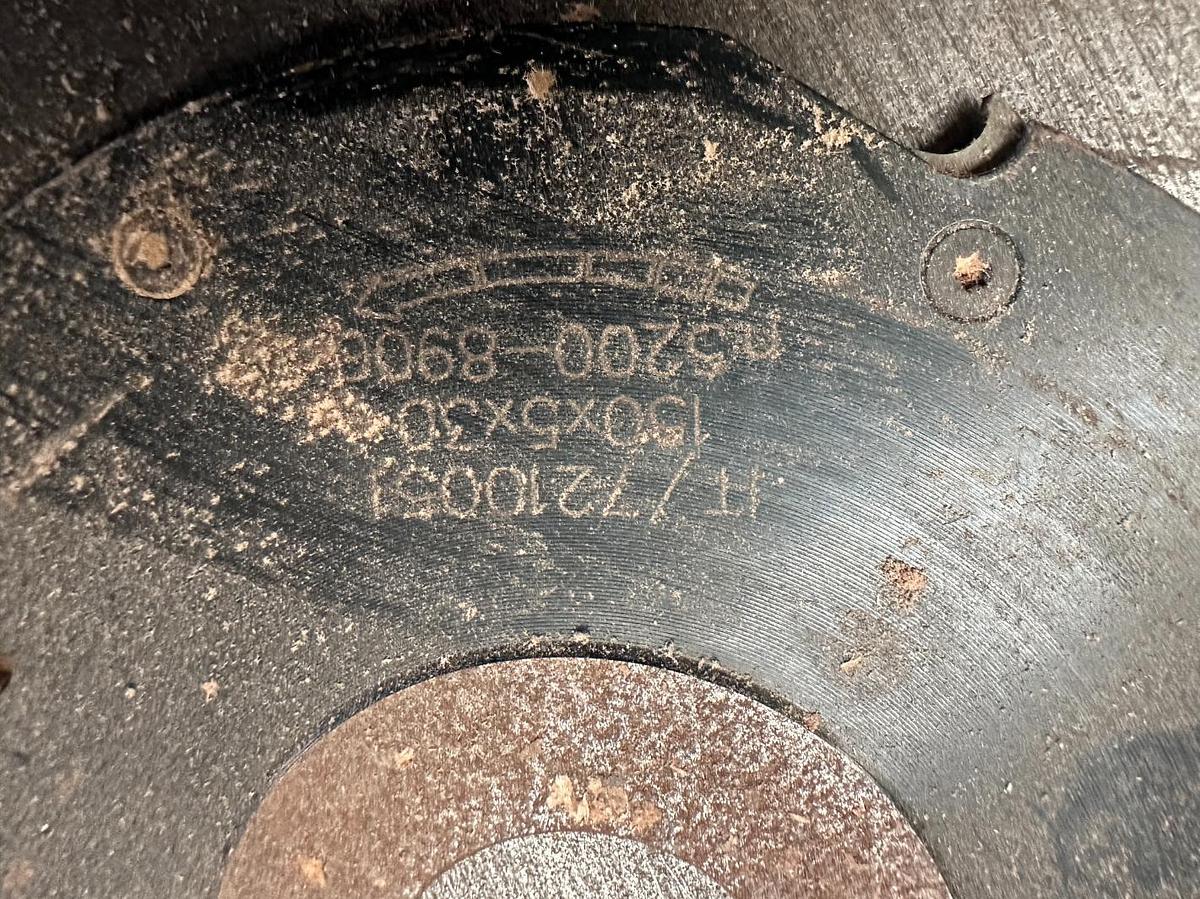

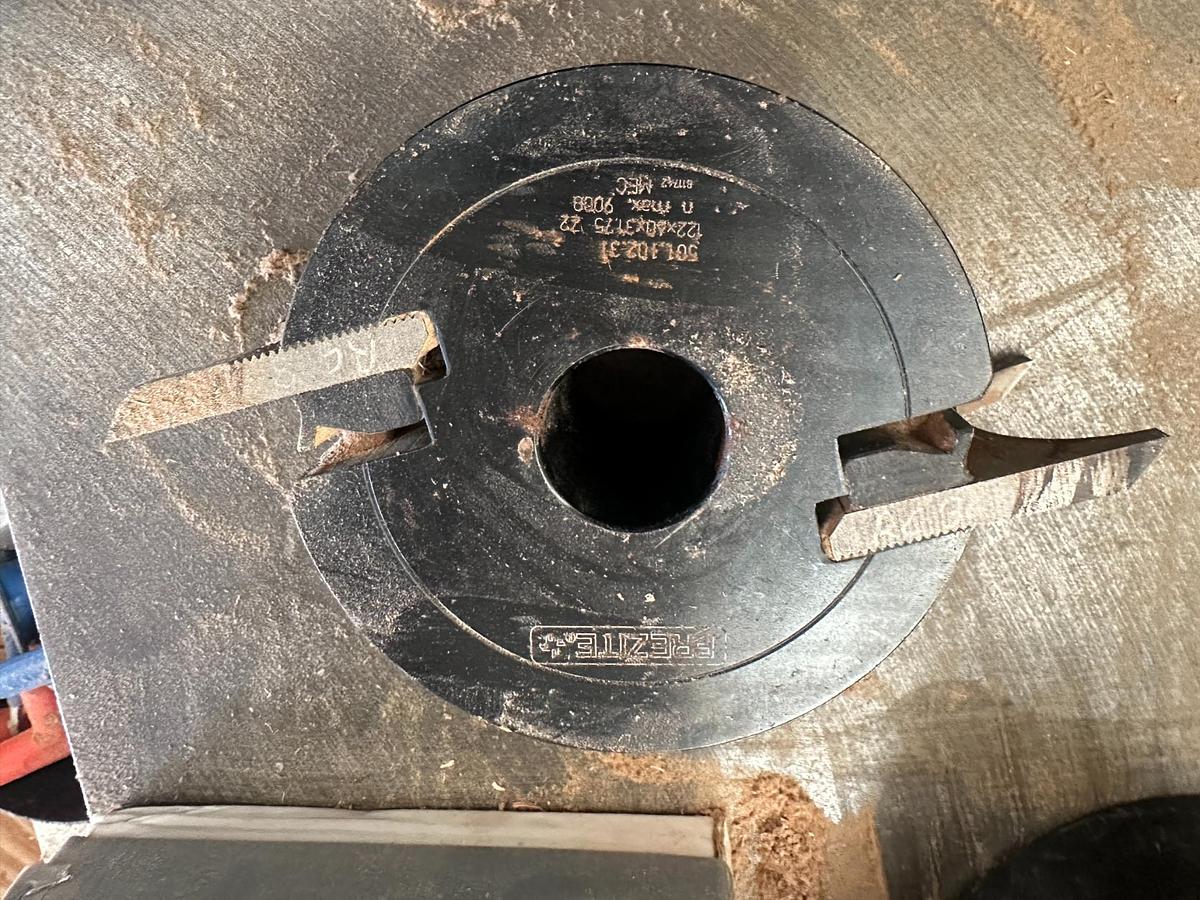

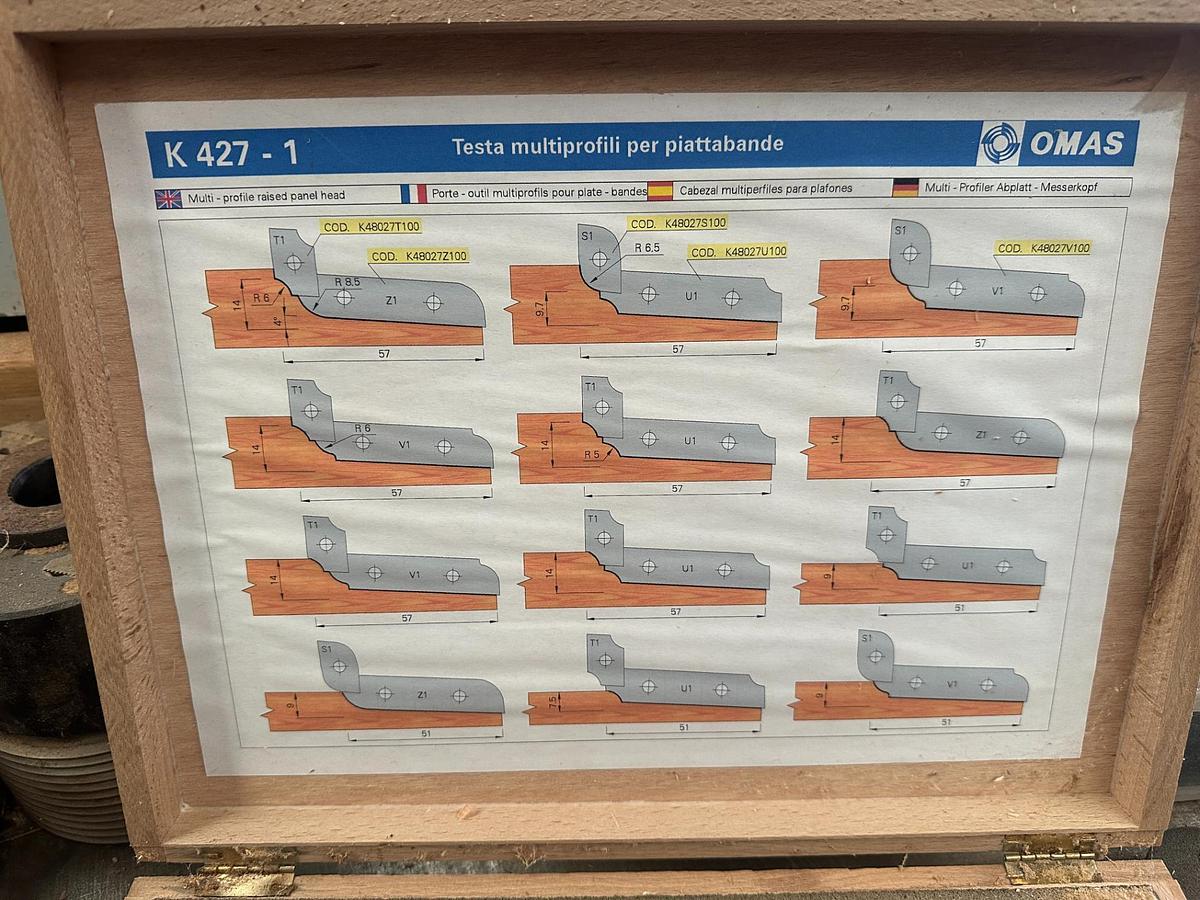

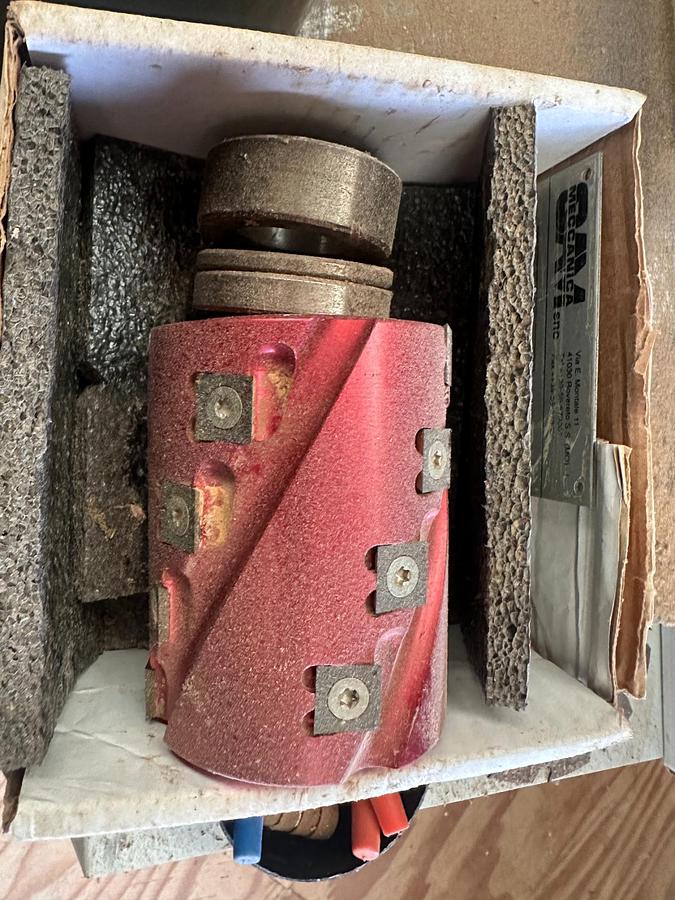

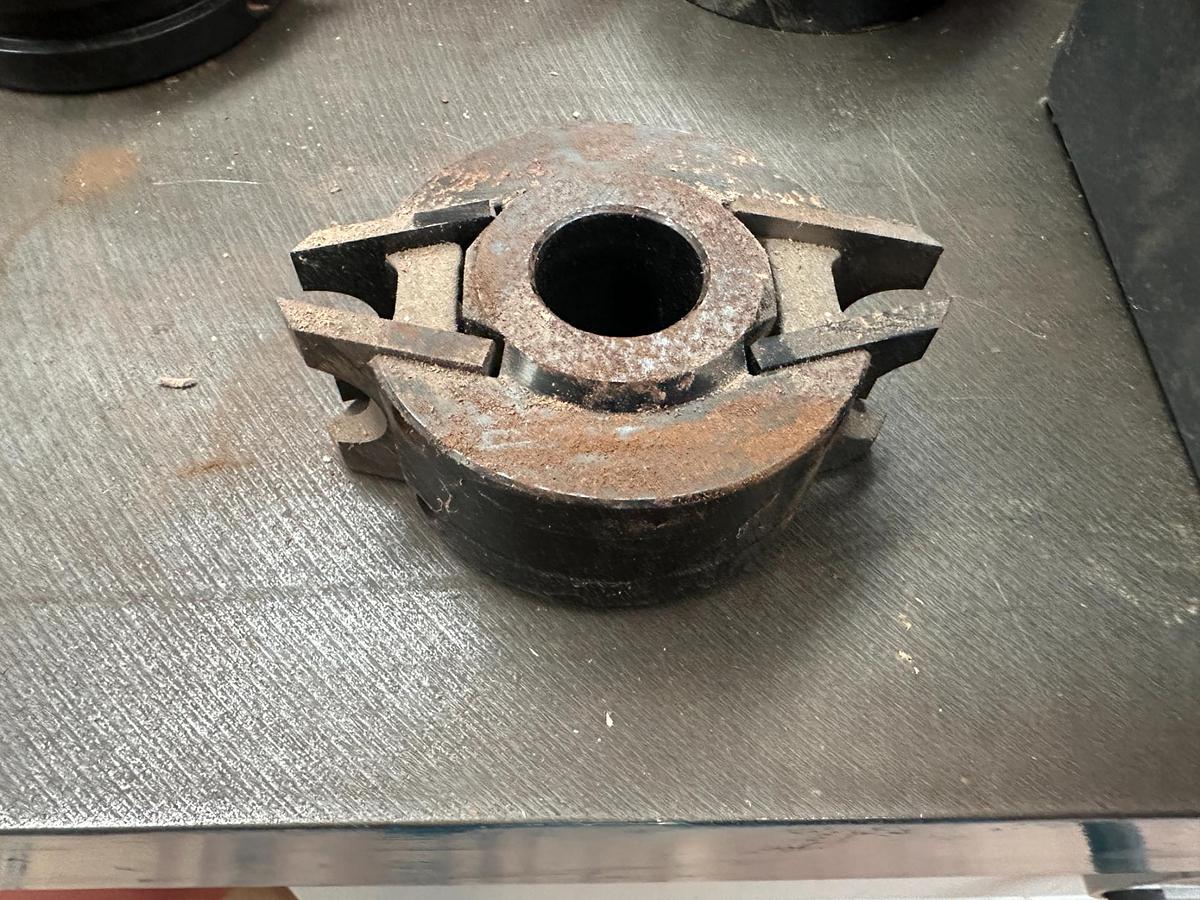

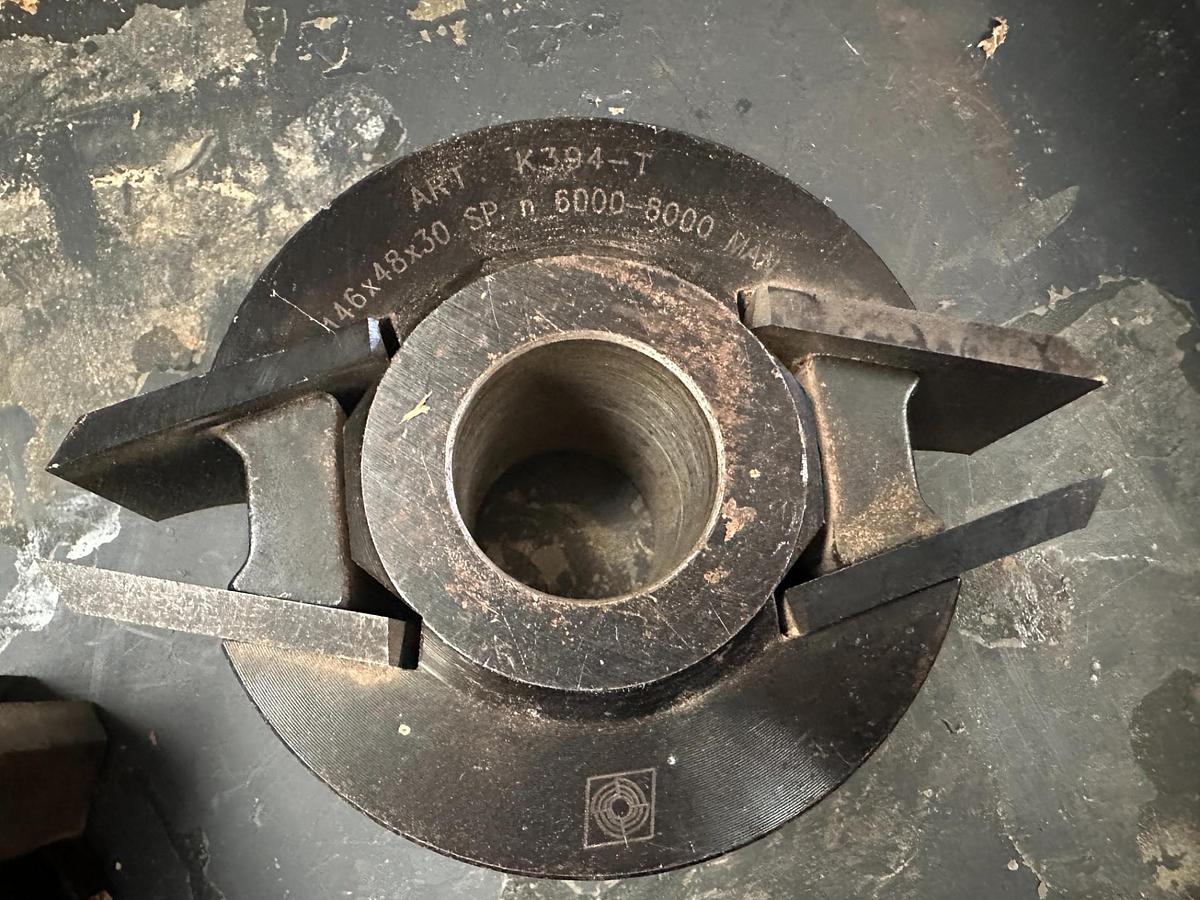

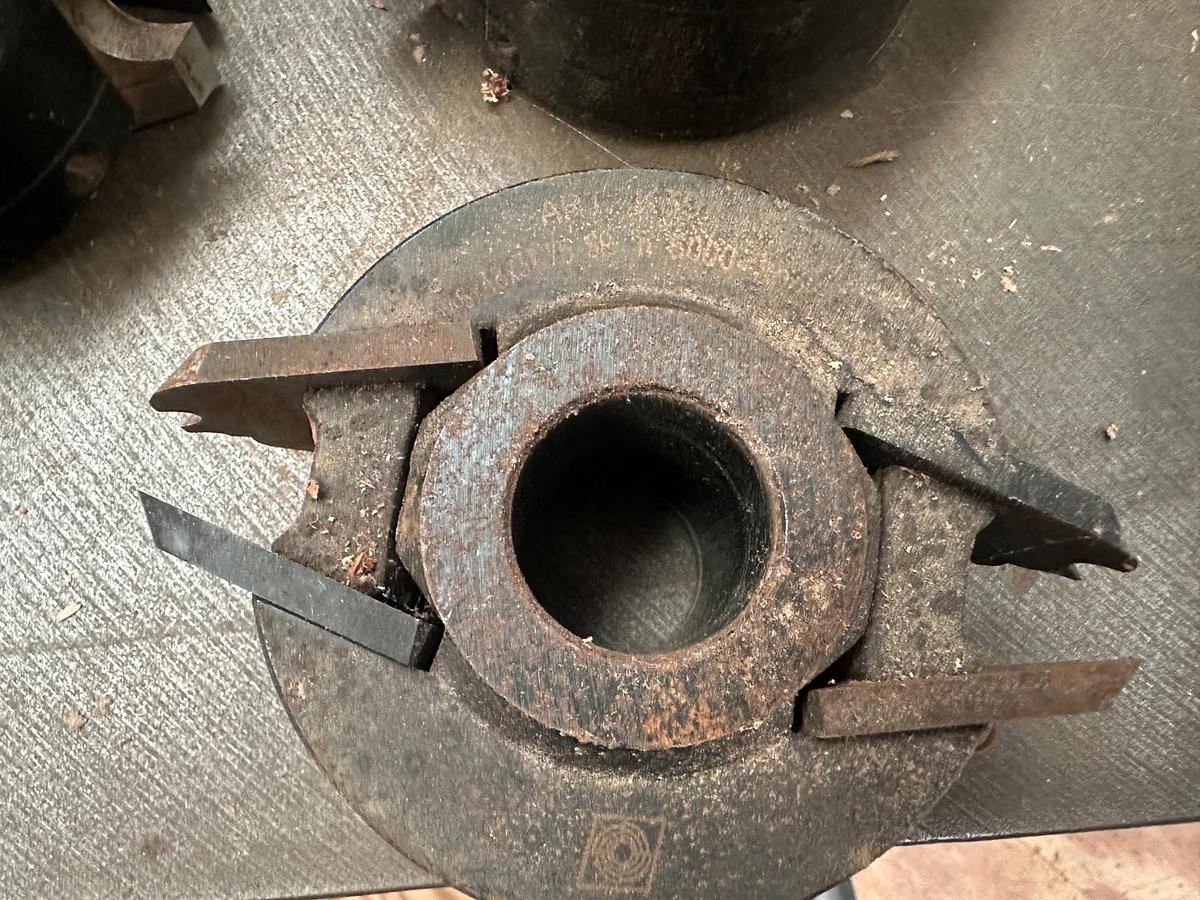

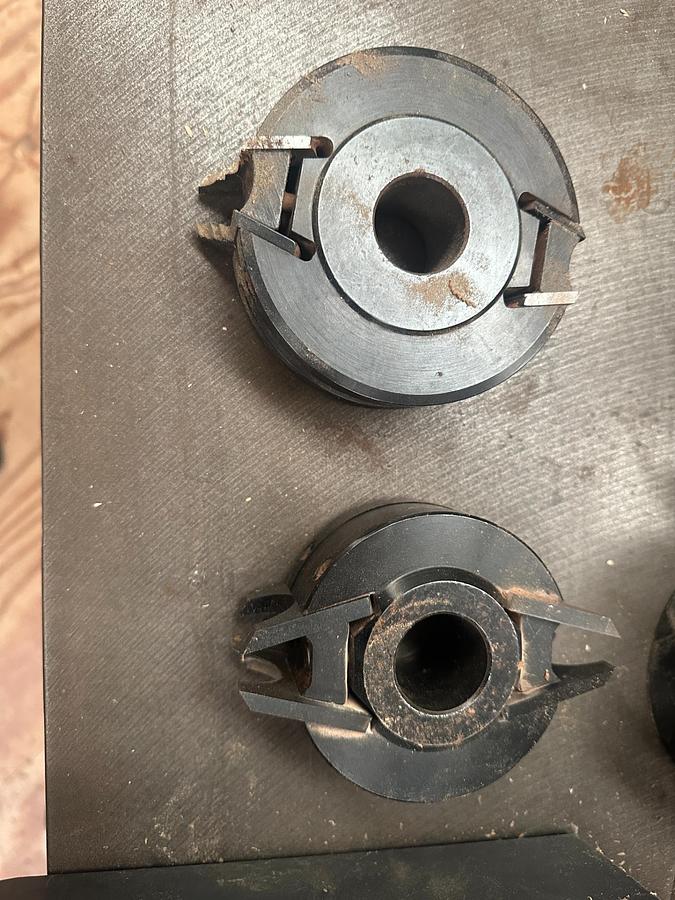

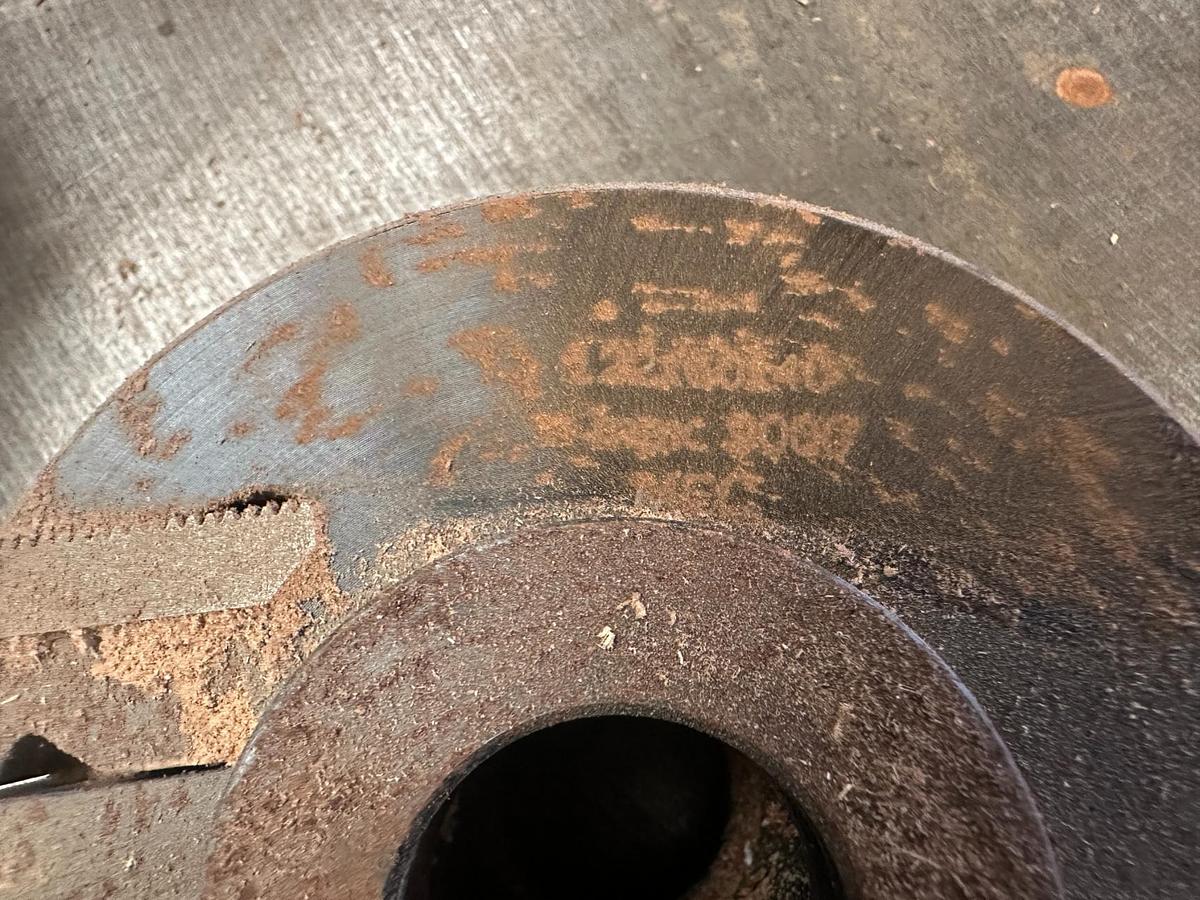

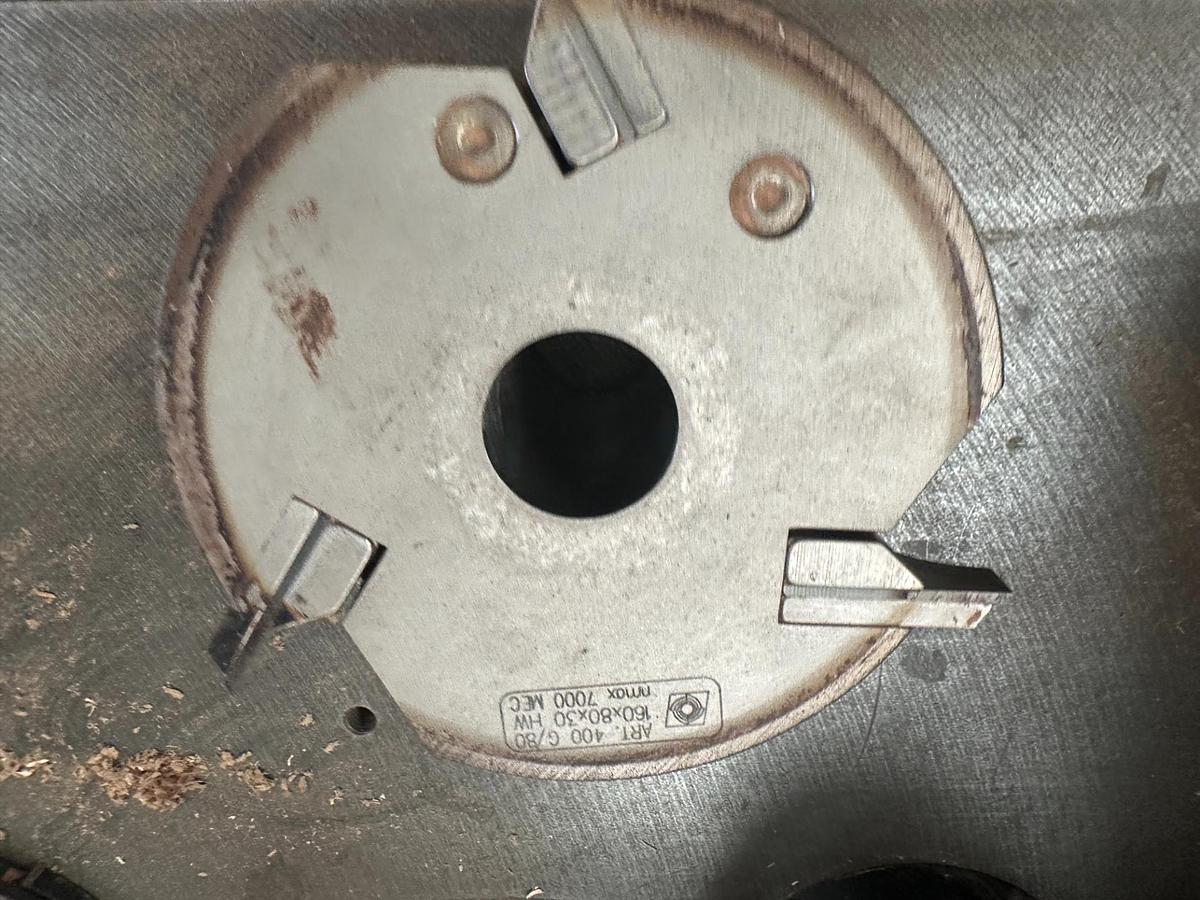

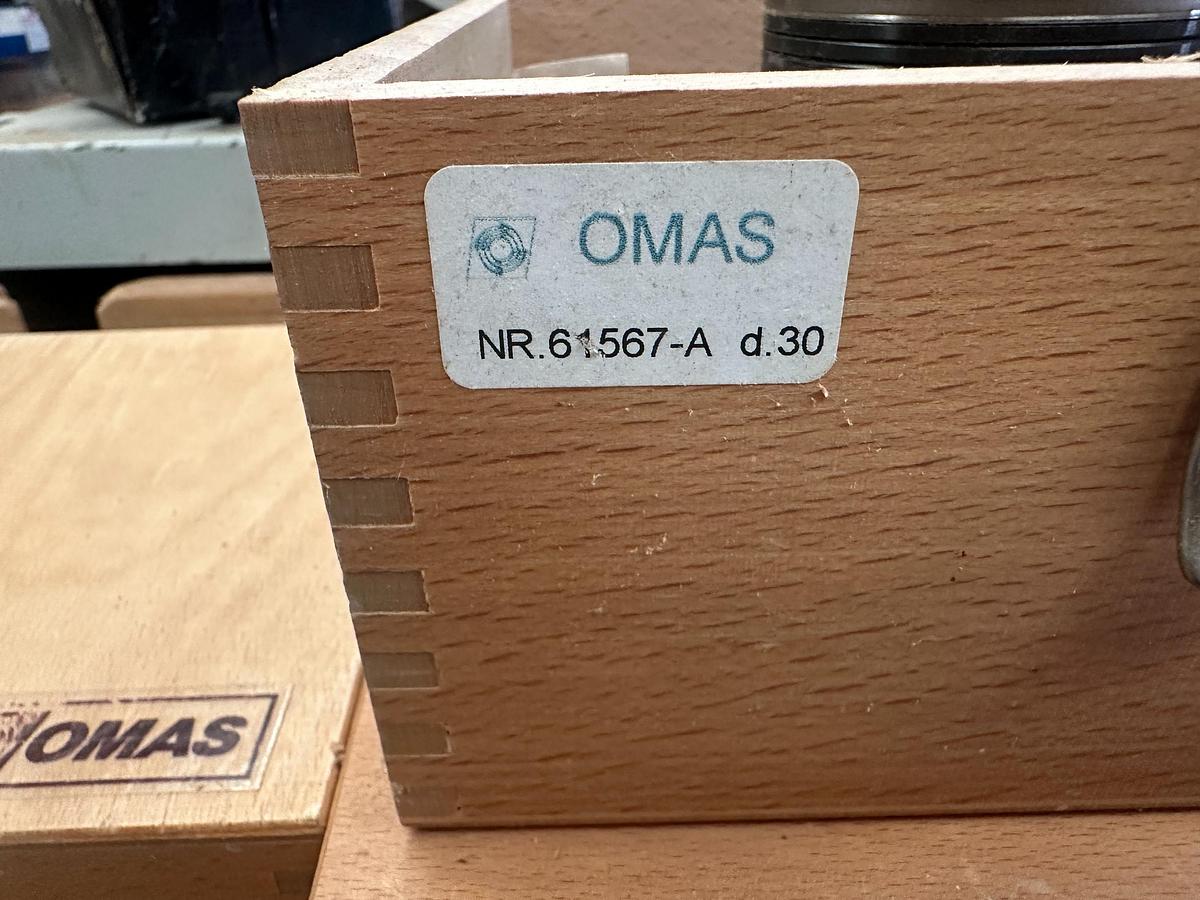

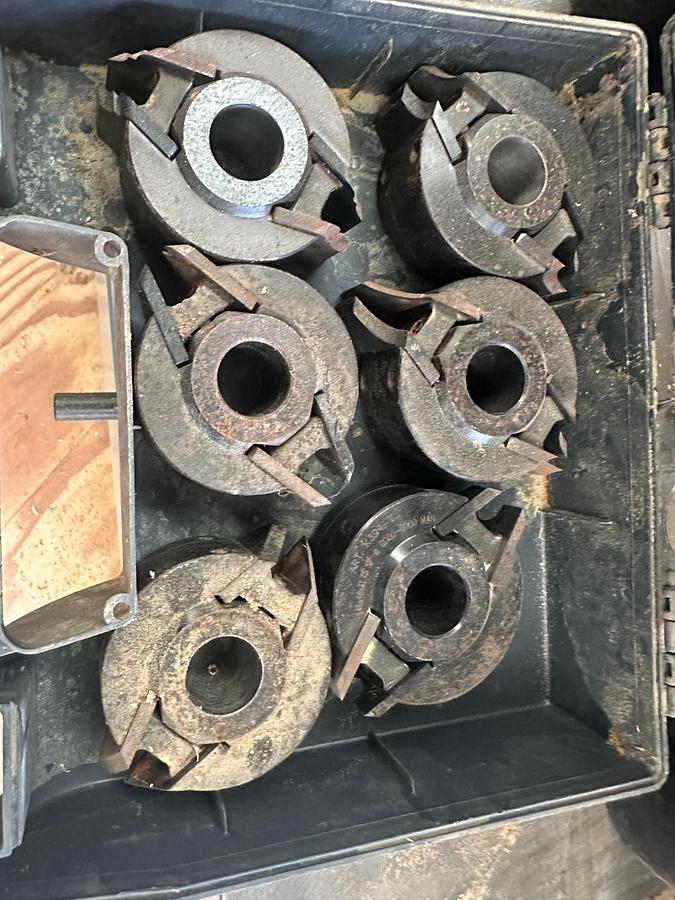

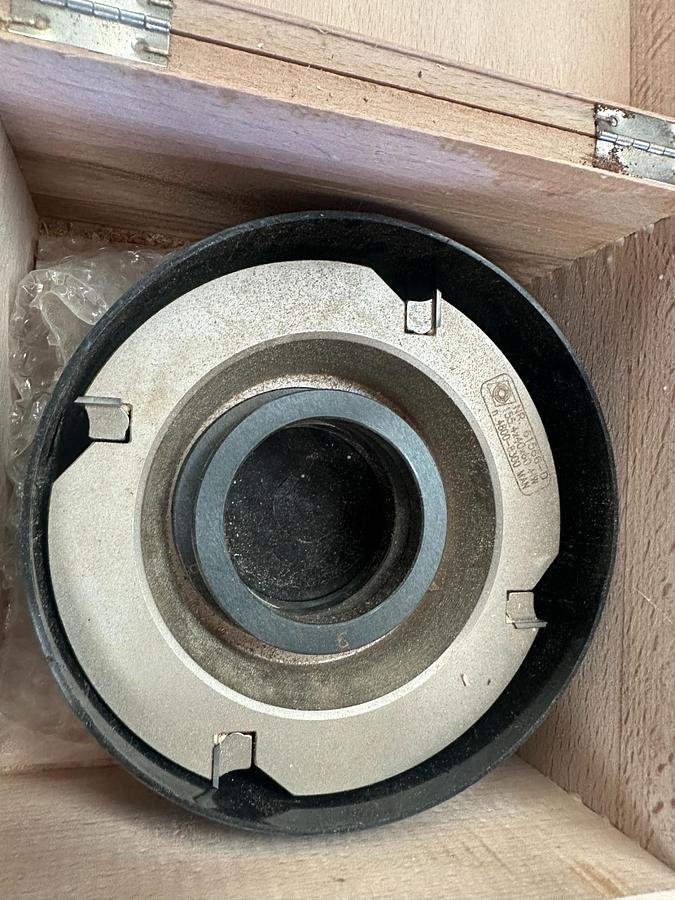

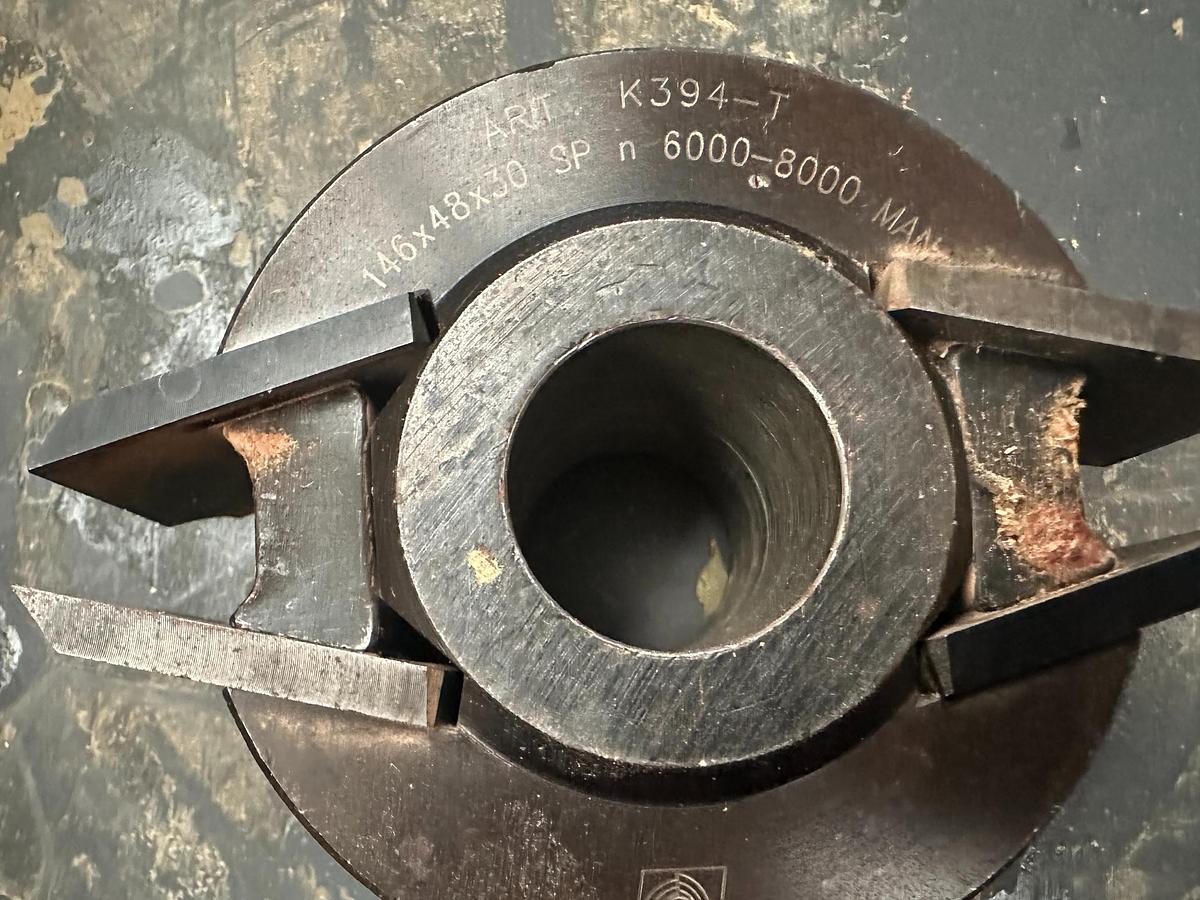

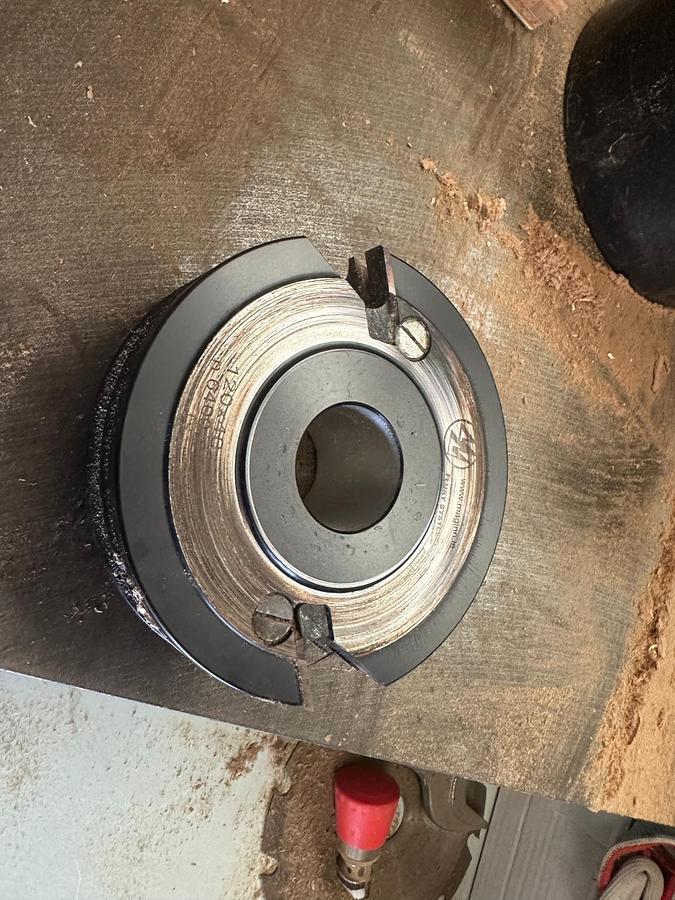

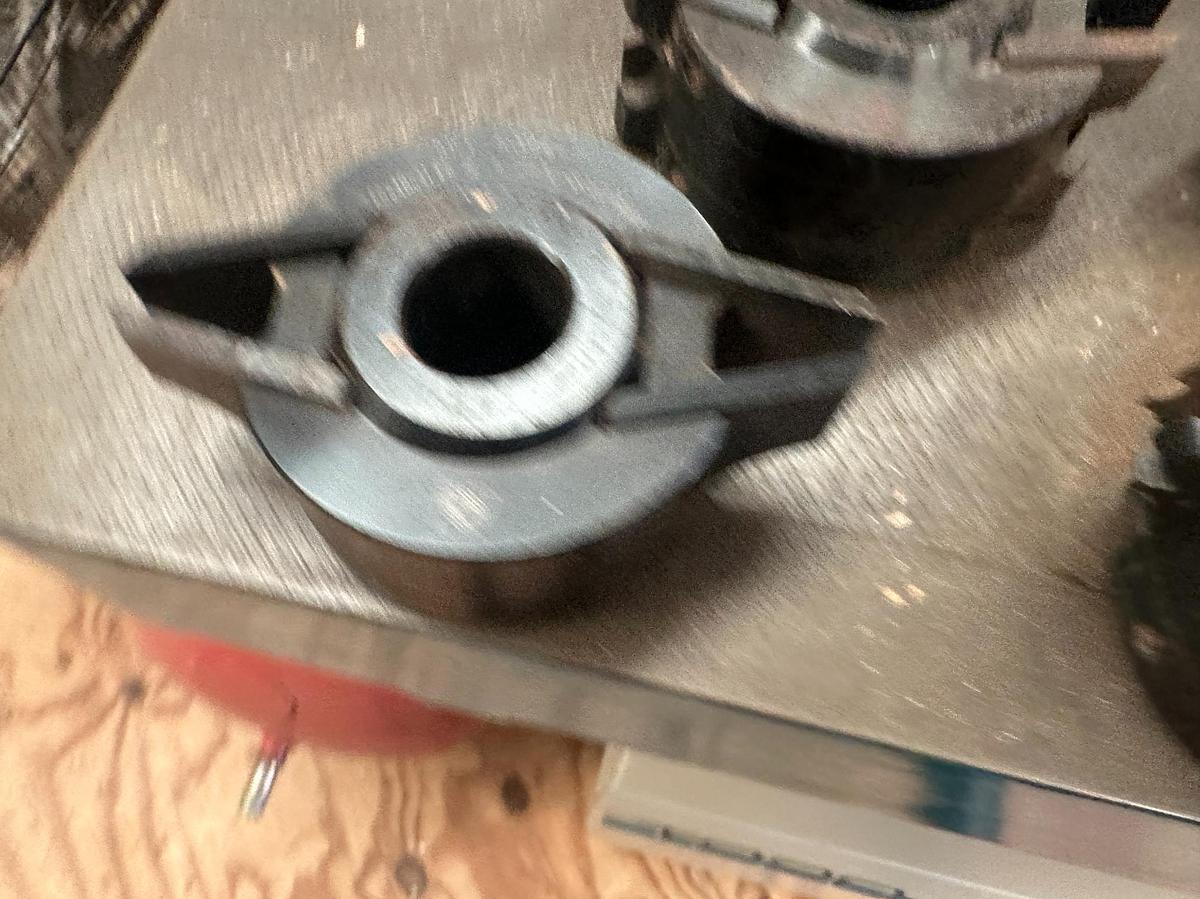

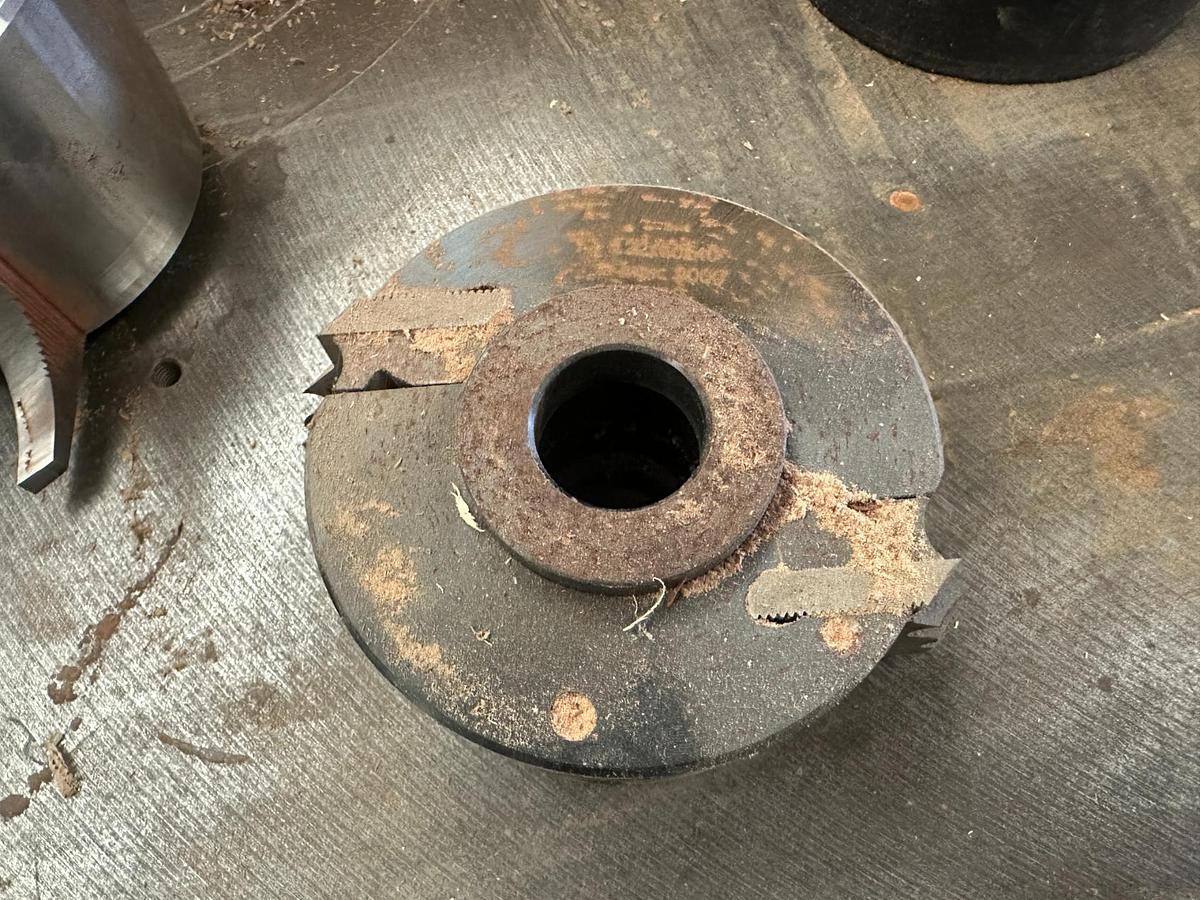

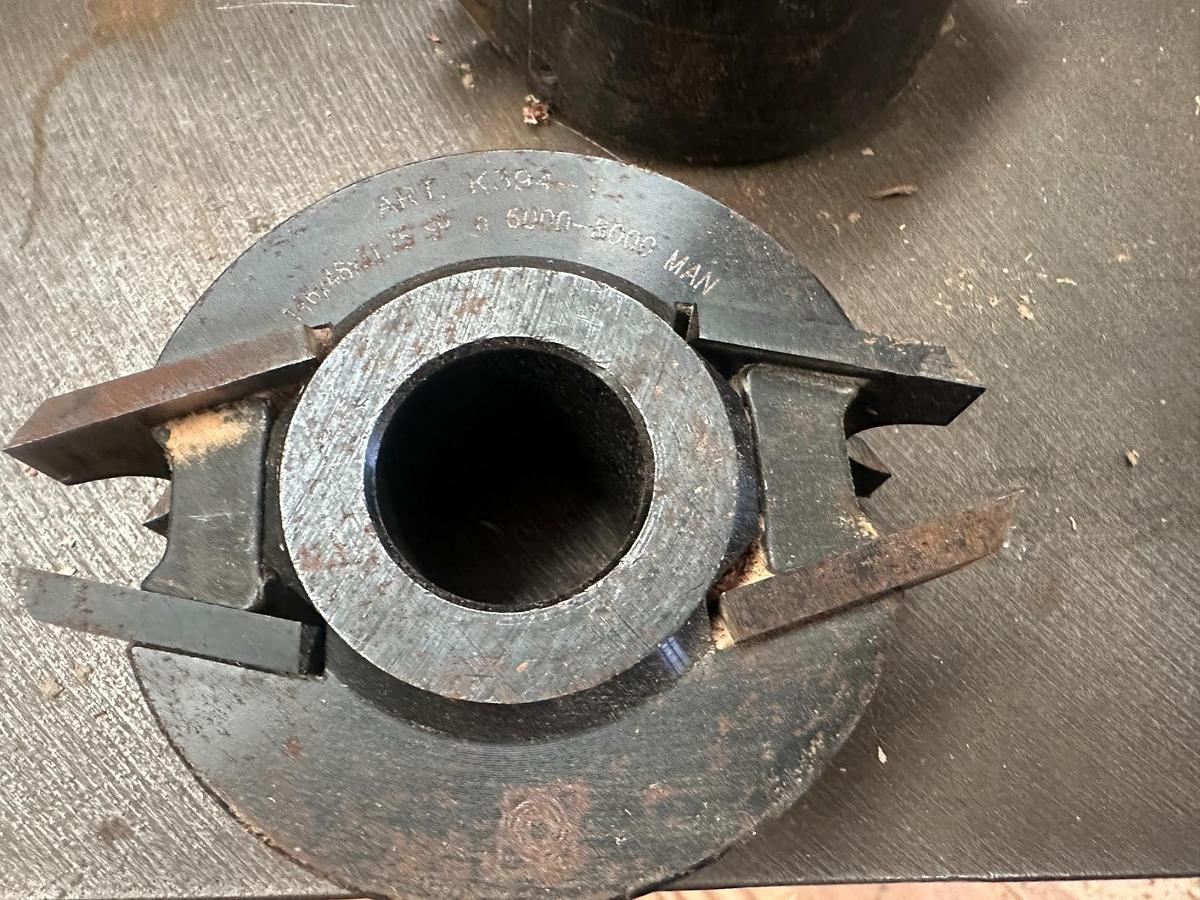

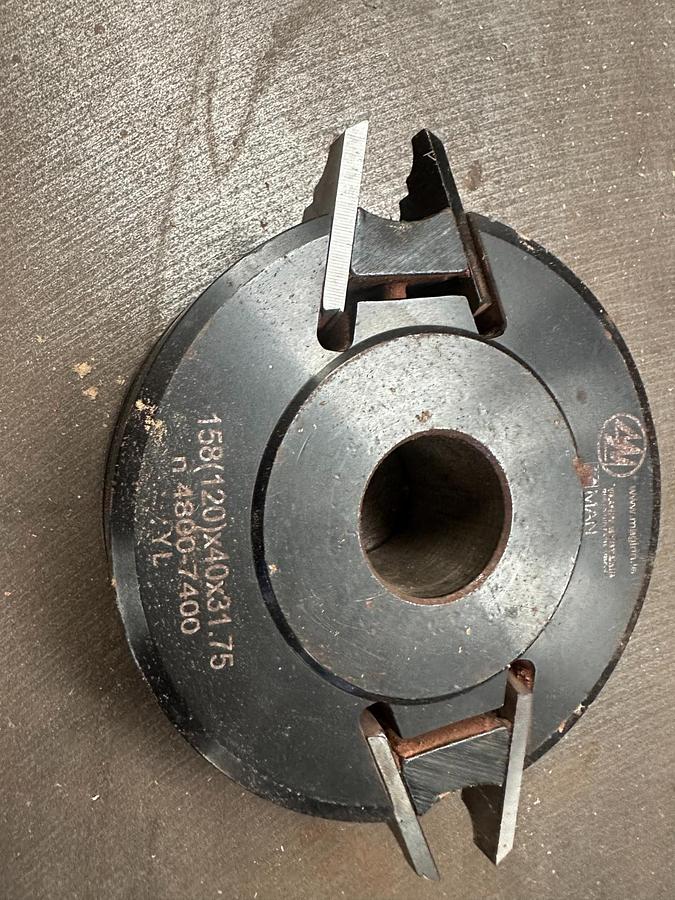

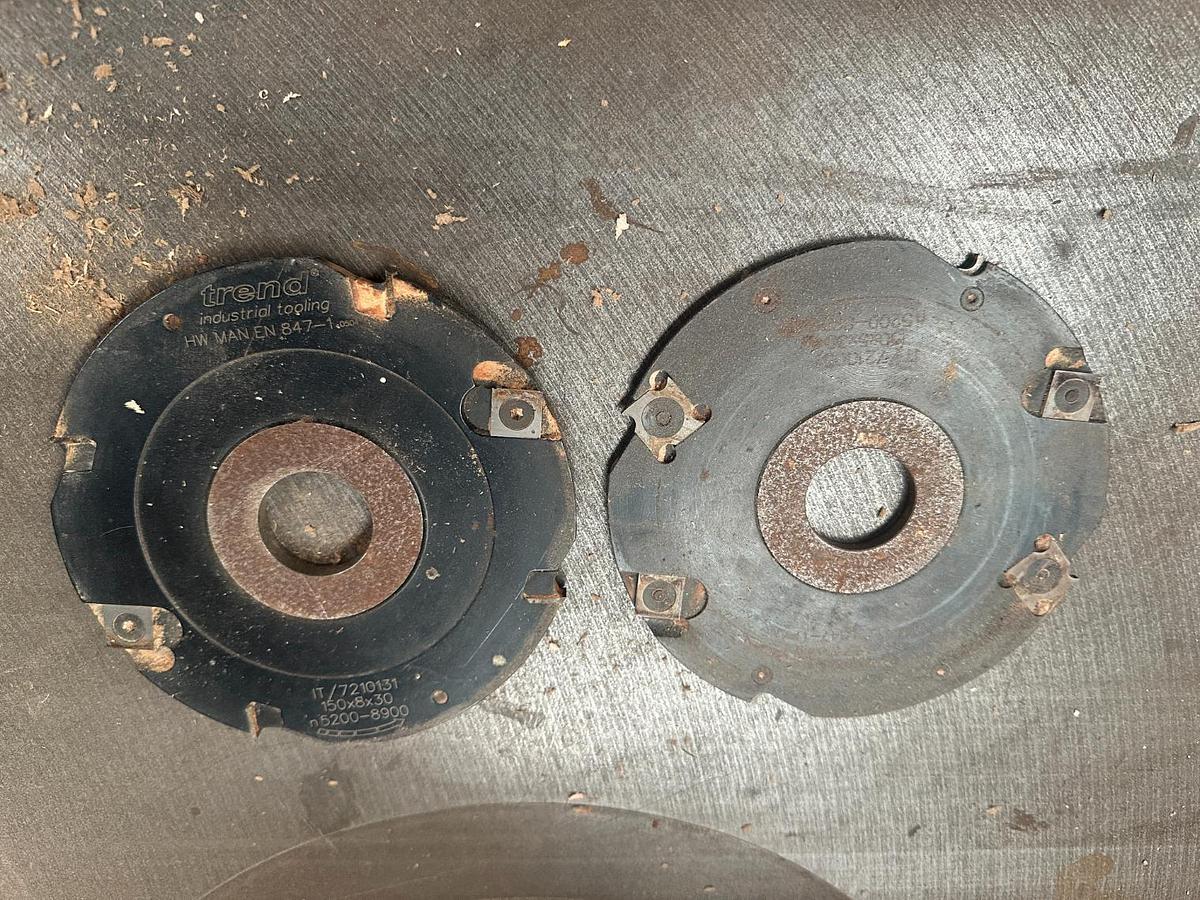

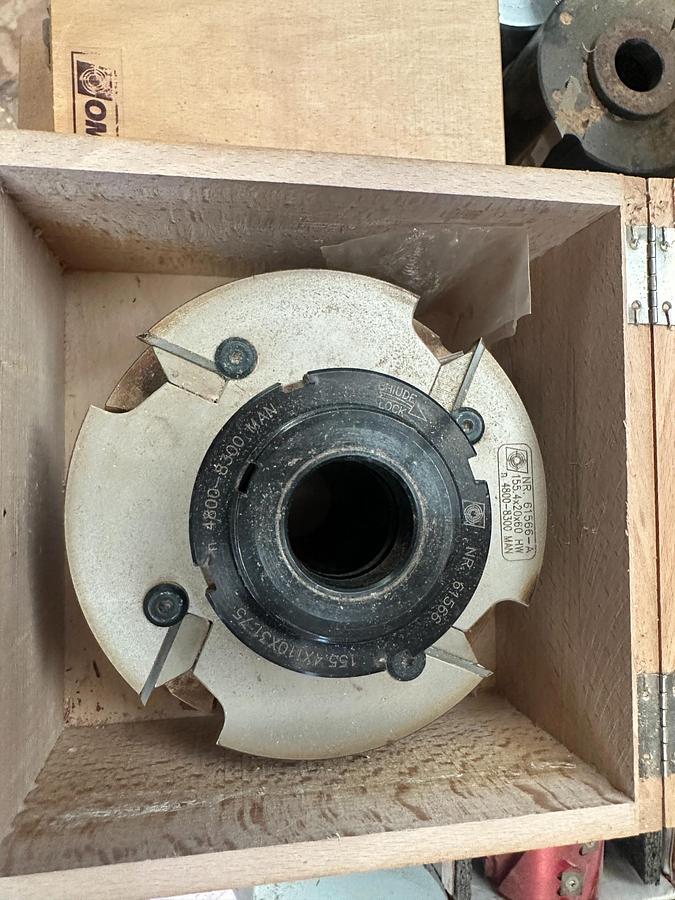

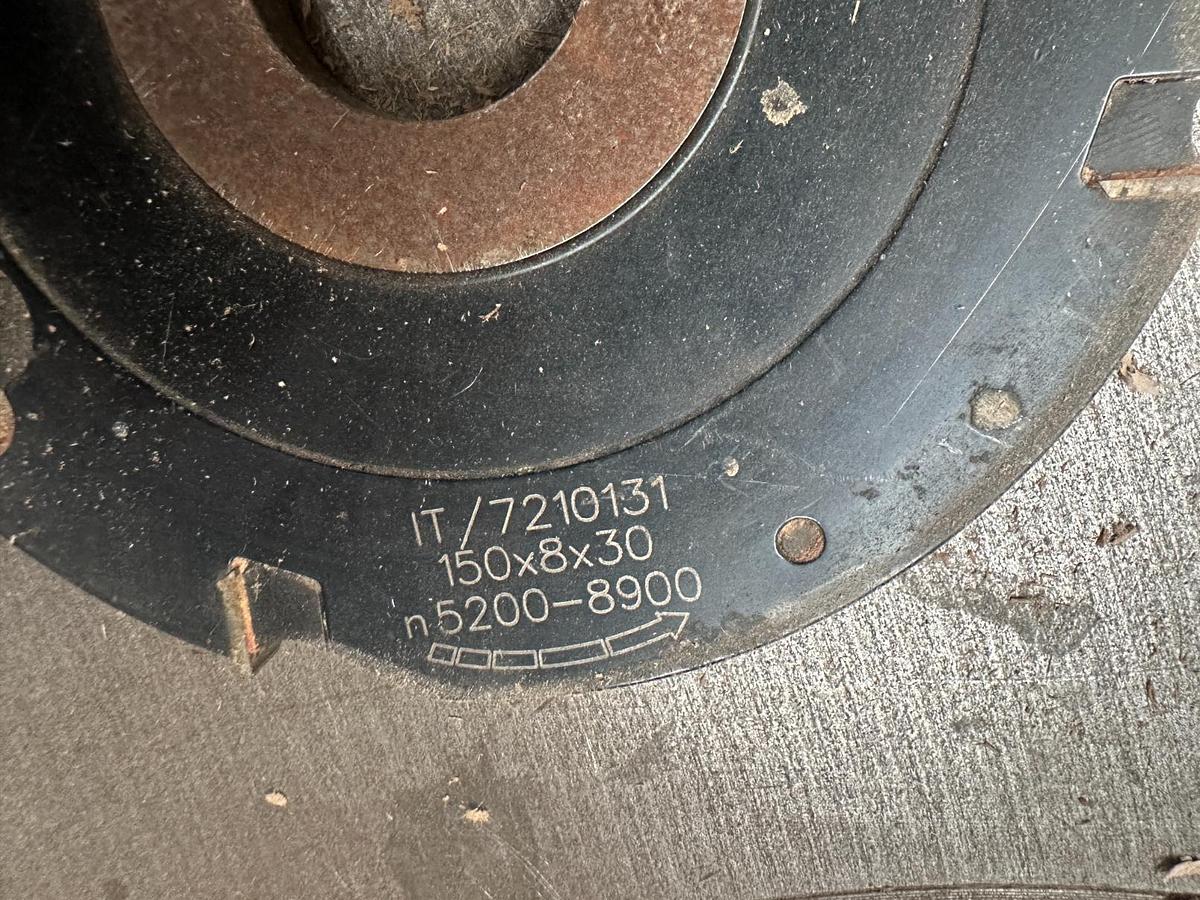

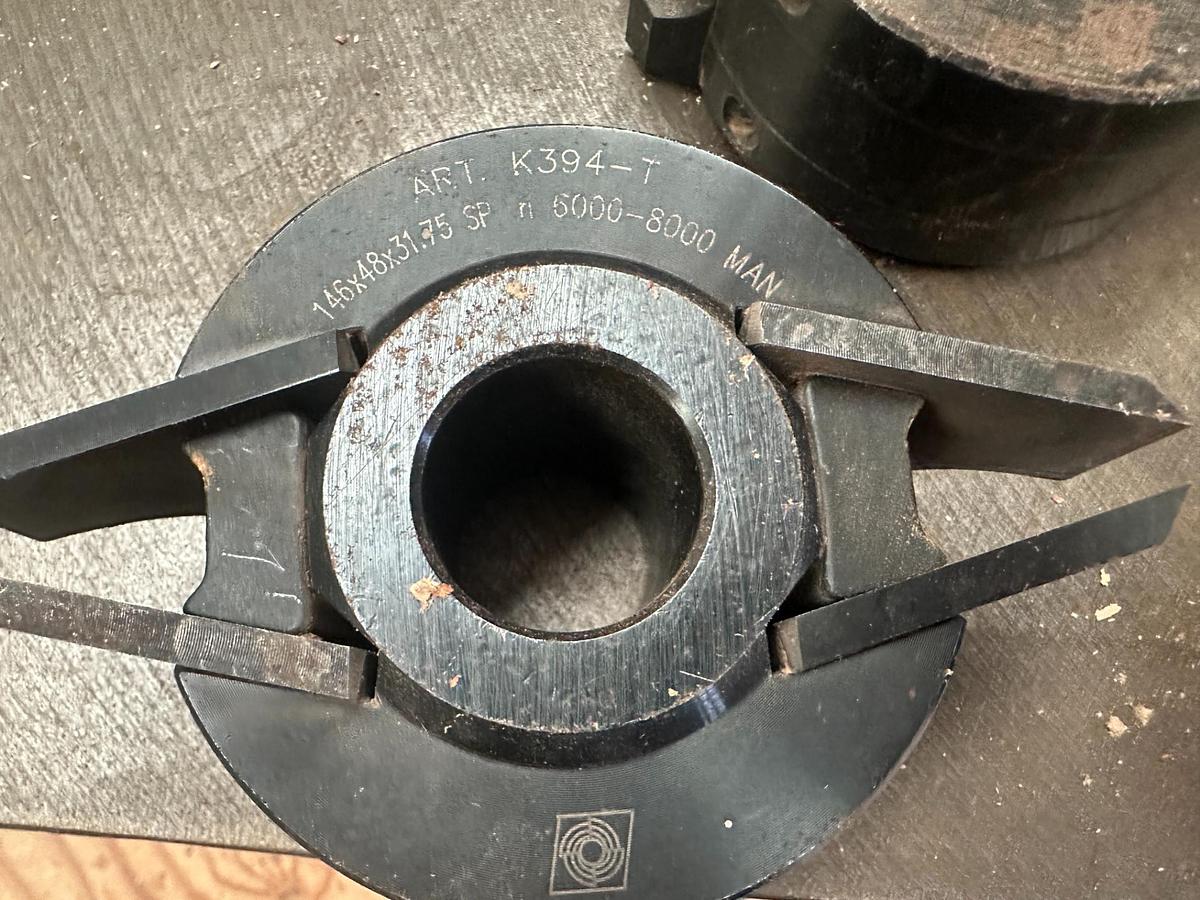

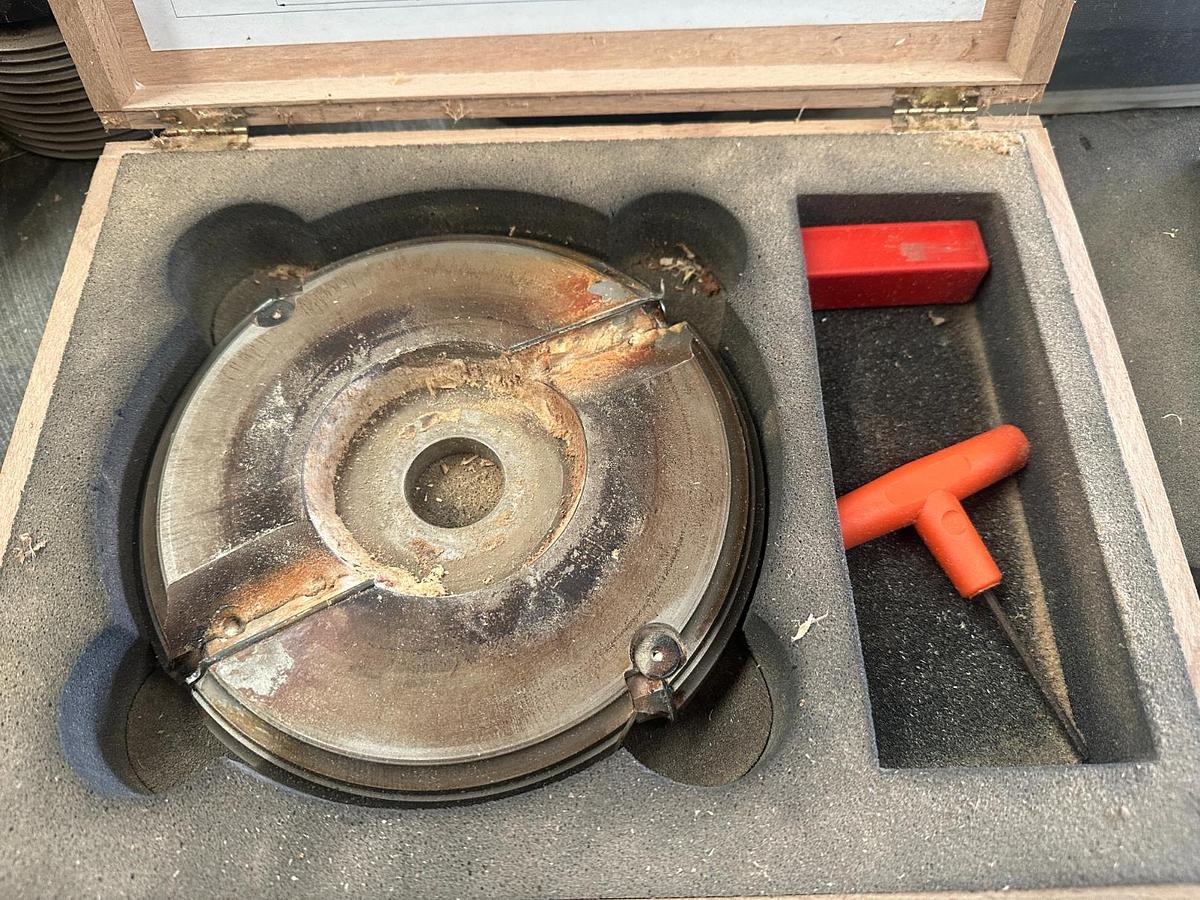

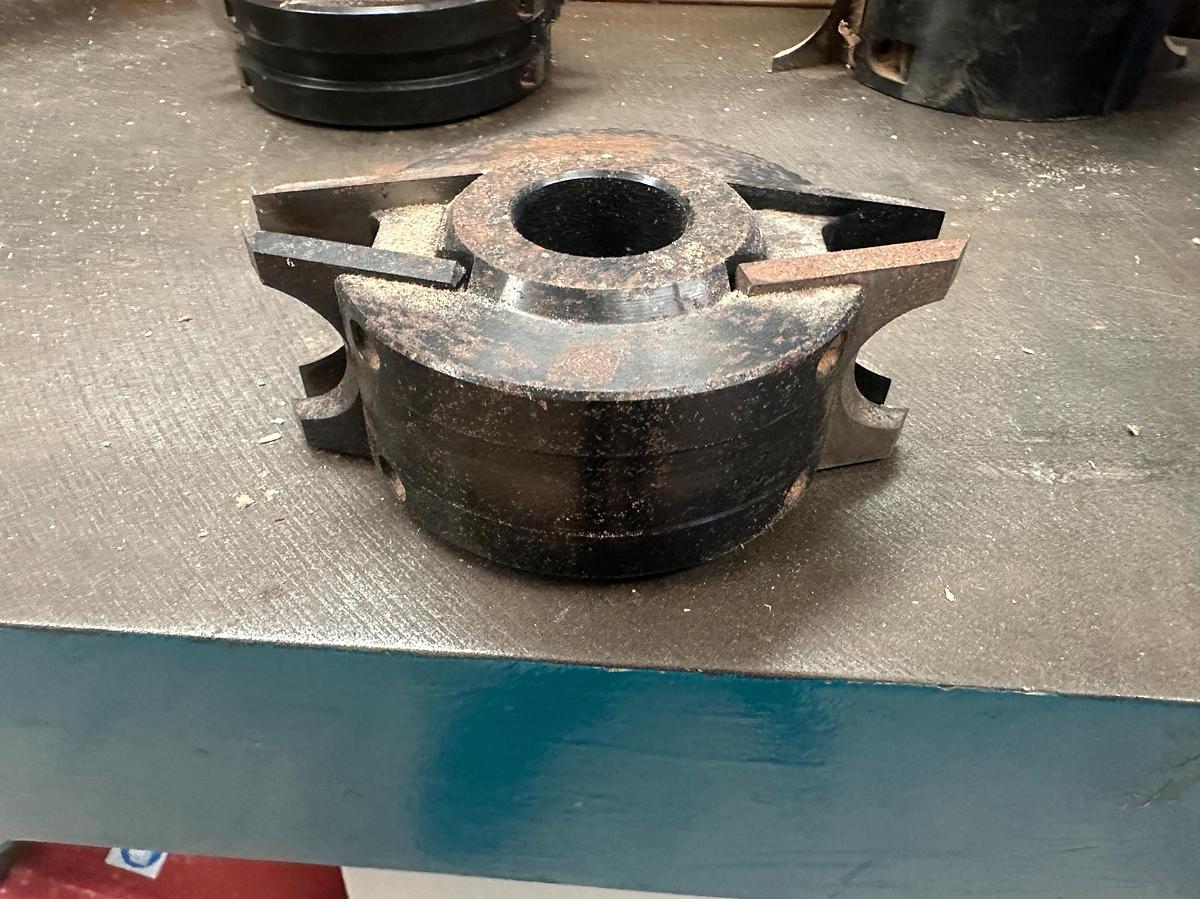

This is a high-value package and a great opportunity for any workshop looking to expand tooling options at a fraction of replacement cost. See photos for additional tooling available.

🏭 Ideal For

• Joinery workshops
• Furniture manufacturers
• Window and door production
• Timber mouldings and custom profiles
• Small to medium production runs

Note: Specifications and information provided in each listing are supplied in good faith; however, their accuracy cannot be guaranteed.

No Loading facilities on site.

Delivery in Ireland can be arranged via Truck with Hiab Crane
