🔧 Sedgwick TESH 3 Head Tenoning Machine for Sale

Sedgwick TESH 3 head tenoning machine for sale. 3 phase, heavy duty tenoner with scribing head. Ideal for joinery & furniture production.

Heavy Duty Single End Tenoner with Scribing Head

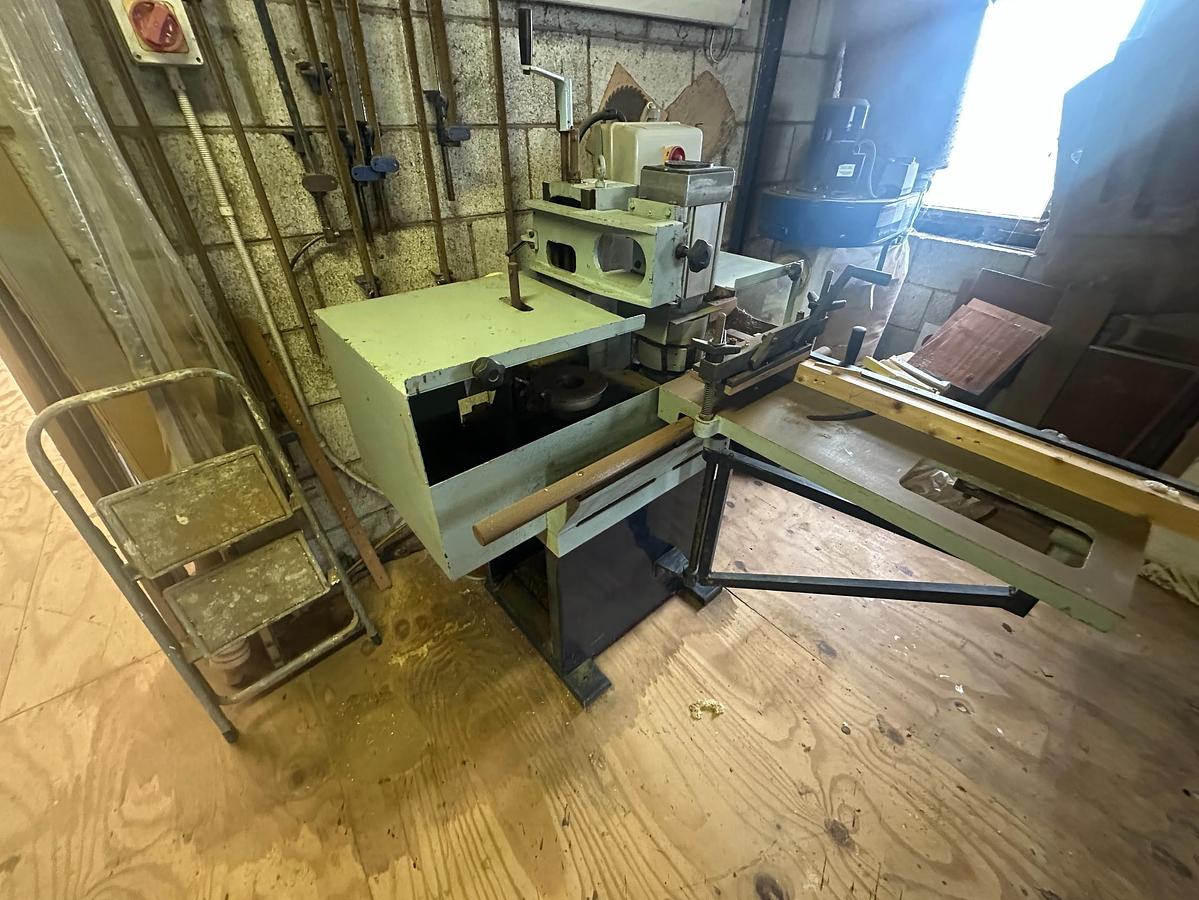

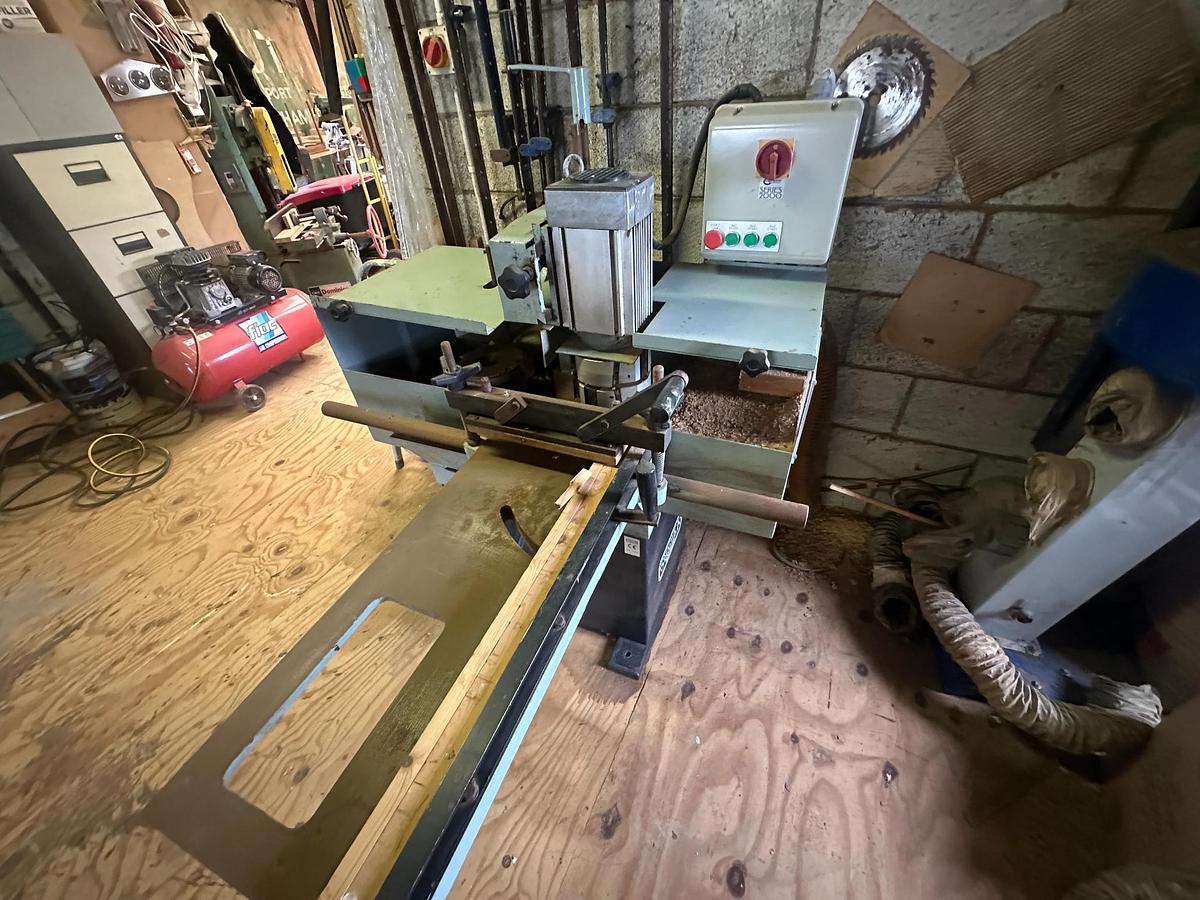

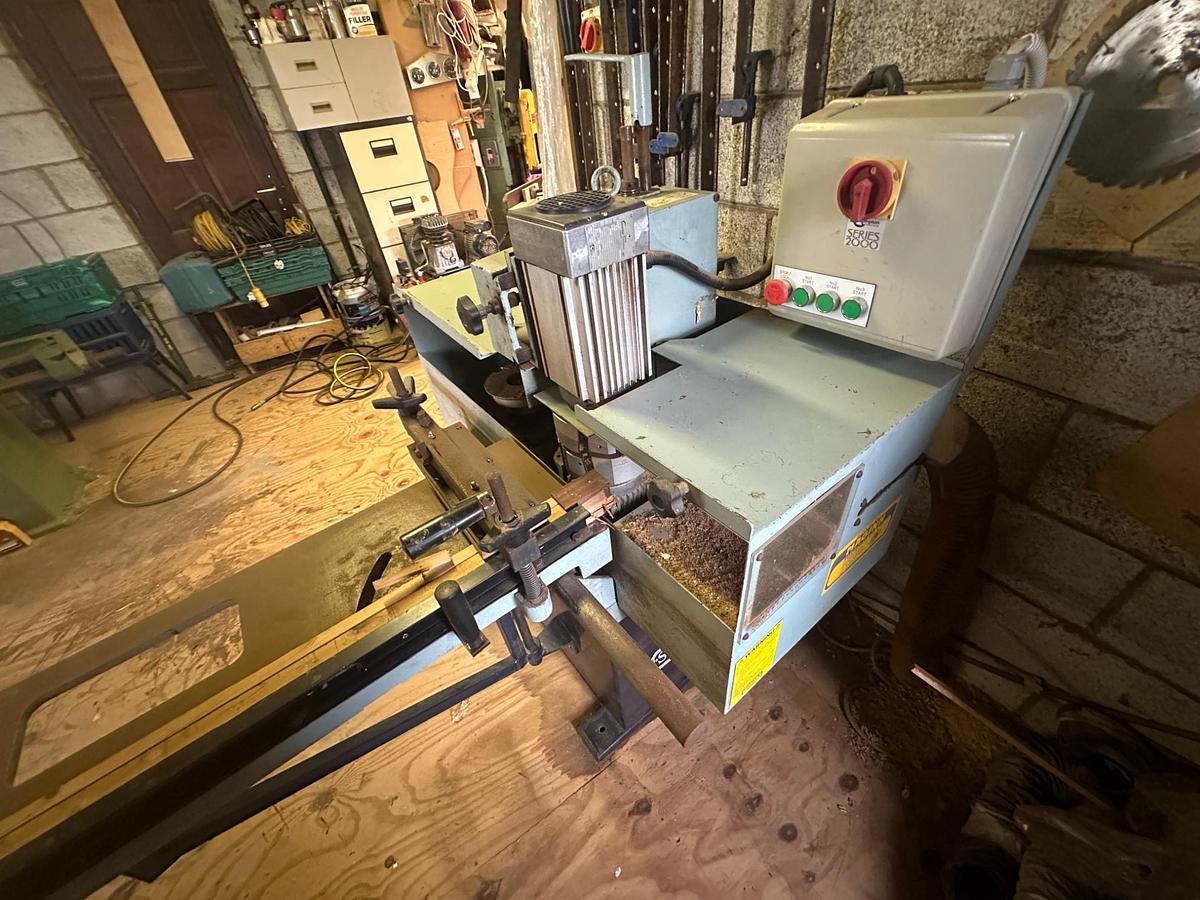

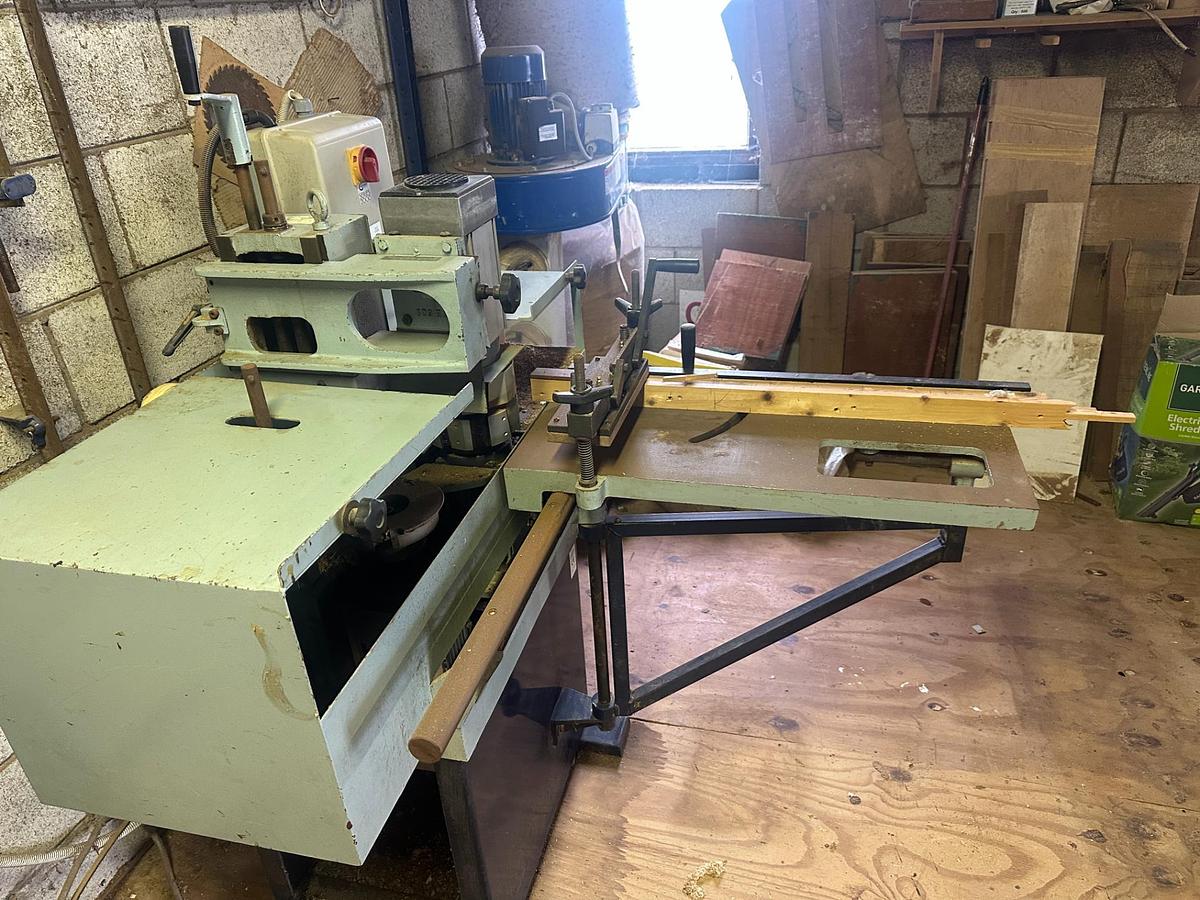

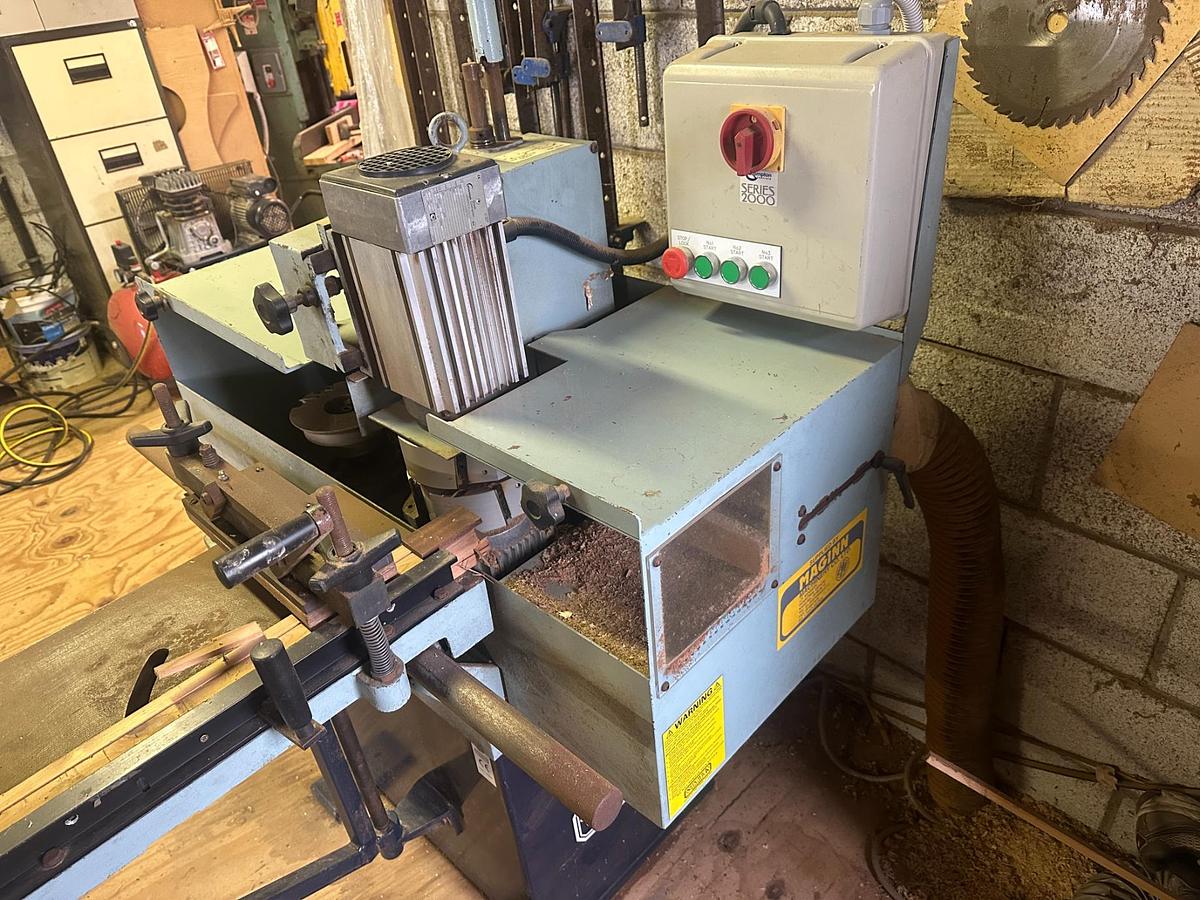

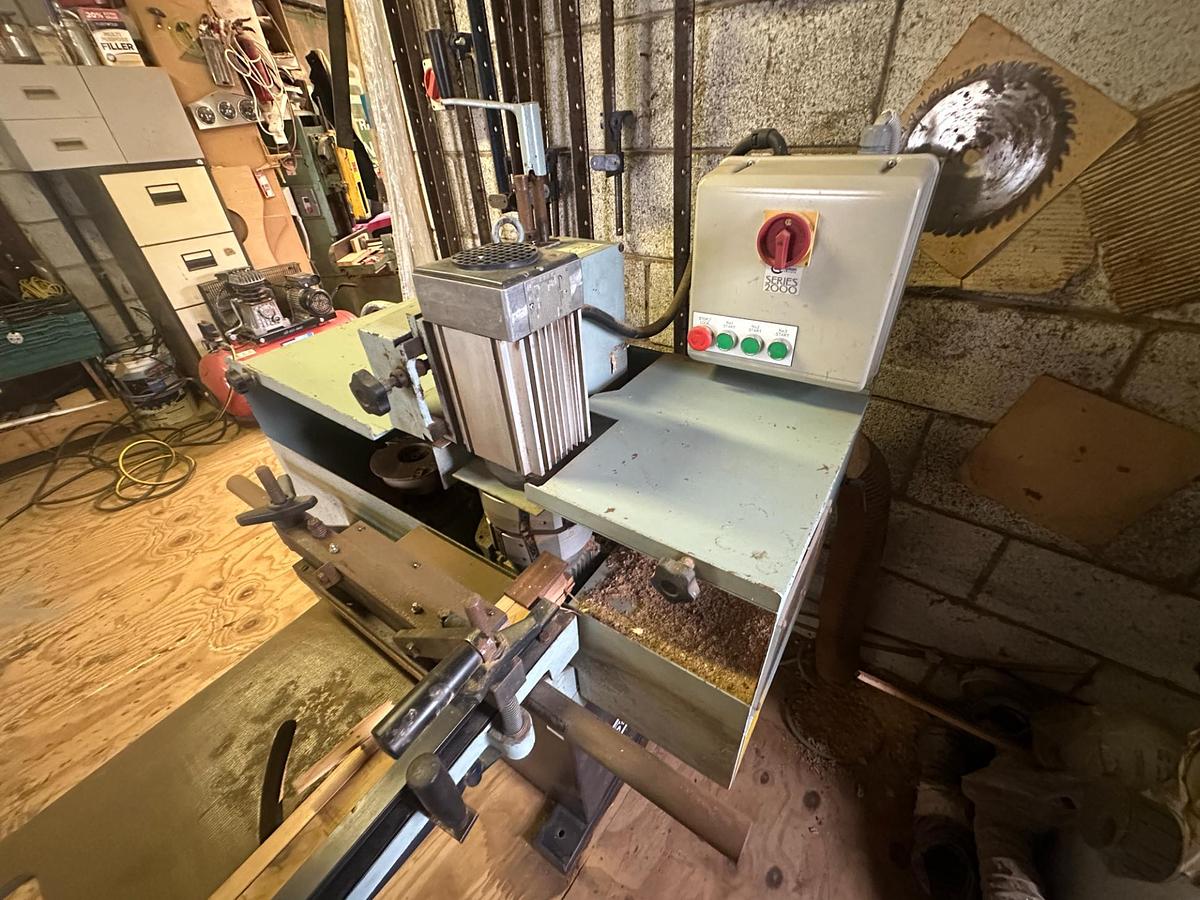

Available now this Sedgwick TESH 3 Head Tenoning Machine is a high-quality, industrial woodworking machine, designed for precision tenoning in joinery and furniture production.

Sedgwick machines are renowned for their robust construction, reliability, and accuracy, making them a staple in professional woodworking workshops.

✅ Key Features

• ✔️ 3 head configuration (2 main cutter heads + scribing head)
• ✔️ Heavy-duty cast iron construction
• ✔️ 3 phase industrial machine
• ✔️ Large sliding table with precision movement
• ✔️ Adjustable cutter heads for versatile tenoning
• ✔️ Ideal for joinery, doors, windows & furniture production

⚙️ Technical Specifications

• Manufacturer: Sedgwick
• Model: TESH
• Machine Type: Single End Tenoner (3 Head)
• Power Supply: 3 Phase

🔹 Timber Capacity

• Max Timber Size: 130 mm x 310 mm
• Capacity with Fence @ 45°: 130 mm x 250 mm

🔹 Tenoning Capacity

• Max Tenon Length: 155 mm
• Max Tenon Length (2 Passes): 205 mm

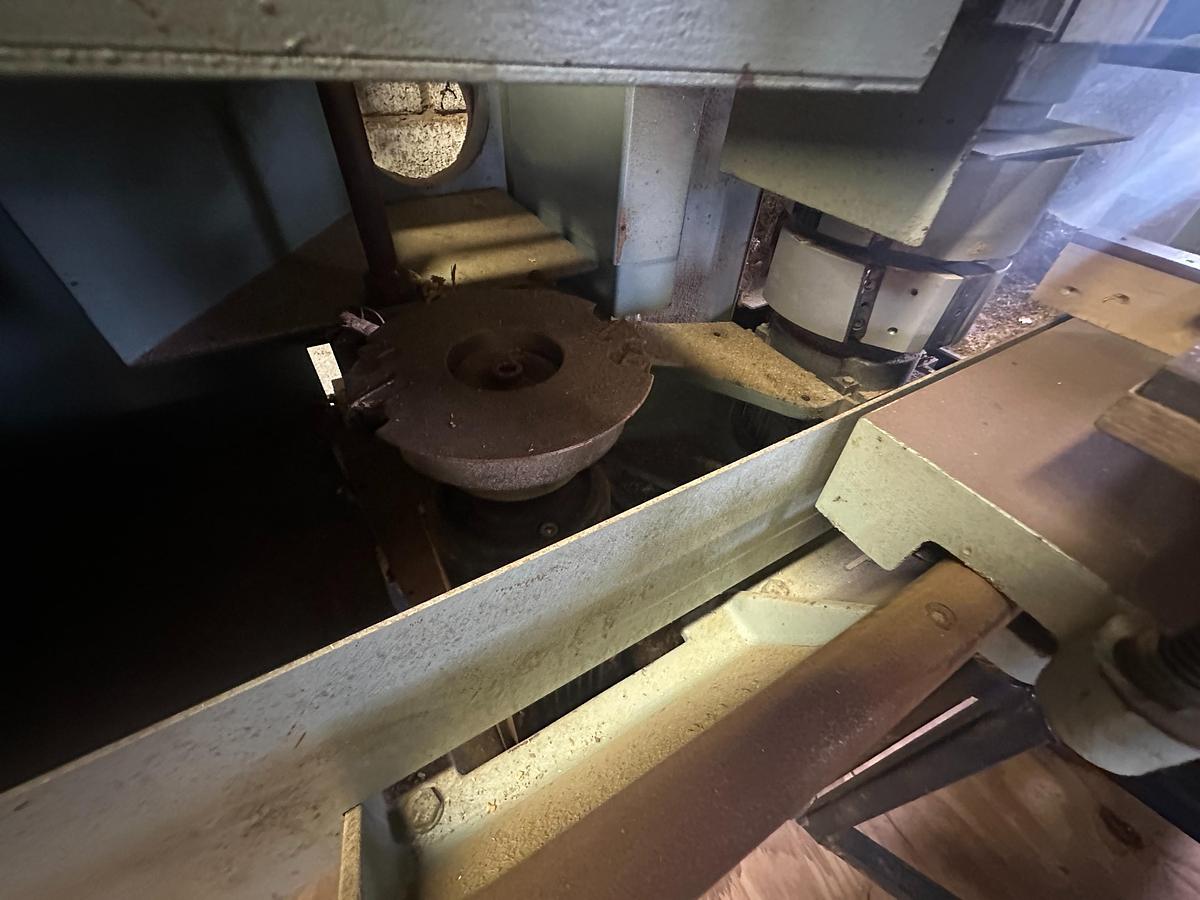

🔹 Cutter Heads

• Main Cutter Blocks: 2 x 175 mm x 60 mm

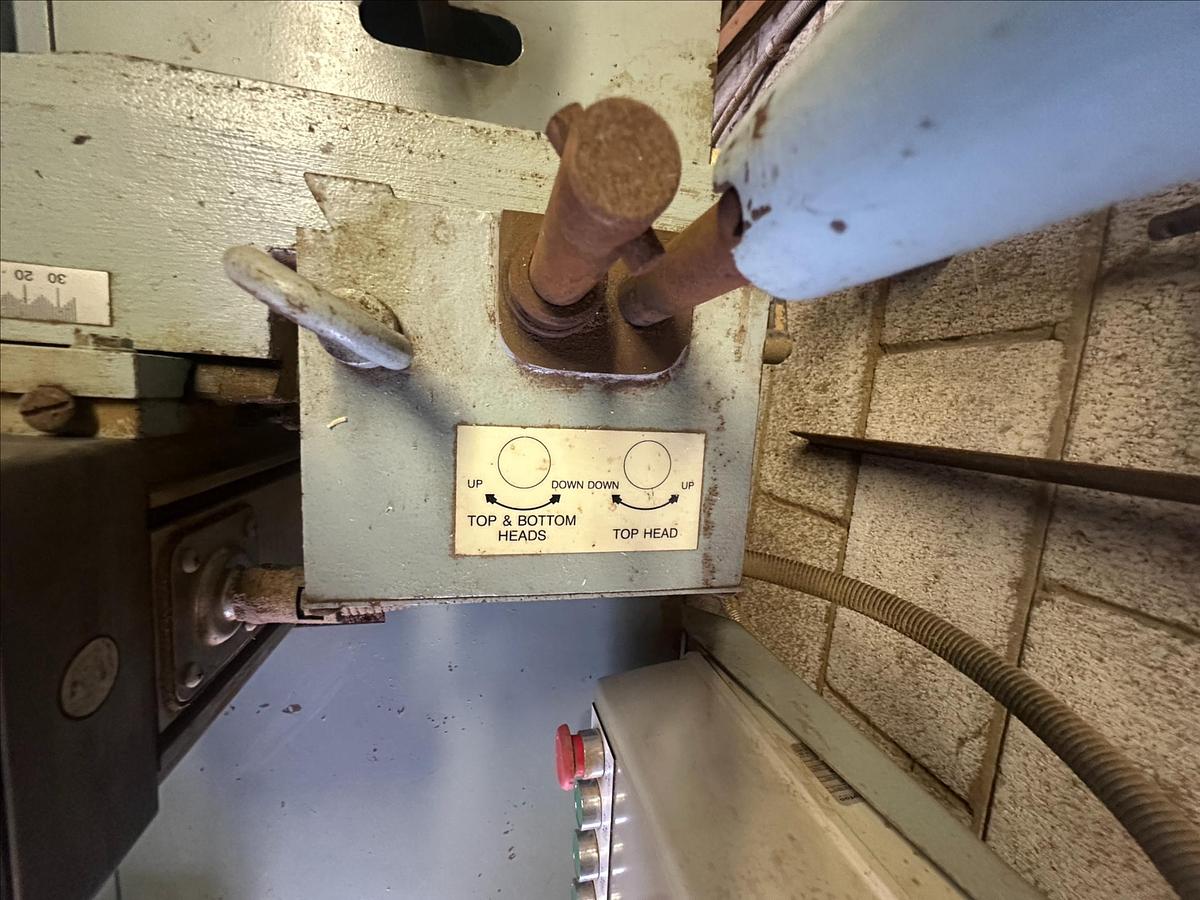

• Bottom Cutter Vertical Adjustment: 0 – 60 mm
• Top Cutter Vertical Adjustment: 0 – 120 mm

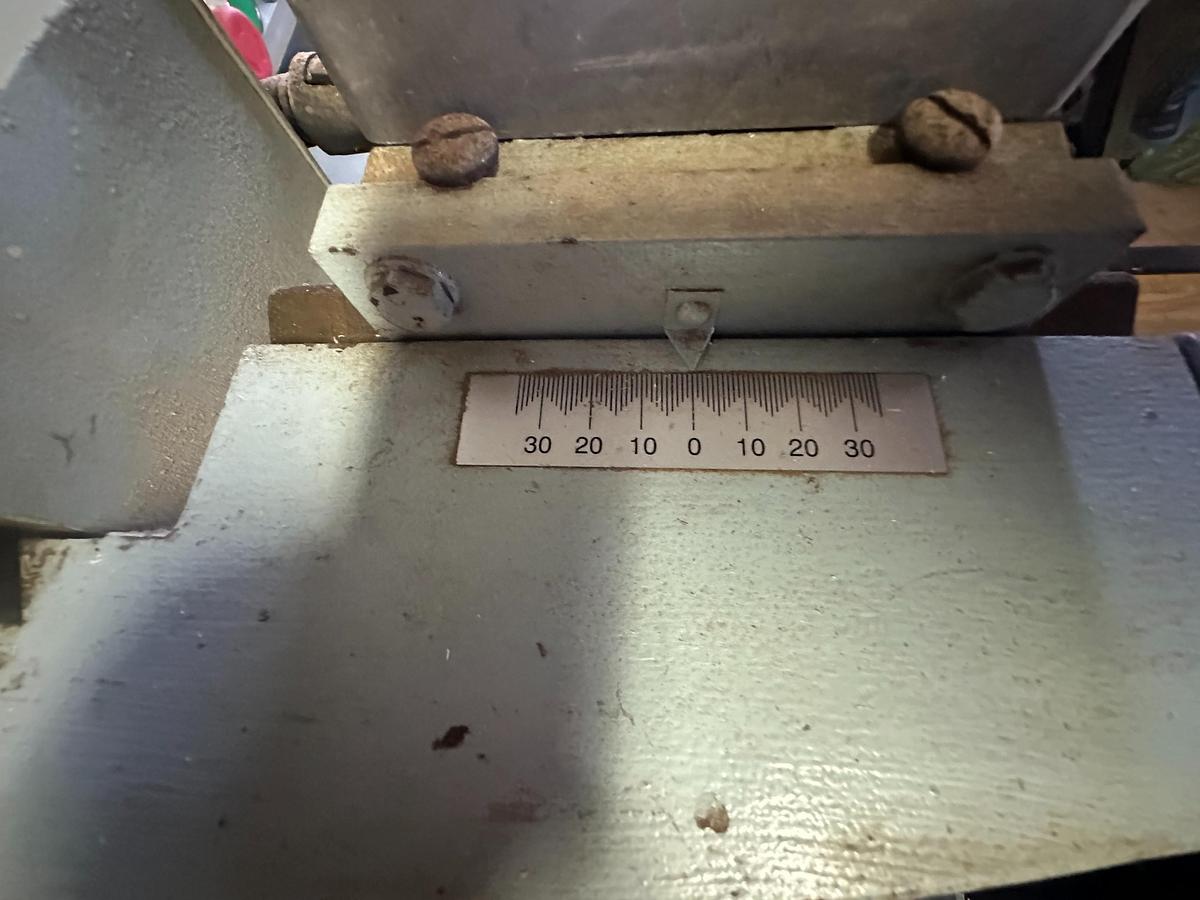

• Top Cutter Horizontal Adjustment: ±32 mm

🔹 Scribing Head

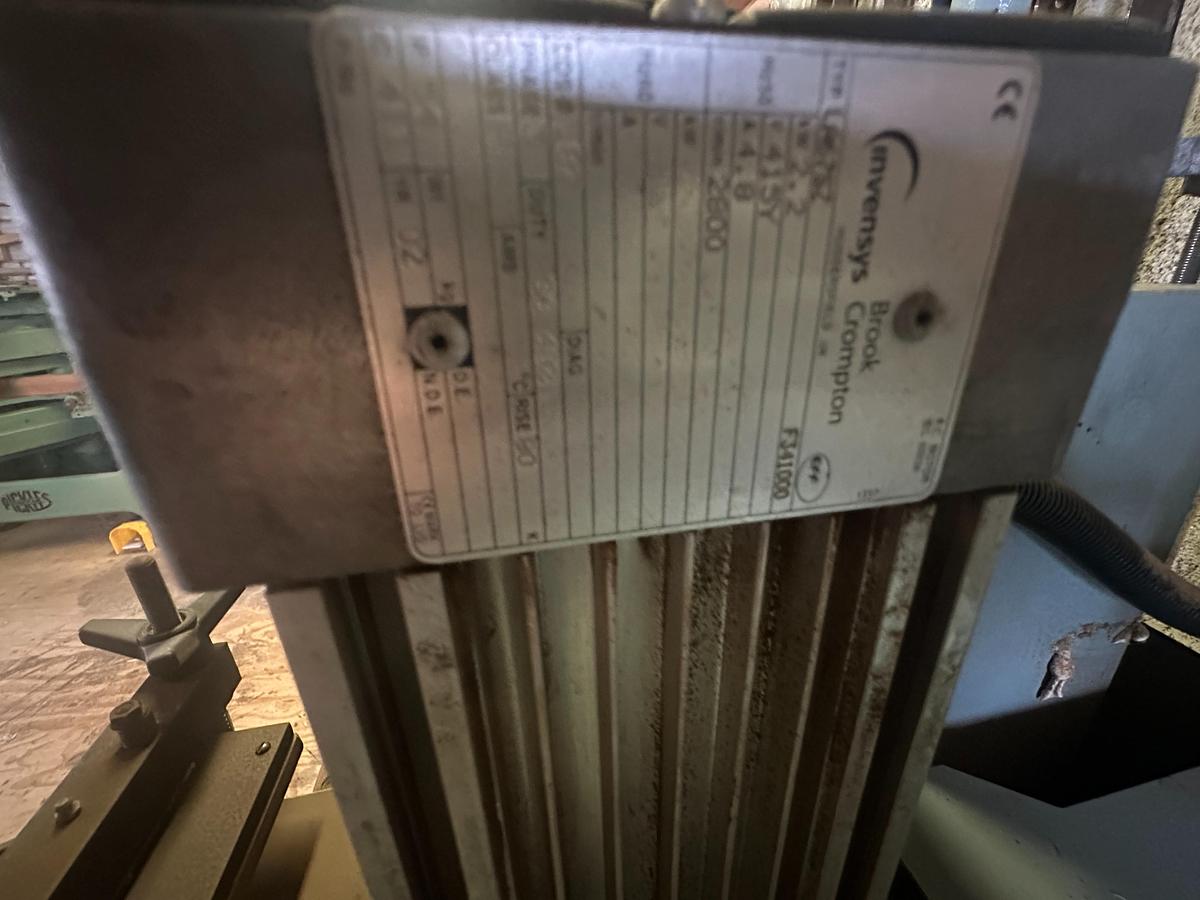

• Motor Power: 5.5 HP
• Shaft Diameter: 30 mm
• Vertical Movement: 0 – 95 mm
• Horizontal Movement: 0 – 30 mm

🔹 Table & Working Area

• Table Size: 800 mm x 310 mm
• Table Height: 860 mm

🔹 Dust Extraction

• Extraction Outlets: 2 x 150 mm

🔹 Machine Dimensions

• Approx Size (L x W x H): 1320 x 1020 x 1550 mm
• Weight: approx. 470 kg

🏭 Typical Applications

• Door and window manufacturing
• Furniture production
• Joinery workshops
• Timber frame construction
• Tenon and shoulder cutting

💡 How the Machine Works

The Sedgwick TESH operates by:

• Feeding timber across a precision sliding table
• Passing through two horizontal cutter heads to form the tenon
• Using the scribing head for clean shoulder finishing
• Allowing fine adjustment of all heads for accurate joinery work
•


This ensures high repeatability, accuracy, and professional finish quality.

📦 Condition

• Good working condition
• Solid, reliable industrial machine
• Ready for immediate use

Note: Specifications and information provided in each listing are supplied in good faith; however, their accuracy cannot be guaranteed.

No Loading facilities on site.

Delivery in Ireland can be arranged via Truck with Hiab Crane
