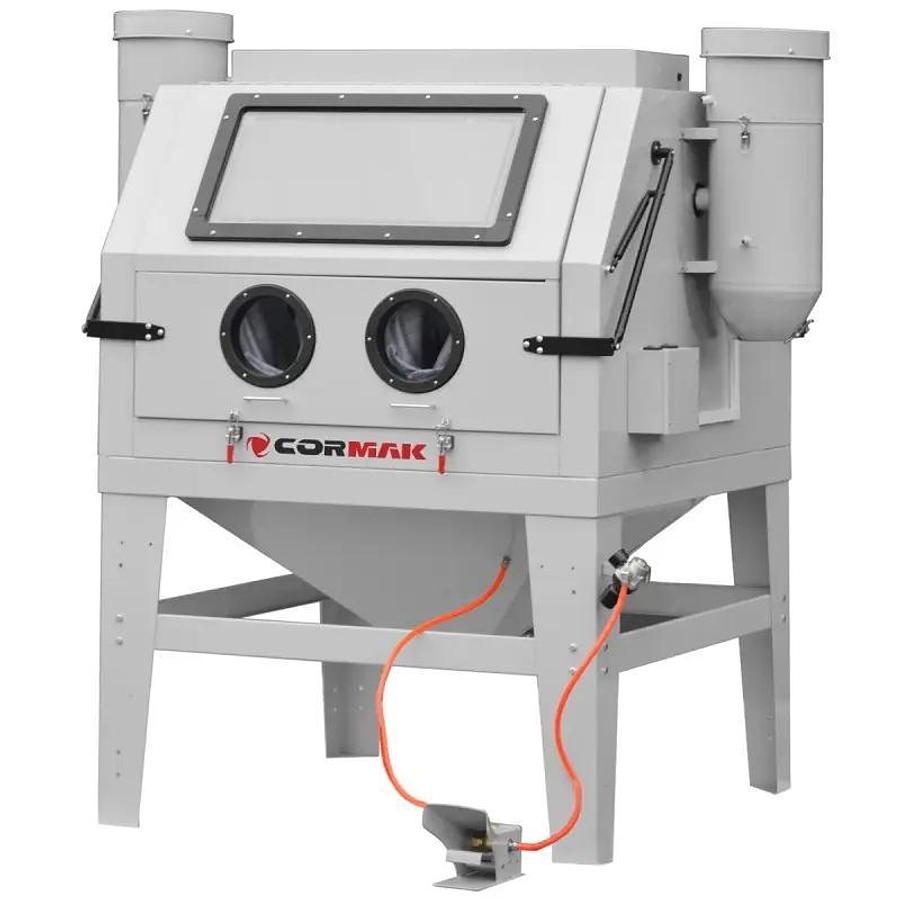

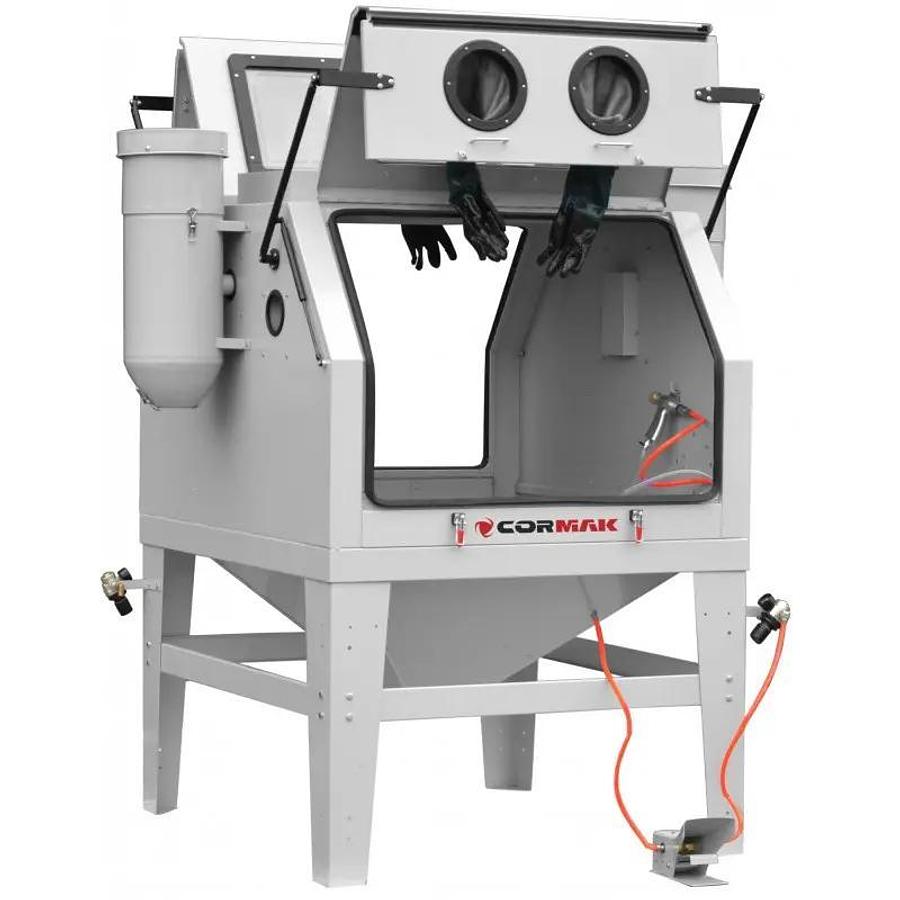

Cormak KDP1200 - 1200L Sandblaster with Dust Extraction

Cormak KDP1200 1200L Sandblaster with DC15 Dust Extractors

Machine Description

The sandblaster is equipped with a proven control system, a robust and spacious cabinet with doors opening on both sides, two industrial sandblasting guns, eight ceramic nozzles, two pairs of high-quality protective gloves, internal workspace lighting, large viewing windows (no blind spots), and two separate cyclone filters. The large 1200-litre working chamber allows easy sandblasting of large and heavy components, making the machine extremely versatile.

Double-sided sandblaster cabinet CORMAK 1200L – high-performance cabinet for sandblasting metal and rims with two workstations

CORMAK 1200L sandblaster cabinet is a premium-class industrial machine designed for high-efficiency surface treatment. The double-sided design with two independent workstations allows two operators to work simultaneously, significantly increasing productivity and reducing downtime. The cabinet is intended for intensive use in workshops, refurbishment plants, shipyards, as well as the automotive, aerospace and heavy industries.

Main advantages of the machine

• Large 1200-litre working chamber – enables sandblasting of large metal and structural components.
• Double-sided operation – two pairs of gloves, two guns, two control systems and two cyclone dust extractors allow simultaneous work by two operators.
• Dust-free operation thanks to efficient dust extraction systems and tight perimeter seals.
• Heavy-duty steel construction – designed for demanding industrial environments.
• Compatibility with a wide range of abrasives: aluminium oxide, glass beads, electrocorundum, crushed shells, technical sand.
• 15 replaceable protective foils for the viewing windows – long-lasting clear visibility without interruption.

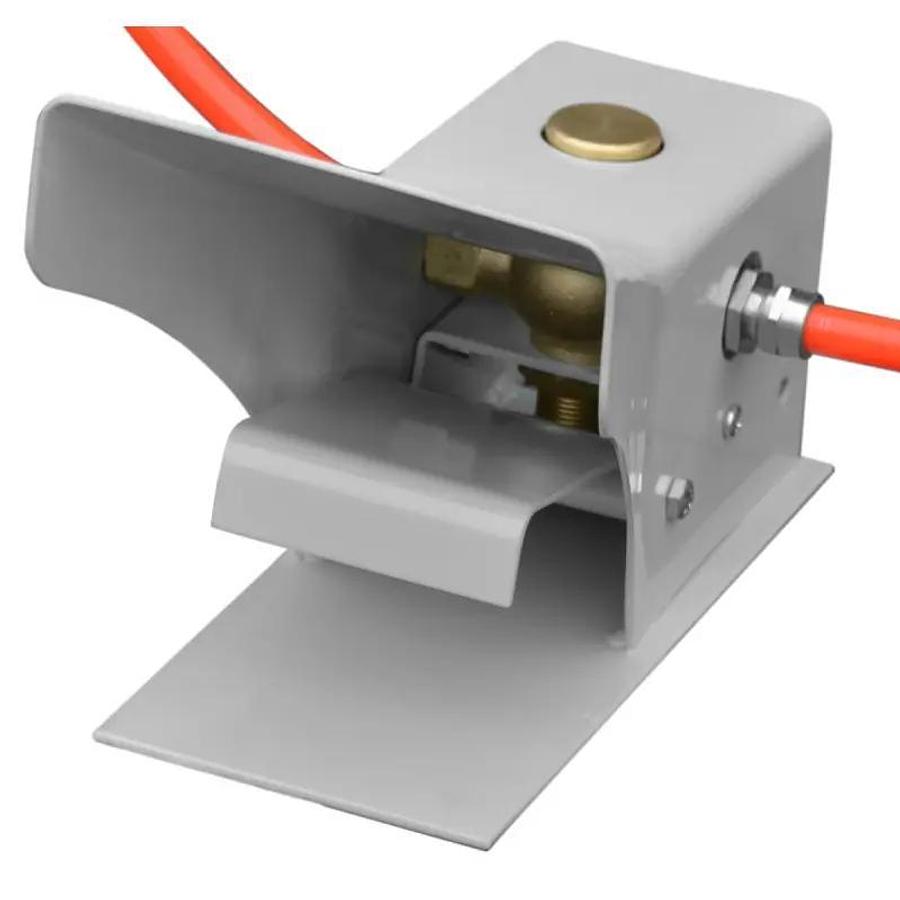

• Intuitive operation – foot pedals, ergonomically positioned connections and pressure control.
•


Design and technology

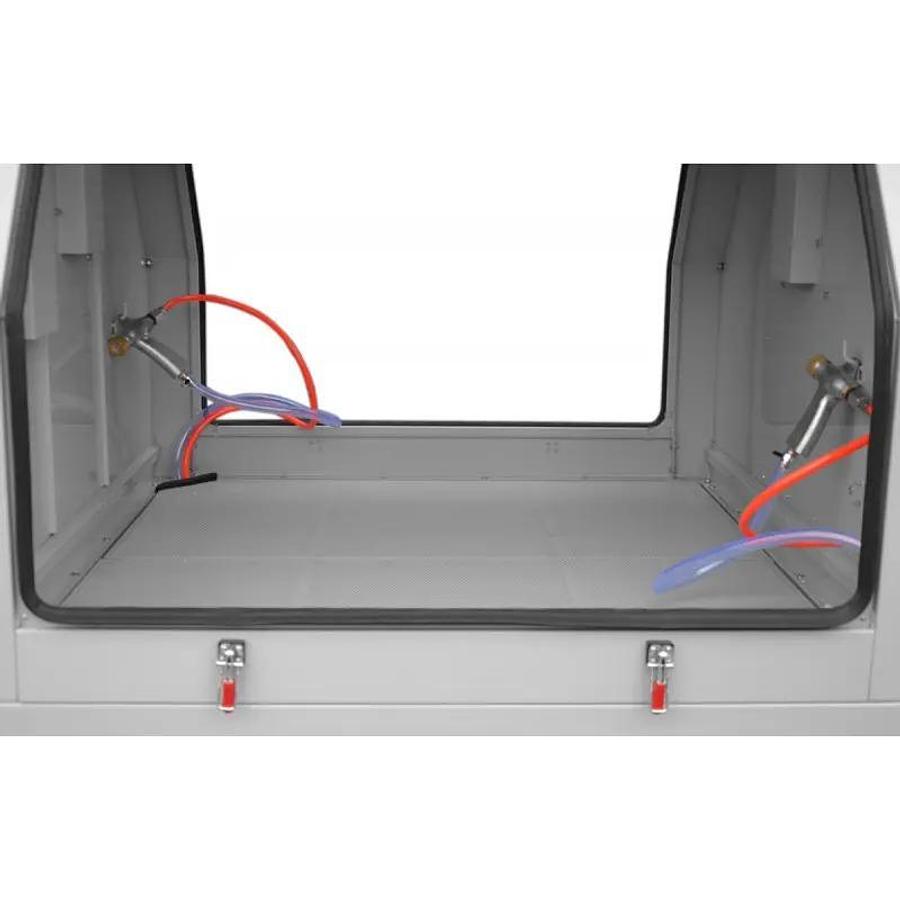

The CORMAK 1200L model is manufactured from high-grade steel and protected against corrosion. Two workstations located on opposite sides of the cabinet allow simultaneous sandblasting from both sides of the workpiece. Each workstation is equipped with an independent sandblasting gun, pressure regulator, foot pedal and cyclone dust extractor. This configuration ensures high efficiency while maintaining safety and ergonomic working standards. The spacious interior and wide access openings allow easy handling of large components.

Precision and work efficiency

A working pressure range of 4–8 bar allows the parameters to be adjusted to the type of processed material and abrasive used. The dual-nozzle system and independent workstations ensure high productivity without compromising precision. Closed-loop operation supported by effective dust extraction provides the operator with good visibility and a clean working environment.

Applications

The CORMAK 1200L sandblaster cabinet offers a wide range of industrial applications. It is ideally suited as:

• A sandblaster cabinet for rims, frames, suspension components and body parts,
• A sandblaster for metal in production and repair facilities,
• Equipment for surface preparation prior to powder coating, galvanising or welding,
• Machinery for cleaning, smoothing and refurbishing industrial, wooden and plastic components,
• A solution for companies requiring fast, precise and clean abrasive blasting processes.
•


Standard equipment

• 8 ceramic nozzles
• 15 replaceable protective foils for the viewing windows
• 2 industrial sandblasting guns
• 2 pairs of protective gloves integrated with the cabinet
• 2 cyclone dust extractors

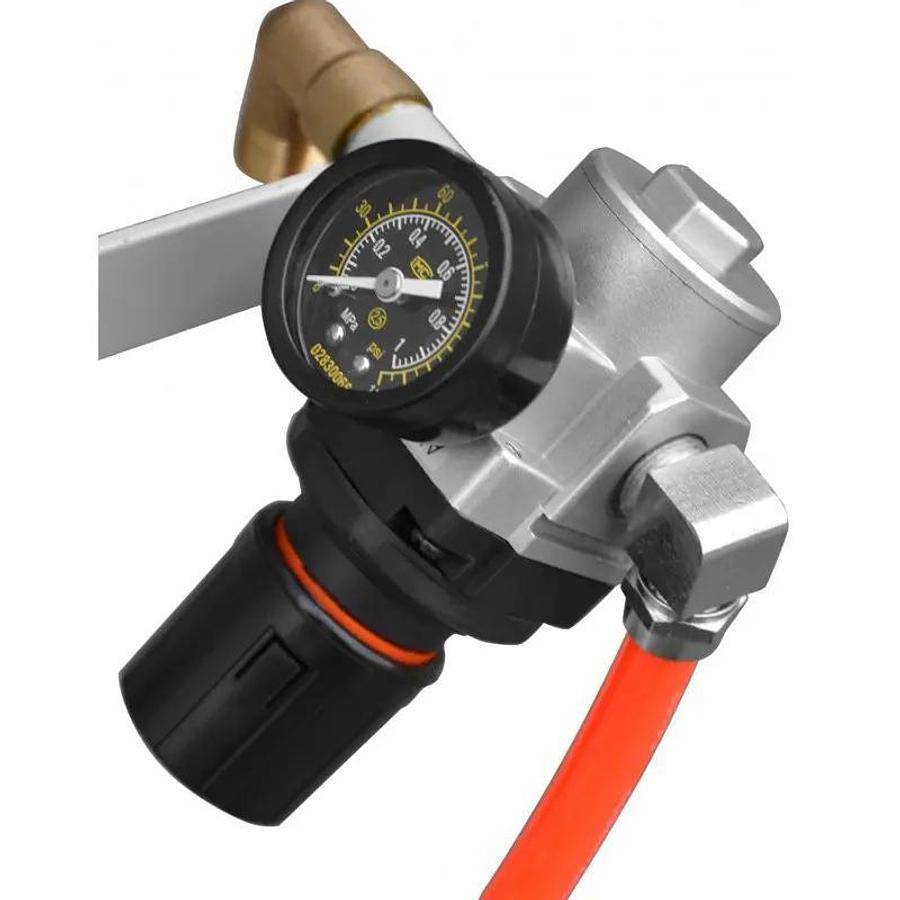

• 2 pressure regulators
• 2 foot controls

Technical Details

Internal Cabinet Dimensions: 1150 x 1260 x 800mm

Pressure Rating: 4-8 Bar

Capacity: 1200 L

Abrasive material (abrasive):Aluminium Oxide, glass grinding and sand

Dimensions: 1800 x 1400 x 1880 mm

Weight: 196kg

Note: The machine is supplied in a self-assembly version.
