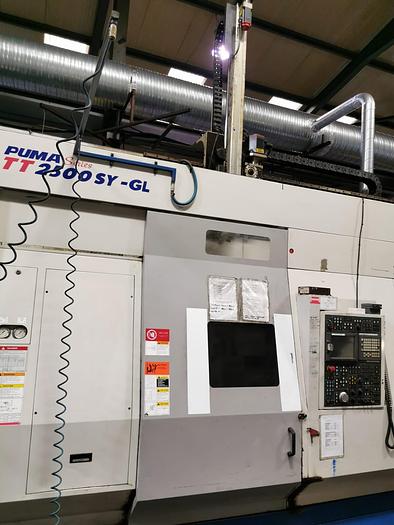

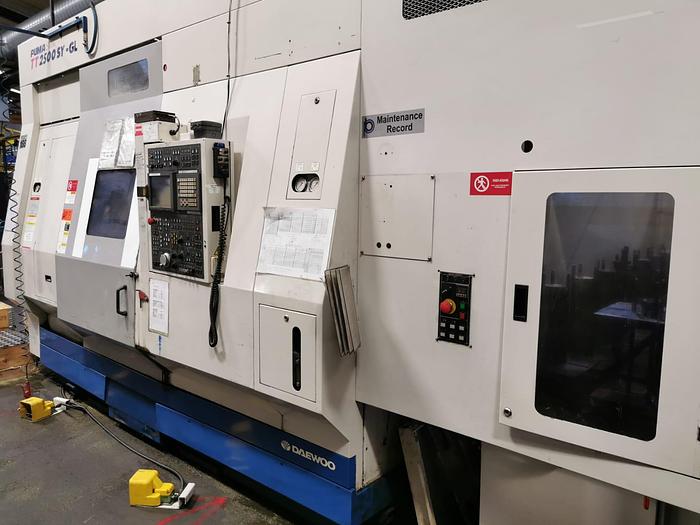

2005 Daewoo Puma TT2500SY GL

2005 Daewoo Puma TT2500SY GL

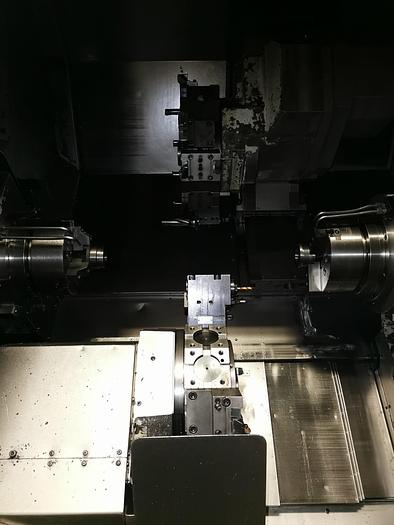

Machine Type: Twin Turret, Twin Spindle Lathe with Gantry Loader

Year: 2005

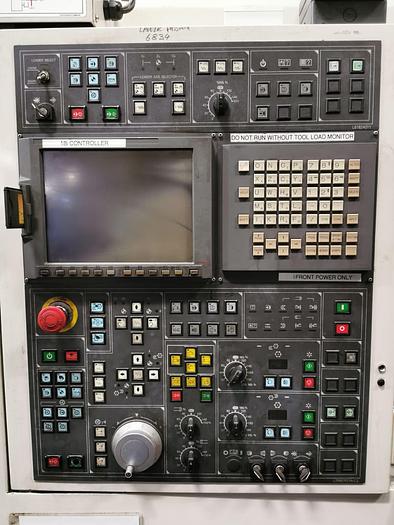

Control: Fanuc 18i

Includes

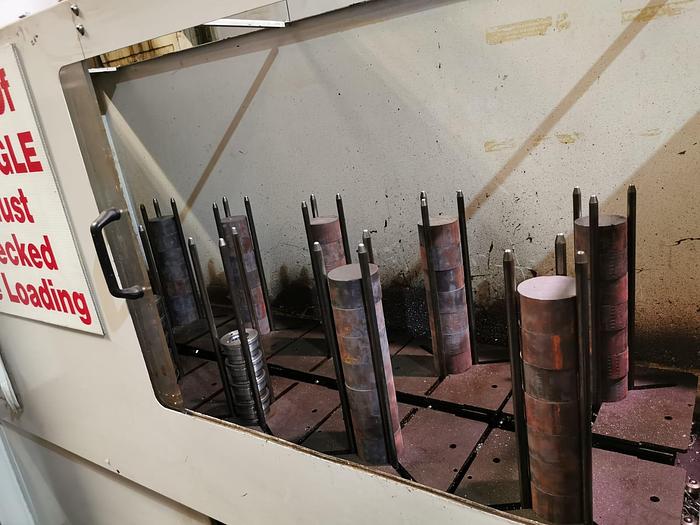

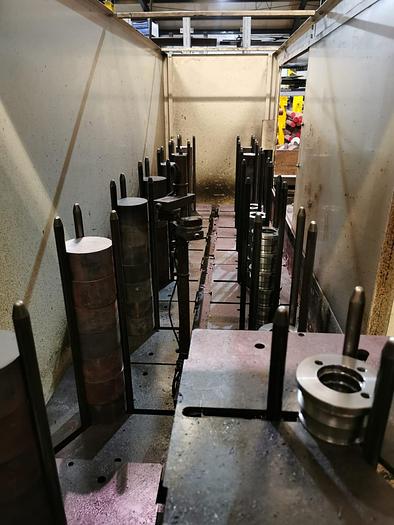

Gantry Loader

Machine Specifications

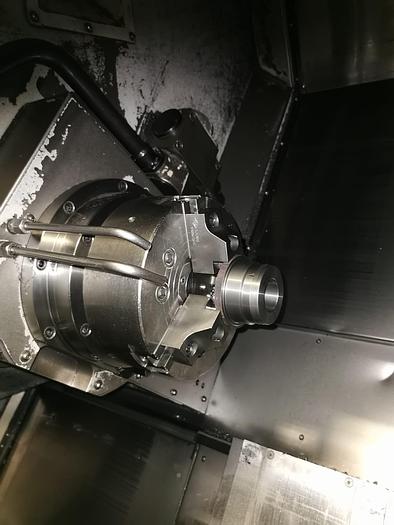

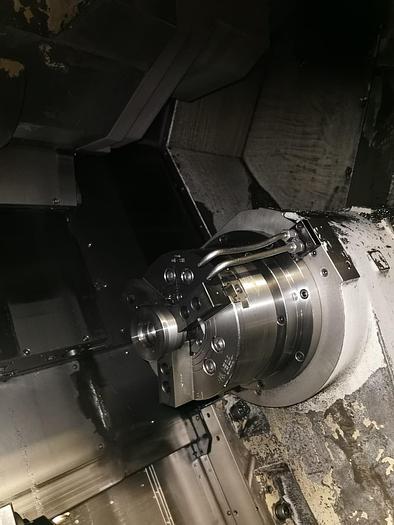

Chuck Types: (2) 10" Hyd.

Maximum Swing: 800mm

Max. Turning Diameter (Upper/Lower): 390 / 300mm

Maximum Turning Length: 740mm

Bar Work Diameter (L&R Spindle): 76mm

X1 Axis Travel / X2 Axis Travel: 255 / 190mm

Y Axis Travel: 120mm

Z1 Axis Travel / Z2 Axis Travel: 800 / 900mm

B Axis Travel (righthand spindle): 770mm

C Axis Spindle Index Increment-Both Spindles: 0.001 Deg

Spindle Nose / Spindle Bore: A2-8" / 90mm

Spindle Speed: 3,500 RPM

Spindle Motor-both Spindles: 25 HP

Rotary Tool Speeds: 4,000 RPM

Rotary Tool Motor: 7.5 HP

Number of Tool Positions: 12 Upper / 12 Lower

Rapid Traverse Rates X, Y, Z: 20/7.5/24m/min
