€183,000 + VAT

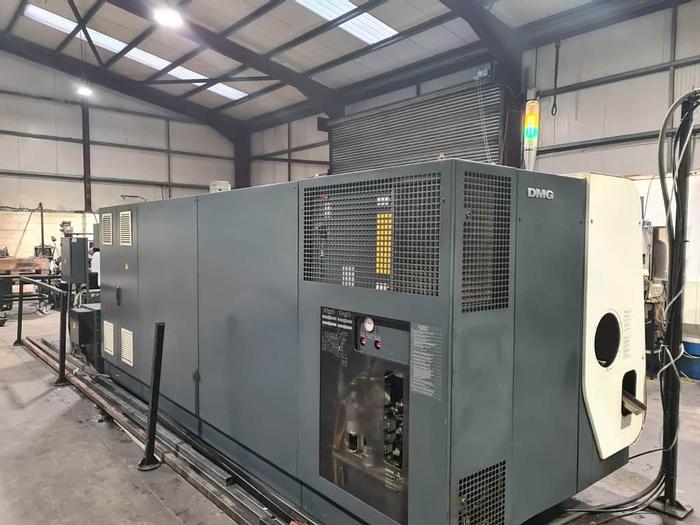

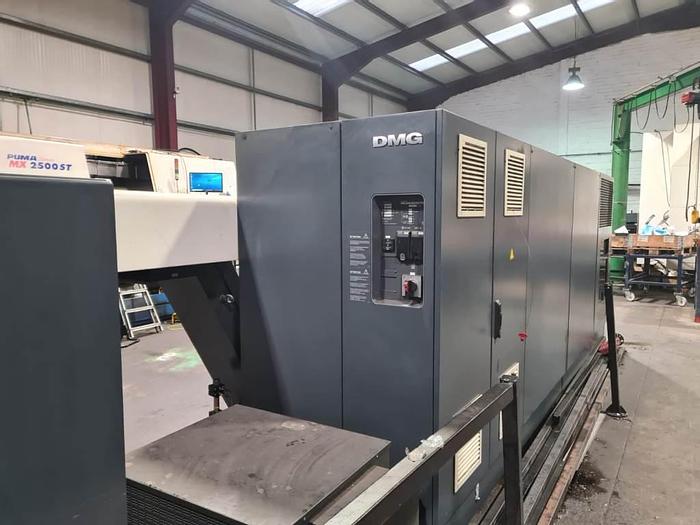

2010 DMG Gildemeister CTX Beta 1250TC Mill Turn Machine

1

Ireland

orCall +353 838108745

Description

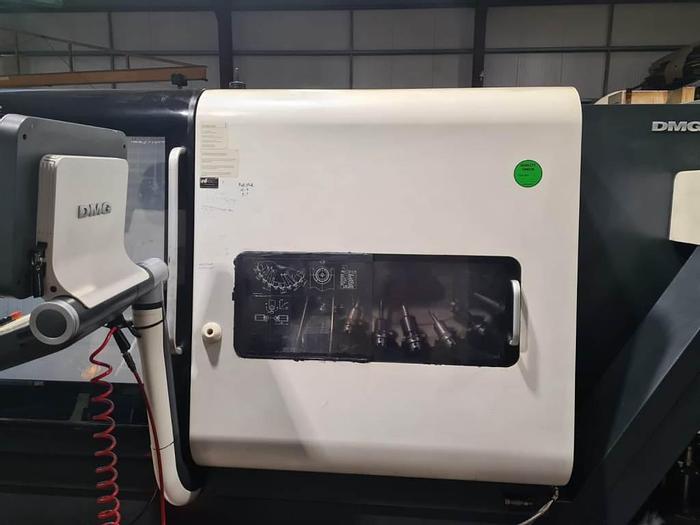

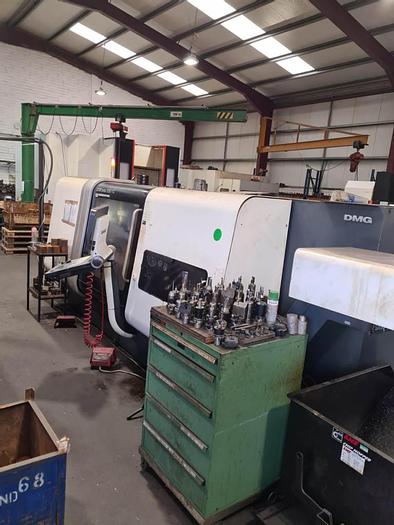

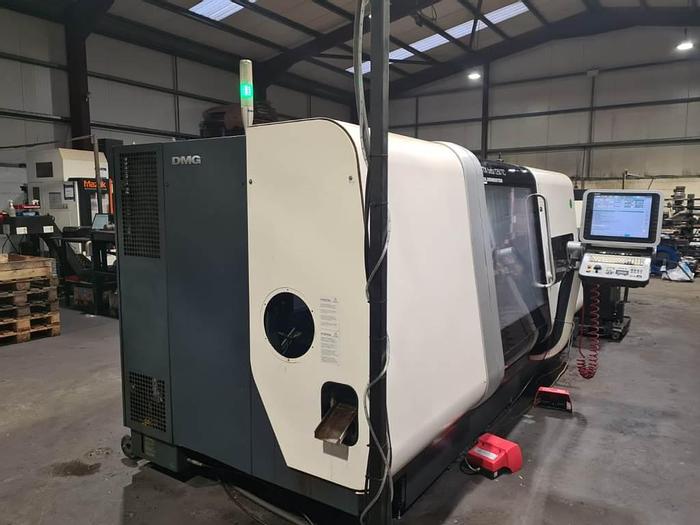

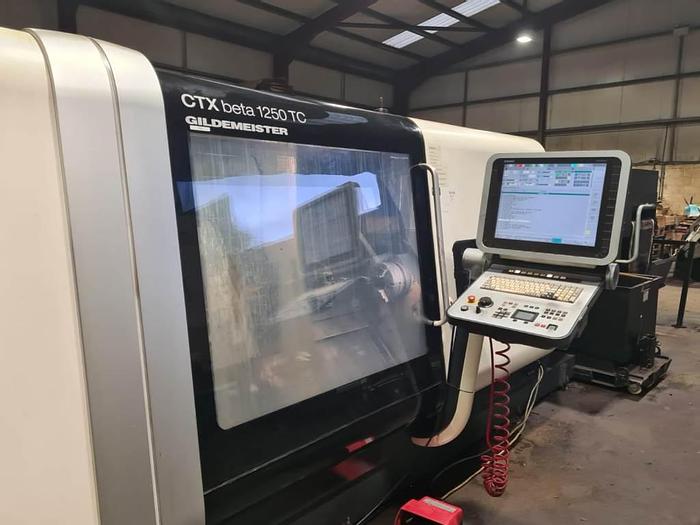

2010 DMG Gildemeister CTX beta 1250 TC Mill/Turn Machine


Machine Type: Mill/Turn

Year: 2010

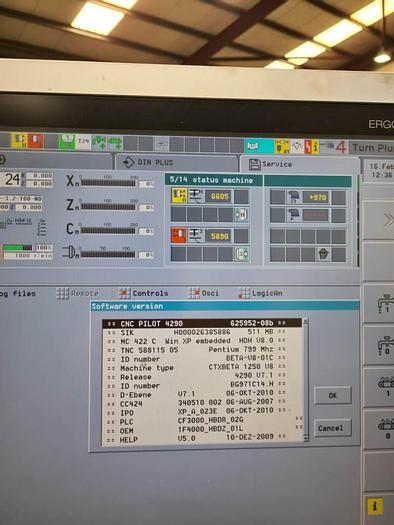

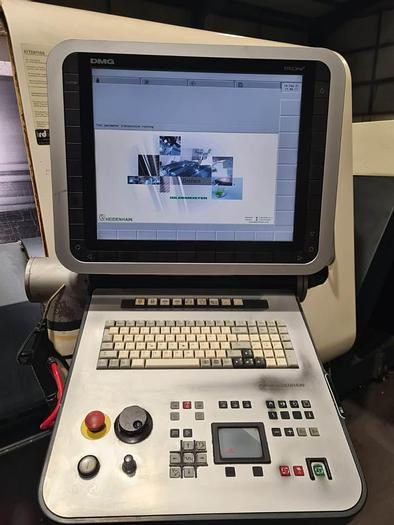

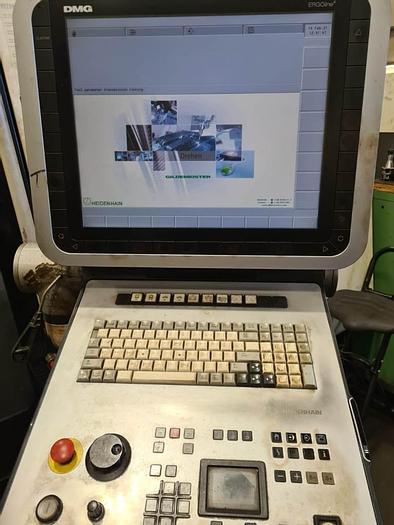

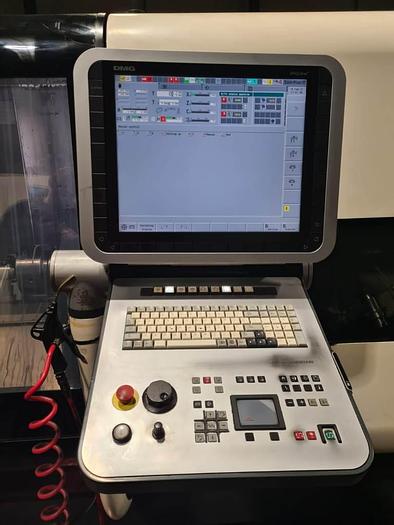

Control: Heidenhain CNC Pilot 4290

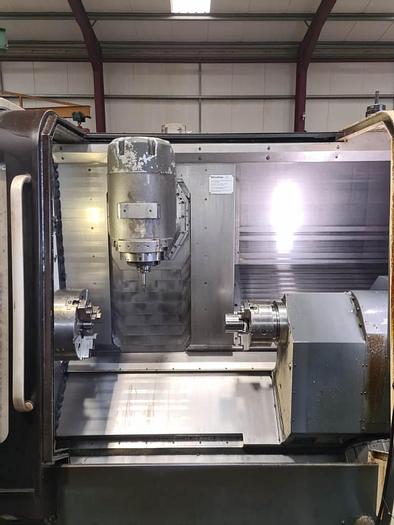

Format: Main Spindle, Sub Spindle, Milling Spindle, 24 Station ATC

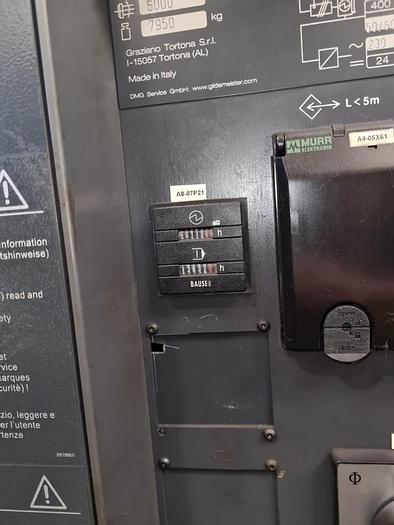

Hours(Spindle On/Power On): 13000/68,000hrs


Includes

Laser Tool Measurement

Part Probing

24 Station ATC

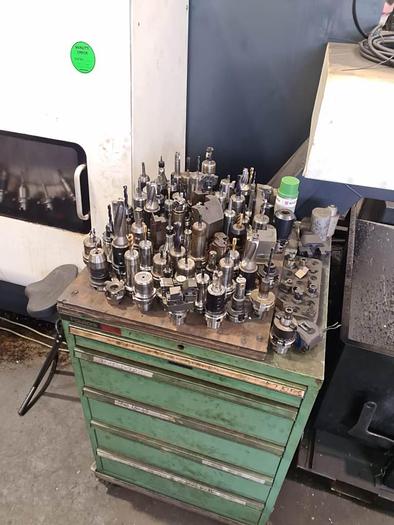

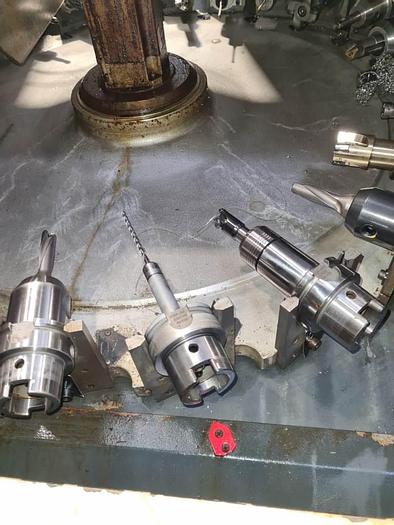

Selection of HSK 63a Tooling

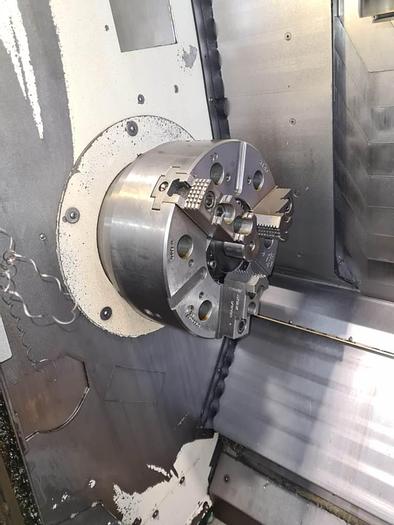

12" SMW Chuck

8" SMW Chuck

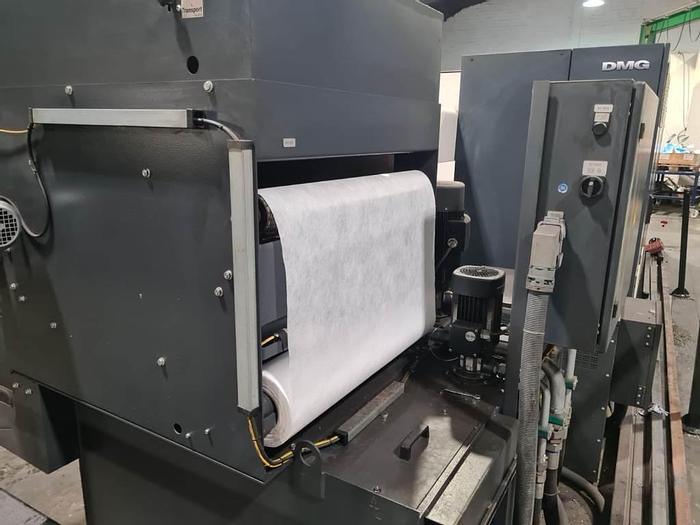

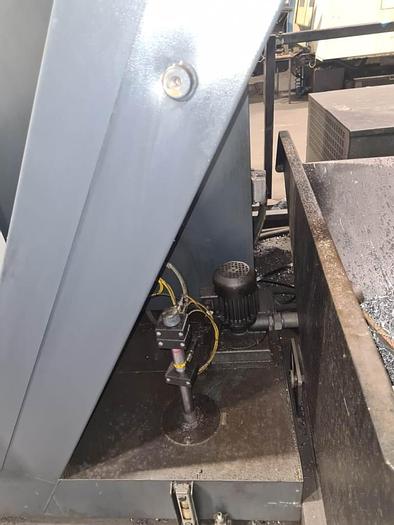

Coolant Filtering System

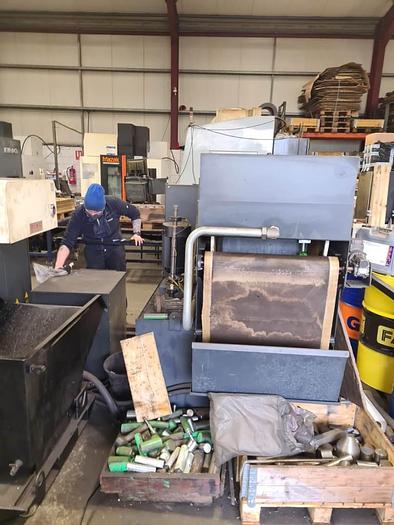

Swarf Conveyor


Technical Details

Max Turning Length: 1250mm

Max Turning Diameter: 390mm

Max Swing Over Bed: 500mm

Distance Between Centres: 1425mm

X Axis Travel: 450mm (+440/-10mm)

Y Axis Travel: 200mm (+100/-100mm)

Z1 Axis Travel: 1300mm

B Axis Travel: 220mm (+110/-110mm)

Z3 Axis Travel: 1200mm

Z3 Axis Travel for Tool Change: 1300mm

Main Spindle Max Speed: 5000rpm

Sub Spindle Max Speed: 5000rpm

Milling Spindle Max Speed: 12000rpm

C Axis: On Main Spindle & Sub Spindle

Max Bar Capacity: 67mm

Milling Spindle Taper: HSK 63a

Spindle Front Bearing Dia:130mm

Main Spindle: ISM 76

Max Chuck Size: 315mm

Sub Spindle: ISM 52

Max Chuck Size: 210mm

B Axis Rapid Traverse Speeds (X/Y/Z): 40/40/50m/min


Machine Dimensions: 7,000 x 3,500 x 2500mm

Machine Weight: approx 8000kg





Specifications

ManufacturerDMG Gildemeister
ModelCTX Beta 1250TC Mill Turn Machine
Year2010
ConditionUsed
Machine TypeMill/Turn
Year2010
ControlHeidenhain CNC Pilot 4290
Hours(Spindle On/Power On)13000/68,000hrs
Max Turning Length1250mm
Max Turning Diameter390mm
Max Swing Over Bed500mm
Distance Between Centres1425mm
X Axis Travel450mm (+440/-10mm)
Y Axis Travel200mm (+100/-100mm)
Z1 Axis Travel1300mm
B Axis Travel220mm (+110/-110mm)
Z3 Axis Travel1200mm
Main Spindle Max Speed5000rpm
Sub Spindle Max Speed5000rpm
Milling Spindle Max Speed12000rpm
Max Bar Capacity67mm
Milling Spindle TaperHSK 63a
Spindle Front Bearing Dia130mm
Main SpindleISM 76
Max Chuck Size315mm
Sub SpindleISM 52
Max Chuck Size210mm
Machine Weightapprox 8000kg
