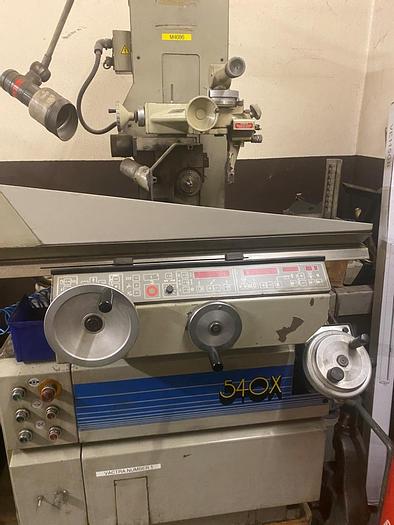

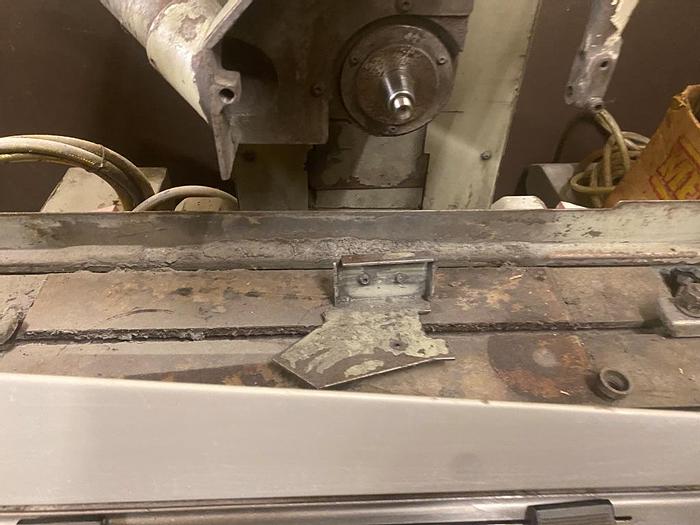

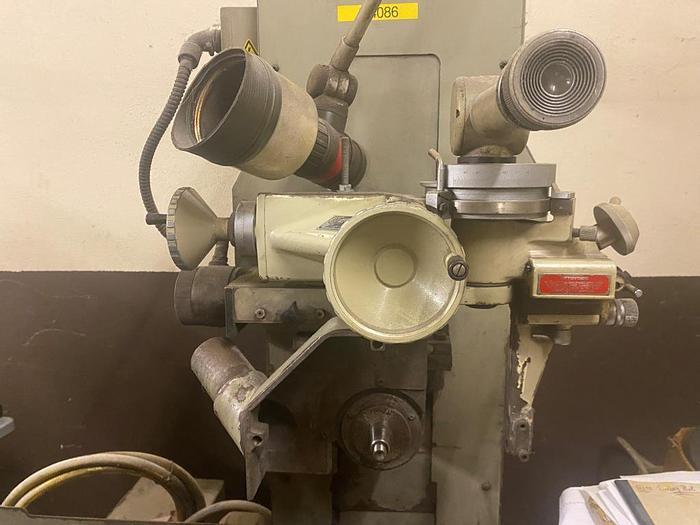

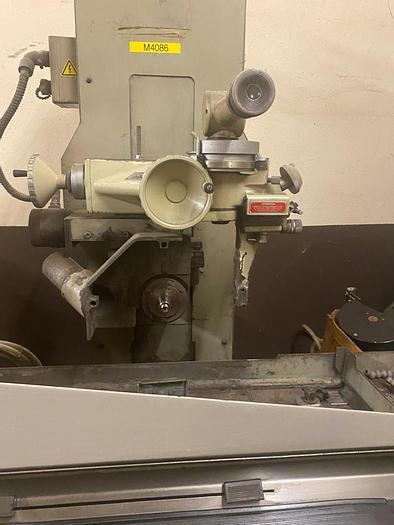

1993 Jones & Shipman 540X Surface Grinder

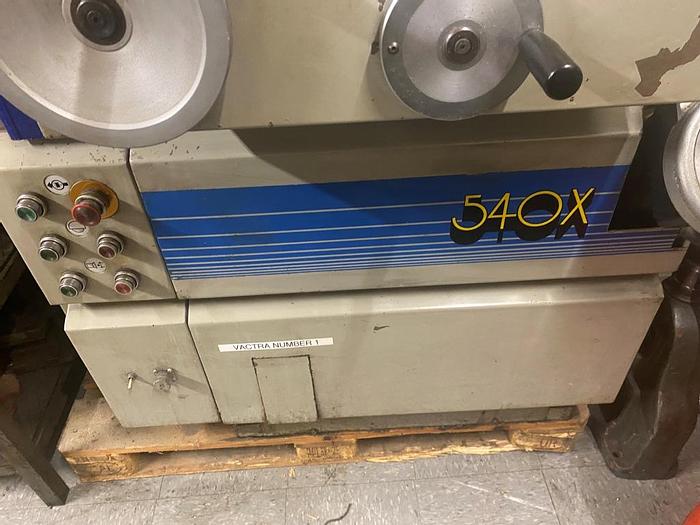

Jones & Shipman 540X Surface Grinder

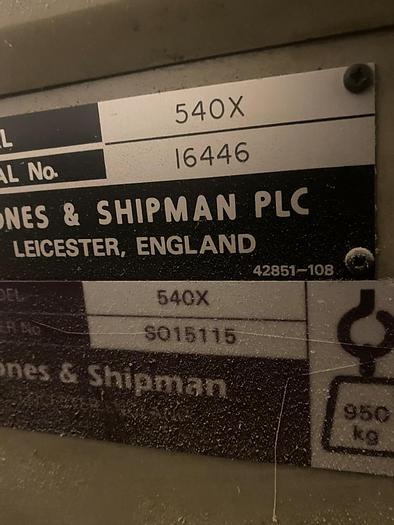

Machine Type: Surface Grinder

Year: 1993 (TBC)

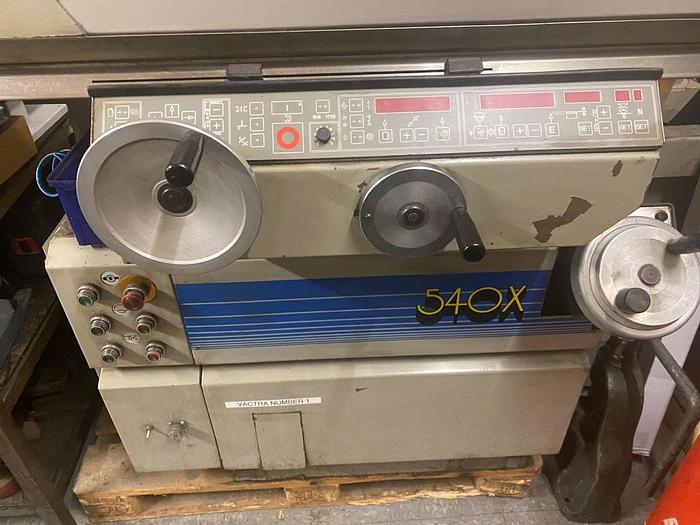

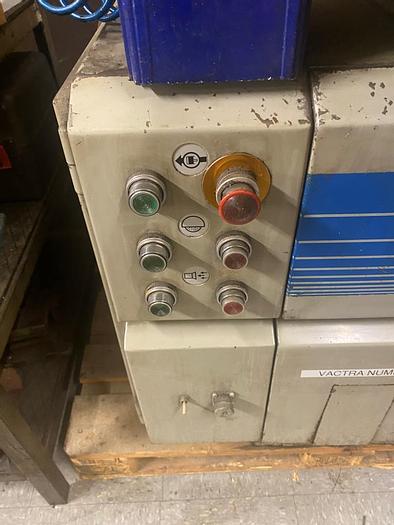

DRO: Integrated in Machine Controls

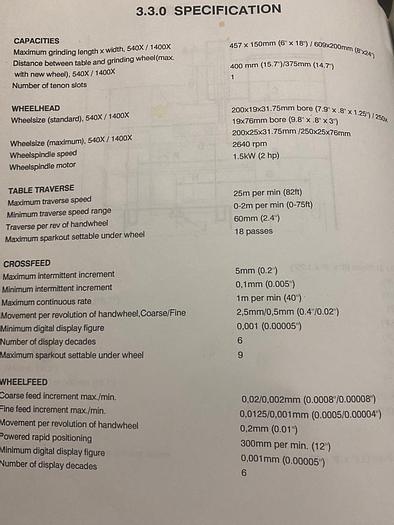

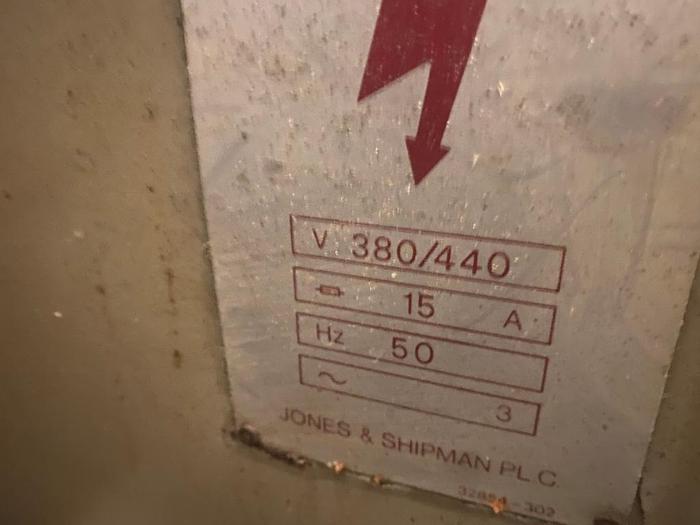

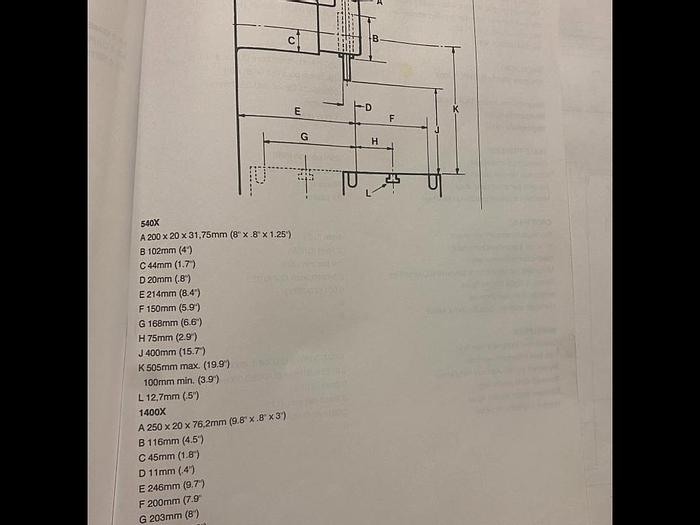

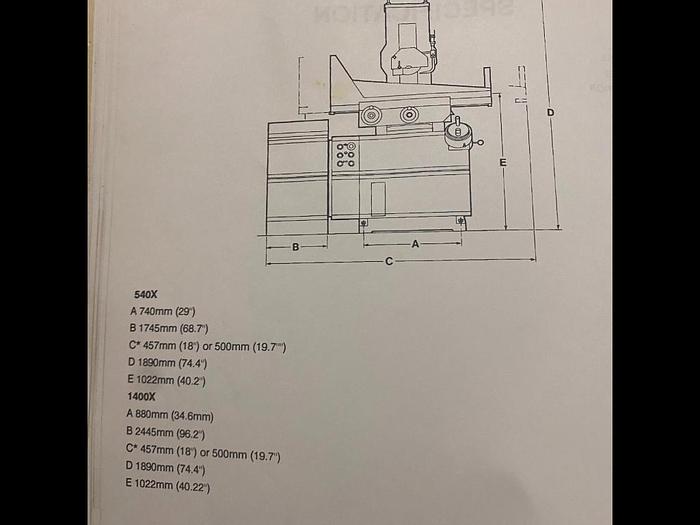

Technical Details

Max. Grinding Length: 457mm

Max. Grinding Width: 150mm

Distance Between Table & Grinding Wheel: 400mm

Wheel Size: 200 x 19 x 31.75mm

Wheel Size Max: 200 x 25 x 31.75mm

Wheel Spindle Speed: 2640rpm

Wheel Spindle Motor: 1.5kW

Max. Table Traverse Speed: 25m/min

Min. Table Traverse Speed Range: 0-2m/min

Table Traverse per rev of Handwheel: 60mm

Max. Sparkout settable under wheel: 18 Passes

Max. Intermittent Crossfeed Increment: 5mm

Min. Intermittent Crossfeed Increment: 0.1mm

Max Continuous Crossfeed Rate: 1m/min

Crossfeed per rev of Handwheel (Coarse/Fine): 2.5/0.5mm

Min. Digital Display Figure: 0.001mm

Max. Sparkout Settable under Wheel: 9 Passes

Coarse Head Feed Increments (Max/Min): 0.02/0.002mm

Fine Head Feed Increments (Max/Min): 0.0125/0.001mm

Head Movement per rev of Handwheel: 0.2mm

Head Powered Feed Speed: 300mm/min

Minimum Digital Display Figure: 0.001mm

Machine Weight: 950kg
