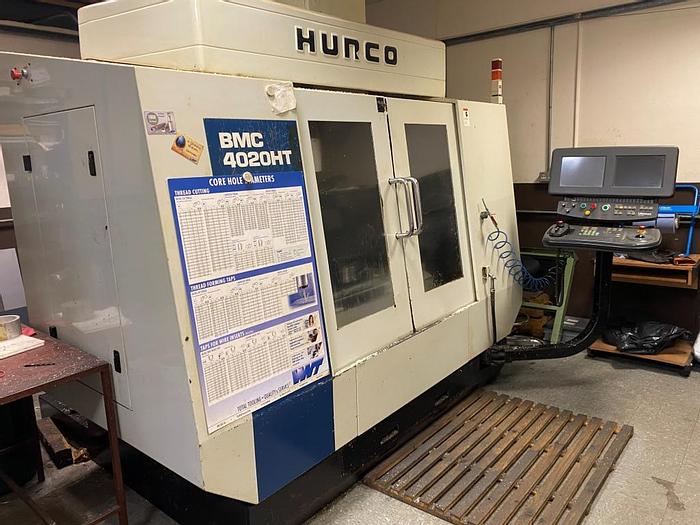

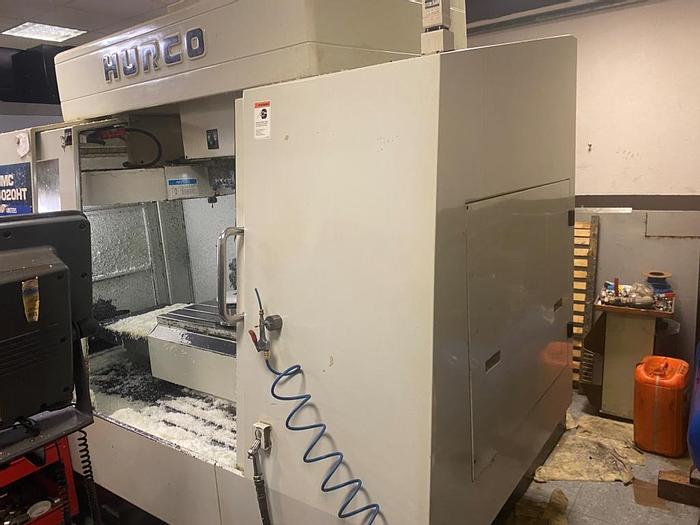

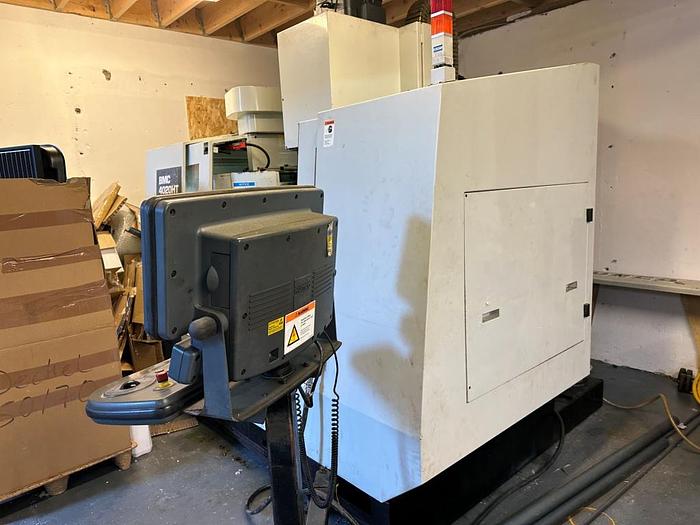

1999 Hurco BMC4020HT/M Machining Center
Sold
Description

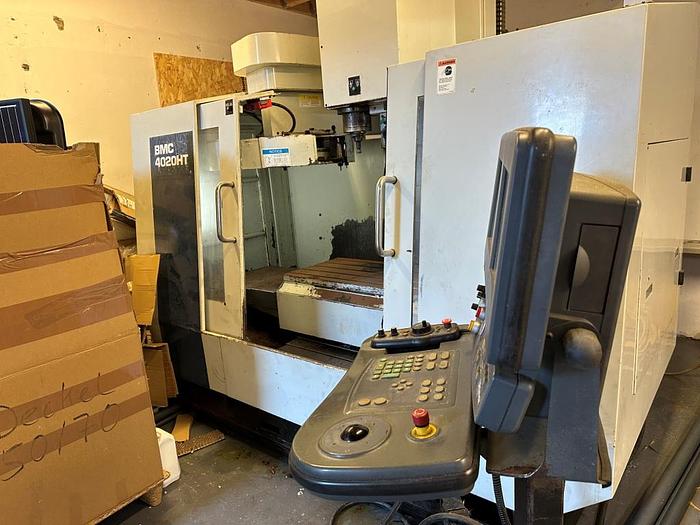

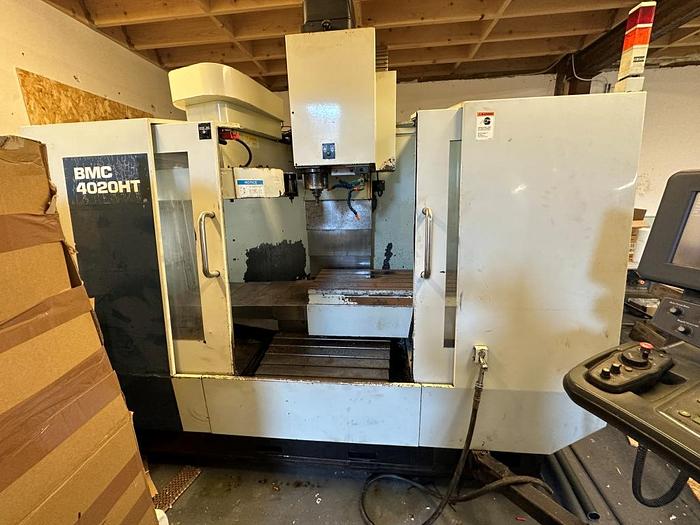

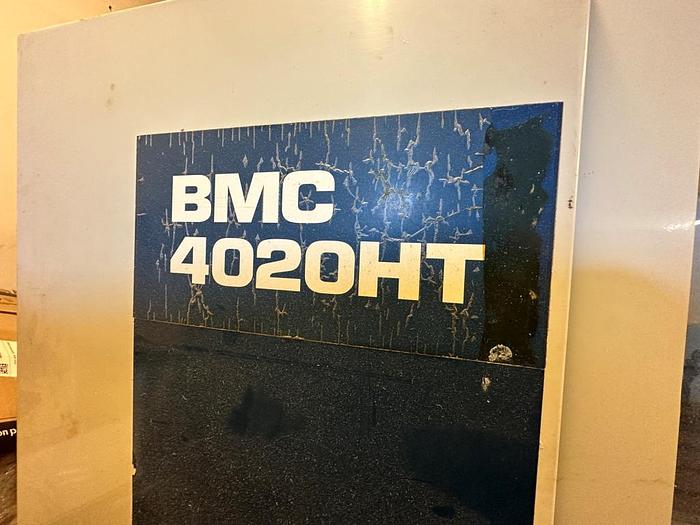

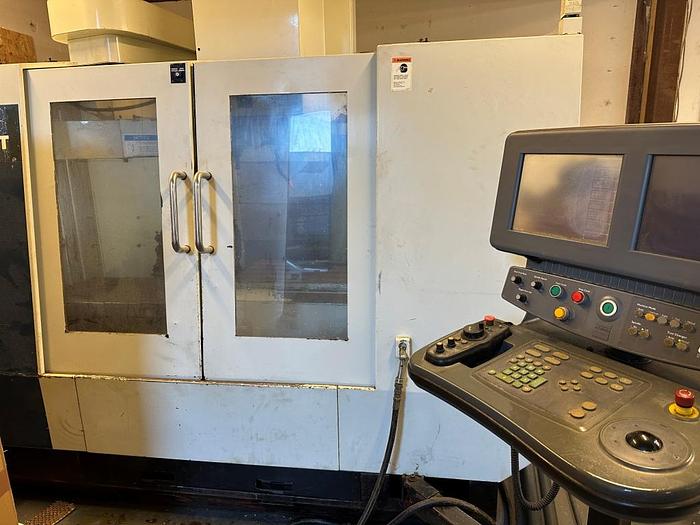

1999 Hurco BMC4020HT/M Machining Center
Machine Type: 3 Axis Machining Center
Year: 1999

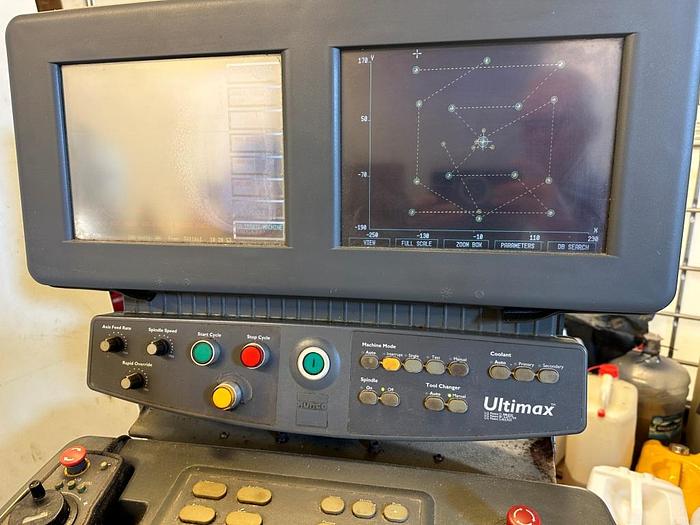

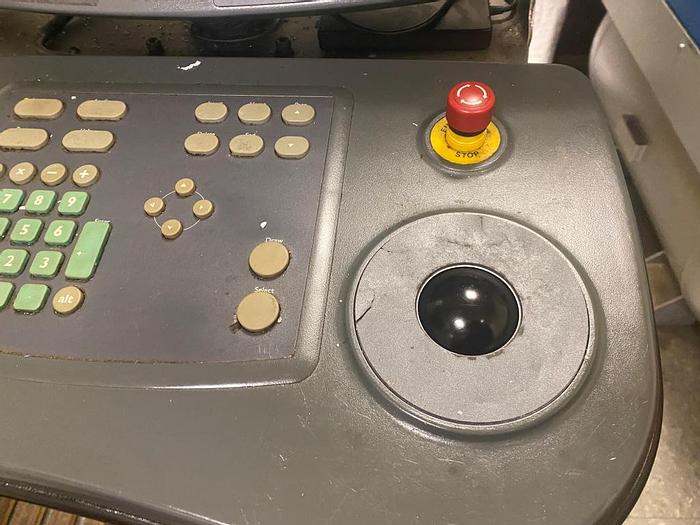

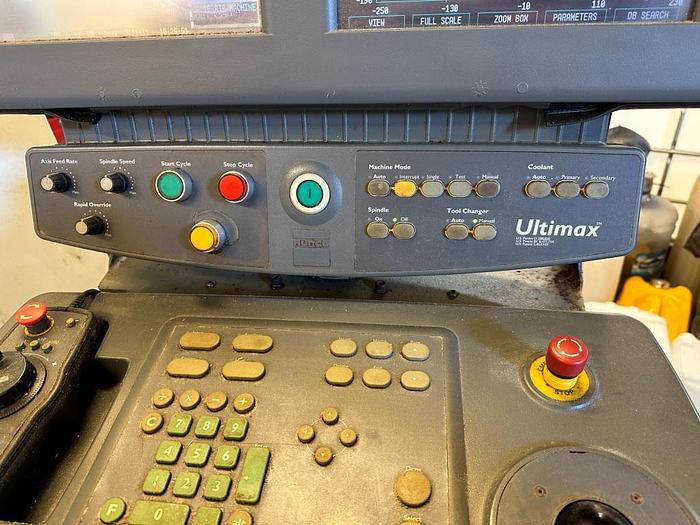

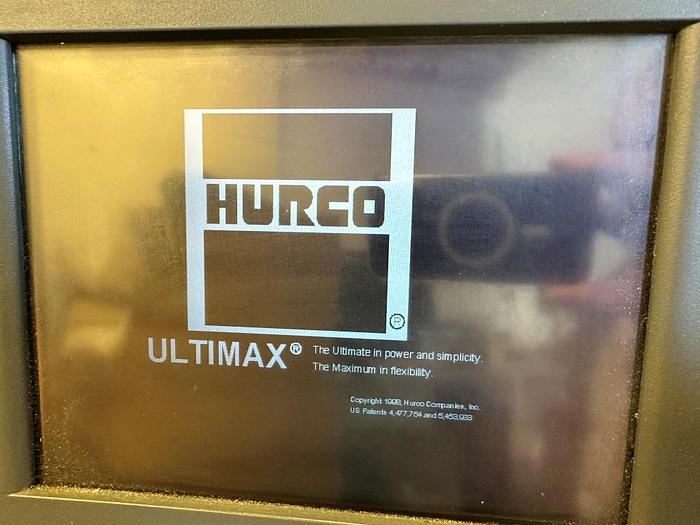

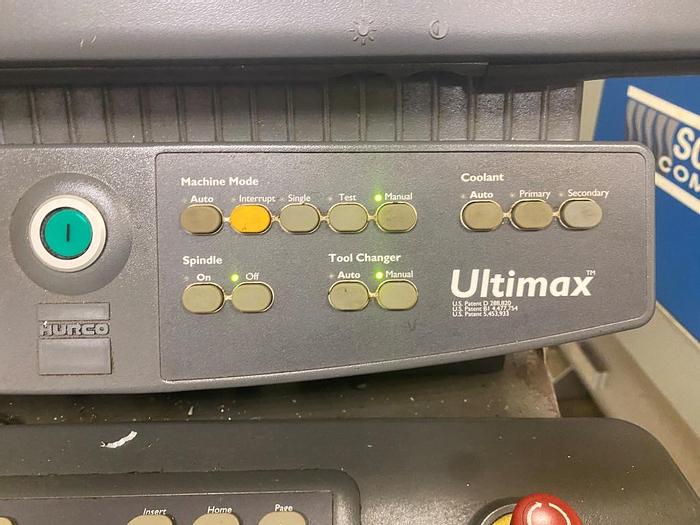

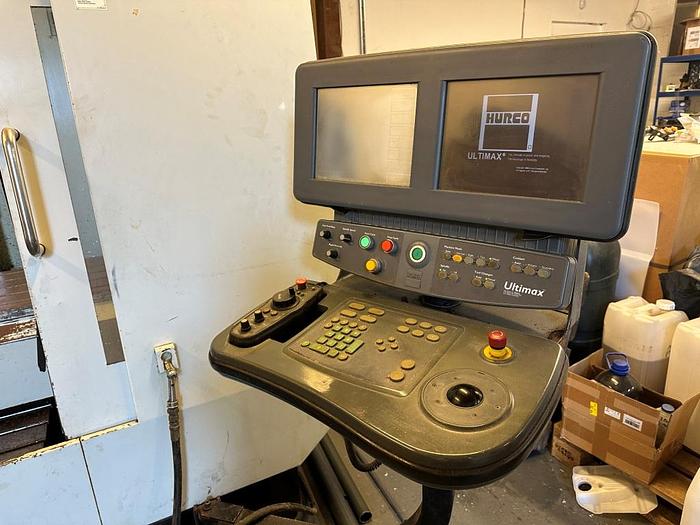

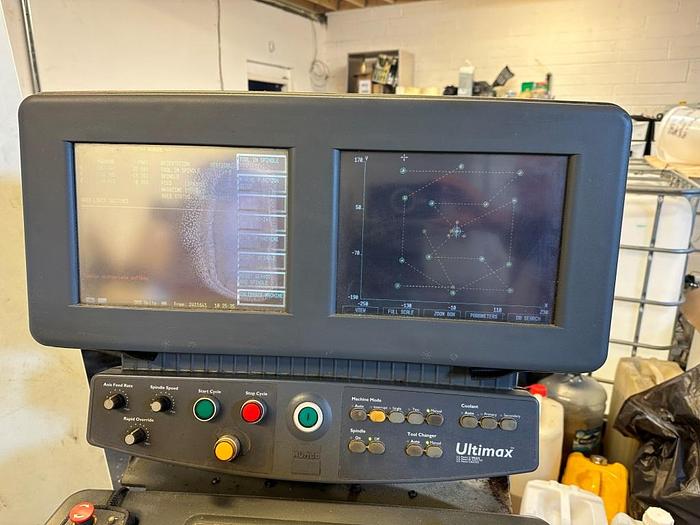

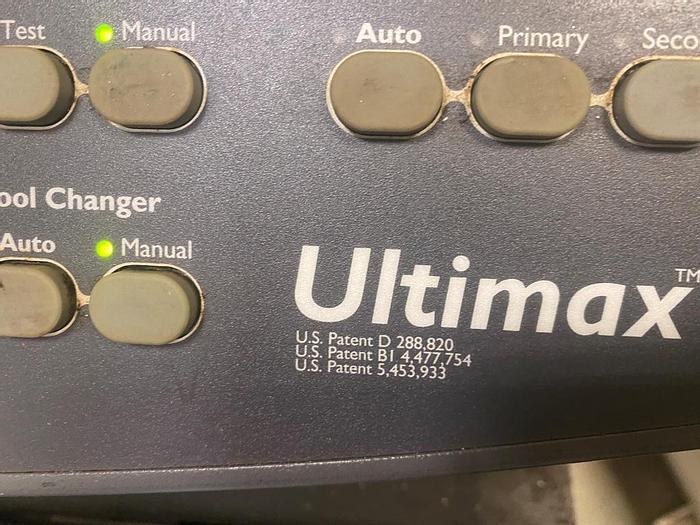

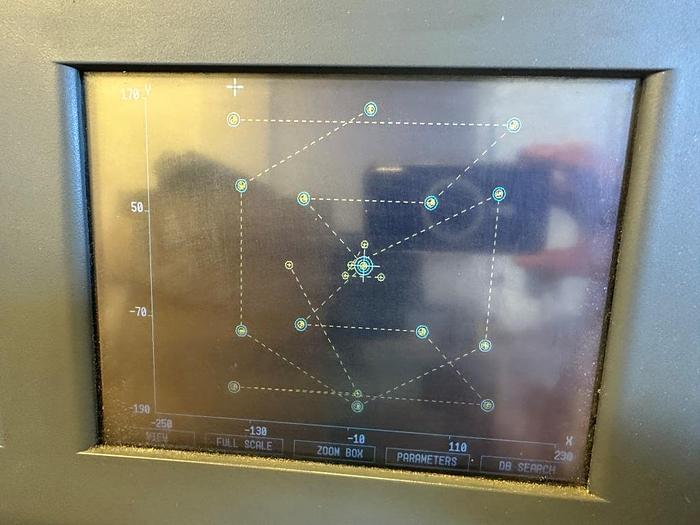

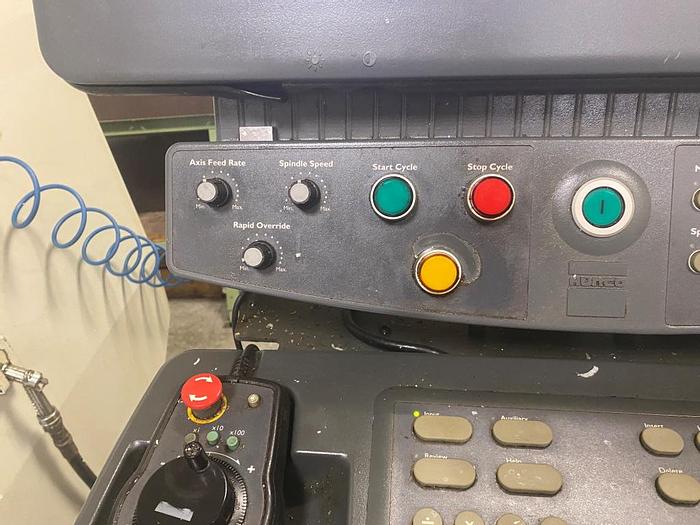

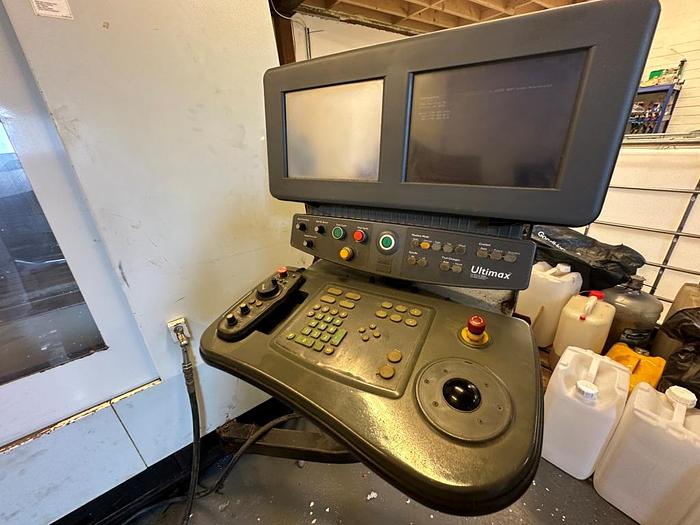

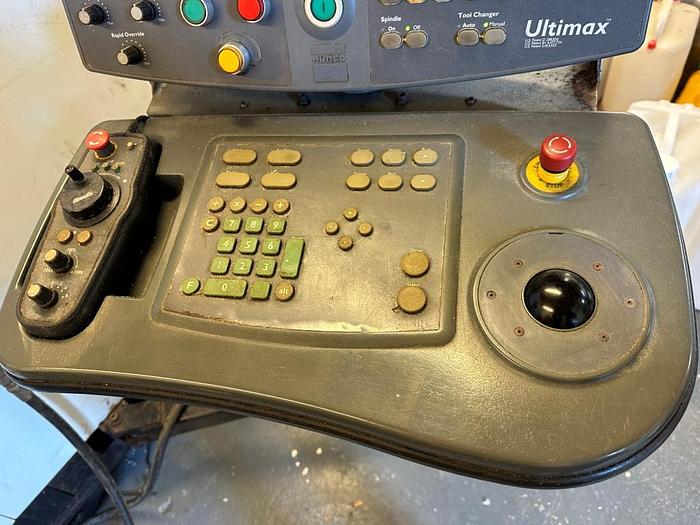

Control: Hurco Ultimax

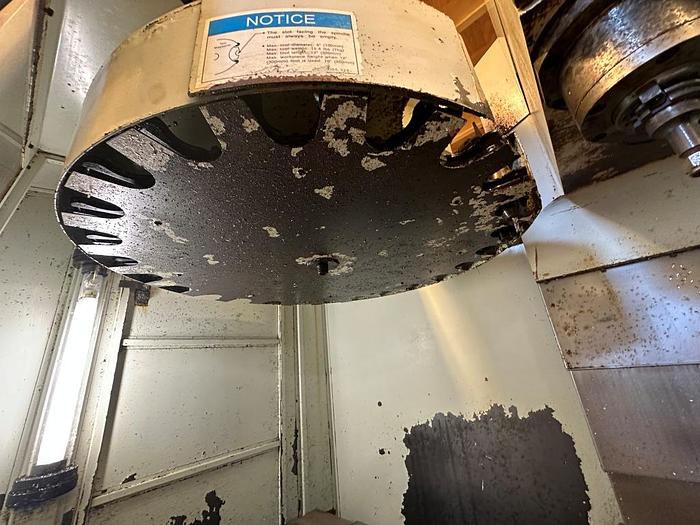

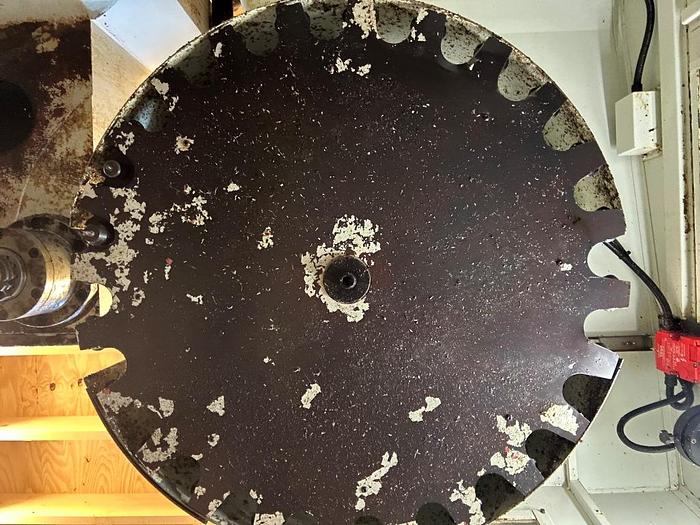

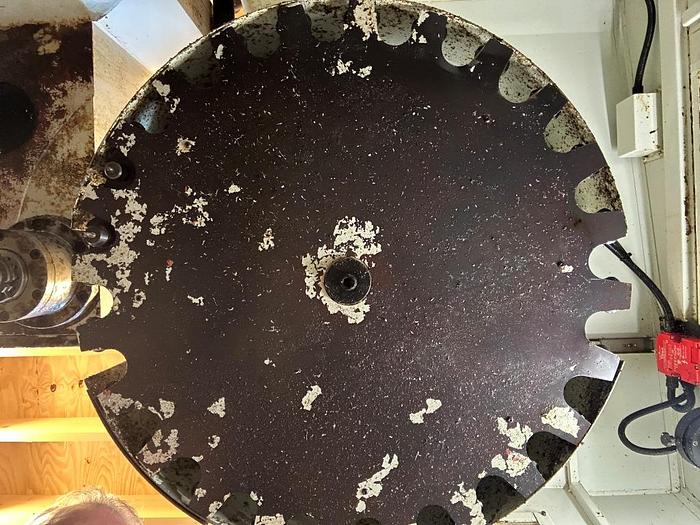

ATC: 24 Station

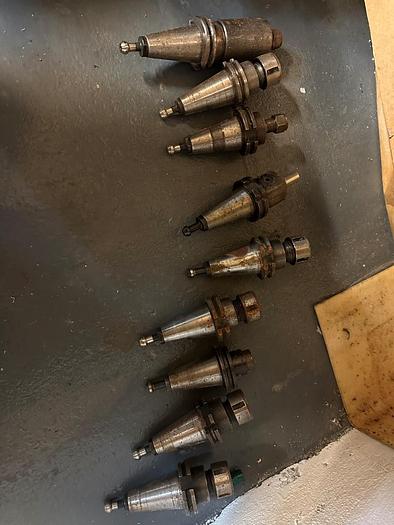

Spindle Taper: ISO40

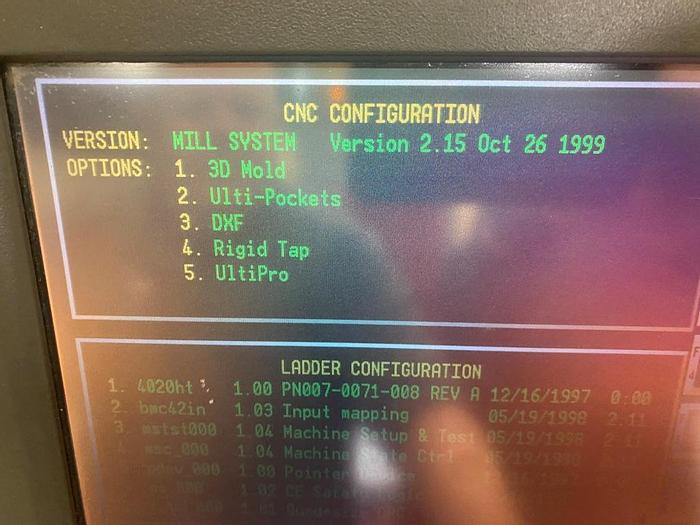

Control Configuration Includes
3D Mold
Ulti-Pockets
DXF
Rigid Tap
UltiPro
Technical Details

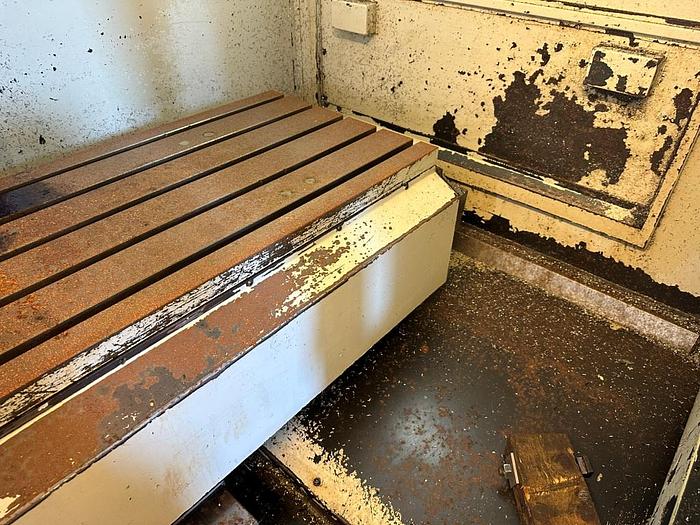

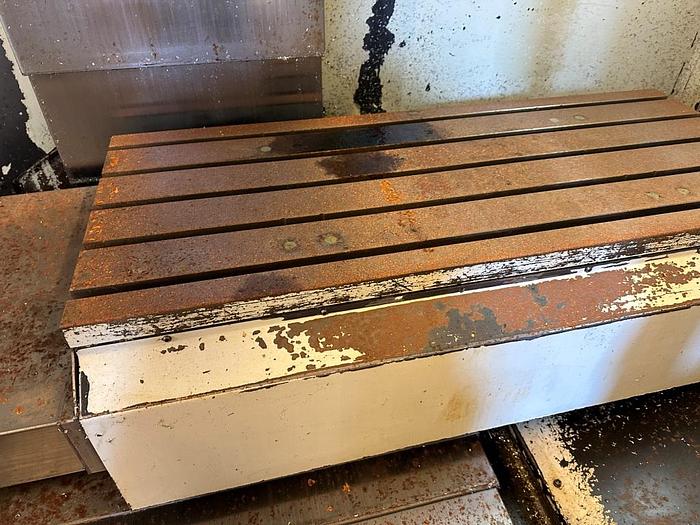

Table Size: 1220 x 510mm
Max Load on Table: 682kg

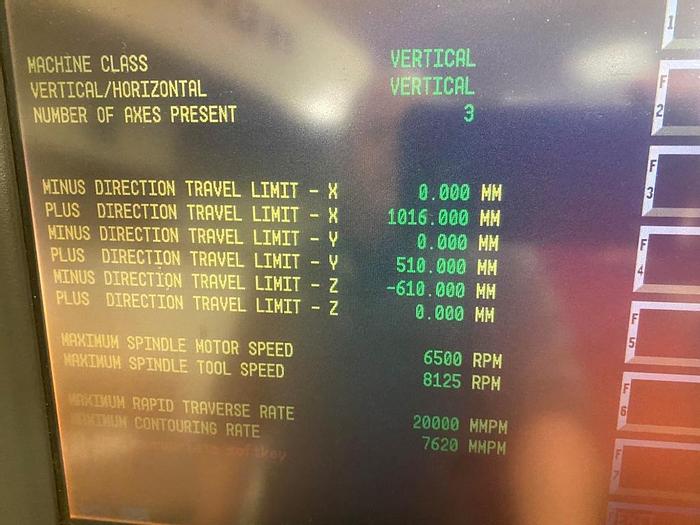

X Axis Travel: 1020mm
Y Axis Travel: 510mm
Z Axis Travel: 610mm
Distance Spindle to Table: 150 - 760mm
Feeds: 3 -11,400mm/min
Rapids(X/Y/Z): 20/20/14m/min

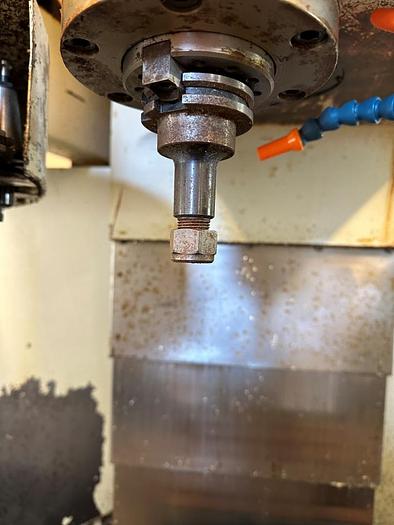

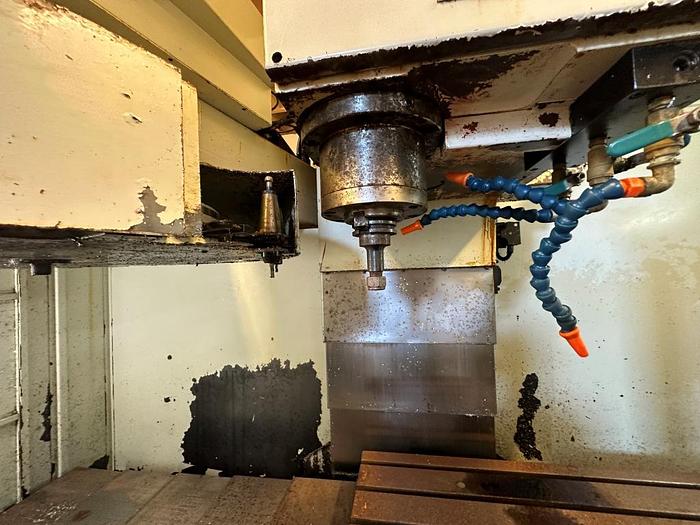

Spindle Taper: ISO 40
Spindle Speeds: 80 - 8000rpm
Spindle Motor: 15kW
Max Torque: 222Nm @ 600rpm

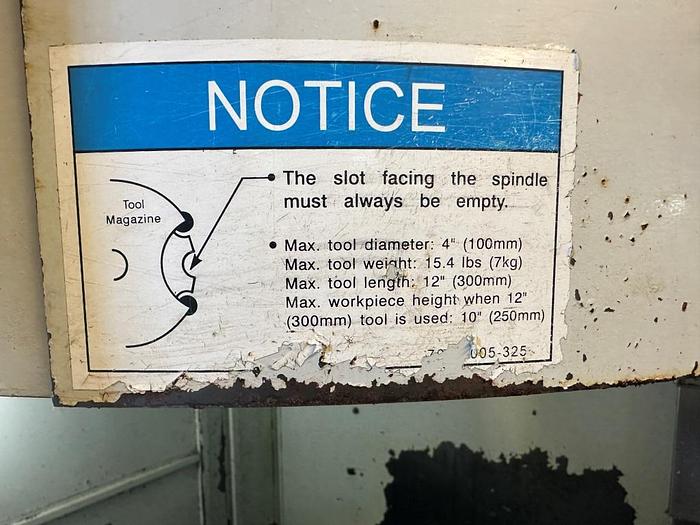

Max Tool Diameter: 100mm
Max Tool Length: 305mm
Max Tool Weight: 7kg
Machine Dimensions: 3200 x 2400 x 2700mm
Machine Weight: 6400kg
Notes: Removal & Loading available at an extra cost
Specifications
| Manufacturer | Hurco |

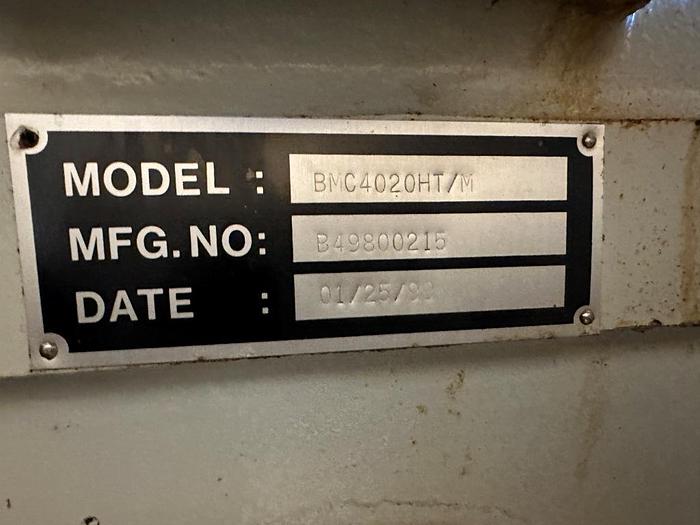

| Model | BMC4020HT/M Machining Center |
| Year | 1999 |
| Condition | Used |
| Stock Number | 968786 |
| Machine Type | 3 Axis Machining Center |
| Year | 1999 |
| Control | Hurco Ultimax |
| ATC | 24 Station |
| Spindle Taper | ISO40 |
| Table Size | 1220 x 510mm |
| Max Load on Table | 682kg |
| X Axis Travel | 1020mm |
| Y Axis Travel | 510mm |
| Z Axis Travel | 610mm |
| Distance Spindle to Table | 150 - 760mm |
| Feeds | 3 -11,400mm/min |
| Rapids(X/Y/Z) | 20/20/14m/min |
| Spindle Speeds | 80 - 8000rpm |
| Spindle Motor | 15kW |
| Max Torque | 222Nm @ 600rpm |
| Max Tool Diameter | 100mm |
| Max Tool Length | 305mm |
| Max Tool Weight | 7kg |
| Machine Weight | 6400kg |
