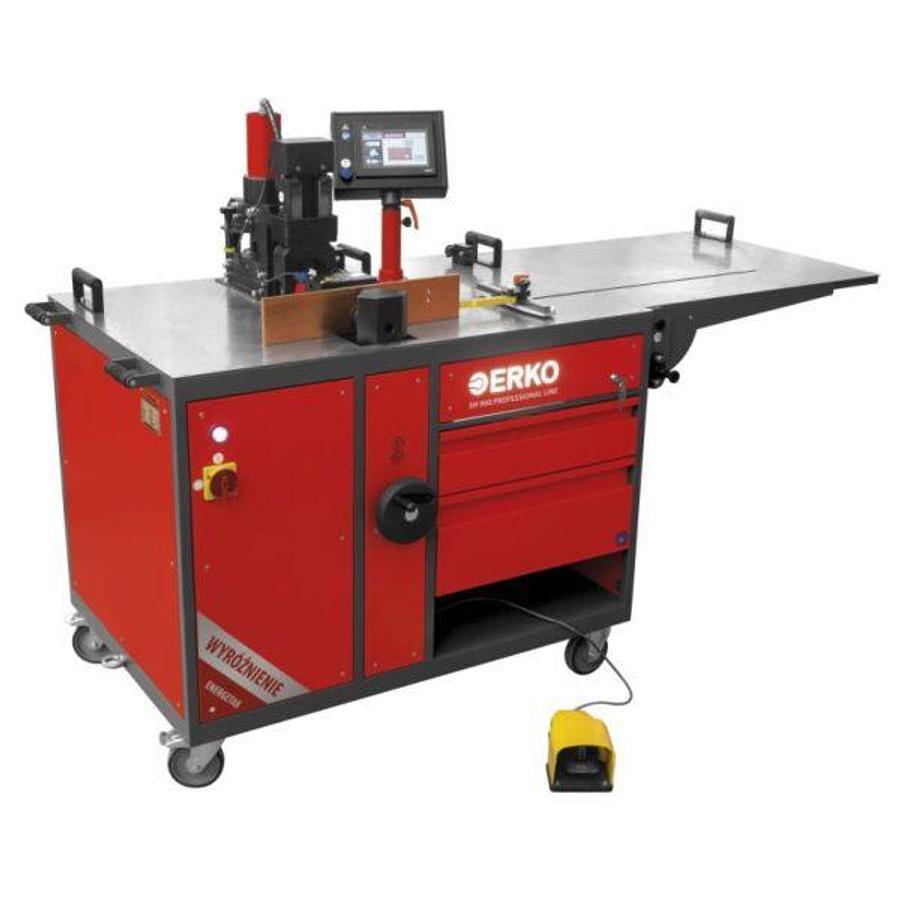

ERKO SH900PLC Busbar Processing Station

ERKO SH900PLC Busbar Processing Station

Manufacturer: ERKO Electro

Model: SH900PLC

Machine Type: NC Controlled Station for Al and Cu busbars precise cutting, bending, hole punching, inserting nuts, offsetting.

Description

Station for Al and Cu busbars precise cutting, bending, hole punching, inserting nuts, offsetting:

• busbar width from 30 to 125 mm

• busbar thickness 5 to 12 mm

• bending angle range up to 90°

Includes

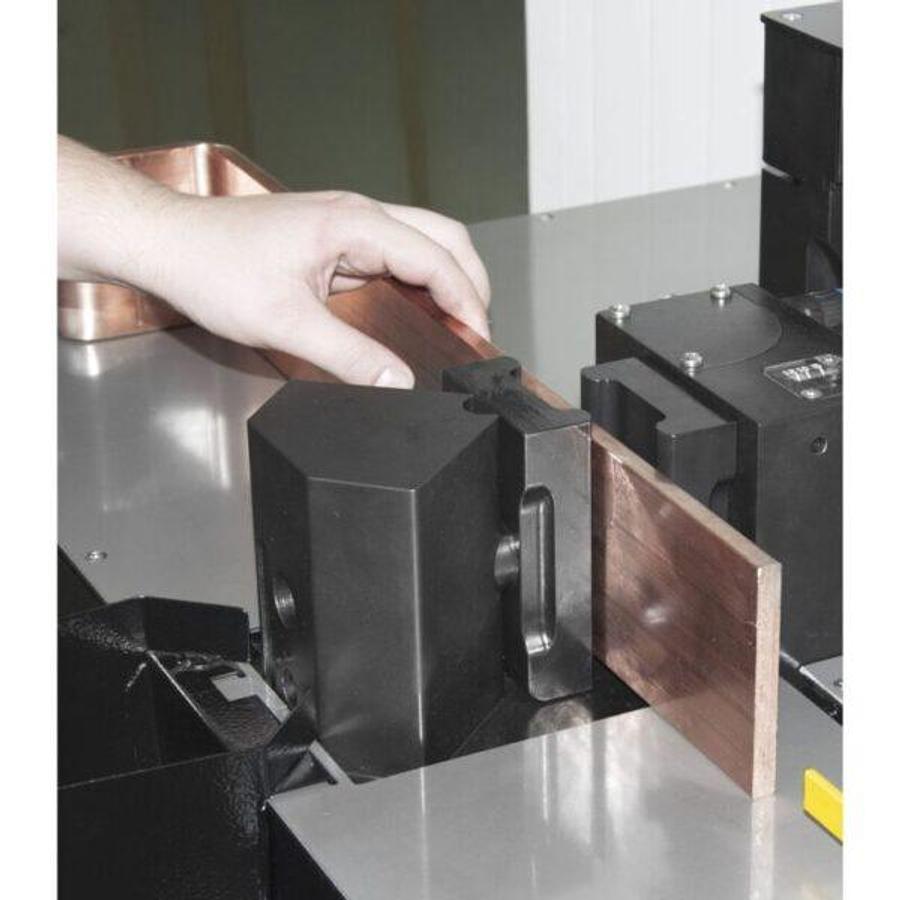

Bending Station

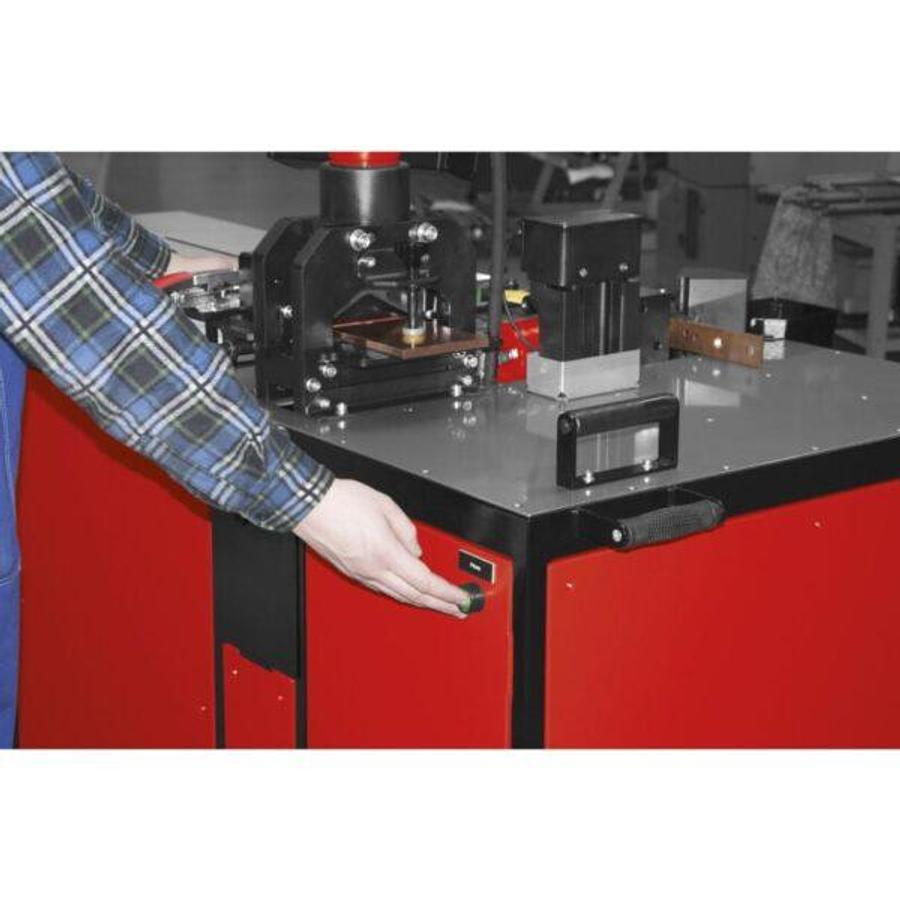

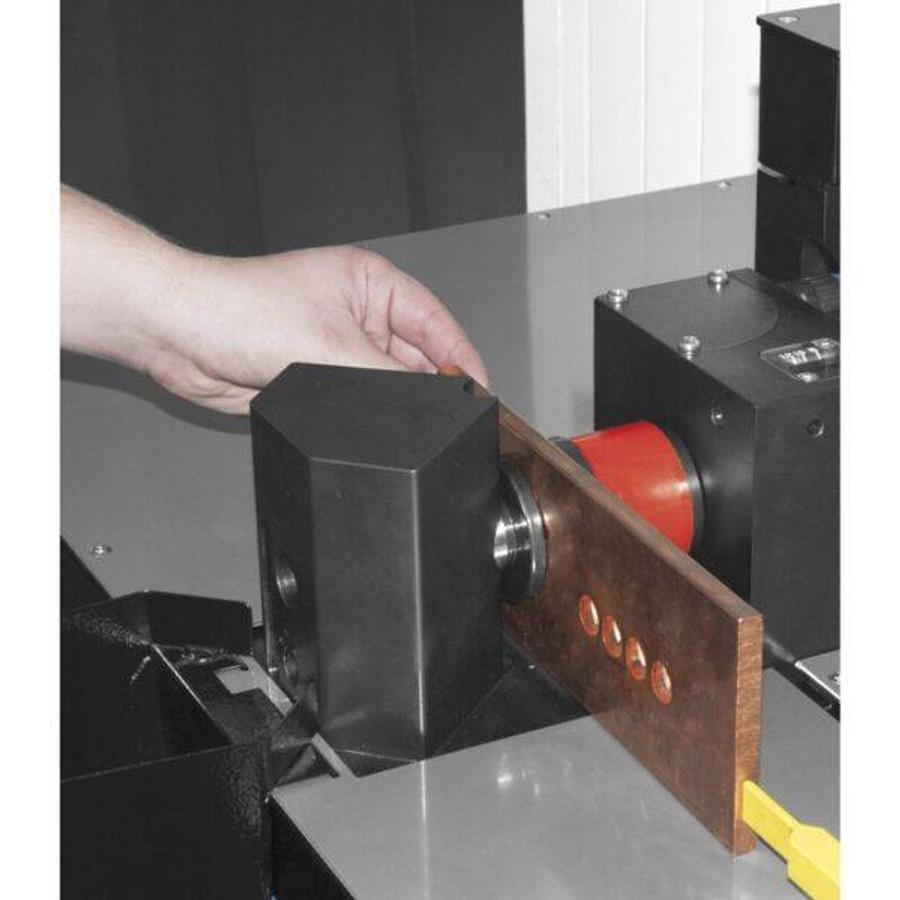

Punching Station

Shearing Station

Built in ElectroHydraulic Pump

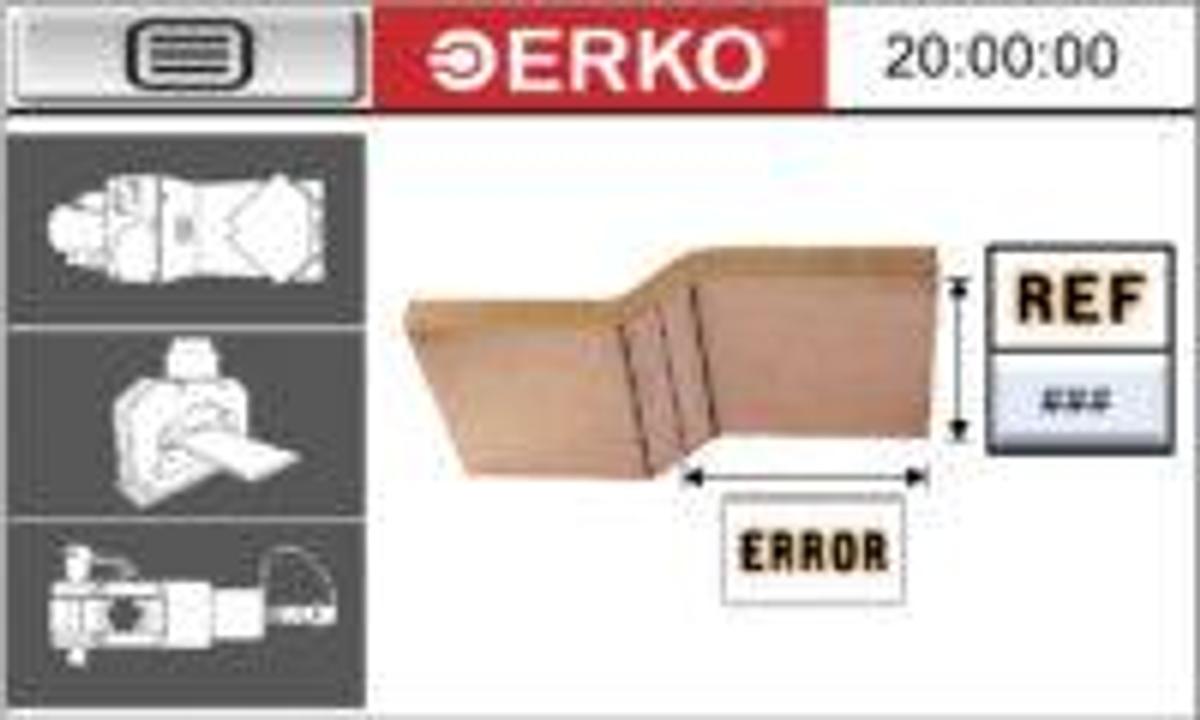

Insert die for busbars offsetting

External Port

Mobile Cart

Length Stop

Insert for repeatable bending (built-in limit switch)

Measurement of length L, range 0-500 mm, precision 0,1 mm

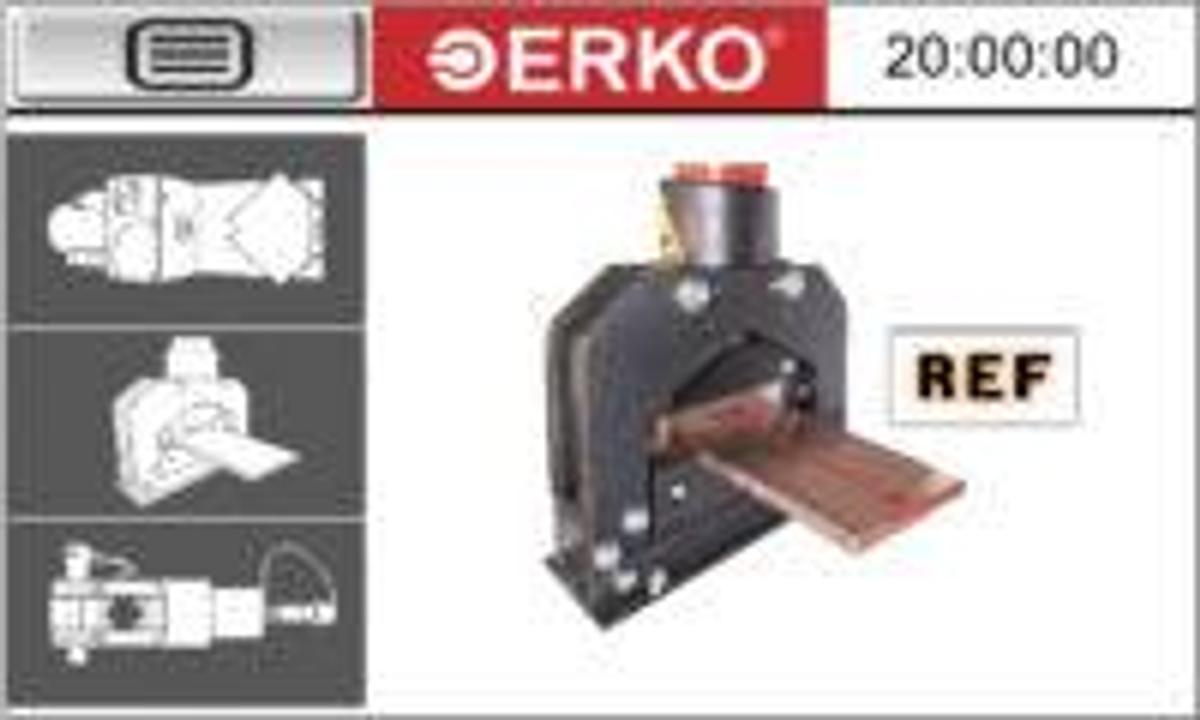

Busbar cutter

Bending without correction (not complying busbar flexibility) precision of repeatable bending ±2°

Optional Extras

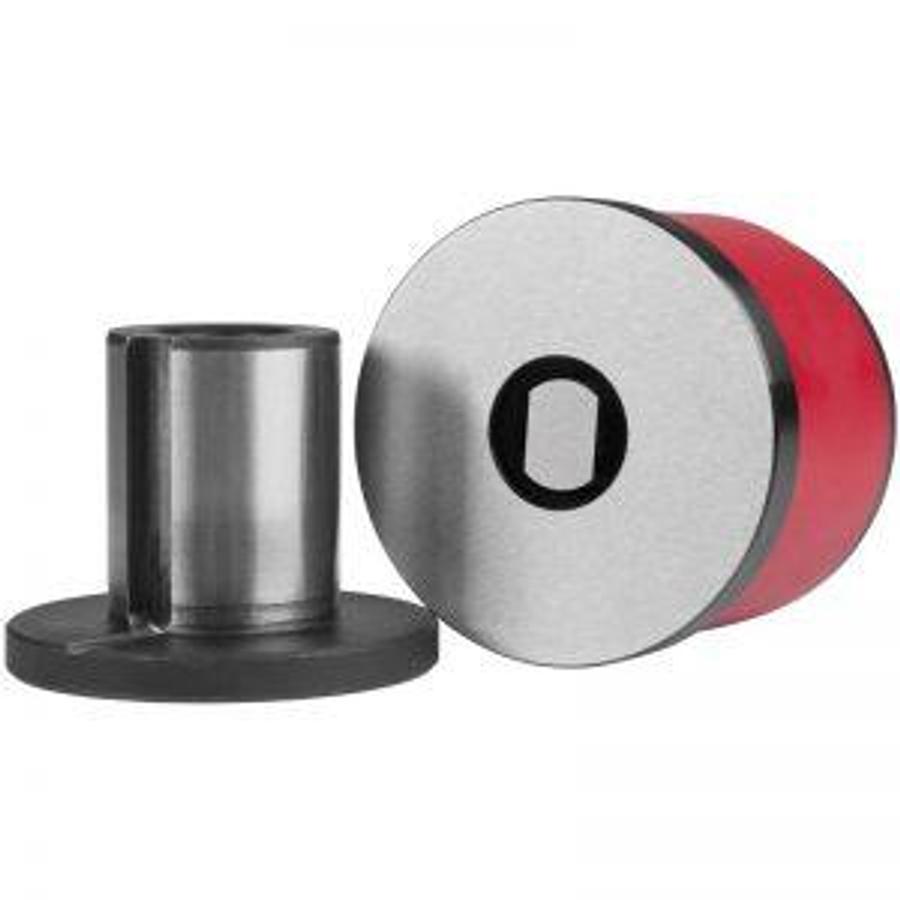

Round hole punch (standard dimensions according to catalog)

Oval hole punch (standard dimensions according to catalog)

Rectangular hole punch (dimensions according to order: max diagonal 21 mm, side not shorter than 6,6 mm)

Length sensor for cut busbar

Additional worktop

Extended measurement of length L (range from 0 to 1020 mm)

Insert die for inserting nuts

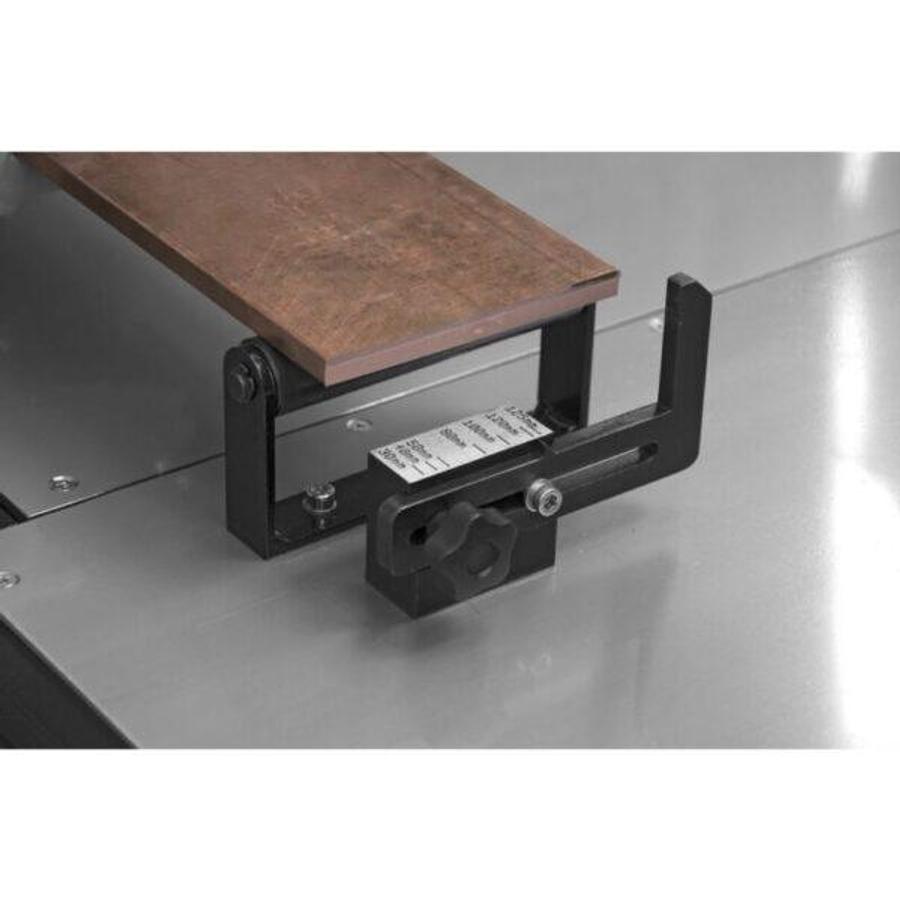

Additional busbar support

Features

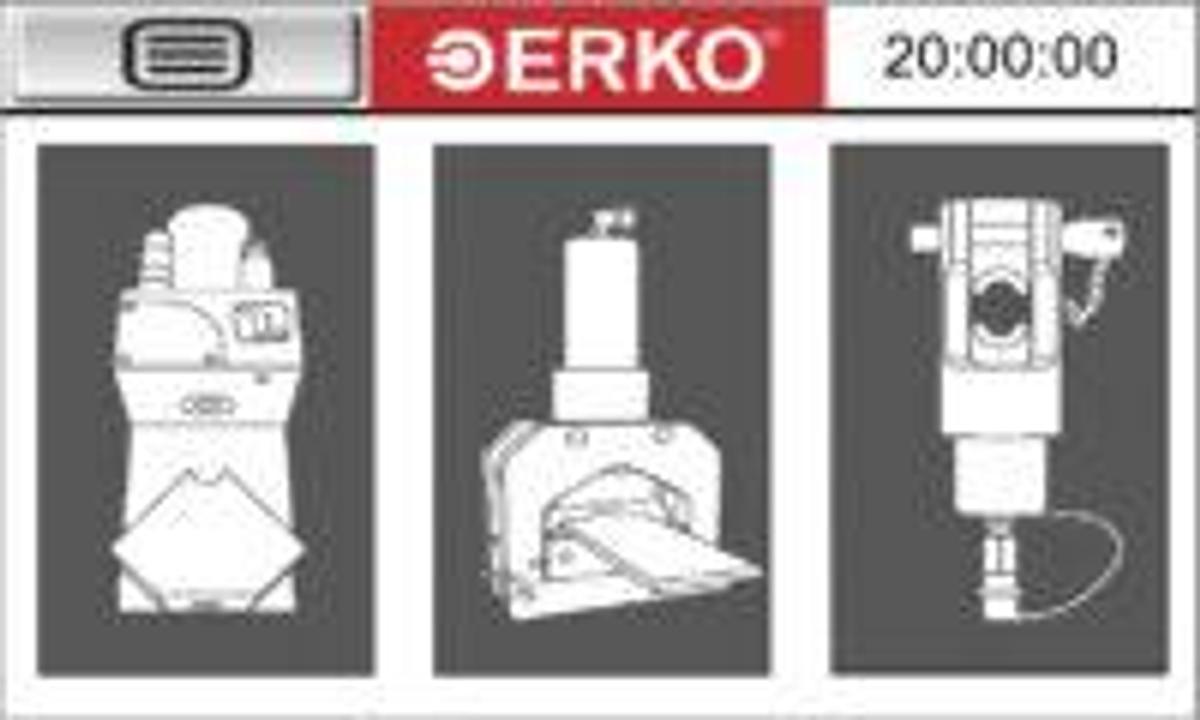

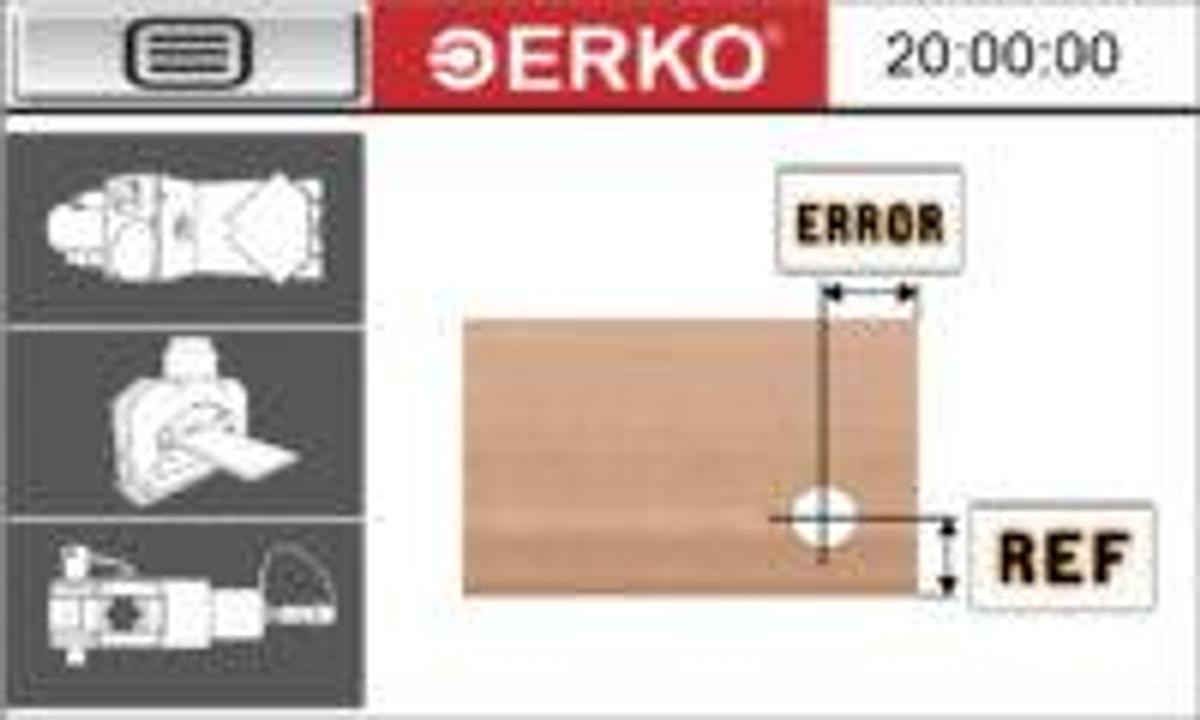

• equipped with LED touch screen programmed in: Polish, Russian, English, German and Czech (other languages on request)

• equipped with electronic, programmable bending angle sensor (setting precision 0,5°)

• equipped with measuring rulers enabling precise positioning of 0,1mm

• precise height adjustment of hole punching head (0,2mm precision)

• burr-free round and oval holes punching

• burr-free busbars cutting

• built-in reliable hydraulic drive

• automatic identification of inserted dies

• bending angle correction complying busbar flexibility

• electronic length measurement of cut busbar (up to 6m)

• electronic length measurement of bent and punched busbar (up to 0,5 or 1,2m)

• busbar offsetting repeatability

• additional worktop

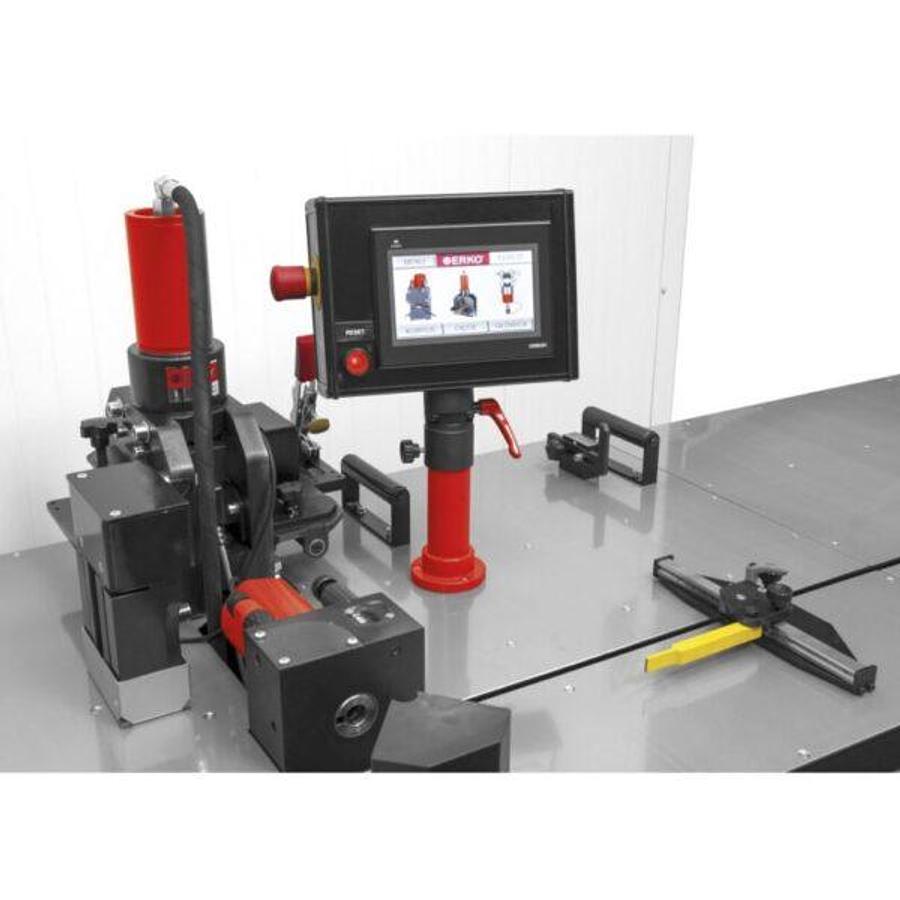

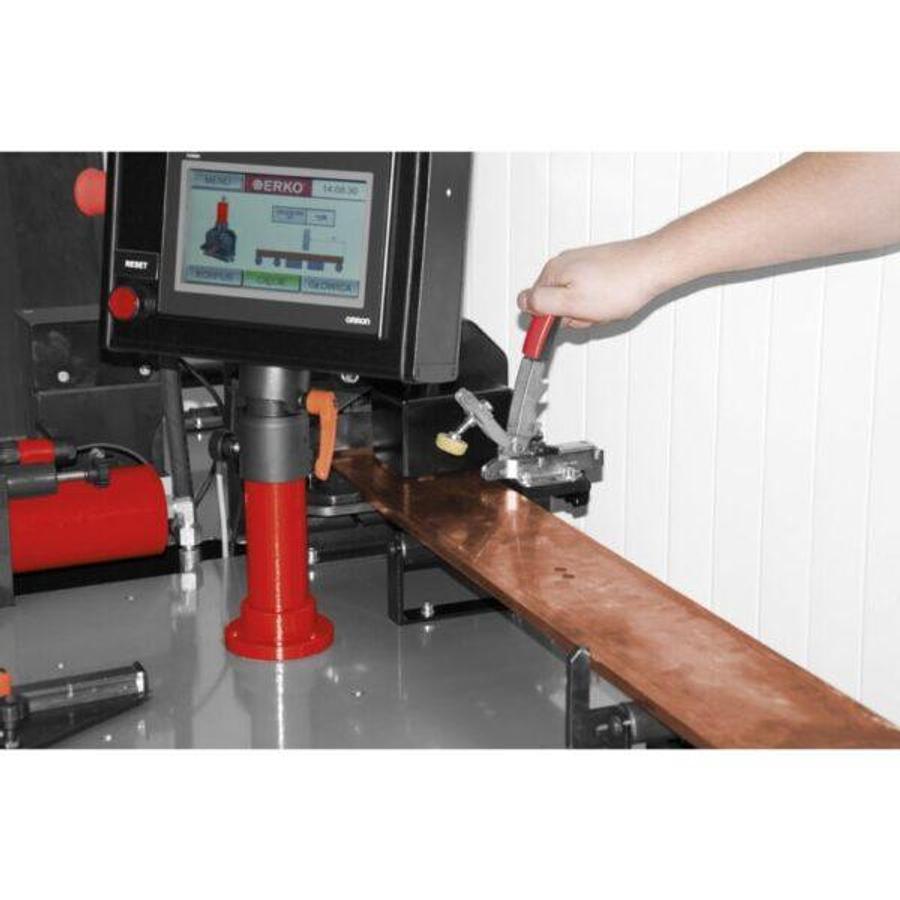

• tilt, rotatable touch screen

• equipped with control socket

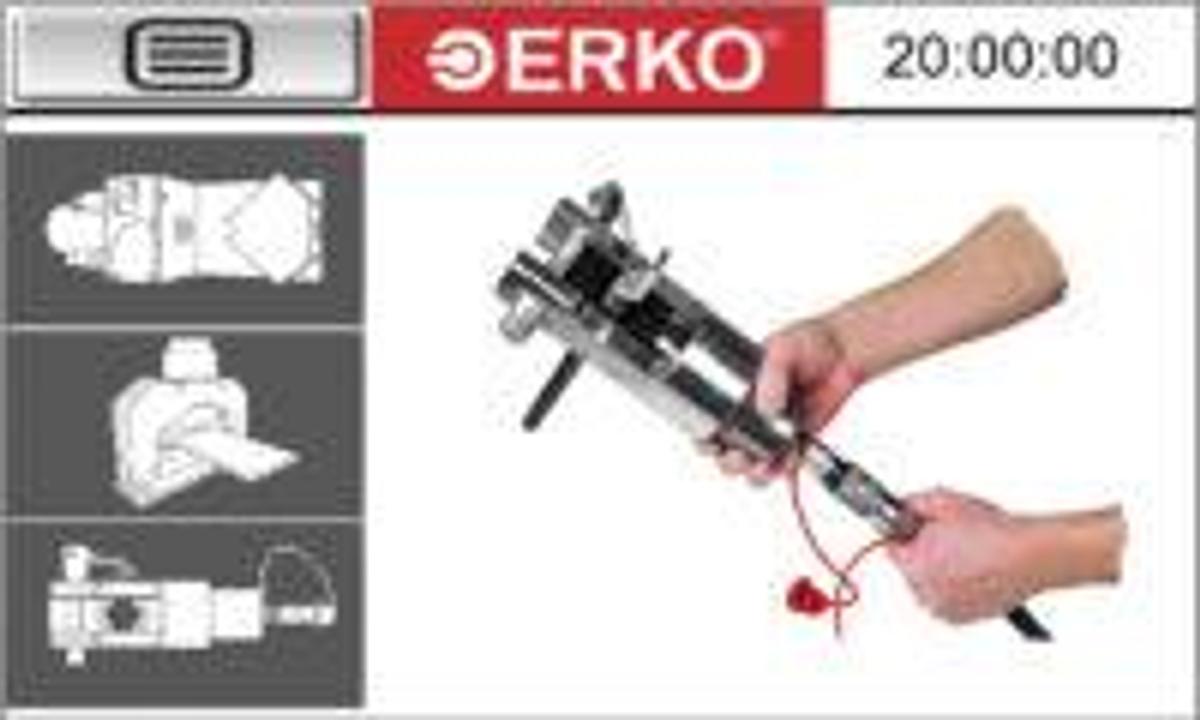

• equipped with port for ERKO hydraulic heads (hydraulic hose with quick coupler PM 630 bar)

• standard set for inserting nuts include SH 407 insert and round hole punch SH 403 (need to be ordered separately)

Technical Specification

Min Busbar Width: 30mm

Max Busbar Width: 125mm

Min Busbar Thickness: 5mm

Max Busbar Thickness: 12mm

Min Punching Diameter: 6.6mm

Max Punching Diameter: 21mm

Max Bending Angle: 90 Deg

Pressure: 630 Bar

Electrical Connection: 3 Phase or Single Phase

Motor Power: 1.4kW

Dimensions: 1400x930x1420mm

Weight: 355kg
