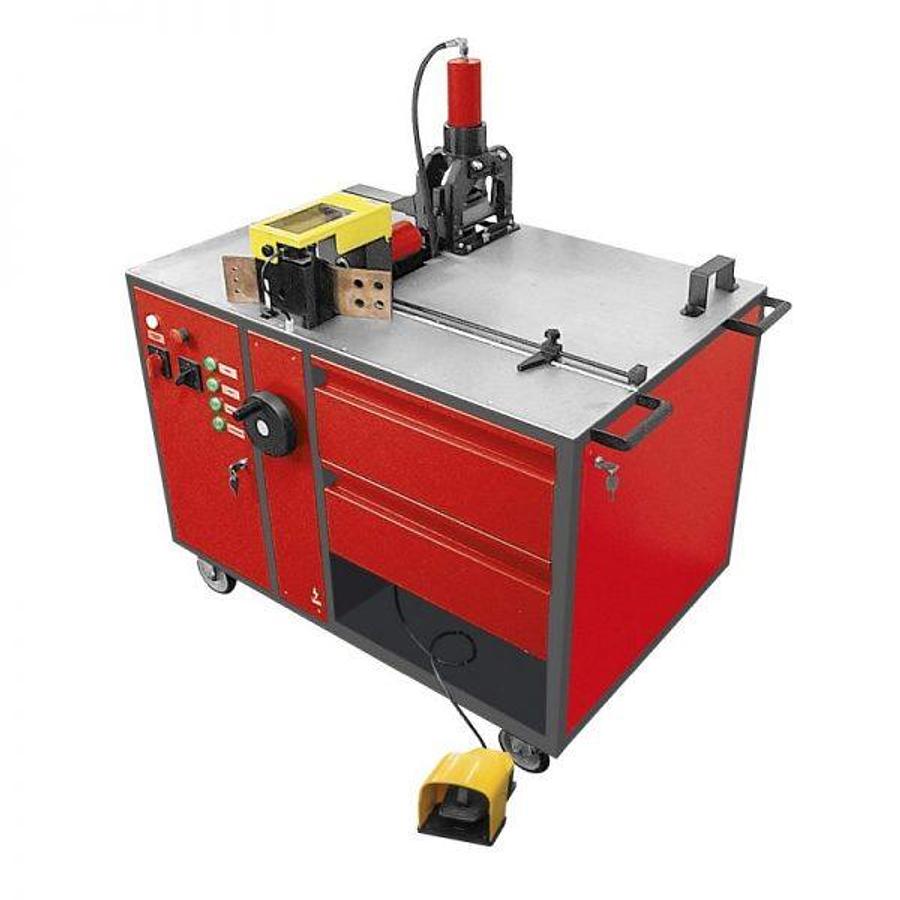

ERKO SH 400 Busbar Processing Station

ERKO SH 400 Busbar Processing Station

Manufacturer: ERKO Electro

Model: SH 400

Machine Type: Station for cutting, bending, hole punching, offsetting Al and Cu busbars

Description

Station for cutting, bending, hole punching, offsetting Al and Cu busbars as well as inserting nuts.

• busbar width from 30 to 125 mm

• busbar thickness 5 to 12 mm

• bending angle range up to 90°

Includes

Bending Station

Punching Station

Shearing Station

Built in ElectroHydraulic Pump

External Port

Mobile Cart

Length Stop

Insert for repeatable bending (built-in limit switch)

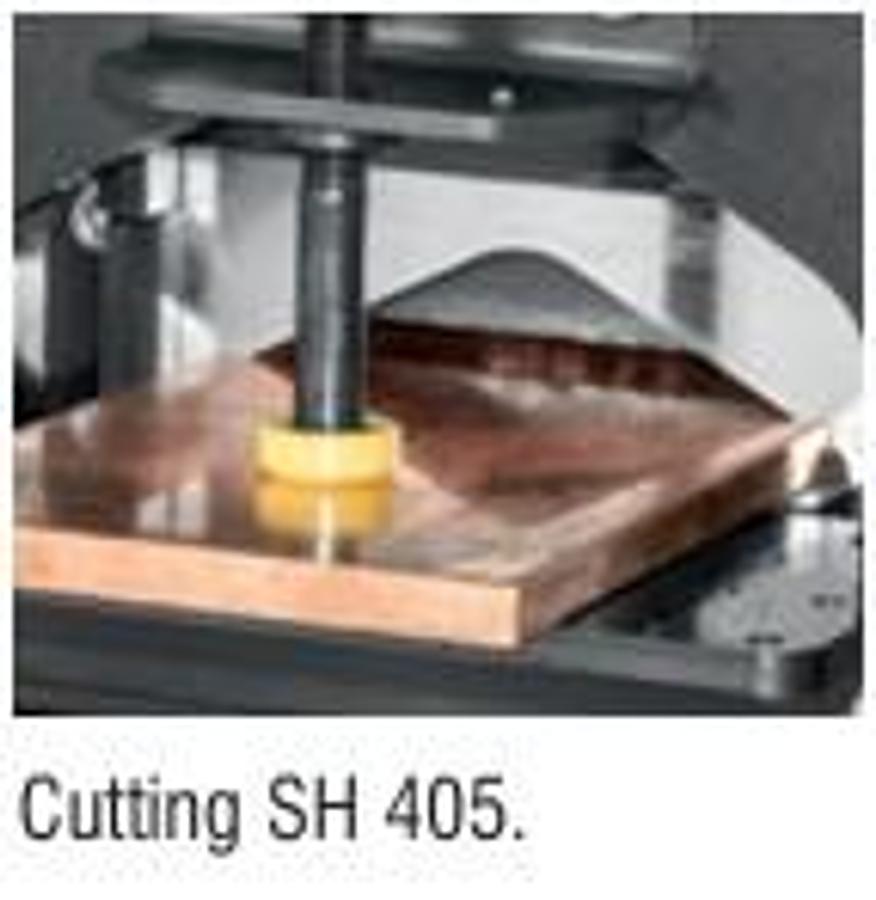

Busbar cutter

Bending without correction (not complying busbar flexibility) precision of repeatable bending ±2°

Optional Extras

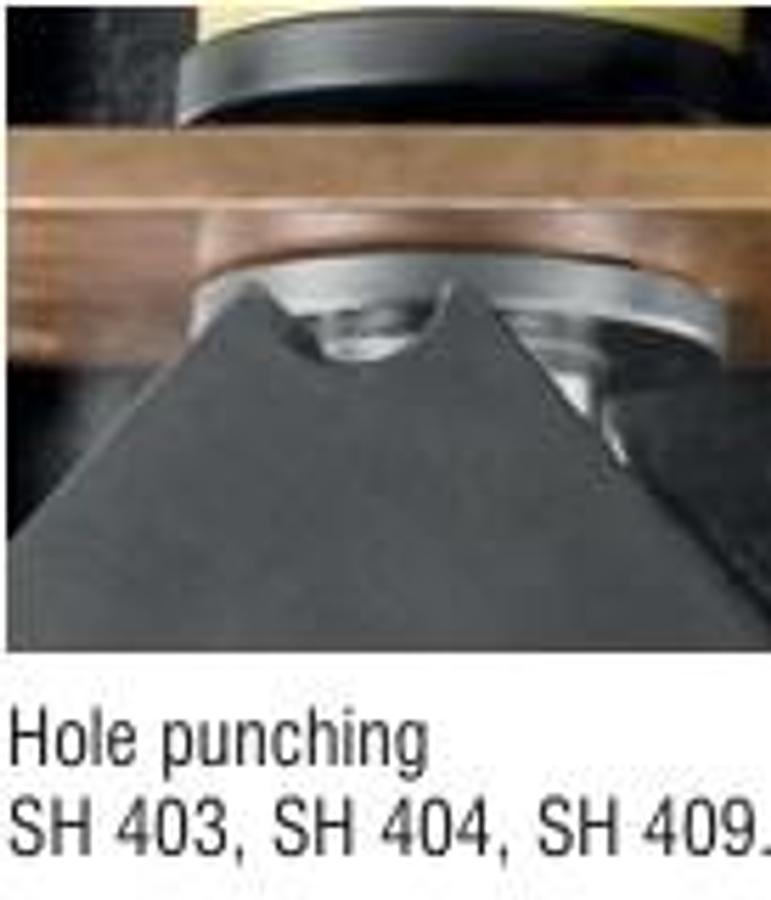

Round hole punch (standard dimensions according to catalog) SH403

Oval hole punch (standard dimensions according to catalog) SH 404

Rectangular hole punch (dimensions according to order: max diagonal 21 mm, side not shorter than 6,6 mm) SH 409

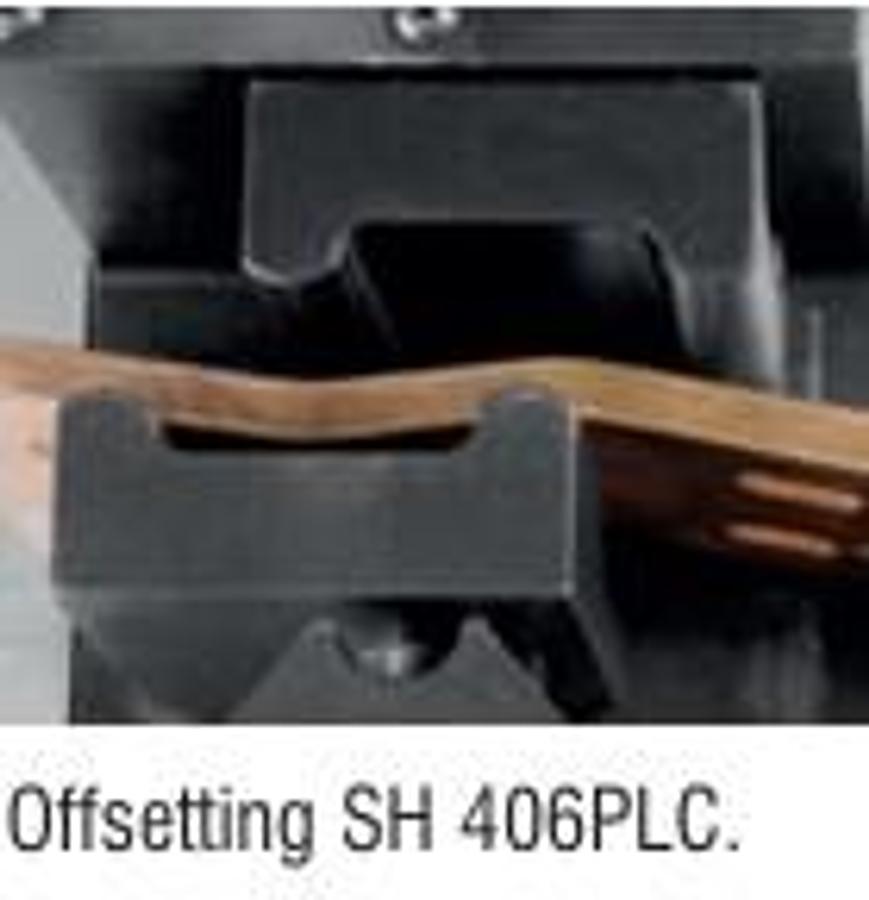

Insert die for busbars offsetting

Additional worktop

Insert die for inserting nuts

Additional busbar support

Features

• equipped with smoothly adjusted bending angle sensor

• equipped with measuring rulers (line ruler)

• height adjustment of hole punching head (1mm precision)

• burr-free round and oval holes punching

• burr-free busbars cutting

• built-in reliable hydraulic drive

• equipped with port for ERKO hydraulic heads (hydraulic hose with quick coupler PM 630 bar)

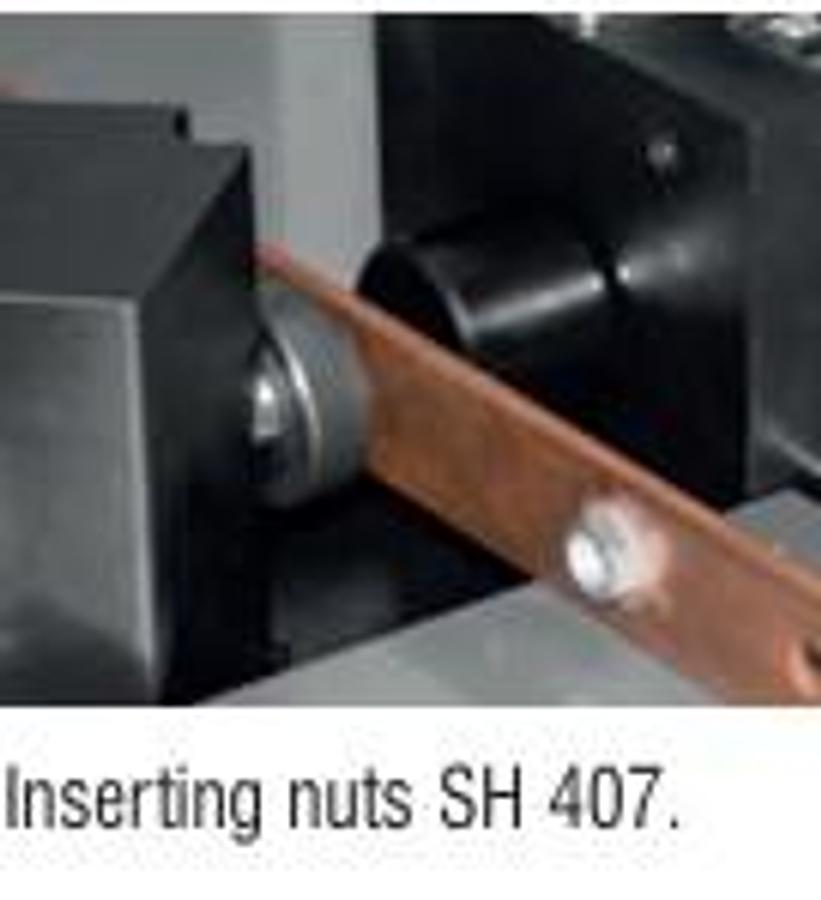

• standard set for inserting nuts include SH 407 insert and round hole punch SH 403 (need to be ordered separately)

Technical Specification

Min Busbar Width: 30mm

Max Busbar Width: 125mm

Min Busbar Thickness: 5mm

Max Busbar Thickness: 12mm

Min Punching Diameter: 6.6mm

Max Punching Diameter: 21mm

Max Bending Angle: 90 Deg

Pressure: 630 Bar

Electrical Connection: 3 Phase

Dimensions: 1280x850x1420mm

Weight: 280kg
