Fuho VBS 16 Vertical Bandsaw

Fuho VBS 16 Vertical Bandsaw

Industrial Vertical Bandsaw | Toolroom Bandsaw | Metal Cutting Bandsaw

Used Fuho VBS 16 vertical bandsaw in good condition. Industrial metal bandsaw with blade welder and variable speeds.

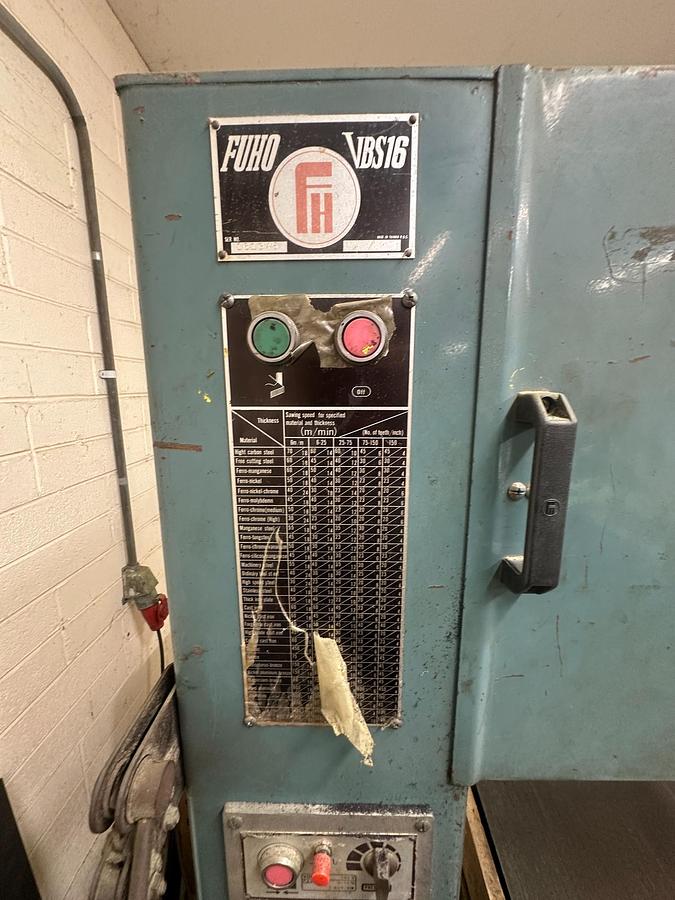

Manufacturer: Fuho

Model: VBS 16

Machine Type: Vertical Bandsaw for Steel

Condition:

✔ In good condition

✔ Includes integrated blade welder

Machine Overview

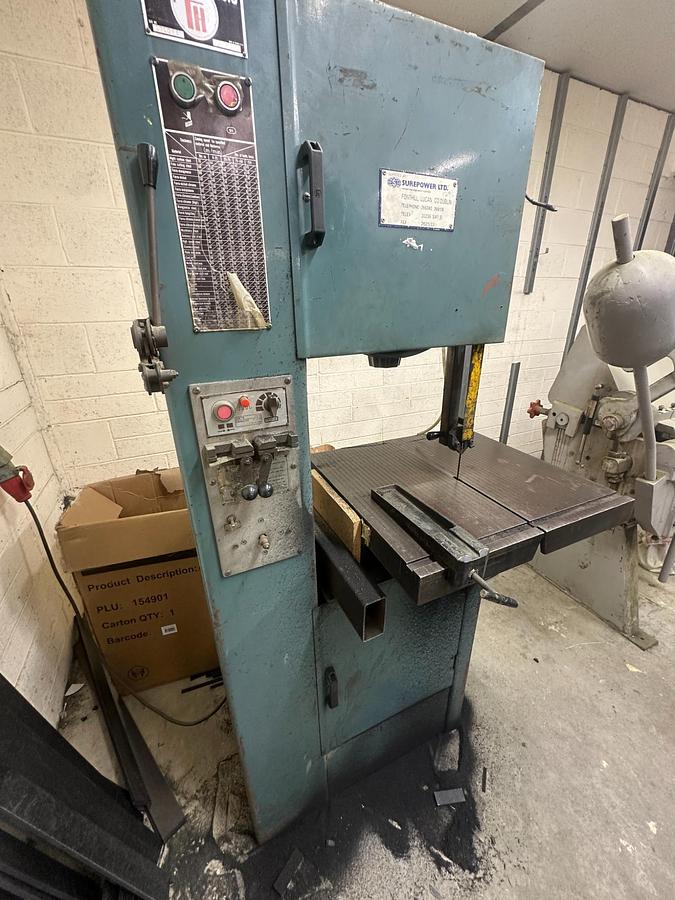

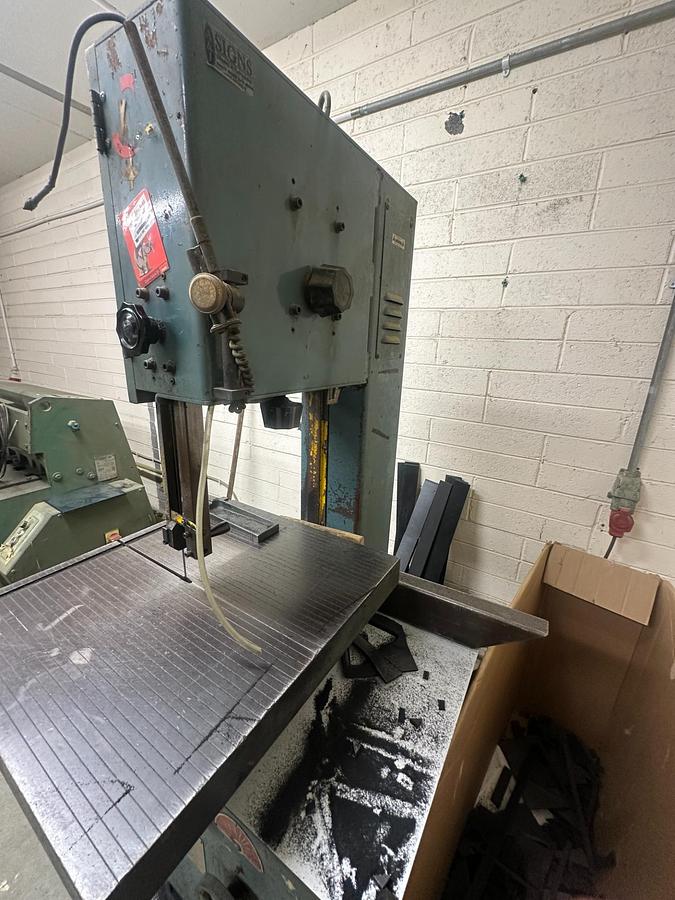

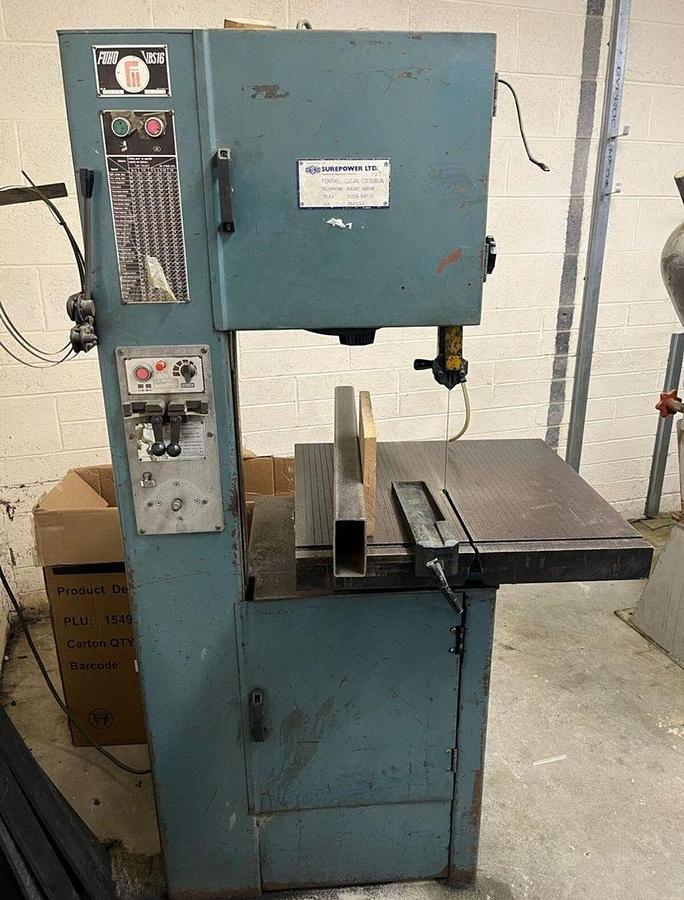

For sale is a Fuho VBS 16 Vertical Bandsaw, a heavy-duty industrial vertical metal cutting bandsaw designed for accurate contour cutting, straight cutting, and general workshop use.

This machine is ideal for toolrooms, fabrication shops, maintenance departments, and engineering workshops, offering excellent cutting capacity, variable blade speeds, and the convenience of an on-board blade welder for continuous operation.

Key Features & Benefits

• Industrial vertical bandsaw for metal
• Large throat and work height capacity
• Variable blade speeds for different materials
• Tilting table for angled cutting
• Integrated blade welder (up to 16 mm)
• Stable, rigid machine construction
• Ideal for contour cutting, profiling, and general sawing

Technical Specifications

Cutting Capacity

• Maximum throat capacity: 396 mm (16″)
• Maximum work height: 255 mm (10″)

Blade & Wheels

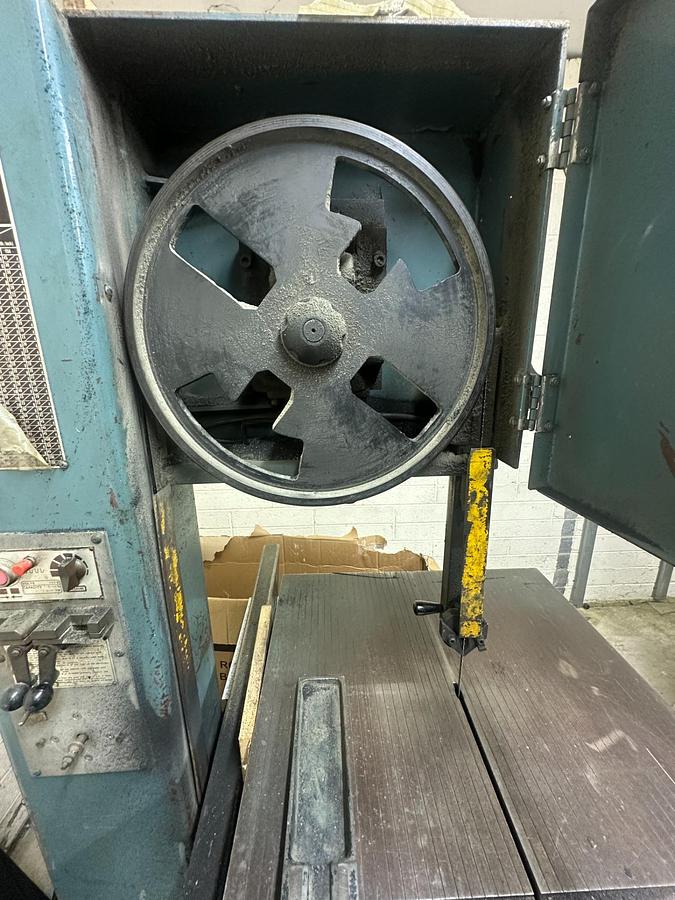

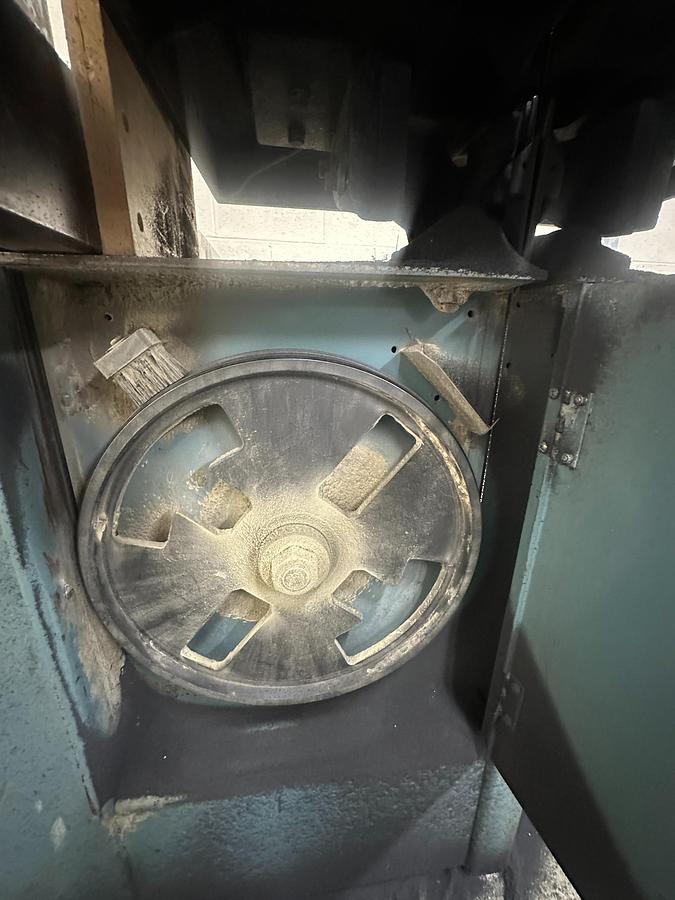

• Wheel diameter: 408 mm (16″)
• Maximum blade length: 3150 mm (124″)
• Maximum blade width: 16 mm (5/8″)

Blade Speed

50 Hz:

• Low: 20 – 80 m/min (65 – 265 ft/min)
• High: 250 – 1000 m/min (820 – 3280 ft/min)

Motor & Drive

• Main drive motor: 2 HP (1.5 kW), 3-phase

Table

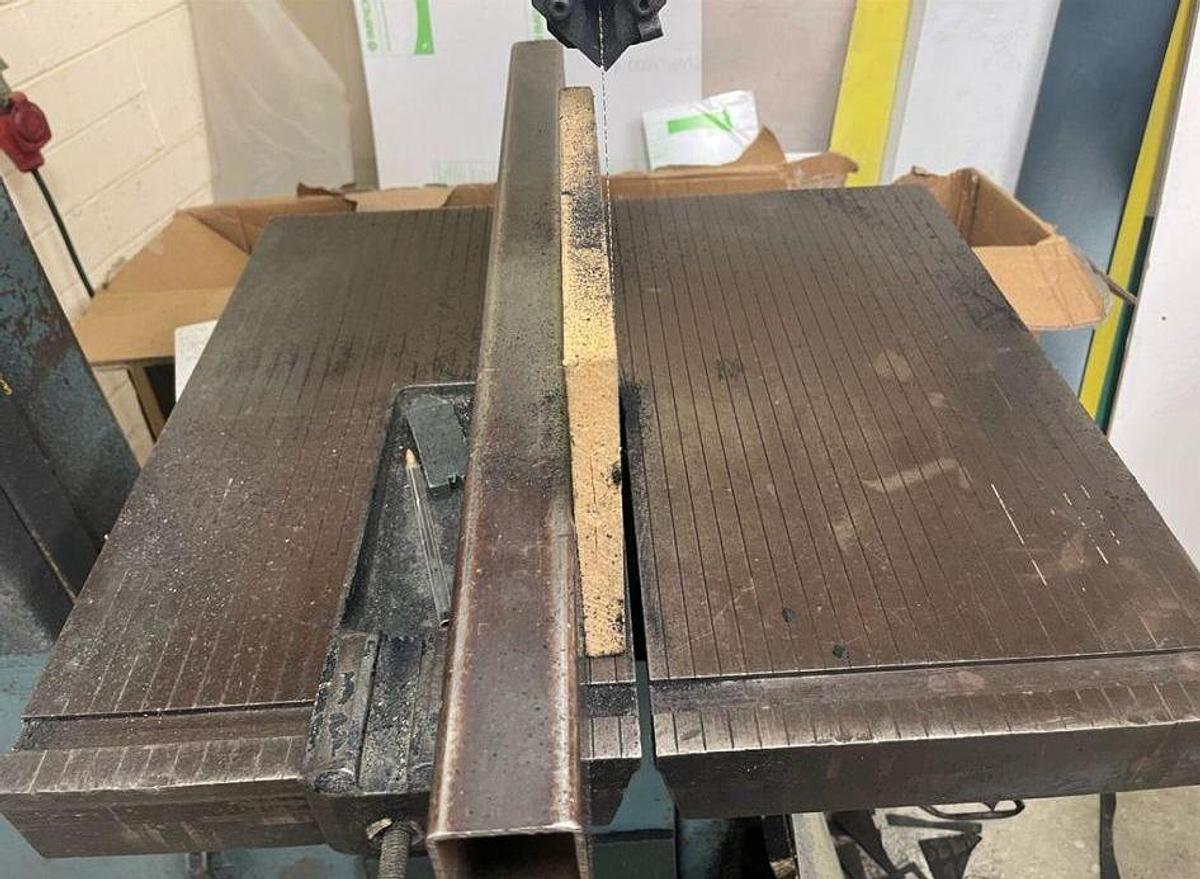

• Table size: 550 × 600 mm (22″ × 24″)
• Table tilt:
• Right: 15°
• Left: 12°
• Front & back: 8° each
• Table height from floor: 1000 mm (39-3/8″)

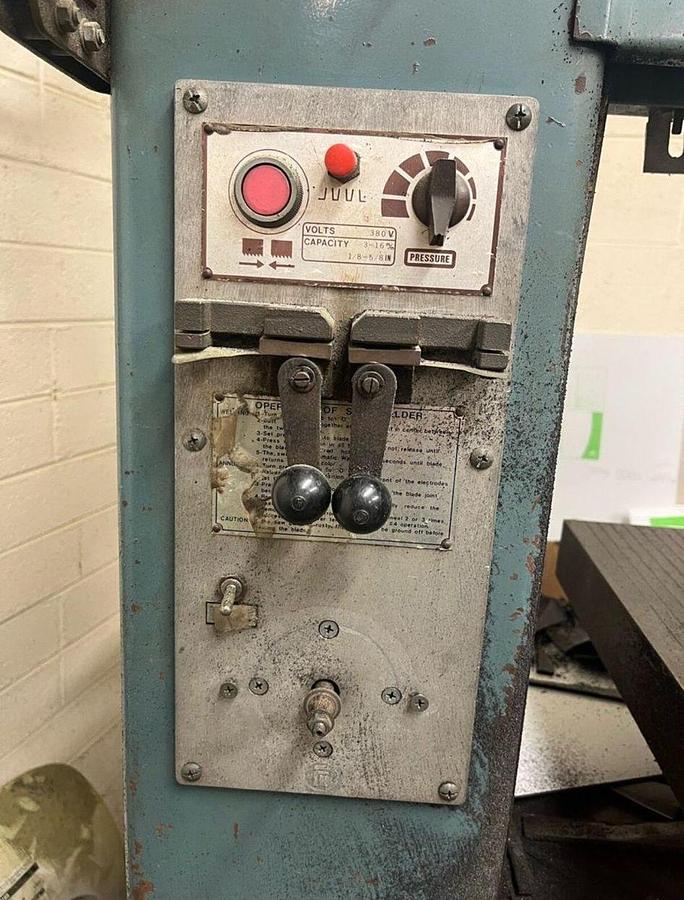

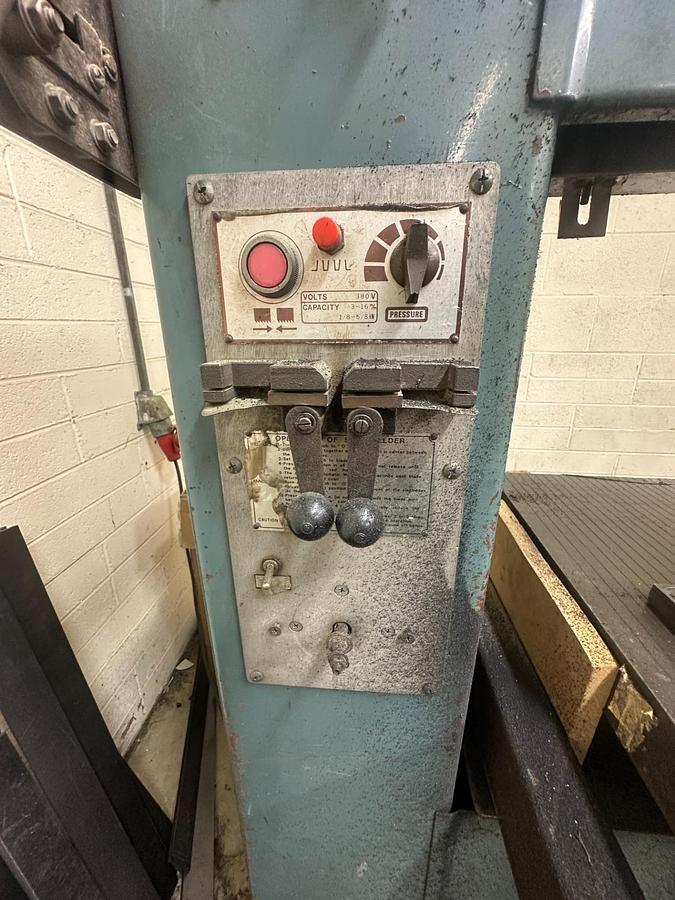

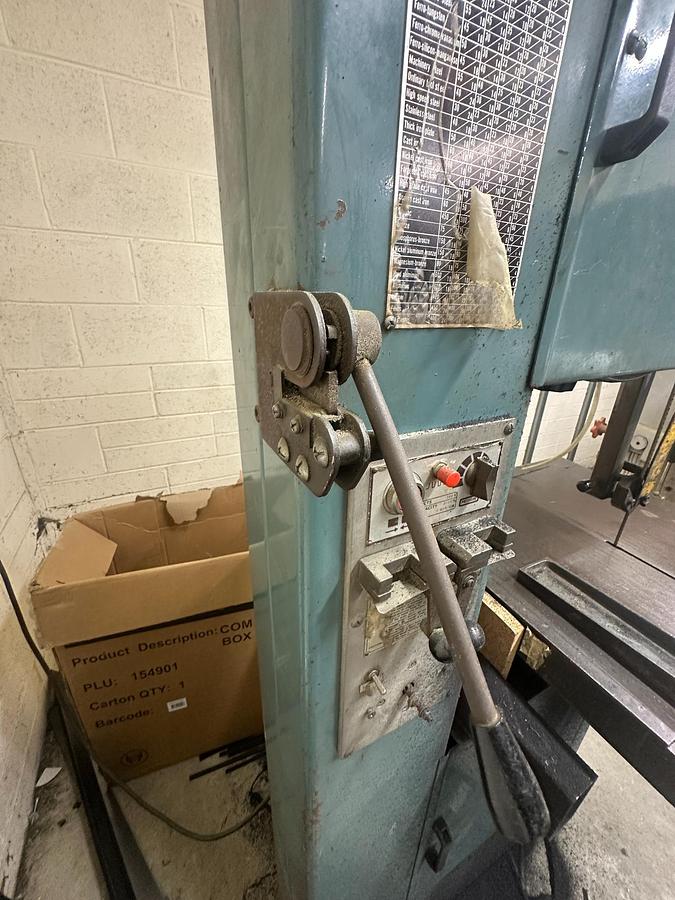

Blade Welder

• Welder capacity: 16 mm (5/8″)

Machine Size & Weight

• Overall dimensions: 940 × 675 × 1840 mm
• Net weight: 410 kg

Typical Applications

• Toolroom cutting
• Contour and profile cutting
• General metal fabrication
• Maintenance and repair work
• Engineering workshops
• Model and prototype work

Why Buy This Machine?

✔ Compact industrial vertical bandsaw

✔ Wide blade speed range

✔ Integrated blade welder saves downtime

✔ Accurate angled cutting

✔ Excellent all-round workshop saw

Notes: *Specifications are given in good faith but not guaranteed*
