WEIMA ECO 600 Industrial Wood Shredder (2003)

Wood Waste Shredder | Industrial Single-Shaft Shredder | Biomass & Wood Recycling Machine

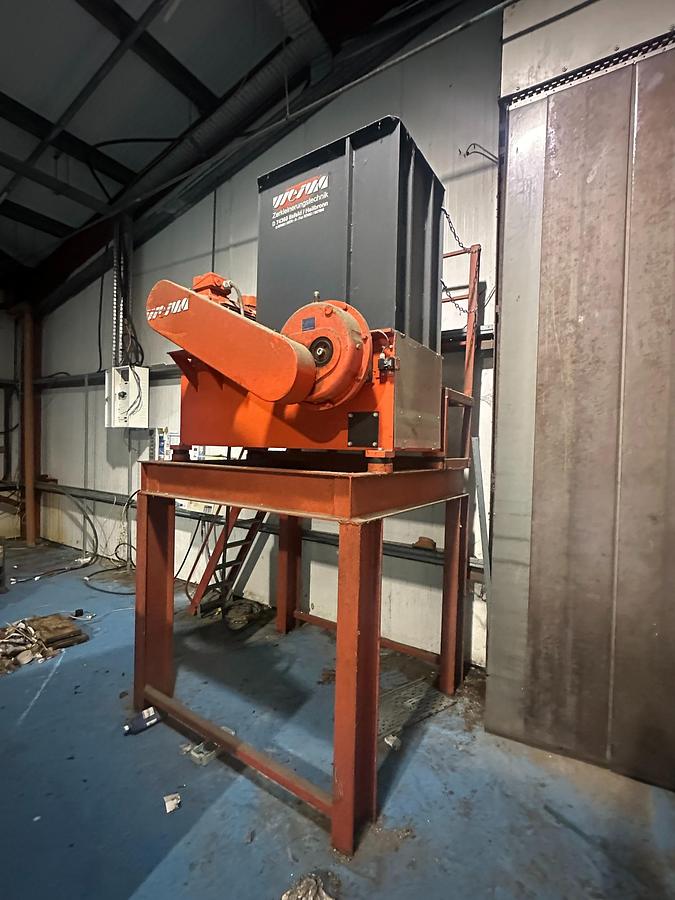

Used 2003 WEIMA ECO 600 industrial wood shredder with stand, ladder and control panel. Reliable German single-shaft shredder for wood waste.

Manufacturer: Weima

Model: ECO 600

Machine Type: Wood Waste Shredder/Industrial Single-Shaft Shredder/Biomass & Wood Recycling Machine

Year: 2003

Condition: Very Good

Machine Overview

For sale is a 2003 WEIMA ECO 600 industrial shredder, manufactured by WEIMA Maschinenbau GmbH (Germany). The ECO 600 series was specifically developed for small to medium-sized woodworking operations, offering reliable and cost-effective shredding of wood waste.

This machine is ideal for:

• Joinery shops
• Furniture manufacturers
• Timber processing plants
• Wood recycling & biomass preparation

The ECO 600 features a compact footprint, a large-volume hopper, and a solid steel rotor, delivering consistent shredding with high throughput at an excellent price-performance ratio.

Shredding Technology

• Single-shaft shredder with solid steel flat rotor
• Rotor manufactured from solid material, mounted in heavy-duty sealed bearings for smooth, long-life operation
• Welded knife holders with rear-mounted knives allow fast knife changes without damage during operation
• Concave cutting knives, 4-way reversible, for precise cutting and high throughput
• Hydraulically driven feed slide, load-dependent and automatically controlled, ensures constant shredding performance
• Scraper strips prevent unwanted material ingress between slide and housing

Material is shredded between rotor knives and a fixed counter-knife, then discharged through a screen beneath the rotor. The screen size (10–40 mm) determines the final chip size.

Intelligent Control System

• PLC-controlled operation
• Automatic shutdown when hopper is empty
• Automatic reversing function under overload to protect rotor and feed slide

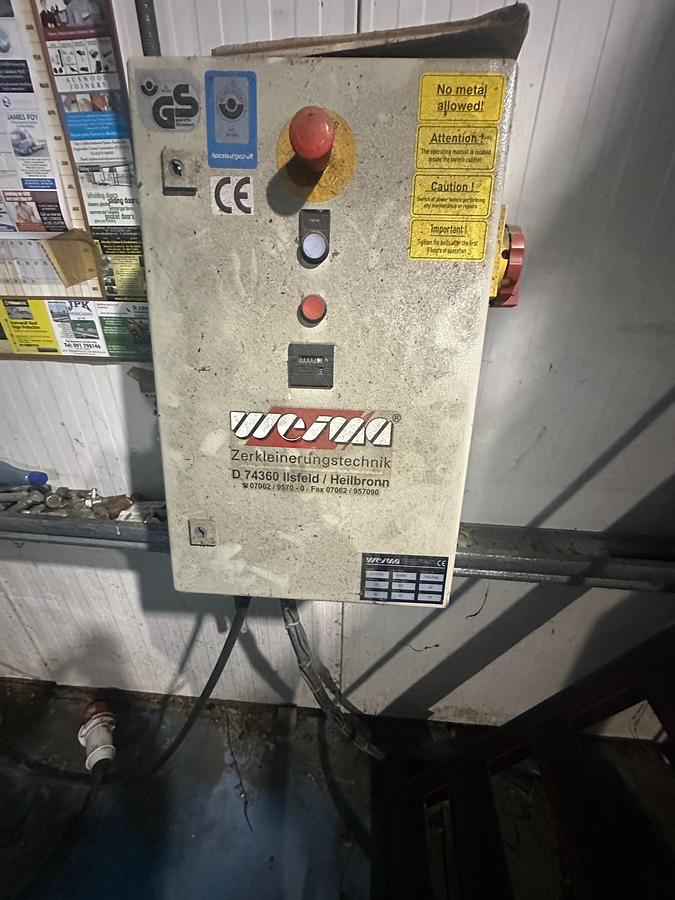

• Separate wall-mounted electrical control panel included

This intelligent system ensures safe, continuous, and operator-friendly operation

Material Handling & Extraction

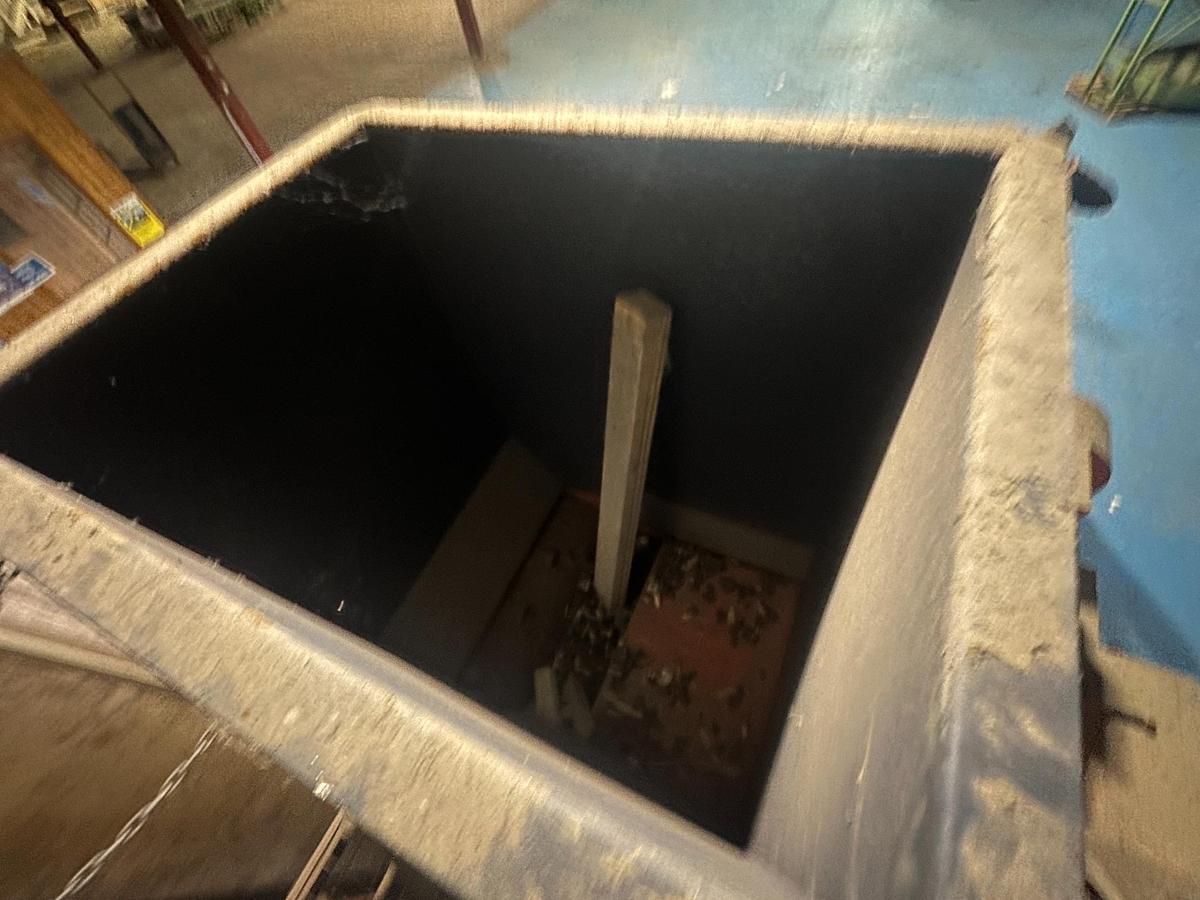

• Large-volume hopper allows direct loading of bulky wood waste
• Compact design requires minimal floor space
• Integrated extraction outlet allows connection to dust extraction or conveying systems

Technical Specifications – WEIMA ECO 600

Feed & Capacity

• Feed opening: 600 × 800 mm
• Hopper volume: 0.6 m³
• Throughput: Material- and screen-dependent

Rotor

• Rotor diameter: 252 mm
• Rotor length: 600 mm
• Rotor speed: 60–100 rpm
• Number of knives: 14

Drive

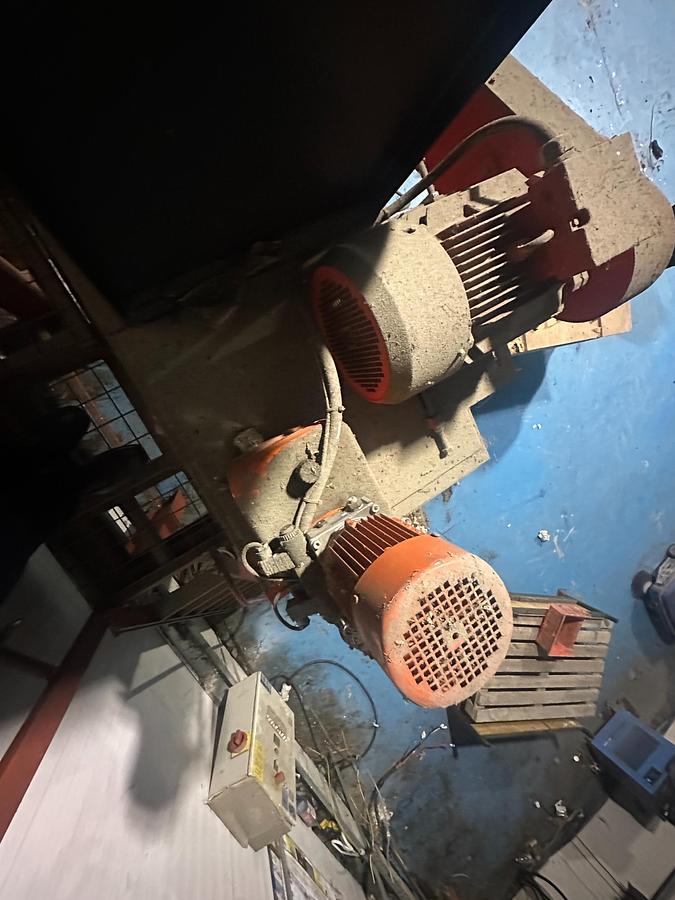

• Motor power: 11 kW / 15 kW

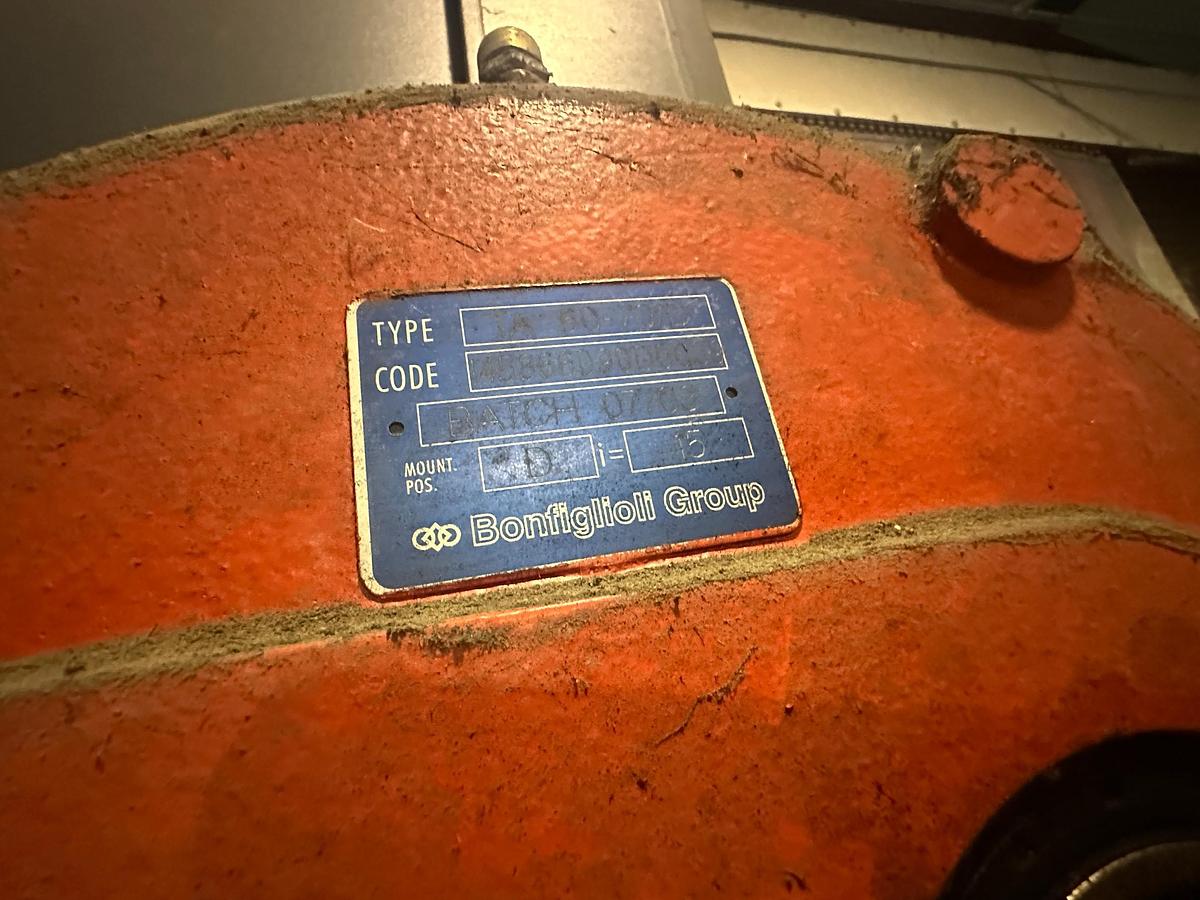

• Power transmission via V-belts and gearbox

Screen & Output

• Screen hole size: 10–40 mm
• Extraction connection: Ø160 mm
• Air velocity: 28 m/sec

Weight

• Machine weight: approx. 1,000 kg

(All specifications per manufacturer brochure, February 2003)

Notes: *Specifications are given in good faith but not guaranteed*

Included Extras

✔ Heavy-duty steel frame stand

✔ Access ladder for safe loading

✔ Separate wall-mounted control panel

Key Advantages

✔ Proven WEIMA German engineering

✔ Ideal for wood waste volume reduction

✔ Reliable, low-maintenance design

✔ Adjustable output size

✔ Compact industrial footprint

✔ Excellent price-performance ratio
