2014 Dugard 1000E Vertical Machining Centre for Sale | Fanuc | BT40 | Ireland

Cork, Ireland

Sold

Description

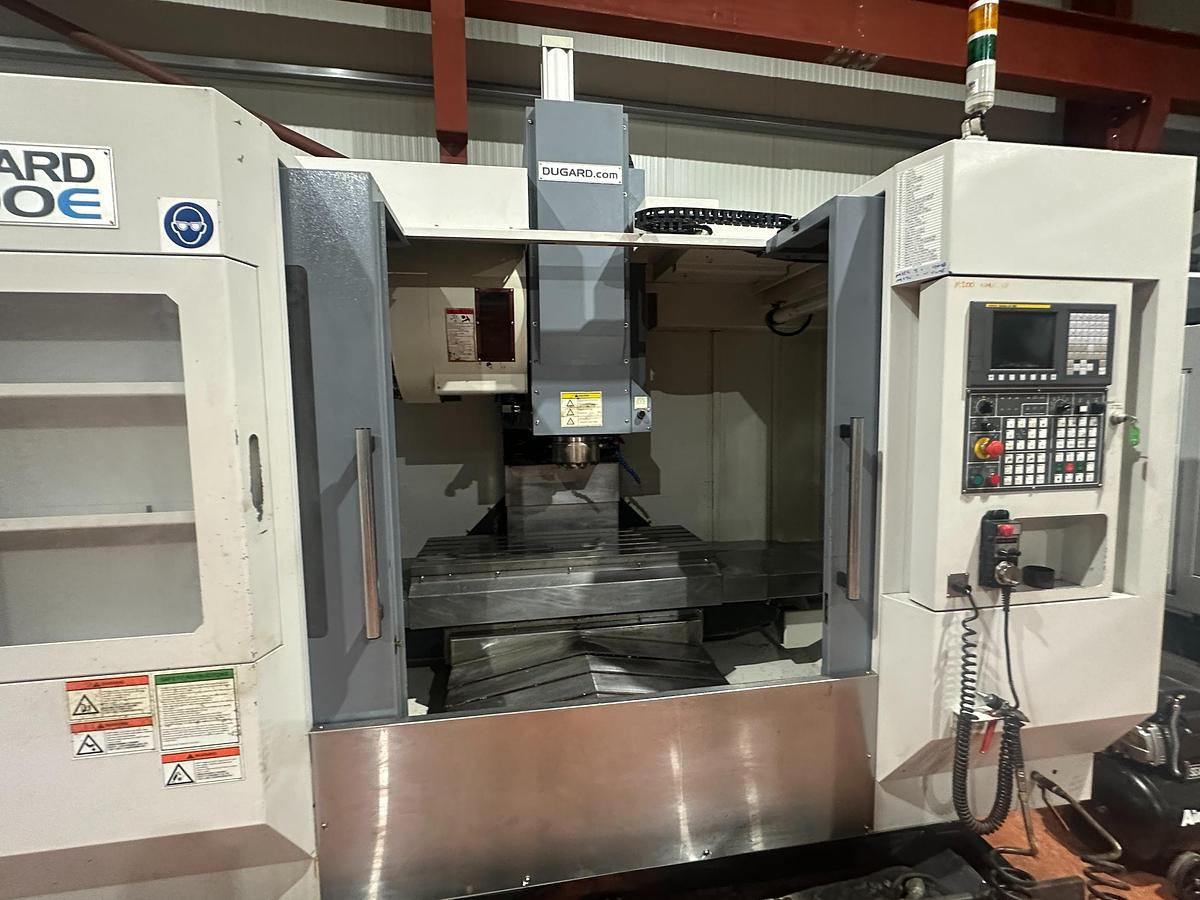

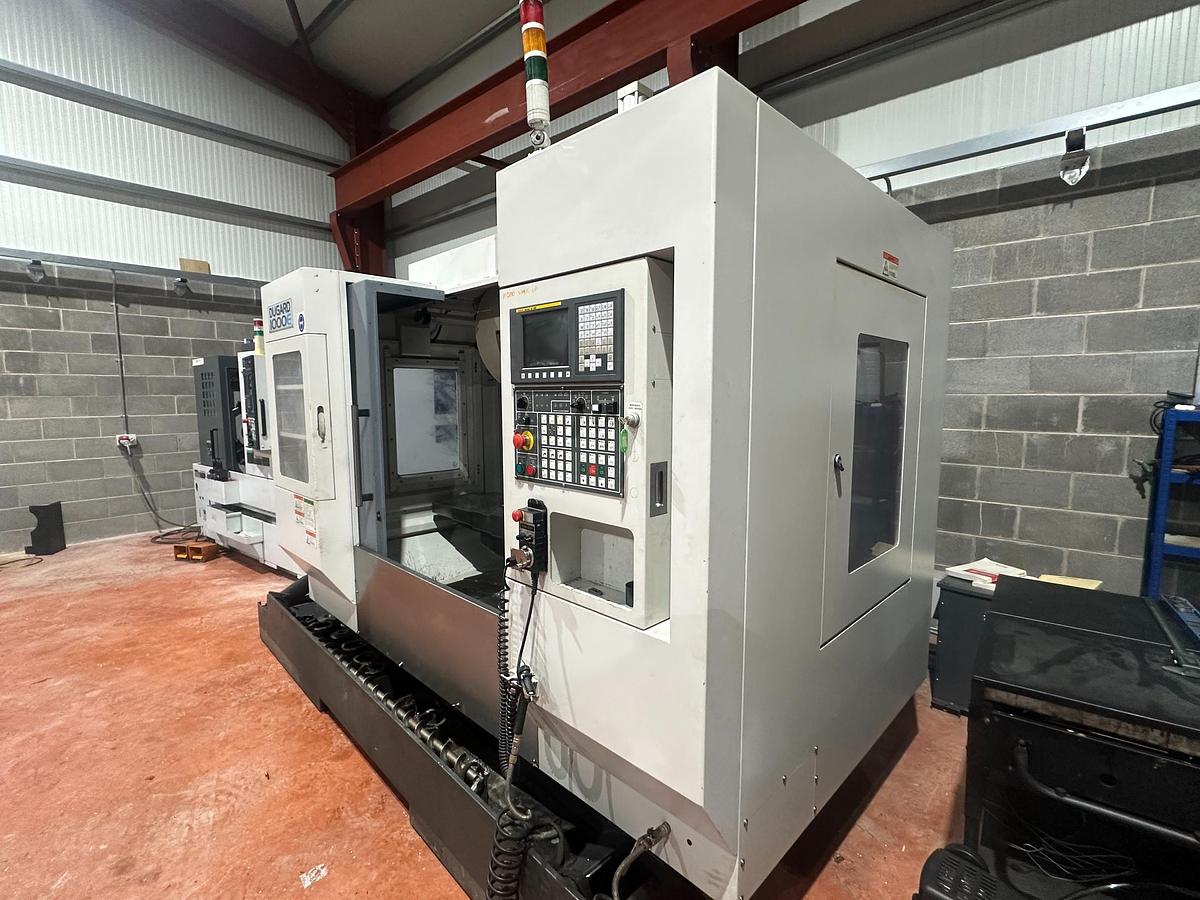

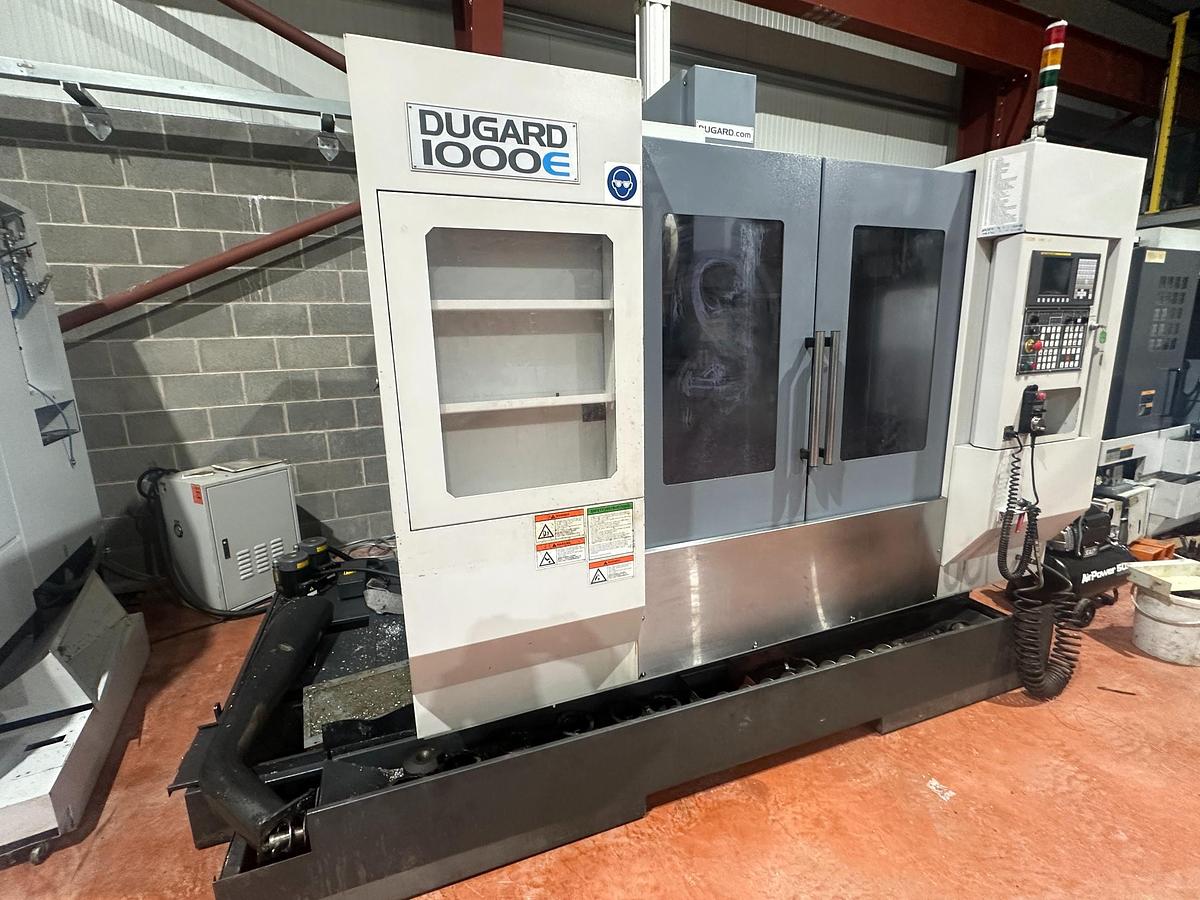

2014 Dugard 1000E 3-Axis Vertical Machining Centre – Very Good Condition


2014 Dugard 1000E 3-Axis Vertical Machining Centre in very good condition. Fanuc Oi-MD control, BT40 spindle, 10,000 RPM, 28-station ATC. Available now in Ireland.


Machine Type: Vertical Machining Centre (VMC)

Manufacturer: Dugard

Model: 1000E

Year: 2014

Control: Fanuc Series Oi-MD

Location: Ireland

Availability: Immediate


Machine Overview

Offered by Used Machine Tools Ireland, this 2014 Dugard 1000E Vertical Machining Centre is in very good condition and ready for immediate production.

The Dugard 1000E is a highly respected UK-supplied VMC, known for its rigid cast-iron construction, powerful spindle, and reliable Fanuc control system. With generous travels, fast rapids, and a 28-station twin-arm ATC, it is well suited to both high-mix precision work and production machining.

This machine represents an excellent opportunity to acquire a modern, professional-grade 3-axis machining centre with proven reliability and strong resale value.



Key Features & Highlights

  • 3-Axis Vertical Machining Centre
  • Fanuc Series Oi-MD Control – industry standard, easy to program
  • BT40 Spindle – strong tooling availability and rigidity
  • 10,000 RPM Spindle Speed
  • 28-Station Twin-Arm Automatic Tool Changer
  • Rigid Cast-Iron Machine Frame – excellent vibration damping
  • Fully Enclosed Guarding
  • High-Power Cooling System
  • Swarf Auger for Efficient Chip Removal

Technical Specifications – Dugard 1000E

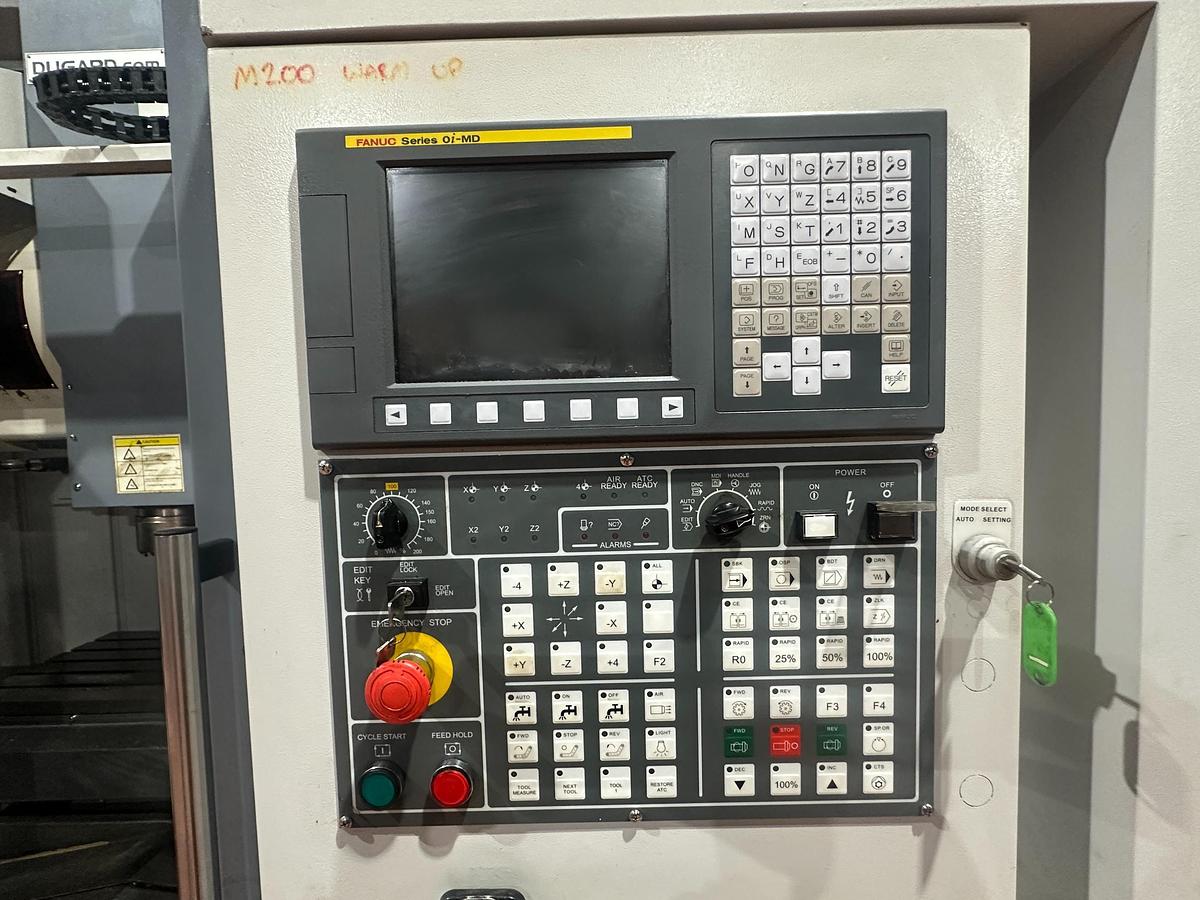

Control

  • Control System: Fanuc Series Oi-MD
  • Display: 8.4” TFT LCD Colour Monitor
  • Programming: Industry-standard Fanuc format
  • Storage: PC Flash Card Support

Axis Travel

  • X-Axis Travel: 1050 mm
  • Y-Axis Travel: 540 mm
  • Z-Axis Travel: 560 mm

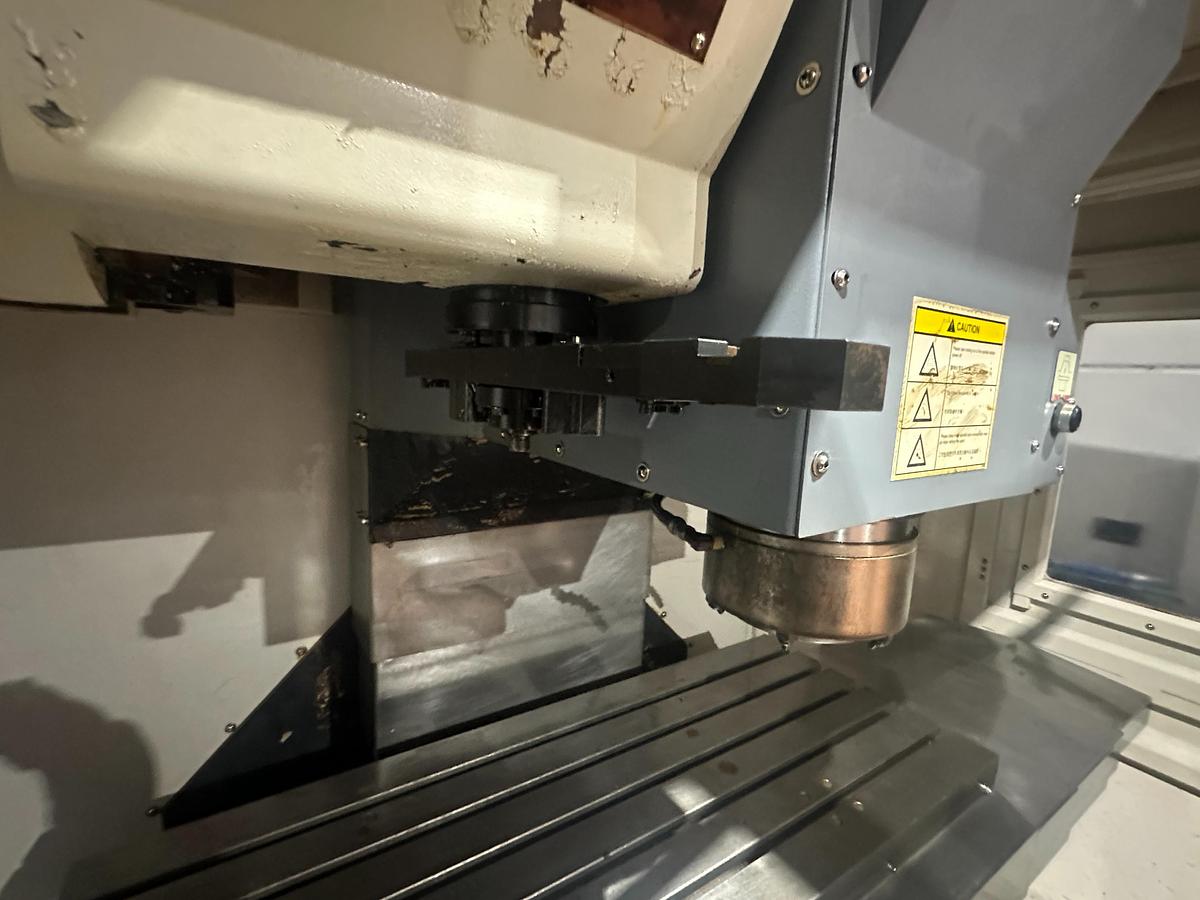

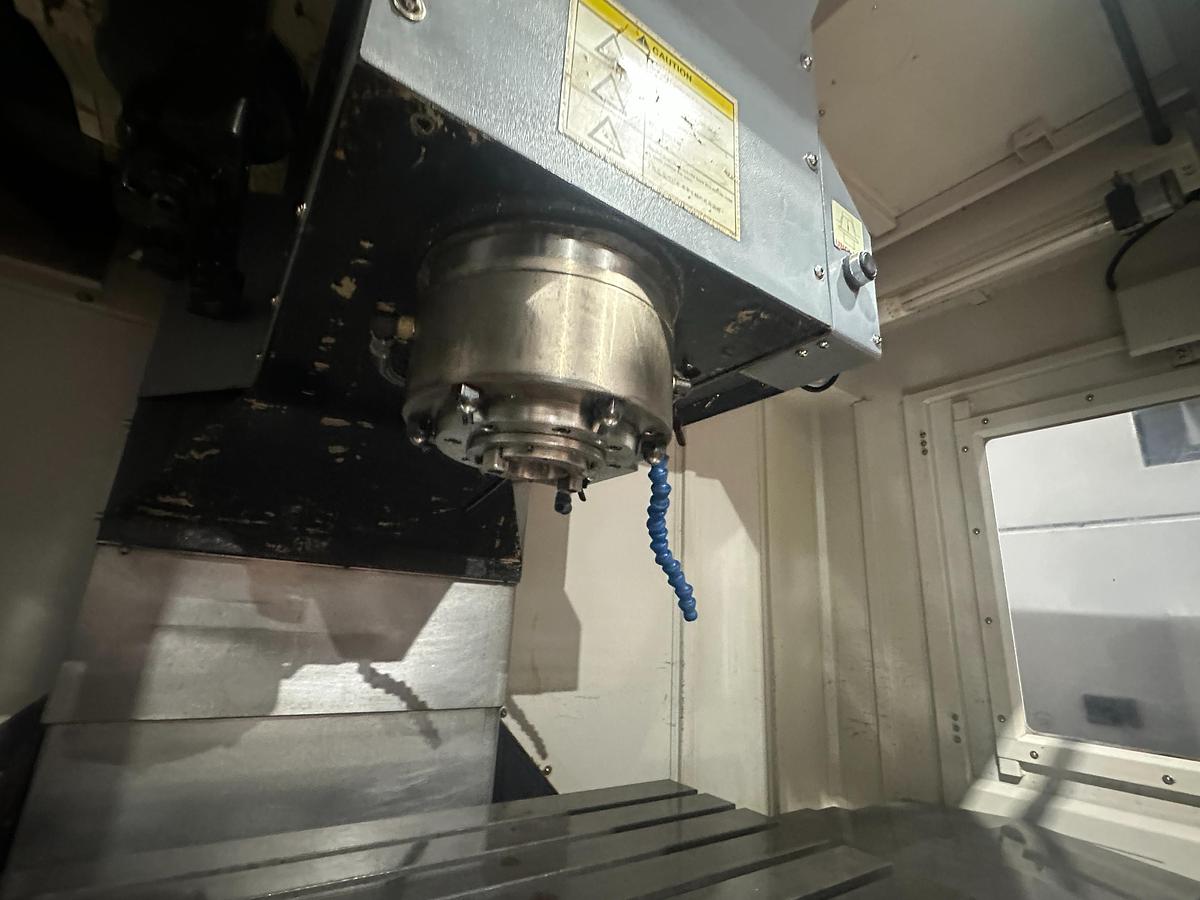

Spindle

  • Spindle Taper: BT40
  • Spindle Speed Range: 20 – 10,000 RPM
  • Spindle Drive Motor: 11 / 15 kW

Feed Rates

  • Rapid Traverse (X / Y / Z):
  • X & Y: 32 m/min
  • Z: 24 m/min

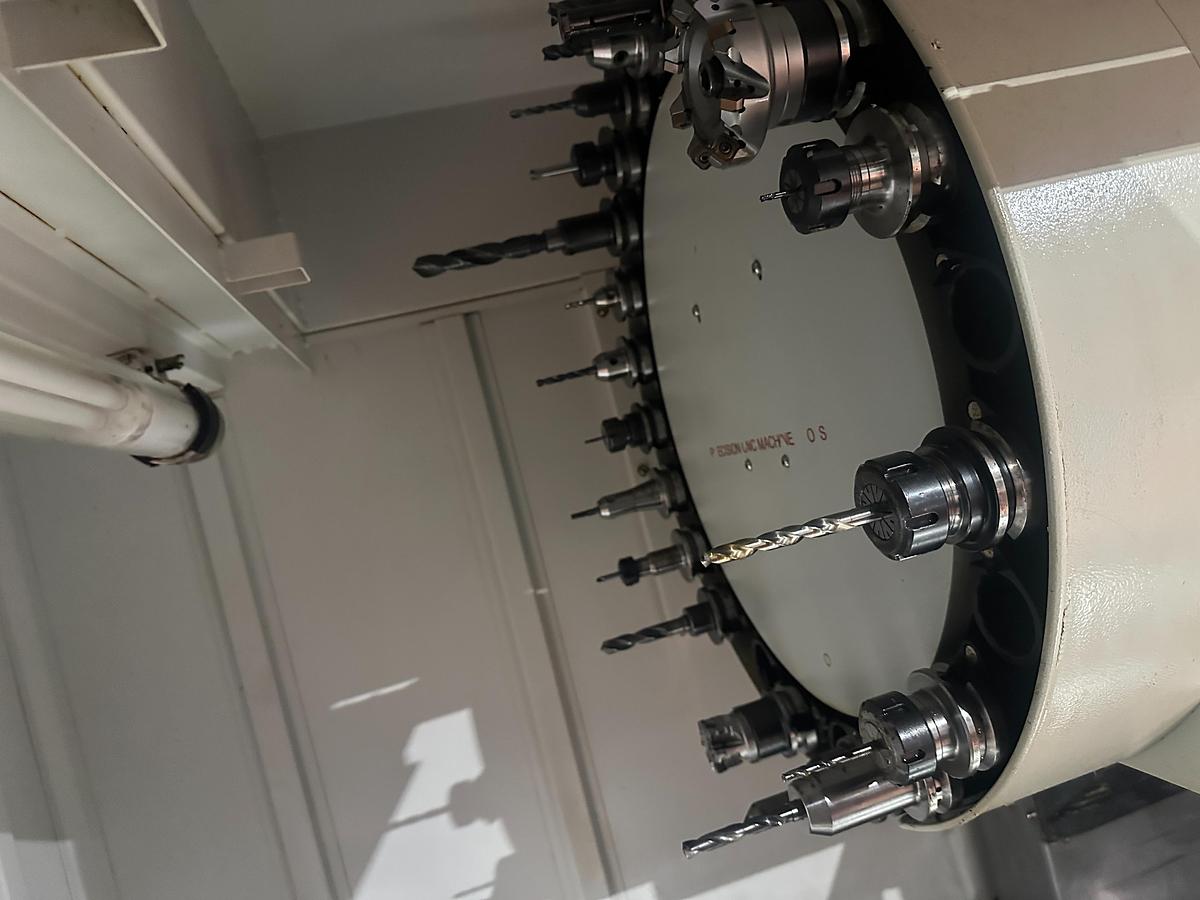

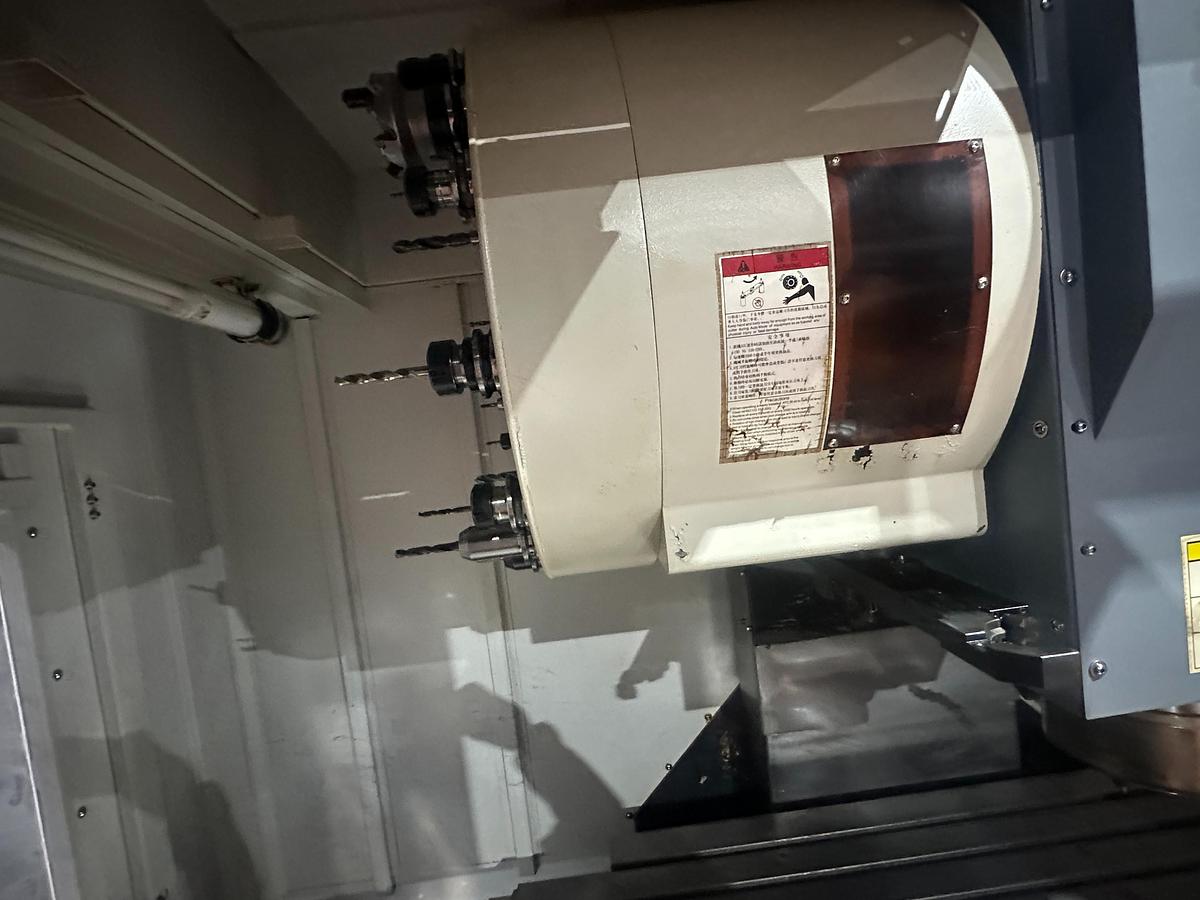

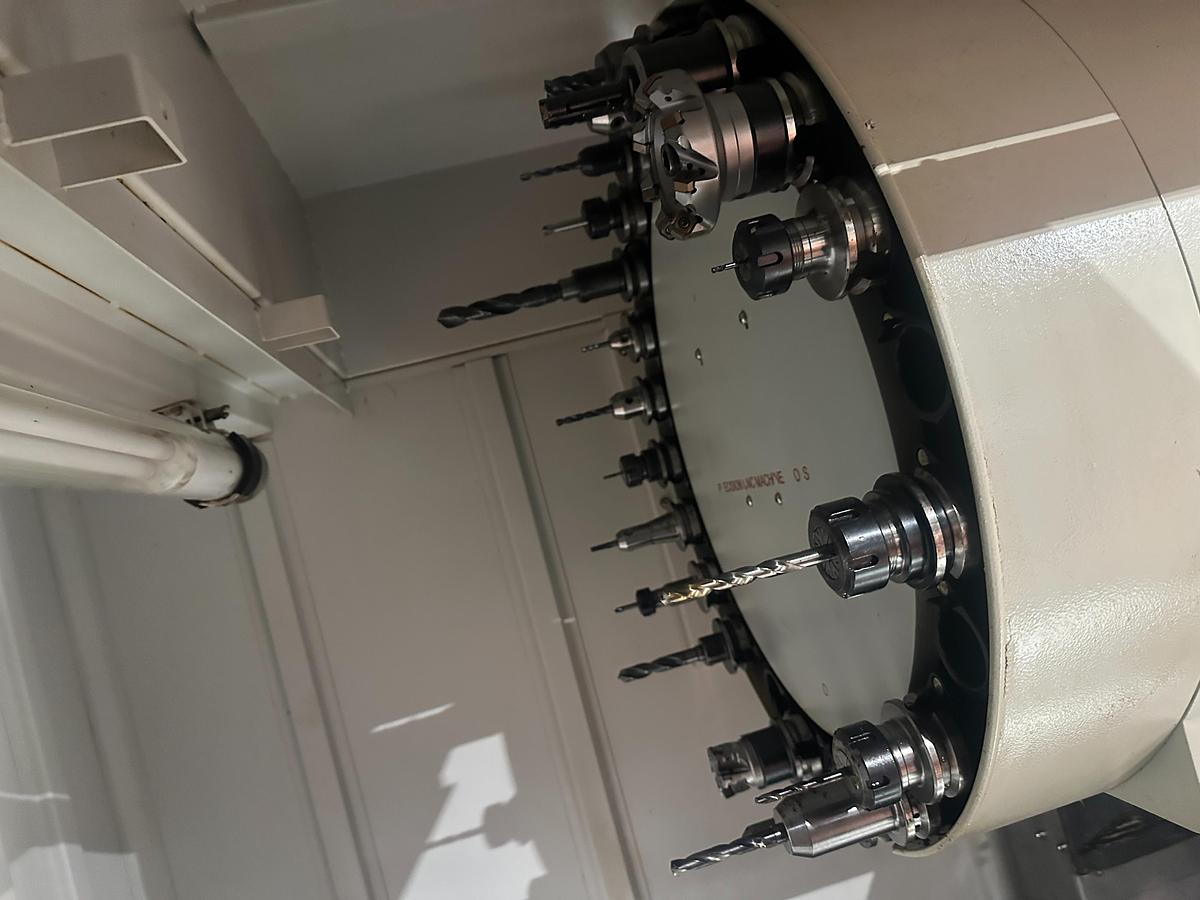

Tool Changer

  • Automatic Tool Changer: 24 Station
  • Type: Drum Type
  • Toolholders: Included as seen in ATC

Machine Construction & Equipment

  • Heavy-duty, high-quality cast iron frame
  • Rigid tapping
  • Helical interpolation
  • Automatic lubrication system

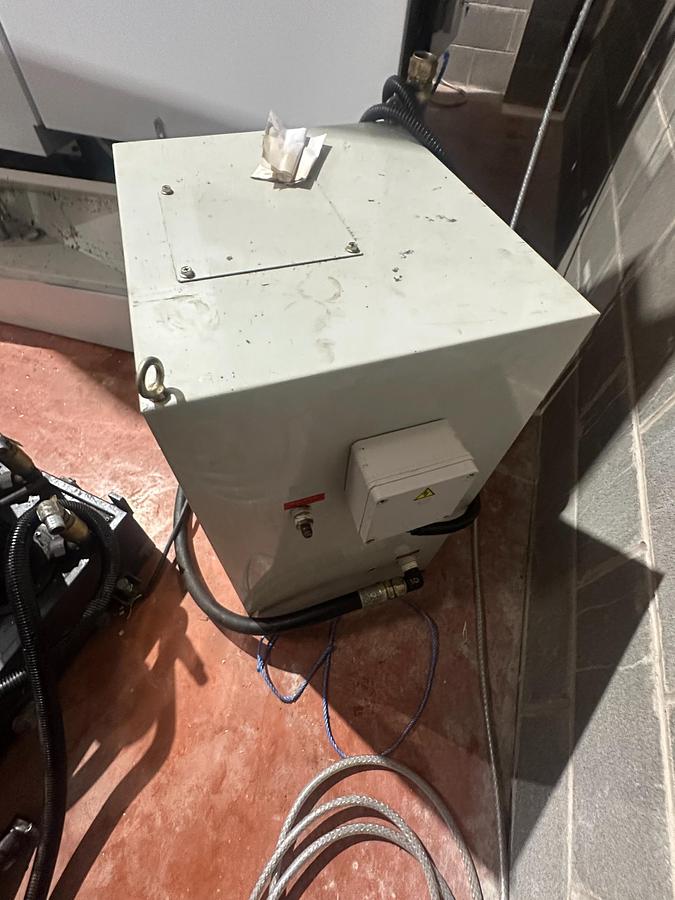

  • High-power coolant system
  • Fully enclosed safety guarding

Dimensions

  • Machine Footprint: 3300 × 2280 mm

Included with Machine

✔ Toolholders included (as currently loaded in the ATC)

✔ Swarf auger

✔ Coolant system

✔ Full enclosure


Additional Notes

  • Machine is in very good condition
  • Well-specified and production-ready
  • Specifications supplied in good faith but not guaranteed

Ideal Applications

  • Precision CNC milling
  • General engineering & subcontract machining
  • Aerospace, medical, electronics & automotive components
  • Aluminium, plastics, and steel machining


The Dugard 1000E is a solid, modern 3-axis VMC offering excellent performance, reliability, and value — an ideal addition to any precision machine shop.


Specifications

ManufacturerDugard
Model1000E Vertical Machining Centre
Year2014
ConditionUsed
Stock Number969729
Machine TypeVertical Machining Centre (VMC)
ManufacturerDugard
Model1000E
Year2014
ControlFanuc Series Oi-MD
LocationIreland
AvailabilityImmediate
* Control SystemFanuc Series Oi-MD
* ProgrammingIndustry-standard Fanuc format
* StoragePC Flash Card Support
* X-Axis Travel1050 mm
* Y-Axis Travel540 mm
* Z-Axis Travel560 mm
* Spindle TaperBT40
* Spindle Speed Range20 – 10,000 RPM
* Spindle Drive Motor11 / 15 kW
* X & Y32 m/min
* Z24 m/min
* Automatic Tool Changer24 Station
* TypeDrum Type
* Machine Footprint3300 × 2280 mm
