Fanuc Robodrill Alpha T21iDL CNC Machining Centre | BT30 | 20,000 RPM

Cork, Ireland

Sold

Description

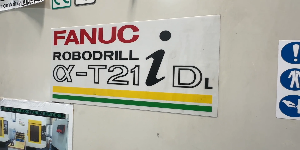

Fanuc Robodrill Alpha T21iDL 3-Axis Machining Centre

BT30 | 20,000 RPM | 21-Tool ATC | Includes Tool Holders


Fanuc Robodrill Alpha T21iDL 3-Axis Machining Centre with Fanuc 16i-MB control. 20,000 RPM BT30 spindle, 850×410 mm table, 21-tool ATC, includes tool holders. High-speed precision CNC available now.

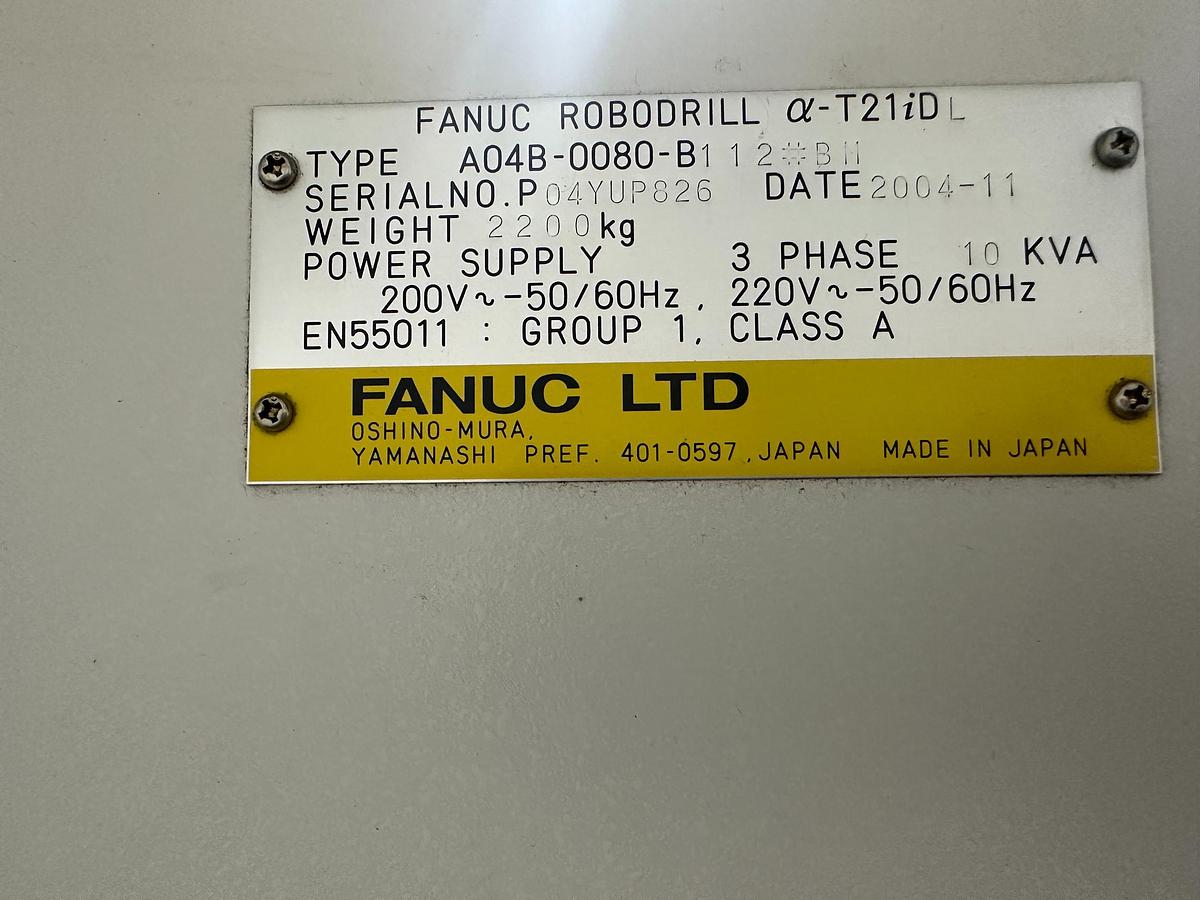

Manufacturer: Fanuc

Model: Alpha T21iDL

Machine Type: 3 Axis Vertical Machining Centre

Year: 2004

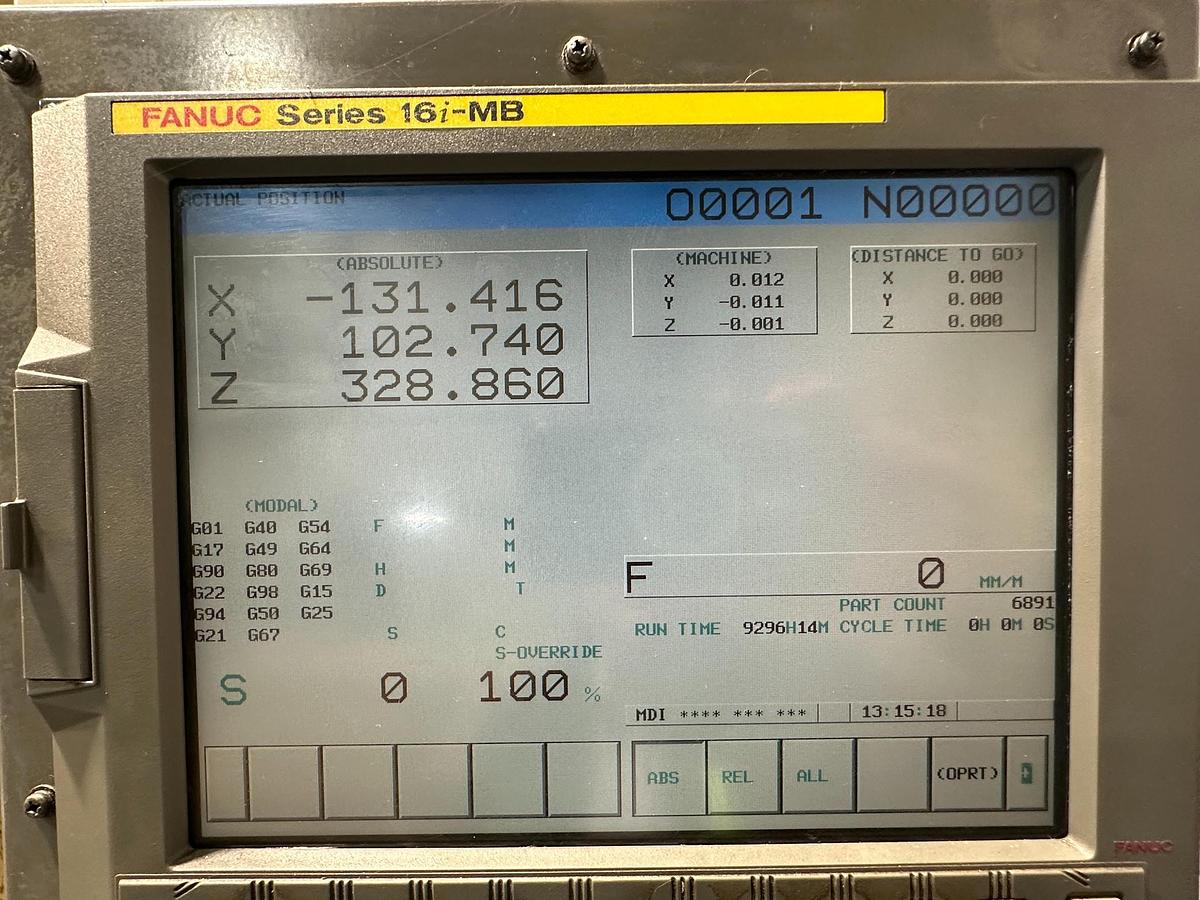

Control: Fanuc Series 16i-MB

Condition: Very Good


We are pleased to offer this Fanuc Robodrill Alpha T21iDL 3-Axis Vertical Machining Centre, a high-speed, high-accuracy CNC machine renowned for its exceptional reliability, fast cycle times, and compact footprint.

Equipped with a 20,000 RPM BT30 spindle, Fanuc CNC control, and 21-station automatic tool changer, this Robodrill is ideal for precision machining, high-speed milling, aluminium work, and small component production.


Key Specifications

General

  • Manufacturer: Fanuc
  • Model: Alpha T21iDL
  • Type: 3-Axis Vertical Machining Centre
  • Control: Fanuc Series 16i-MB

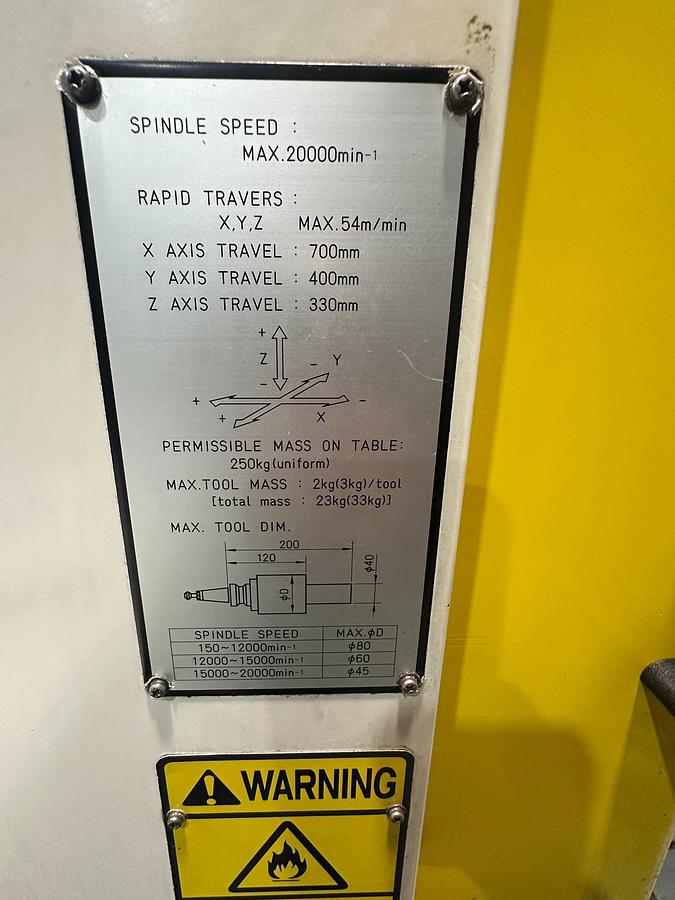

Axis Travels

  • X Axis: 700 mm
  • Y Axis: 400 mm
  • Z Axis: 330 mm

Table

  • Table Size: 850 × 410 mm
  • Maximum Table Load: 250 kg (uniform)

Spindle

  • Spindle Speed: Up to 20,000 RPM
  • Spindle Taper: BT30
  • Spindle Speed Ranges:
  • 150 – 12,000 rpm: Max tool Ø80 mm
  • 12,000 – 15,000 rpm: Max tool Ø60 mm
  • 15,000 – 20,000 rpm: Max tool Ø45 mm

Toolchanger

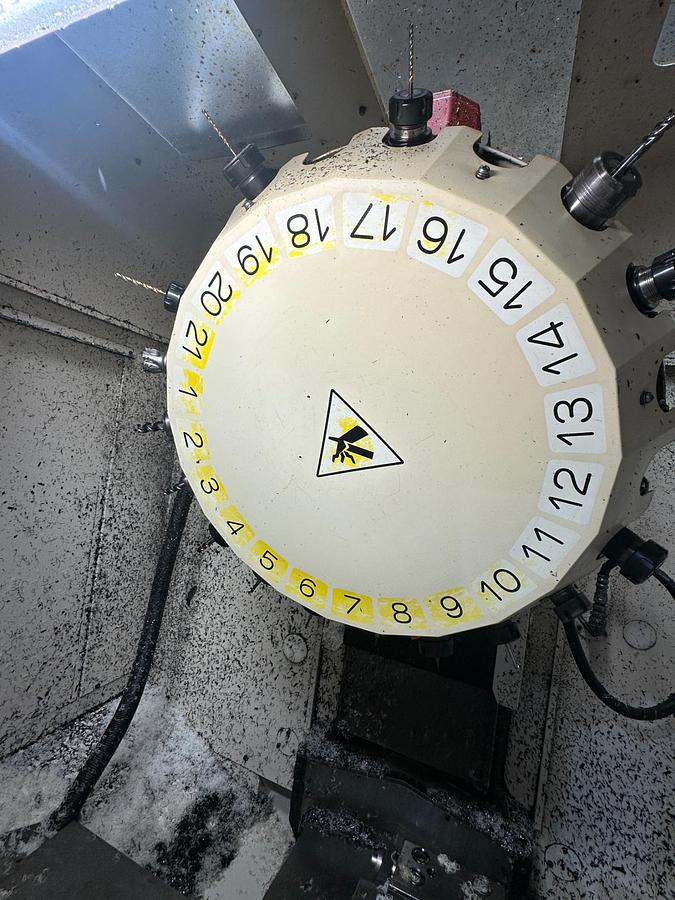

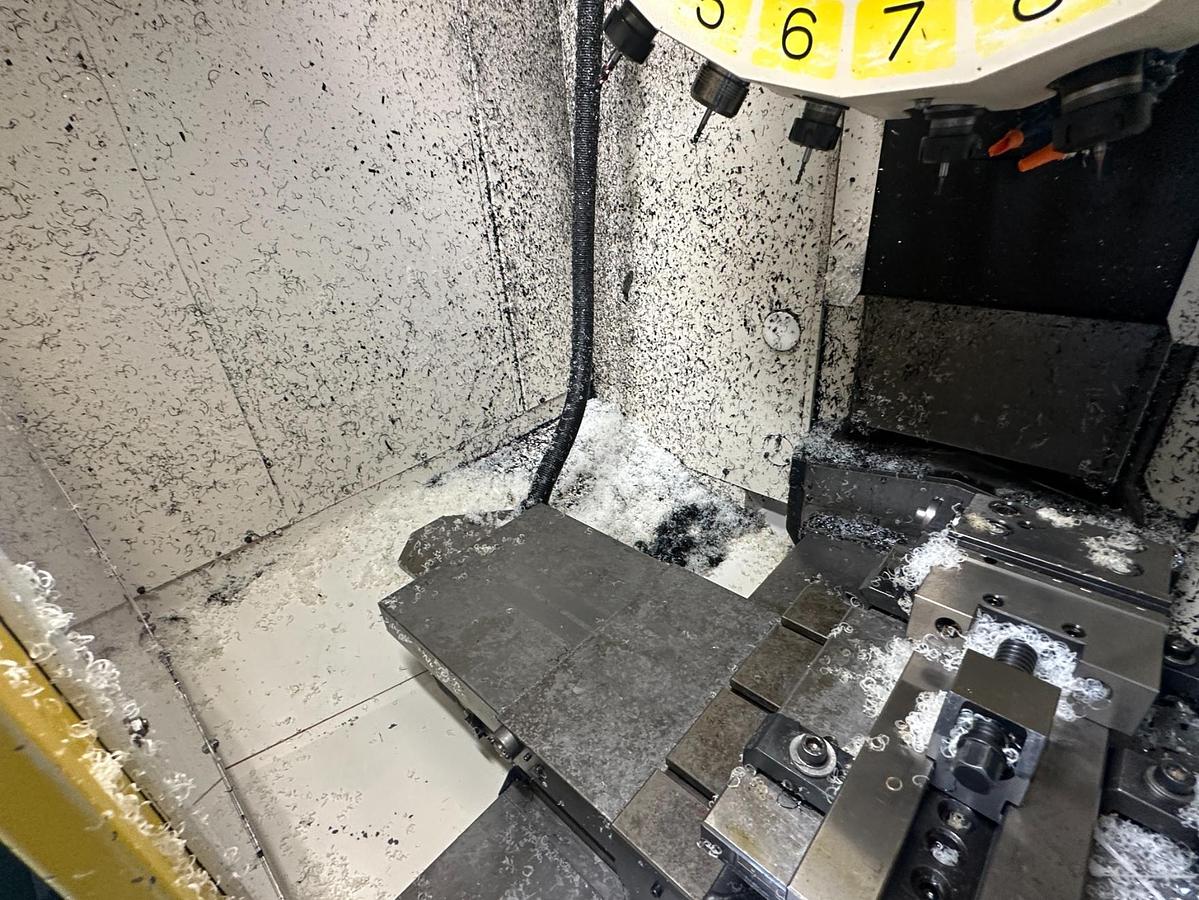

  • Automatic Tool Changer: 21 Tool Stations
  • Maximum Tool Weight:
  • 2 kg per tool
  • Total tool weight: 23 kg
  • Maximum Tool Length: 200 mm
  • Maximum Tool Diameter: 80mm

Rapid Traverse

  • X / Y / Z Rapids: Up to 54 m/min

Operating Hours

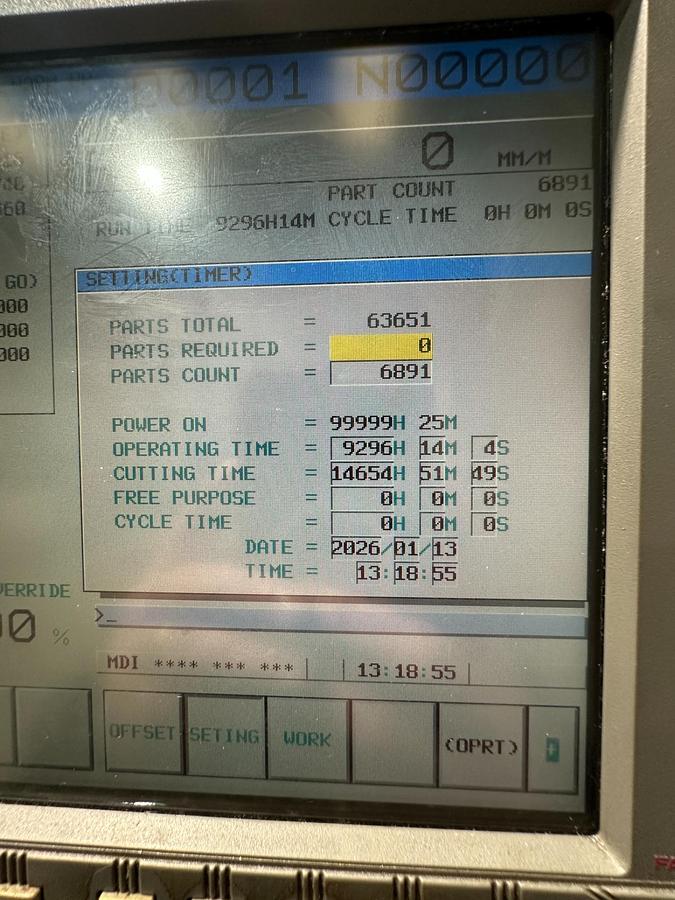

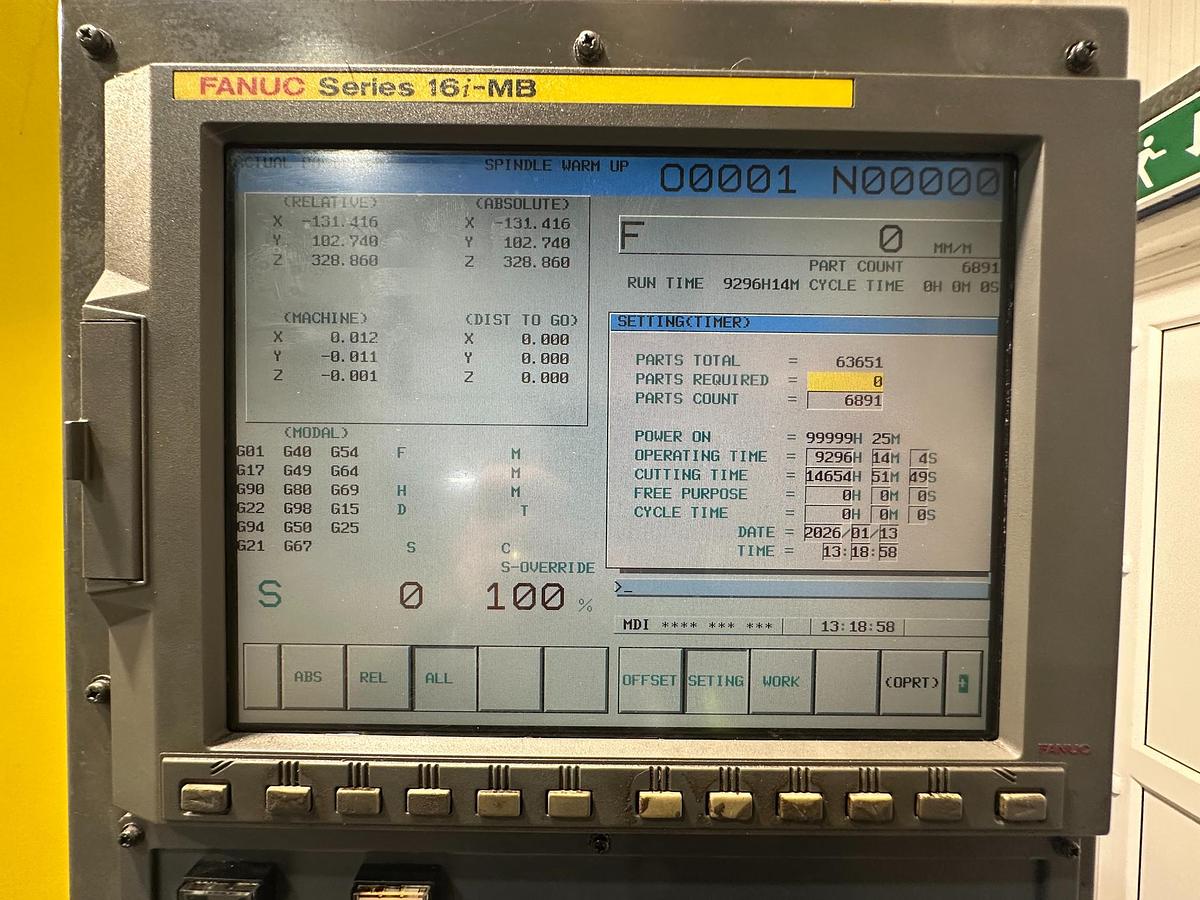

  • Cutting Time: 14,654 hrs (correct at time of advertising)


Machine Weight: 2,200kg


Features & Equipment

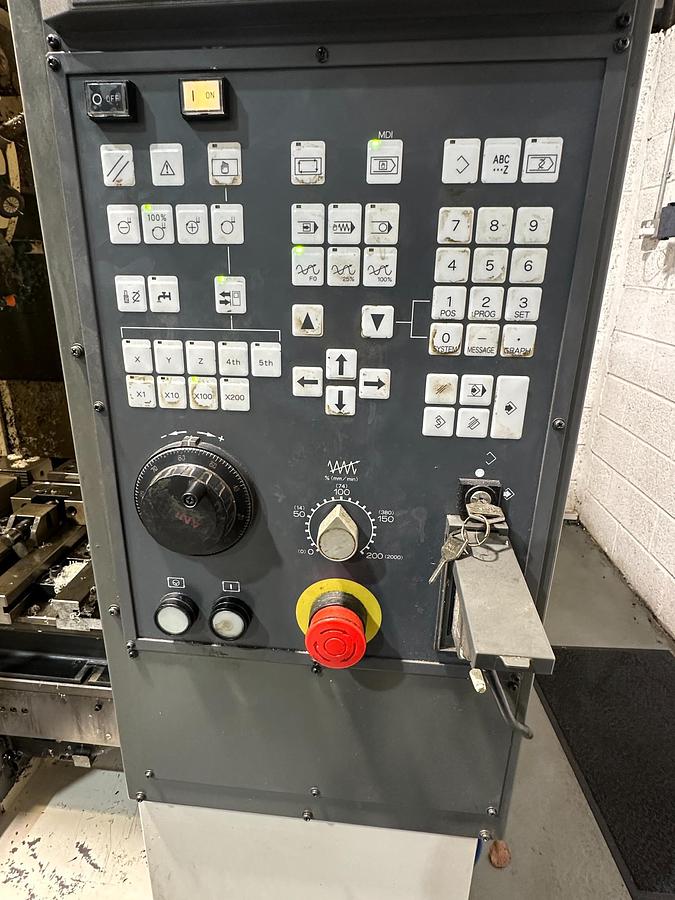

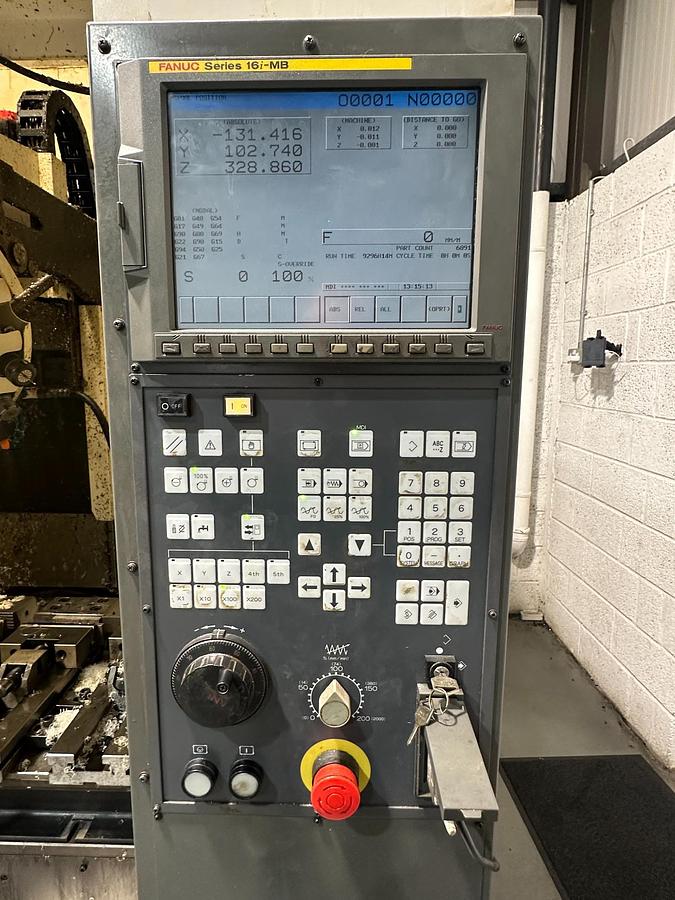

  • Fanuc Series 16i-MB CNC control
  • High-speed 20,000 RPM BT30 spindle

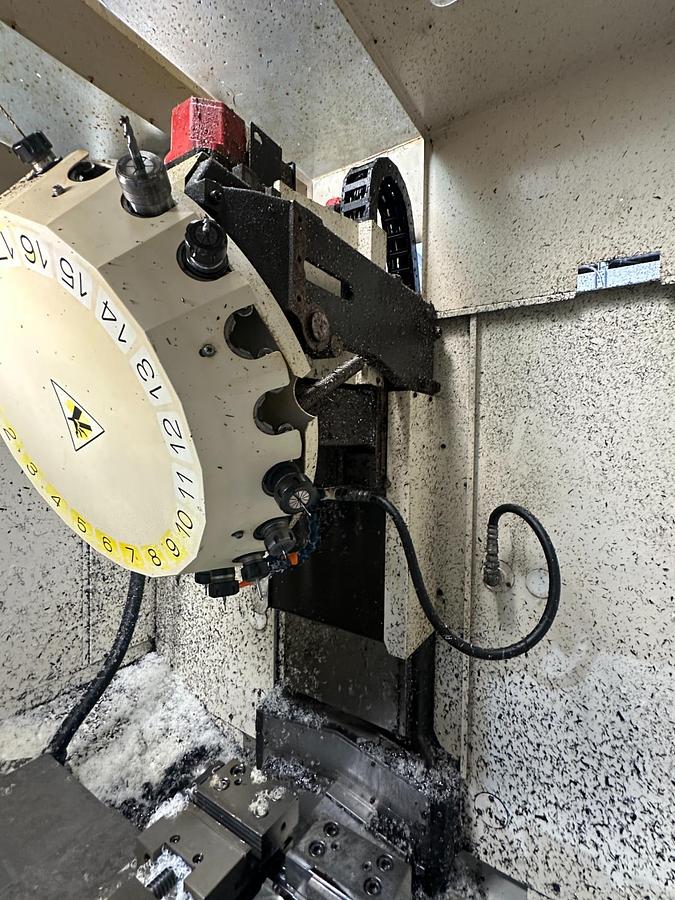

  • 21-station Automatic Tool Changer
  • Includes 21 tool holders
  • Compact, rigid Robodrill design
  • Extremely fast rapids and tool changes
  • Ideal for lights-out and high-speed production

Please Note

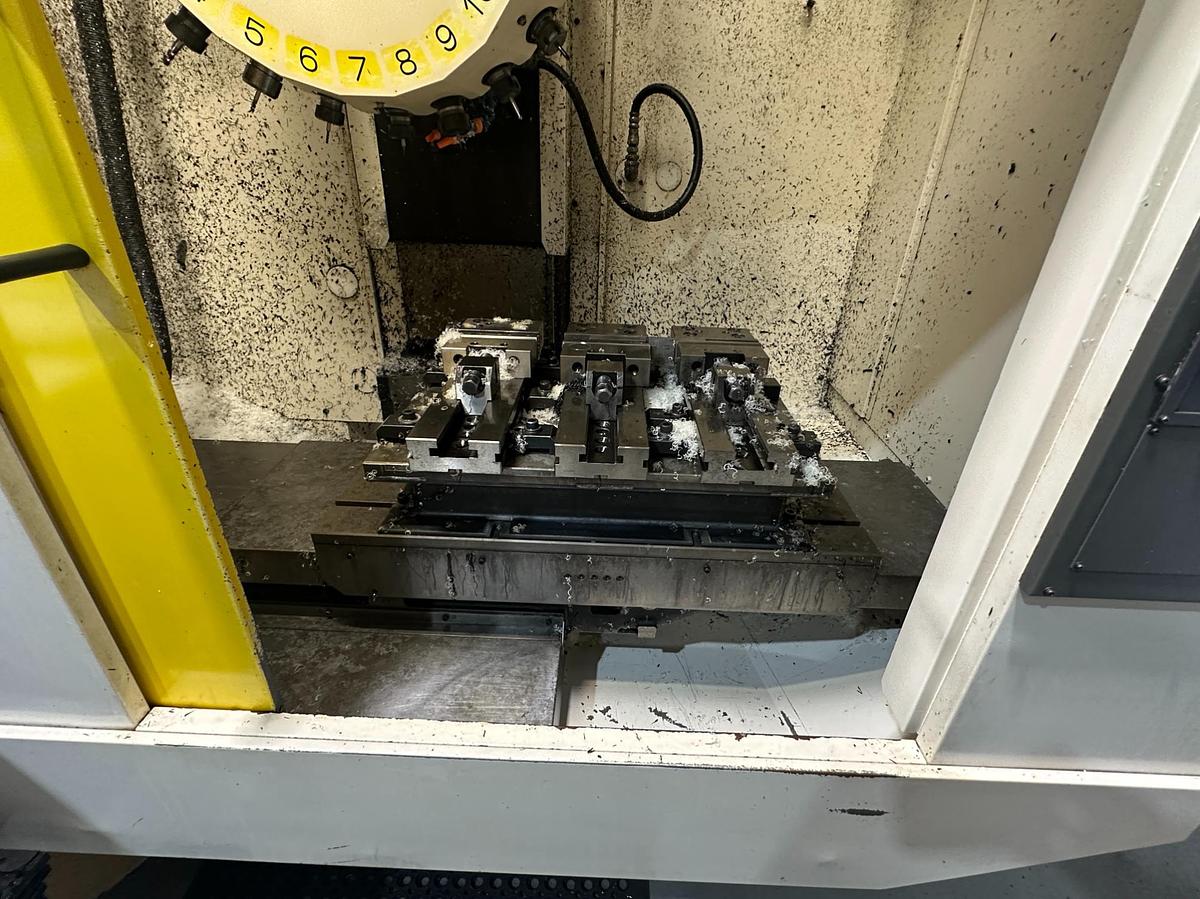

  • No vices included with the machine
  • Includes 21 x BT30 Tool Holders

Ideal Applications

  • High-speed aluminium machining
  • Precision small component manufacturing
  • Electronics, medical & automotive parts
  • Toolroom & production environments


The Fanuc Robodrill Alpha T21iDL is widely recognised as one of the most reliable and fastest small-format machining centres on the market, offering outstanding accuracy and productivity with minimal footprint.


Notes: *Specifications are given in good faith but not guaranteed*

Specifications

ManufacturerFanuc
ModelAlpha T21iDL 3 Axis Machining Centre
Year2004
ConditionUsed
Stock Number969691
ManufacturerFanuc
ModelAlpha T21iDL
Machine Type3 Axis Machining Centre
Year2004
ControlFanuc Series 16i-MB
ConditionVery Good
* Type3-Axis Vertical Machining Centre
* X Axis700 mm
* Y Axis400 mm
* Z Axis330 mm
* Table Size850 × 410 mm
* Maximum Table Load250 kg (uniform)
* Spindle SpeedUp to 20,000 RPM
* Spindle TaperBT30
* Automatic Tool Changer21 Tool Stations
* Maximum Tool Length200 mm
* Total tool weight23 kg
* Maximum Tool Diameter80mm
Machine Weight2,200kg
