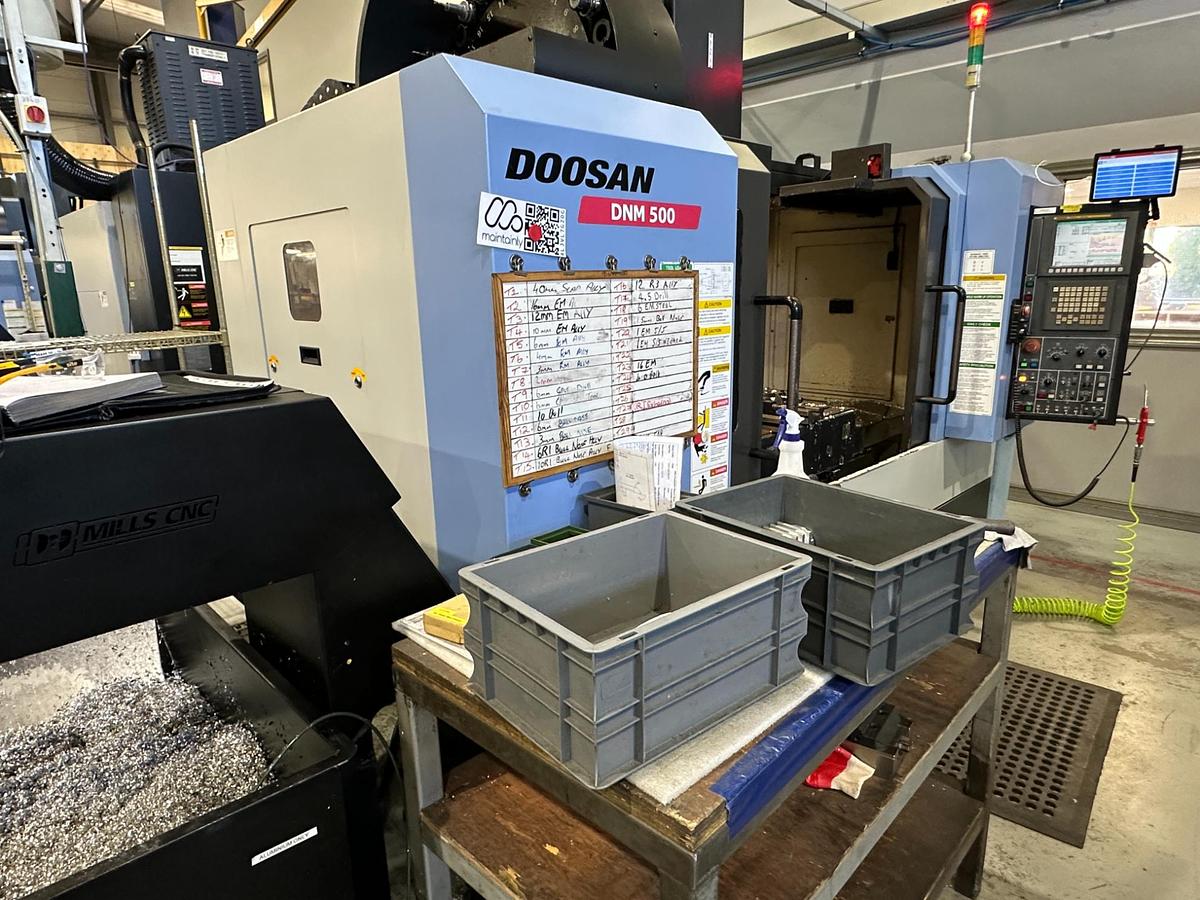

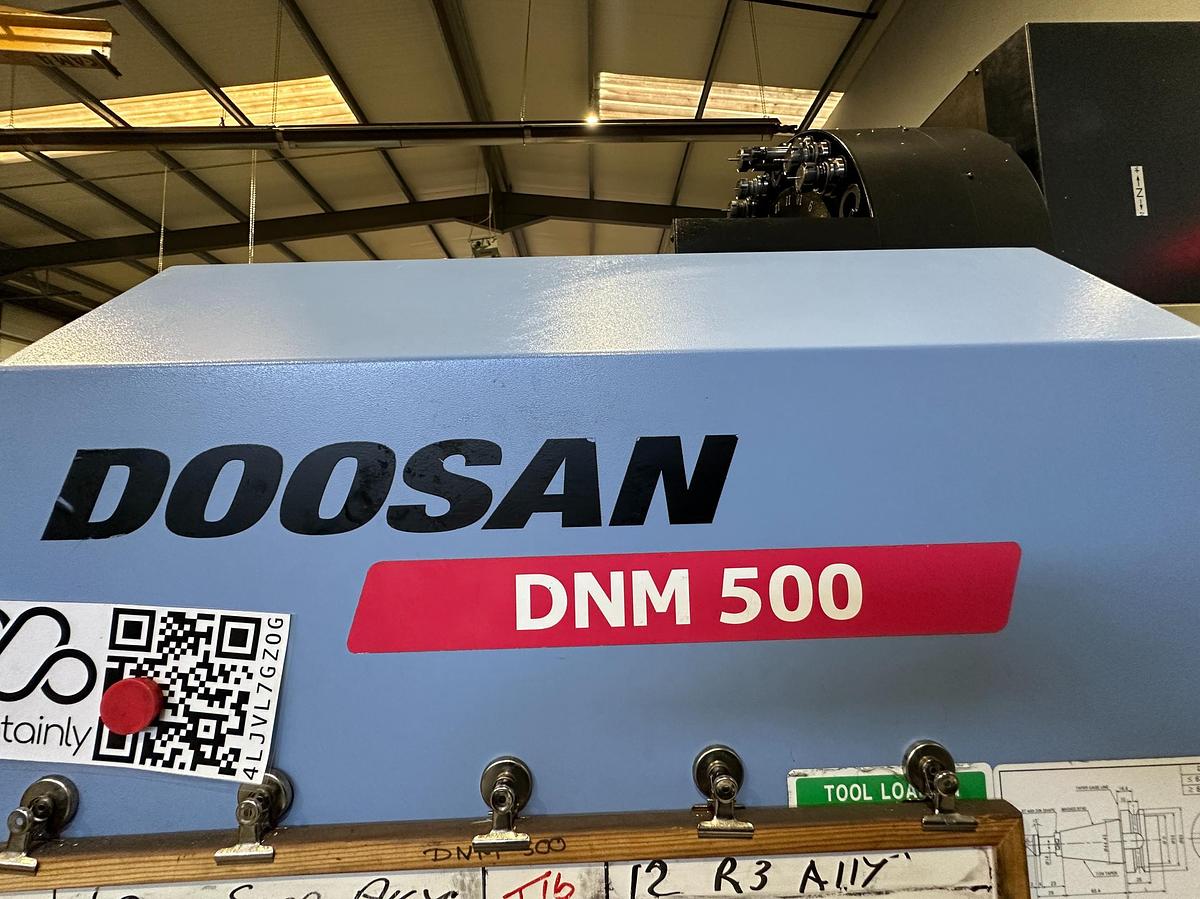

Doosan DNM 500 Vertical Machining Centre – 2012

Fanuc i-Series Control | 12,000 RPM | BT40 | Spindle Rebuilt 2024

2012 Doosan DNM 500 Vertical Machining Centre with Fanuc i-Series control. 12,000 RPM BT40 spindle (rebuilt 2024), 1200×540 mm table, 30-tool ATC, 20 bar TSC & data server. Available now.

Manufacturer: Doosan

Model: DNM 500

Machine Type: 3 Axis Machining Centre

Control: Fanuc i Series Control

Year: 2012

Condition: Very Good - spindle rebuilt in 2024

We are pleased to offer this 2012 Doosan DNM 500 Vertical Machining Centre, a robust and highly accurate CNC milling machine designed for precision engineering, subcontract machining, and production environments.

Equipped with a Fanuc i-Series CNC control and a 12,000 RPM BT40 spindle, this machine delivers excellent cutting performance across a wide range of materials. The spindle was professionally rebuilt in 2024, ensuring reliability, accuracy, and long-term service life.

Key Specifications

• Manufacturer: Doosan
• Model: DNM 500
• Year: 2012
• Control: Fanuc i-Series CNC

Axis Travels

• X Axis: 1020 mm
• Y Axis: 540 mm
• Z Axis: 510 mm

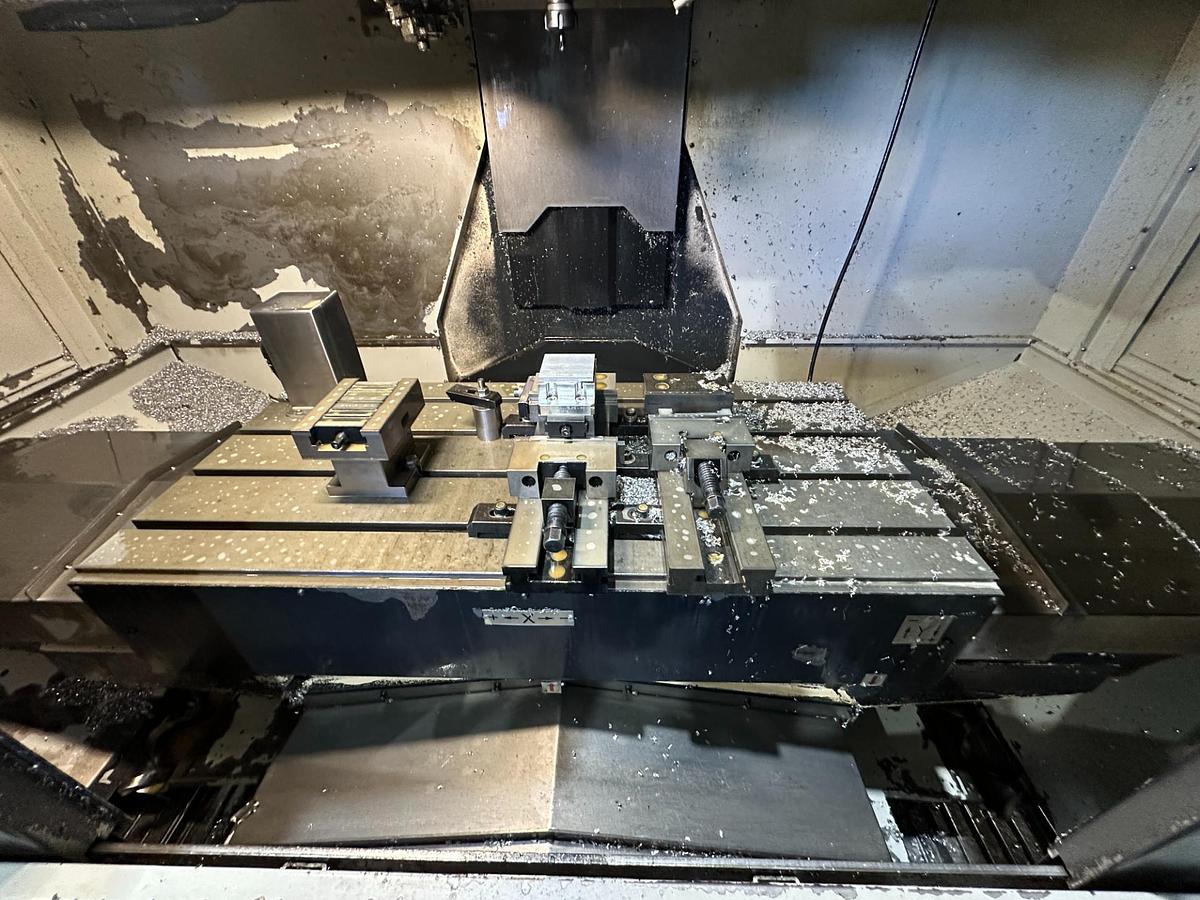

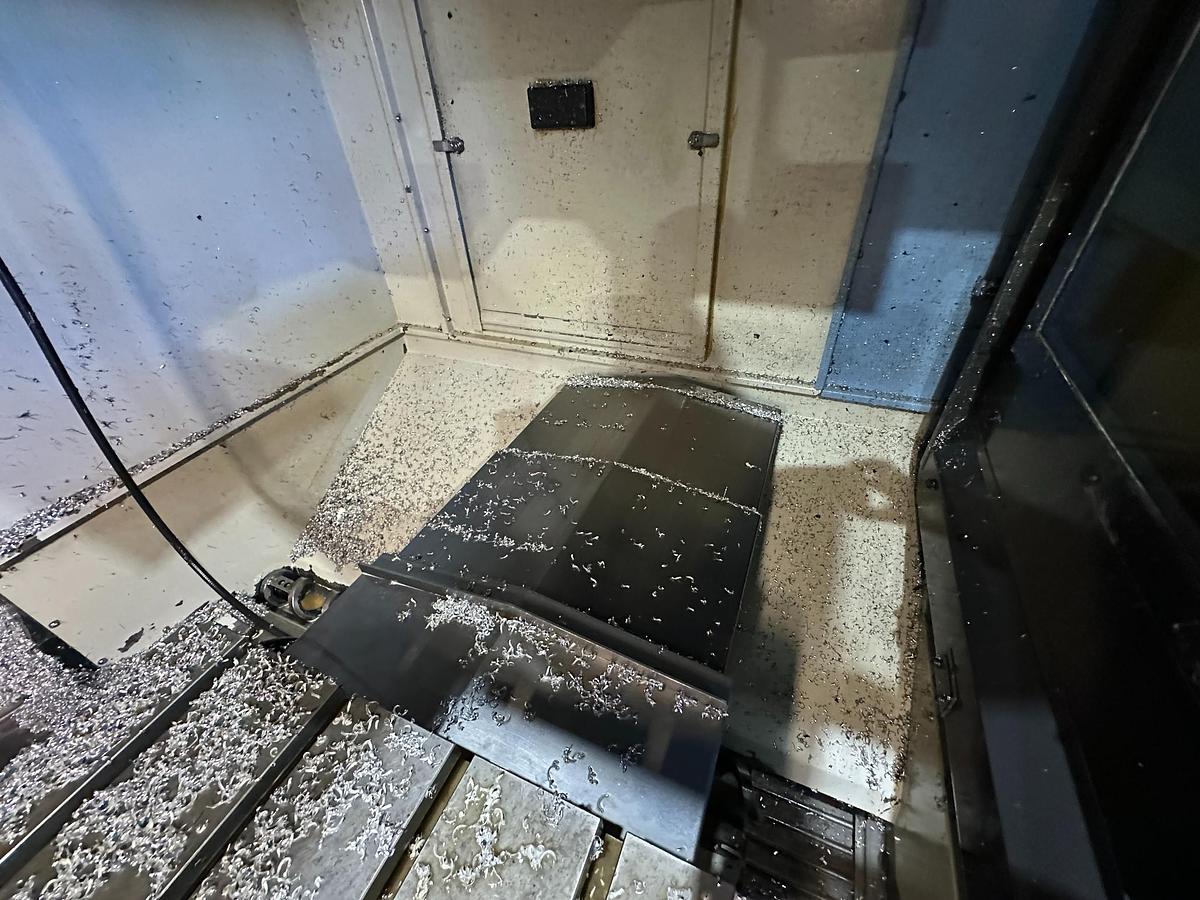

Table

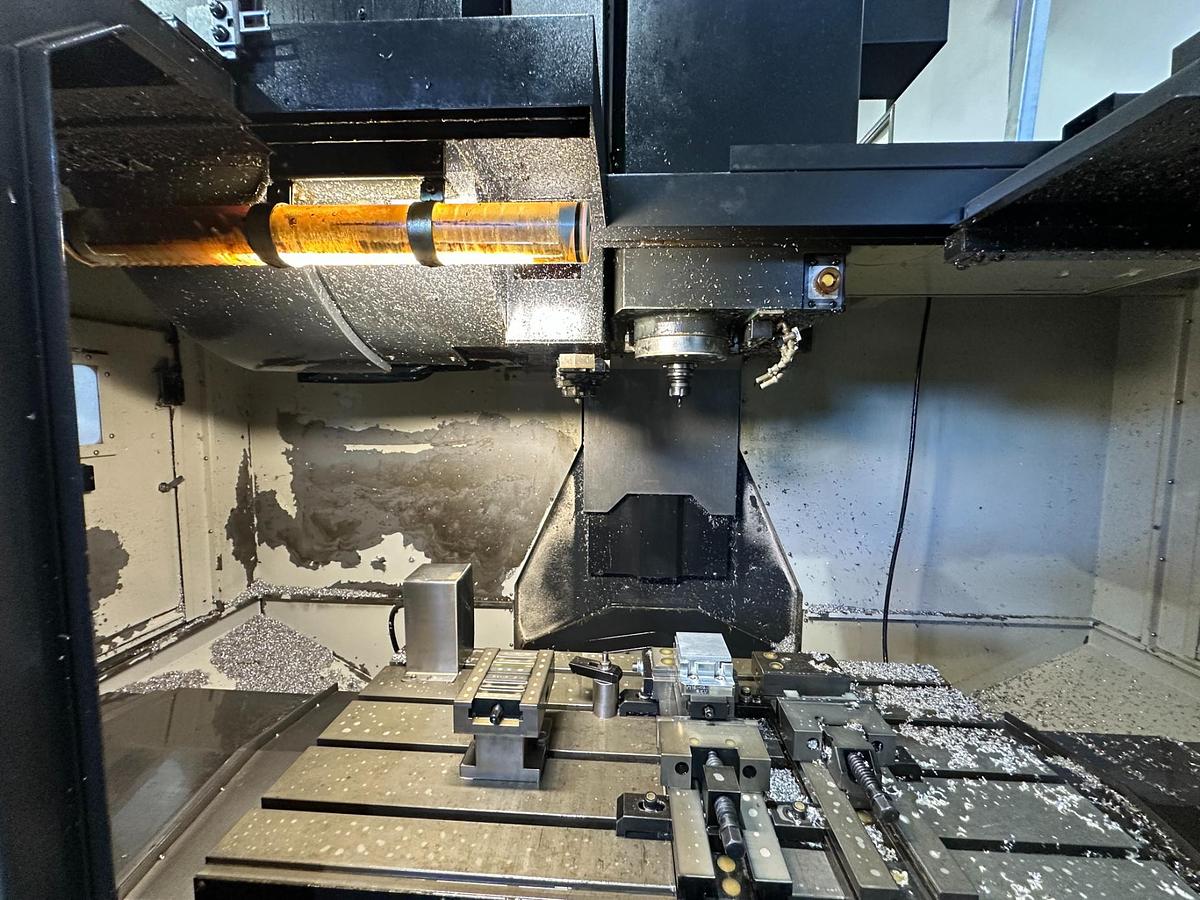

• Table Size: 1200 × 540 mm
• Maximum Table Load: 800 kg

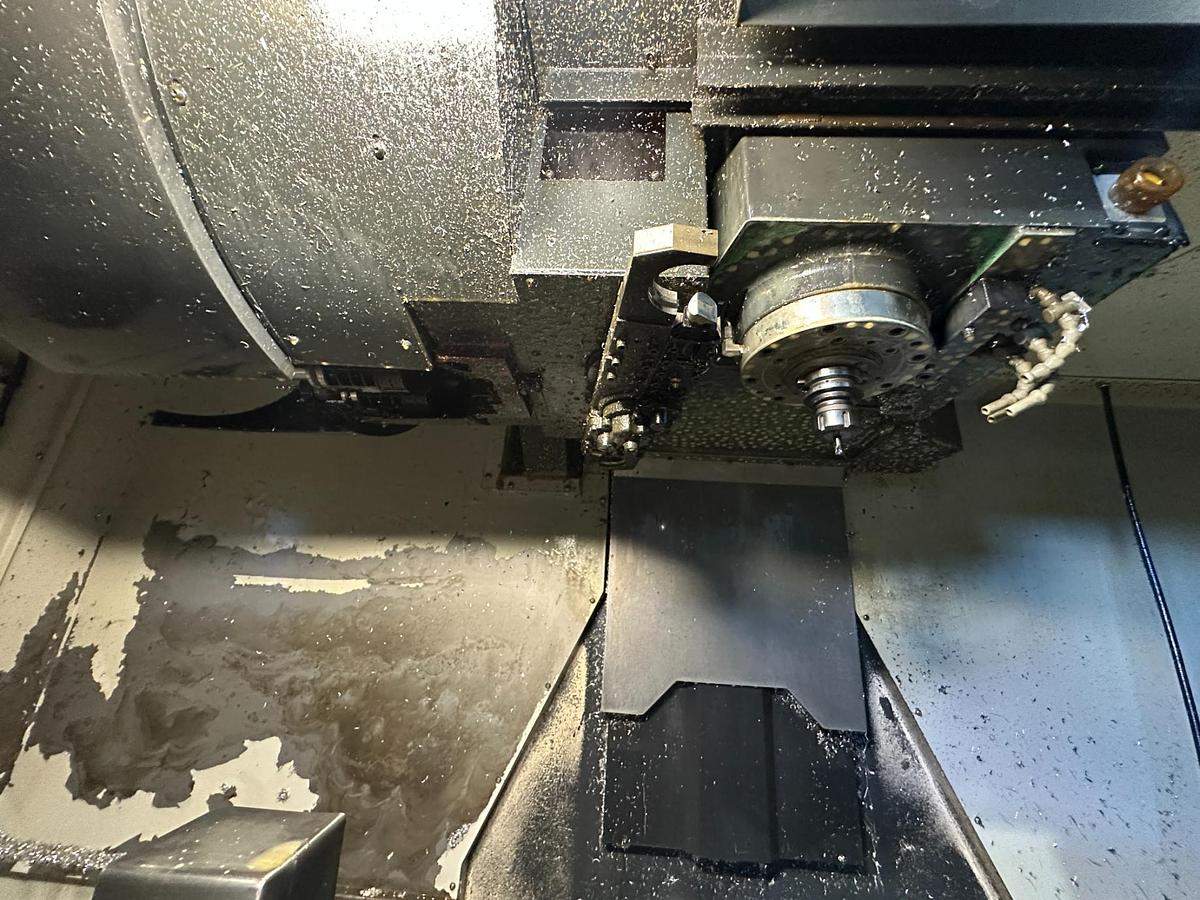

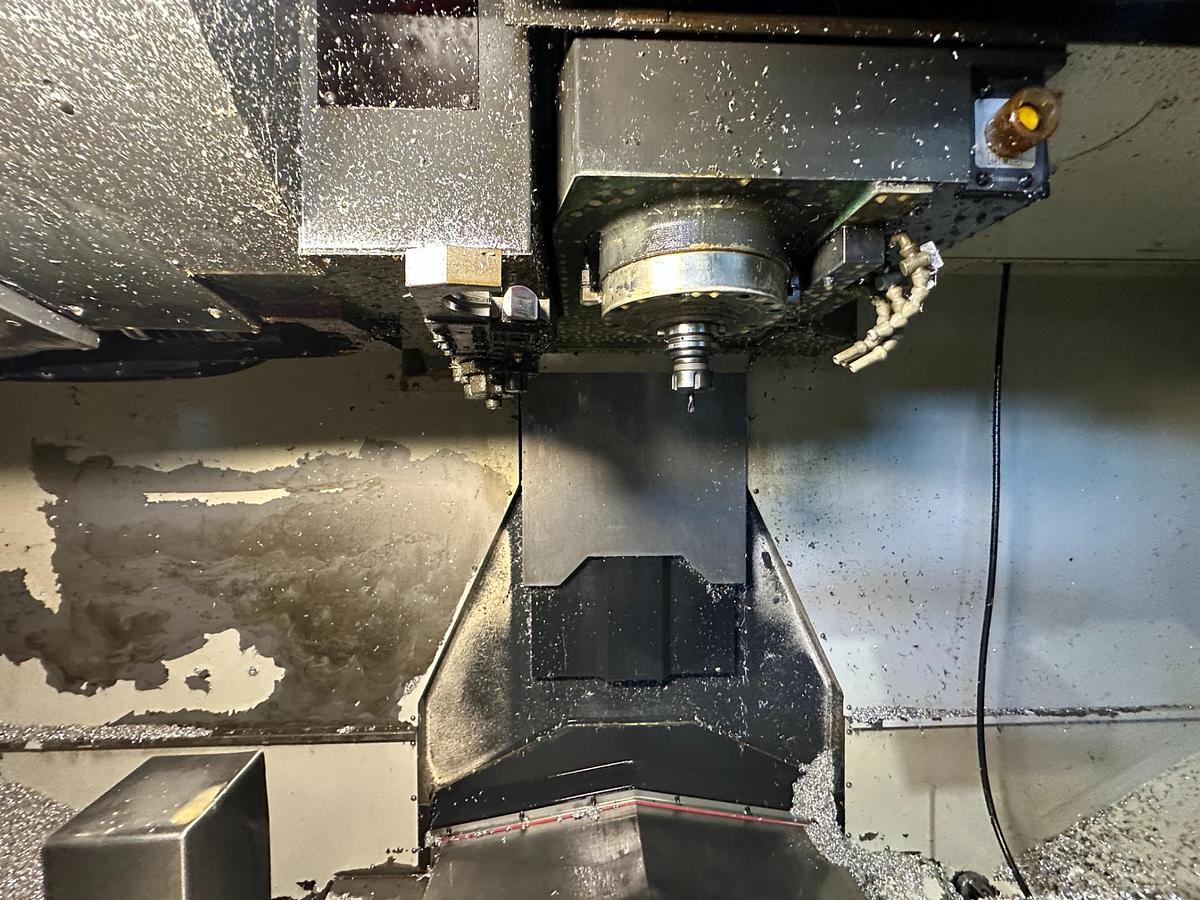

Spindle

• Spindle Speed: 12,000 RPM

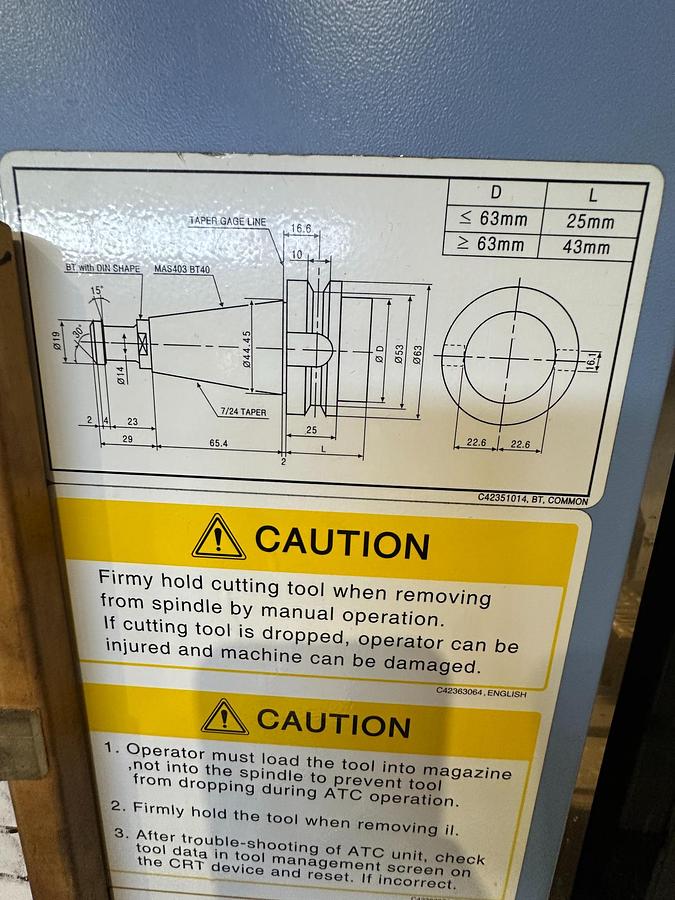

• Spindle Taper: BT40
• Spindle Motor Power: 15 kW
• Spindle Condition: Rebuilt in 2024

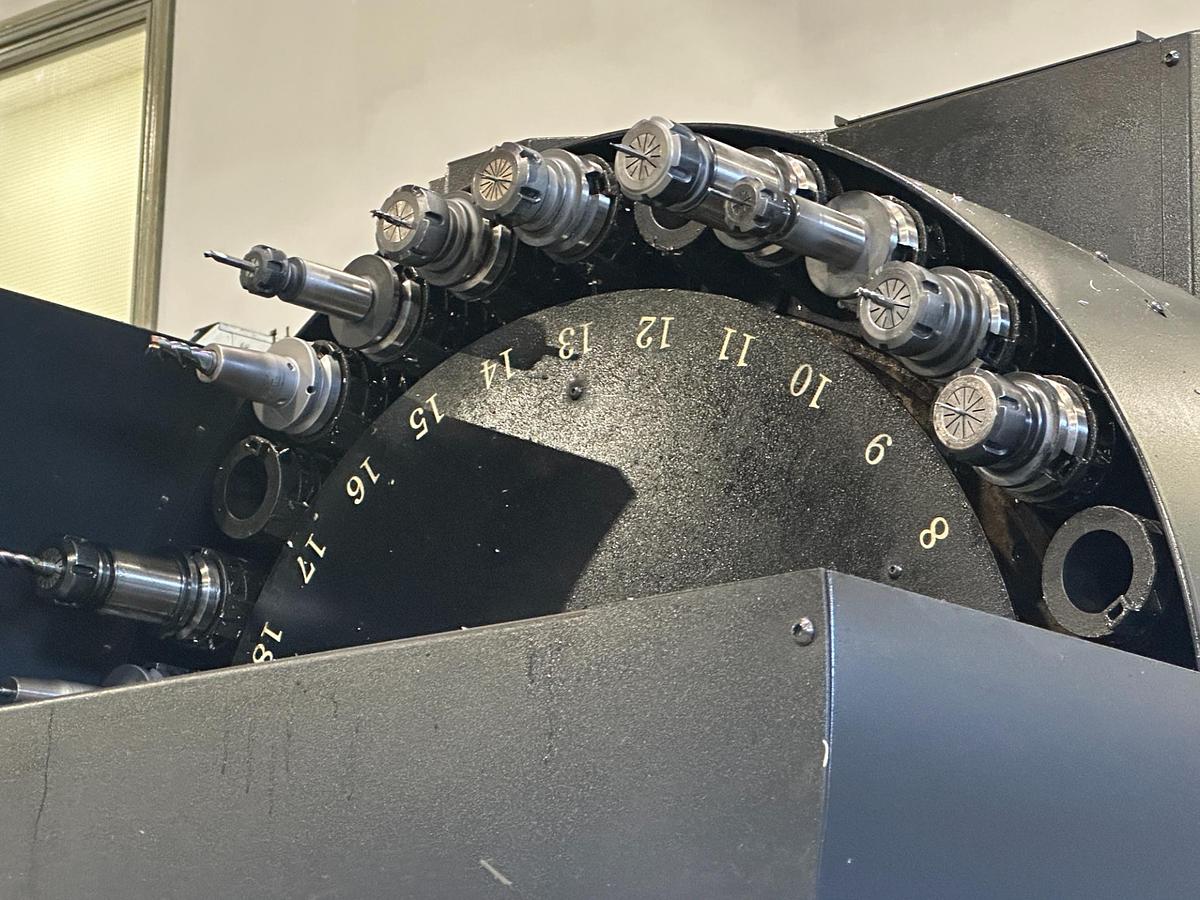

Toolchanger

• Automatic Tool Changer: 30 Tool Stations

Machine Dimensions & Weight

• Overall Length: 3750 mm
• Overall Width: 2284 mm
• Overall Height: 2703 mm
• Machine Weight: 6,500 kg

Features & Equipment

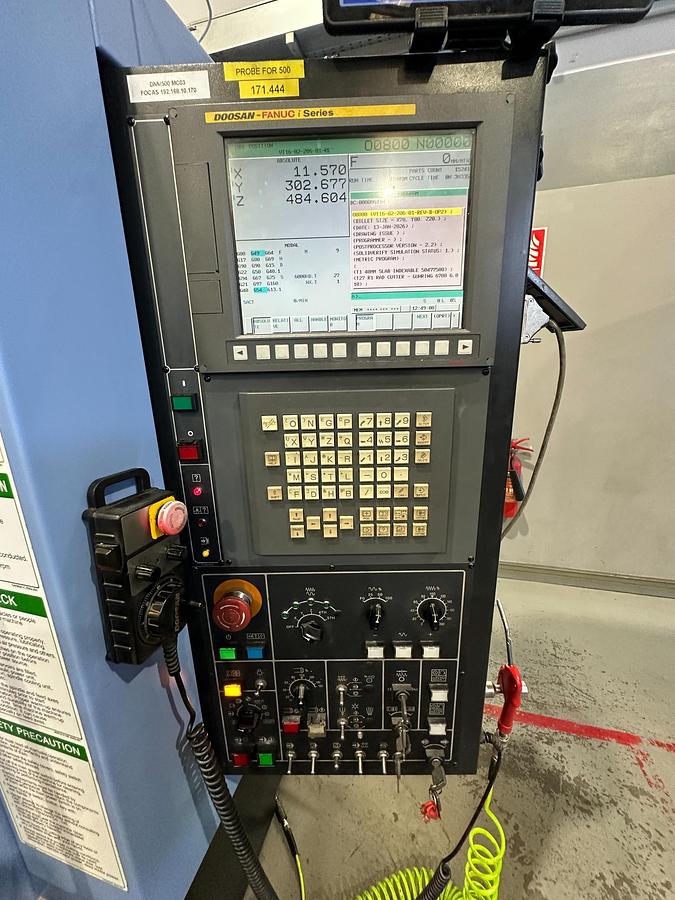

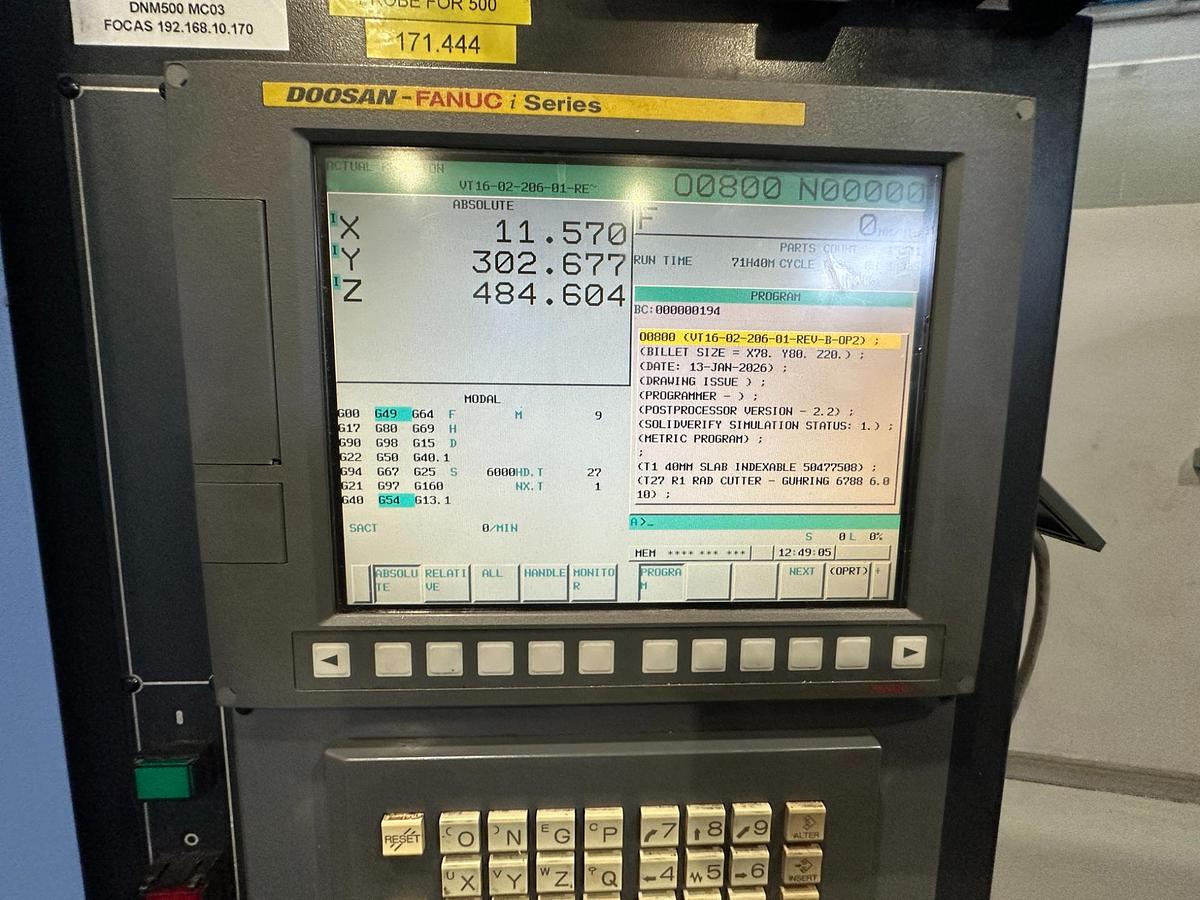

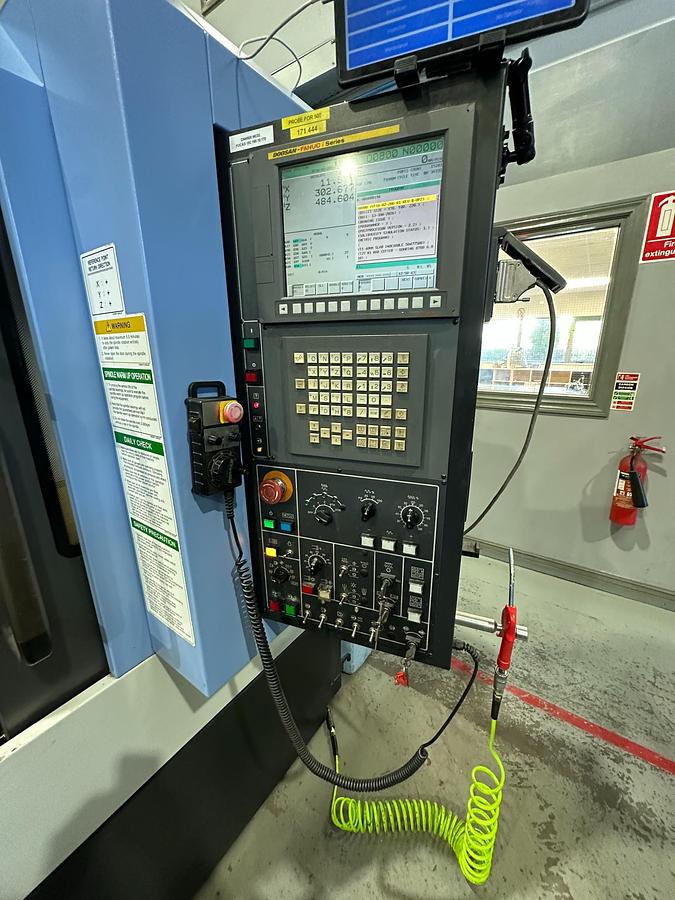

• Fanuc i-Series CNC control
• 30-station Automatic Tool Changer (ATC)

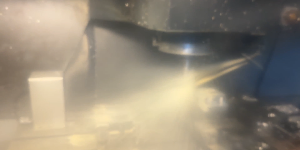

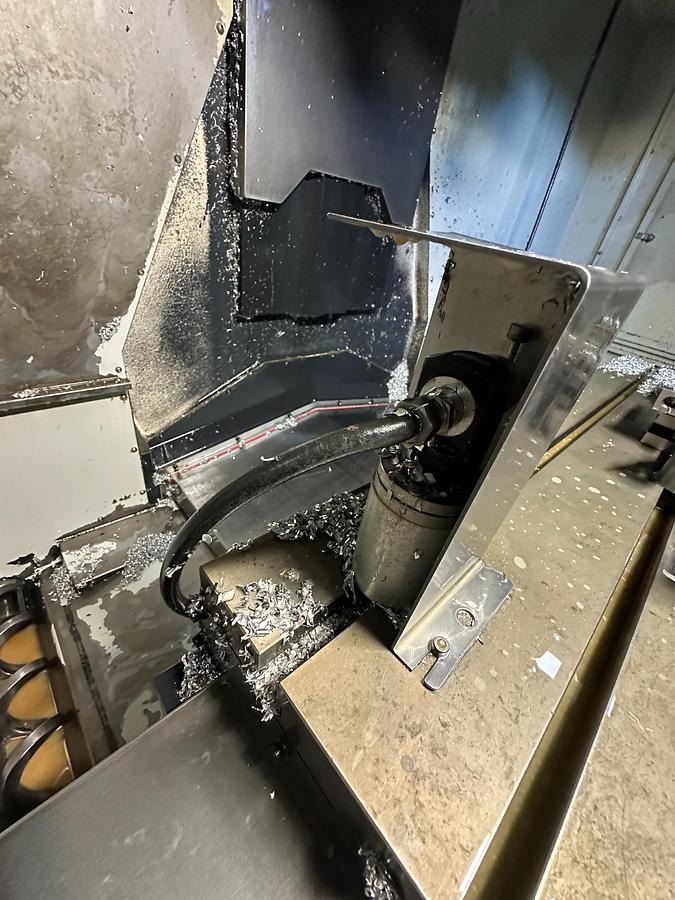

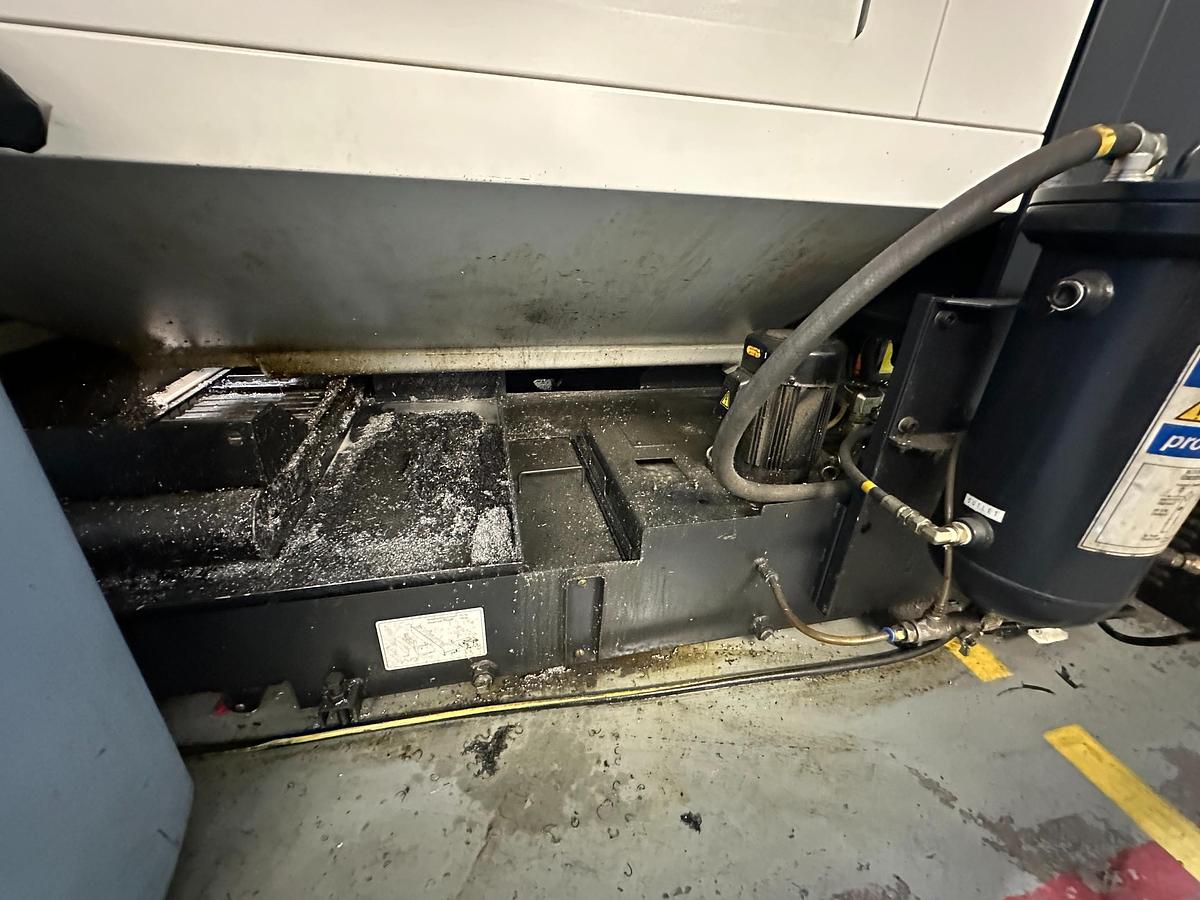

• 20 bar Through-Spindle Coolant (TSC)
• Data server / networking capability

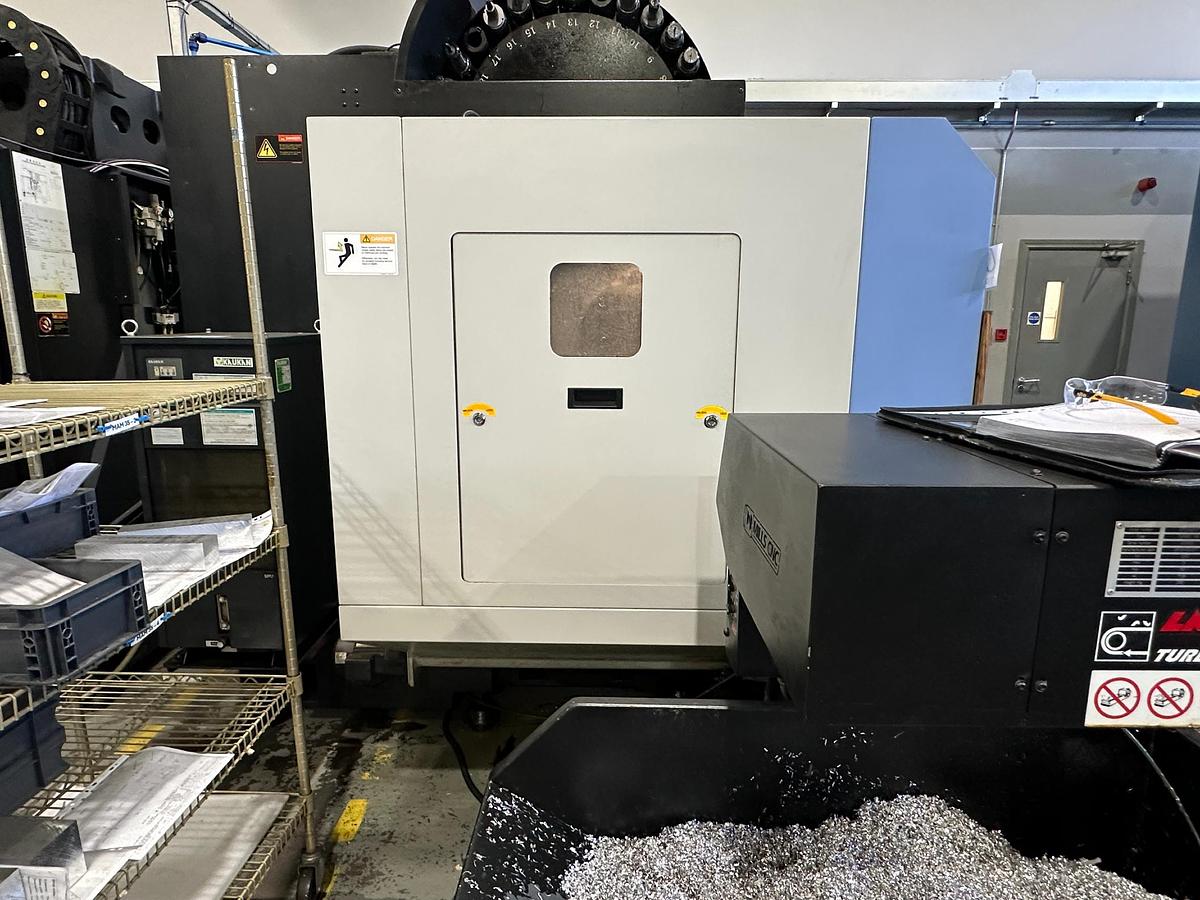

• Fully enclosed, rigid Doosan construction
• Ideal footprint for busy workshops

Please Note

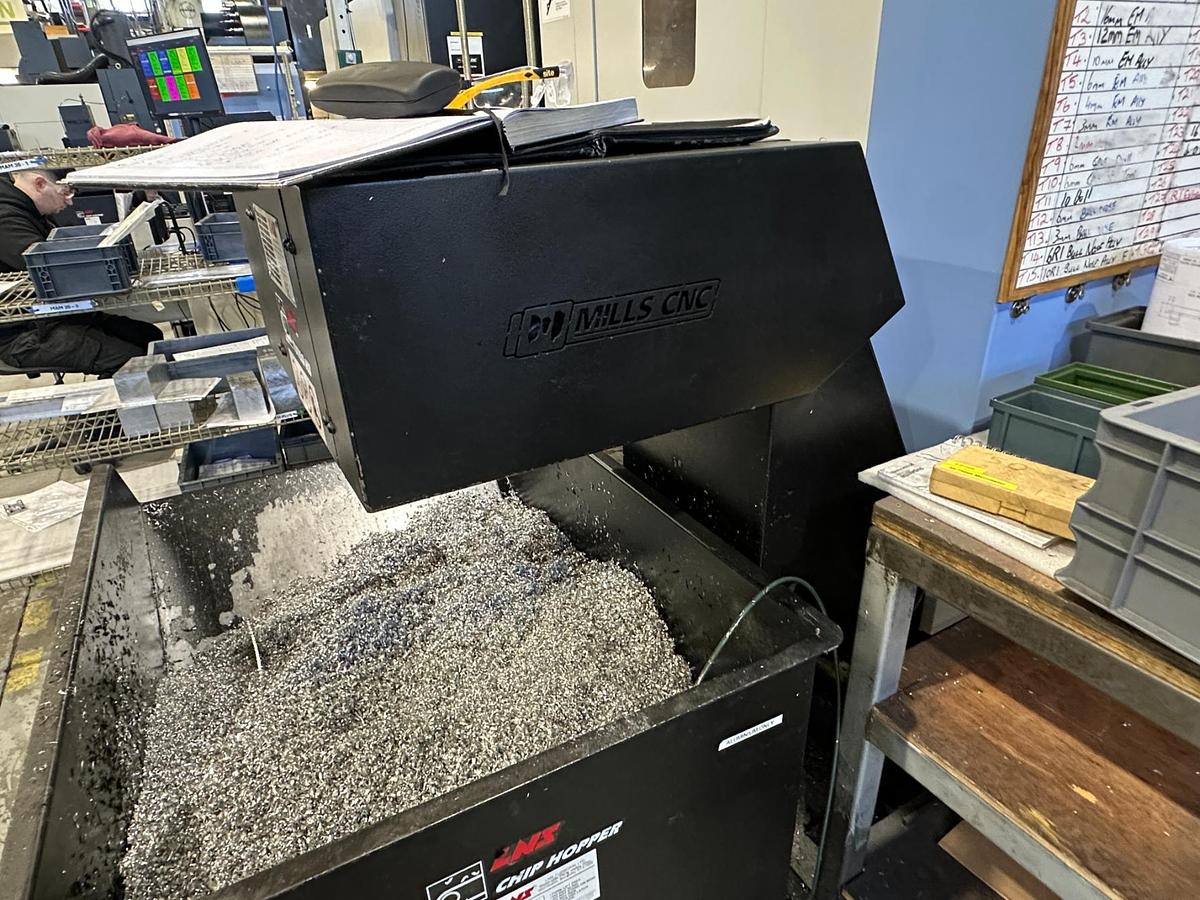

• No swarf bin included
• No tool holders included
• No vices included

Ideal Applications

• Precision CNC milling
• Subcontract machining
• Automotive, aerospace & general engineering
• Small to medium batch production

The Doosan DNM 500 is renowned for its rigidity, accuracy, and reliability, making it a proven and popular choice for machine shops seeking dependable CNC performance.

Notes: *Specifications are given in good faith but not guaranteed*
