2011 Doosan DNM 650 CNC Machining Centre | Fanuc | 12,000 RPM | 4th Axis Ready
Description
Doosan DNM 650 Vertical Machining Centre – 2011
Fanuc i-Series Control | 12,000 RPM | 4th Axis Ready
2011 Doosan DNM 650 Vertical Machining Centre with Fanuc i-Series control. 12,000 RPM BT40 spindle, rebuilt spindle, 4th axis ready, 30-tool ATC, TSC, chiller & swarf conveyor. Available from Used Machine Tools Ireland.
Manufacturer: Doosan
Model: DNM 650
Machine Type: 3 Axis Vertical Machining Centre with 4th Axis preparation
Year: 2011

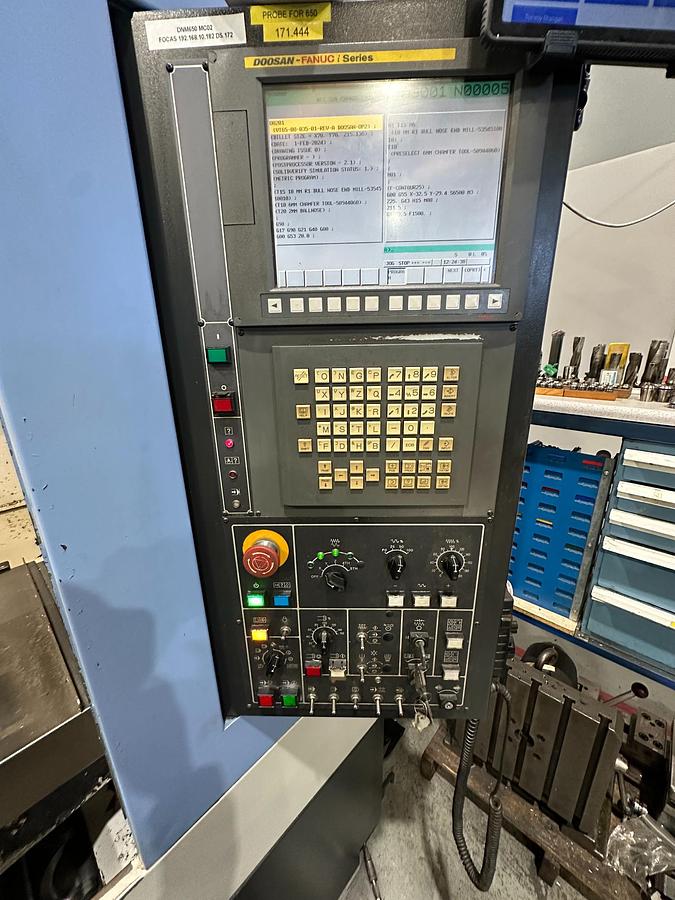

Control: Fanuc i Series
Condition: Very Good - spindle rebuilt in 2026
Availability: March 2026
We are pleased to offer this 2011 Doosan DNM 650 Vertical Machining Centre, a highly regarded and extremely rigid VMC, ideal for precision subcontract machining, toolmaking, and production environments.
This machine is equipped with a Fanuc i-Series control and benefits from a newly rebuilt spindle, ensuring excellent performance, reliability, and long service life. The machine is prepared for a 4th axis with Nikken interface, making it an ideal platform for future rotary or multi-axis work.
Key Specifications
- Manufacturer: Doosan
- Model: DNM 650
- Year: 2011
- Control: Fanuc i-Series
- Spindle Speed: 12,000 RPM
- Tool Taper: BT 40
- X / Y / Z Travels: 1270 / 670 / 625 mm

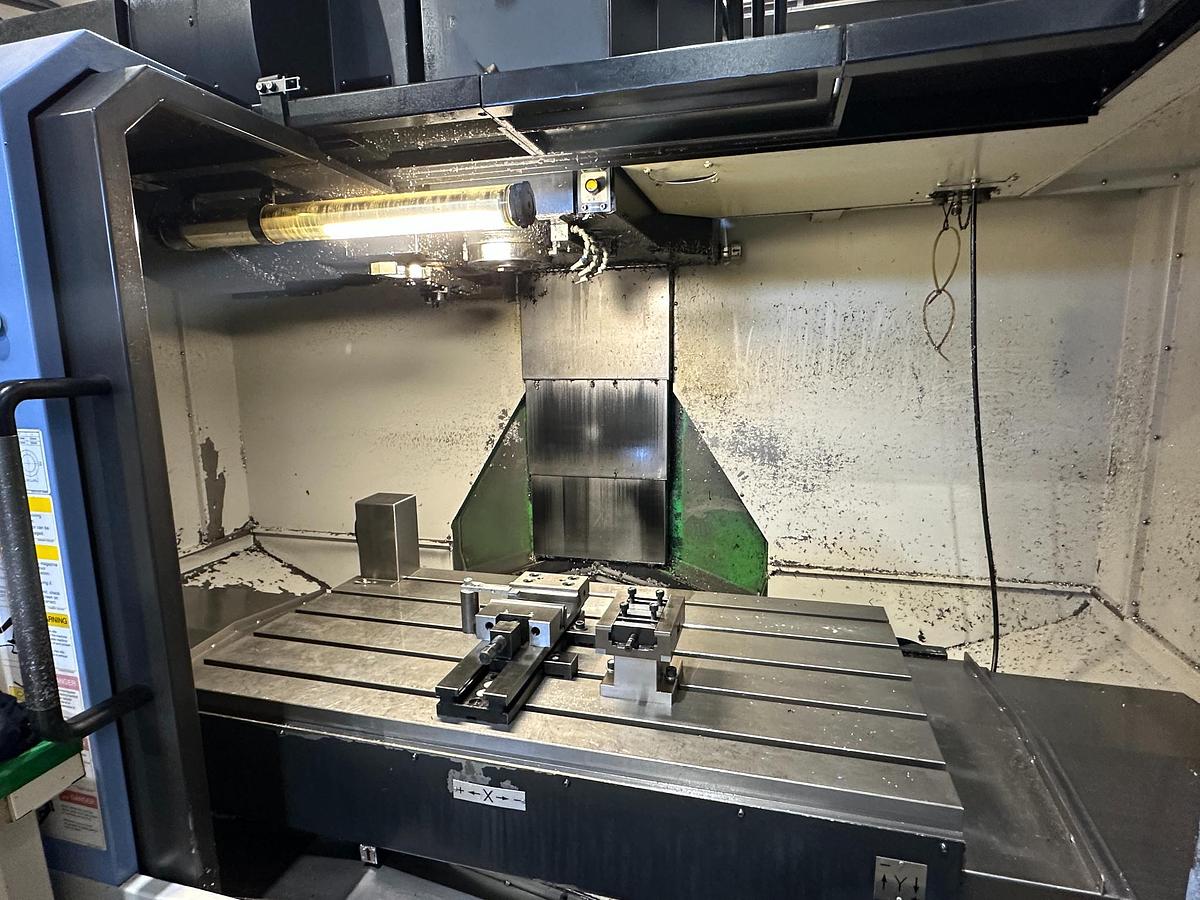

- Table Size: 1300 × 650 mm
- Maximum Table Load: 1000 kg
- Rapid Traverse Rates:
- X / Y: 36 m/min
- Z: 30 m/min
- ATC: 30 Places
- Max Tool Diameter: Ø80 mm with adjacent tools / Ø125 mm without
- Max Tool Length: 300mm
- Max Tool Weight: 8 kg
- Machine Dimensions (Approx): 2760 x 3350 x 2815mm
- Machine Weight (Approx): 8500kg
Features & Equipment

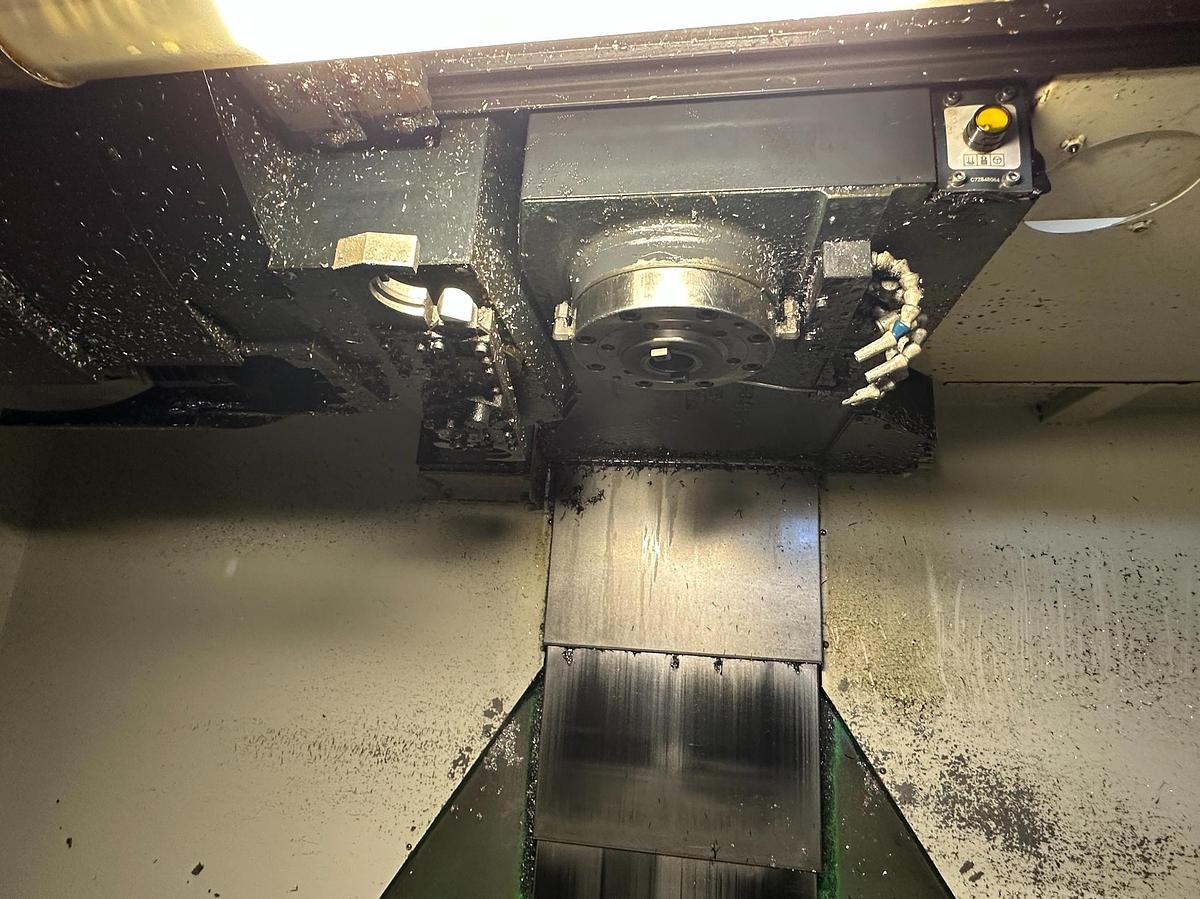

- Newly rebuilt spindle

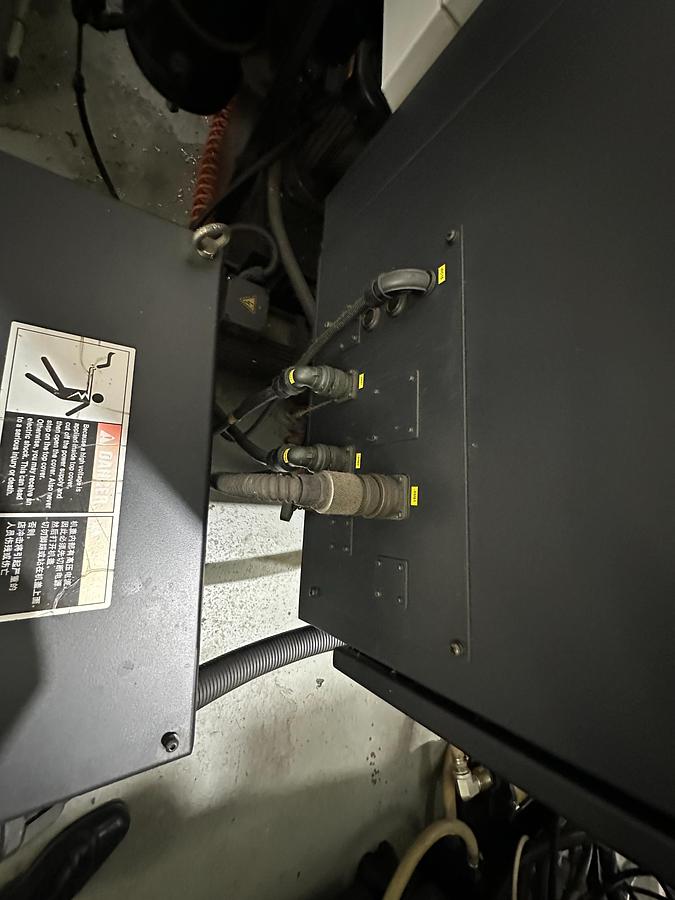

- Nikken 4th Axis preparation
- 30-station Automatic Tool Changer (ATC)
- 20 bar through-spindle coolant (TSC)

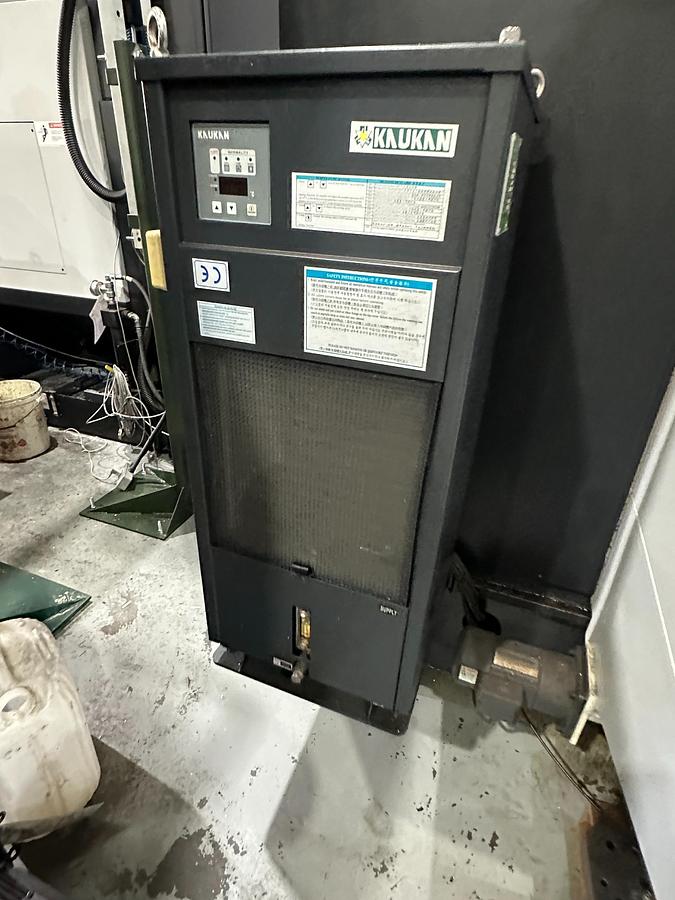

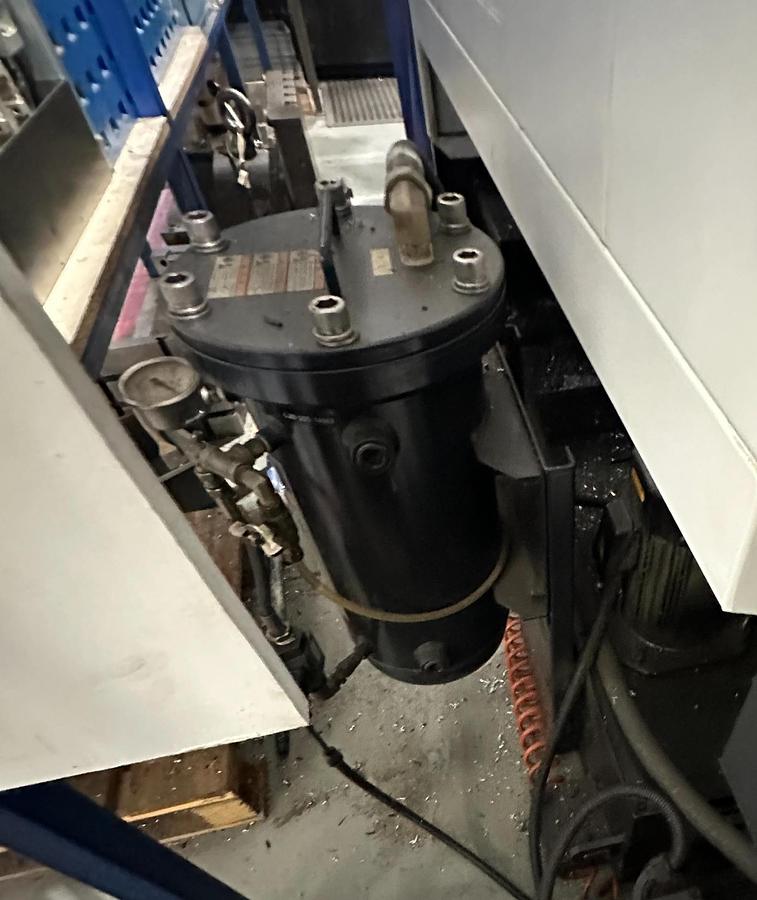

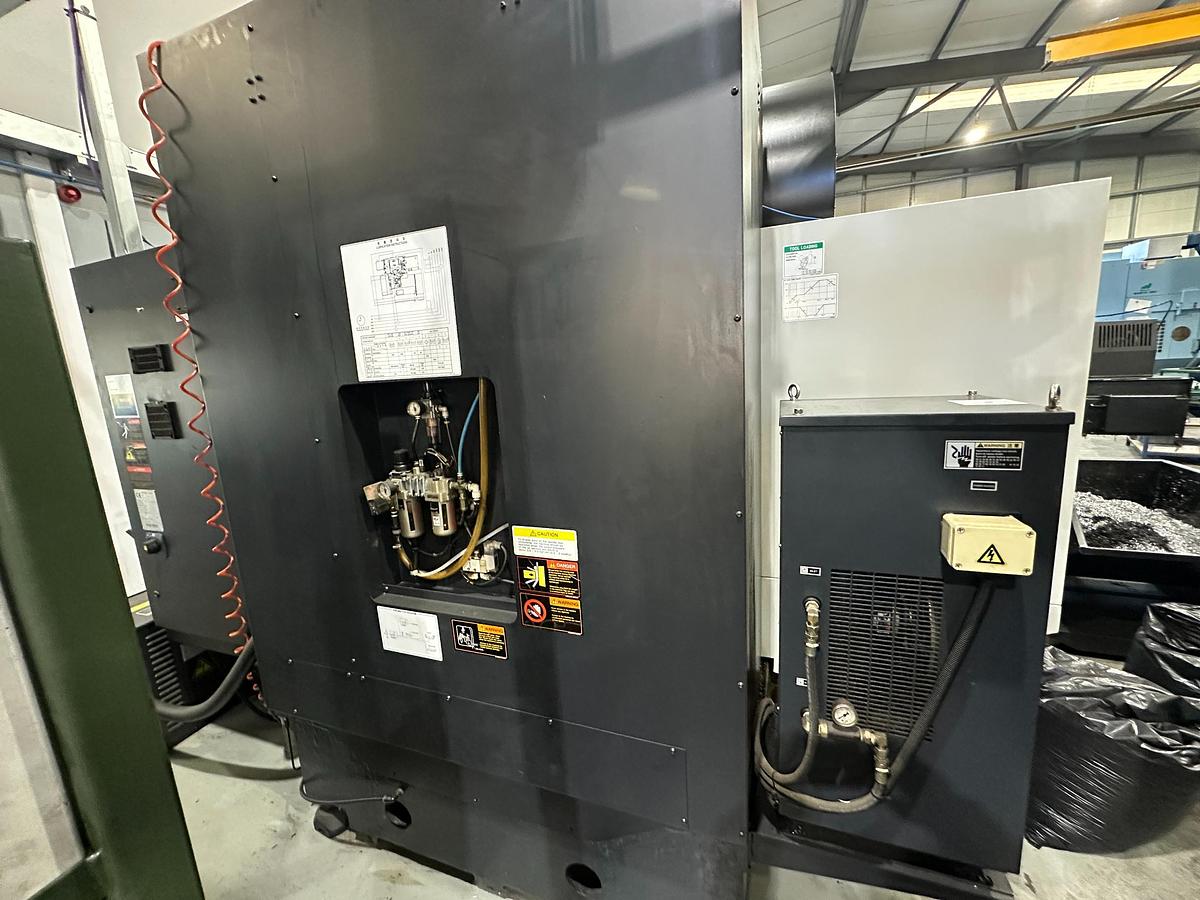

- Coolant chiller

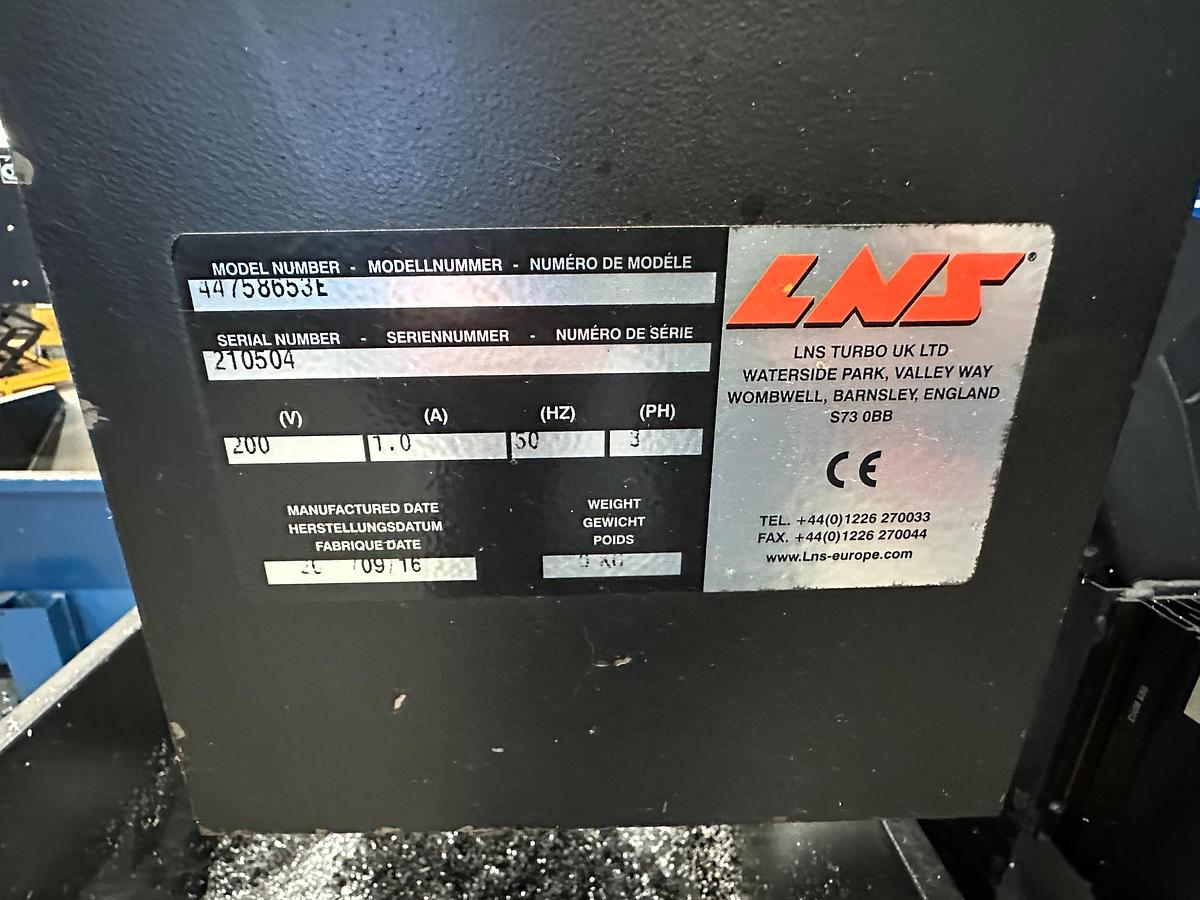

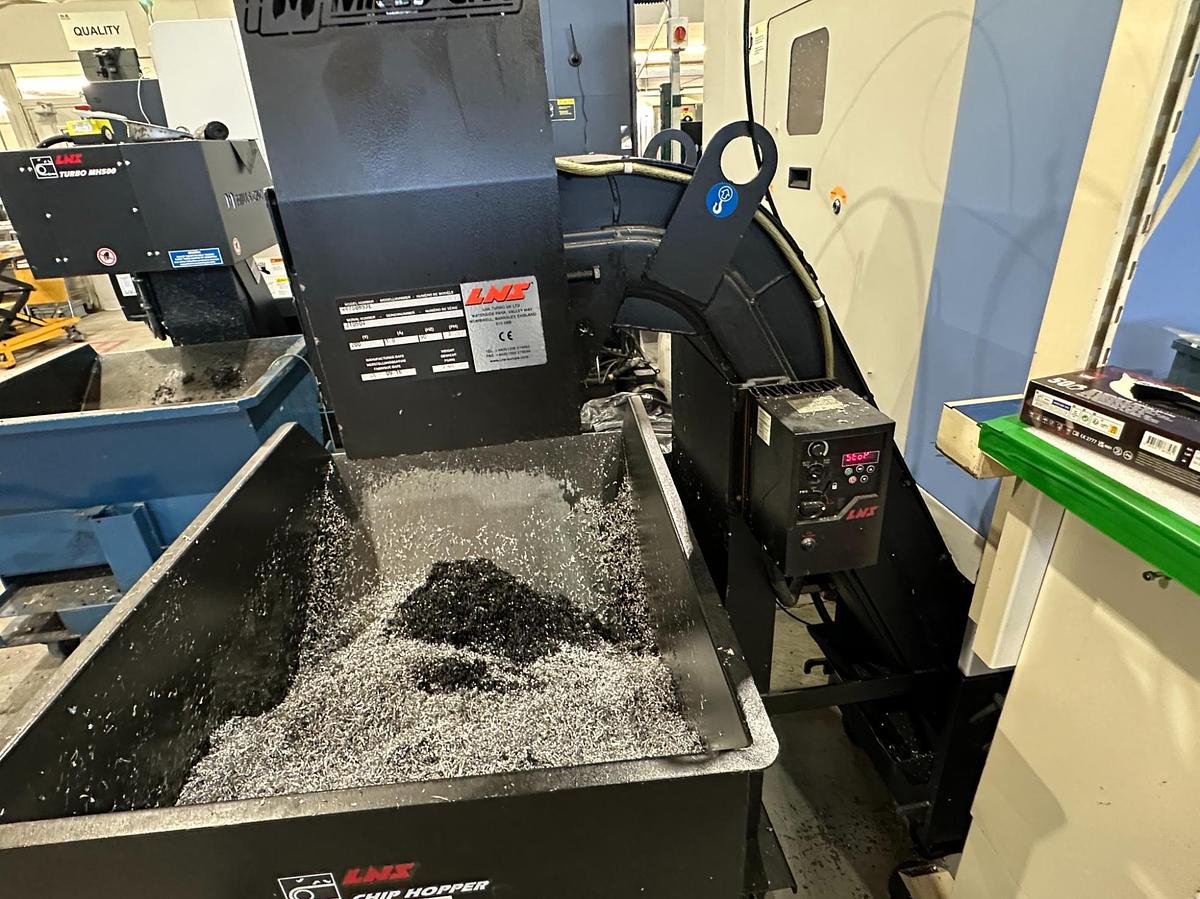

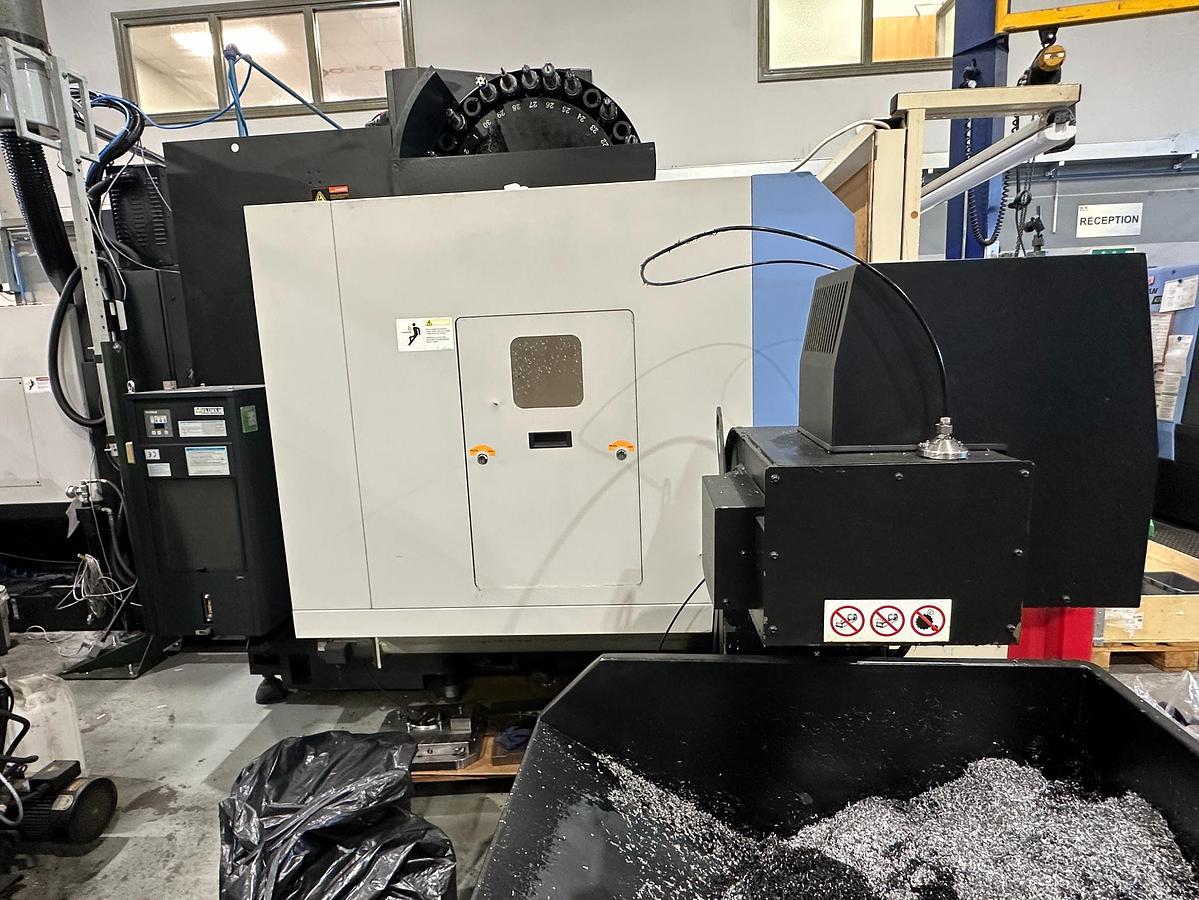

- LNS swarf conveyor
- Data server / networking capability
- Fully enclosed, heavy-duty construction
Please Note
- No tool holders, vices, or swarf bin included
Ideal For
- Precision engineering
- CNC subcontract machining
- Automotive & aerospace components
- General and high-speed milling applications
The Doosan DNM 650 is known for its exceptional rigidity, accuracy, and reliability, making it one of the most popular vertical machining centres in its class.
Notes: *Specifications are given in good faith but not guaranteed*
Specifications
| Manufacturer | Doosan |
| Model | DNM 650 Vertical Machining Centre |
| Year | 2011 |
| Condition | Used |
| Stock Number | 969689 |
| Manufacturer | Doosan |
| Model | DNM 650 |
| Year | 2011 |
| Control | Fanuc i Series |
| Availability | March 2026 |
| * Spindle Speed | 12,000 RPM |
| * Tool Taper | BT 40 |
| * Table Size | 1300 × 650 mm |
| * Maximum Table Load | 1000 kg |
| * X / Y | 36 m/min |
| * Z | 30 m/min |
| * ATC | 30 Places |
| * Max Tool Length | 300mm |
| * Max Tool Weight | 8 kg |
| * Machine Weight (Approx) | 8500kg |
