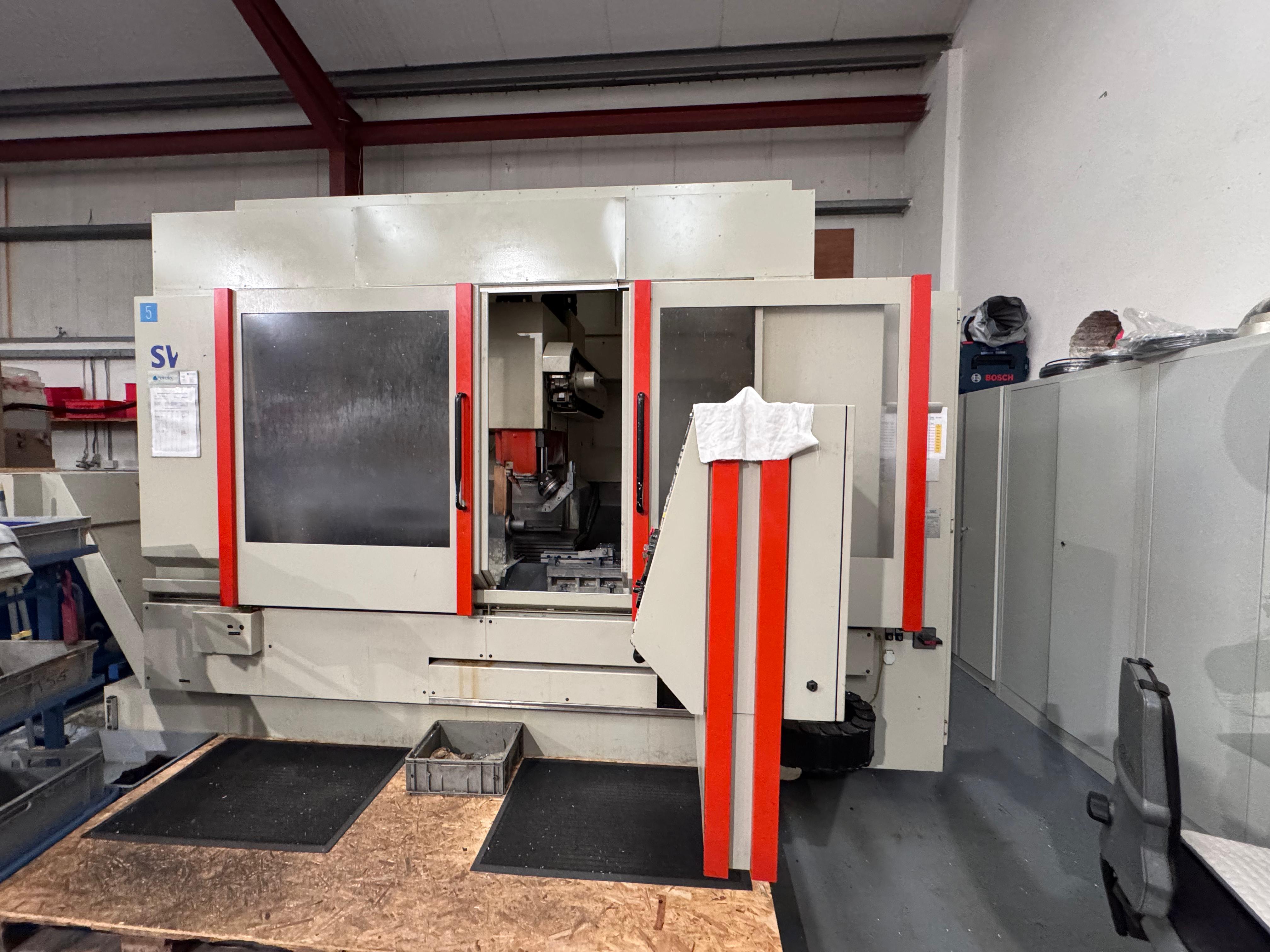

1997 Heckler & Koch BA 18 – 4 Axis CNC Machining Centre – Siemens Sinumerik

Machine Manufacturer: Heckler & Koch

Model: BA 18

Machine Type: 4 Axis Machining Centre

Year: 1997

Condition: Old but working well

High-Precision German CNC Machining Centre for Sale in Ireland

Used Machine Tools Ireland is pleased to offer this 1997 Heckler & Koch BA 18 4-Axis CNC Machining Centre, a robust German-built vertical milling and drilling centre renowned for accuracy, reliability, and heavy-duty construction.

This machine is equipped with a Siemens Sinumerik CNC control, making it a solid choice for workshops requiring dependable CNC milling with integrated 4th-axis capability.

Key Features & Highlights

• Heckler & Koch BA 18 CNC Machining Centre
• 4-Axis configuration

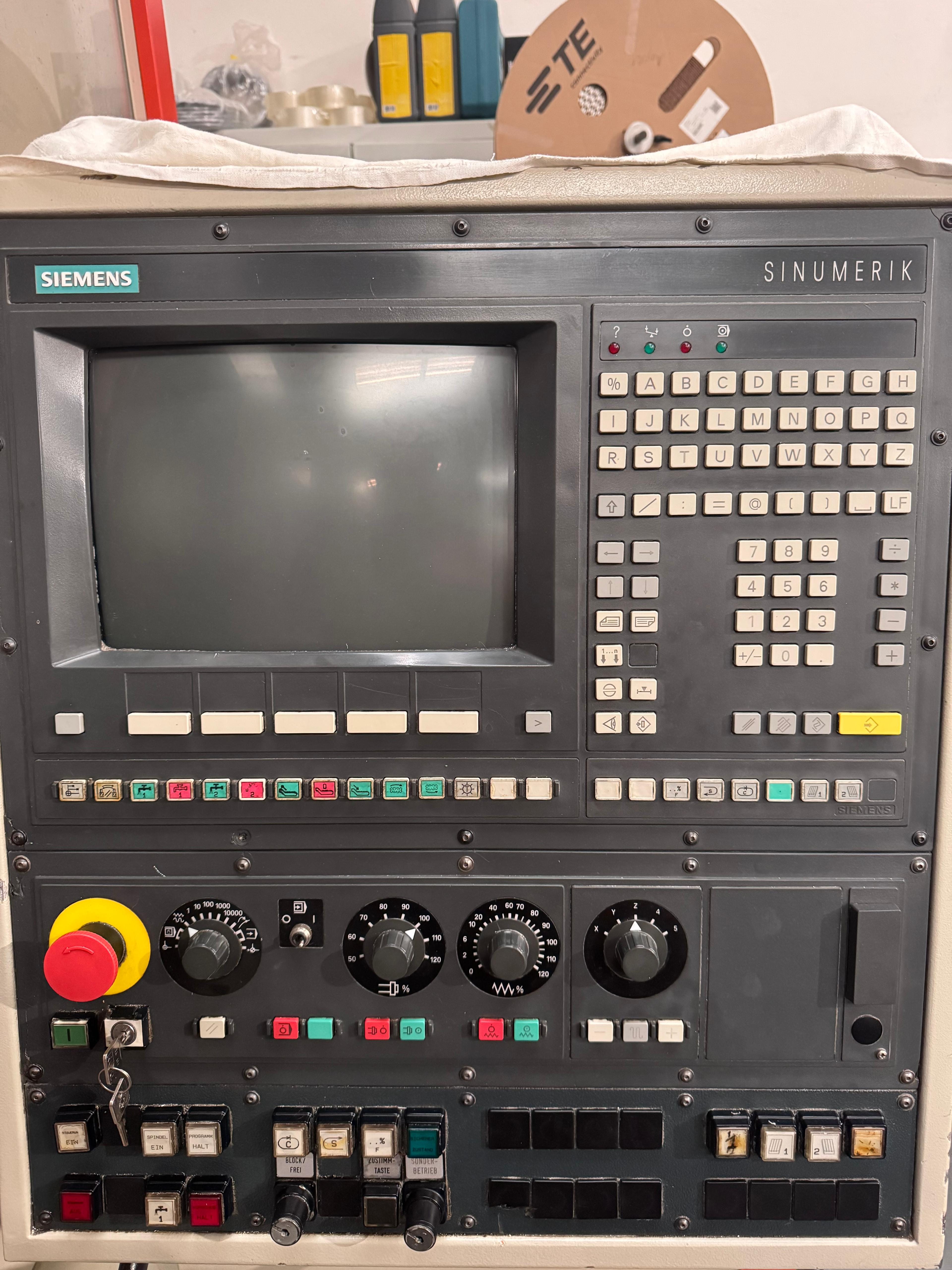

• Siemens Sinumerik CNC control
• Single spindle version
• Rigid German construction
• Automatic tool changer
• Ideal for precision milling & drilling
• Suitable for general engineering, toolmaking & production machining

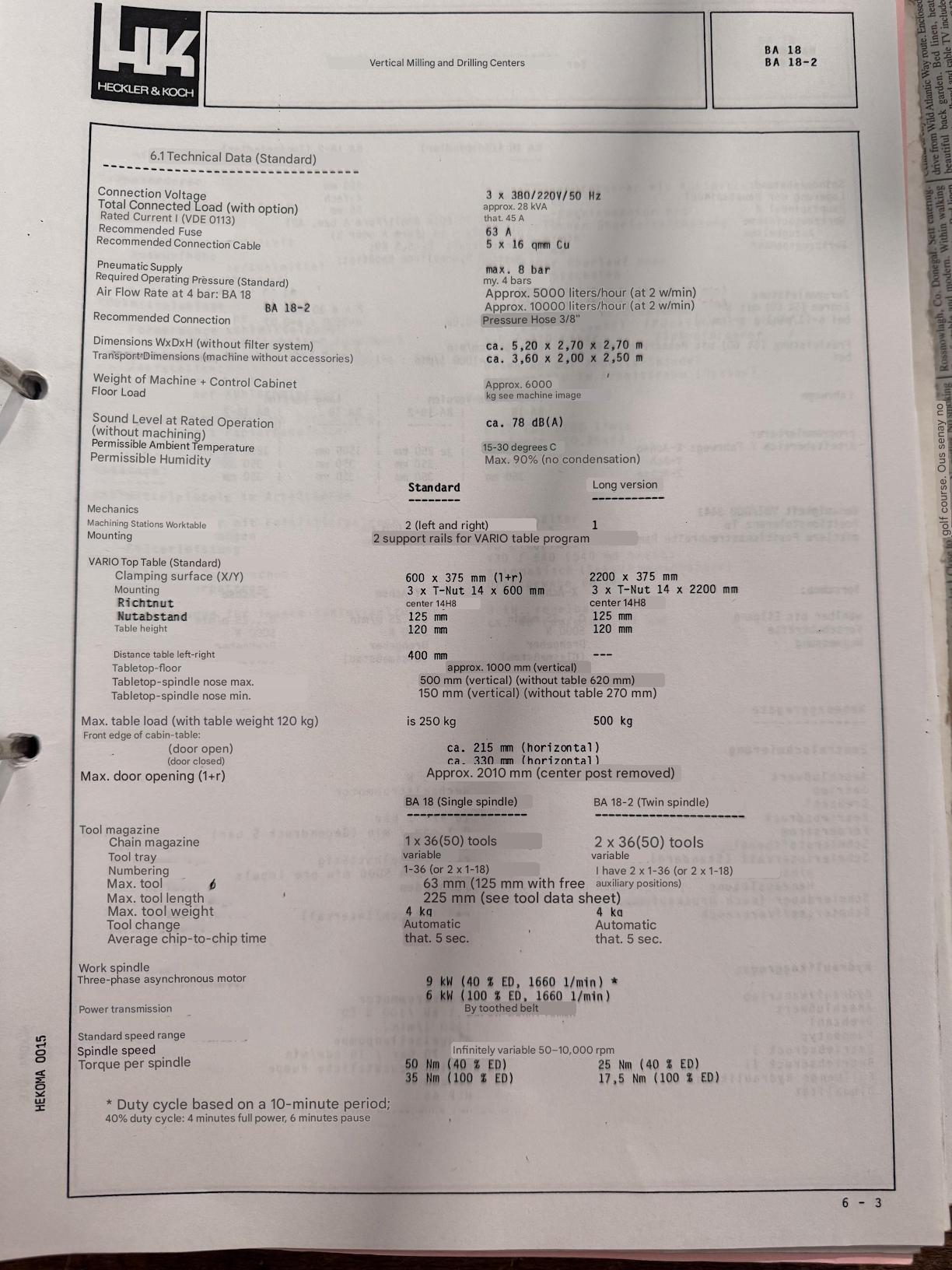

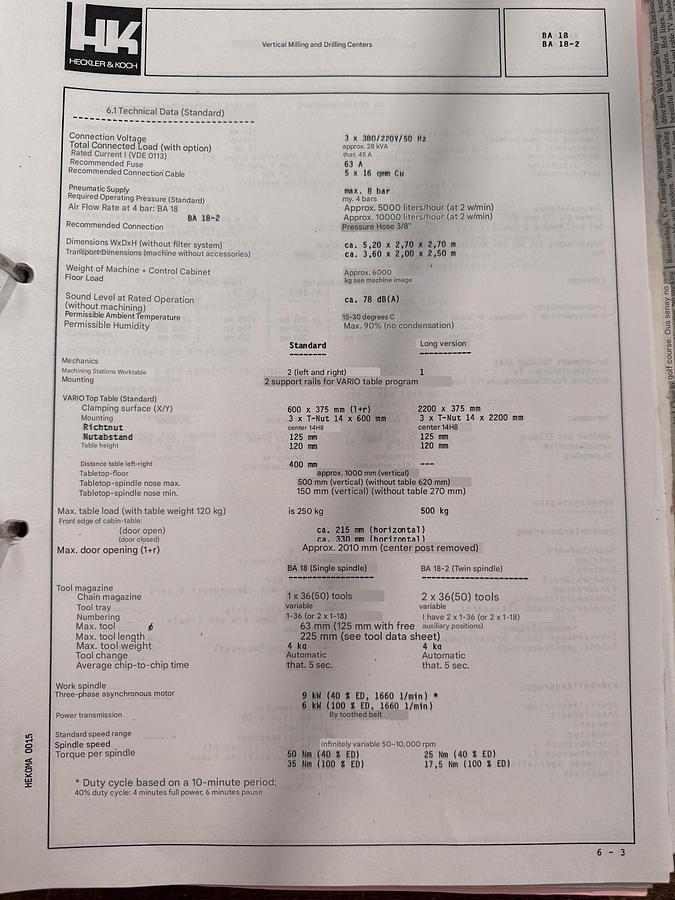

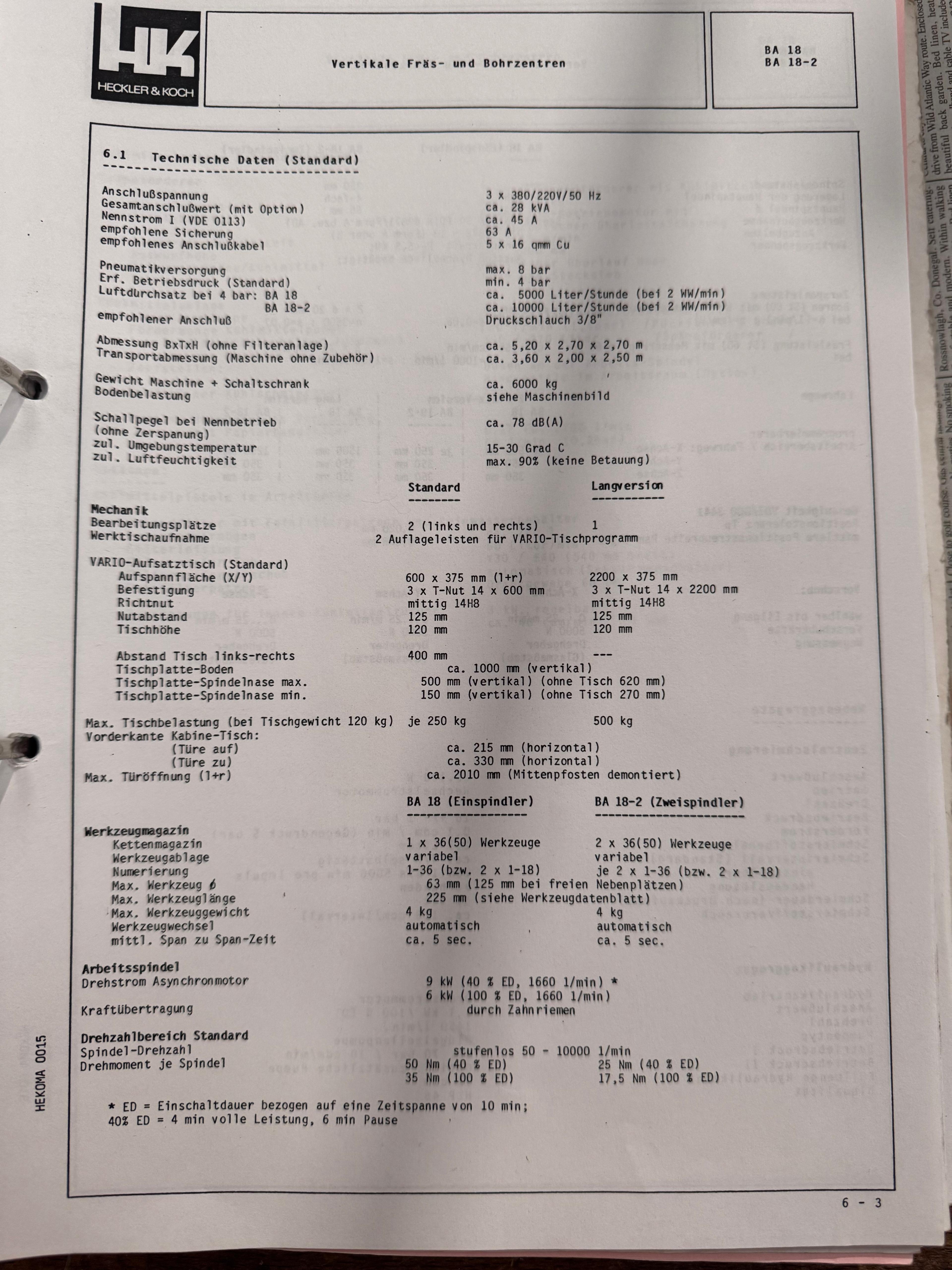

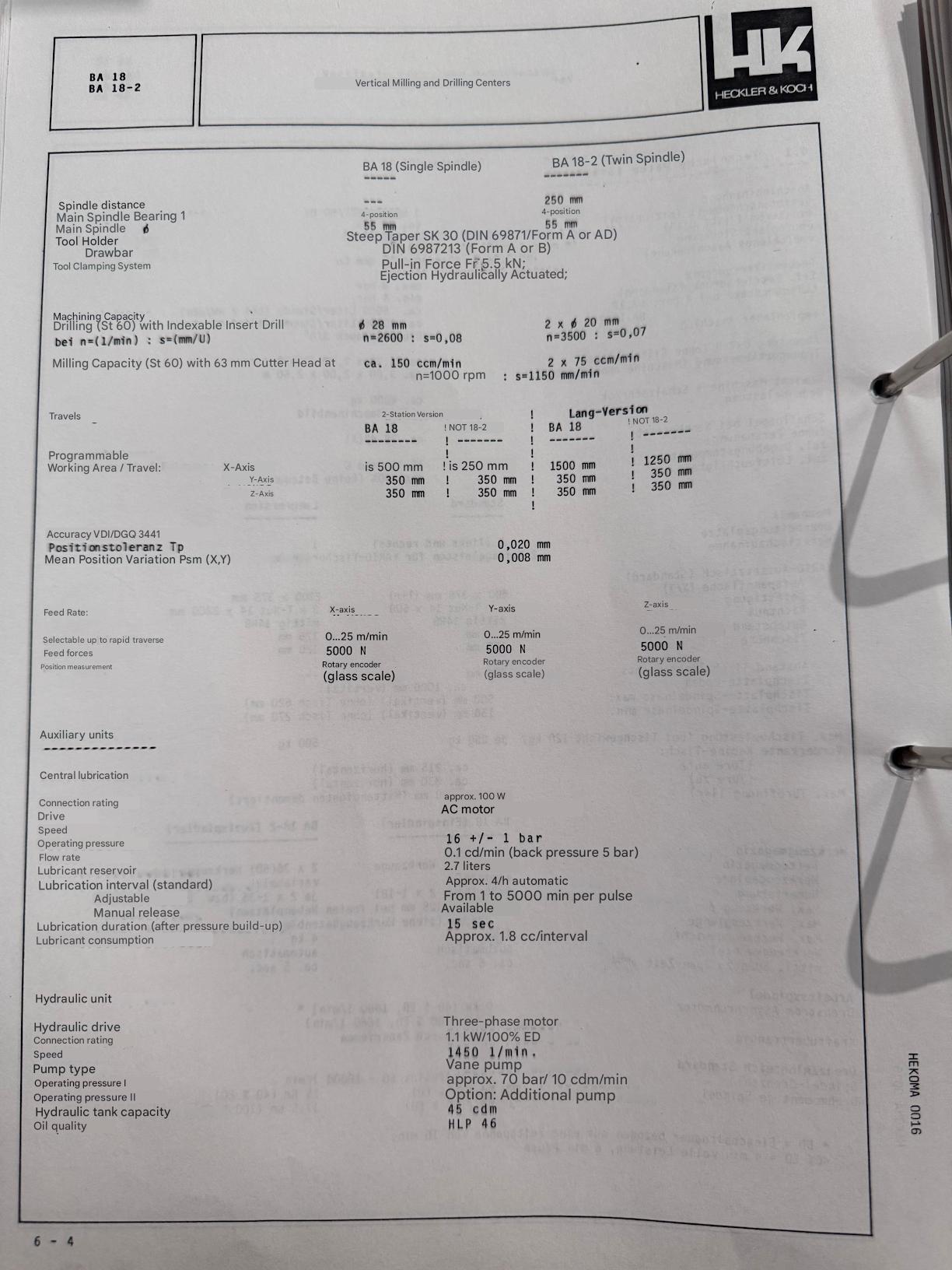

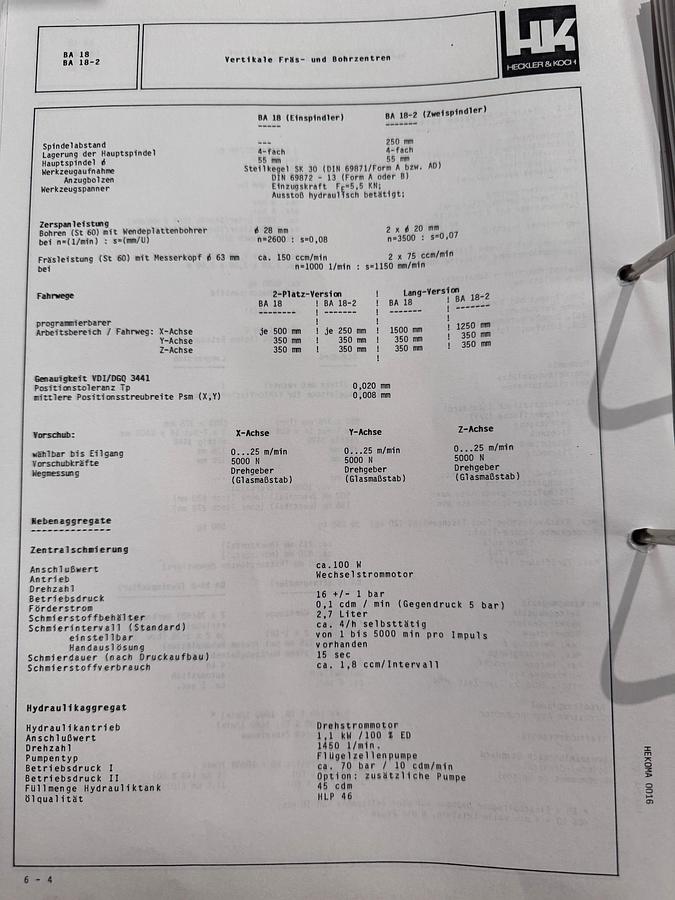

Technical Specifications – Heckler & Koch BA 18 (Single Spindle)

General

• Machine type: Vertical Milling & Drilling Centre
• Axes: 4 Axis

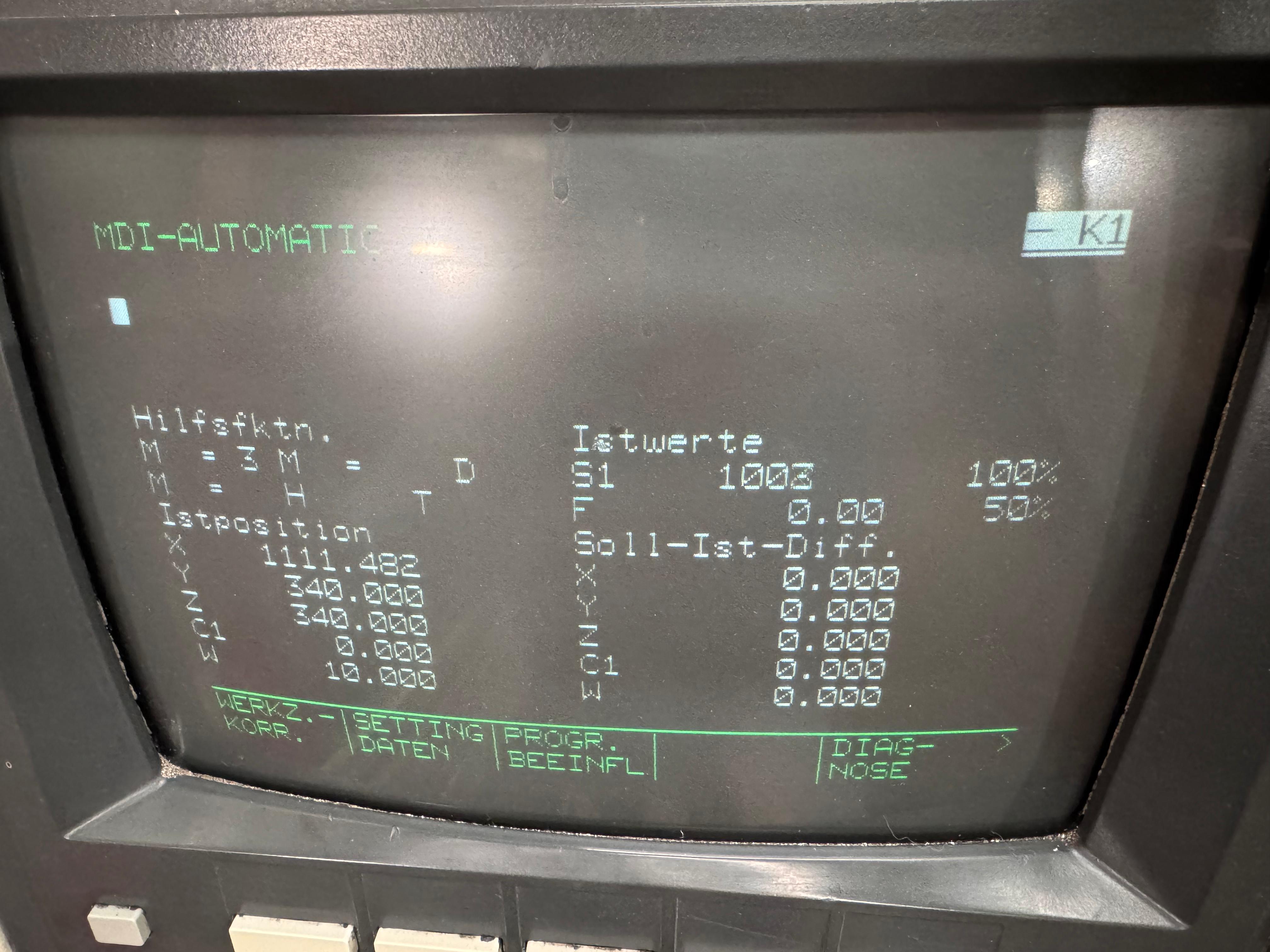

• Control: Siemens Sinumerik
• Spindle type: Single spindle
• Tool holder: SK40

Travels (Programmable Working Area)

• X-Axis: 500 mm
• Y-Axis: 350 mm
• Z-Axis: 350 mm

Spindle & Performance

• Spindle motor power: 9 kW (40% duty)
• Spindle speed range: Infinitely variable 50 – 10,000 rpm
• Torque:
• 50 Nm (40% duty)
• 35 Nm (100% duty)
• Power transmission: Toothed belt drive

Tool System

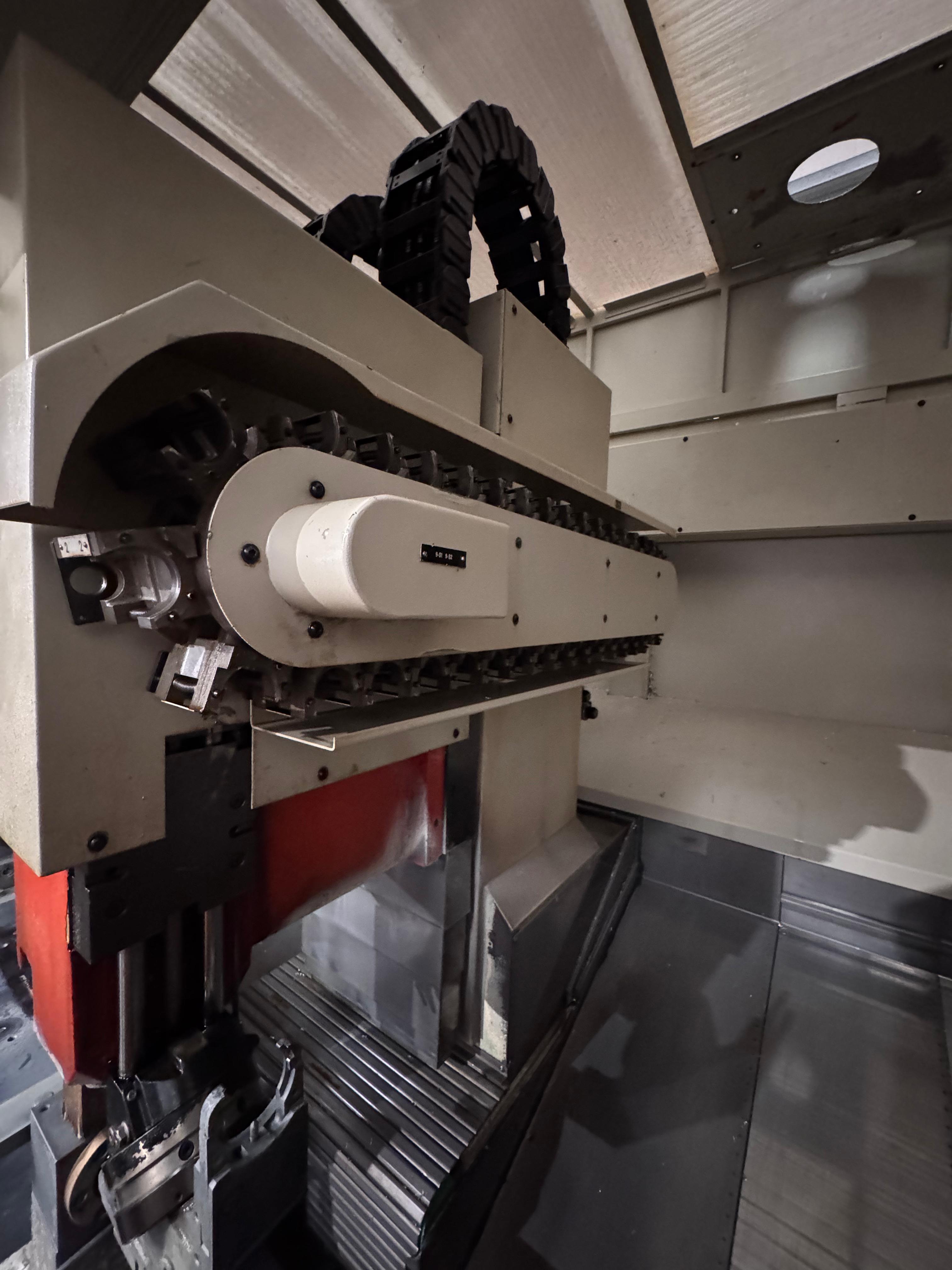

• Tool magazine: Chain magazine
• Tool capacity: 36 tools
• Tool change: Automatic
• Average chip-to-chip time: Approx. 5 seconds
• Maximum tool weight: 4 kg
• Maximum tool diameter: 63 mm (125 mm with free auxiliary positions)
• Maximum tool length: 225 mm

Accuracy & Feed Rates

• Positioning tolerance (VDI/DGQ 3441): 0.020 mm
• Mean position variation (X/Y): 0.008 mm
• Feed rates (X / Y / Z): 0 – 25 m/min
• Feed force per axis: 5000 N
• Measuring system: Rotary encoder with glass scales

Table & Load

• Maximum table load (including table weight): 250 kg
• Distance table left/right: 400 mm
• Table to spindle nose:
• Max: 500 mm (620 mm without table)
• Min: 150 mm (270 mm without table)

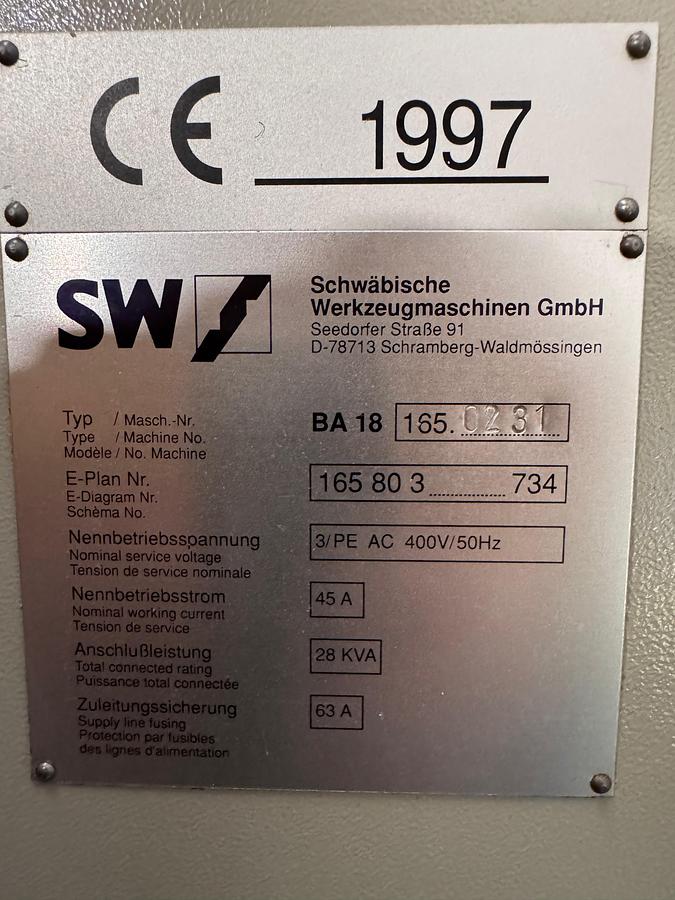

Electrical & Utilities

• Connection voltage: 3 × 380/220 V, 50 Hz
• Connected load: Approx. 28 kVA
• Pneumatic supply: Max. 8 bar
• Sound level at rated operation: Approx. 78 dB(A)

Dimensions & Weight

• Machine dimensions (L × W × H): Approx. 5200 × 2700 × 2700 mm
• Transport dimensions: Approx. 3600 × 2000 × 2500 mm
• Machine weight (incl. control cabinet): Approx. 6000 kg

Ideal Applications

• Precision CNC milling
• Drilling & tapping operations
• Toolmaking & jig work
• Small to medium batch production
• General engineering workshops

Why Buy From Used Machine Tools Ireland?

• Trusted Irish supplier of quality used CNC machinery
• Machines honestly described & professionally inspected
• Nationwide & export delivery available
• Competitive pricing

Notes: *Specifications are given in good faith but not guaranteed*
