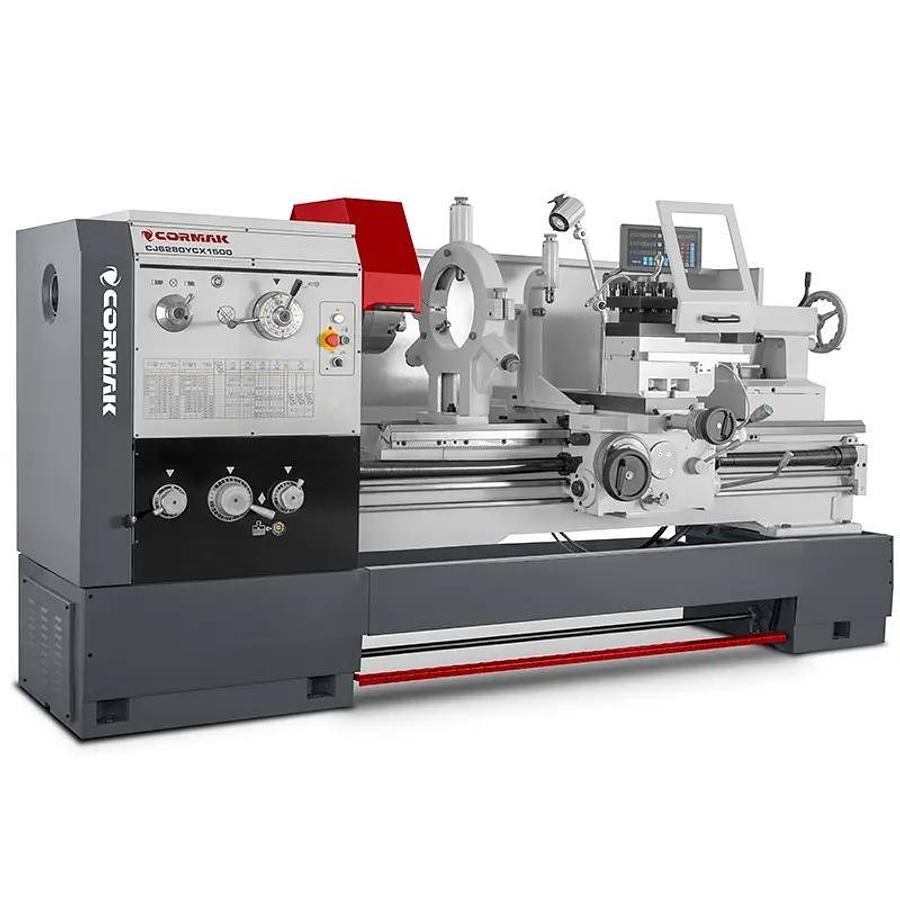

Cormak 800 x 1500 Universal Manual Lathe

Machine Type: Manual Universal Lathe

Machine Description

The CORMAK 800 Series metal lathes are equipped with rapid feeds, a multi-plate clutch and digital readouts. Thanks to modern design solutions and rich standard equipment, this lathe is perfect for professional and industrial applications, ensuring precision, reliability and performance in demanding machining environments.

The CORMAK 800x1500 universal lathe is a robust industrial conventional machine designed for precise metalworking in production plants, tool rooms and maintenance workshops. With its large turning diameter, rigid cast-iron structure and three-axis digital readout (DRO), the lathe guarantees high accuracy, efficiency and operator safety even under heavy loads. It is an ideal choice for professionals seeking reliability, durability and smooth control of workpieces.

Main Advantages

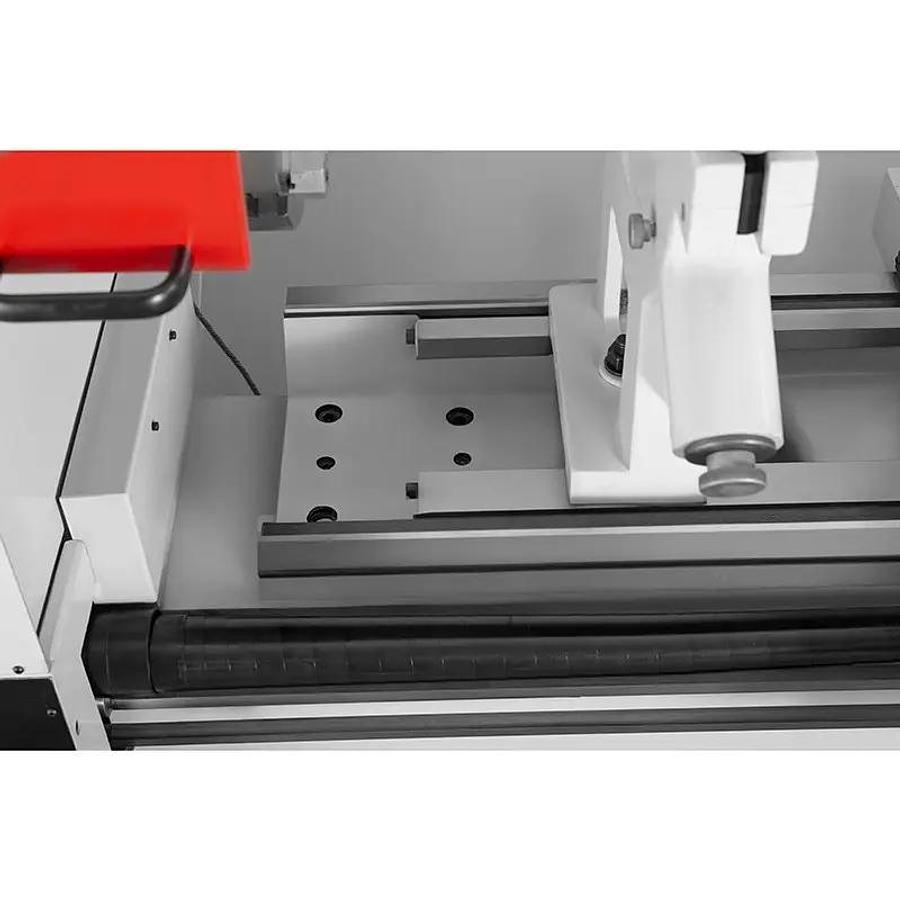

• Induction-hardened and ground bedways – provide outstanding rigidity and long-lasting precision.
• High-precision headstock with 105 mm spindle bore and D1-8 DIN 55029 nose – ensures stable machining of large components.
• Massive cast-iron construction dampens vibrations and maintains dimensional accuracy during prolonged operation.
• Rapid feeds in both longitudinal and cross directions significantly shorten machining cycles.

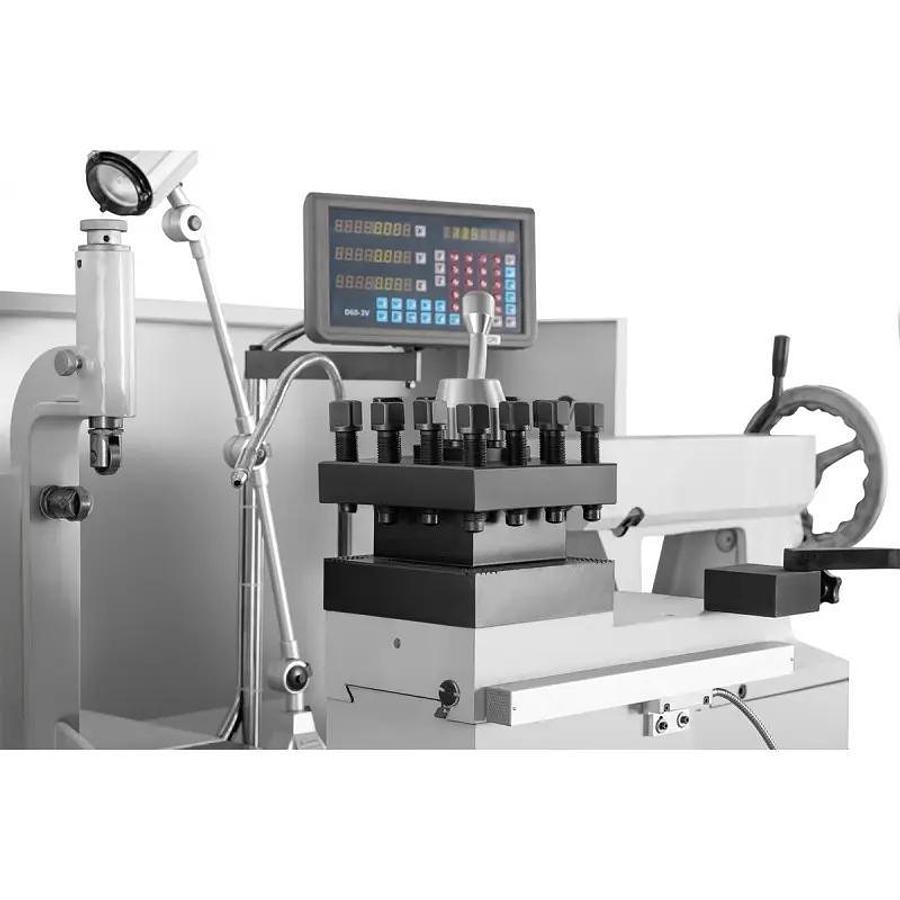

• Three-axis digital readout (3-axis DRO) enables real-time dimensional control for increased operator accuracy.
• Multi-plate clutch allows smooth spindle rotation reversal without stopping the machine.
• Foot-operated safety brake and chip guards enhance comfort and operational safety.
•


Design and Technology

The CORMAK 800x1500 conventional lathe has been designed for maximum precision and durability. Its high-quality cast-iron bed is induction-hardened and precision-ground to minimise guideway wear. The spindle mounted on precision bearings ensures rotational stability and low vibration levels, resulting in smooth surface finishes. The powerful main motor – 7.5/9 kW – enables efficient machining of steel, cast iron and other hard metals.

Drive and Cooling System

The machine is equipped with a cooling system that ensures optimal cutting conditions and 24V halogen lighting for excellent visibility and setup precision. The rapid feed mechanism allows quick carriage movement, improving overall efficiency and ergonomics.

Precision and Performance

Exceptional machining accuracy is achieved through a thoughtful mechanical design and modern metrological systems. The three-axis DRO allows precise monitoring of all machining parameters down to hundredths of a millimetre. The spindle speed range of 25–1600 rpm provides optimal cutting speeds for different materials and tools, extending tool life and improving surface finish quality.

Applications

The CORMAK 800x1500 universal lathe is designed for a wide range of turning operations – from roughing large steel workpieces to precise finishing of large-diameter parts. It is ideal for:

• industrial and production facilities,
• mechanical and maintenance workshops,
• tool rooms and repair departments,
• single-piece and small-batch production.

Its versatility and large swing over bed make it the perfect choice for workshops that demand flexibility without compromising on accuracy.

Technical Specifications

Max swing over bed: 800 mm with LCD readout

Max swing over cross slide: 460 mm

Swing in gap: 900 mm

Distance between centres: 1500 mm

Bed type: Induction-hardened

Bed width: 500 mm

Chuck diameter: 315 mm

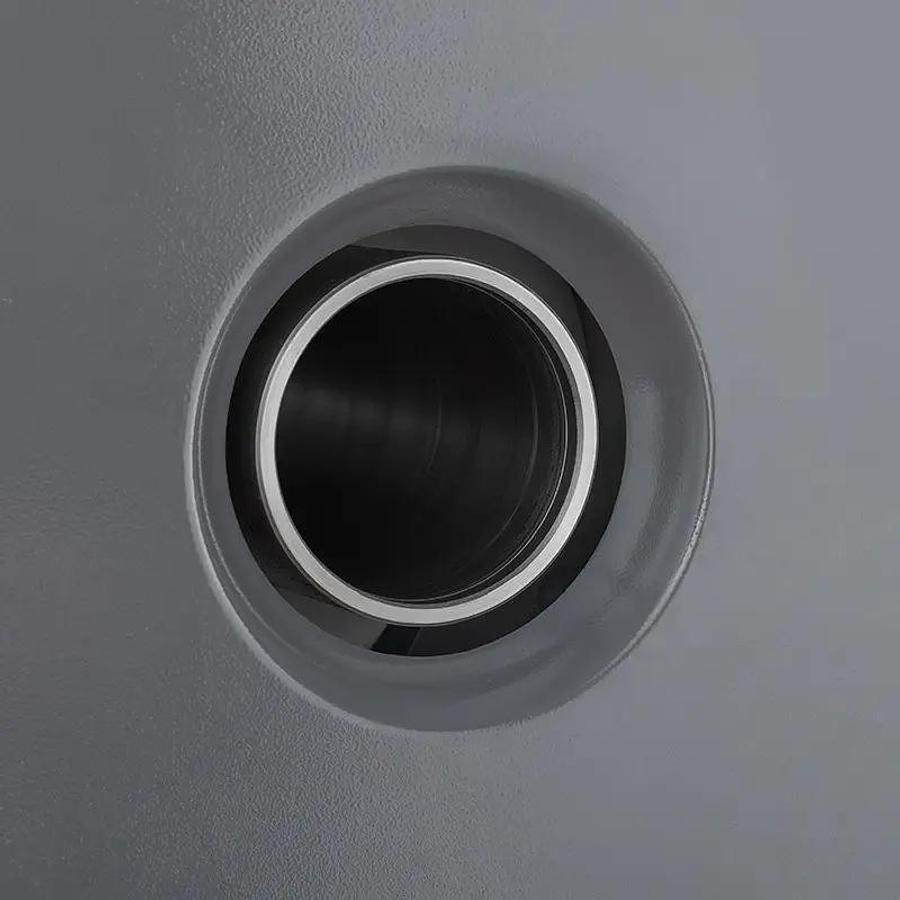

Spindle bore: 105 mm

Spindle nose: D1-8 DIN 55029

Spindle speed range: 25–1600 rpm

Max tool dimensions: 25×25 mm

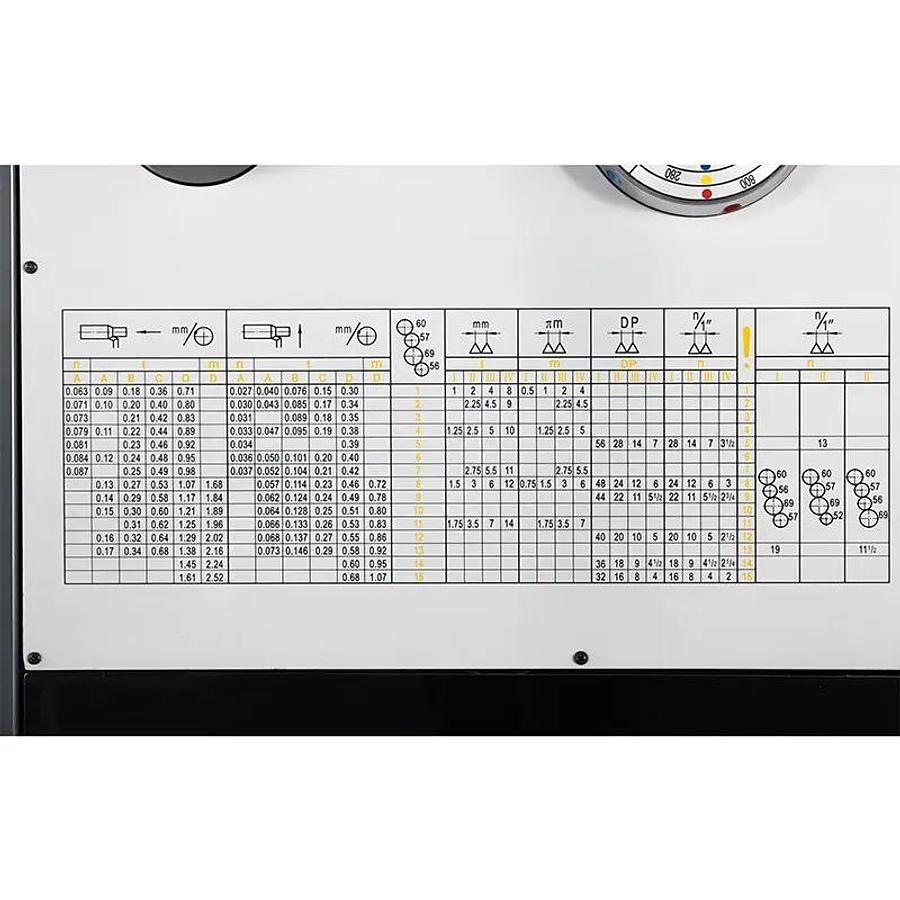

Longitudinal feed range: 0.044–1.480 mm/rev

Cross feed range: 0.022–0.740 mm/rev

Metric thread range: 0.35–120 mm

Inch thread range: 7/16–80 TPI

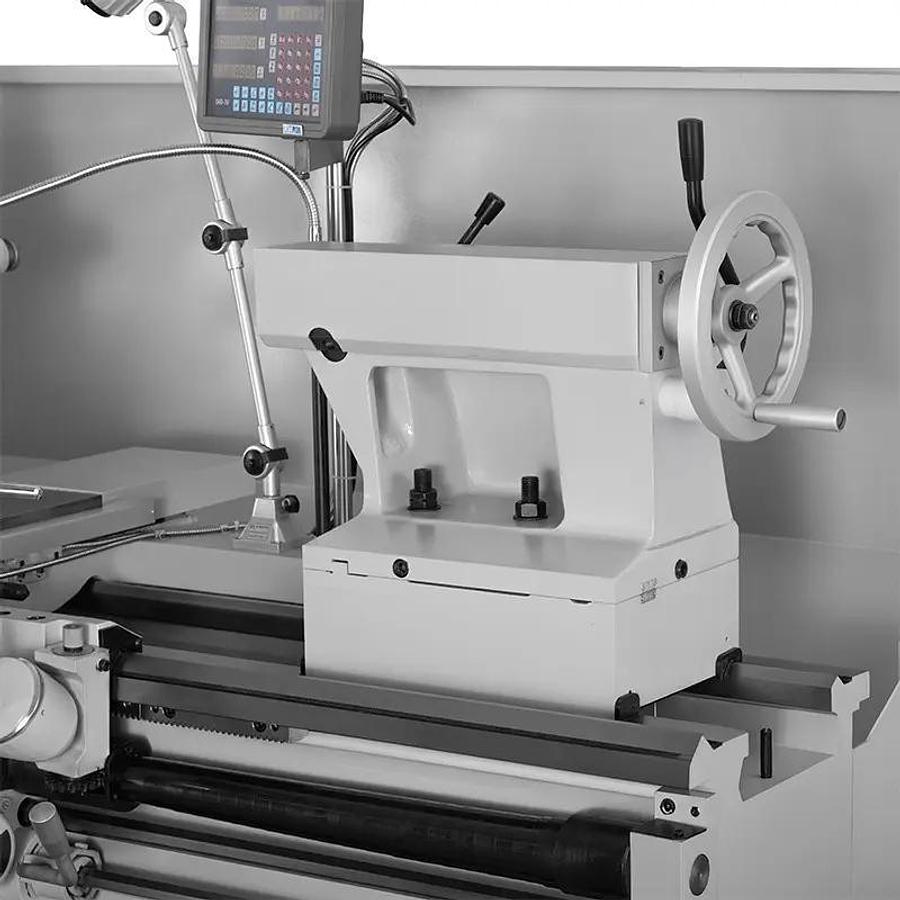

Tailstock quill travel: 235 mm

Tailstock taper: MT5

Digital readout: 3-axis

Main motor power: S1/S67.5/9 kW

Overall dimensions: 4800×1320×1580 mm

Net weight: 3820 kg

Standard Equipment

• 3-axis digital readout

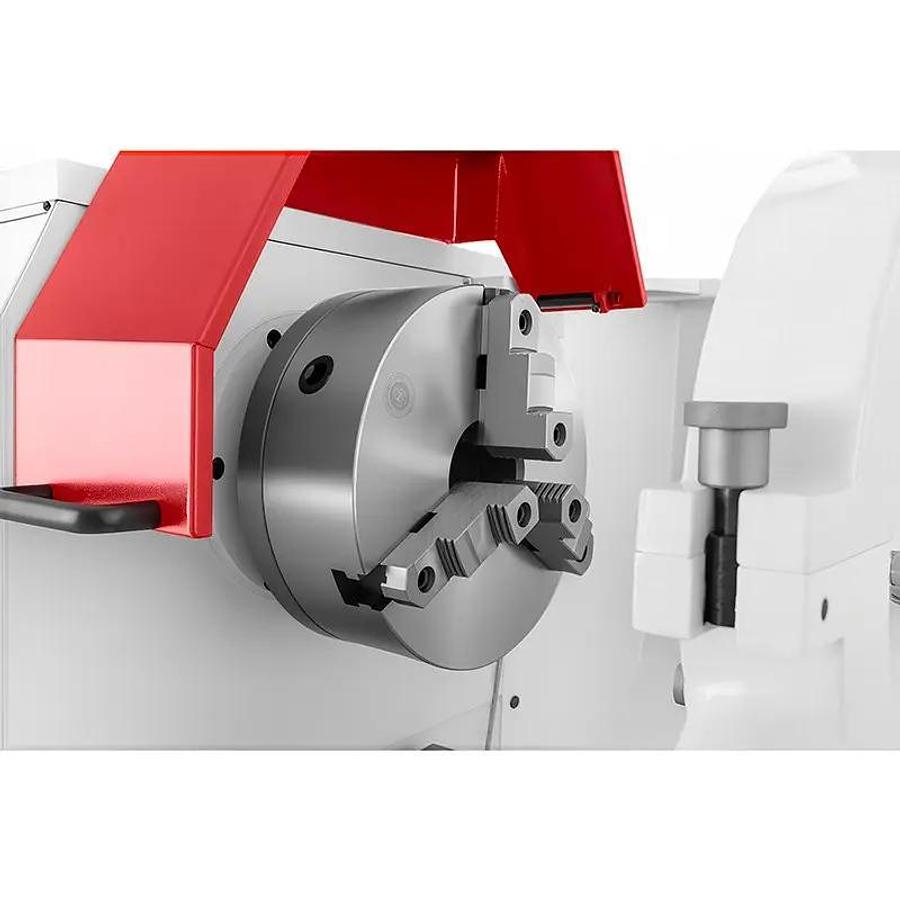

• 3-jaw self-centring chuck
• 4-jaw independent chuck
• Faceplate

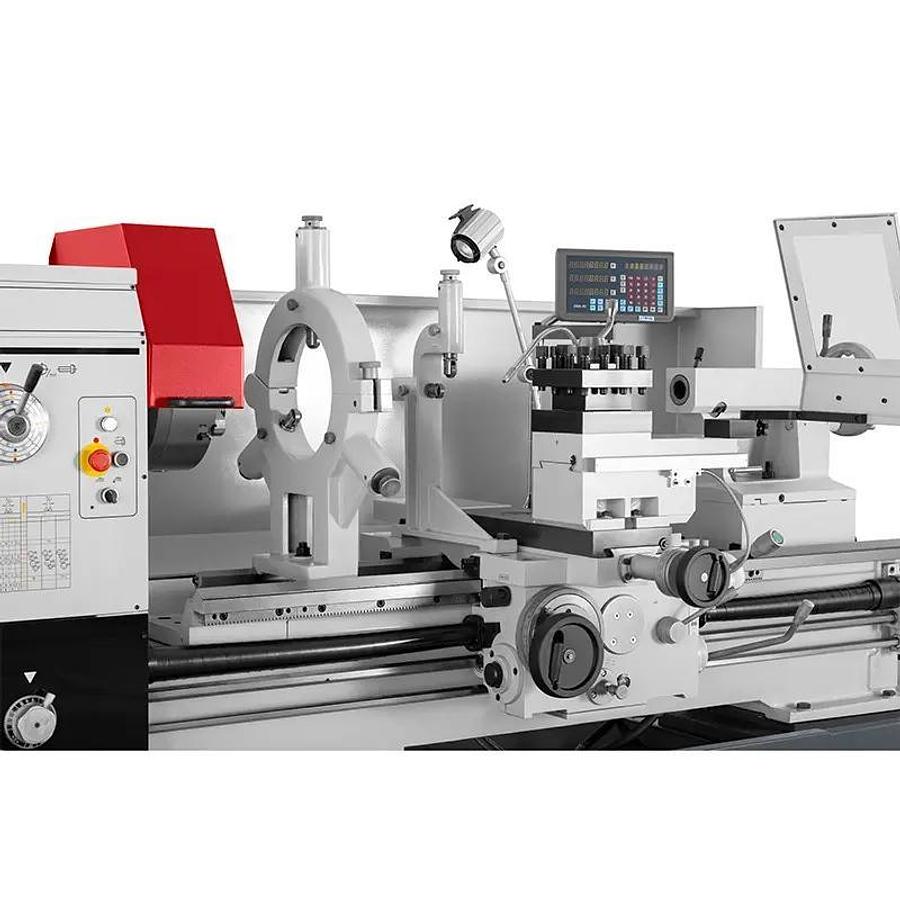

• Travelling steady rest
• Fixed steady rest
• Spindle reduction sleeve
• Rapid carriage feed
• Foot brake
• Full-length chip guard
• Cooling system
• 24V halogen work light
• Thread indicator
• Tool set
• 4 Way Tool Post

Optional Accessories

• Precision chuck with quick-change jaw system
• Multifix tool post
• Centralised lubrication system
• Special steady rests for non-standard diameters
• Advanced measurement system for geometry inspection

The CORMAK 800x1500 conventional lathe is designed for demanding users who require reliability, accuracy and durability. Its robust construction, modern equipment and wide parameter range make it a professional metalworking lathe capable of meeting the toughest industrial and workshop tasks.
