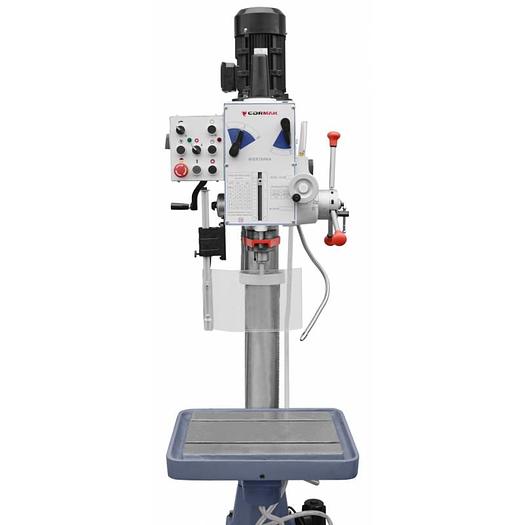

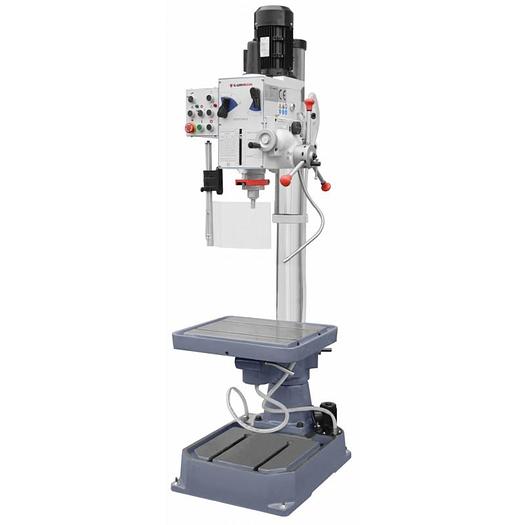

Cormak ZS-40B Pedestal Drilling Machine

1

Poland

Description

Cormak ZS-40B Industrial Pedestal Drilling Machine

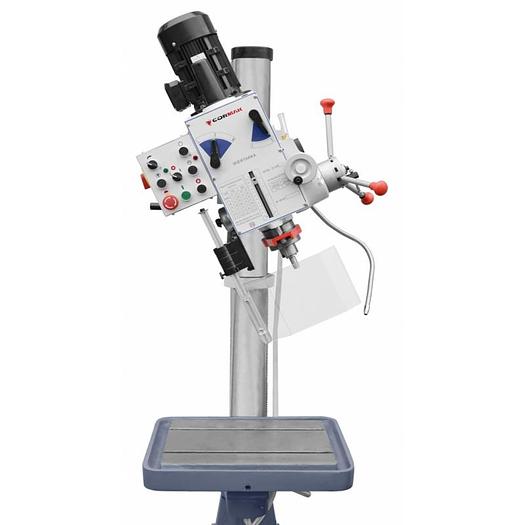

The CORMAK ZS-40B industrial geared pillar drill is a robust machine with considerable capabilities. Equipped with a swivelling, height-adjustable head, an automatic tapping device and a precision handwheel, it provides flexibility and accuracy in operation. Its powerful motor ensures high drilling performance, while the robust construction and oil-bath gear transmission provide stability and durability. The machine is also equipped with automatic feed and a cooling system.


Manufacturer: Cormak

Model: ZS-40B

Machine Type: Gear Driven Pedestal Drilling Machine with Power Feed

Capacity: 40mm

Power: 3 Phase 400V


Machine Description

The CORMAK ZS-40B industrial pillar drill is a technologically advanced machine designed for intensive metalworking in workshop and manufacturing environments. Thanks to its precision oil-bath gearbox, automatic vertical feed and tapping function, the CORMAK ZS-40B pillar drill for metal ensures reliability, efficiency and high-quality drilling and tapping results.


  • Machine Features
  • Automatic vertical feed – three feed rates (0.12, 0.18 and 0.25mm/rev) allow cutting parameters to be optimally matched to the material being machined.
  • Tapping function with automatic spindle reversal – enables efficient internal thread cutting up to M32 without operator intervention.
  • Oil-bath gearbox with hardened and ground gears – ensures quiet, smooth operation and durability of the drive system.
  • Rigid 115mm-diameter column – minimises deflection and vibration, contributing to machining precision.

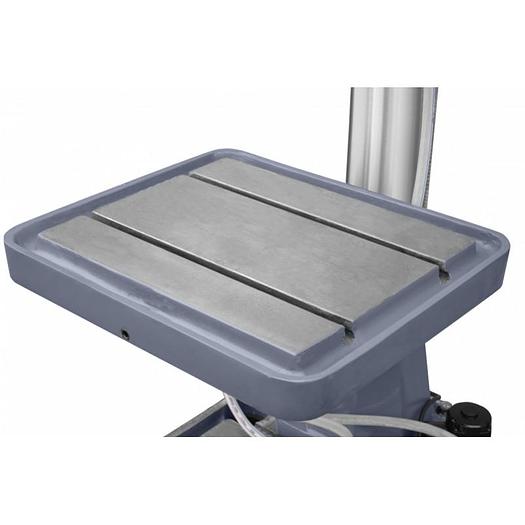

  • Large swivelling, height-adjustable worktable – enables machining of large and irregularly shaped components.
  • Cooling system included as standard – improves drilling quality, extends tool life and reduces the risk of overheating


Standard Equipment

  • 16mm drill chuck
  • MT4 drill arbor
  • Reduction sleeves for MT3 and MT2
  • Arbor removal drift
  • Worktable with mounting slots
  • Handwheel with depth scale for depth control
  • Cooling system with pump
  • Transparent acrylic spindle guard
  • Graduated handwheel


Technical Details

Drilling Diameter (casting/steel): 40/32 mm

Tapping (casting/steel): M32/M24

Column Diameter: 115 mm

Throat Depth: 260 mm

Maximum Distance from Spindle Face to Worktable: 754 mm

Maximum Distance from Spindle Face to Base: 1270 mm

Spindle Taper: MT4

Spindle Speed: 50–2050 rpm

Number of Gears: 6

Feed Ranges: 0.12; 0.18; 0.25 mm/turn

Worktable Surface Dimensions: 354×575 mm

Total Height: 2120 mm

Motor Power: S1 1.1 kW/S6 1.6 kW

Oil Type: LAN46

Power supply: 3 Phase/400V/ 50Hz

Weight: 350 kg


Construction and Technology

The CORMAK ZS-40B industrial pillar drill is designed for continuous operation in demanding manufacturing environments. At its core is a mechanical gearbox lubricated by an oil bath, providing stable and reliable power transmission. The spindle with MK4 taper mounting allows a wide range of tools to be used, while the high rigidity of the drill head and column assembly ensures accurate hole machining. The transparent acrylic chuck guard improves operator safety while maintaining visibility of the machining area.


Precision and Operating Performance

Automatic feed enables repetitive drilling operations without placing additional strain on the operator, significantly improving productivity in series production. The spindle speed range of 95 to 1,600rpm, combined with six gear ratios, allows machining parameters to be optimally adjusted to the material and tool being used. The precision handwheel with a depth scale ensures accurate control over the drilling process.


Applications

The CORMAK ZS-40B drill with tapping function is an ideal solution for:

  • manufacturing and assembly facilities
  • mechanical and metalworking workshops
  • maintenance departments
  • toolrooms and training centres


Specifications

ManufacturerCormak
ModelZS-40B Pedestal Drilling Machine
ConditionNew
Stock Number969159
Capacity40mm
Power3 Phase 400V
Drilling Diameter (casting/steel)40/32 mm
Column Diameter115 mm
Throat Depth260 mm
Spindle TaperMT4
Spindle Speed95-1,600 rpm
Number of Gears6
Feed Ranges0.12; 0.18; 0.25 mm/rev
Worktable Surface Dimensions354×575 mm
Total Height2120 mm
Oil TypeLAN46
Power supply3 Phase/400V/ 50Hz
Weight410 kg
