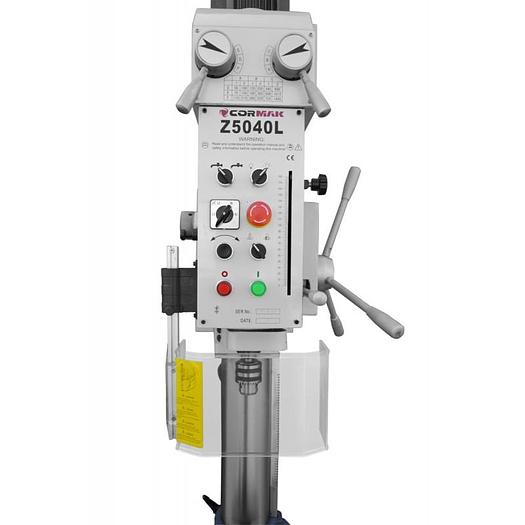

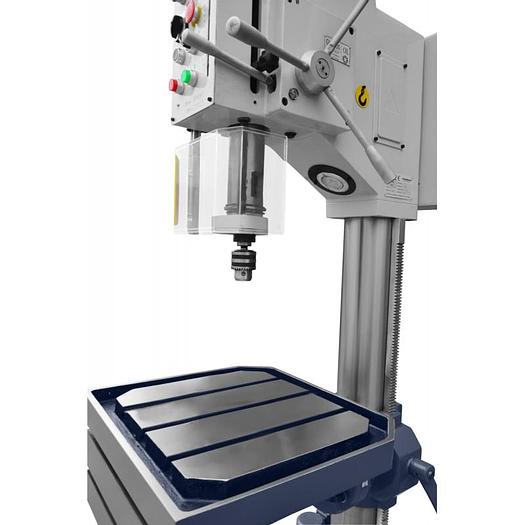

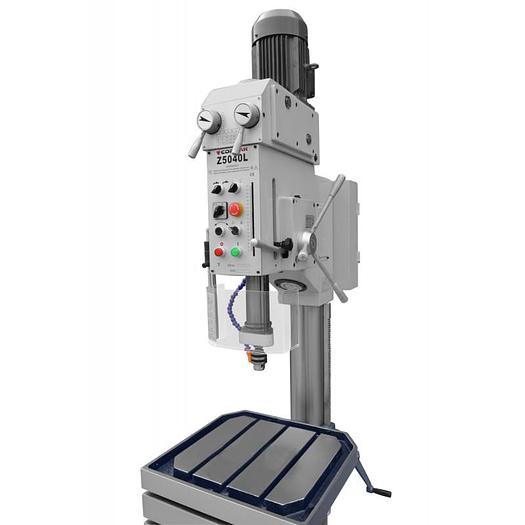

Cormak Z5040L Pedestal Drilling Machine
Description
Cormak Z5040L Pedestal Drilling Machine
Machine Type: Gear Driven Pedestal Drilling Machine
Capacity: 40mm
Power: 3 Phase 400V
Machine Description
Very efficient industrial column drilling machine ensuring optimal drilling results. It is equipped with a large worktable, right/left rotations and an adjustable drilling depth limiter with a scale.
Machine Features
Spindle autofeed

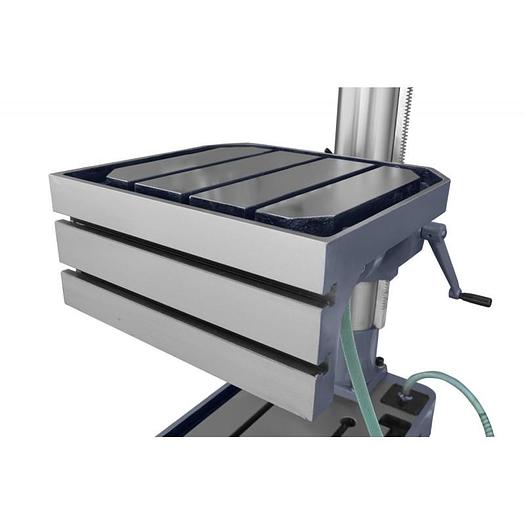

Angular cube table rotating about column, right/left 45° tilting
Work area lighting
Tapping possibility

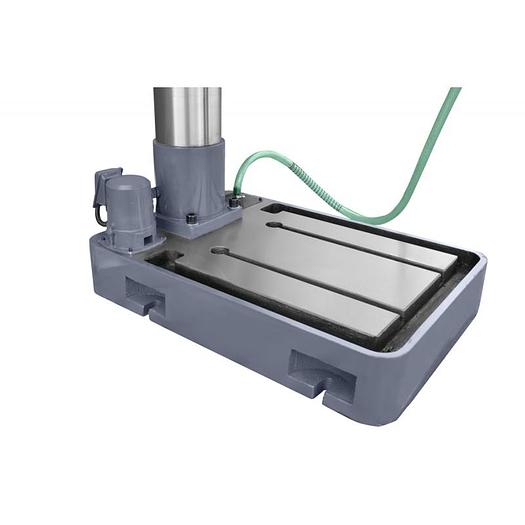

Worktable and base with T-slots
Left/right rotations
Drilling depth indicator
Technical Details
Maximum Drilling Diameter: 40 mm
Steel/Cast Iron Tapping Capacity: 22/24 mm
Throat Depth: 350 mm
Maximum Distance from Spindle Face to Worktable: 770 mm
Maximum Distance from Spindle Face to Base: 1215 mm
Spindle Taper: MT 4
Feed Range: 0.1 mm; 0.2 mm
Spindle Speed: 75–1450 rpm
Worktable Dimensions: 560×520 mm
Sidetable Dimensions: 560×250 mm
Base Dimensions: 730×500 mm
T-slots Width: 18 mm
Motor Power: 1.5 kW
Coolant Motor Power: 75 W
Total Dimensions: 2230×560×850 mm
Weight: 510 kg
Specifications
| Manufacturer | Cormak |
| Model | Z5040L Pedestal Drilling Machine |
| Condition | New |
| Capacity | 40mm |
| Power | 3 Phase 400V |
| Maximum Drilling Diameter | 40 mm |
| Steel/Cast Iron Tapping Capacity | 22/24 mm |
| Throat Depth | 350 mm |
| Spindle Taper | MT 4 |
| Feed Range | 0.1 mm; 0.2 mm |
| Spindle Speed | 75–1450 rpm |
| Worktable Dimensions | 560×520 mm |
| Sidetable Dimensions | 560×250 mm |
| Base Dimensions | 730×500 mm |
| T-slots Width | 18 mm |
| Motor Power | 1.5 kW |
| Coolant Motor Power | 75 W |
| Total Dimensions | 2230×560×850 mm |
| Weight | 510 kg |
