2011 Optimum D420 x 1000DPA Manual Centre Lathe

2011 Optimum D420 x 1000DPA Manual Centre Lathe

Machine Type: Manual Centre Lathe

Year: 2011

Condition: Very Good - Ex College Machine

Includes

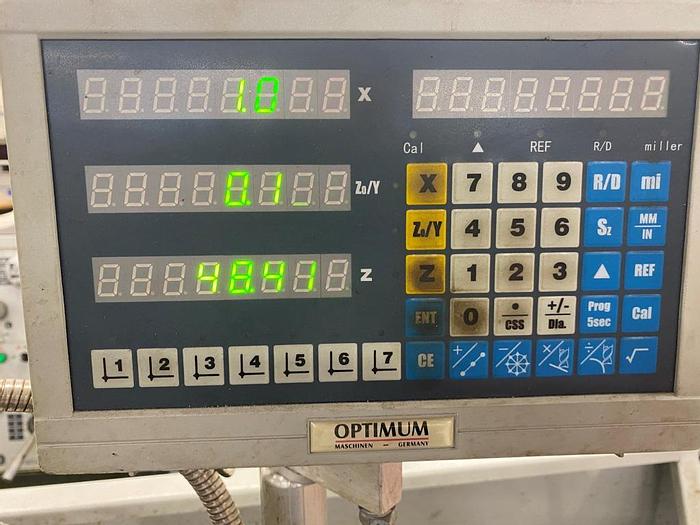

3 Axis DRO

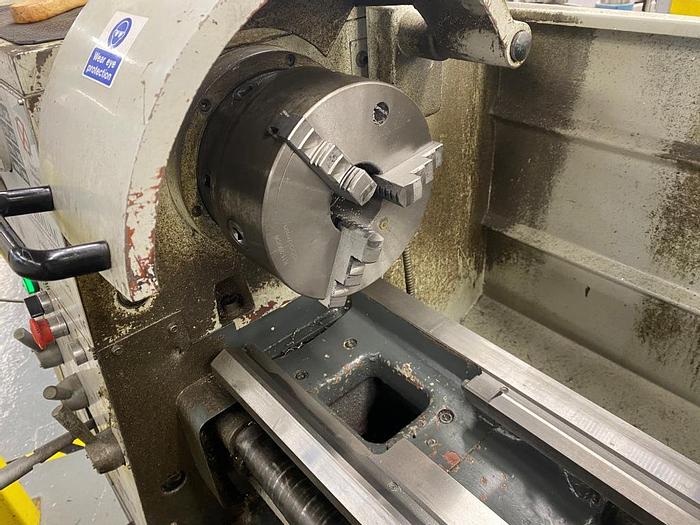

3 Jaw Chuck

4 Jaw Chuck

Set of Reverse Jaws

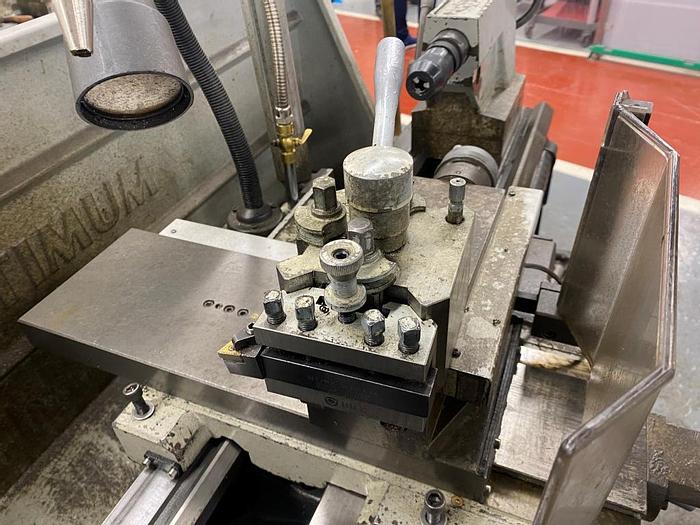

Quick Change Tool Post

Quick Change Tool Holders

Technical Details

Max Chuck Diameter: 200mm

Centre Height: 210mm

Distance Between Centres: 1000mm

Swing Over Bed: 420mm

Swing over Cross Slide: 255mm

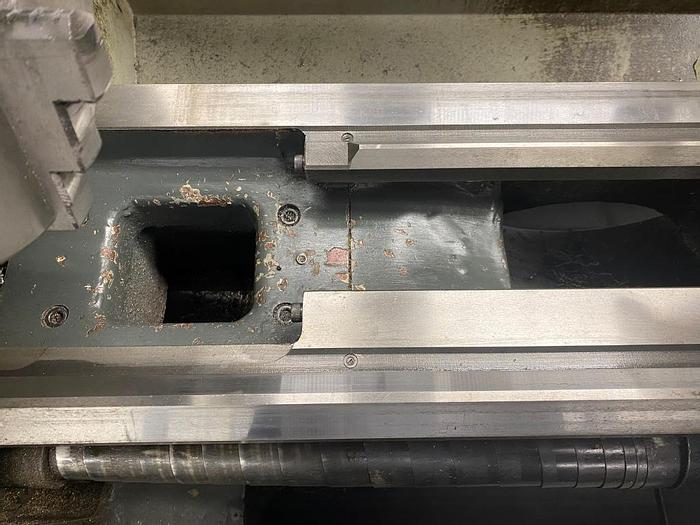

Swing in Gap: 590mm

Length of Gap: 240mm

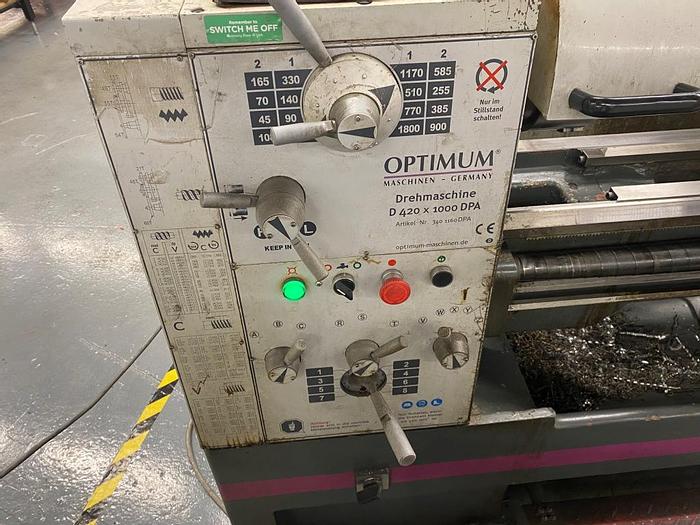

Spindle Speeds: 45-1800rpm

Speed Selections: 16

Spindle Taper: MT6

Spindle Nose: Camlock D1-6

Spindle Bore: 52mm

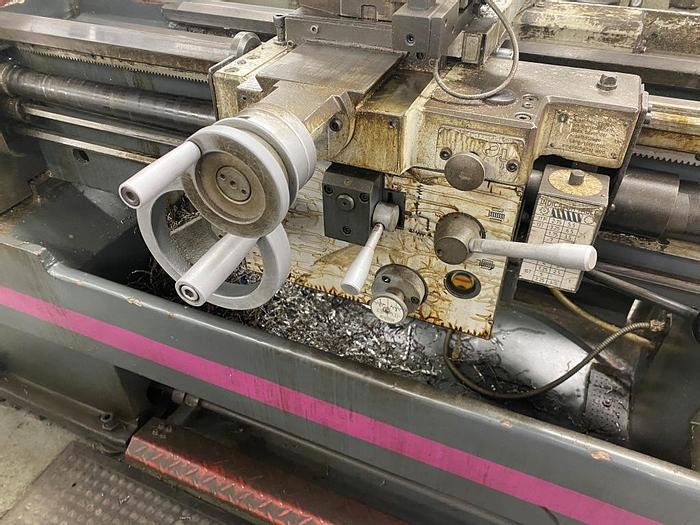

Longitudinal feed range: 0.05 - 1.7mm/rev. (0.002" - 0.067"/rev)

Longitudinal Lead Screw size: 28mm Dia - 4 TPI

Longitudinal Feed Dial graduation: 0.1mm

Thread Cutting Pitches - Inches [tpi]: 72 - 2 (45 pitches)

Thread Cutting Pitches - Metric [mm]: 0.2 - 14 (42 pitches)

Diametrical Pitches [dp]: 8 - 44 (23 pitches)

Modular Pitches [metric]: 0.3 - 3.5 (18 pitches)

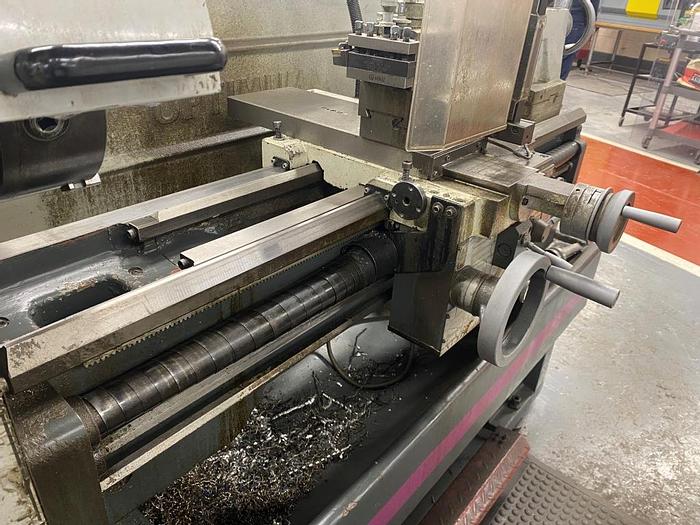

Operating Travel Cross Slide: 210 mm (8.27")

Cross Feed Range: 0.025 - 0.085mm/rev. (0.001" - 0.033"/rev)]

Cross Feed Lead Screw Size: 16mm Dia - 10 TPI

Cross Feed Dial Graduation: 0.02mm

Operating Travel Compound Slide:102 mm (4.02")

Adjustment Range of the Compound Slide: + - 90°

Compound Feed Lead Screw Size: 13mm Dia - 10 TPI

Compound Feed Dial Graduation: 0.02mm

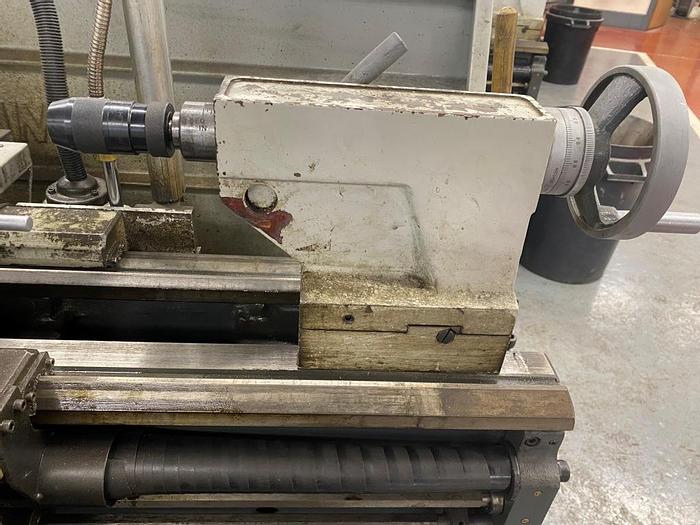

Tailstock Quill Taper: MT 4

Tailstock - Quill Diameter: 50 mm (1.97")

Tailstock Quill Travel: 120 mm (4.72")

Tailstock Cross Adjustment: + - 13 mm (0.5")

Tailstock feed Lead Screw Size: 16mm Dia - 10 TPI

Tool Post: Quick Change Tool Post

Max Turning Tool Size: 31 x 31mm

Power Requirement: 400V - 3 Phase

Motor Power: 4.5kW

Machine Dimensions: 2025 x 915 x 1375mm

Machine Weight: 1550kg
