2011 Optimum D420 x 1000DPA Manual Centre Lathe

1

Cork, Ireland

Sold

Description

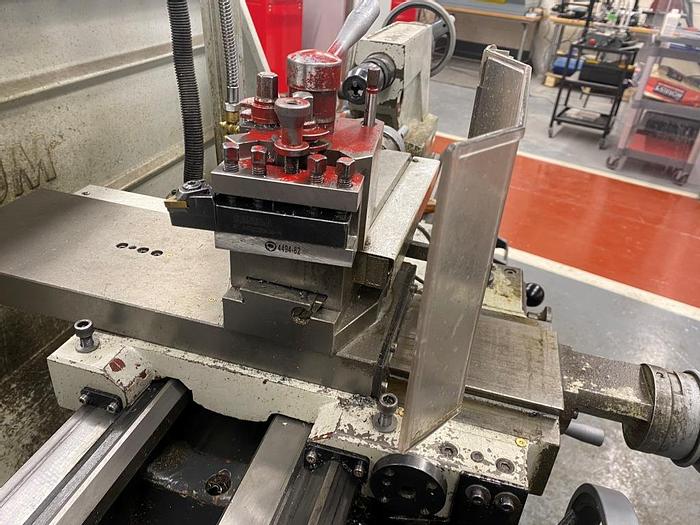

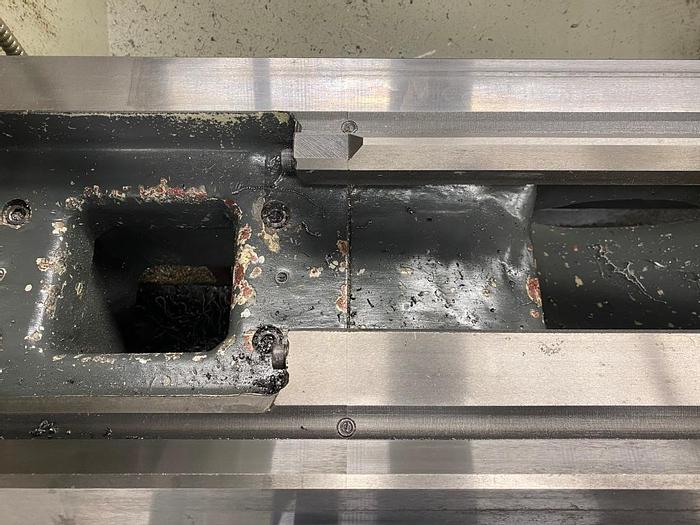

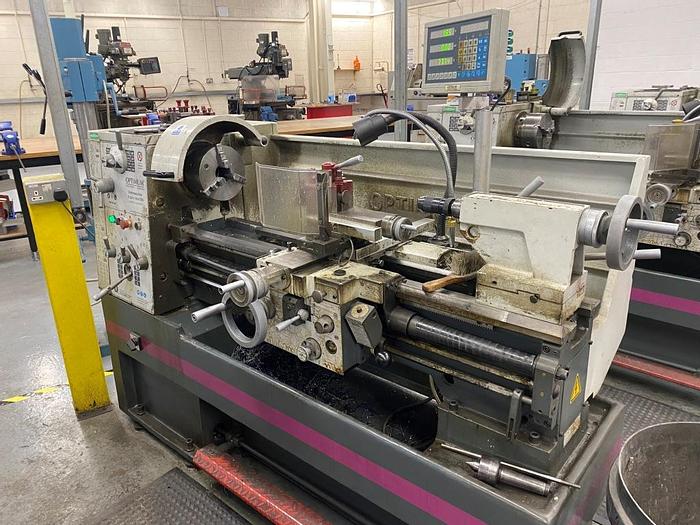

2011 Optimum D420 x 1000DPA Manual Centre Lathe


Machine Type: Manual Centre Lathe

Year: 2011

Condition: Very Good - Ex College Machine


Includes

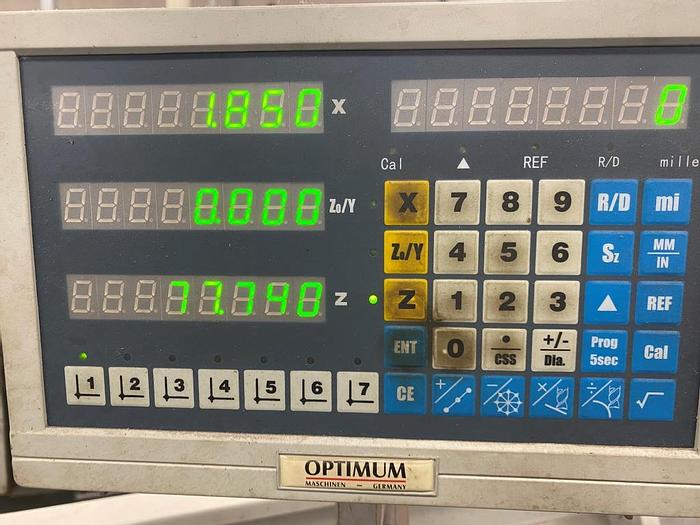

3 Axis DRO

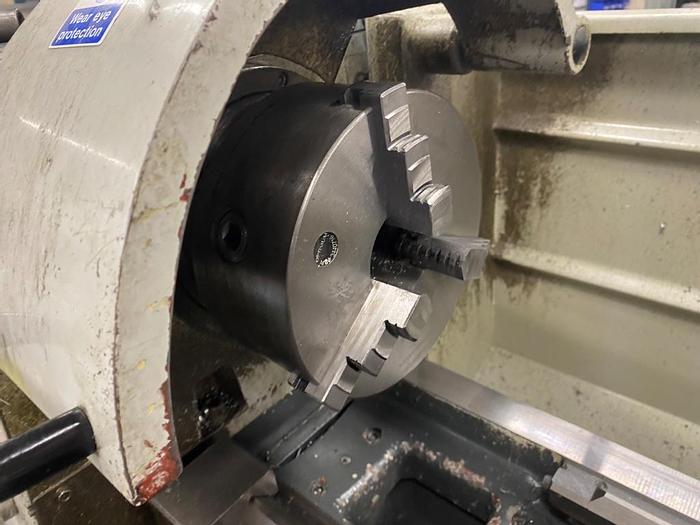

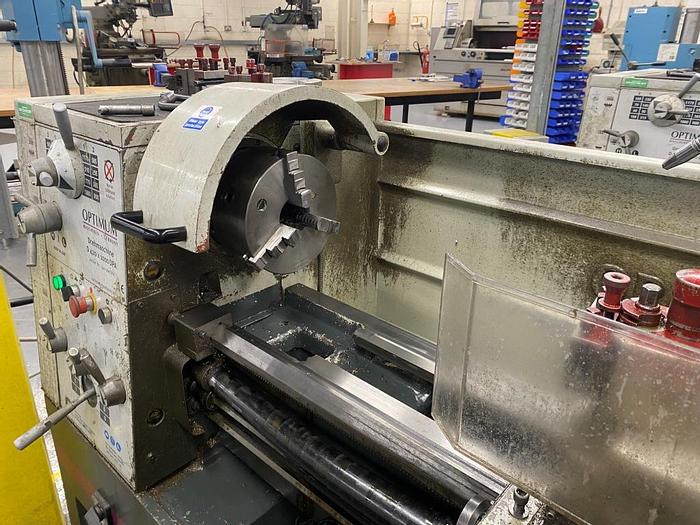

3 Jaw Chuck

4 Jaw Chuck

Set of Reverse Jaws

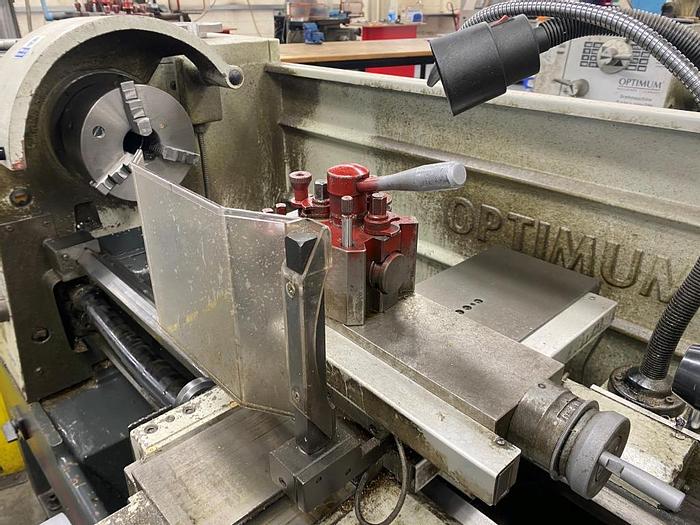

Quick Change Tool Post

Quick Change Tool Holders


Technical Details

Max Chuck Diameter: 200mm

Centre Height: 210mm

Distance Between Centres: 1000mm

Swing Over Bed: 420mm

Swing over Cross Slide: 255mm

Swing in Gap: 590mm

Length of Gap: 240mm

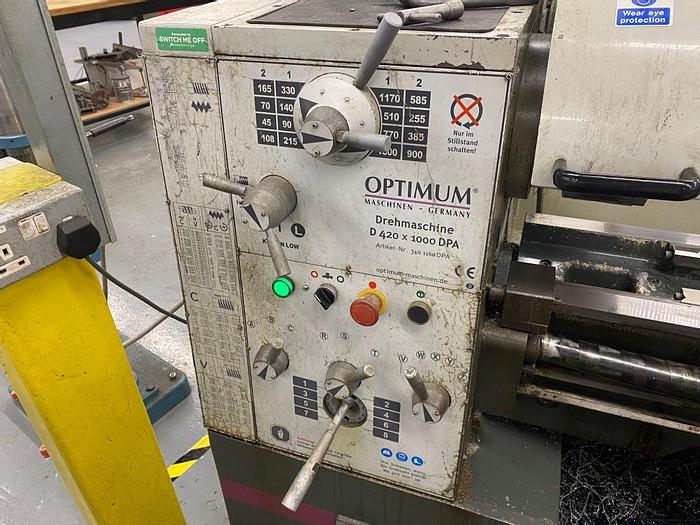

Spindle Speeds: 45-1800rpm

Speed Selections: 16

Spindle Taper: MT6

Spindle Nose: Camlock D1-6

Spindle Bore: 52mm

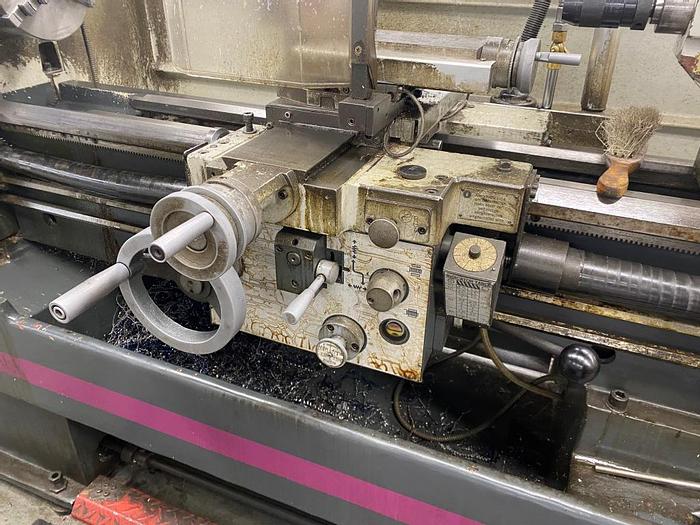

Longitudinal feed range: 0.05 - 1.7mm/rev. (0.002" - 0.067"/rev)

Longitudinal Lead Screw size: 28mm Dia - 4 TPI

Longitudinal Feed Dial graduation: 0.1mm

Thread Cutting Pitches - Inches [tpi]: 72 - 2 (45 pitches)

Thread Cutting Pitches - Metric [mm]: 0.2 - 14 (42 pitches)

Diametrical Pitches [dp]: 8 - 44 (23 pitches)

Modular Pitches [metric]: 0.3 - 3.5 (18 pitches)

Operating Travel Cross Slide: 210 mm (8.27")

Cross Feed Range: 0.025 - 0.085mm/rev. (0.001" - 0.033"/rev)]

Cross Feed Lead Screw Size: 16mm Dia - 10 TPI

Cross Feed Dial Graduation: 0.02mm

Operating Travel Compound Slide:102 mm (4.02")

Adjustment Range of the Compound Slide: + - 90°

Compound Feed Lead Screw Size: 13mm Dia - 10 TPI

Compound Feed Dial Graduation: 0.02mm

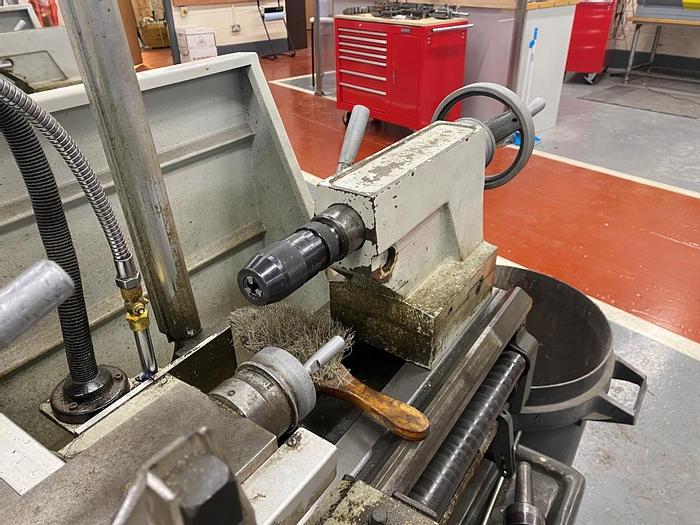

Tailstock Quill Taper: MT 4

Tailstock - Quill Diameter: 50 mm (1.97")

Tailstock Quill Travel: 120 mm (4.72")

Tailstock Cross Adjustment: + - 13 mm (0.5")

Tailstock feed Lead Screw Size: 16mm Dia - 10 TPI

Tool Post: Quick Change Tool Post

Max Turning Tool Size: 31 x 31mm


Power Requirement: 400V - 3 Phase

Motor Power: 4.5kW


Machine Dimensions: 2025 x 915 x 1375mm

Machine Weight: 1550kg

Specifications

ManufacturerOptimum
ModelD420 x 1000DPA Manual Centre Lathe
Year2011
ConditionUsed
Machine TypeManual Centre Lathe
Year2011
Max Chuck Diameter200mm
Centre Height210mm
Distance Between Centres1000mm
Swing Over Bed420mm
Swing over Cross Slide255mm
Swing in Gap590mm
Length of Gap240mm
Spindle Speeds45-1800rpm
Speed Selections16
Spindle TaperMT6
Spindle NoseCamlock D1-6
Spindle Bore52mm
Longitudinal Feed Dial graduation0.1mm
Operating Travel Cross Slide210 mm (8.27")
Cross Feed Dial Graduation0.02mm
Operating Travel Compound Slide102 mm (4.02")
Compound Feed Dial Graduation0.02mm
Tailstock Quill TaperMT 4
Tailstock - Quill Diameter50 mm (1.97")
Tailstock Quill Travel120 mm (4.72")
Tool PostQuick Change Tool Post
Max Turning Tool Size31 x 31mm
Power Requirement400V - 3 Phase
Motor Power4.5kW
Machine Weight1550kg
