1970 Blohm HFS 6 Surface Grinder
Sold
Description

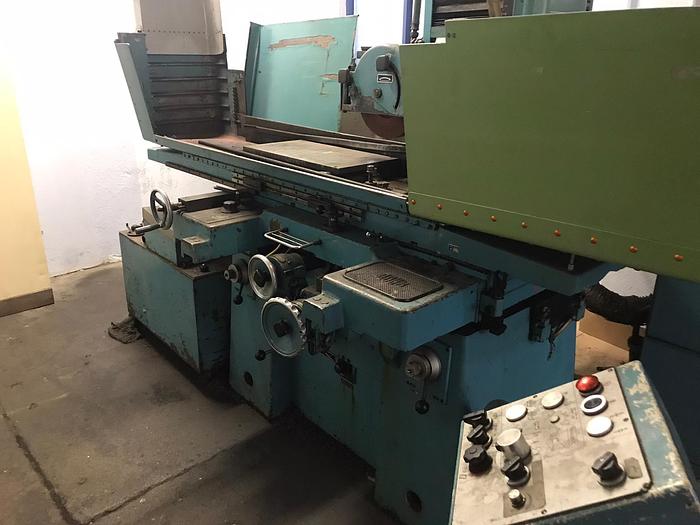

Blohm HFS 6 Surface Grinder
Machine Type: Surface Grinder
Year: 1970
Condition: Electrical Fault in X Axis Automatic Travel - all other features working well
Includes
Coolant Equipment
Magnetic Chuck
Technical Specifications
Max Grinding Length: 600mm
Max Grinding Width: 400mm
Magnetic Chuck Size: 600 x 300mm
Table Size: 1020 x 300mm
Table Travel: 650 x 350mm
Spindle Centre Height: 600mm
Spindle Speed: 1400/2800rpm
Grinding Wheel Size: 300(D) x 50(W) x 76(B)mm
Hydraulic Pump Motor: 2.2kW
Spindle Motor Power: 5kW
Machine Dimensions (approx): 3000 x 2200 x 2100mm
Machine Weight (approx) : 3000kg
Specifications
| Manufacturer | Blohm |
| Model | HFS 6 Surface Grinder |
| Year | 1970 |
| Condition | Used |
| Serial Number | 9284 |
| Machine Type | Surface Grinder |
| Year | 1970 |
| Max Grinding Length | 600mm |
| Max Grinding Width | 400mm |
| Magnetic Chuck Size | 600 x 300mm |
| Table Size | 1020 x 300mm |
| Table Travel | 650 x 350mm |
| Spindle Centre Height | 600mm |
| Spindle Speed | 1400/2800rpm |
| Hydraulic Pump Motor | 2.2kW |
| Spindle Motor Power | 5kW |
| Machine Weight (approx) | 3000kg |
