Jones & Shipman EIUR 1305 Universal Cylindrical Grinder

Used Jones & Shipman EIUR 1305 Universal Cylindrical Grinder

Machine Type: Universal ID/OD Cylindrical Grinder

Capacity: 254 x 1016mm (10" x 40")

Includes

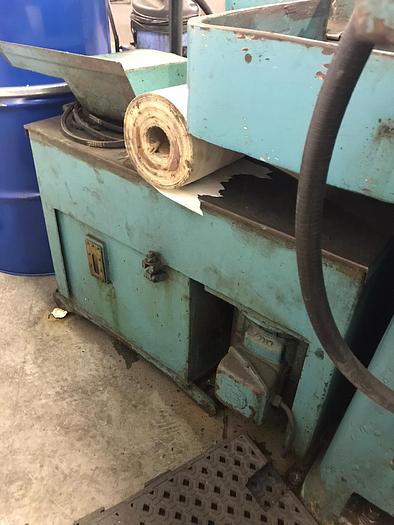

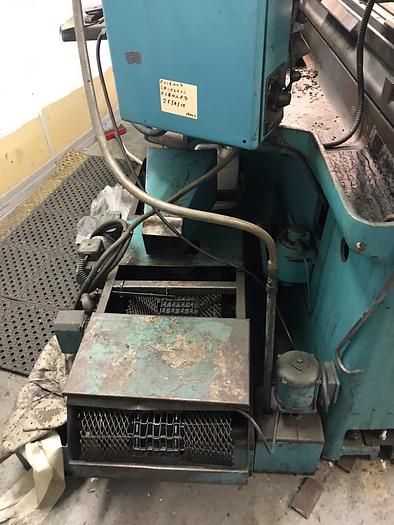

Coolant System with Filter

Workhead and Steady

Chuck

Technical Specifications

Max Grinding Diameter: 254mm (10")

Max Grinding Length Between Centers: 1016mm (40")

Centre Height: 127mm (5")

Table Adjustment: 17 Degrees

Table Traverse Feed: 76 to 4572mm/min

Table Cross Feed: 0.005 to 0.030mm/min

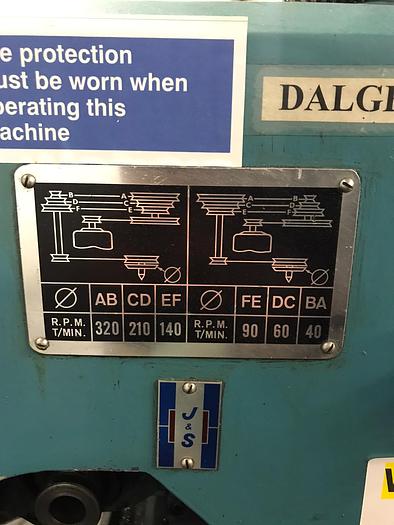

Workhead Speeds: (6) 40 - 320rpm

Vertical Traverse of Wheelhead: 159mm (6.25")

Cross Traverse of Wheelhead: 205mm

Wheel Spindle Centre Height: (max) 270mm

Wheel Spindle Centre Height: (min) 111mm

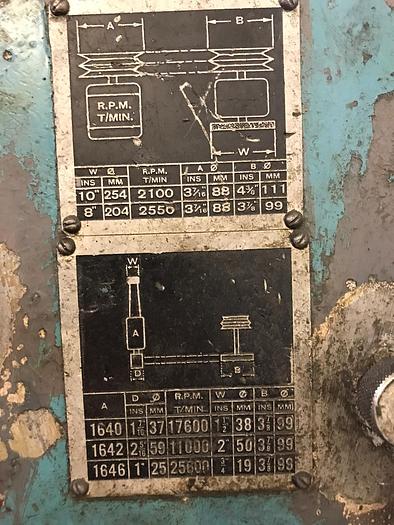

External Grinding Wheel Size: 254 x 25 x 76mm (10" x 1" x 3")

External Grinding Wheel Speed: 2350 - 2850rpm

Internal Grinding Wheel Diameter (No. 1660R.H.): 19 to 51mm

Internal Grinding Wheel Speed (No. 1660R.H.): 16000rpm

Wheel Head Motor: 2.2kW

Workhead Motor: 0.55kW

Hydraulic Pump Motor: 1.5kW

Machine Height: 1753mm

Machine Weight: 2440kg
