Cormak 460 x 1500 Manual Universal Lathe

Cormak 460 x 1500 Manual Universal Lathe

Machine Description

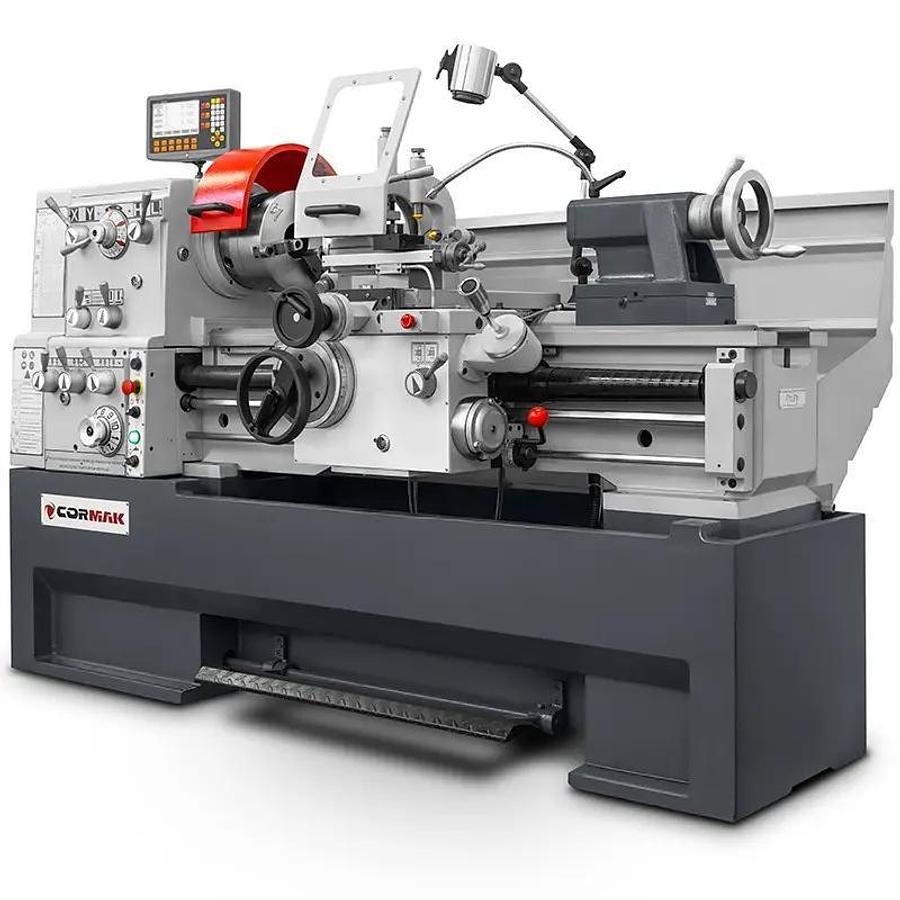

CORMAK 460x1500 is a professional universal lathe designed for precision machining of metal parts in industrial plants, workshops and toolrooms. With its rigid cast iron construction, large spindle bore and 3-axis digital readout, this conventional lathe ensures stability, repeatability and efficiency even in the most demanding applications.

Machine Features

Solid cast iron bed construction, hardened and precisely ground, provides excellent vibration damping and long service life.

Stable cast iron base ensures firm machine positioning and precise operation even under heavy loads.

Long turning length – 1500mm – allows machining of long workpieces in a single setup.

Spindle bore 80mm enables machining of pipes and shafts with large internal diameters.

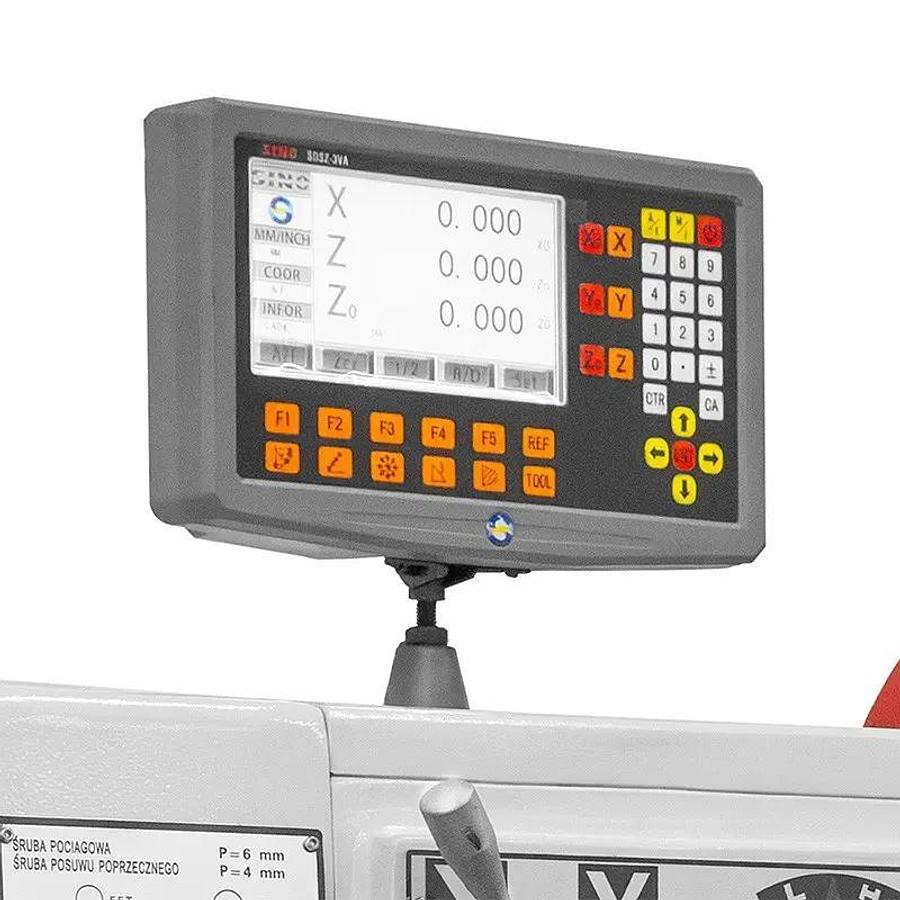

3-axis digital readout (optical scales) – full control of carriage position and operation repeatability.

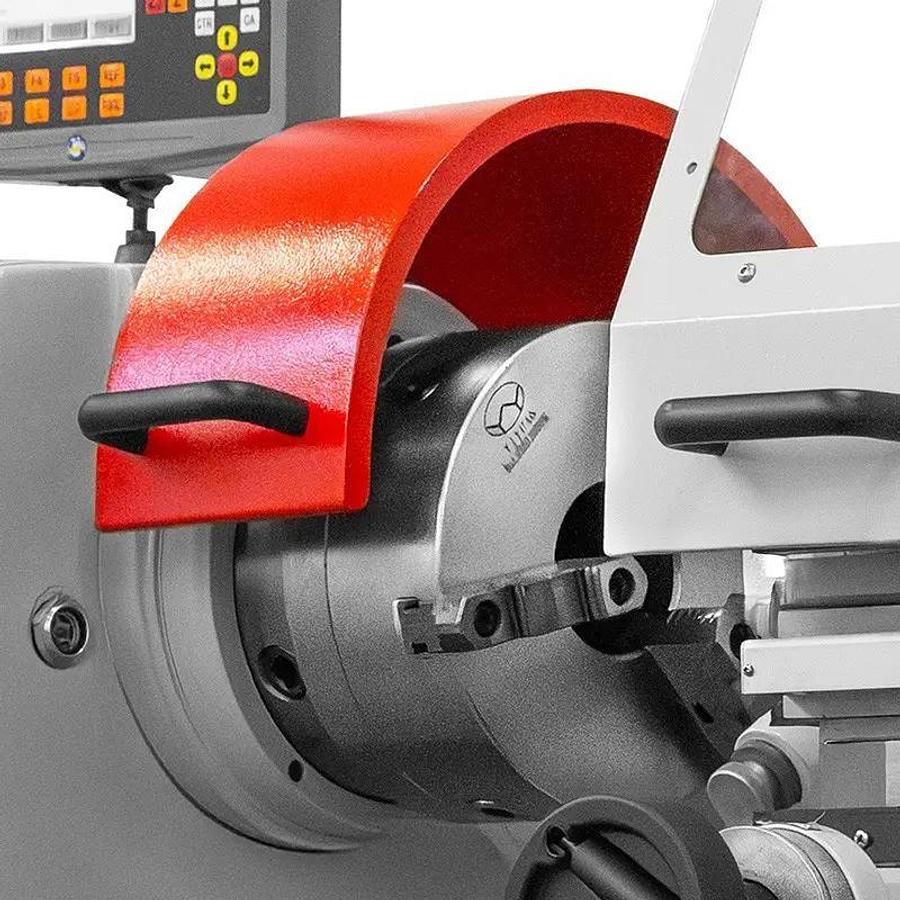

3-jaw chuck 250mm – fast workpiece clamping and high holding force.

High-quality spindle bearings – smooth and stable operation across all speed ranges.

5.5kW (S1) motor – reliable performance even in long machining cycles.

Rapid longitudinal and cross feed system – increases productivity and shortens cycle time.

Removable bed bridge – allows machining of workpieces up to 690mm in diameter.

Design and technology

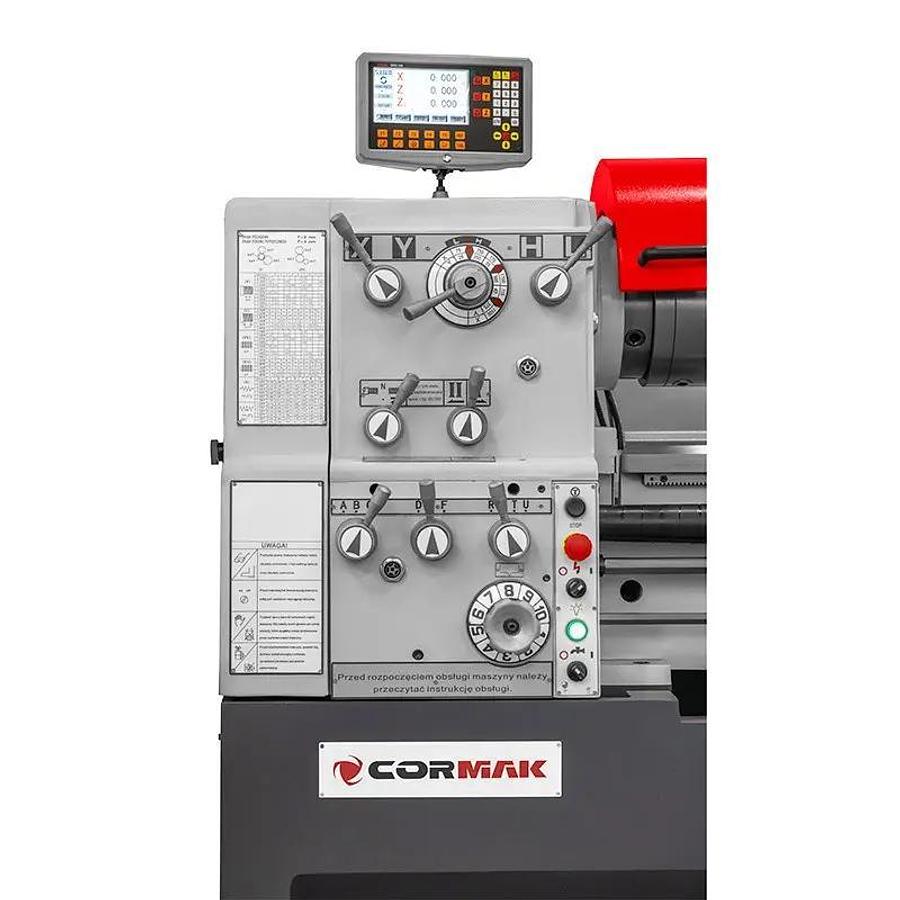

The CORMAK 460x1500 model is designed for intensive use. The large-bore spindle is mounted on reinforced bearings, driven by a multi-range gearbox with hardened and ground gears. Parameter control is conveniently operated from the ergonomic control panel. Thread cutting in a wide range (metric, inch, module, D.P.) without the need to change gears in the gearbox significantly increases operator efficiency.

Precision and performance

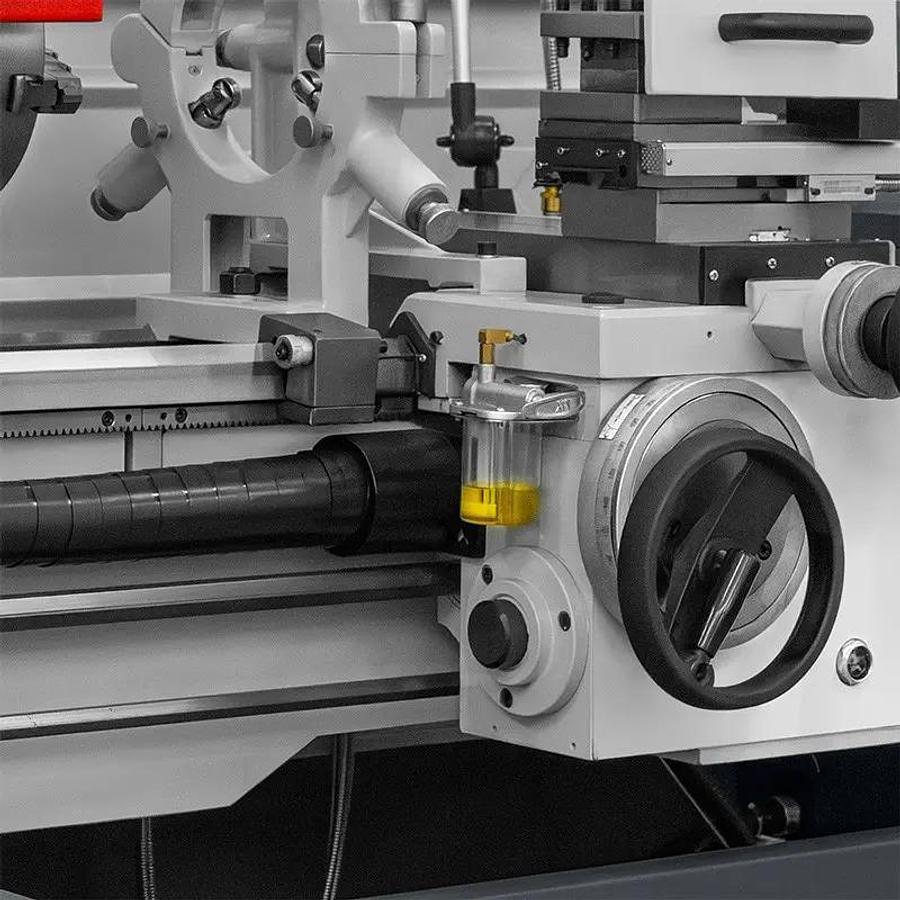

The machine is equipped with a leadscrew and feed shaft for automatic feeds and precise threading. The built-in threading dial indicator facilitates thread pitch reproduction and speeds up subsequent passes. The digital readout system provides full positioning control on all three axes, making it ideal for tasks requiring high precision and repeatability.

Standard Equipment

3 Axis DRO

250mm 3 Jaw self Centering Chuck

Fixed Steady

Travelling Steady

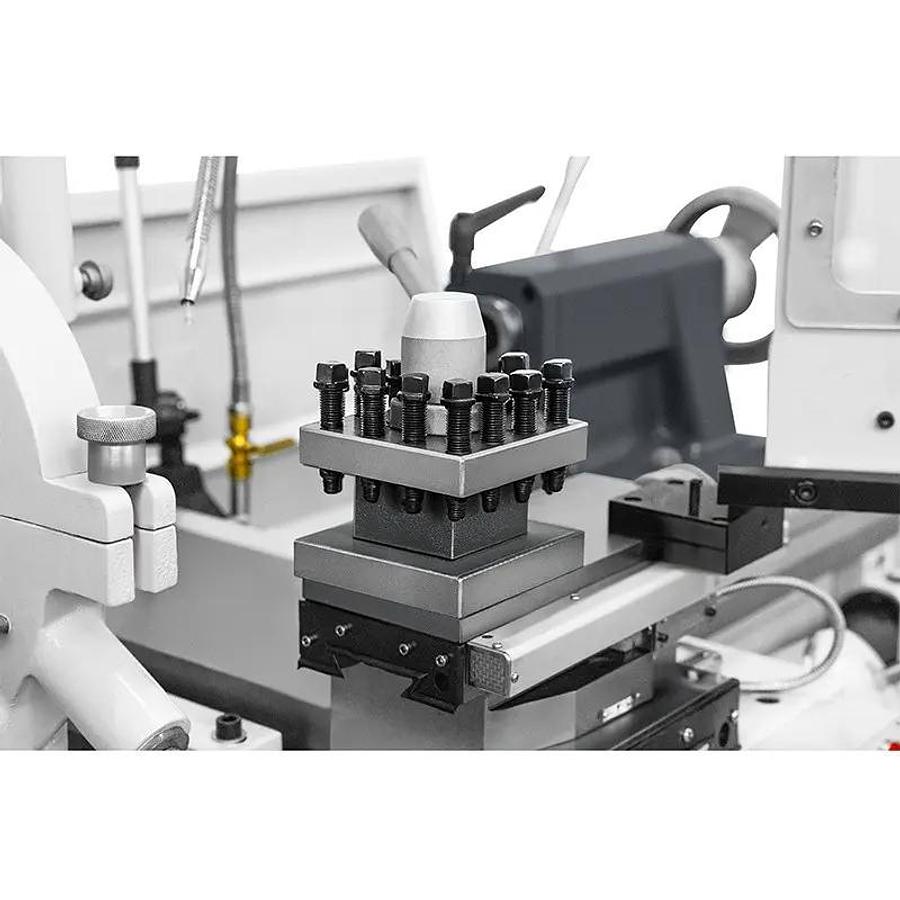

4 Way Tool Post

Removable Gap in Bed

Reducing Sleeve

Safety Foot Brake

Safety Guards

Coolant System

LED Work Light

Dead Center

Anti Vibration pads

Technical Details

Swing over bed: 460 mm

Swing over cross slide: 260 mm

Swing in gap: 690 mm

Centres distance: 1500 mm

Bed: inductively hardened

Bed width: 300 mm

Spindle bore diameter: 80 mm

Spindle nose: D1-8

Spindle Taper: MT7

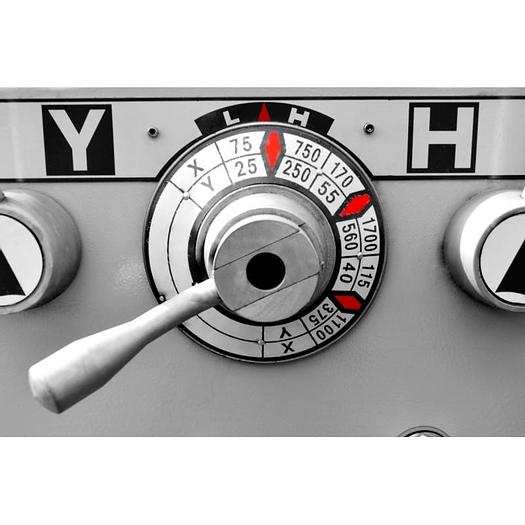

Spindle speed: (12) 25–1700 rpm

Speed Steps: 25, 40, 55, 75, 115, 170, 250, 375, 560, 750, 1100, 1700rpm

Maximum tool dimensions: 25×25 mm

Tool Post: 4 Way

Tool Post Dimensions: 110 x 110 x 42mm

Metric thread: (41) 0.1–14 mm

Inch thread: (60) 2–112 T.P.I.

Modular thread: 0.1–7 M.P (34)

D.P. thread: 4–112 D.P. (50)

Longitudinal feed range: (42) 0.031–1.7 mm/turn

Transverse feed range: (42) 0.014 – 0.784 mm/turn

Cross-Slide Travel: 295mm

Carriage Travel: 1,120mm

Top Slide Travel: 125mm

Rapid Feed: Yes, via Joystick

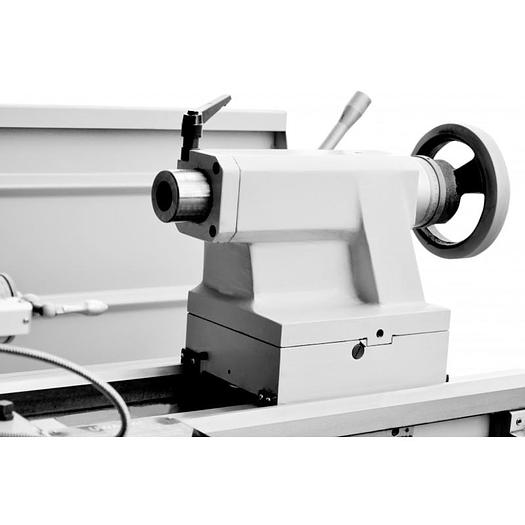

Tailstock quill diameter: 60 mm

Tailstock quill travel: 130 mm

Tailstock quill taper: MT4

Digital readout: in 3 axes

Main motor power: 5.5 kW

Flood coolant pump power: 0.1 kW

Dimensions: 2700 × 1080 × 1650mm

Net weight: 2125 kg
